303-00-1 6 Engine System - General Information 303-00-1 6
DIAGNOSIS AND TESTING

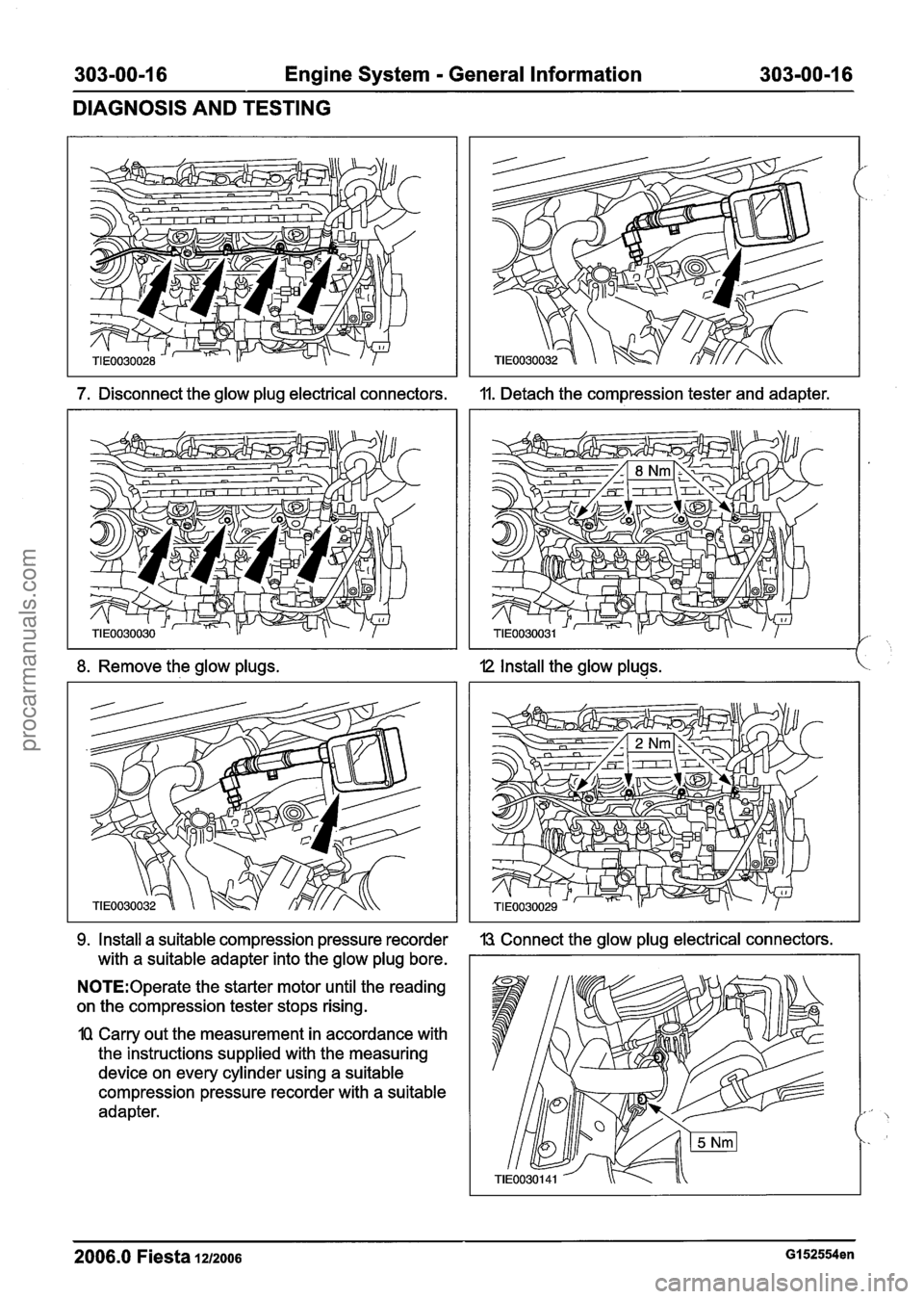

7. Disconnect the glow plug electrical connectors.
8. Remove the glow plugs.
9, Install a suitable compression pressure recorder
with a suitable adapter into the glow plug bore.
N0TE:Operate the starter motor until the reading
on the compression tester stops rising.
1Q Carry out the measurement in accordance with
the instructions supplied with the measuring
device on every cylinder using a suitable
compression pressure recorder with a suitable
adapter. 11.
Detach the compression tester and adapter.
I2 Install the glow plugs.
13 Connect the glow plug electrical connectors.
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-1 7 Engine System - General Information 303-00-1 7
DIAGNOSIS AND TESTING
14. N0TE:Check the EGR tube O-ring seal.
Install a new seal
if necessary. I
, Install the EGR tube to the intake manifold
assembly.
18 Connect the fuel injector wiring harness main
connector.
19 Install the air cleaner.
REFER to: Air Cleaner
- 1.4L Duratorq-TDCi
15 Attach the EGR tube to the cylinder block and (DV) Diesel (303-12 Intake Air Distribution
and
to the EGR valve (if equipped). Filtering, Removal
and Installation).
Using worldwide diagnostic system (WDS), clear
the fault codes from the PCM.
Measure the compression pressure
Engine
- 1.6L Duratorq-TDCi (DV)
biesel)
WARNINGS:
A Do not smoke or carry lighted tobacco or
open flame of any type when working on
or near any fuel related components.
Highly flammable mixtures are always
16 Attach the EGR tube to the EGR cooler (if present and can ignite. Failure to follow
equipped). these instructions may result in personal
injury.
Do not carry out any repairs to the fuel
injection system without checking that the
fuel pressure has dropped to zero and that
the fuel temperature has either reached
ambient temperature or is below
30' C,
whichever is the greater. Failure to follow
these instructions may result in personal
injury.
I. Using datalogger in world wide diagnostic
system (WDS), check that the fuel pressure has
dropped to zero and that the fuel temperature
17. Connect the glow plug relay electrical connector. has
either reached ambient temperature or is
below 30°C, whichever is the greater.
2. Raise and support the vehicle. REFER to:
(1 00-02 Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-1 8 Engine System - General Information 303=00-18
DIAGNOSIS AND TESTING
3. Remove the engine undershield.
4. Remove the radiator undershield.
7. Remove the engine upper cover.
<
8m ~CAUTION:DO not disconnect the fuel
injection pump electrical connectors and
crank the engine.
Disconnect the fuel injector electrical
connectors.
9. Detach the exhaust gas recirculation (EGR)
cooler (if equipped) and position it to one side.
5. Remove the glow plug relay.
6. Lower the vehicle.
1Q Remove the glow plug power supply.
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-1 9 Engine System - General Information 303-00-1 9
DIAGNOSIS AND TESTING
11. Remove the glow plugs. 16 Install the glow plug power supply.
I ' I2 Install the special tool and a suitable IT Attach the EGR cooler (if equipped).
compression tester into the glow plug bore.
N0TE:Crank the engine with the starter motor until
the reading on the compression tester stops rising.
13 Carry out the measurement on all cylinders,
following the measuring equipment
manufacturer's instructions.
$4 Detach the compression tester and the special
tool.
15 Install the glow plugs.
18. Connect the fuel injector electrical connectors.
I
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-20 Engine System - General Information 303-00-20
DIAGNOSIS AND TESTING

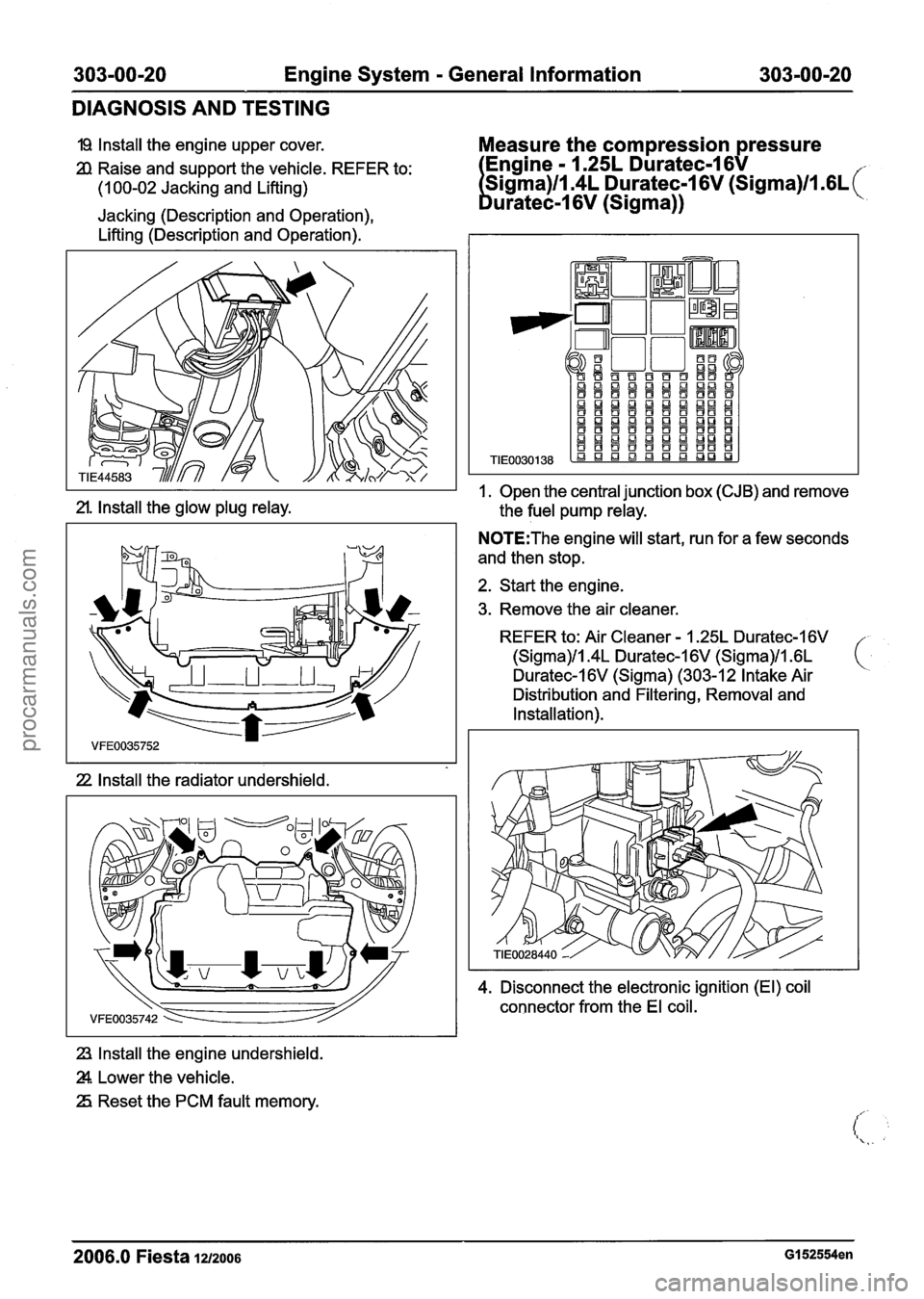

I9 Install the engine upper cover. Measure the compression pressure
2l Raise and support the vehicle. REFER to: - 1.25L Duratec-1 6V
(1 00-02 Jacking and Lifting) 6V (sigrna)/l .GL (
Jacking (Description and Operation),
Lifting (Description and Operation).
2l. Install the glow plug relay.
22 Install the radiator undershield.
23, Install the engine undershield.
Z. Lower the vehicle.
25 Reset the PCM fault memory.
I. Open the central junction box (CJB) and remove
the
fuel pump relay.
N0TE:The engine will start, run for a few seconds
and then stop.
2. Start the engine.
3. Remove the air
cleaner.
REFER to: Air Cleaner - 1.25L Duratec-1 6V
(Sigma)/l.4L Duratec-1 6V (Sigma)ll .6L ( Duratec-I 6V (Sigma) (303-1 2 Intake Air
Distribution and
Filtering, Removal and
Installation).
4. Disconnect the electronic ignition (El) coil
connector from the El coil.
- -- - - -
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-21 Engine System - General Information 303-00-21
DIAGNOSIS AND TESTING

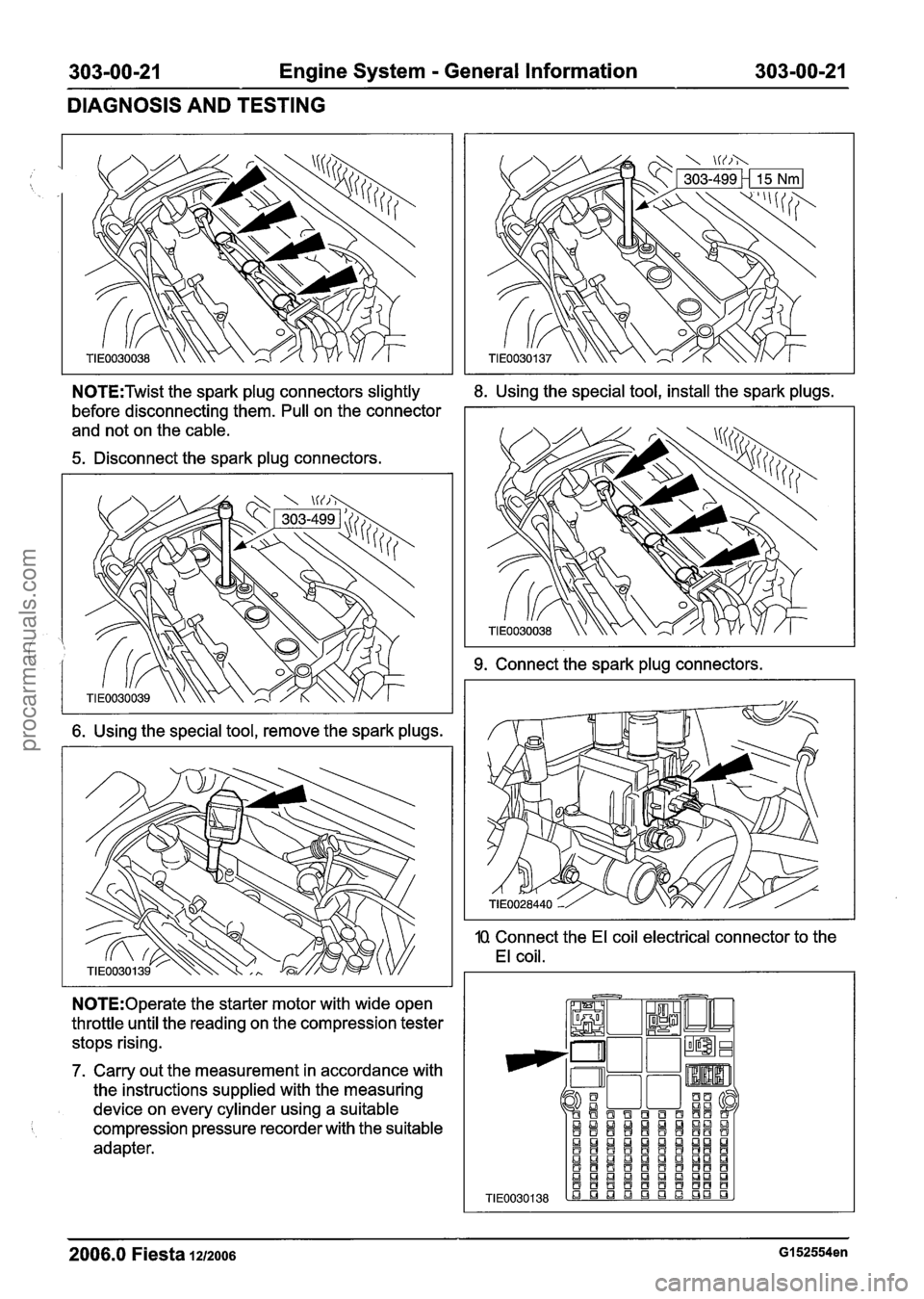

N0TE:Twist the spark plug connectors slightly 8. Using the special tool, install the spark plugs.
before disconnecting them. Pull on the connector
and not on the cable.
5. Disconnect the spark plug connectors.
6. Using the special tool, remove the spark plugs.
N0TE:Operate the starter motor with wide open
throttle until the reading on the compression tester
stops rising.
7. Carry out the measurement in accordance with
the instructions supplied with the measuring
device on every cylinder using a suitable
compression pressure recorder with the suitable
adapter.
9. Connect the spark plug connectors.
10 Connect the El coil electrical connector to the
El coil.
2006.0 Fiesta 1212006 GI 52554en
TIE0030138
QI!J!J!J~QUQI!J!J aaaaaaaaaa aBQnQIamman aBBaaaBBt3B a!JQ!JaLlnQma aaaaaaBBaf3 aaQaaQmQDa ~a~f3~B~~~B .a q q q L! q gD
procarmanuals.com

303-00-22 Engine System - General Information 303-00-22
DIAGNOSIS AND TESTING
11. Install the fuel pump relay.
I2 Install the air cleaner.
REFER to: Air Cleaner - 1.25L Duratec-1 6V
(Sigma)/l.4L Duratec-16V (Sigma)/l .6L
Duratec-I 6V (Sigma) (303-1 2 Intake Air
Distribution and
Filtering, Removal and
Installation).
13 Using worldwide diagnostic system (WDS), clear
the fault codes from the PCM.
Measure the compression ressure
(Engine

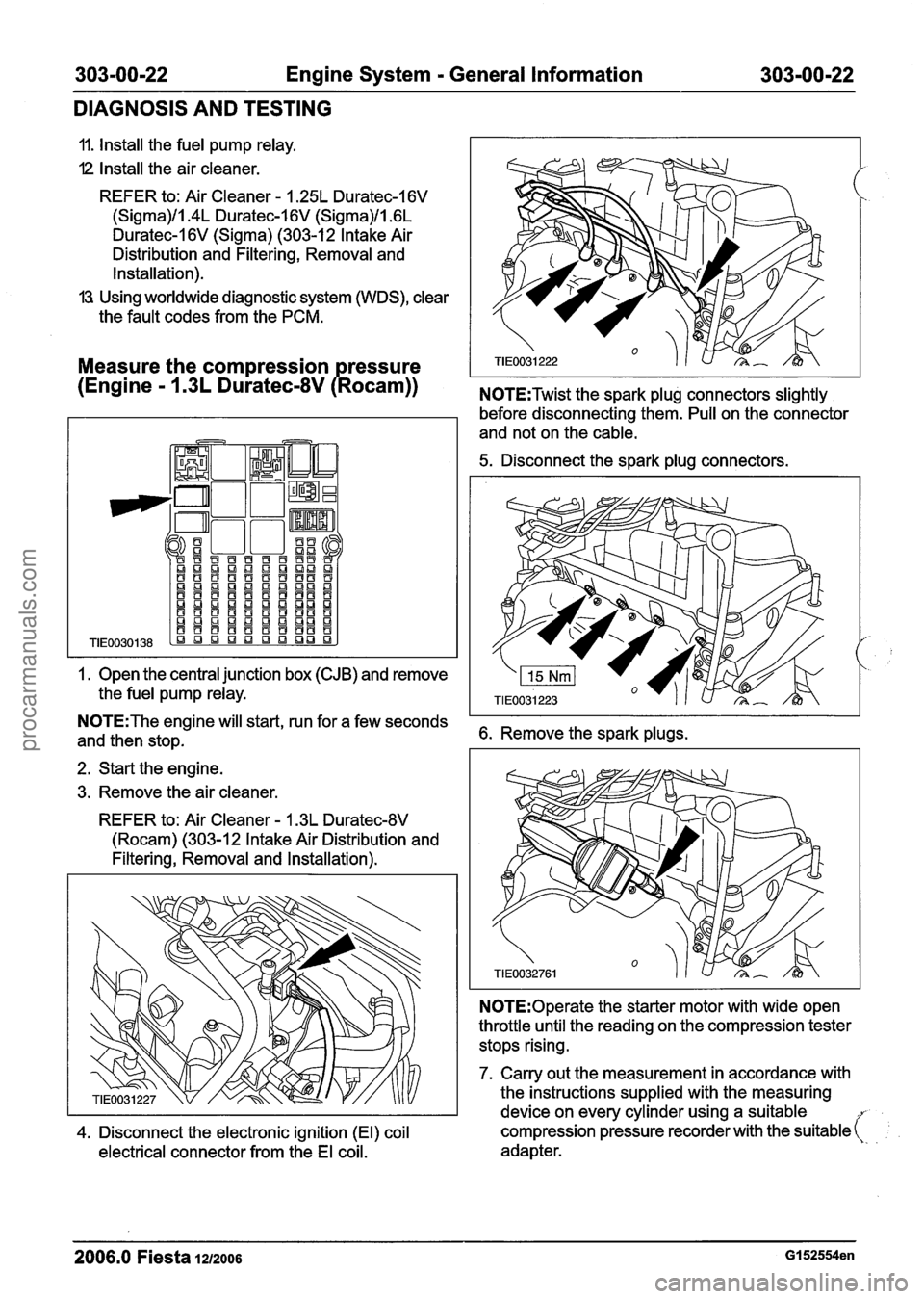

- 1 .3L Duratec-8V P Rocam)) N0TE:Twist the spark plug connectors slightly
1. Open the
central junction box (CJB) and remove
the
fuel pump relay.
before disconnecting them. Pull on the connector
and not on the
cable.
5. Disconnect the spark plug connectors.
N0TE:The engine will start, run for a few seconds
and then stop. 6. Remove the spark plugs.
2. Start the engine.
3. Remove the air
cleaner.
REFER to: Air Cleaner - 1.3L Duratec-8V
(Rocam) (303-12 Intake Air Distribution and
Filtering, Removal and Installation).
N0TE:Operate the starter motor with wide open
throttle until the reading on the compression tester
stops rising.
7. Carry out the measurement in accordance with
the instructions
supplied with the measuring
device on every
cylinder using a suitable
4. Disconnect the electronic ignition (El) coil compression pressure recorder
with the suitable (:
electrical connector from the El coil. adapter.
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-23 Engine System - General Information 303-00-23
DIAGNOSIS AND TESTING

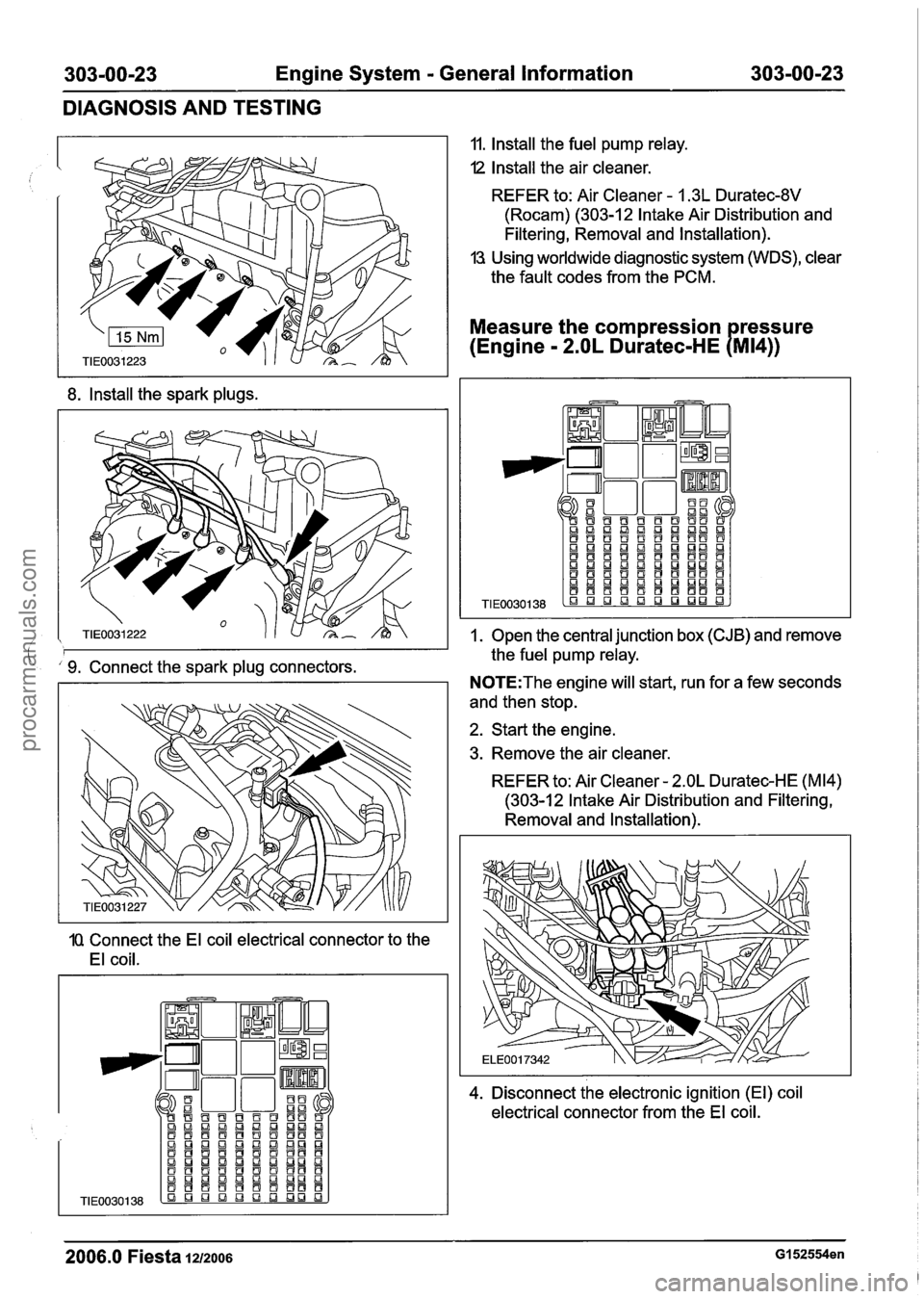

8. Install the spark plugs.
9. Connect the spark plug connectors.
1Q Connect the El coil electrical connector to the
El coil. 11.
Install the fuel pump relay.
I2 Install the air cleaner.
REFER to: Air Cleaner
- 1.3L Duratec-8V
(Rocam) (303-1 2 Intake Air Distribution and
Filtering, Removal and Installation).
13 Using worldwide diagnostic system (WDS), clear
the fault codes from the PCM.
Measure the compression ressure
(Engine
- 2.OL Duratec-HE PMI~))
1. Open the central junction box (CJB) and remove
the fuel pump relay.
N0TE:The engine will start, run for a few seconds
and then stop.
2. Start the engine.
3. Remove the air cleaner.
REFER to: Air Cleaner
- 2.OL Duratec-HE (M14)
(303-1 2 Intake Air Distribution and Filtering,
Removal and Installation).
4. Disconnect
the electronic ignition (El) coil
electrical connector from the El coil.
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-24 Engine System - General Information 303-00-24
DIAGNOSIS AND TESTING
N0TE:Twist the spark plug connectors slightly
before disconnecting them. Pull on the connector
and not on the cable.
5. Using the special tool, remove the spark plug
connectors.
6. Using the special tool, remove the spark plugs.
N0TE:Operate the starter motor with wide open
throttle until the pointer on the measuring device stops rising.
7. Carry out the measurement in accordance with
the instructions supplied with the measuring
device on every cylinder using compression
pressure recorder 623.000.1 01 with the suitable
adapter.
8. Using the special tool, install the spark plugs.
9. Install the spark plug connectors. k
1Q Connect the El coil electrical connector to the
El coil.
TIE
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-25 Engine System - General Information 303-00-25
DIAGNOSIS AND TESTING
11. Install the fuel pump relay.
-. 12 Install the air cleaner.
REFER to: Air Cleaner
- 2.OL Duratec-HE (M14)
(303-12 Intake Air Distribution and Filtering,
Removal and Installation).
13 Reset the PCM fault memory.

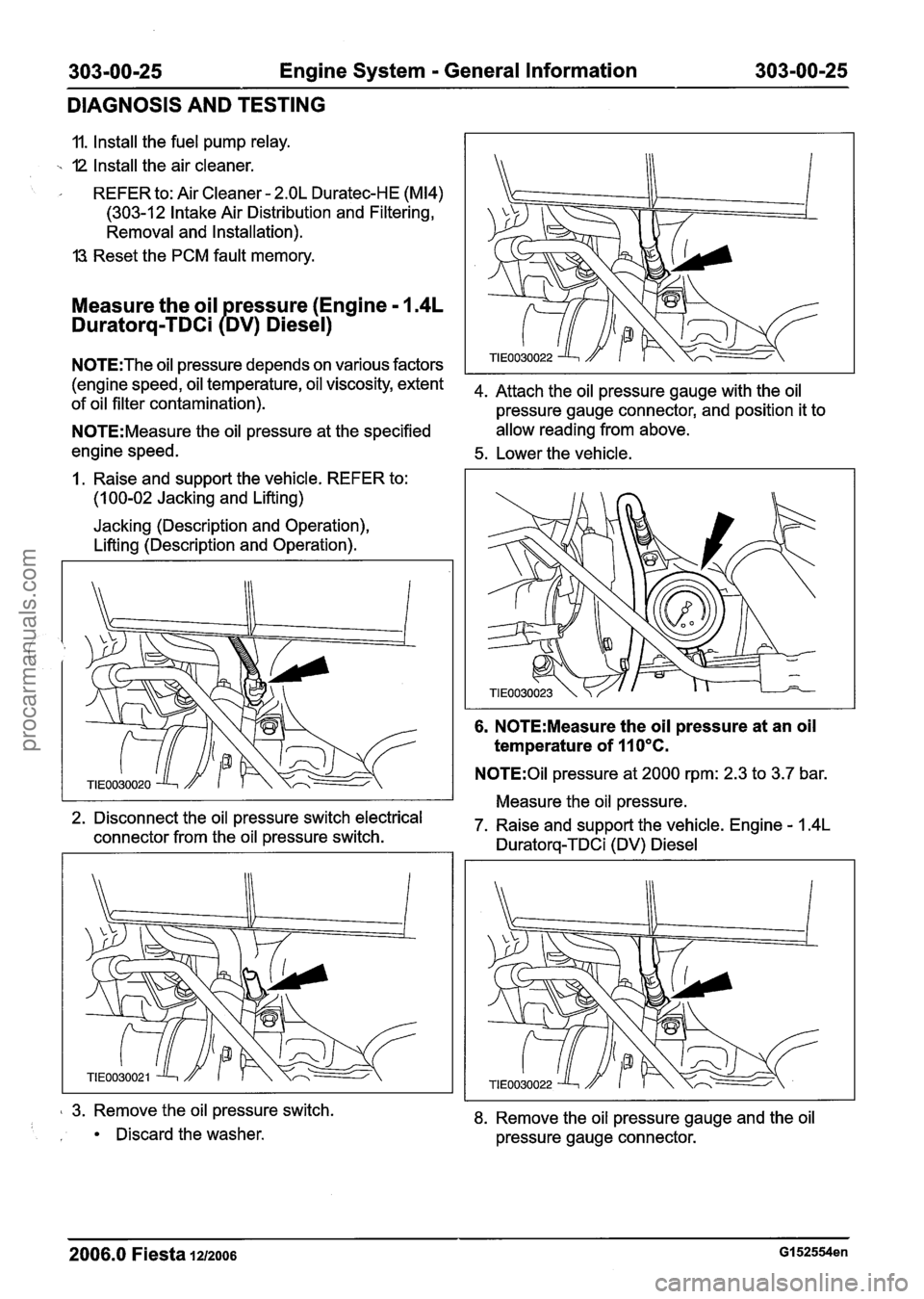

Measure the oil ressure (Engine - 1.4L
Duratorq-TDCi PDv) Diesel)
N0TE:The oil pressure depends on various factors
(engine speed, oil temperature, oil viscosity, extent
4m Attach the oil pressure gauge with the oil of oil filter contamination).
pressure gauge connector, and position it to
N0TE:Measure the oil pressure at the specified allow reading
from above.
engine speed.
5. Lower the vehicle.
I. Raise and support the vehicle. REFER to:
(1 00-02 Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
6. N0TE:Measure the oil pressure at an oil
temperature of 410°C.
N0TE:OiI pressure at 2000 rpm: 2.3 to 3.7 bar.
Measure the oil pressure.
2. Disconnect the oil pressure switch electrical
7. Raise and support the vehicle. Engine
- 1.4L connector from the oil pressure switch.
Duratorq-TDCi (DV) Diesel
3. Remove the oil pressure switch.
Discard the washer.
8. Remove the oil pressure gauge and the oil
pressure gauge connector.
2006.0 Fiesta 1212006 GI 52554en
