Manual TransmissionlTransaxle and Clutch -
308-00-7 General Information 308-00-7
DIAGNOSIS AND TESTING
TEST CONDITIONS DETAl LSIRESU LTSIACTIONS
PINPOINT TEST
B : CLUTCH CHATTER OR SHUDDER
TEST CONDITIONS
DETAILSIRESU LTSIACTIONS

B1: TEST FOR CLUTCH SHUDDER
Start the engine.
Engage the clutch and select fourth gear.
Run the engine at approximately 2000 rpm.

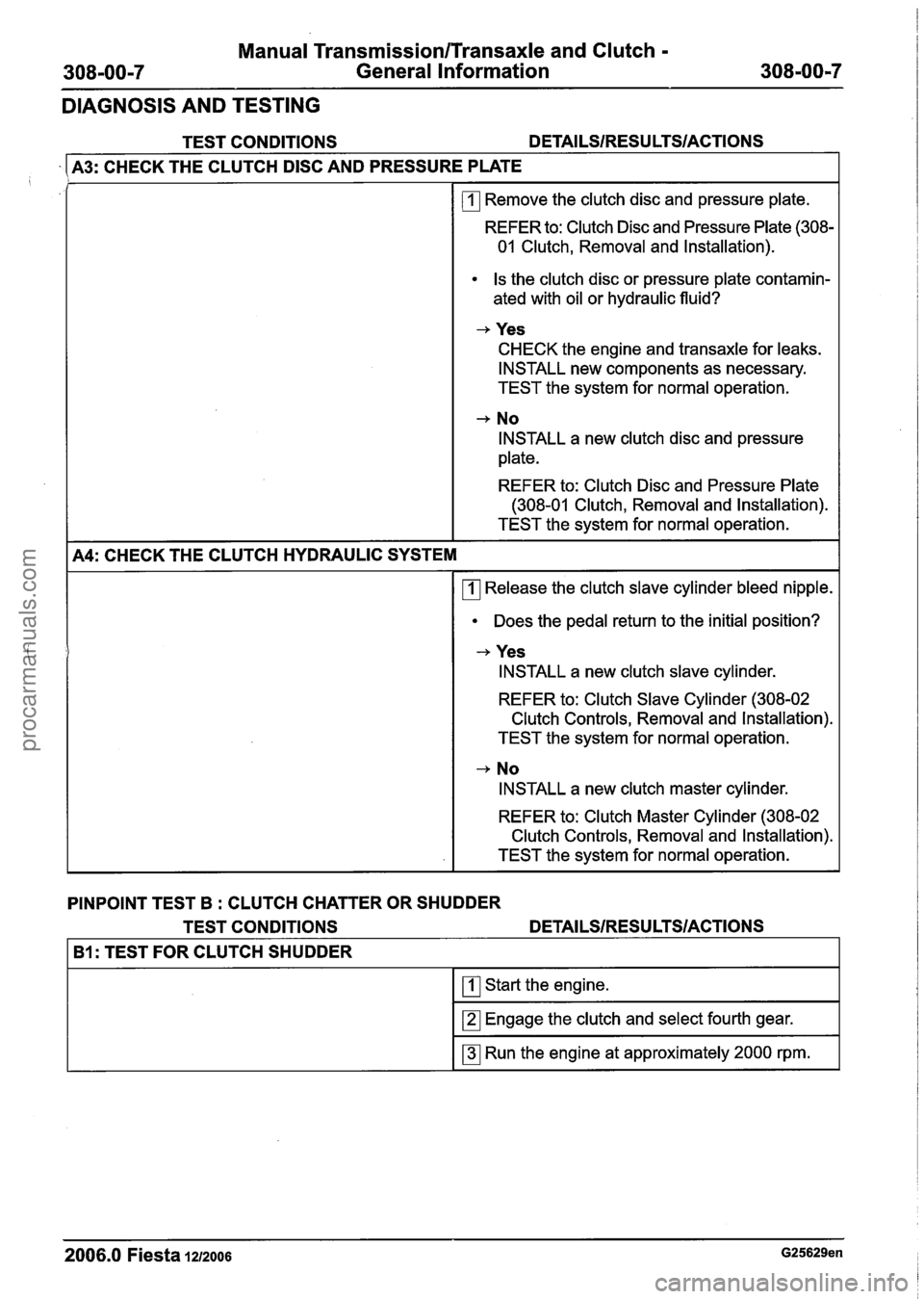

A3: CHECK THE CLUTCH DISC AND PRESSURE PLATE
rn Remove the clutch disc and pressure plate.
REFER to: Clutch Disc and Pressure Plate
(308-
01 Clutch, Removal and lnstallation).
Is the clutch disc or pressure plate contamin-
ated with oil or hydraulic fluid?
-+ Yes
CHECK the engine and transaxle for leaks.
INSTALL new components as necessary.
TEST the system for normal operation.
-+ No
INSTALL a new clutch disc and pressure
plate.
REFER to: Clutch Disc and Pressure Plate
(308-01 Clutch, Removal and lnstallation).
TEST the system for normal operation.
A4: CHECK THE CLUTCH HYDRAULIC SYSTEM
rn Release the clutch slave cylinder bleed nipple.
Does the pedal return to the initial position?
--+ Yes
INSTALL a new clutch slave cylinder.
REFER to: Clutch Slave Cylinder (308-02
Clutch Controls, Removal and Installation).
TEST the system for normal operation.
--+ No
INSTALL a new clutch master cylinder.
REFER to: Clutch Master Cylinder (308-02
Clutch Controls, Removal and lnstallation).
TEST the system for normal operation.
2006.0 Fiesta 1212006 G25629en
procarmanuals.com

Manual Transmission/Transaxle and Clutch -
General Information
DIAGNOSIS AND TESTING
TEST CONDITIONS

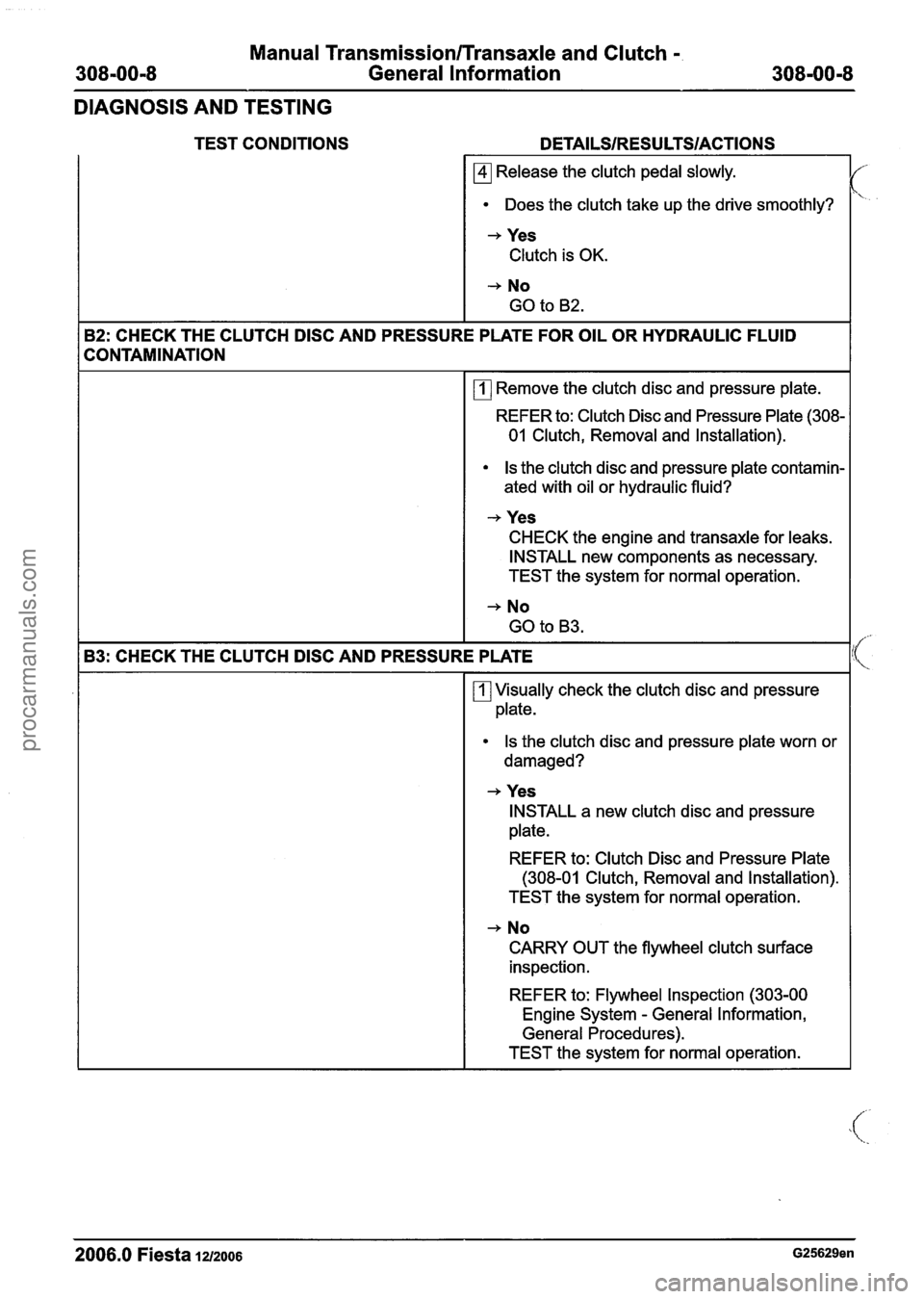

Release the clutch pedal slowly.
Does the clutch take up the drive smoothly?
-+ Yes
Clutch is OK.
-+ No
GO to
B2.
B2: CHECK THE CLUTCH DlSC AND PRESSURE PLATE FOR OIL OR HYDRAULIC FLUID
CONTAMINATION
rn Remove the clutch disc and pressure plate.
REFER to: Clutch Disc and Pressure Plate (308-
01 Clutch, Removal and Installation).
Is the clutch disc and pressure plate contamin-
ated with oil or hydraulic fluid?
-+ Yes
CHECK the engine and transaxle for leaks.
INSTALL new components as necessary.
TEST the system for normal operation.
-+ No
GO to B3.
B3: CHECK THE CLUTCH
DlSC AND PRESSURE PLATE
rn Visually check the clutch disc and pressure
plate.
Is the clutch disc and pressure plate worn or
damaged?
-+ Yes INSTALL a new clutch disc and pressure
plate.
REFER to: Clutch Disc and Pressure Plate
(308-01 Clutch, Removal and Installation).
TEST the system for normal operation.
-+ No
CARRY OUT the flywheel clutch surface
inspection.
REFER to: Flywheel Inspection (303-00
Engine System
- General Information,
General Procedures).
TEST the system for normal operation.
2006.0 Fiesta 12/2006 G25629en
procarmanuals.com

Manual Transmission/Transaxle and Clutch -
General Information
DIAGNOSIS AND TESTING

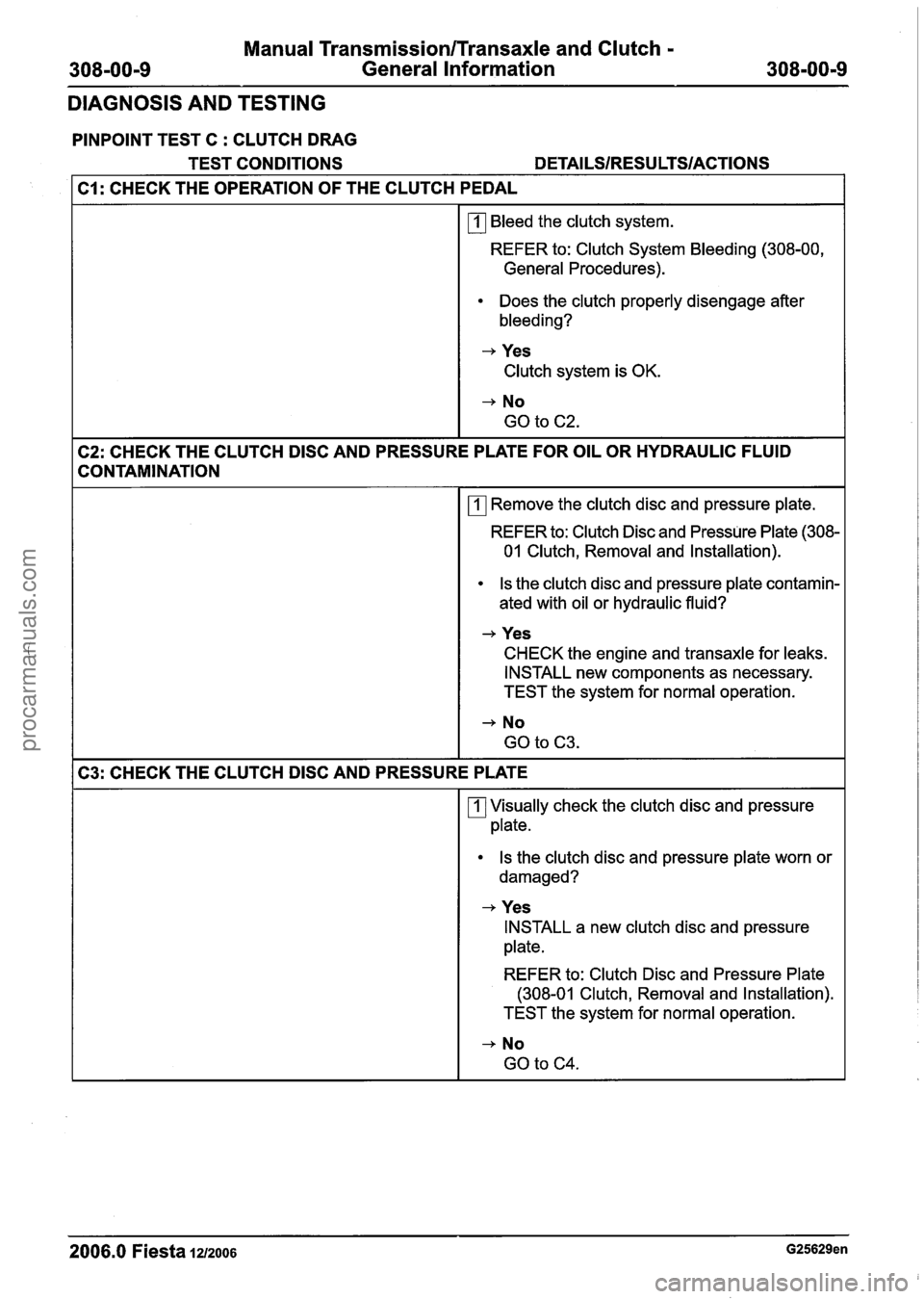

PINPOINT TEST C : CLUTCH DRAG
TEST CONDITIONS
Cl: CHECK THE OPERATION OF THE CLUTCH PEDAL
rn Bleed the clutch system.
REFER to: Clutch System Bleeding (308-00,
General Procedures).
Does the clutch properly disengage after
bleeding?
-, Yes
Clutch system is OK.
+ No
GO to C2.
C2: CHECK THE CLUTCH DlSC AND PRESSURE PLATE FOR OIL OR HYDRAULIC FLUID
CONTAMINATION
rn Remove the clutch disc and pressure plate.
REFER to: Clutch Disc and Pressure Plate
(308-
01 Clutch, Removal and Installation).
Is the clutch disc and pressure plate contamin-
ated with oil or hydraulic fluid?
+ Yes
CHECK the engine and transaxle for leaks.
INSTALL new components as necessary.
TEST the system for normal operation.
+ No
GO to C3.
C3: CHECK THE CLUTCH DlSC AND PRESSURE PLATE
Visually check the clutch disc and pressure
plate.
Is the clutch disc and pressure plate worn or
damaged?
-, Yes
INSTALL a new clutch disc and pressure
plate.
REFER to: Clutch Disc and Pressure Plate
(308-01 Clutch, Removal and Installation).
TEST the system for normal operation.
-, No
GO to C4.
2006.0 Fiesta 1212006 G25629en
procarmanuals.com

Manual Transmission/Transaxle and Clutch -
308-00-1 0 General Information 308-00-1 0
DIAGNOSIS
AND TESTING
TEST CONDITIONS DETAILSIRESU LTSIACTIONS

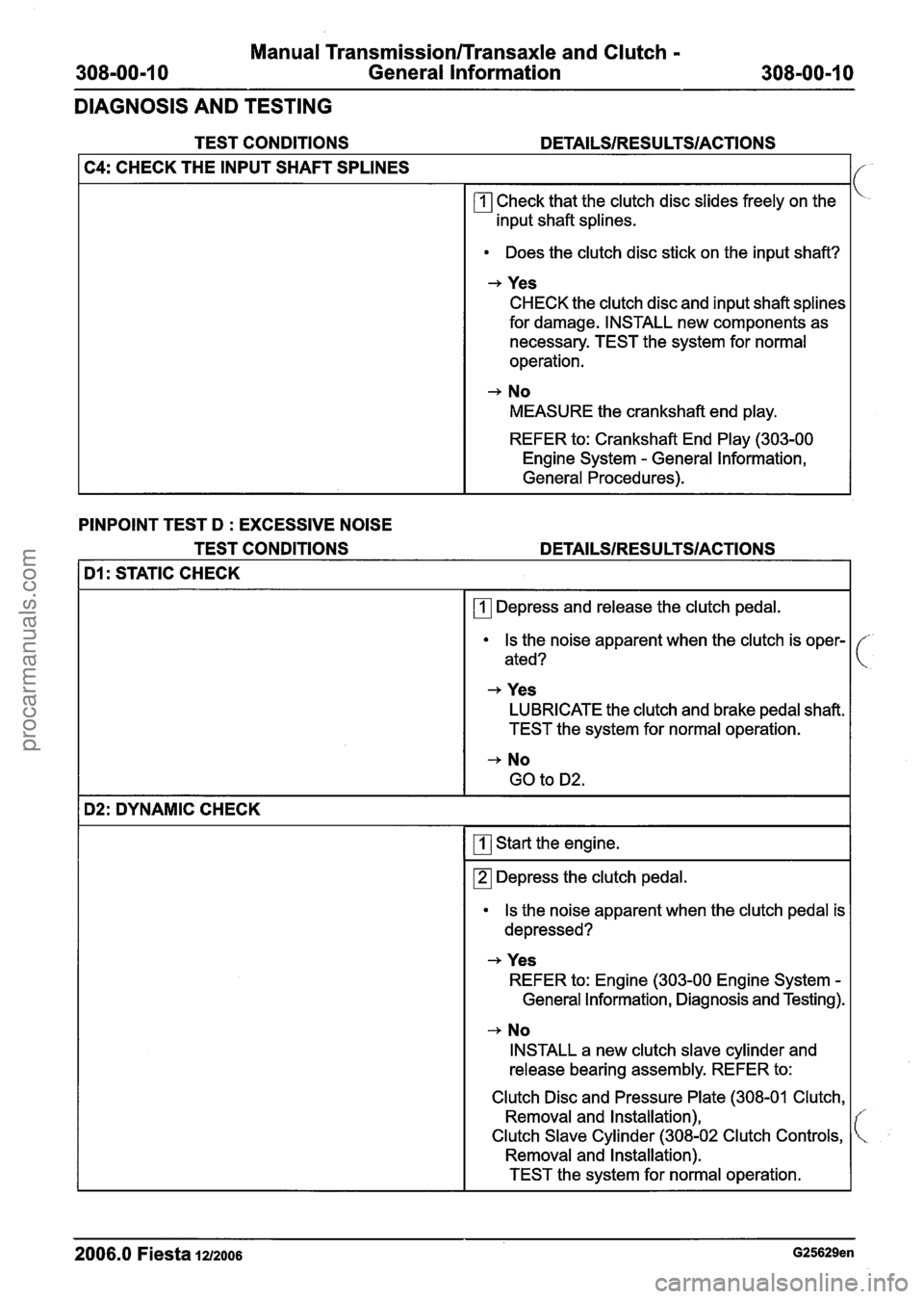

C4: CHECK THE INPUT SHAFT SPLINES
Check that the clutch disc slides freely on the
input shaft splines.
Does the clutch disc stick on the input shaft?
+ Yes
CHECK the clutch disc and input shaft splines
for damage. INSTALL new components as
necessary. TEST the system for normal
operation.
+ No
MEASURE the crankshaft end play.
REFER to: Crankshaft End Play (303-00
Engine System
- General Information,
General Procedures).
PINPOINT TEST D
: EXCESSIVE NOISE
TEST CONDITIONS
I Dl: STATIC CHECK I
Depress and release the clutch pedal.
Is the noise apparent when the clutch is oper-
ated?
+ Yes
LUBRICATE the clutch and brake pedal shaft.
TEST the system for normal operation.
I D2: DYNAMIC CHECK I
Start the engine.
Depress the clutch pedal.
Is the noise apparent when the clutch pedal is
depressed?
-+ Yes
REFER to: Engine (303-00 Engine System -
General Information, Diagnosis and Testing).
-, No
INSTALL a new clutch slave cylinder and
release bearing assembly. REFER to:
Clutch Disc and Pressure Plate (308-01 Clutch,
Removal and Installation),
Clutch Slave Cylinder (308-02 Clutch Controls,
Removal and Installation).
TEST the system for normal operation.
2006.0 Fiesta 1212006 G25629en
procarmanuals.com

Acceleration Control - 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V (Sigma)ll.4L
31 0-02A-5 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
31 0-02A-5
DIAGNOSIS AND TESTING
PCM to the electronic throttle body including
the electrical connectors in area "B" (see
system overview).
- There is an obstruction inside the throttle
body bore. Remove the air cleaner outlet pipe
and check for obstructions.
- There is an obstruction inside the electronic
throttle body. Remove the air cleaner outlet
pipe and check that the plate moves freely
against the springs and returns to a slightly
open position. If it does not, install a new
electronic throttle body.
P2176 - Throttle plate adaptation error
- When the ignition is turned off, the throttle
body carries out an adaptation cycle and
spring check. This can be audible after a
short delay (up to 30 seconds) following the ignition key being turned to position
0 and
can be visually observed with the air cleaner
outlet pipe removed. The throttle plate is
moved through a series of positions to check
the TP sensor value and relearn the
electronic throttle body characteristics. If a
concern is detected during this test,
P2176
DTC will be set. If there are already any of
I the other DTCs, the adaptation test could
potentially fail. Therefore the other DTCs
should be resolved first
(e.g. low battery
voltage) and a retest can be carried out by
clearing the DTCs and keying on and off
again. Check the whole area "B" (see system
overview) for any concerns and if no concern
is found, install a new electronic throttle body.
P2100 - H bridge error
- A fault has been detected on the circuit
connecting the electronic throttle body motor
and the PCM. Check for any other
non-electronic accelerator control related
DTCs and rectify them first. Check area "B"
(see system overview) and if no failure is
found, install a new PCM.
PCM Related Codes
The PCM continuously monitors all the sensors. It
also checks that the monitor is functioning as
expected. If there is a fault with the monitor, the
following DTCs will be set.
P2107 - Processor monitoring on the main
controller fault.
P2108 -Analogue to digital converter
- Inferred intake mass air flow lower than
expected
- Engine speed monitor ratio error
- Pedal ratio monitor error
- TP sensor ratio monitor error
- Fault in torque generation
- Fault present in engine speed limitation
Multiple sensor faults can make the PCM assume
that there is a monitor fault. If other DTCs exist,
rectify these first. These DTCs indicate a failure in
area
"A or "B" and they are also related to the
manifold absolute pressure and temperature
(MAPT) sensor and the crankshaft position (CKP)
sensor. If no other failures are found, install a new
PCM.
Indirect Codes
There are two brake pedal switches located under
the brake pedal. Check that both of these are
connected and functioning correctly. A brake pedal
switch concern will only cause the "EAC FAIL"
message to be displayed, it will not lead to a limited
performance mode. Follow WDS instructions.
PO571 - Brake switch error
If the voltage to the accelerator pedal and the
electronic throttle body cannot be regulated
correctly, the components may not operate as
expected. Therefore it is important to detect if there
is a concern in the supply voltage
PO641 - Sensor voltage supply circuit I noisy
signal
PO642 - Sensor voltage supply circuit 1 short
to ground or open circuit
PO643 - Sensor voltage supply circuit 1 short
to battery
PO651 - Sensor voltage supply circuit 2 noisy
signal
PO652 - Sensor voltage supply circuit 2 short
to ground or open circuit
2006.0 Fiesta 1212006 G356253en
procarmanuals.com

Acceleration Control - I .3L Duratec-8V
(Rocam)llI25L Duratec-I 6V (Sigma)llI4L
31 0-02A-6 Duratec-I 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
31 0-02A-6
DIAGNOSIS AND TESTING

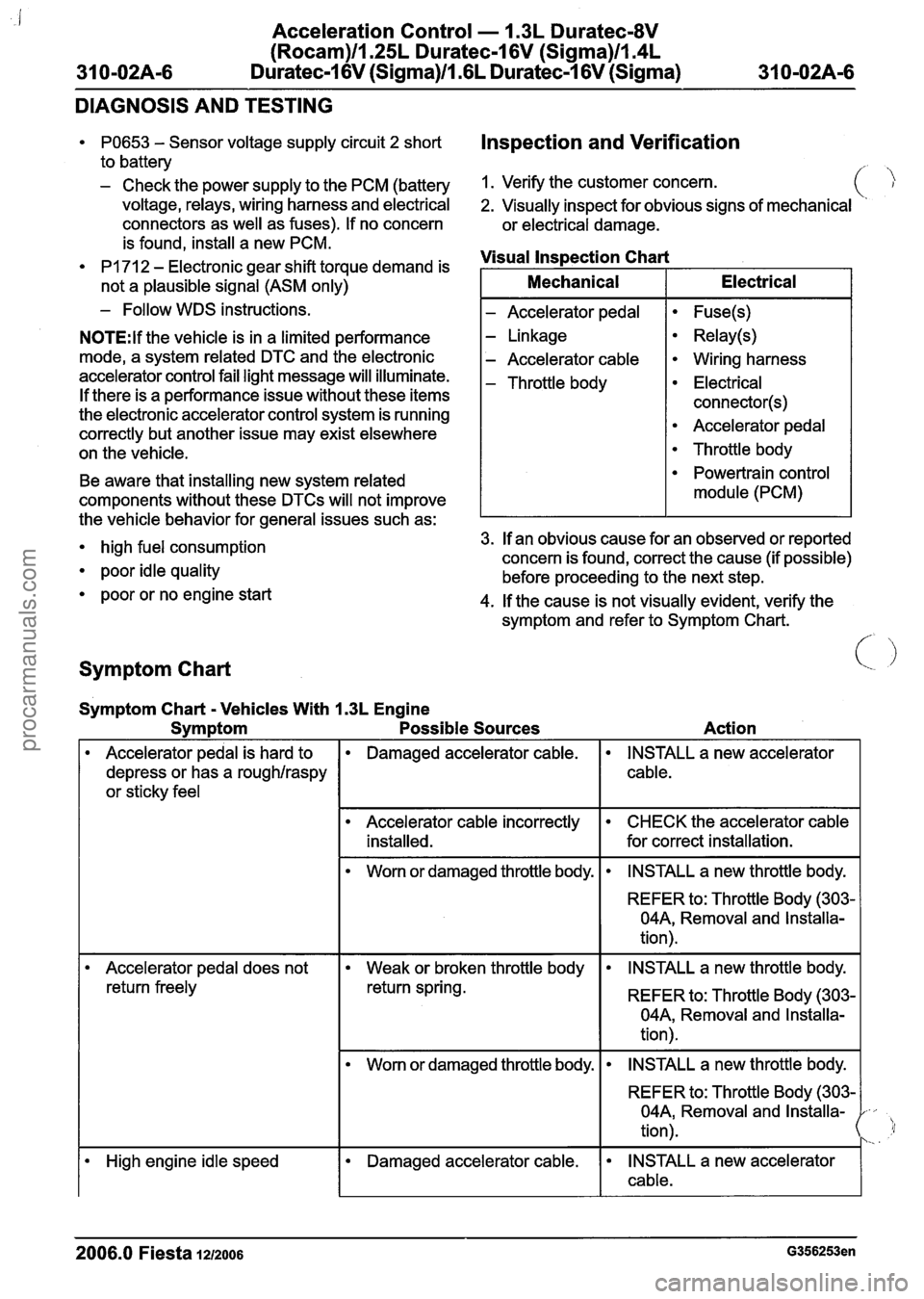

PO653 - Sensor voltage supply circuit 2 short Inspection and Verification
to battery
- Check the power supply to the PCM (battery 1. Verify the customer concern.
voltage, relays, wiring harness and electrical 2. Visually inspect for obvious signs of mechanical
connectors as well as fuses). If no concern
or electrical damage.
- Follow WDS instructions. I - Accelerator pedal I Fuse(s) I
- is found, install a new PCM.
PI 71 2 - Electronic gear shift torque demand is Visual
Inspection Chart
N0TE:lf the vehicle is in a limited performance
mode, a system related DTC and the electronic
accelerator control fail light message will illuminate.
If there is a performance issue without these items
the electronic accelerator control system is running
correctly but another issue may exist elsewhere
on the vehicle.
not
a plausible signal (ASM only) - Linkage
- Accelerator cable
- Throttle body
Relay(s)
Wiring harness
Electrical
connector(s)
Accelerator pedal
Throttle body
Mechanical
Electrical
Symptom Chart < .I
Be
aware that installing new system related
components without these
DTCs will not improve
Symptom Chart
- Vehicles With 1.3L Engine
Symptom Possible Sources
Powertrain control
module (PCM)
Action
the
vehicle behavior for general issues such as:
high fuel consumption 3.
If an obvious cause for an observed or reported
concern is found, correct the cause (if possible)
poor idle quality before proceeding to the next step.
poor or no engine start
4. If the cause is not visually evident, verify the
symptom and refer to Symptom Chart.
f
Accelerator pedal is hard to
depress or has a
roughlraspy
or sticky feel
Damaged accelerator cable.
REFER to: Throttle Body (303-
04A, Removal and Installa-
tion).
INSTALL a new accelerator
cable.
Accelerator cable incorrectly installed.
Worn or damaged throttle body.
I Accelerator pedal does not I Weak or broken throttle body I INSTALL a new throttle body. I
CHECK the accelerator cable
for correct installation.
INSTALL a new throttle body.
return freely REFER to: Throttle Body (303-
04A, Removal and Installa-
tion).
I Worn or damaged throttle body. I INSTALL a new throttle body. I
I I I REFER to: Throttle Body (303- 1 04A, Removal and Installa-
tion).
High engine idle speed Damaged accelerator cable. INSTALL a new accelerator
I cable.
2006.0 Fiesta 1212006 G356253en
procarmanuals.com

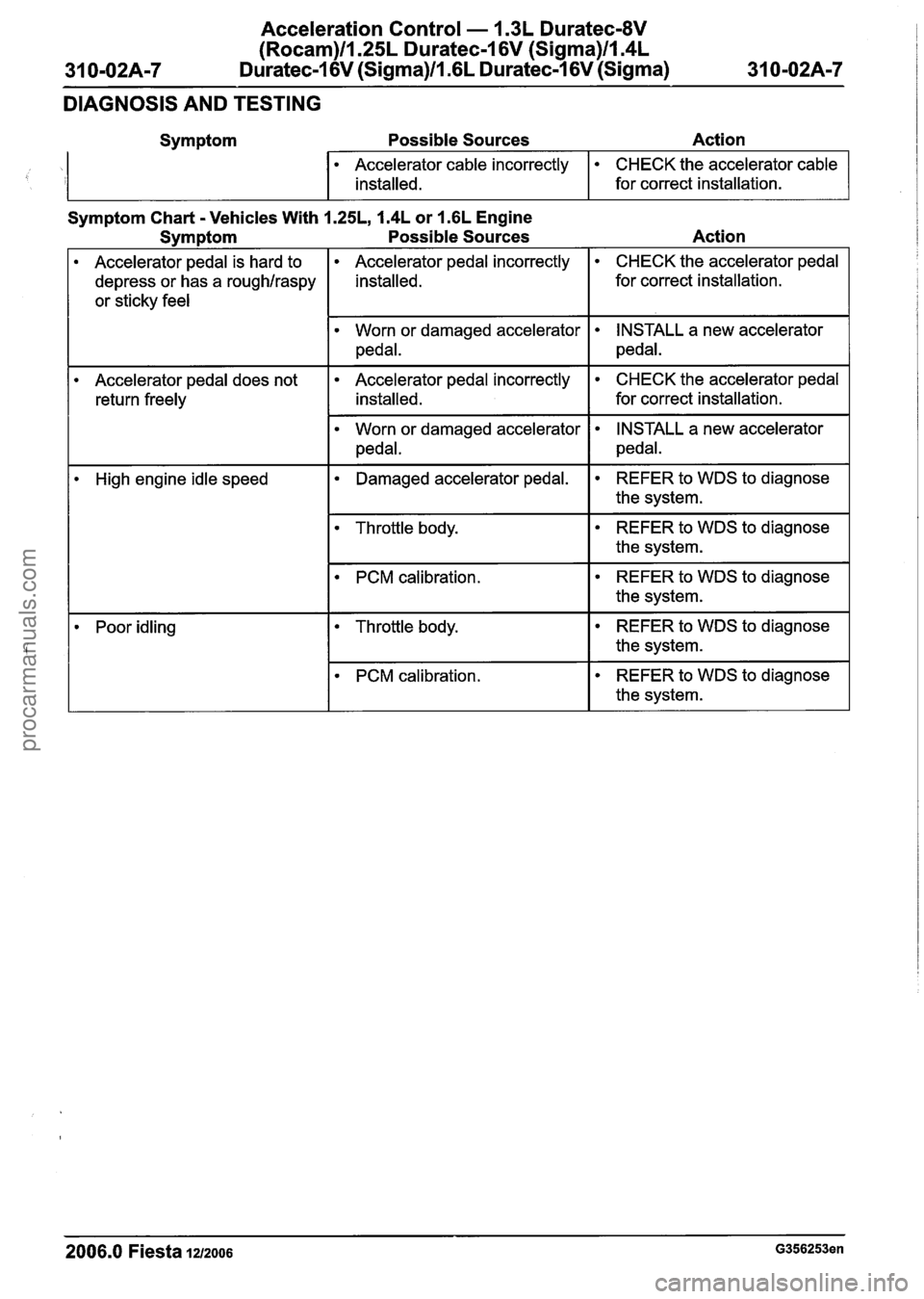

Acceleration Control - 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll.6L Duratec-1 6V (Sigma)
DIAGNOSIS AND TESTING
Symptom Possible Sources
Action
Symptom Chart
- Vehicles With I .25L, 1.4L or I .6L Engine
Accelerator cable incorrectly
I installed.
- -
Symptom
Possible Sources Action
CHECK the accelerator cable
for correct installation.
to
or sticky feel
Worn or damaged accelerator
I pedal.
Accelerator pedal incorrectly
installed.
INSTALL a new accelerator
pedal.
Accelerator pedal does not
return freely
I Throttle body.
CHECK the accelerator pedal
for correct installation.
Damaged accelerator pedal.
REFER to WDS to diagnose
the system.
Accelerator pedal incorrectly
installed.
Worn or damaged accelerator
pedal.
REFER to WDS to diagnose
the system.
PCM calibration.
1-
CHECK the accelerator pedal
for correct installation.
INSTALL a new accelerator
pedal.
REFER to WDS to diagnose
the system.
I Poor idling I Throttle body. REFER to
WDS to diagnose
the system.
I PCM calibration. REFER to
WDS to diagnose
the system.
2006.0 Fiesta 1212006 G356253en
procarmanuals.com

I <:: .

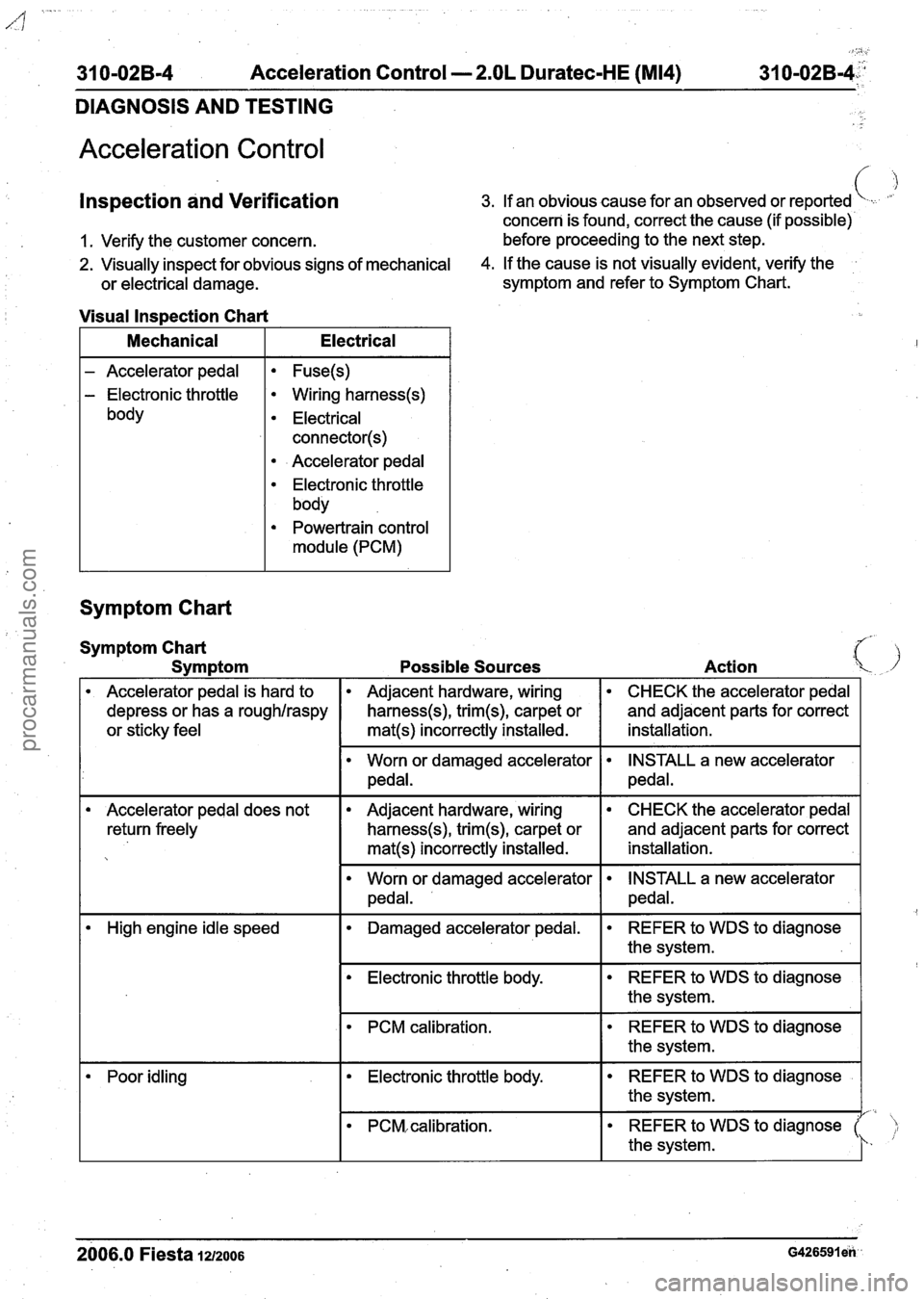

31 0-02B-4 Acceleration Control - 2.OL Duratec-HE (M14) 31 0-02~-4::'
DIAGNOSIS AND TESTING
Acceleration Control
lnspection and Verification
1. Verify the customer concern.
3. If an obvious cause for an observed or reported \.
concern is found, correct the cause (if possible)
before proceeding to the next step.
2. Visually inspect for obvious signs of mechanical 4. If the cause is not visually evident, verify the
or electrical damage. symptom
and refer to Symptom Chart.
Visual lnspection Chart
I Mechanical I Electrical I
- Accelerator pedal
- Electronic throttle
body
Fuse(s)
Wiring harness(s)
Electrical
connector(s)
Accelerator pedal
Electronic throttle
body
Powertrain control
module (PCM)
Symptom Chart
Accelerator pedal does not
return freely
Symptom Chart
Symptom Possible Sources Action
Accelerator pedal is hard to
depress or has a roughlraspy
or sticky feel
Adjacent hardware, wiring
harness(s), trim(s), carpet or
mat(s) incorrectly installed.
High engine idle speed
Adjacent hardware, wiring
harness(s), trim(s), carpet or
mat(s) incorrectly installed.
Worn or damaged accelerator
pedal.
CHECK the accelerator pedal
and adjacent parts for correct
installation.
worn or damaged accelerator
pedal. CHECK the
accelerator pedal
and adjacent parts for correct
installation.
INSTALL a new accelerator
pedal.
INSTALL a new accelerator
pedal.
Electronic throttle body. REFER to WDS to diagnose
the system.
Damaged
accelerator pedal.
I PCM calibration. REFER
to WDS to diagnose
the system.
REFER to WDS to diagnose
the system.
Poor idling I Electronic throttle body.
- - - - - - - -
2006.0 Fiesta 121200s ~426591 en
REFERto WDS todiagnose
the system.
PCM, calibration.
REFER to WDS to diagnose ),
1- ' the system.
procarmanuals.com
