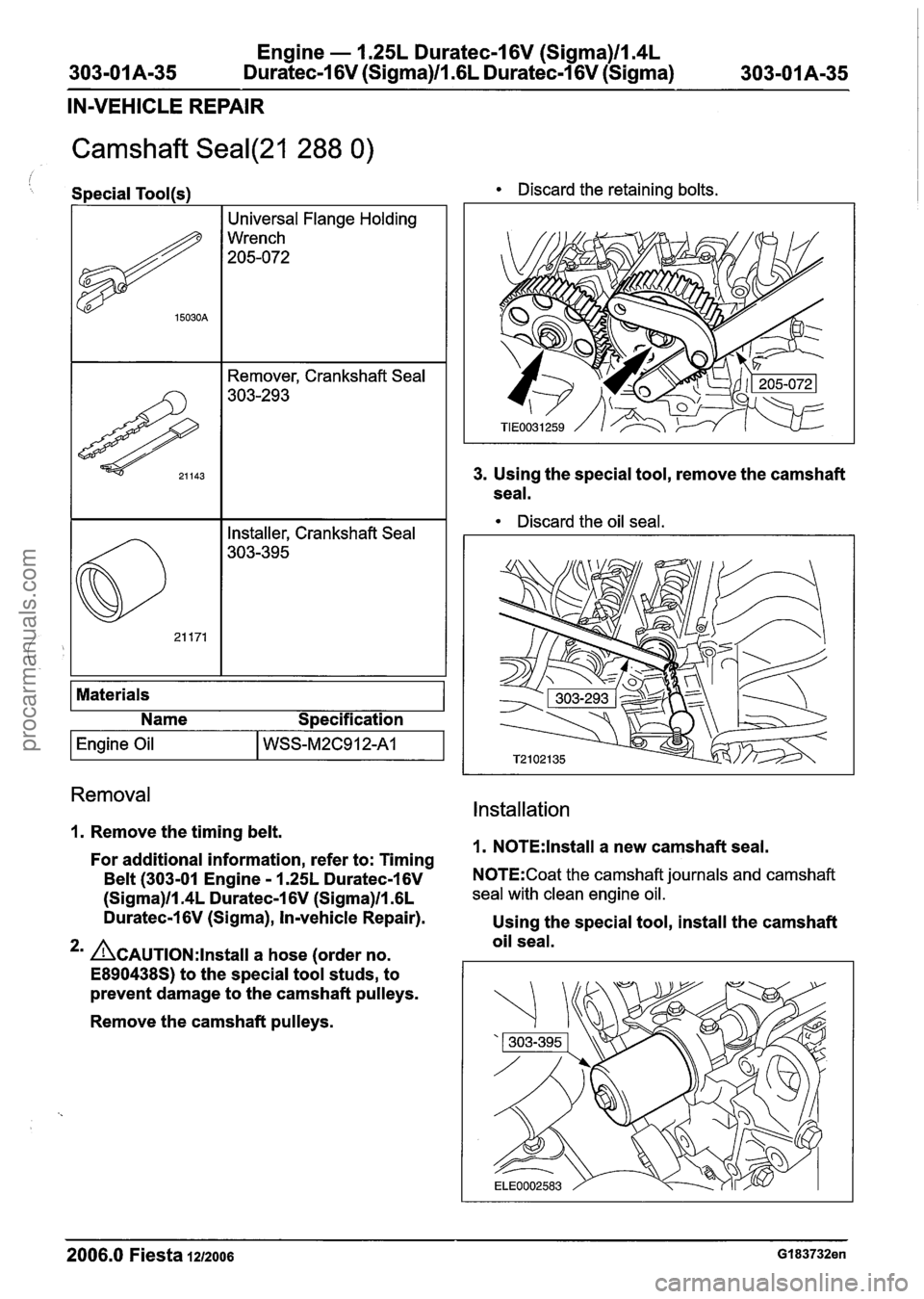

FORD FIESTA 2007 Workshop Manual

Engine - 1.25L Duratec-1 6V (Sigma)llI4L
303-01 A-35 Duratec-1 6V (Sigma)lll6L Duratec-1 6V (Sigma) 303-01 Am35
IN-VEHICLE REPAIR
Camshaft Seal(21 288 0)
Special Tool(s) Discard the retaining bolts.
Materials
Name Specification
I Engine Oil I WSS~~C~I 2~1
3. Using the special tool, remove the camshaft
seal.
Discard the oil seal.
- -
15030A
Removal
Installation
I. Remove the timing belt. 1. N0TE:lnstall a new camshaft seal.
For additional information, refer to: Timing
Belt (303-01 Engine
- 1.25L Duratec-1 6V N0TE:Coat the camshaft journals and camshaft
(Sigma)ll.4L Duratec-1 6V (Sigma)ll .6L seal with clean engine oil.
Duratec-1 6V (Sigma), in-vehicle Repair).
Using the special tool, install the camshaft
oil seal.
*' &~~~l~~:lnstall a hose (order no.
E890438S) to the special tool studs, to
prevent damage to the camshaft pulleys.
303-395
I
21 171
Universal Flange Holding
Wrench
205-072
Remover, Crankshaft Seal
303-293
Installer, Crankshaft Seal
Remove the camshaft pulleys.
2006.0 Fiesta 1212006 GI 83732en
procarmanuals.com

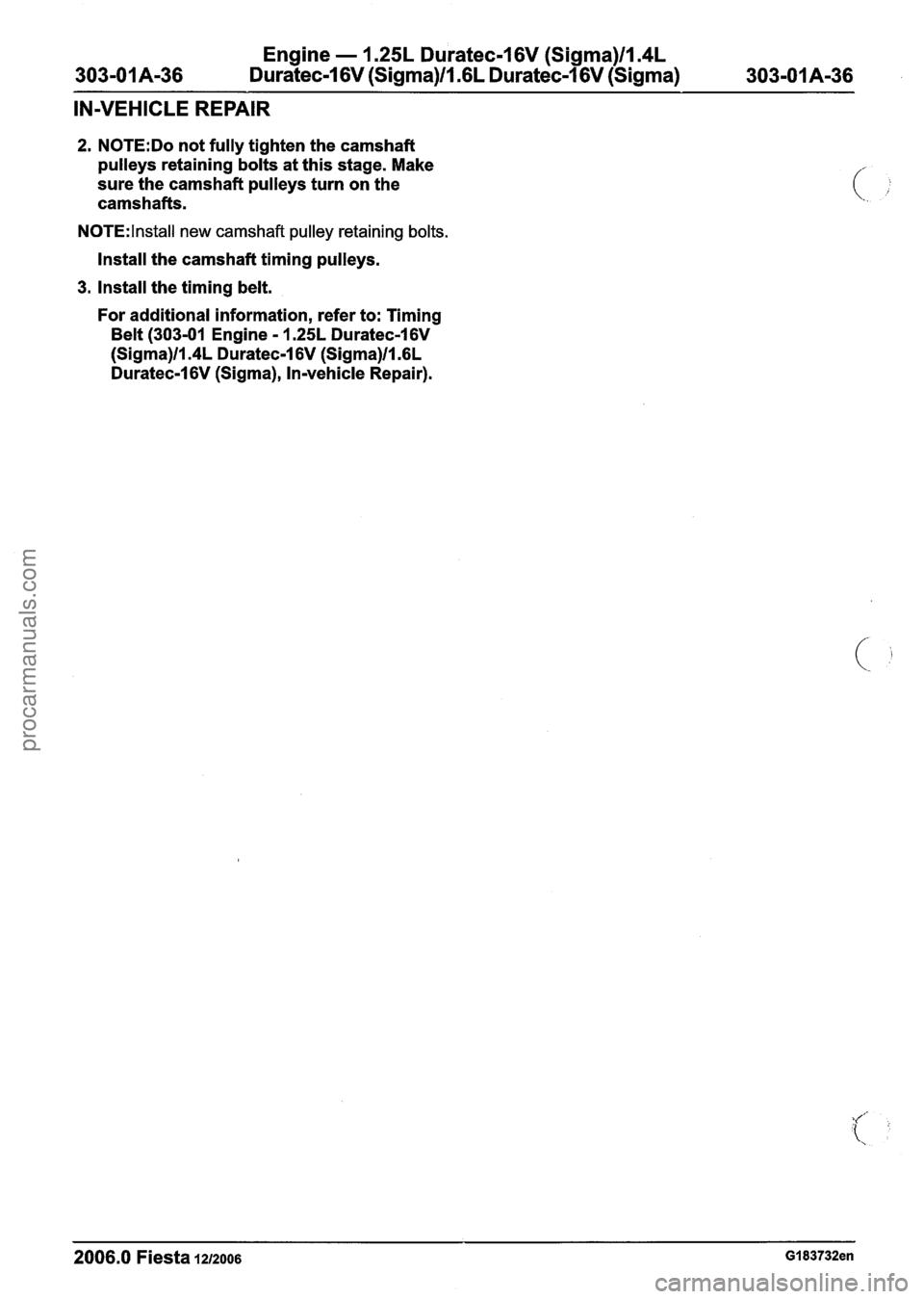

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-36 Duratec-1 6V (Sigma)/l .6L
Duratec-1 6V (Sigma) 303-01 A-36
IN-VEHICLE REPAIR
2. N0TE:Do not fully tighten the camshaft
pulleys retaining bolts at this stage. Make
sure the camshaft
pulleys turn on the
camshafts.
N0TE:lnstall new camshaft pulley retaining bolts.
Install the camshaft timing pulleys.
3. Install the timing belt.
For additional information, refer to: Timing
Belt (303-01 Engine - 1.25L Duratec-16V
(Sigma)ll.4L Duratec-1 6V (Sigma)ll .6L
Duratec-1
6V (Sigma), In-vehicle Repair).
2006.0 Fiesta 1212006 GI 83732en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)lIl4L
303-01 A-37 Duratec-1 6V (Sigma)ll.GL Duratec-1 6V (Sigma) 303-01A-37
IN-VEHICLE REPAIR
Timing Belt(21 304 0)
Gauge, Bolt Angle
303-1 74
' Special Tool(s)
# 15030A
Locking Tool, Timing Belt
I Tensioner
303-1054
Universal Flange Holding
Wrench
205-072
303748
General Equipment
Locking Tool, Crankshaft
303-748
I Trolley jack I
General Eaui~ment
I Wooden block I - --
Materials
Name
S~ecification
High-Temperature
Grease
Removal
All vehicles
1. Remove the valve cover.
For additional information, refer to: Valve
Cover
(303-01A Engine - 1.25L Duratec-1 6V
(Sigma)ll.4L Duratec-1 6V (Sigma)ll .6L
Duratec-1
6V (Sigma), In-vehicle Repair).
2. Loosen the coolant pump pulley retaining
bolts.
3. Remove the accessory drive belt.
For additional information, refer to:
Accessory Drive Belt
- 1.4L Duratec-I 6V
(Sigma)/l.GL Duratec-1 6V (Sigma), Vehicles
With: Air Conditioning (303-05 Accessory
Drive, Removal and Installation).
2006.0 Fiesta 1212006 GI 83738en
procarmanuals.com

Engine - I .25L Duratec-1 6V (Sigma)llm4L
Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
IN-VEHICLE REPAIR
4. Remove the crankshaft pulley. 8. Detach the power steering fluid reservoir
from the bracket and position
it to one side. f
5. Remove the coolant pump pulley.
6. Remove the timing belt cover retaining bolts.
9. Detach the coolant expansion tank from the
bracket and position
it to one side.
1. Remove the timing belt upper cover retaining
bolts. 10. Disconnect the generator electrical
connector.
2. Remove the timing belt lower cover retaining
bolts.
Remove the lower cover.
7. Lower the vehicle.
11. Detach the generator from the engine.
1. Loosen the bolt.
2. Remove the bolt.
2006.0 Fiesta IZIZOO~ GI 83738en
procarmanuals.com

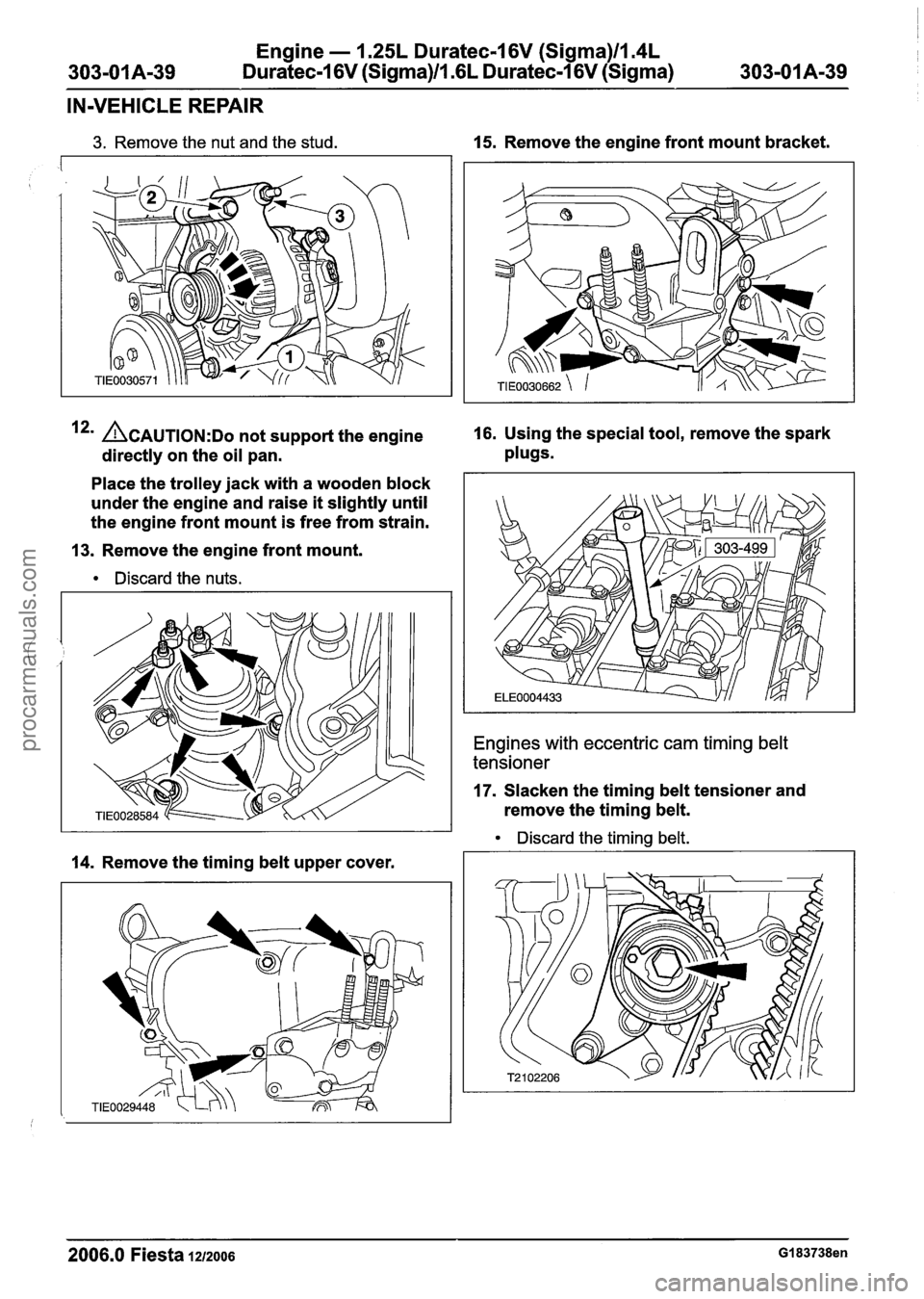

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-39 Duratec-1 6V (Sigma)/l .6L
Duratec-1 6V (Sigma)
303-01 A-39
IN-VEHICLE REPAIR
3. Remove the nut and the stud. 15. Remove the engine front mount bracket.
&AUTION:D~ not support the engine 16. Using the special tool, remove the spark
directly on the oil pan. plugs.
Place the trolley jack with a wooden block
under the engine and raise
it slightly until
the engine front mount is free from strain.
13. Remove the engine front mount.
Discard the nuts.
14. Remove the timing belt upper cover.
Engines with eccentric cam timing belt
tensioner
17. Slacken the timing belt tensioner and
remove the timing belt.
Discard the timing belt.
2006.0 Fiesta 1212006 GI 83738en
procarmanuals.com

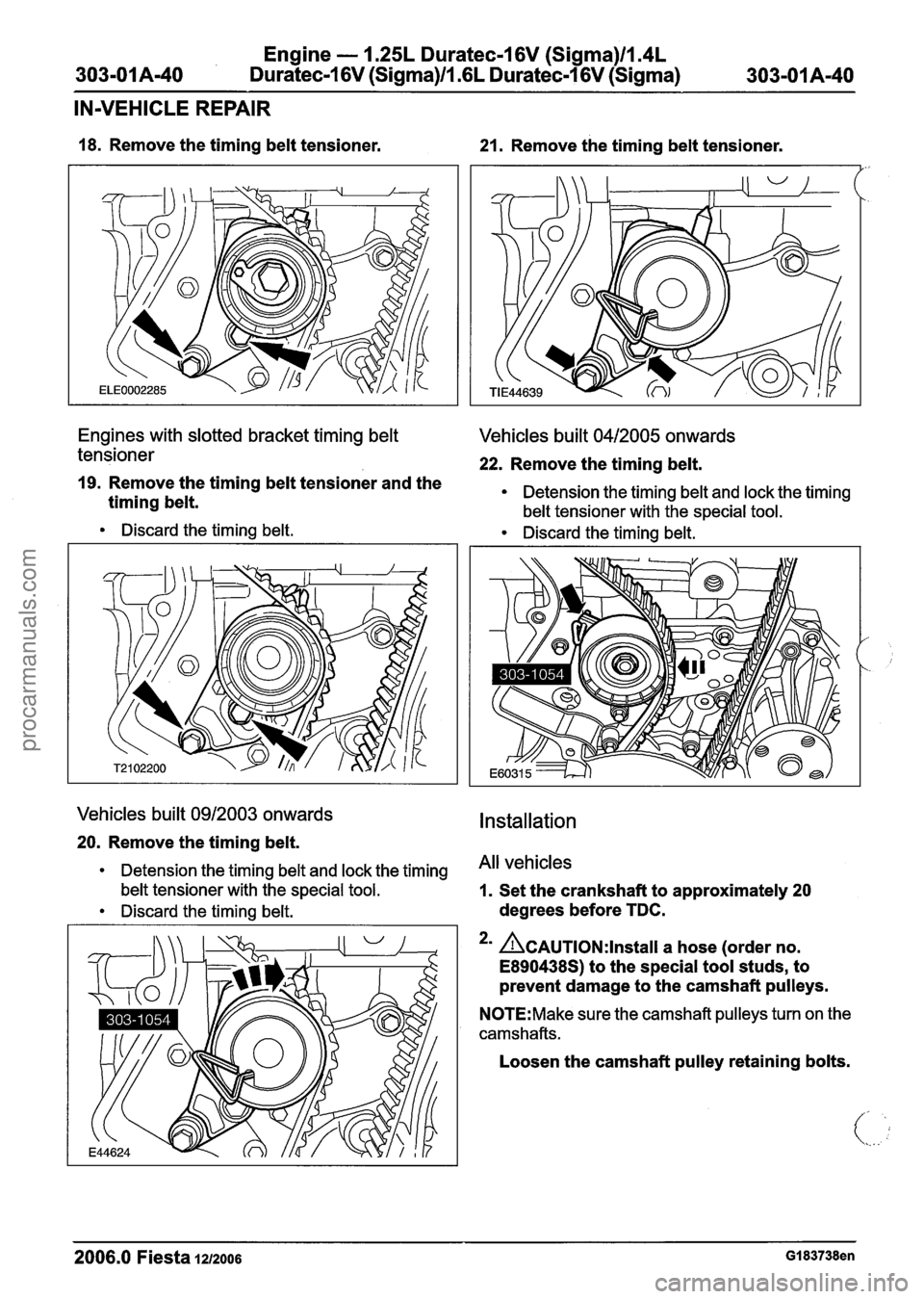

Engine - 1.25L Duratec-1 6V (Sigma)llm4L
Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
IN-VEHICLE REPAIR
18. Remove the timing belt tensioner. 21. Remove the timing belt tensioner.
Engines with slotted bracket timing belt Vehicles built 0412005 onwards
tensioner
22. Remove the timing belt.
19. Remove the timing belt tensioner and the
timing belt. Detension the timing belt and lock the timing
belt tensioner with the special tool.
Vehicles built 0912003 onwards
20. Remove the timing belt.
Detension the timing belt and lock the timing
belt tensioner with the special tool.
Discard the timing belt.
Discard the timing belt. Discard the timing belt.
Installation
All vehicles
1. Set the crankshaft to approximately 20
degrees before TDC.
2m &~~~l~~:lnstall a hose (order no.
E890438S) to the special tool studs, to
prevent damage to the camshaft pulleys.
N0TE:Make sure the camshaft pulleys turn on the
camshafts.
Loosen the camshaft pulley retaining bolts.
2006.0 Fiesta 1212006 GI 83738en
procarmanuals.com

Engine - 1.25L Dura
303-01 A-41 Duratec-I 6V (Sigma)ll.~
:eel 6V (Sigma)llI4L
iL Duratec-1 6V (Sigma) 303-01 A-41
IN-VEHICLE REPAIR
Discard the retaining bolts.
3. Turn the camshafts to TDC on cylinder
number
1 and install the special tool.
4. Remove the blanking plug and install the
special tool.
Carefully turn the crankshaft against the
special tool.
5.
N0TE:lnstall a new timing belt.
N0TE:lnstall the timing belt, beginning with the
crankshaft timing pulley working counterclockwise.
Install the timing belt.
6. Measuring the depth of the threaded hole in
the crankshaft.
Depth of the threaded = 42 mm: Use an
M12x29 mm crankshaft pulley center bolt.
Depth of the threaded
= 52 mm: Use an
MI 2x44,5 mm crankshaft pulley center bolt.
7. Attach the timing belt lower cover.
8. N0TE:lnstall a new crankshaft pulley
retaining bolt.
Install the crankshaft pulley.
Tighten the crankshaft pulley retaining bolt
in two stages.
Stage1:45Nm.
2006.0 Fiesta 1212006 GI 83738en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-42 Duratec-1 6V (Sigma)/lm6L Duratec-1 6V (Sigma) 303-01 A-42
IN-VEHICLE REPAIR
Stage 2: 90 degrees.
Engines with eccentric cam timing belt
tensioner
Tension the timing belt by turning the
tensioner clockwise until the arrow points in
line with the center of the rectangular hole
and tighten the bolt.
9. Install the timing belt tensioner. Vehicles built 0912003 onwards
10. Tension the timing belt.
Tension the timing belt by turning the
tensioner counterclockwise until the arrow
points at the mark and tighten the bolt.
I*' AWARNING:D~ not remove the special
tool, until the timing belt is correctly
positioned. Failure to follow this instruction
may result in personal injury, or may
damage the timing belt tensioner.
Install the timing belt tensioner.
/--
13. Tension the timing belt.
Remove the special tool.
Engines with slotted bracket timing belt
tensioner
I I. Install the timing belt tensioner and tension
the timing belt.
Screw in the bolts finger tight.
2006.0 Fiesta 1212006 GI 83738en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-011 Am43 Duratec-1 6V (Sigma)lII6L Duratec-I 6V (Sigma) 303-01 A-43
IN-VEHICLE REPAIR
Vehicles built 0412005 onwards 16. Remove special tool.
/ 14' AWARNING:D~ not remove the special
tool, until the timing belt is correctly
positioned. Failure to follow this instruction
may result in personal injury, or may
damage the timing belt tensioner.
Tension the timing belt.
Remove the special tool.
All vehicles
15. CAUTIONS:
( , nlnstall a hose (order no. E890438S) to
the special tool studs, to prevent damage
to the camshaft pulleys. 17.
Remove the special tool.
ADO not tighten the camshaft pulley bolts 18. N0TE:Only turn the engine in its normal
against the timing plate. direction
of rotation.
N0TE:The camshafts must remain at TDC. Turn
the engine two revolutions.
N0TE:lnstall new camshaft pulley retaining bolts. 19. Install the special tool.
Using the special tool, tighten the camshaft Carefully turn the crankshaft against the
pulleys. special tool.
20. Check the valve timing.
If necessary loosen the camshaft pulleys and
correct the camshaft alignment.
2006.0 Fiesta 1212006 GI 83738en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-44 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
303-01 A-44
IN-VEHICLE REPAIR
* Remove the special tool.
21. Remove the special tool.
22. Install the blanking plug.
23. Using the special tool, install the spark
plugs.
Apply grease to the spark plug threads.
24. Install the engine front mount bracket.
Tighten the bolts in the indicated order in
three stages.
Stage 1 : Hand tighten bolt 1.
Stage 2: Tighten bolts 2 to 55 Nm.
Stage 3: Tighten bolt 3 to 55 Nm.
25. Install the timing belt upper cover.
26. N0TE:lnstall new engine front mount
retaining nuts.
2006.0 Fiesta 121zo06 GI 83738en
