21 1 -04-5 Steering Column 2 I I -04-5
REMOVAL AND INSTALLATION
Steering Column(l3 542 0)
Removal Disconnect the electrical connector.
1. Remove the driver air-bag module.
For additional information, refer to: Driver
Air Bag Module (501-20 Supplemental
Restraint System, Removal and
Installation).
2. Remove the instrument panel lower panel.
1. Remove the lower retaining screws.
2. Remove the upper retaining screws from the
stowage compartment.
3. Release the clip.
3. Detach the audio control switch from the
steering column lower shroud (if equipped).
Using a thin bladed screwdriver, release the
locking tang.
4. Remove the audio control switch (if
equipped).
5. N0TE:Turn the steering wheel to gain access
to the steering column upper shroud
retaining clips.
Detach the steering column upper shroud
from the steering column lower shroud (steering wheel shown removed for clarity).
1 . Using a thin bladed screwdriver, release the
two clips, (one each side).
2. Detach the shroud.
6. Remove the steering column lower shroud
(steering wheel shown removed for clarity).
1. Remove the retaining screws.
2006.0 Fiesta 1212006 GI 05654en
procarmanuals.com

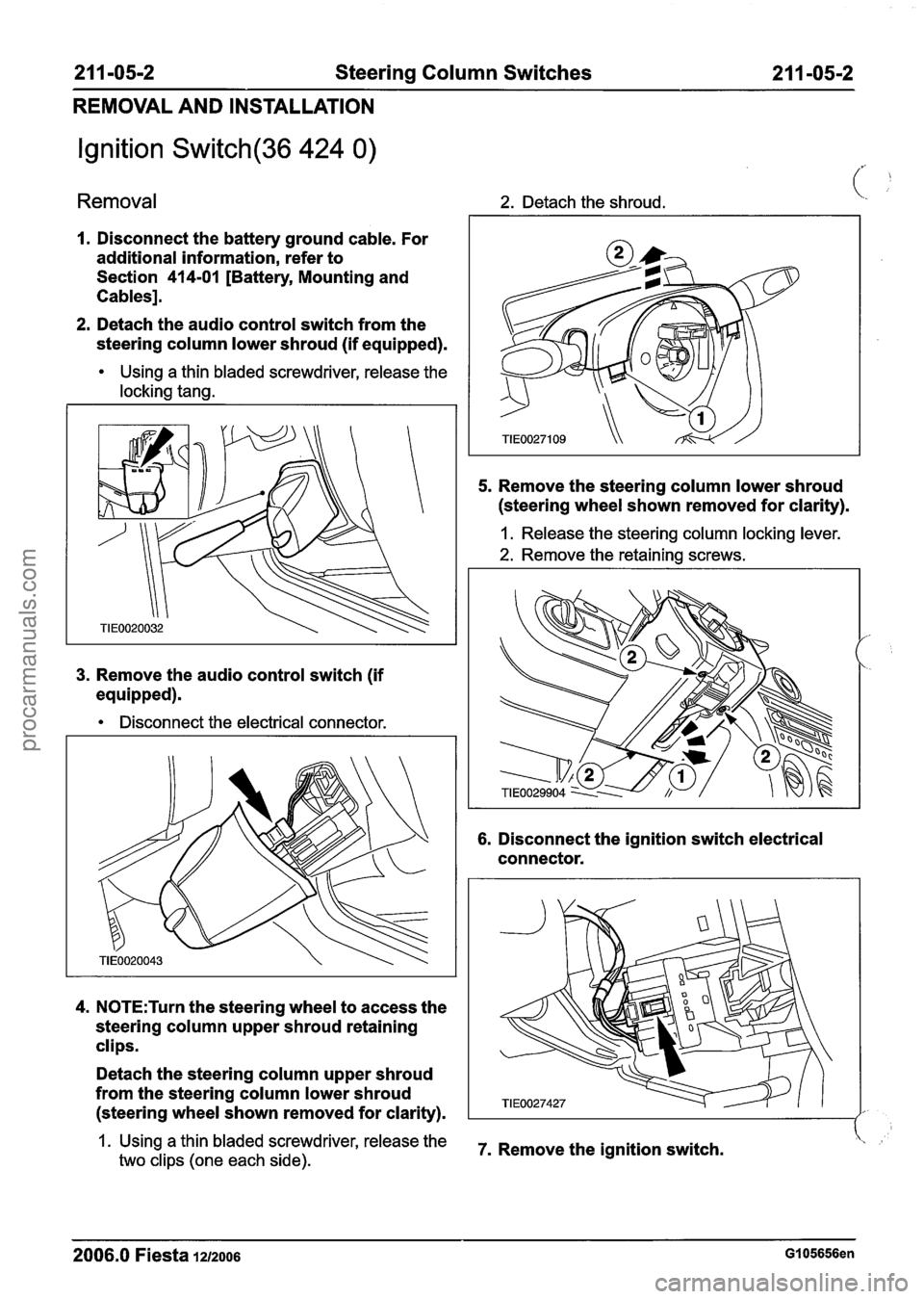

21 1-05-2 Steering Column Switches 21 1-05-2
REMOVAL AND INSTALLATION
Ignition Switch(36 424 0)
Removal 2. Detach the shroud.
I. Disconnect the battery ground cable. For
additional information, refer to
Section
414-01 [Battery, Mounting and
Cables].
2. Detach the audio control switch from the
steering column lower shroud (if equipped).
Using a thin bladed screwdriver, release the
locking tang.
3. Remove the audio control switch (if
equipped).
Disconnect the electrical connector.
.. N0TE:Turn the steering wheel to access the
steering column upper shroud retaining
clips.
Detach the steering column upper shroud
from the steering column lower shroud (steering wheel shown removed for clarity).
5. Remove the steering column lower shroud
(steering wheel shown removed for clarity).
1. Release the steering column locking lever.
2. Remove the retaining screws.
6. Disconnect the ignition switch electrical
connector.
1. Using a thin bladed screwdriver, release the 7m Remove the ignition two clips (one each side).
2006.0 Fiesta 1212006 GI 05656en
