WARNING LIGHTS AND CHIMES
Warning lights can alert you to a vehicle condition that may become
serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulb works. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Service engine soon:The service
engine soon indicator
illuminates when the ignition is first
turned to the on position to check
the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. Normally, the service engine soon
indicator will stay on until the engine is cranked, then turn itself off if no
malfunctions are present. However, if after 15 seconds the service engine
soon indicator blinks eight times, it means that the vehicle is not ready
for I/M testing. See theReadiness for Inspection/Maintenance (I/M)
testingin theMaintenance and Specificationschapter.
Solid illumination after the engine is started indicates the On Board
Diagnostics System (OBD-II) has detected a malfunction. Refer toOn
board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
Instrument Cluster
12
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

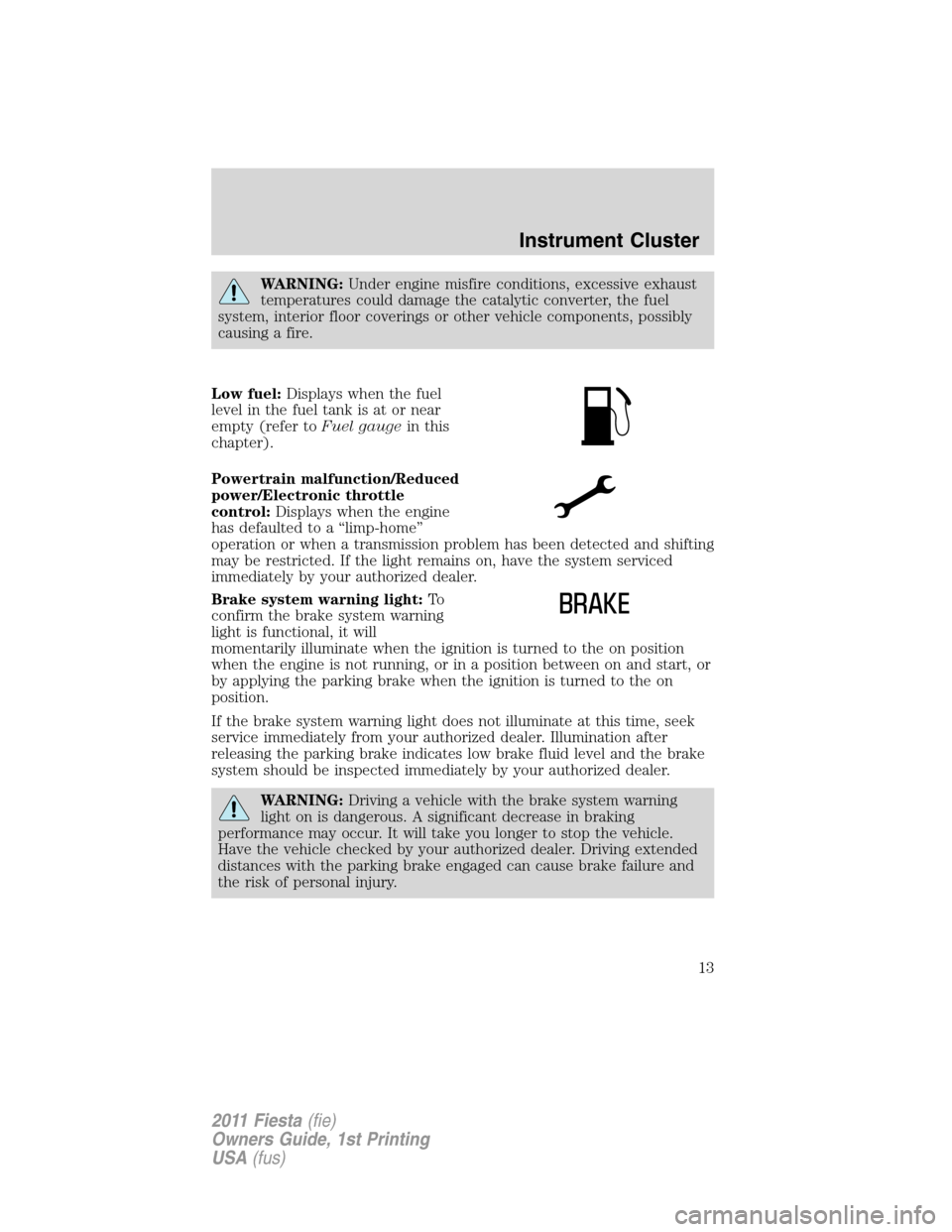

WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Low fuel:Displays when the fuel
level in the fuel tank is at or near
empty (refer toFuel gaugein this
chapter).
Powertrain malfunction/Reduced
power/Electronic throttle
control:Displays when the engine
has defaulted to a “limp-home”
operation or when a transmission problem has been detected and shifting
may be restricted. If the light remains on, have the system serviced
immediately by your authorized dealer.
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the ignition is turned to the on position
when the engine is not running, or in a position between on and start, or
by applying the parking brake when the ignition is turned to the on
position.
If the brake system warning light does not illuminate at this time, seek
service immediately from your authorized dealer. Illumination after
releasing the parking brake indicates low brake fluid level and the brake
system should be inspected immediately by your authorized dealer.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle checked by your authorized dealer. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
Instrument Cluster
13
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
Airbag readiness:If this light fails
to illuminate when the ignition is
turned to on, continues to flash or
remains on, have the system
serviced immediately by your
authorized dealer. A chime will sound if there is a malfunction in the
indicator light.
Safety belt:Reminds you to fasten
your safety belt. A Belt-Minder

chime will also sound to remind you
to fasten your safety belt. Refer to
theSeating and Safety Restraints
chapter to activate/deactivate the Belt-Minder
chime feature.
Charging system:Illuminates when
the battery is not charging properly.
If it stays on while the engine is
running, there may be a malfunction
with the charging system. Contact your authorized dealer as soon as
possible. This indicates a problem with the electrical system or a related
component.
Engine oil pressure:Displays
when the oil pressure falls below the
normal range. Refer toEngine oil
in theMaintenance and
Specificationschapter.
Oil change reminder:Displays
when the engine oil life has expired.
Refer toOil life monitoring system
resetlater in this chapter.
Door ajar:Displays when the
ignition is in the on position and any
door is open.
ABS
Instrument Cluster
14
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Engine coolant temperature:
Illuminates when the engine coolant
temperature is high. Stop the
vehicle as soon as possible, switch off the engine and let cool. Refer to
Engine coolantin theMaintenance and Specificationschapter.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Low tire pressure warning:
Illuminates when your tire pressure
is low. If the light remains on at
start up or while driving, the tire
pressure should be checked. Refer
toInflating your tiresin theTires, Wheels and Loadingchapter. When
the ignition is first turned to on, the light will illuminate for three
seconds to ensure the bulb is working. If the light does not turn on, have
the system inspected by your authorized dealer. For more information on
this system, refer toTire pressure monitoring system (TPMS)in the
Tires, Wheels and Loadingchapter.
Hill start assistance
(if equipped):Displays when using
hill start assist is not available. Refer
to theDrivingchapter for
transmission function and operation.
Overdrive cancel and grade
assist (if equipped):Illuminates
when the overdrive function of the
transmission has been turned off
and the grade assist function has been turned on, refer to theDriving
chapter.
Upshift (manual transmission):
To maximize fuel economy, this light
illuminates when the manual
transmission should be shifted to
the next highest gear. Refer to theDrivingchapter for more
information.
Instrument Cluster
15
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

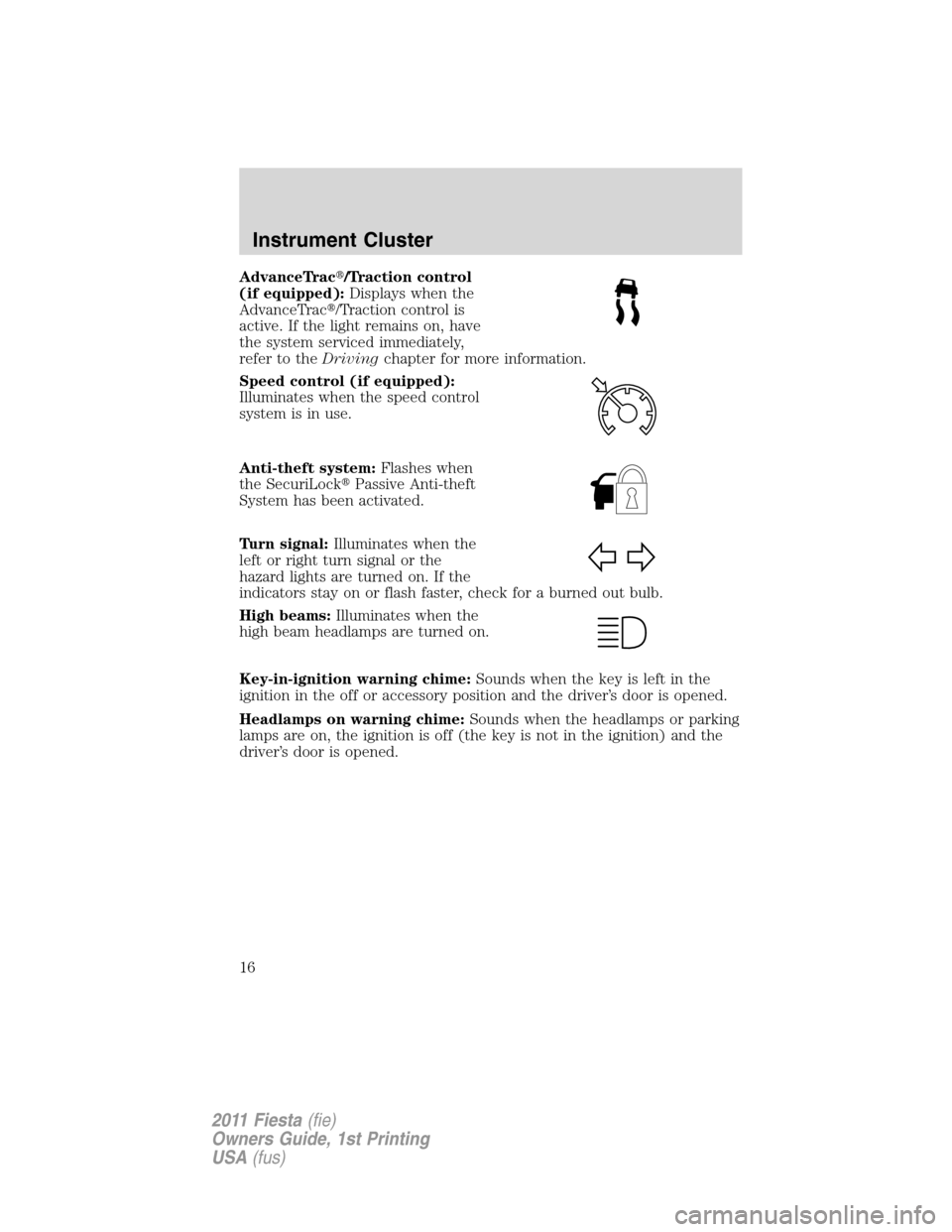

AdvanceTrac
/Traction control
(if equipped):Displays when the
AdvanceTrac
/Traction control is
active. If the light remains on, have
the system serviced immediately,
refer to theDrivingchapter for more information.
Speed control (if equipped):
Illuminates when the speed control
system is in use.
Anti-theft system:Flashes when
the SecuriLock
Passive Anti-theft
System has been activated.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off or accessory position and the driver’s door is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Instrument Cluster
16
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

GAUGES
Shown in standard measure. Metric similar.
1.Tachometer:Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the scale
may damage the engine.
Refer toFilling the tankin theMaintenance and Specifications
chapter for more information.
2.Speedometer:Indicates the current vehicle speed.
3.Fuel gauge:Indicates approximately how much fuel is left in the fuel
tank (when the ignition is in the on position). The fuel gauge may vary
slightly when the vehicle is in motion or on a grade. The fuel icon and
arrow indicates which side of the vehicle the fuel filler door is located.
TRIP COMPUTER
The trip computer and odometer information will display in the
instrument cluster.
Press the end of the lever, located on the left side of the steering wheel
to scroll through the trip computer displays.
mi (km) — Odometer:Registers the total miles (kilometers) of the
vehicle.
12
3
Instrument Cluster
17
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

XXX mls — Trip odometer:Registers the mileage of individual
journeys.
XXX mls — Distance to empty:
Indicates the approximate
distance the vehicle will travel on the fuel remaining in the tank.
Changes in driving pattern may cause the value to vary.
XXX mpg ( l/100km)—Average fuel consumption:
Indicates the
average fuel consumption since the function was last reset.
XX mph (km/h)—Average speed:Indicates the average speed
calculated since the function was last reset.
XXX °F (°C)—Outside air temperature:Shows the outside air
temperature.
To reset the trip odometer and average speed, scroll to the required
display and press and hold the end of the multifunction lever.

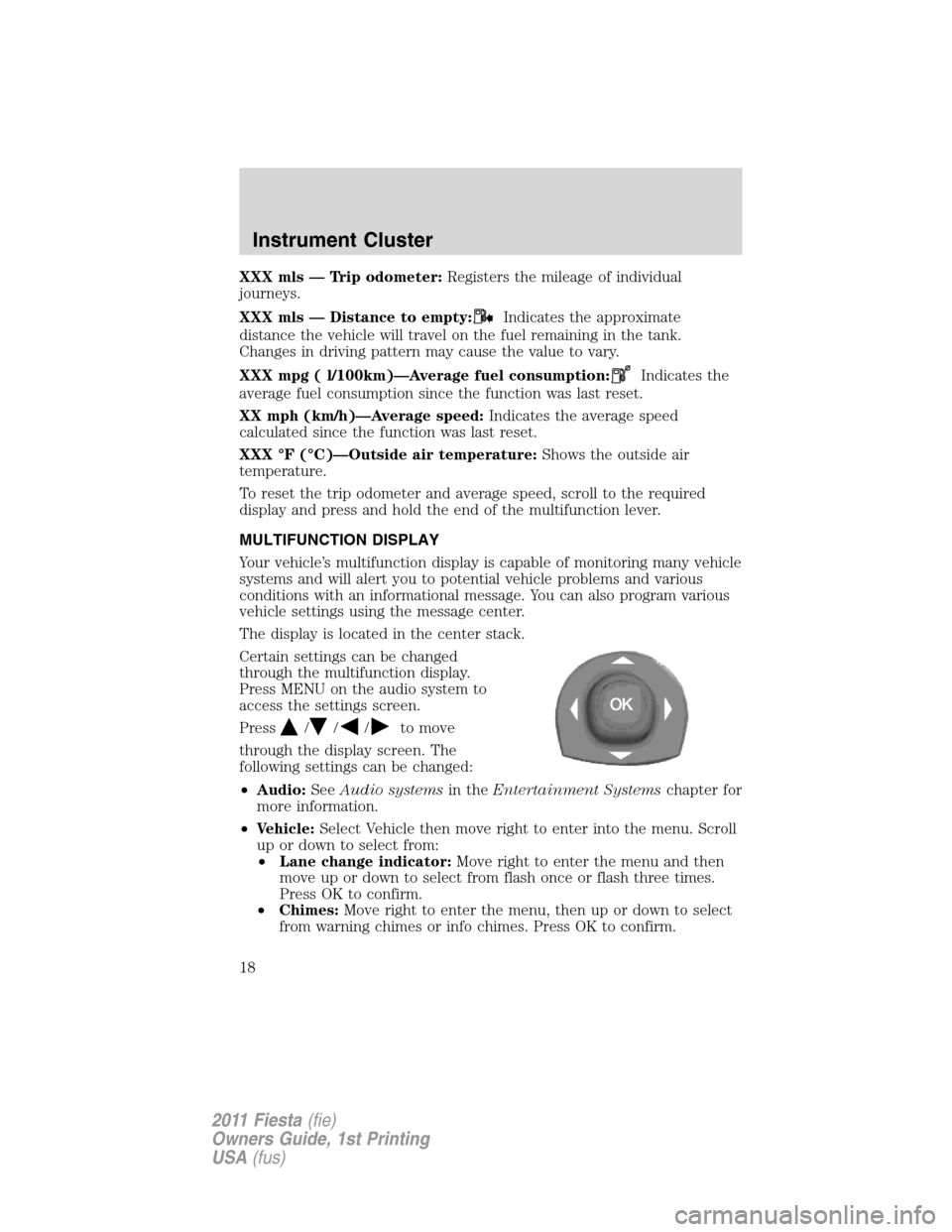

MULTIFUNCTION DISPLAY
Your vehicle’s multifunction display is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with an informational message. You can also program various
vehicle settings using the message center.
The display is located in the center stack.
Certain settings can be changed
through the multifunction display.
Press MENU on the audio system to
access the settings screen.
Press
///to move
through the display screen. The
following settings can be changed:
•Audio:SeeAudio systemsin theEntertainment Systemschapter for
more information.
•Vehicle:Select Vehicle then move right to enter into the menu. Scroll
up or down to select from:
•Lane change indicator:Move right to enter the menu and then
move up or down to select from flash once or flash three times.
Press OK to confirm.
•Chimes:Move right to enter the menu, then up or down to select
from warning chimes or info chimes. Press OK to confirm.
Instrument Cluster
18
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

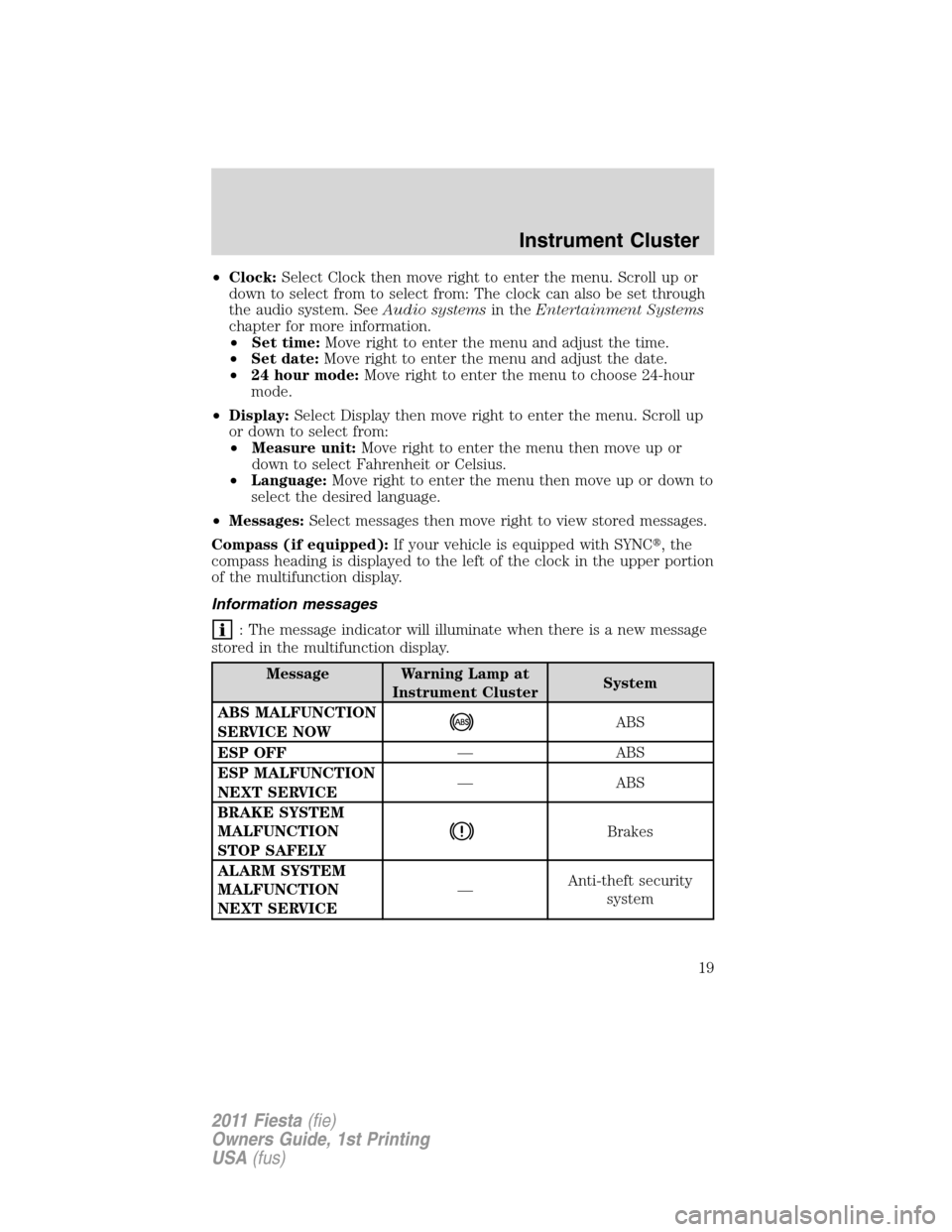

•Clock:Select Clock then move right to enter the menu. Scroll up or
down to select from to select from: The clock can also be set through
the audio system. SeeAudio systemsin theEntertainment Systems
chapter for more information.
•Set time:Move right to enter the menu and adjust the time.
•Set date:Move right to enter the menu and adjust the date.
•24 hour mode:Move right to enter the menu to choose 24-hour
mode.
•Display:Select Display then move right to enter the menu. Scroll up
or down to select from:
•Measure unit:Move right to enter the menu then move up or
down to select Fahrenheit or Celsius.
•Language:Move right to enter the menu then move up or down to
select the desired language.
•Messages:Select messages then move right to view stored messages.
Compass (if equipped):If your vehicle is equipped with SYNC
,the
compass heading is displayed to the left of the clock in the upper portion
of the multifunction display.
Information messages
: The message indicator will illuminate when there is a new message
stored in the multifunction display.
Message Warning Lamp at
Instrument ClusterSystem
ABS MALFUNCTION
SERVICE NOW
ABS
ESP OFF— ABS
ESP MALFUNCTION
NEXT SERVICE— ABS
BRAKE SYSTEM
MALFUNCTION
STOP SAFELY
Brakes
ALARM SYSTEM
MALFUNCTION
NEXT SERVICE—Anti-theft security
system
Instrument Cluster
19
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

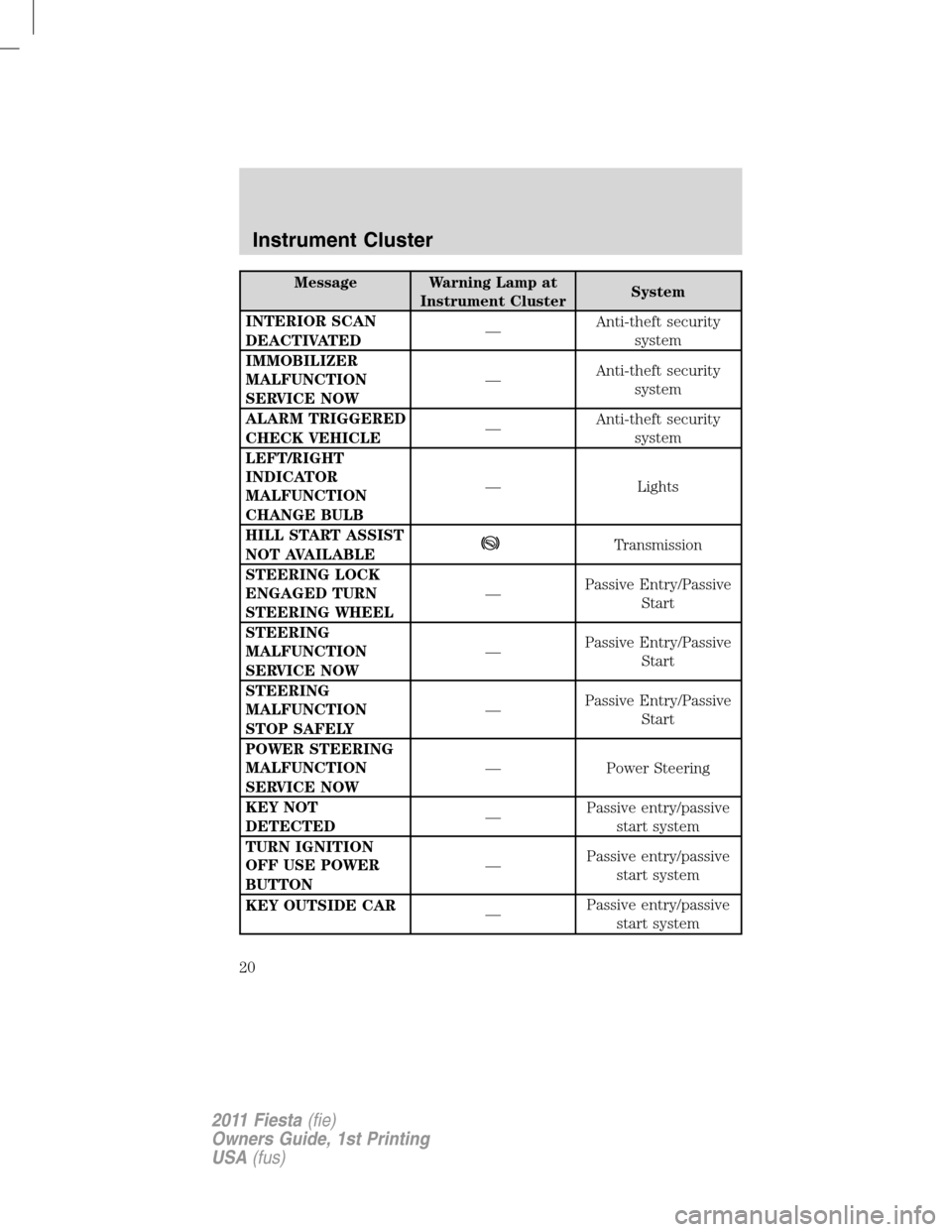

Message Warning Lamp at
Instrument ClusterSystem
INTERIOR SCAN
DEACTIVATED—Anti-theft security
system
IMMOBILIZER
MALFUNCTION
SERVICE NOW—Anti-theft security
system
ALARM TRIGGERED
CHECK VEHICLE—Anti-theft security
system
LEFT/RIGHT
INDICATOR
MALFUNCTION
CHANGE BULB— Lights
HILL START ASSIST
NOT AVAILABLE
Transmission
STEERING LOCK
ENGAGED TURN
STEERING WHEEL—Passive Entry/Passive
Start
STEERING
MALFUNCTION
SERVICE NOW—Passive Entry/Passive
Start
STEERING
MALFUNCTION
STOP SAFELY—Passive Entry/Passive
Start
POWER STEERING
MALFUNCTION
SERVICE NOW— Power Steering
KEY NOT
DETECTED—Passive entry/passive
start system
TURN IGNITION
OFF USE POWER
BUTTON—Passive entry/passive
start system
KEY OUTSIDE CAR
—Passive entry/passive
start system
Instrument Cluster
20
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
