FORD FIESTA 2011 Owners Manual

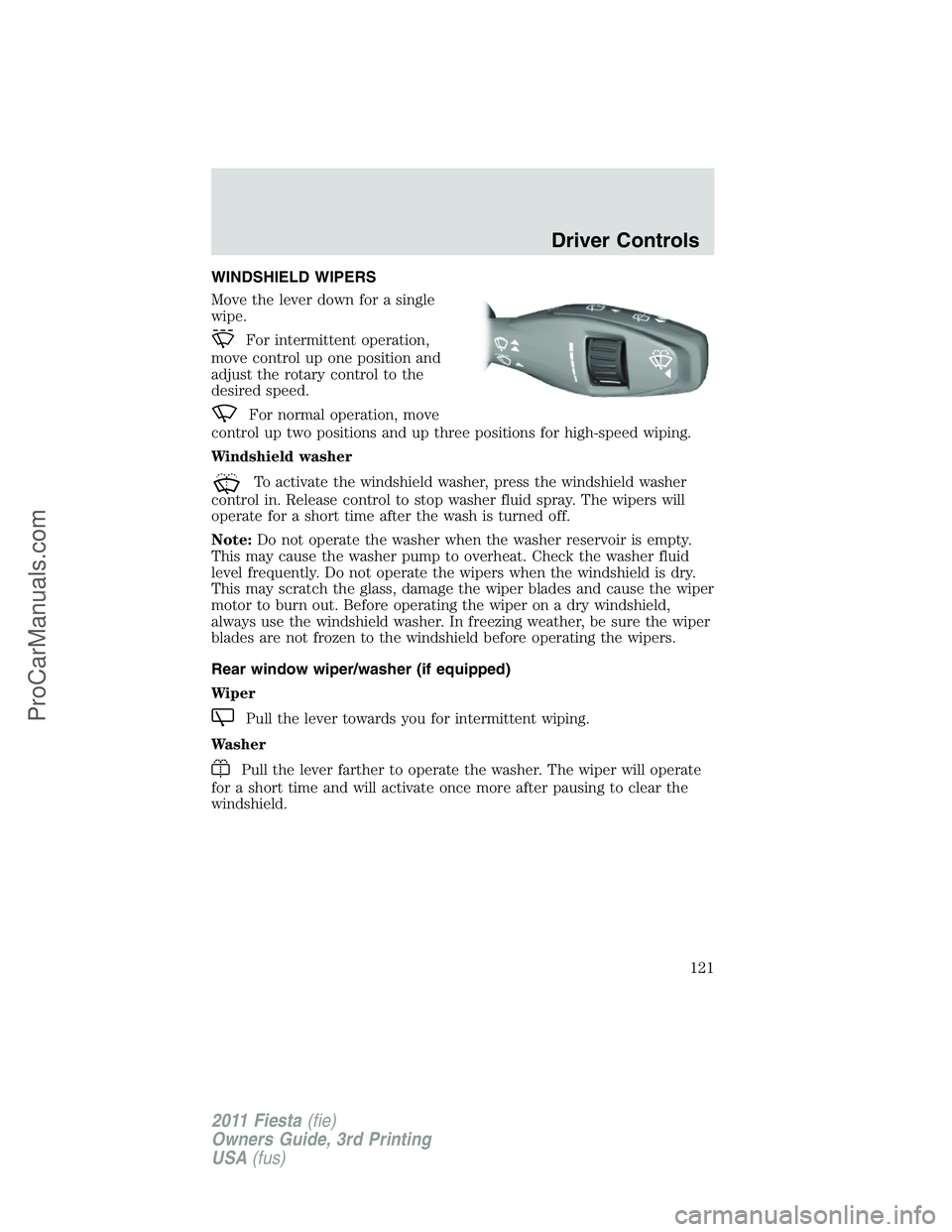

WINDSHIELD WIPERS
Move the lever down for a single
wipe.
For intermittent operation,
move control up one position and
adjust the rotary control to the
desired speed.
For normal operation, move
control up two positions and up three positions for high-speed wiping.
Windshield washer
To activate the windshield washer, press the windshield washer
control in. Release control to stop washer fluid spray. The wipers will
operate for a short time after the wash is turned off.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Rear window wiper/washer (if equipped)
Wiper
Pull the lever towards you for intermittent wiping.
Washer
Pull the lever farther to operate the washer. The wiper will operate
for a short time and will activate once more after pausing to clear the
windshield.
Driver Controls
121
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

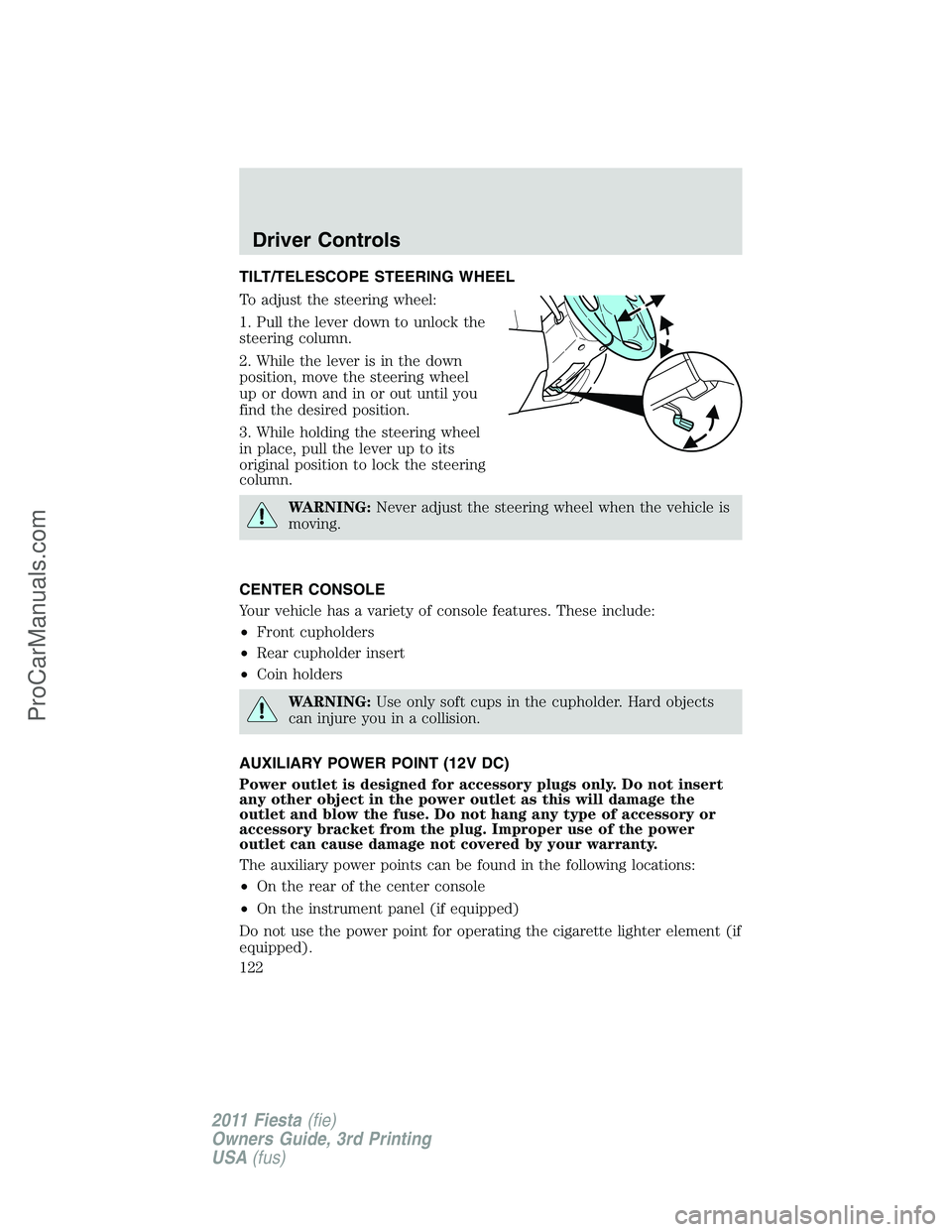

TILT/TELESCOPE STEERING WHEEL
To adjust the steering wheel:
1. Pull the lever down to unlock the
steering column.
2. While the lever is in the down
position, move the steering wheel
up or down and in or out until you
find the desired position.
3. While holding the steering wheel
in place, pull the lever up to its
original position to lock the steering
column.
WARNING:Never adjust the steering wheel when the vehicle is
moving.
CENTER CONSOLE
Your vehicle has a variety of console features. These include:
•Front cupholders
•Rear cupholder insert
•Coin holders
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12V DC)
Power outlet is designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power points can be found in the following locations:
•On the rear of the center console
•On the instrument panel (if equipped)
Do not use the power point for operating the cigarette lighter element (if
equipped).
Driver Controls
122
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

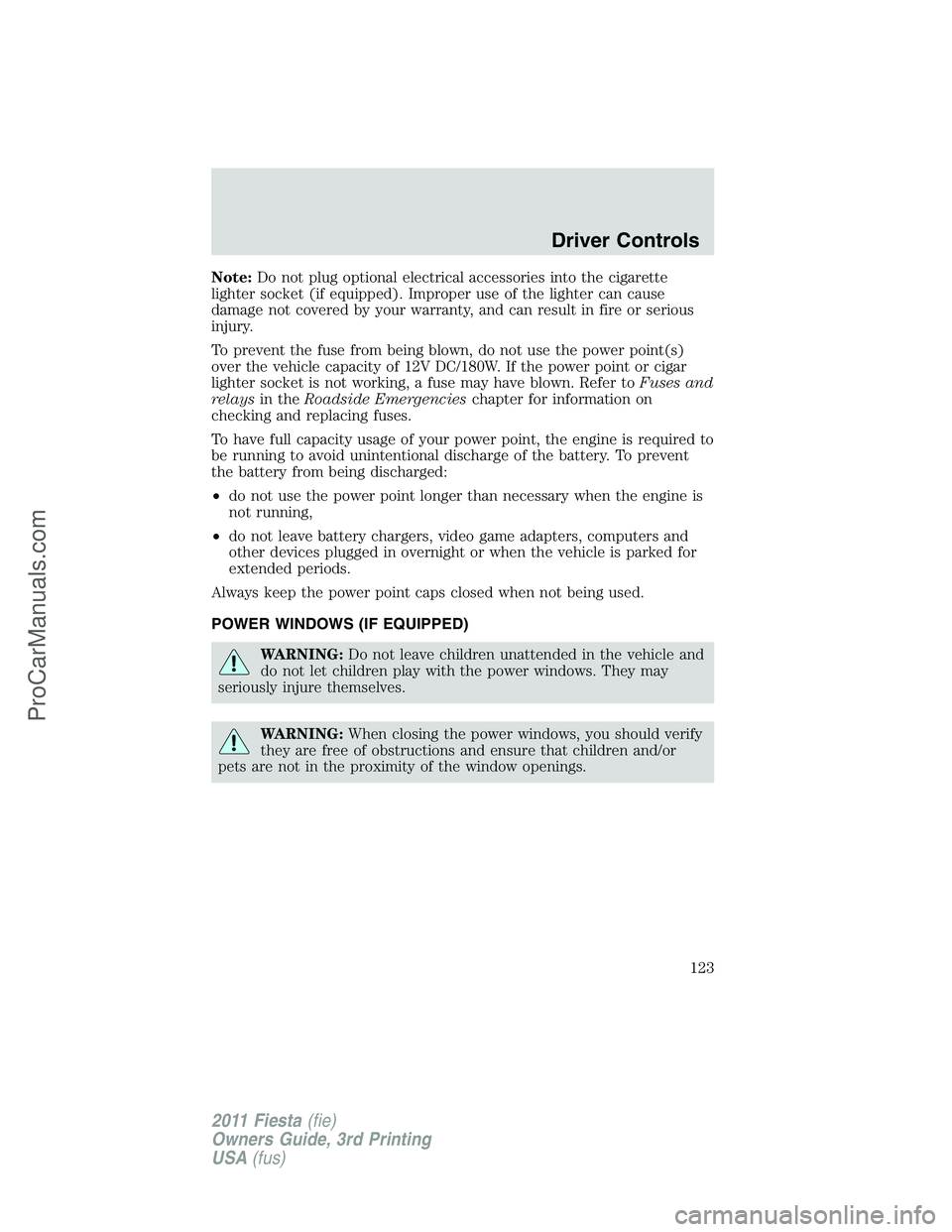

Note:Do not plug optional electrical accessories into the cigarette
lighter socket (if equipped). Improper use of the lighter can cause
damage not covered by your warranty, and can result in fire or serious
injury.
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12V DC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
POWER WINDOWS (IF EQUIPPED)
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Driver Controls
123
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

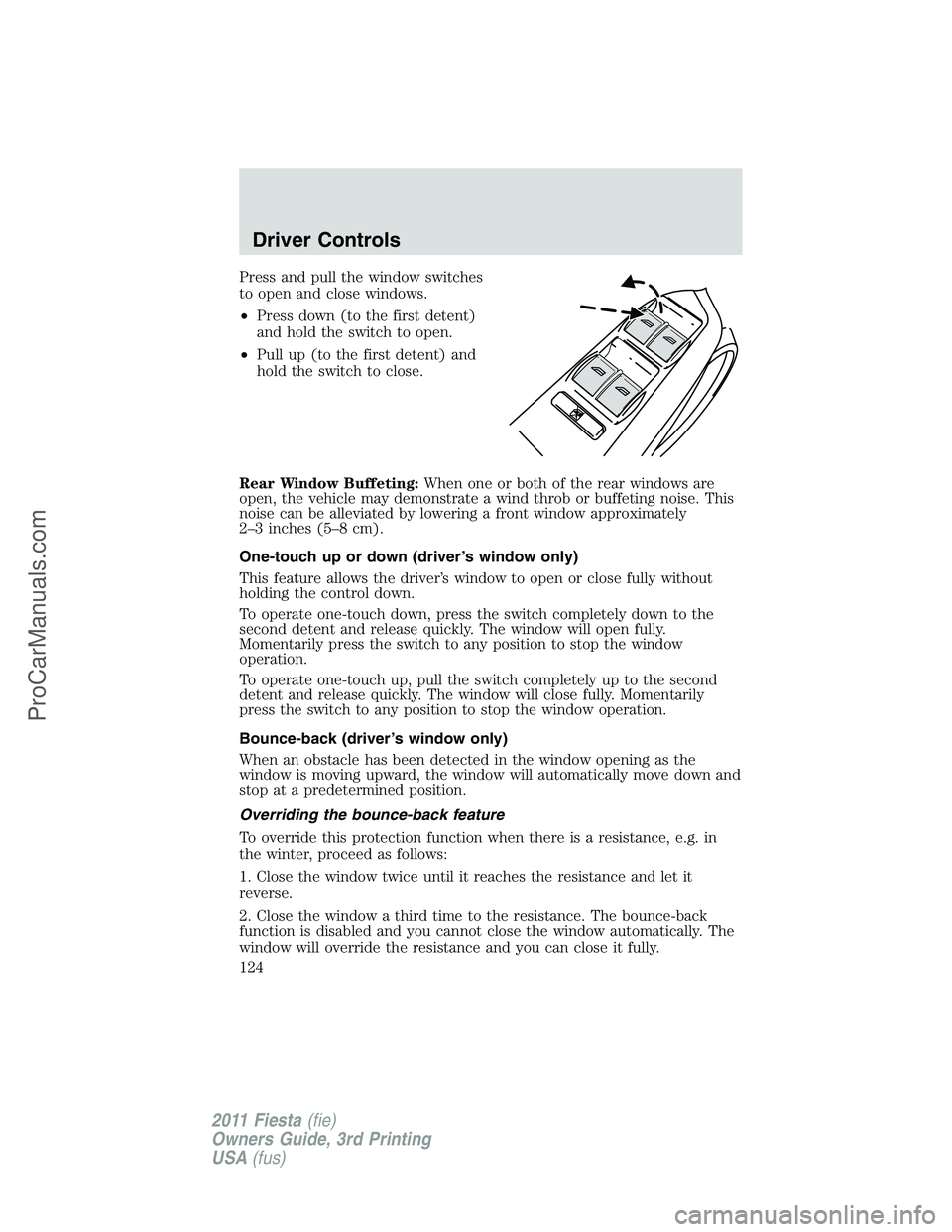

Press and pull the window switches
to open and close windows.
•Press down (to the first detent)
and hold the switch to open.
•Pull up (to the first detent) and
hold the switch to close.
Rear Window Buffeting:When one or both of the rear windows are
open, the vehicle may demonstrate a wind throb or buffeting noise. This
noise can be alleviated by lowering a front window approximately
2–3 inches (5–8 cm).
One-touch up or down (driver’s window only)
This feature allows the driver’s window to open or close fully without
holding the control down.
To operate one-touch down, press the switch completely down to the
second detent and release quickly. The window will open fully.
Momentarily press the switch to any position to stop the window
operation.
To operate one-touch up, pull the switch completely up to the second
detent and release quickly. The window will close fully. Momentarily
press the switch to any position to stop the window operation.
Bounce-back (driver’s window only)
When an obstacle has been detected in the window opening as the
window is moving upward, the window will automatically move down and
stop at a predetermined position.
Overriding the bounce-back feature
To override this protection function when there is a resistance, e.g. in
the winter, proceed as follows:
1. Close the window twice until it reaches the resistance and let it
reverse.
2. Close the window a third time to the resistance. The bounce-back
function is disabled and you cannot close the window automatically. The
window will override the resistance and you can close it fully.
Driver Controls
124
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

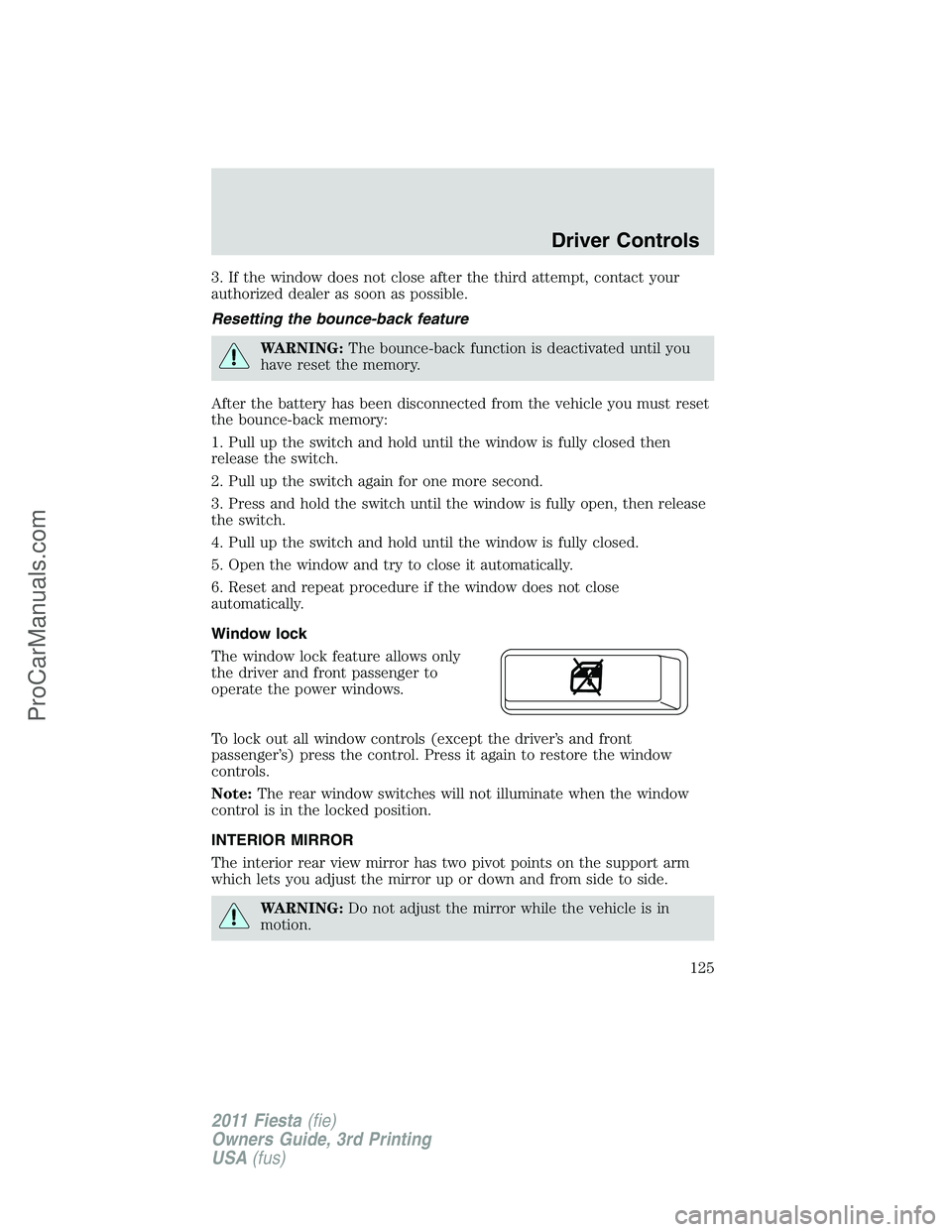

3. If the window does not close after the third attempt, contact your
authorized dealer as soon as possible.
Resetting the bounce-back feature
WARNING:The bounce-back function is deactivated until you
have reset the memory.
After the battery has been disconnected from the vehicle you must reset
the bounce-back memory:
1. Pull up the switch and hold until the window is fully closed then
release the switch.
2. Pull up the switch again for one more second.
3. Press and hold the switch until the window is fully open, then release
the switch.
4. Pull up the switch and hold until the window is fully closed.
5. Open the window and try to close it automatically.
6. Reset and repeat procedure if the window does not close
automatically.
Window lock
The window lock feature allows only
the driver and front passenger to
operate the power windows.
To lock out all window controls (except the driver’s and front
passenger’s) press the control. Press it again to restore the window
controls.
Note:The rear window switches will not illuminate when the window
control is in the locked position.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror up or down and from side to side.
WARNING:Do not adjust the mirror while the vehicle is in
motion.
Driver Controls
125
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

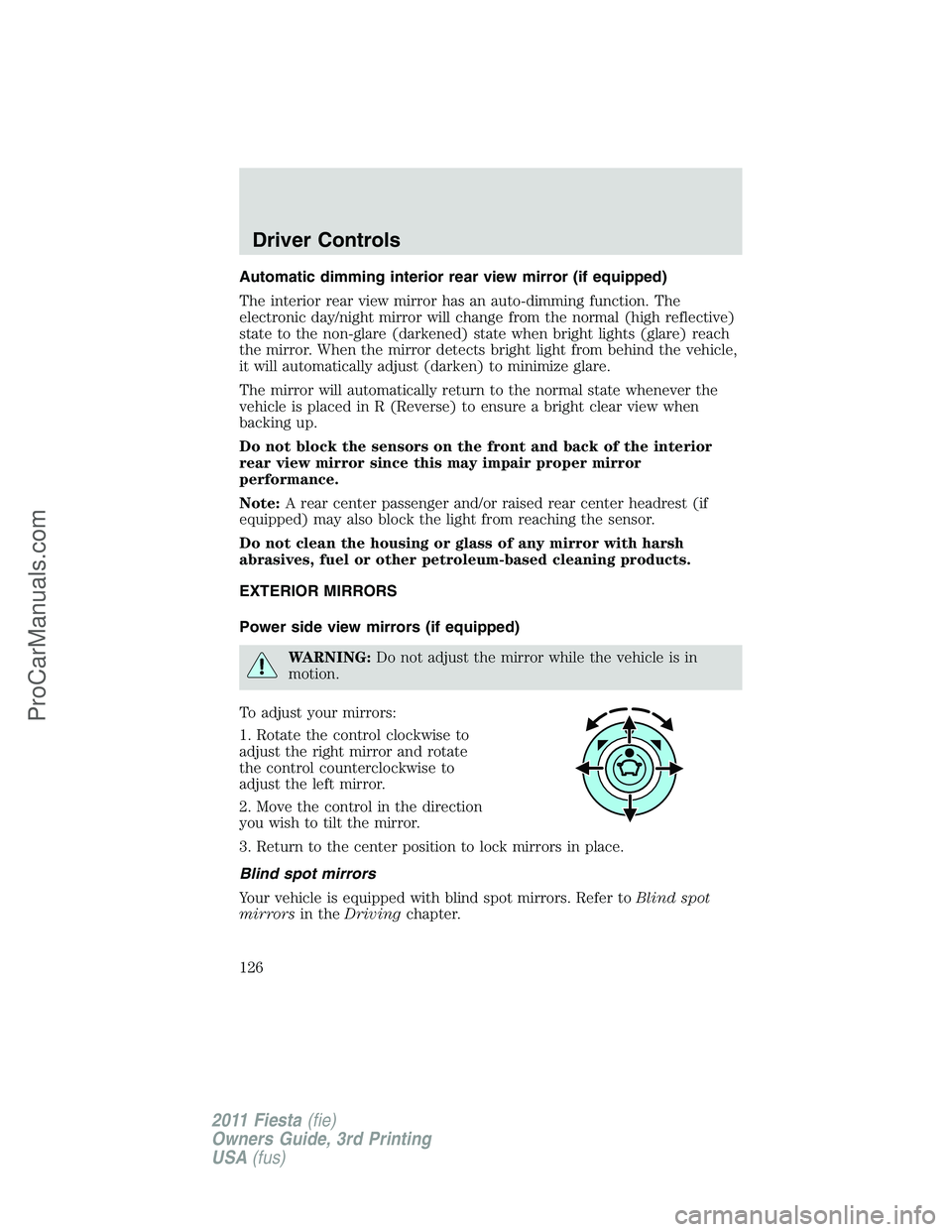

Automatic dimming interior rear view mirror (if equipped)
The interior rear view mirror has an auto-dimming function. The
electronic day/night mirror will change from the normal (high reflective)
state to the non-glare (darkened) state when bright lights (glare) reach
the mirror. When the mirror detects bright light from behind the vehicle,
it will automatically adjust (darken) to minimize glare.
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Note:A rear center passenger and/or raised rear center headrest (if
equipped) may also block the light from reaching the sensor.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
EXTERIOR MIRRORS
Power side view mirrors (if equipped)
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Blind spot mirrors
Your vehicle is equipped with blind spot mirrors. Refer toBlind spot
mirrorsin theDrivingchapter.
Driver Controls
126
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

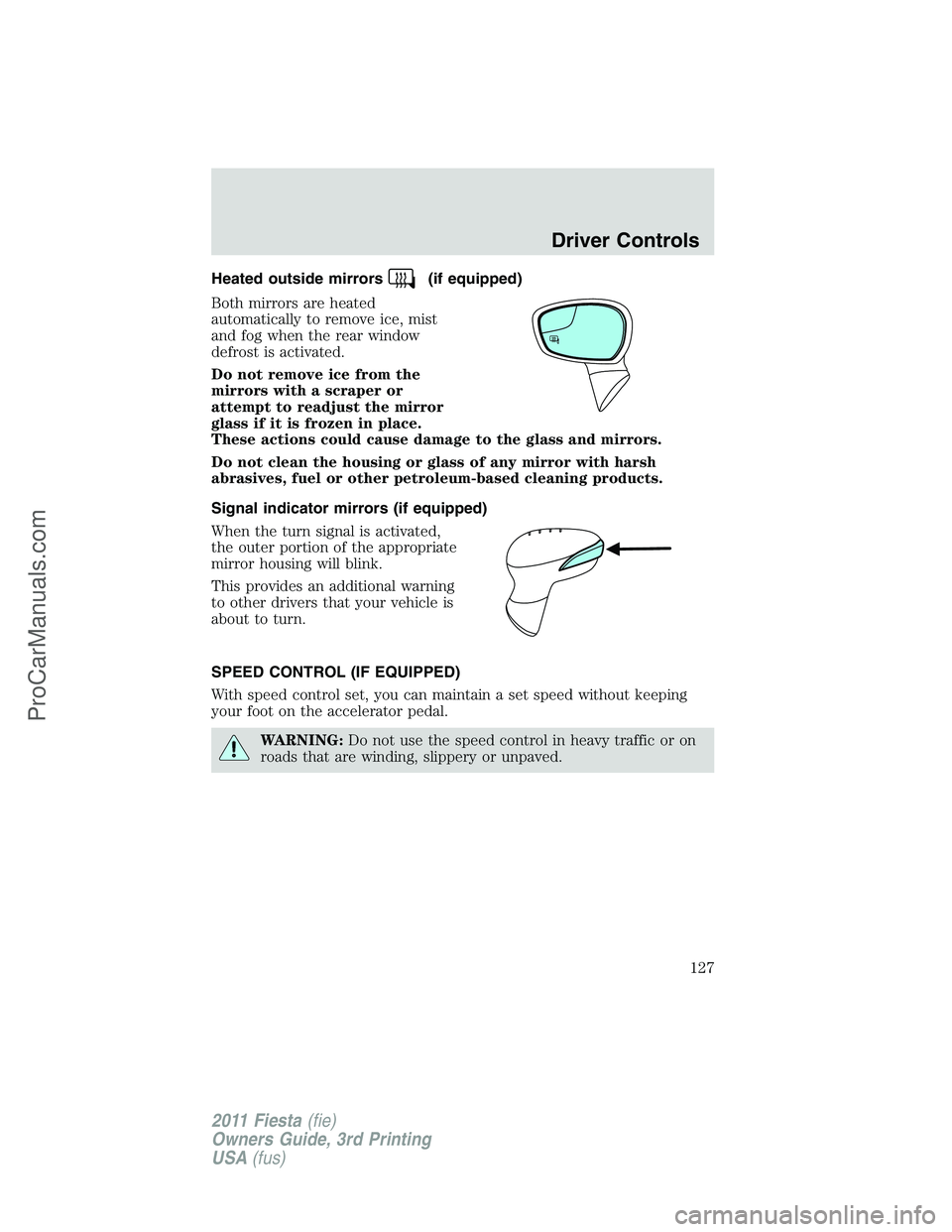

Heated outside mirrors(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Signal indicator mirrors (if equipped)
When the turn signal is activated,
the outer portion of the appropriate
mirror housing will blink.
This provides an additional warning
to other drivers that your vehicle is
about to turn.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
Driver Controls
127
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

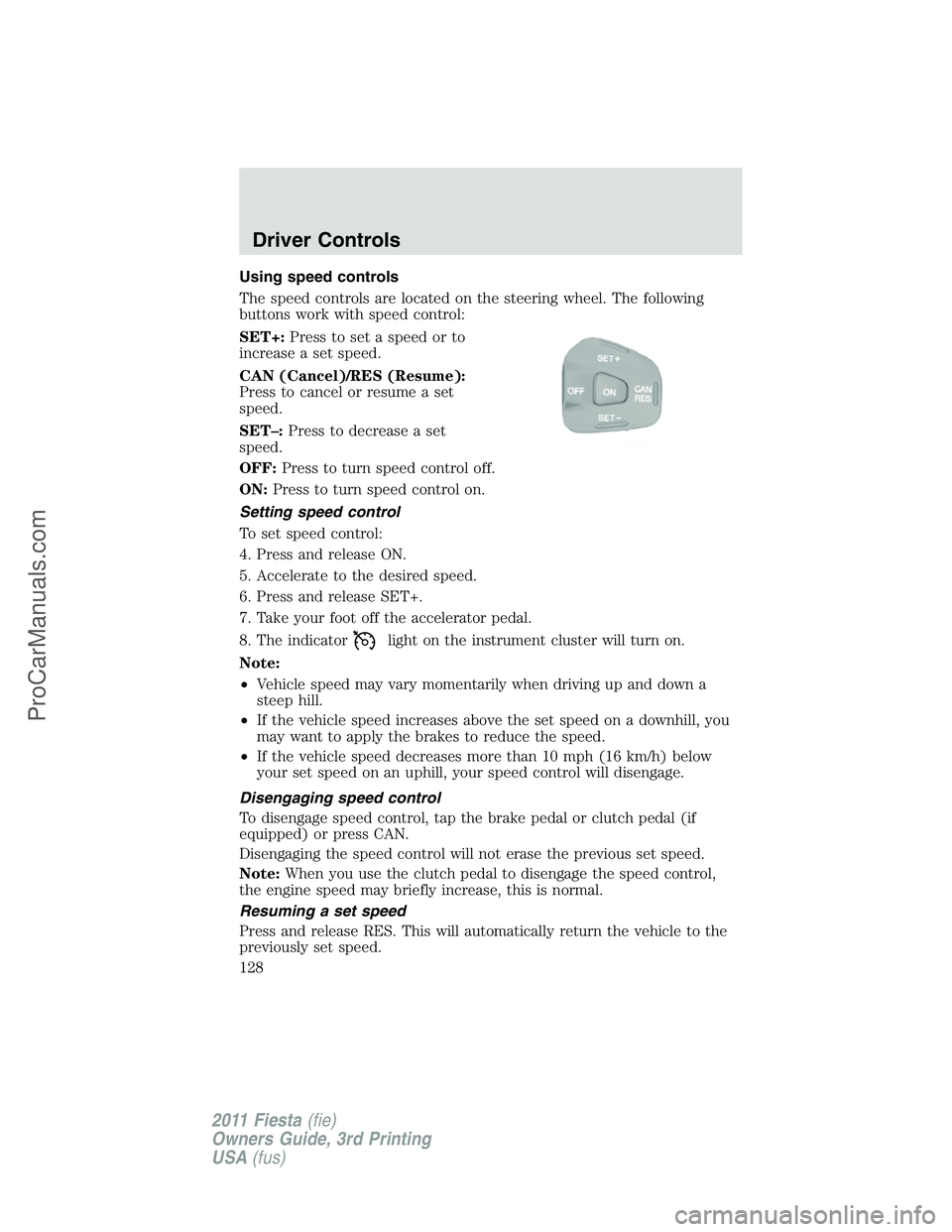

Using speed controls
The speed controls are located on the steering wheel. The following
buttons work with speed control:
SET+:Press to set a speed or to
increase a set speed.
CAN (Cancel)/RES (Resume):
Press to cancel or resume a set
speed.
SET–:Press to decrease a set
speed.
OFF:Press to turn speed control off.
ON:Press to turn speed control on.
Setting speed control
To set speed control:
4. Press and release ON.
5. Accelerate to the desired speed.
6. Press and release SET+.
7. Take your foot off the accelerator pedal.
8. The indicator
light on the instrument cluster will turn on.
Note:
•Vehicle speed may vary momentarily when driving up and down a
steep hill.
•If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.
•If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.
Disengaging speed control
To disengage speed control, tap the brake pedal or clutch pedal (if
equipped) or press CAN.
Disengaging the speed control will not erase the previous set speed.
Note:When you use the clutch pedal to disengage the speed control,
the engine speed may briefly increase, this is normal.
Resuming a set speed
Press and release RES. This will automatically return the vehicle to the
previously set speed.
Driver Controls
128
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

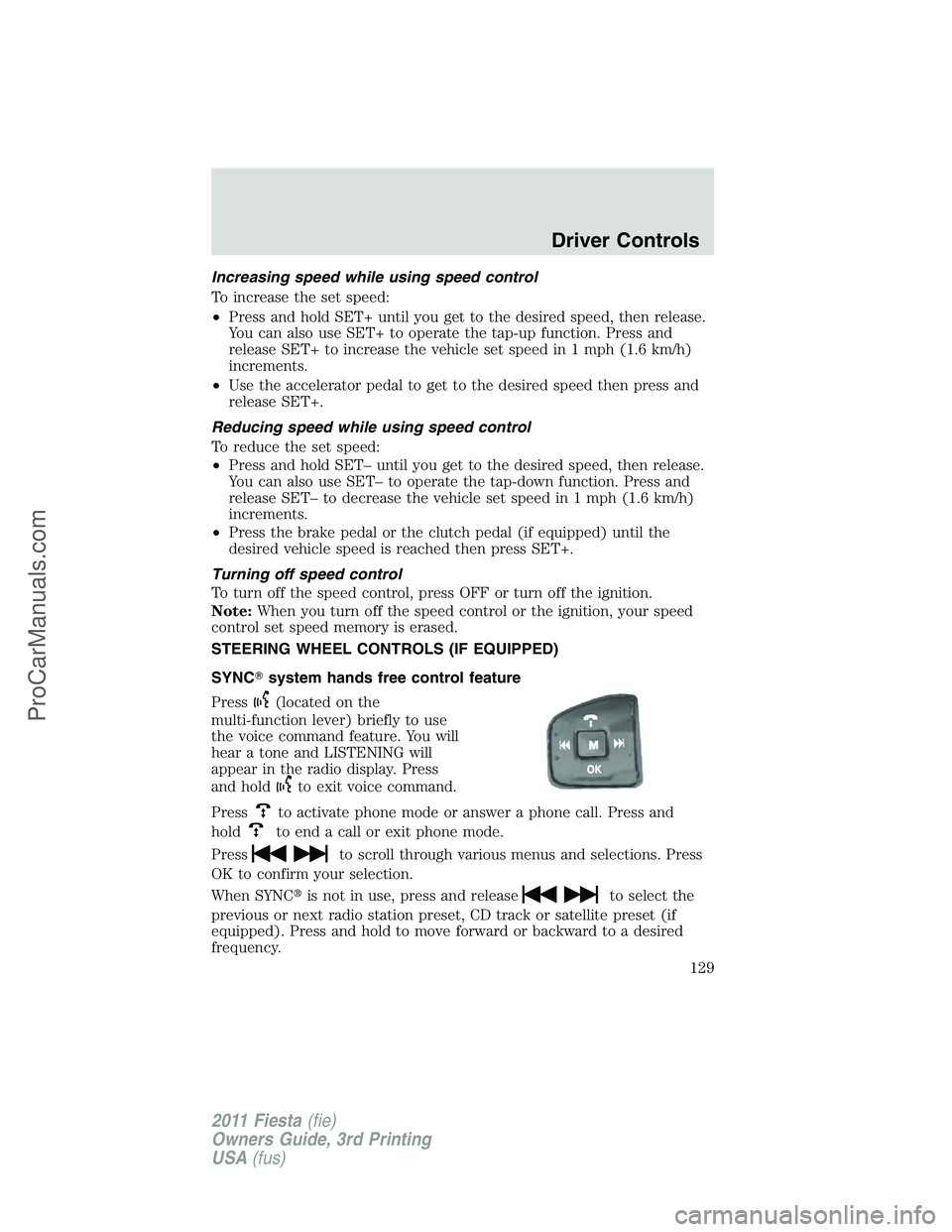

Increasing speed while using speed control
To increase the set speed:
•Press and hold SET+ until you get to the desired speed, then release.
You can also use SET+ to operate the tap-up function. Press and
release SET+ to increase the vehicle set speed in 1 mph (1.6 km/h)
increments.
•Use the accelerator pedal to get to the desired speed then press and
release SET+.
Reducing speed while using speed control
To reduce the set speed:
•Press and hold SET– until you get to the desired speed, then release.
You can also use SET– to operate the tap-down function. Press and
release SET– to decrease the vehicle set speed in 1 mph (1.6 km/h)
increments.
•Press the brake pedal or the clutch pedal (if equipped) until the
desired vehicle speed is reached then press SET+.
Turning off speed control
To turn off the speed control, press OFF or turn off the ignition.
Note:When you turn off the speed control or the ignition, your speed
control set speed memory is erased.
STEERING WHEEL CONTROLS (IF EQUIPPED)
SYNCsystem hands free control feature
Press
(located on the
multi-function lever) briefly to use
the voice command feature. You will
hear a tone and LISTENING will
appear in the radio display. Press
and hold
to exit voice command.
Press
to activate phone mode or answer a phone call. Press and
hold
to end a call or exit phone mode.
Press
to scroll through various menus and selections. Press
OK to confirm your selection.
When SYNCis not in use, press and release
to select the
previous or next radio station preset, CD track or satellite preset (if
equipped). Press and hold to move forward or backward to a desired
frequency.
Driver Controls
129
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

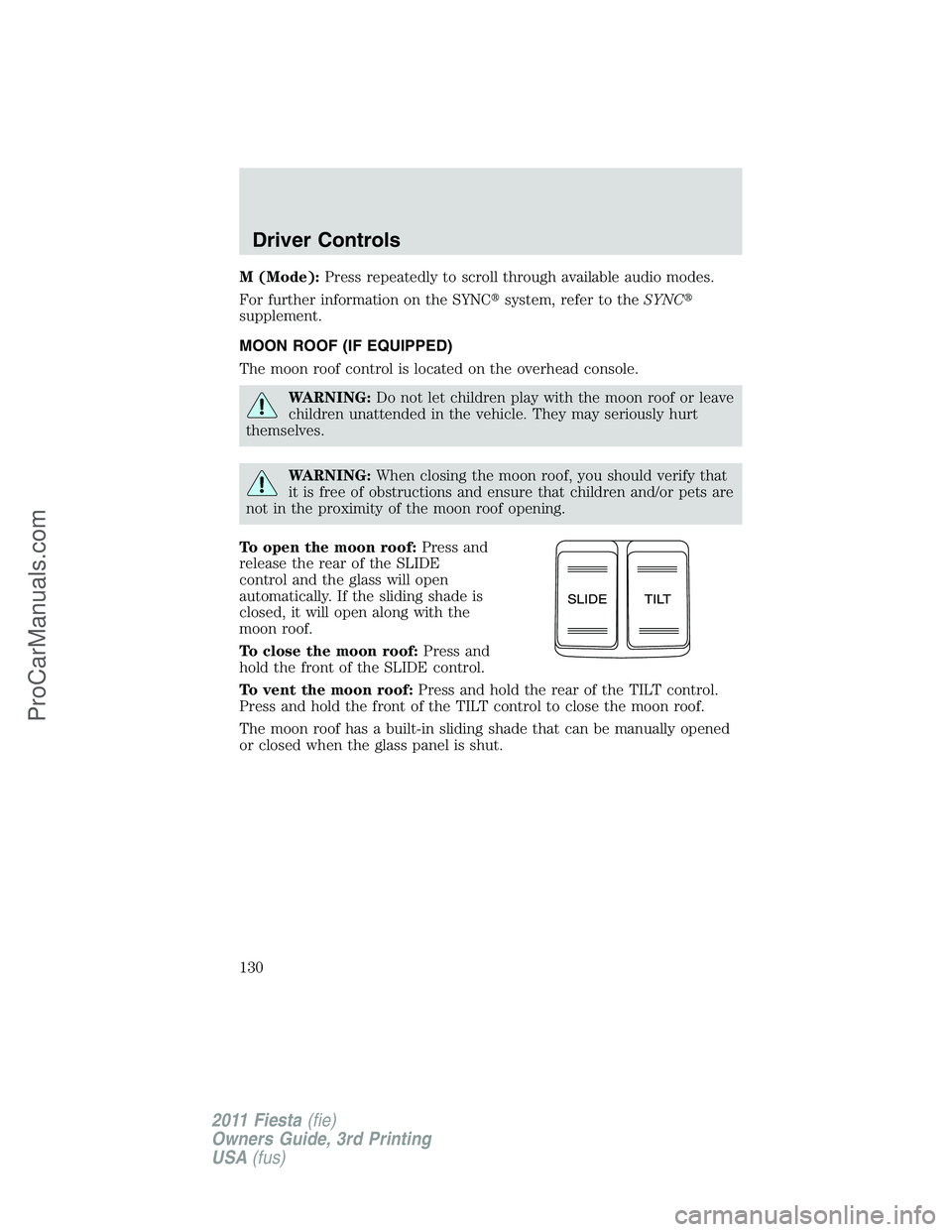

M (Mode):Press repeatedly to scroll through available audio modes.
For further information on the SYNCsystem, refer to theSYNC
supplement.
MOON ROOF (IF EQUIPPED)
The moon roof control is located on the overhead console.
WARNING:Do not let children play with the moon roof or leave
children unattended in the vehicle. They may seriously hurt
themselves.
WARNING:When closing the moon roof, you should verify that
it is free of obstructions and ensure that children and/or pets are
not in the proximity of the moon roof opening.
To open the moon roof:Press and
release the rear of the SLIDE
control and the glass will open
automatically. If the sliding shade is
closed, it will open along with the
moon roof.
To close the moon roof:Press and
hold the front of the SLIDE control.
To vent the moon roof:Press and hold the rear of the TILT control.
Press and hold the front of the TILT control to close the moon roof.
The moon roof has a built-in sliding shade that can be manually opened
or closed when the glass panel is shut.
Driver Controls
130
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com
