FORD FIESTA 2011 Manual PDF

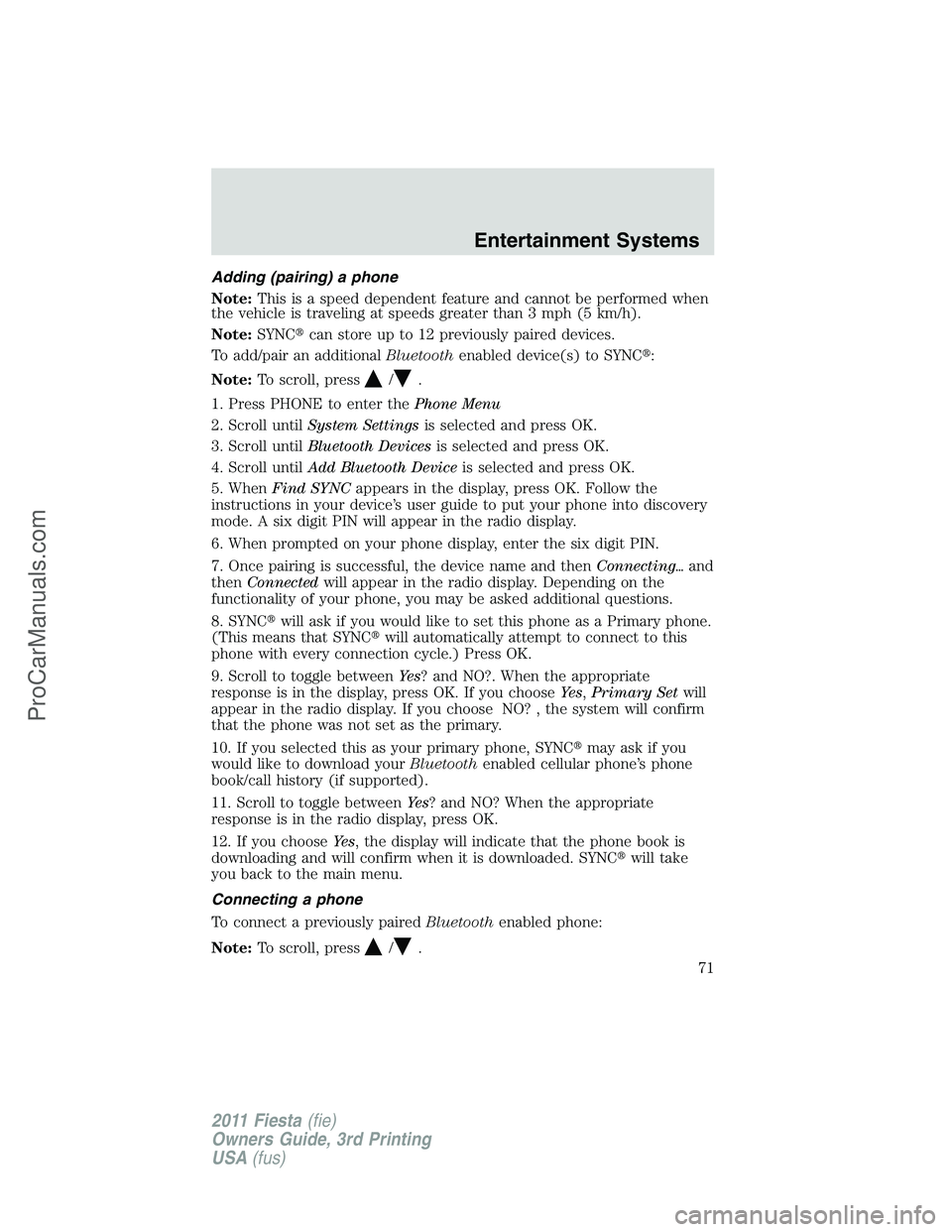

Adding (pairing) a phone
Note:This is a speed dependent feature and cannot be performed when
the vehicle is traveling at speeds greater than 3 mph (5 km/h).
Note:SYNCcan store up to 12 previously paired devices.
To add/pair an additionalBluetoothenabled device(s) to SYNC:
Note:To scroll, press
/.
1. Press PHONE to enter thePhone Menu
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilBluetooth Devicesis selected and press OK.
4. Scroll untilAdd Bluetooth Deviceis selected and press OK.
5. WhenFind SYNCappears in the display, press OK. Follow the
instructions in your device’s user guide to put your phone into discovery
mode. A six digit PIN will appear in the radio display.
6. When prompted on your phone display, enter the six digit PIN.
7. Once pairing is successful, the device name and thenConnectingand
thenConnectedwill appear in the radio display. Depending on the
functionality of your phone, you may be asked additional questions.
8. SYNCwill ask if you would like to set this phone as a Primary phone.
(This means that SYNCwill automatically attempt to connect to this
phone with every connection cycle.) Press OK.
9. Scroll to toggle betweenYe s? and NO?. When the appropriate
response is in the display, press OK. If you chooseYe s,Primary Setwill
appear in the radio display. If you choose NO? , the system will confirm
that the phone was not set as the primary.
10. If you selected this as your primary phone, SYNCmay ask if you
would like to download yourBluetoothenabled cellular phone’s phone
book/call history (if supported).
11. Scroll to toggle betweenYe s? and NO? When the appropriate
response is in the radio display, press OK.
12. If you chooseYe s, the display will indicate that the phone book is
downloading and will confirm when it is downloaded. SYNCwill take
you back to the main menu.
Connecting a phone
To connect a previously pairedBluetoothenabled phone:
Note:To scroll, press
/.
Entertainment Systems
71
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

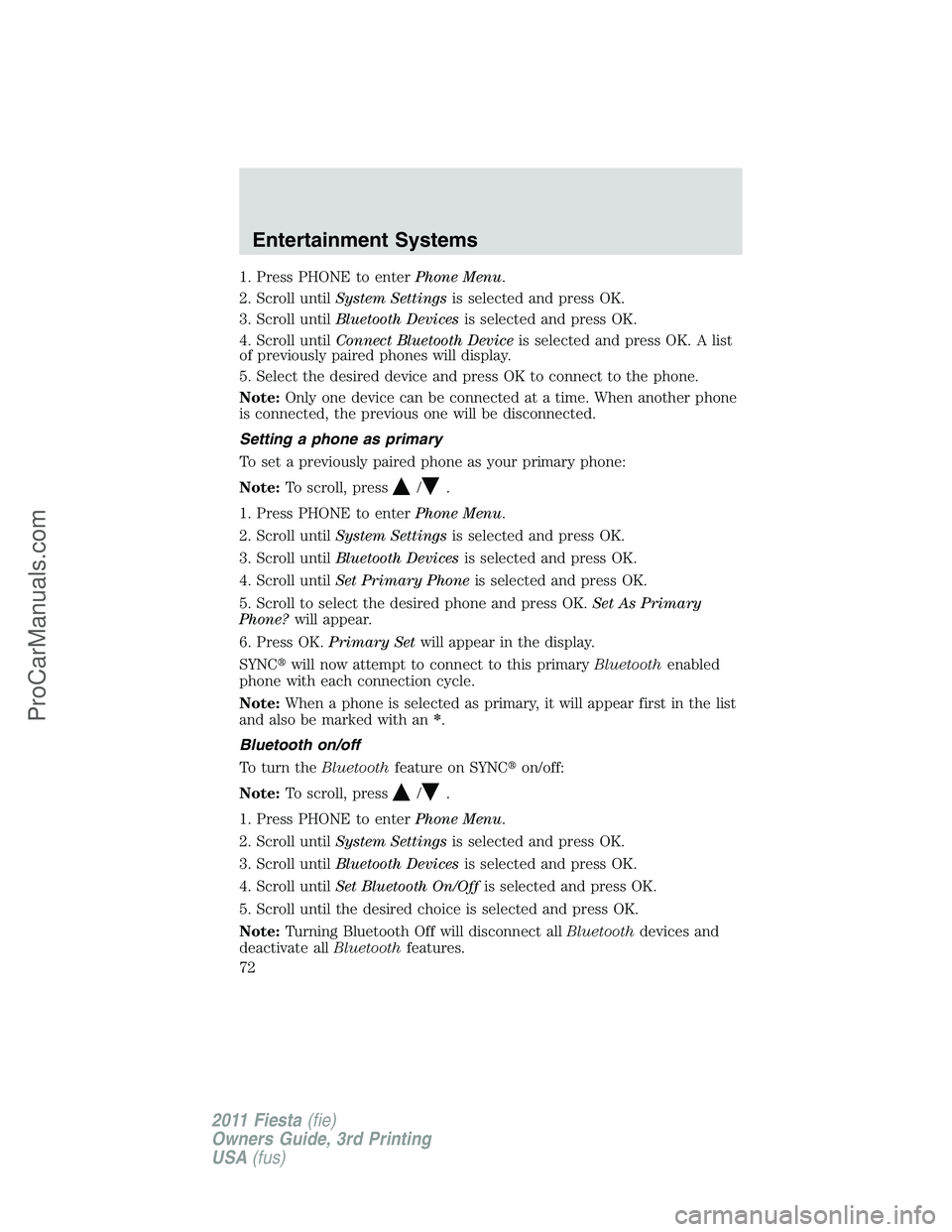

1. Press PHONE to enterPhone Menu.
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilBluetooth Devicesis selected and press OK.
4. Scroll untilConnect Bluetooth Deviceis selected and press OK. A list
of previously paired phones will display.
5. Select the desired device and press OK to connect to the phone.
Note:Only one device can be connected at a time. When another phone
is connected, the previous one will be disconnected.
Setting a phone as primary
To set a previously paired phone as your primary phone:
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilBluetooth Devicesis selected and press OK.
4. Scroll untilSet Primary Phoneis selected and press OK.
5. Scroll to select the desired phone and press OK.Set As Primary
Phone?will appear.
6. Press OK.Primary Setwill appear in the display.
SYNCwill now attempt to connect to this primaryBluetoothenabled
phone with each connection cycle.
Note:When a phone is selected as primary, it will appear first in the list
and also be marked with an*.
Bluetooth on/off
To turn theBluetoothfeature on SYNCon/off:
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilBluetooth Devicesis selected and press OK.
4. Scroll untilSet Bluetooth On/Offis selected and press OK.
5. Scroll until the desired choice is selected and press OK.
Note:Turning Bluetooth Off will disconnect allBluetoothdevices and
deactivate allBluetoothfeatures.
Entertainment Systems
72
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

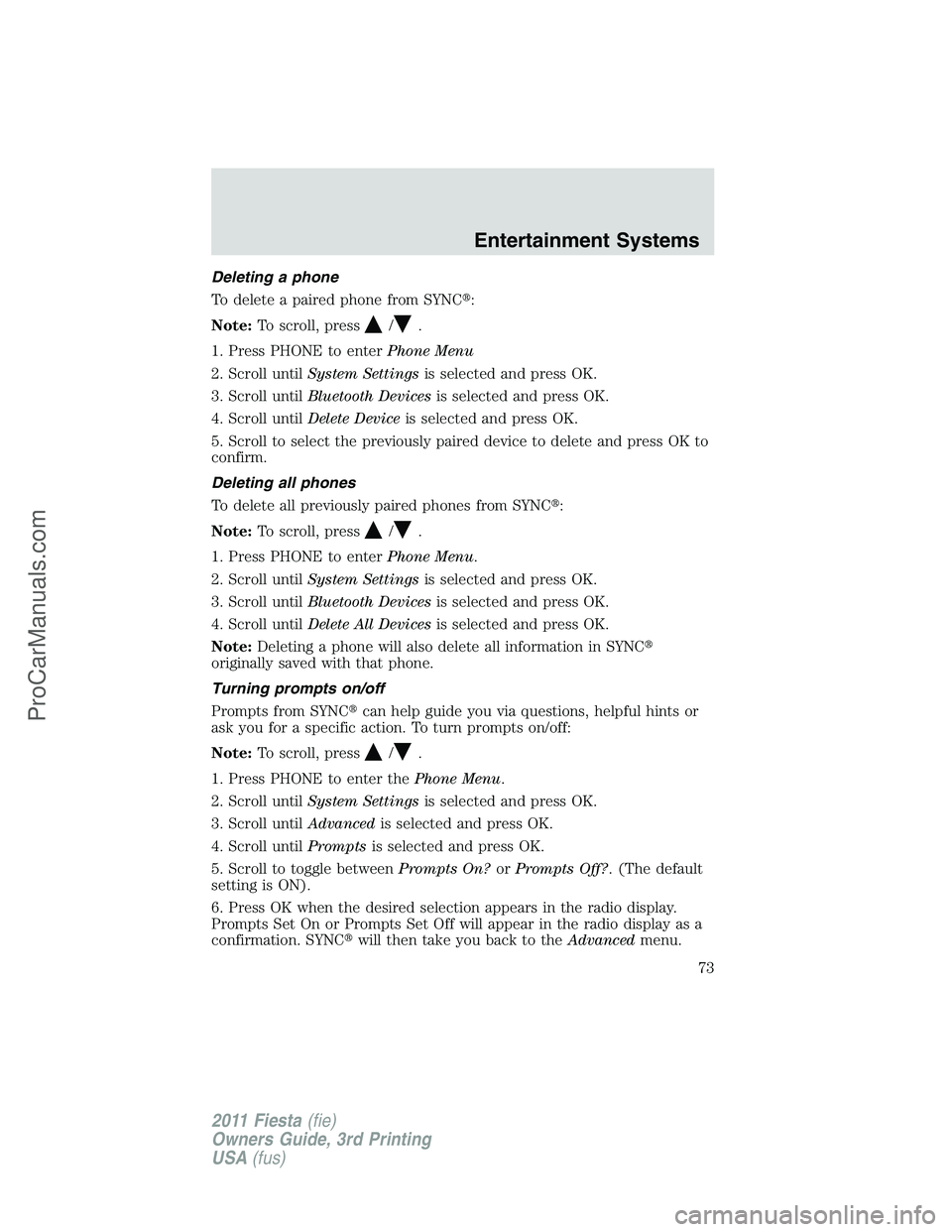

Deleting a phone
To delete a paired phone from SYNC:
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilBluetooth Devicesis selected and press OK.
4. Scroll untilDelete Deviceis selected and press OK.
5. Scroll to select the previously paired device to delete and press OK to
confirm.
Deleting all phones
To delete all previously paired phones from SYNC:
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilBluetooth Devicesis selected and press OK.
4. Scroll untilDelete All Devicesis selected and press OK.
Note:Deleting a phone will also delete all information in SYNC
originally saved with that phone.
Turning prompts on/off
Prompts from SYNCcan help guide you via questions, helpful hints or
ask you for a specific action. To turn prompts on/off:
Note:To scroll, press
/.
1. Press PHONE to enter thePhone Menu.
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilAdvancedis selected and press OK.
4. Scroll untilPromptsis selected and press OK.
5. Scroll to toggle betweenPrompts On?orPrompts Off?. (The default
setting is ON).
6. Press OK when the desired selection appears in the radio display.
Prompts Set On or Prompts Set Off will appear in the radio display as a
confirmation. SYNCwill then take you back to theAdvancedmenu.
Entertainment Systems
73
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

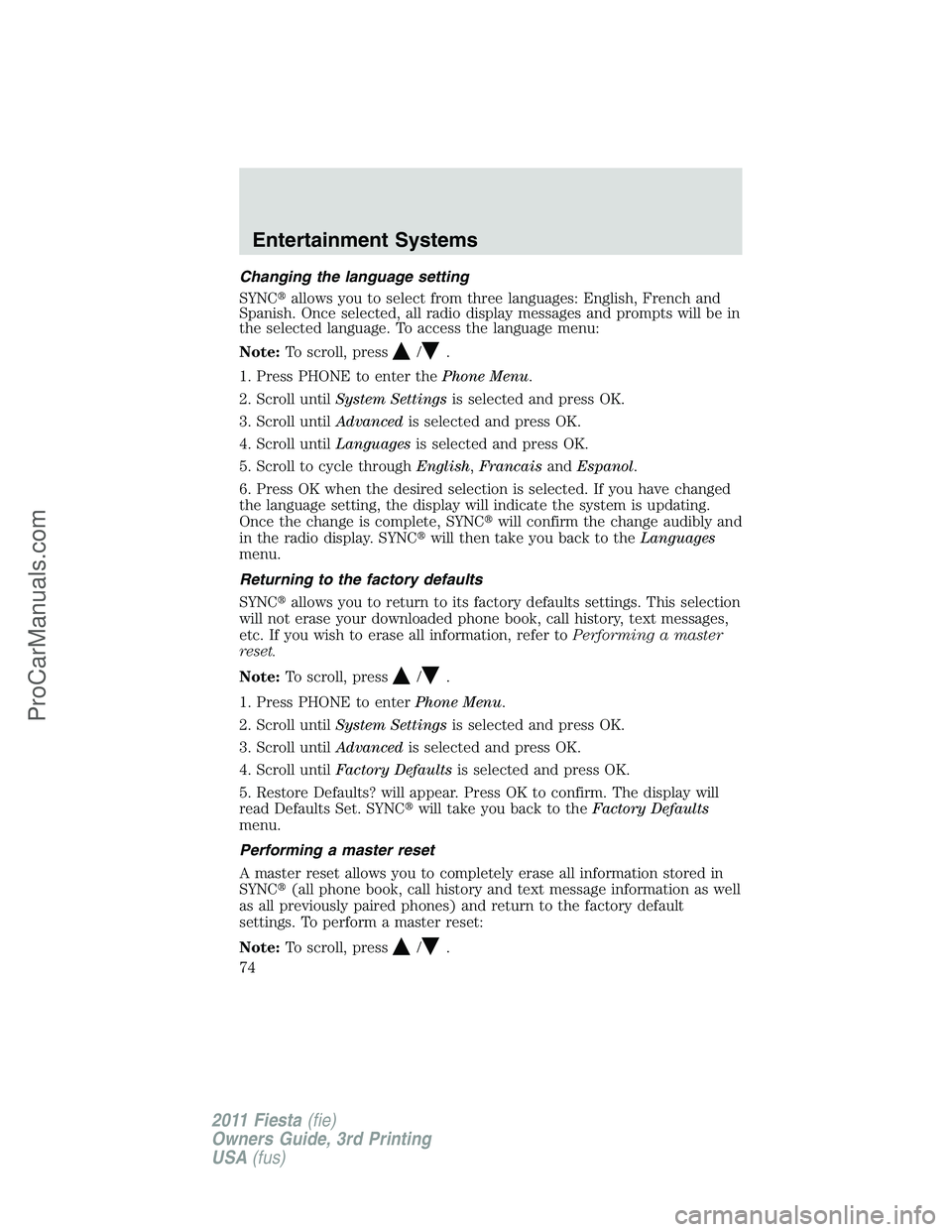

Changing the language setting
SYNCallows you to select from three languages: English, French and
Spanish. Once selected, all radio display messages and prompts will be in
the selected language. To access the language menu:
Note:To scroll, press
/.
1. Press PHONE to enter thePhone Menu.
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilAdvancedis selected and press OK.
4. Scroll untilLanguagesis selected and press OK.
5. Scroll to cycle throughEnglish,FrancaisandEspanol.
6. Press OK when the desired selection is selected. If you have changed
the language setting, the display will indicate the system is updating.
Once the change is complete, SYNCwill confirm the change audibly and
in the radio display. SYNCwill then take you back to theLanguages
menu.
Returning to the factory defaults
SYNCallows you to return to its factory defaults settings. This selection
will not erase your downloaded phone book, call history, text messages,
etc. If you wish to erase all information, refer toPerforming a master
reset.
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilAdvancedis selected and press OK.
4. Scroll untilFactory Defaultsis selected and press OK.
5. Restore Defaults? will appear. Press OK to confirm. The display will
read Defaults Set. SYNCwill take you back to theFactory Defaults
menu.
Performing a master reset
A master reset allows you to completely erase all information stored in
SYNC(all phone book, call history and text message information as well
as all previously paired phones) and return to the factory default
settings. To perform a master reset:
Note:To scroll, press
/.
Entertainment Systems
74
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

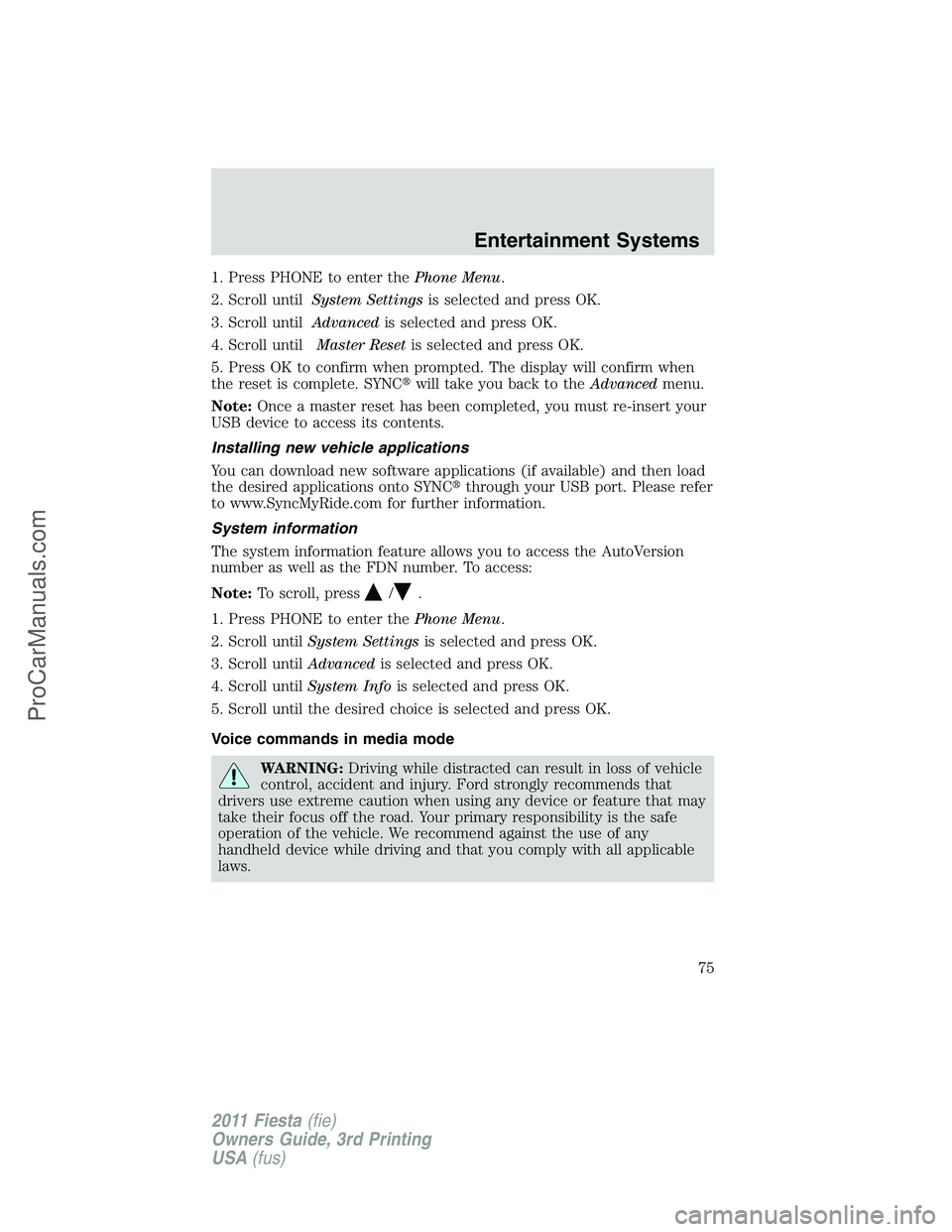

1. Press PHONE to enter thePhone Menu.
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilAdvancedis selected and press OK.
4. Scroll untilMaster Resetis selected and press OK.
5. Press OK to confirm when prompted. The display will confirm when
the reset is complete. SYNCwill take you back to theAdvancedmenu.
Note:Once a master reset has been completed, you must re-insert your
USB device to access its contents.
Installing new vehicle applications
You can download new software applications (if available) and then load
the desired applications onto SYNCthrough your USB port. Please refer
to www.SyncMyRide.com for further information.
System information
The system information feature allows you to access the AutoVersion
number as well as the FDN number. To access:
Note:To scroll, press
/.
1. Press PHONE to enter thePhone Menu.
2. Scroll untilSystem Settingsis selected and press OK.
3. Scroll untilAdvancedis selected and press OK.
4. Scroll untilSystem Infois selected and press OK.
5. Scroll until the desired choice is selected and press OK.
Voice commands in media mode
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Entertainment Systems
75
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

Voice commands when using the USB port
When using the USB port, you may say any of the following
commands:
•Play all•Play
•Pause•What’s playing?
•Play next track•Play previous track
•Play song •Search song
•Play next song•Play previous song
•Refine song •Similar music
•Play next folder
2•Play previous folder2
•Autoplay on•Autoplay off
•Repeat off•Repeat on
•Shuffle on•Shuffle off
•Play genre
1•Play playlist 1
•Play album 1•Play artist 1
•Play track 1•Search artist 1
•Search genre 1•Search track 1
•Search album 1•Refine album 1
•Refine artist 1•Refine track 1
•Connections1Voice commands are not available until indexing is complete.2Voice commands only available in folder mode. For more information,
refer toExploring the USB devicelater in this chapter.
Note:In the above possible commands,“”is a dynamic listing in
that it could be the name of any desired group, artist, etc.
Autoplay:With this feature ON, SYNCallows you to listen to music
which has already been randomly indexed during the indexing process.
With this feature OFF, SYNCwill not begin to play any of your music
until all media has all been indexed.
Note:The larger the number of songs the system has to index, the
longer indexing will take. Indexing times can vary from device to device.
Search/Play Genre:You can search for and play a specific genre (type)
of music. SYNCwill search all the data from your indexed music and, if
available, will begin to play that type of music.
Note:You can only play genres of music which are present in the
GENRE metadata tags that you have on your digital media player.
Entertainment Systems
76
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

Similar music:You can tell the system to play music ‘similar’ to what
you are currently playing from the USB port. SYNCwill use the
metadata information of each indexed song to compile a playlist for you.
Search/play artist/track/album:You can search for a specific
artist/track or album from the music SYNChas indexed through the
USB port.
Refine:This allows you to ‘refine’ your previous commands. For
example, if you told SYNCto search and play all music by a certain
artist, you could then tell SYNCto “refine album” and choose a specific
album from the list to view. If you then select ‘Play’, the system will only
play music from that specific album.
Voice commands while using Line in
While using the Line in feature (Auxiliary input jack), you may
speak the following commands:
•SYNC•Line in
•Bluetooth Audio•Cancel
•Phone•Voice settings
Voice commands when in Bluetooth audio mode
When in Bluetooth audio mode, you may use the following
commands:
•Play•Connections
•Pause•Play next track
•Play previous track•Play next song
•Play previous song
Note:Please refer to your device’s user guide to see if these commands
are supported forBluetoothaudio.
At any time, you may say these commands:
•SYNC•USB
•Help•Bluetooth Audio
•Line in•Phone
•Voice settings•Read Message
•Cancel
Connecting a digital media player to SYNCvia the USB port
Note:If your digital media player has an on/off switch, ensure that the
device is on.
Entertainment Systems
77
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

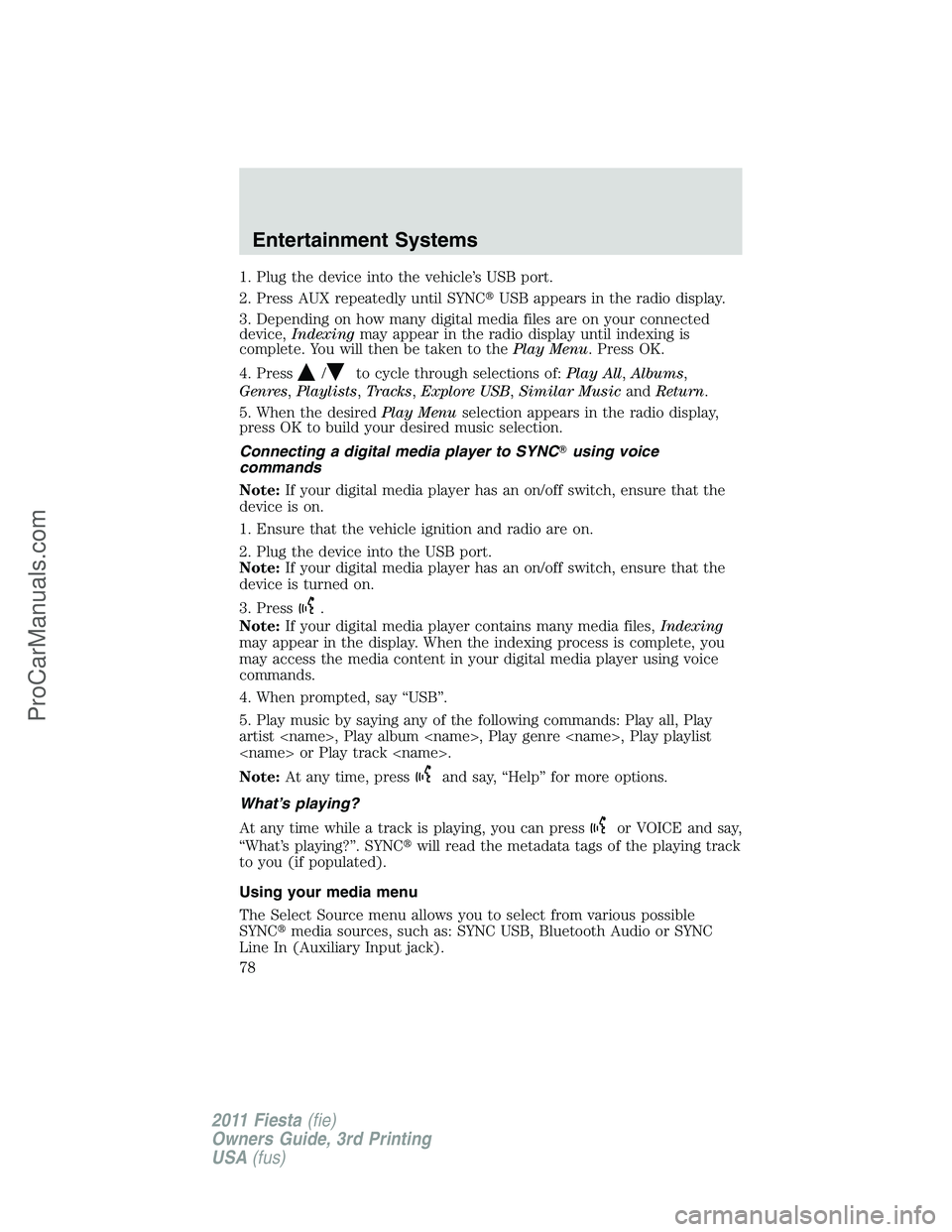

1. Plug the device into the vehicle’s USB port.
2. Press AUX repeatedly until SYNCUSB appears in the radio display.
3. Depending on how many digital media files are on your connected
device,Indexingmay appear in the radio display until indexing is
complete. You will then be taken to thePlay Menu. Press OK.
4. Press
/to cycle through selections of:Play All,Albums,
Genres,Playlists,Tracks,Explore USB,Similar MusicandReturn.
5. When the desiredPlay Menuselection appears in the radio display,
press OK to build your desired music selection.
Connecting a digital media player to SYNCusing voice
commands
Note:If your digital media player has an on/off switch, ensure that the
device is on.
1. Ensure that the vehicle ignition and radio are on.
2. Plug the device into the USB port.
Note:If your digital media player has an on/off switch, ensure that the
device is turned on.
3. Press
.
Note:If your digital media player contains many media files,Indexing
may appear in the display. When the indexing process is complete, you
may access the media content in your digital media player using voice
commands.
4. When prompted, say “USB”.
5. Play music by saying any of the following commands: Play all, Play
artist , Play album , Play genre , Play playlist
or Play track .
Note:At any time, press
and say, “Help” for more options.
What’s playing?
At any time while a track is playing, you can press
or VOICE and say,
“What’s playing?”. SYNCwill read the metadata tags of the playing track
to you (if populated).
Using your media menu
The Select Source menu allows you to select from various possible
SYNCmedia sources, such as: SYNC USB, Bluetooth Audio or SYNC
Line In (Auxiliary Input jack).
Entertainment Systems
78
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

To access:
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNCappears.
2. Press MENU to enter theMedia Player Menu.
3. Scroll to cycle through:
•Play Menu(Refer toUsing SYNC’s play menulater in this
chapter).
•Select Source
•Media Settings
•Application
•System Settings
•Exit Media Menu
4. When the desired choice is selected, press OK. Refer to the following
sections for further information on these selections.
Selecting different media sources
The Media Player Menu allows you to select and play music from
different media sources (SYNC USB, Bluetooth Audio or SYNC LINE IN -
Auxiliary Input jack). Once accessed, you can then play music, shuffle,
access your playlists, etc. To access this menu:
Note:To scroll,
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuappears, press OK.
3. Scroll untilSelect Sourceis selected and press OK.
4. Scroll to select from:
•SYNC USB
•Bluetooth AudioNote:This is a device dependent feature.
•SYNC Line In
•Return
Accessing and using your USB port
You can use the USB port to plug in and access media devices as well as
charge devices (if supported by your device). For a list of compatible
media players, refer to www.SyncMyRide.com.
Entertainment Systems
79
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

Note:Since your USB port allows you to charge your device (if
supported by your device), SYNCwill not automatically change media
modes when something is initially plugged into the USB port. To access
the USB port through your SYNCsystem:
Note:To scroll, press
/.
1. Ensure that the desired device is plugged into the USB port and is
turned ON.
2. Press AUX repeatedly until SYNC appears.
3. Press MENU. WhenMedia Player Menuis selected, press OK.
4. Scroll Select source is selected and press OK.
5. Scroll untilSYNC USBis selected and press OK.
If the connected device and media content is supported, SYNCwill
begin indexing available media files. If there are no readable media files
for SYNCto play, the display will indicate that no media is available. If
there are readable media files,Indexingmay appear in the radio display.
If Autoplay is ON, SYNCgives you the ability to access media files
randomly as they are indexed. If Autoplay is OFF, indexed media is not
available until the indexing process is complete. The display will indicate
when indexing is complete and SYNCwill take you to thePlay Menu.
Note:The time required to complete the indexing process is dependent
upon the size of the media content being indexed.
Note:SYNCis capable of indexing thousands of average size media
files. SYNCwill notify you once maximum indexing file size is reached.
If your playing device becomes disconnected from the USB port at
any time,the display will indicate that the USB was removed.
Streaming music from your Bluetooth enabled phone
Note:This is a phone dependent feature. Refer to your phone’s user
guide for further information on how to streamBluetoothaudio.
SYNCallows you to stream music from yourBluetoothenabled cellular
phone to play through SYNC.
To access:
Note:To scroll, press
/.
1. Ensure that the desired music is playing on your paired phone and
your phone is inBluetoothaudio streaming mode.
2. Press AUX repeatedly until SYNC appears.
3. Press MENU. WhenMedia Player Menuis selected, press OK.
Entertainment Systems
80
2011 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com
