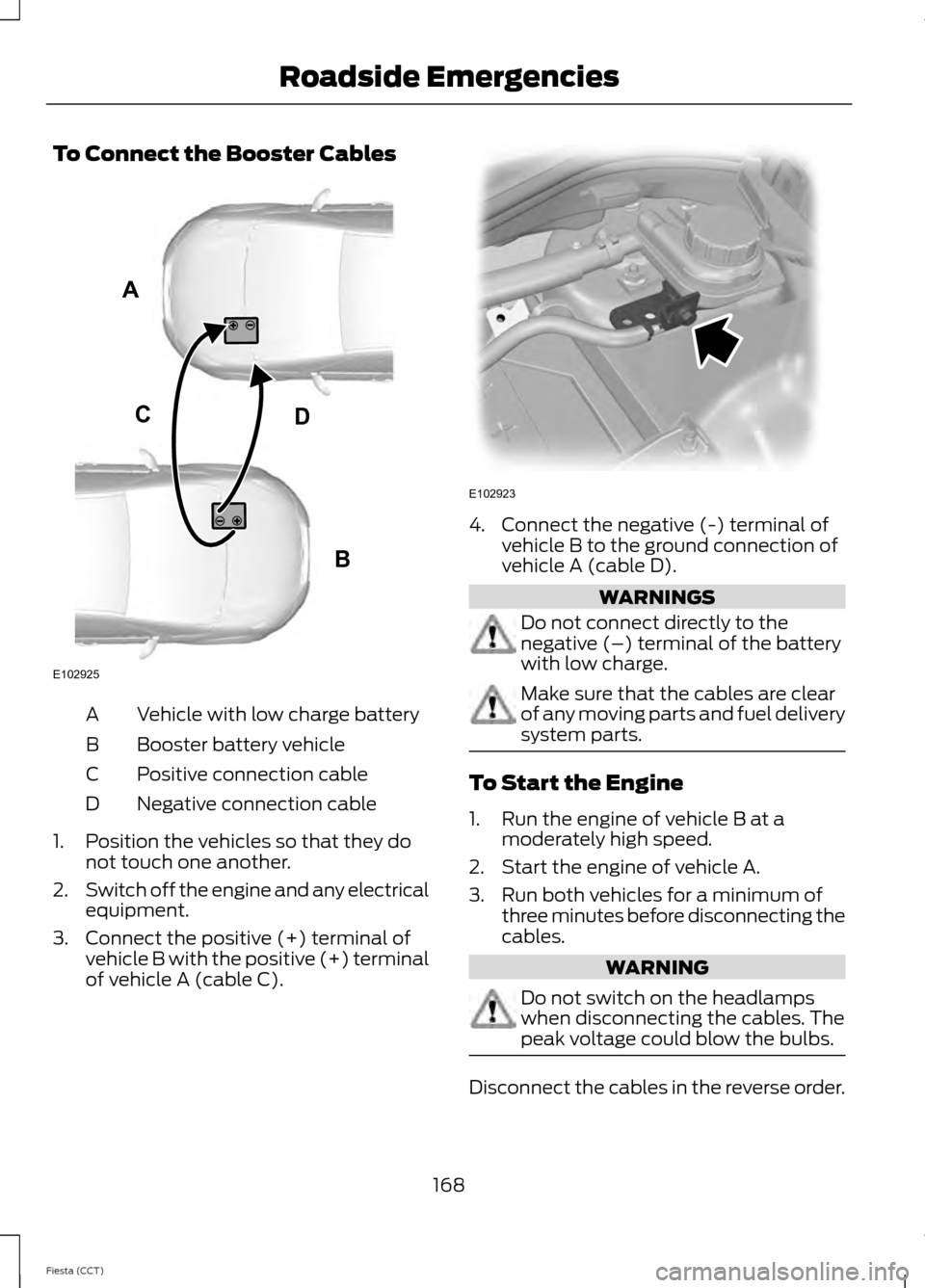

To Connect the Booster Cables
Vehicle with low charge battery
A
Booster battery vehicle
B
Positive connection cable
C
Negative connection cable
D
1. Position the vehicles so that they do not touch one another.
2. Switch off the engine and any electrical
equipment.
3. Connect the positive (+) terminal of vehicle B with the positive (+) terminal
of vehicle A (cable C). 4. Connect the negative (-) terminal of
vehicle B to the ground connection of
vehicle A (cable D). WARNINGS
Do not connect directly to the
negative (–) terminal of the battery
with low charge.
Make sure that the cables are clear
of any moving parts and fuel delivery
system parts.
To Start the Engine
1. Run the engine of vehicle B at a
moderately high speed.
2. Start the engine of vehicle A.
3. Run both vehicles for a minimum of three minutes before disconnecting the
cables. WARNING
Do not switch on the headlamps
when disconnecting the cables. The
peak voltage could blow the bulbs.
Disconnect the cables in the reverse order.
168
Fiesta (CCT) Roadside EmergenciesA
B
CD
E102925 E102923

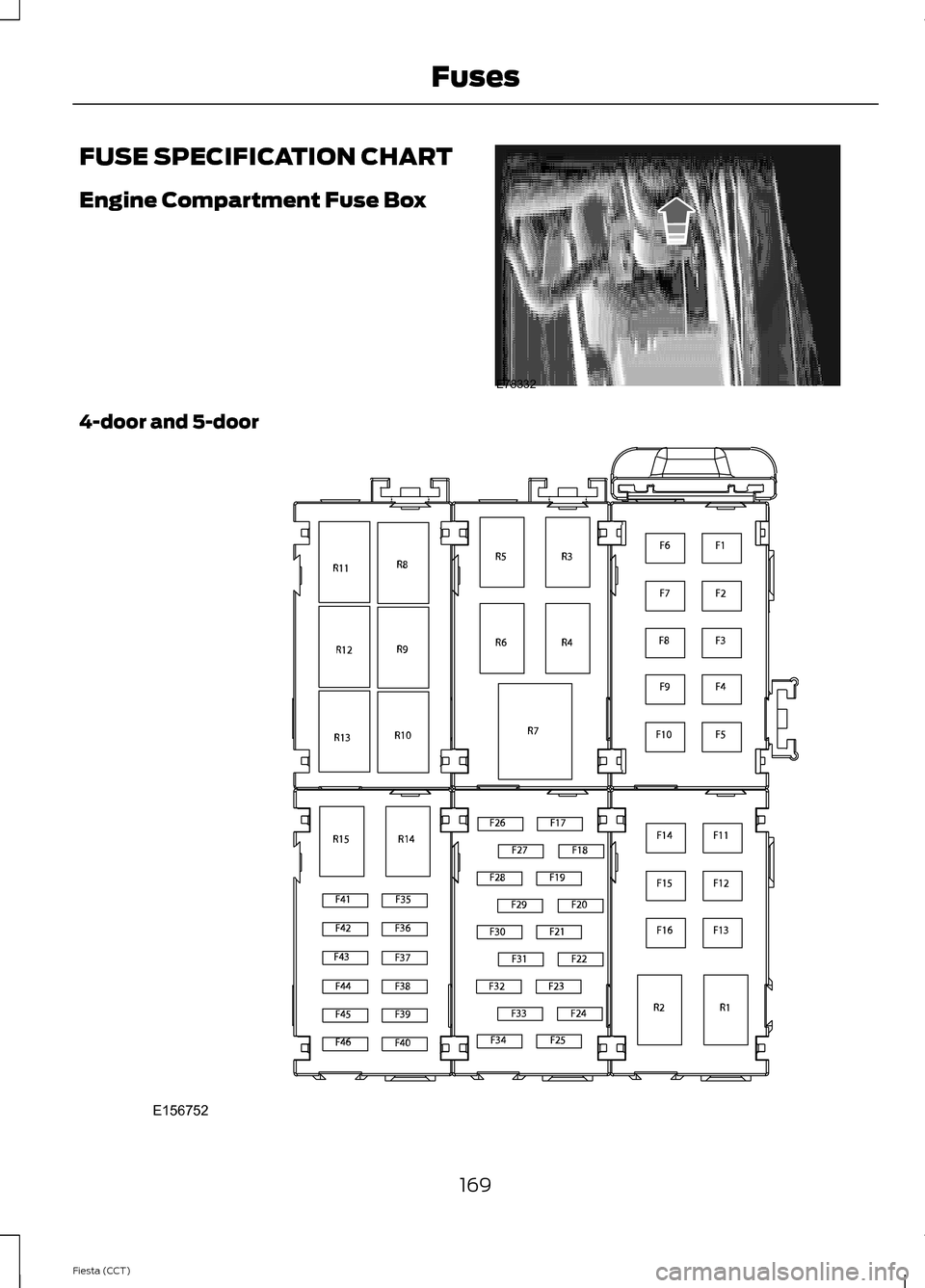

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
4-door and 5-door
169
Fiesta (CCT) FusesE78332 E156752

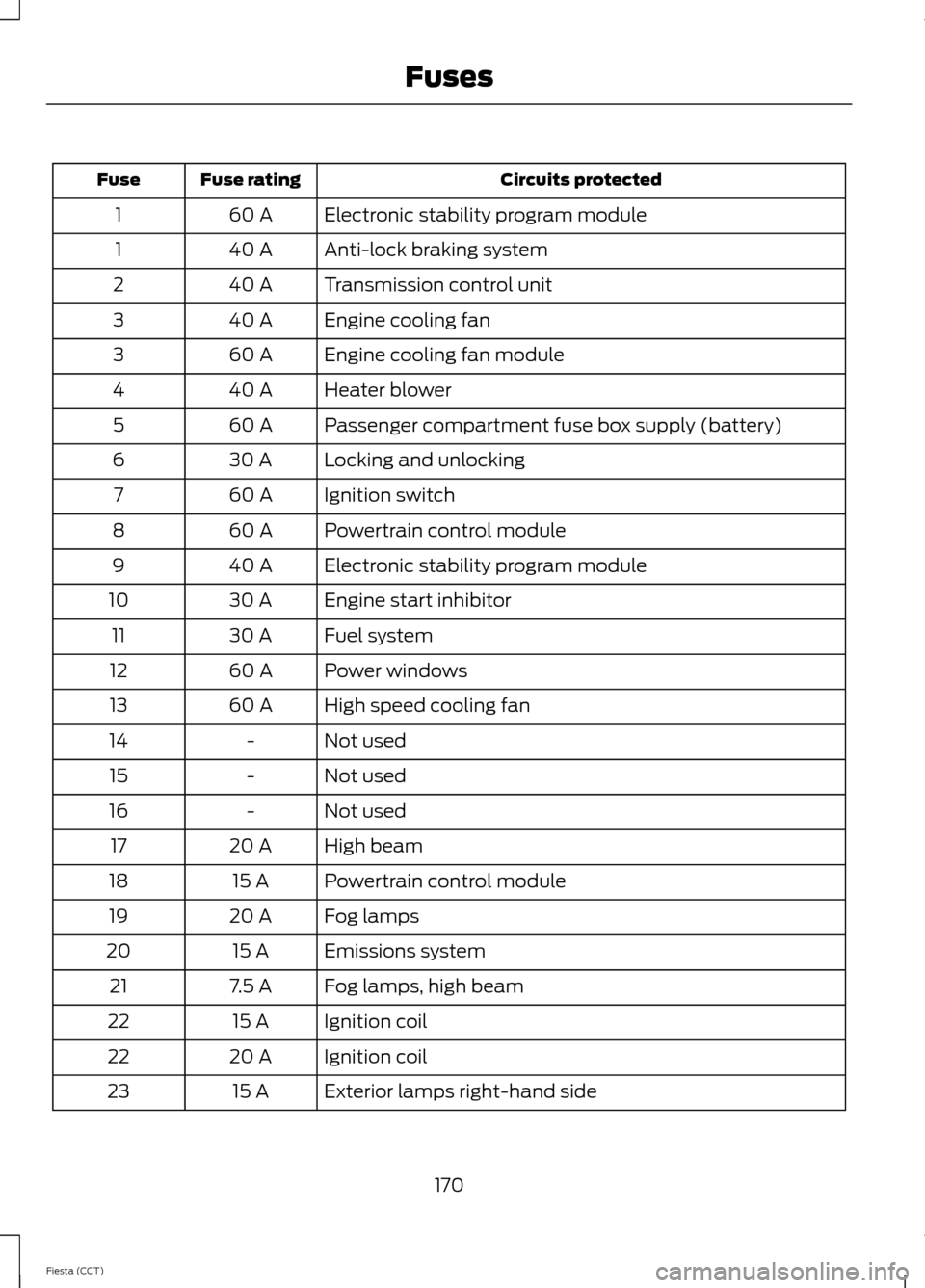

Circuits protected
Fuse rating
Fuse
Electronic stability program module
60 A
1
Anti-lock braking system
40 A
1
Transmission control unit
40 A
2
Engine cooling fan
40 A
3
Engine cooling fan module
60 A
3
Heater blower
40 A
4
Passenger compartment fuse box supply (battery)
60 A
5
Locking and unlocking
30 A
6
Ignition switch
60 A
7
Powertrain control module
60 A
8
Electronic stability program module
40 A
9
Engine start inhibitor
30 A
10
Fuel system
30 A
11
Power windows
60 A
12
High speed cooling fan
60 A
13
Not used
-
14
Not used
-
15
Not used
-
16
High beam
20 A
17
Powertrain control module
15 A
18
Fog lamps
20 A
19
Emissions system
15 A
20
Fog lamps, high beam
7.5 A
21
Ignition coil
15 A
22
Ignition coil
20 A
22
Exterior lamps right-hand side
15 A
23
170
Fiesta (CCT) Fuses

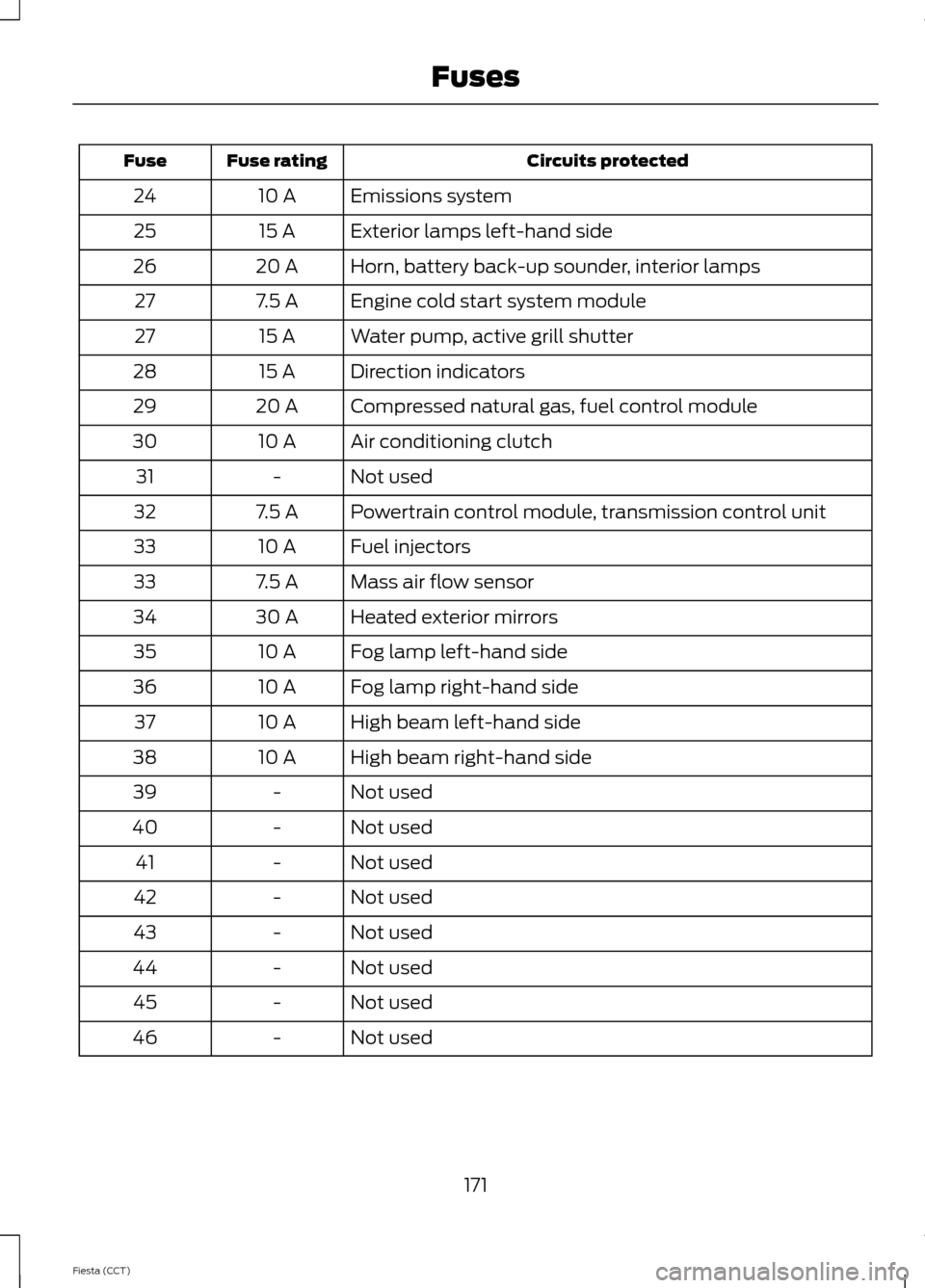

Circuits protected
Fuse rating
Fuse
Emissions system
10 A
24
Exterior lamps left-hand side
15 A
25
Horn, battery back-up sounder, interior lamps
20 A
26
Engine cold start system module
7.5 A
27
Water pump, active grill shutter
15 A
27
Direction indicators
15 A
28
Compressed natural gas, fuel control module
20 A
29
Air conditioning clutch
10 A
30
Not used
-
31
Powertrain control module, transmission control unit
7.5 A
32
Fuel injectors
10 A
33
Mass air flow sensor
7.5 A
33
Heated exterior mirrors
30 A
34
Fog lamp left-hand side
10 A
35
Fog lamp right-hand side
10 A
36
High beam left-hand side
10 A
37
High beam right-hand side
10 A
38
Not used
-
39
Not used
-
40
Not used
-
41
Not used
-
42
Not used
-
43
Not used
-
44
Not used
-
45
Not used
-
46
171
Fiesta (CCT) Fuses

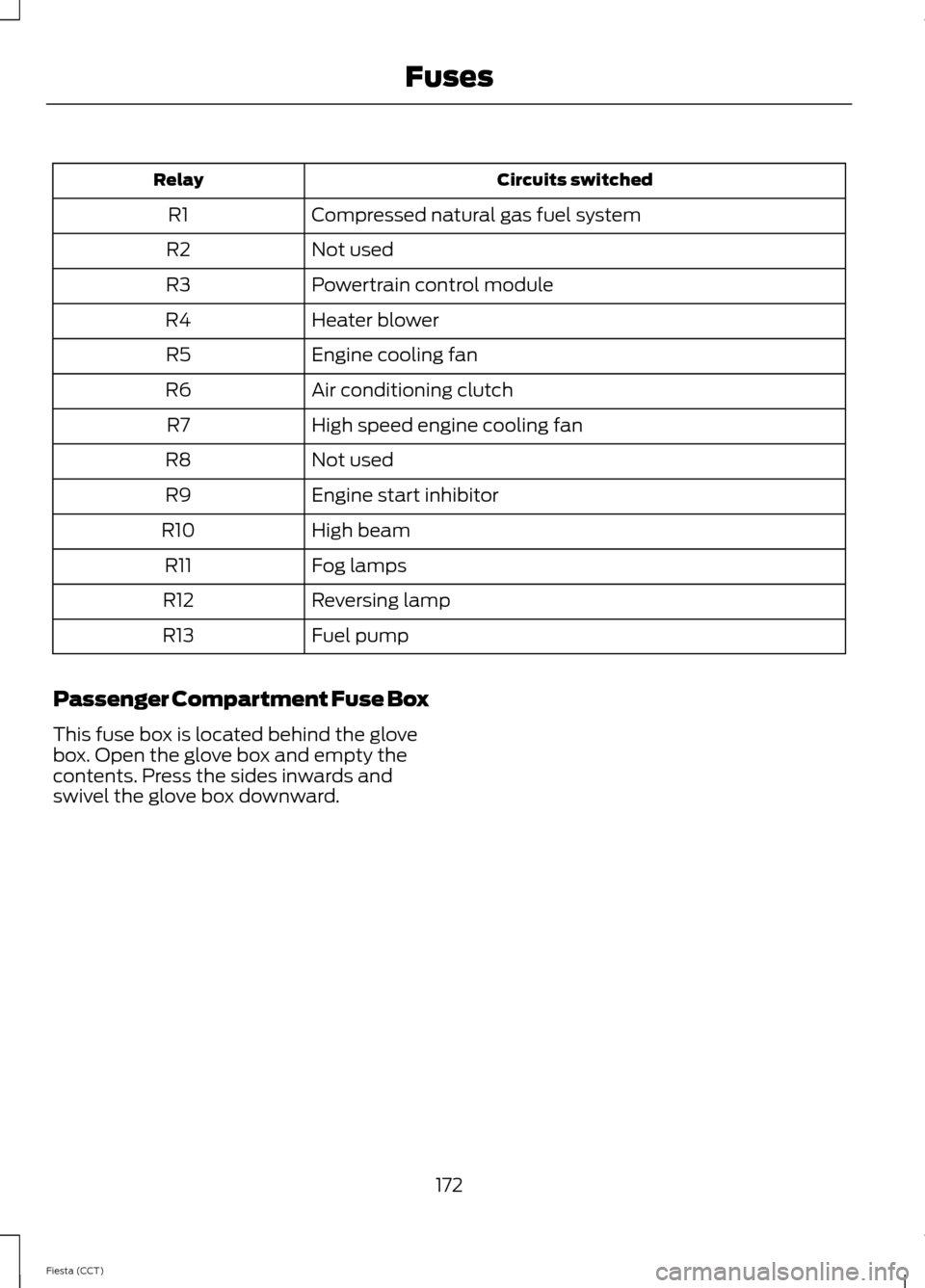

Circuits switched
Relay
Compressed natural gas fuel system
R1
Not used
R2
Powertrain control module
R3
Heater blower
R4
Engine cooling fan
R5
Air conditioning clutch
R6
High speed engine cooling fan
R7
Not used
R8
Engine start inhibitor
R9
High beam
R10
Fog lamps
R11
Reversing lamp
R12
Fuel pump
R13

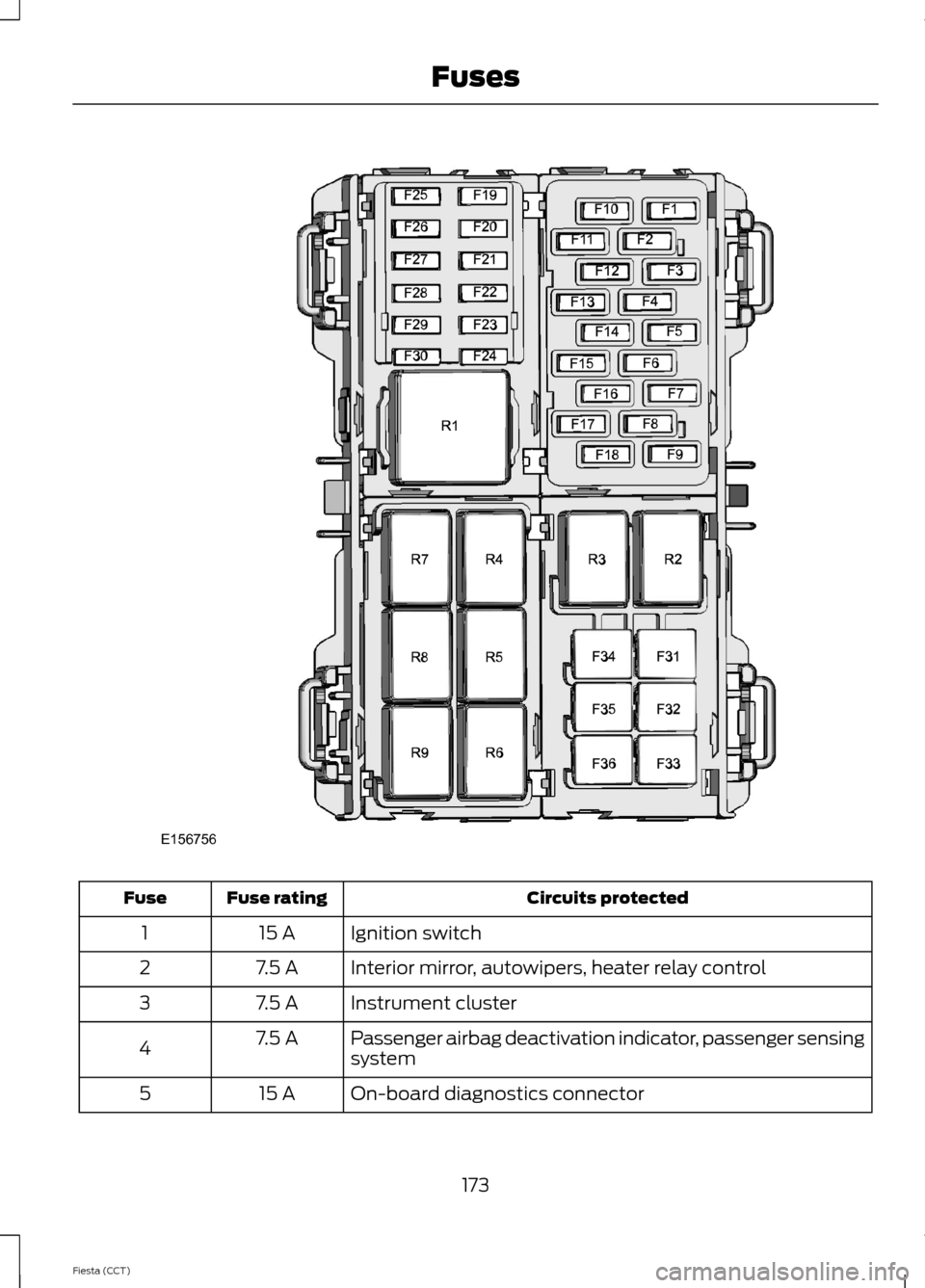

Passenger Compartment Fuse Box
This fuse box is located behind the glove
box. Open the glove box and empty the
contents. Press the sides inwards and
swivel the glove box downward.
172
Fiesta (CCT) Fuses

Circuits protected
Fuse rating
Fuse
Ignition switch
15 A
1
Interior mirror, autowipers, heater relay control
7.5 A
2
Instrument cluster
7.5 A
3
Passenger airbag deactivation indicator, passenger sensing
system
7.5 A
4
On-board diagnostics connector
15 A
5
173
Fiesta (CCT) FusesE156756

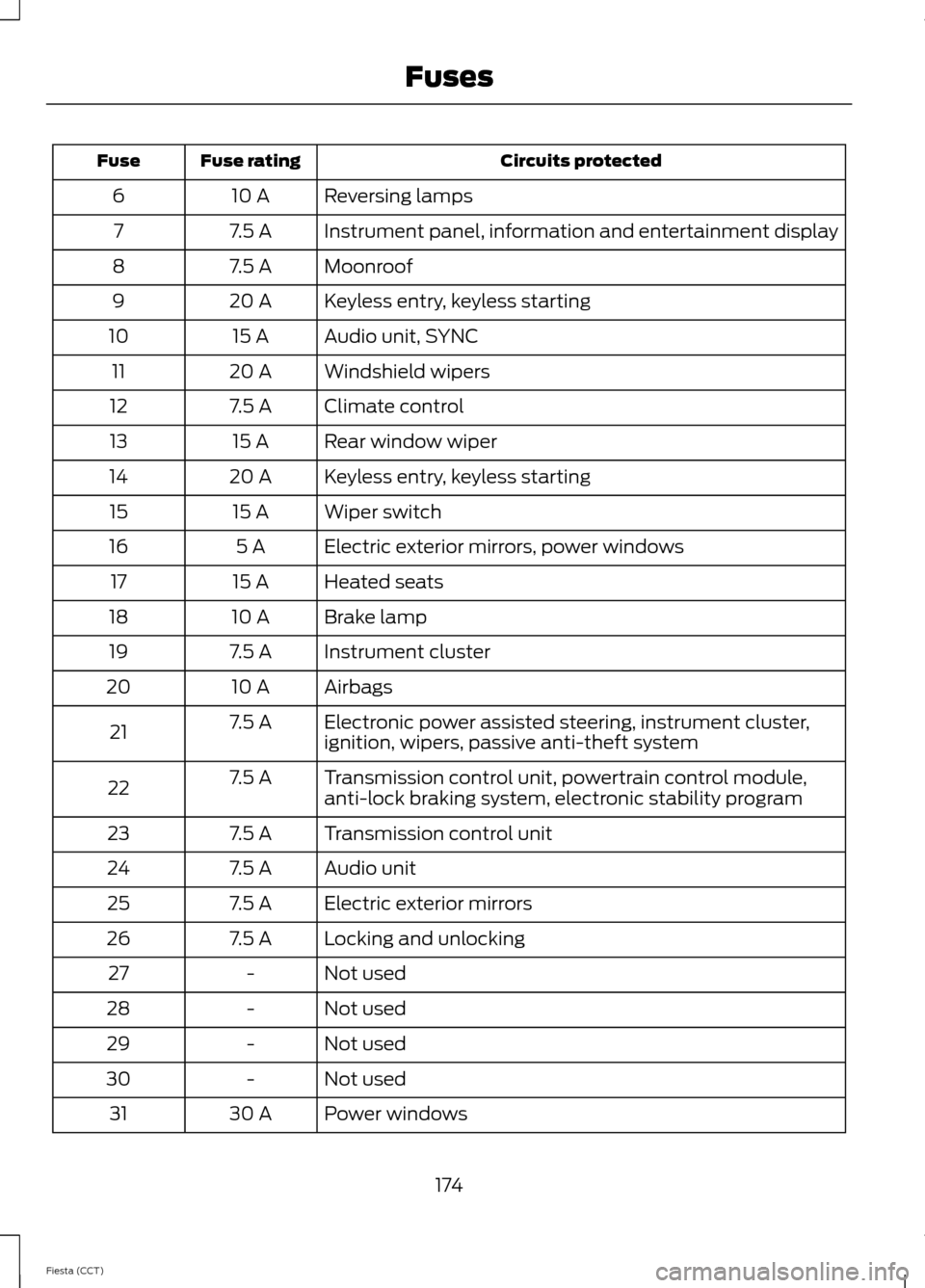

Circuits protected
Fuse rating
Fuse
Reversing lamps
10 A
6
Instrument panel, information and entertainment display
7.5 A
7
Moonroof
7.5 A
8
Keyless entry, keyless starting
20 A
9
Audio unit, SYNC
15 A
10
Windshield wipers
20 A
11
Climate control
7.5 A
12
Rear window wiper
15 A
13
Keyless entry, keyless starting
20 A
14
Wiper switch
15 A
15
Electric exterior mirrors, power windows
5 A
16
Heated seats
15 A
17
Brake lamp
10 A
18
Instrument cluster
7.5 A
19
Airbags
10 A
20
Electronic power assisted steering, instrument cluster,
ignition, wipers, passive anti-theft system
7.5 A
21
Transmission control unit, powertrain control module,
anti-lock braking system, electronic stability program
7.5 A
22
Transmission control unit
7.5 A
23
Audio unit
7.5 A
24
Electric exterior mirrors
7.5 A
25
Locking and unlocking
7.5 A
26
Not used
-
27
Not used
-
28
Not used
-
29
Not used
-
30
Power windows
30 A
31
174
Fiesta (CCT) Fuses

Circuits protected
Fuse rating
Fuse
Battery back-up sounder
20 A
32
Auxilliary power points
20 A
33
Power windows
30 A
34
Moonroof
20 A
35
Not used
-
36 Circuits switched
Relay
Ignition relay
R1
Not used
R2
Not used
R3
Driver heated seat
R4
Passenger heated seat
R5
Keyless starting
R6
Keyless starting
R7
Battery back-up sounder
R8
Accessory delay
R9
CHANGING A FUSE
Fuses WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
175
Fiesta (CCT) FusesE142430

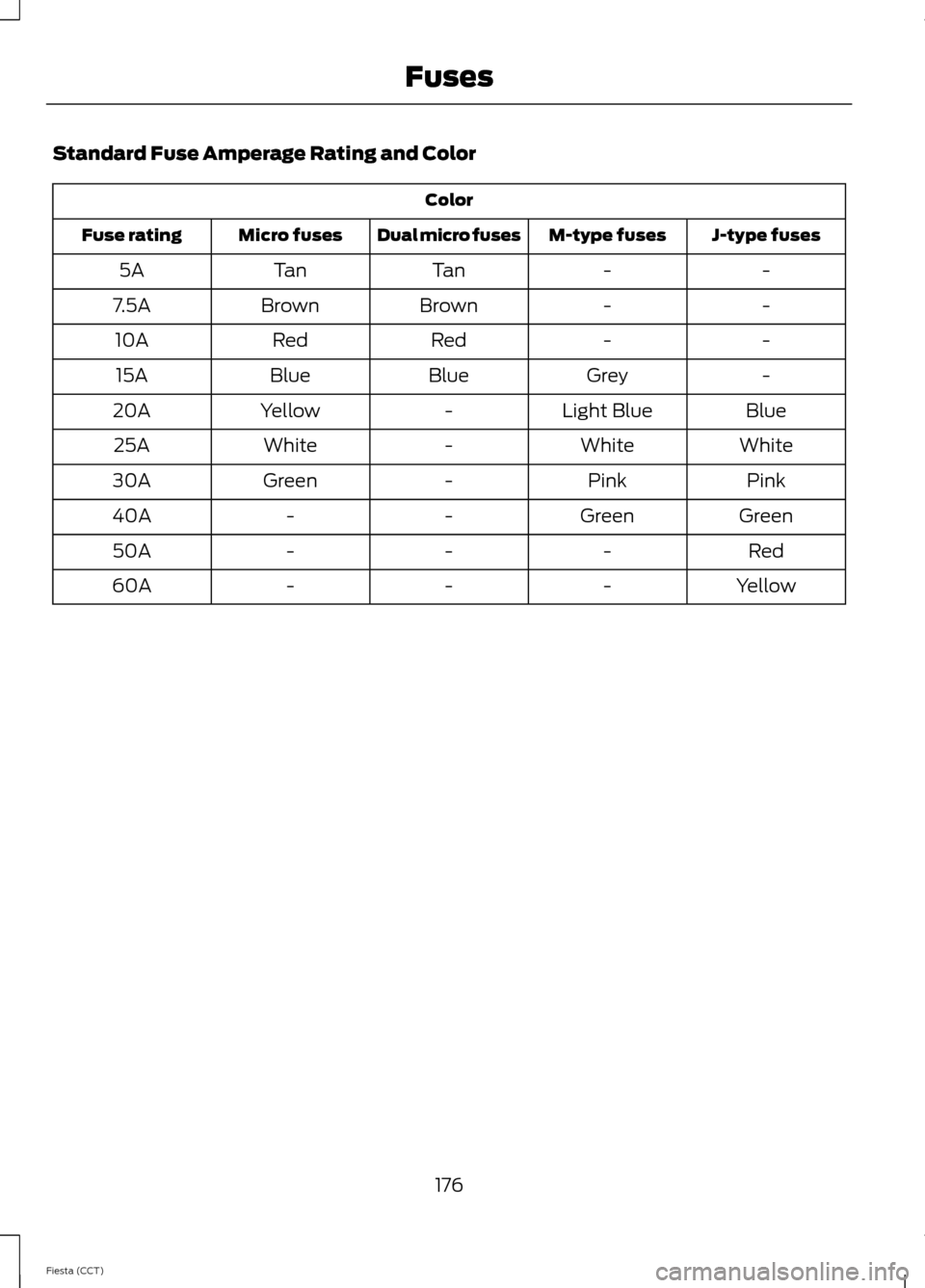

Standard Fuse Amperage Rating and Color
Color
J-type fuses
M-type fuses
Dual micro fuses
Micro fuses
Fuse rating
-
-
Tan
Tan
5A
-
-
Brown
Brown
7.5A
-
-
Red
Red
10A
-
Grey
Blue
Blue
15A
Blue
Light Blue
-
Yellow
20A
White
White
-
White
25A
Pink
Pink
-
Green
30A
Green
Green
-
-
40A
Red
-
-
-
50A
Yellow
-
-
-
60A
176
Fiesta (CCT) Fuses

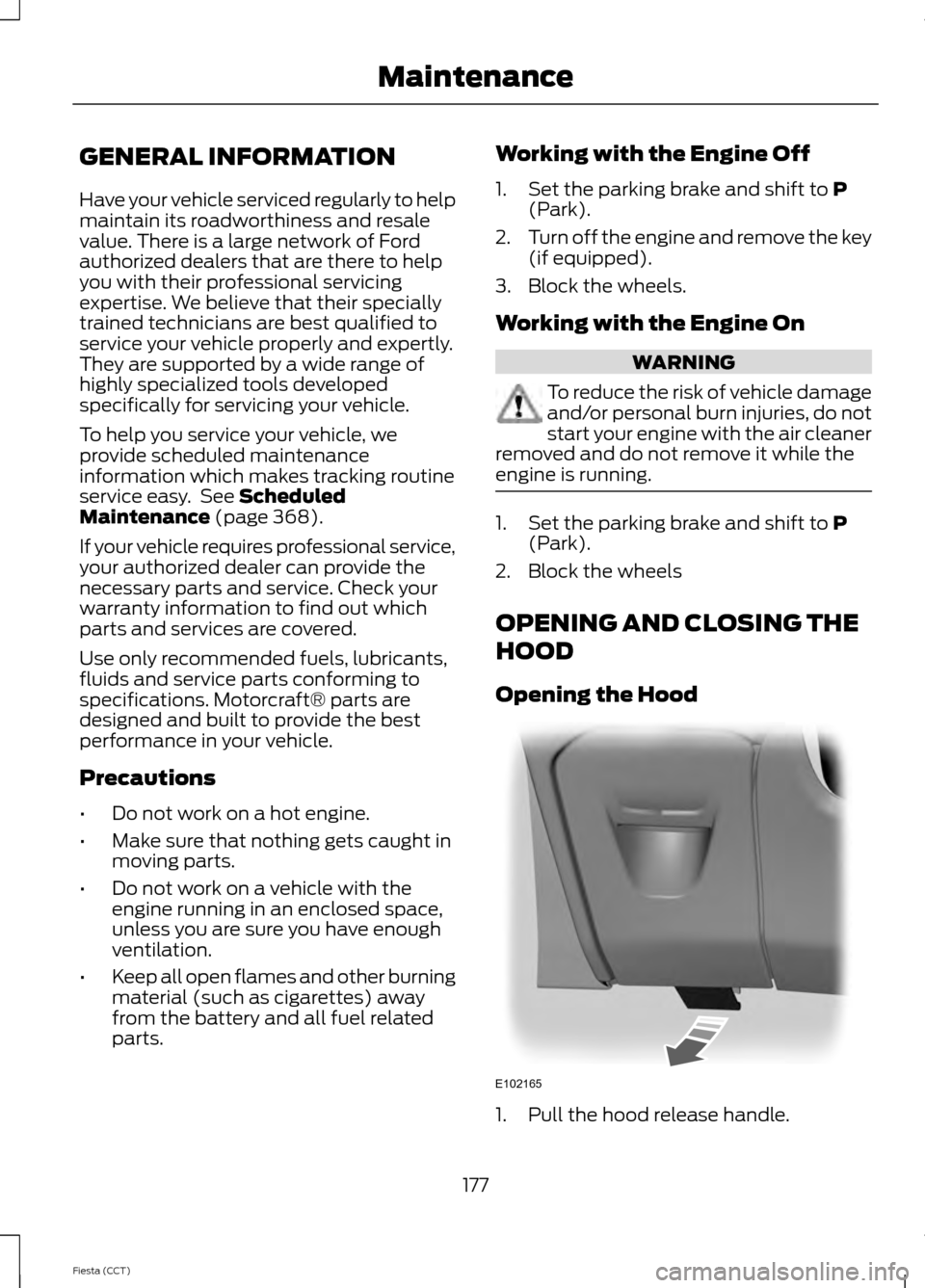

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of Ford
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.
To help you service your vehicle, we
provide scheduled maintenance
information which makes tracking routine
service easy. See Scheduled
Maintenance (page 368).
If your vehicle requires professional service,
your authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.
Precautions
• Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts. Working with the Engine Off
1. Set the parking brake and shift to
P
(Park).
2. Turn off the engine and remove the key
(if equipped).
3. Block the wheels.
Working with the Engine On WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running. 1. Set the parking brake and shift to
P
(Park).
2. Block the wheels
OPENING AND CLOSING THE
HOOD
Opening the Hood 1. Pull the hood release handle.
