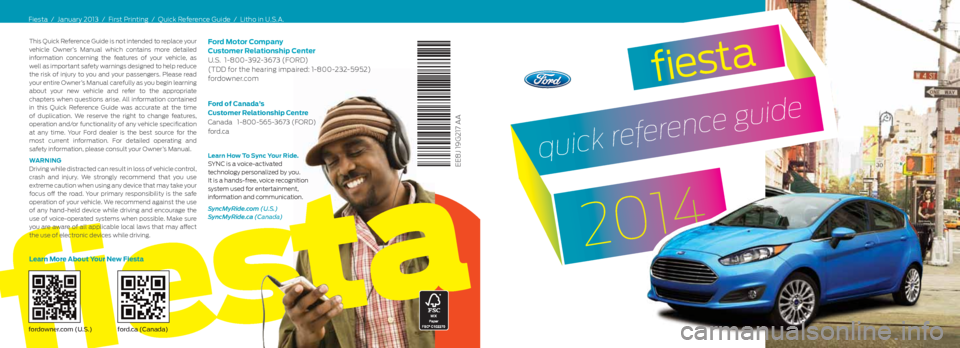

FORD FIESTA 2014 6.G Quick Reference Guide

fiesta
2014
quick reference guide
fiesta
EE8J 19G217 AA
fordowner.com (U.S.) ford.ca (Canada)
This Quick Reference Guide is not intended to replace your
vehicle Owner’s Manual which contains more detailed
information concerning the features of your vehicle, as
well as important safety warnings designed to help reduce
the risk of injury to you and your passengers. Please read
your entire Owner’s Manual carefully as you begin learning
about your new vehicle and refer to the appropriate
chapters when questions arise. All information contained
in this Quick Reference Guide was accurate at the time
of duplication. We reserve the right to change features,
operation and/or functionality of any vehicle specification
at any time. Your Ford dealer is the best source for the
most current information. For detailed operating and
safety information, please consult your Owner’s Manual.
Warning
Driving while distracted can result in loss of vehicle control,
crash and injury. We strongly recommend that you use
extreme caution when using any device that may take your
focus off the road. Your primary responsibility is the safe
operation of your vehicle. We recommend against the use
of any hand-held device while driving and encourage the
use of voice-operated systems when possible. Make sure
you are aware of all applicable local laws that may affect
the use of electronic devices while driving.
Learn More about Your new Fiesta
Ford Motor Company
Customer r
elationship Center
U.S. 1-800-392-3673 (FORD)
(TDD for the hearing impaired: 1-800-232-5952)
fordowner.com
Ford of Canada’s
Customer r elationship Centre
Canada 1-800-565-3673 (FORD)
ford.ca
Learn How To Sync Your ride.
SYNC is a voice-activated
technology personalized by you.
It is a hands-free, voice recognition
system used for entertainment,
information and communication.
SyncMyRide.com (U.S.)
SyncMyRide.ca (Canada)
Fiesta / January 2013 / First Printing / Quick Reference Guide / Litho in U.S.A.

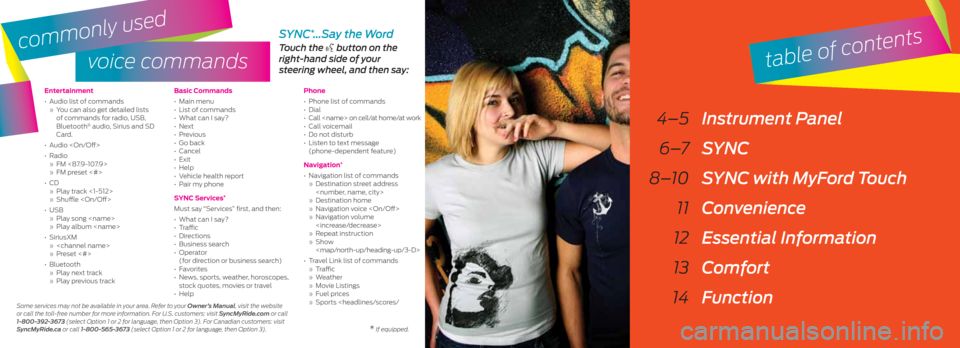

voice commands
Entertainment
• Audio list of commands
» You can also get detailed lists
of commands for radio, USB,
Bluetooth
® audio, Sirius and SD
Card.
• Audio
• Radio
» FM <87.9-107.9>
»
FM preset <#>
• CD
» Play track <1-512>
»
Shuffle
• USB
» Play song
»
Play album
• SiriusXM
»
»
Preset <#>
• Bluetooth
» Play next track
» Play previous track Basic Commands
• Main menu
• List of commands
• What can I say?
• Next
• Previous
• Go back
• Cancel
• Exit
• Help
• Vehicle health report
• Pair my phone
SYnC Services
*
Must say “Services” first, and then:
• What can I say?
• Traffic
• Directions
• Business search
•
Operator
(for direction or business search)
• Favorites
• News, sports, weather, horoscopes,
stock quotes, movies or travel
• Help
Phone
• Phone list of commands
• Dial
• Call on cell/at home/at work
• Call voicemail
• Do not disturb
•
Listen to text message
(phone-dependent feature)
navigation
*
• Navigation list of commands
» Destination street address

» Destination home
» Navigation voice
» Navigation volume

» Repeat instruction

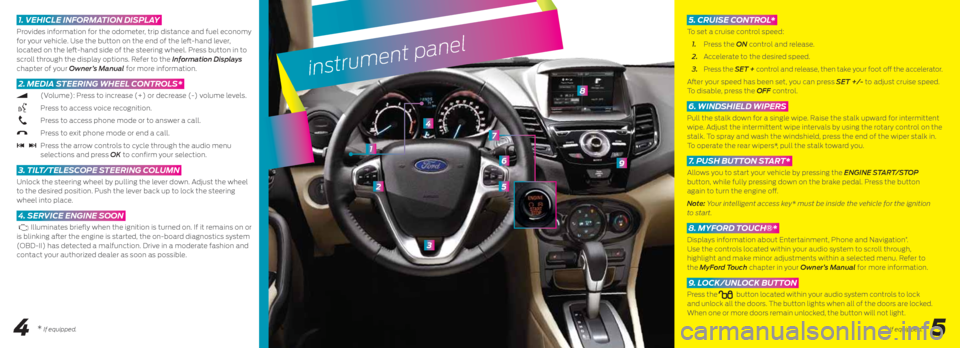

» Show

instrument panel
2
3
4
5
6
8
9
1
4
1. Vehicle information Display
Provides information for the odometer, trip distance and fuel economy
for your vehicle. Use the button on the end of the left-hand lever,
located on the left-hand side of the steering wheel. Press button in to
scroll through the display options. Refer to the Information Displays
chapter of your Owner’s Manual for more information.
2. meDia steering Wheel c ontrols*
(Volume): Press to increase (+) or decrease (-) volume levels.

Press to access voice recognition.


Press to access phone mode or to answer a call.

Press to exit phone mode or end a call.
Press the arrow controls to cycle through the audio menu
selections and press OK to confirm your selection.
3. tilt/telescope s teering column
Unlock the steering wheel by pulling the lever down. Adjust the wheel
to the desired position. Push the lever back up to lock the steering
wheel into place.
4. serVice engine soon
Illuminates briefly when the ignition is turned on. If it remains on or
is blinking after the engine is started, the on-board diagnostics system
(OBD-II) has detected a malfunction. Drive in a moderate fashion and
contact your authorized dealer as soon as possible.
5. cruise c ontrol*
To set a cruise control speed:
1. Press the ON control and release.
2. Accelerate to the desired speed.
3. Press the SET + control and release, then take your foot off the accelerator.
After your speed has been set, you can press SET +/- to adjust cruise speed.
To disable, press the OFF control.
6. WinD shielD Wipers
Pull the stalk down for a single wipe. Raise the stalk upward for intermittent
wipe. Adjust the intermittent wipe intervals by using the rotary control on the
stalk. To spray and wash the windshield, press the end of the wiper stalk in.
To operate the rear wipers*, pull the stalk toward you.
7. push Button s tart*
Allows you to start your vehicle by pressing the ENGINE START/STOP
button, while fully pressing down on the brake pedal. Press the button
again to turn the engine off.
Note: Your intelligent access key* must be inside the vehicle for the ignition
to start.
8. myforD touch®*
Displays information about Entertainment, Phone and Navigation*.
Use the controls located within your audio system to scroll through,
highlight and make minor adjustments within a selected menu. Refer to
the MyFord Touch chapter in your Owner’s Manual for more information.
9. l ock/unlock Button
Press thebutton located within your audio system controls to lock
and unlock all the doors. The button lights when all of the doors are locked.
When one or more doors remain unlocked, the button will not light.
* If equipped.5
7
* If equipped.

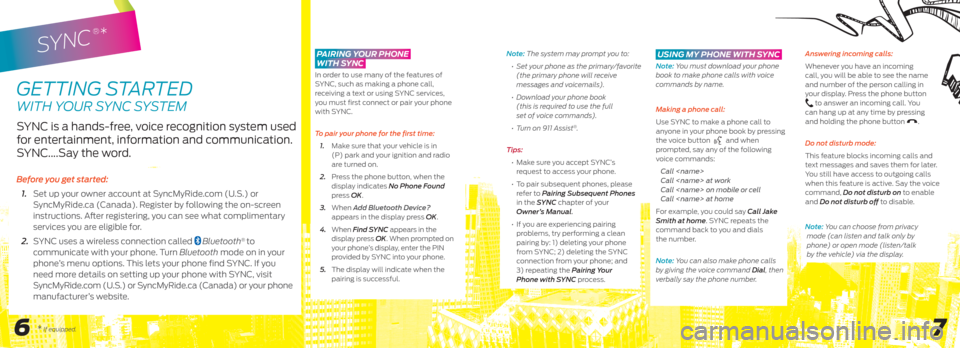

SYNC
®*
pairing y our phone
With sync
In order to use many of the features of
SYNC, such as making a phone call,
receiving a text or using SYNC services,
you must first connect or pair your phone
with SYNC.

To pair your phone for the first time:
1. Make sure that your vehicle is in
(P) park and your ignition and radio
are turned on.
2. Press the phone button, when the
display indicates No Phone Found
press OK.
3. When Add Bluetooth Device?
appears in the display press OK.
4. When Find SYNC appears in the
display press OK. When prompted on
your phone’s display, enter the PIN
provided by SYNC into your phone.
5. The display will indicate when the
pairing is successful.
GettInG S taRted
wIth YOUR SYnC SYS tem
SYNC is a hands-free, voice recognition system used
for entertainment, information and communication.
SYNC….Say the word.

Before you get started:
1. Set up your owner account at SyncMyRide.com (U.S.) or
SyncMyRide.ca (Canada). Register by following the on-screen
instructions. After registering, you can see what complimentary
services you are eligible for.
2. SYNC uses a wireless connection called
Bluetooth® to
communicate with your phone. Turn Bluetooth mode on in your
phone’s menu options. This lets your phone find SYNC. If you
need more details on setting up your phone with SYNC, visit
SyncMyRide.com (U.S.) or SyncMyRide.ca (Canada) or your phone
manufacturer’s website.
6 7
Note: the system may prompt you to:
• Set your phone as the primary/favorite
(the primary phone will receive
messages and voicemails).
• Download your phone book
(this is required to use the full
set of voice commands).
• Turn on 911 Assist
®.

Tips:
• Make sure you accept SYNC’s
request to access your phone.
• To pair subsequent phones, please
refer to Pairing Subsequent Phones
in the SYNC chapter of your
Owner’s Manual.
• If you are experiencing pairing
problems, try performing a clean
pairing by: 1) deleting your phone
from SYNC; 2) deleting the SYNC
connection from your phone; and
3) repeating the Pairing Your
Phone with SYNC process.

using my phone With sync
Note: You must download your phone
book to make phone calls with voice
commands by name.
Making a phone call:
Use SYNC to make a phone call to
anyone in your phone book by pressing
the voice button
and when
prompted, say any of the following
voice commands:
Call
Call at work
Call on mobile or cell
Call at home
For example, you could say Call Jake
Smith at home. SYNC repeats the
command back to you and dials
the number.

Note: You can also make phone calls
by giving the voice command Dial, then
verbally say the phone number. Answering incoming calls:
Whenever you have an incoming
call, you will be able to see the name
and number of the person calling in
your display. Press the phone button

to answer an incoming call. You
can hang up at any time by pressing
and holding the phone button
.

Do not disturb mode:
This feature blocks incoming calls and
text messages and saves them for later.
You still have access to outgoing calls
when this feature is active. Say the voice
command, Do not disturb on to enable
and Do not disturb off to disable.
Note: You can choose from privacy
mode (can listen and talk only by
phone) or open mode (listen/talk
by the vehicle) via the display.
* If equipped.

89
Before you get started:
• Pair your phone to SYNC before using MyFord Touch
(see Getting started with your SYNC system in this guide
for instructions).
• With the navigation
* feature, make sure that your SD card is
inserted into the media port (located in the center console)
or your navigation
* will not work.
• The touchscreen is sensitive, so make sure you press the
desired icon accurately and firmly.
•
If you press the wrong icon and enter the wrong screen,
you can always press the home
icon to access your
home screen.

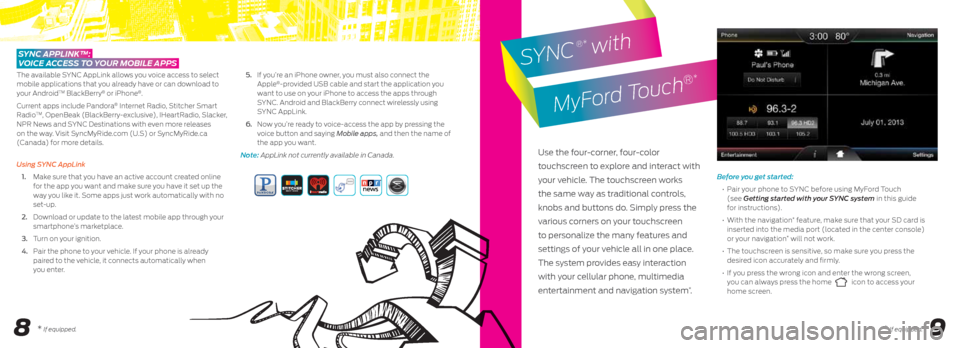

sync applink™:
Voice a ccess to your moBile apps
The available SYNC AppLink allows you voice access to select
mobile applications that you already have or can download to
your Android
TM BlackBerry® or iPhone®.
Current apps include Pandora
® Internet Radio, Stitcher Smart
RadioTM, OpenBeak (BlackBerry-exclusive), IHeartRadio, Slacker,
NPR News and SYNC Destinations with even more releases
on the way. Visit SyncMyRide.com (U.S) or SyncMyRide.ca
(Canada) for more details.
Using SYNC AppLink
1. Make sure that you have an active account created online
for the app you want and make sure you have it set up the
way you like it. Some apps just work automatically with no
set-up.
2. Download or update to the latest mobile app through your
smartphone’s marketplace.
3. Turn on your ignition.
4. Pair the phone to your vehicle. If your phone is already
paired to the vehicle, it connects automatically when
you enter. 5.
If you’re an iPhone owner, you must also connect the
Apple
®-provided USB cable and start the application you
want to use on your iPhone to access the apps through
SYNC. Android and BlackBerry connect wirelessly using
SYNC AppLink.
6. Now you’re ready to voice-access the app by pressing the
voice button and saying Mobile apps, and then the name of
the app you want.
Note: appLink not currently available in Canada.
Use the four-corner, four-color
touchscreen to explore and interact with
your vehicle. The touchscreen works
the same way as traditional controls,
knobs and buttons do. Simply press the
various corners on your touchscreen
to personalize the many features and
settings of your vehicle all in one place.
The system provides easy interaction
with your cellular phone, multimedia
entertainment and navigation system
*.
SYNC
®* with
MyFord Touch
®*
* If equipped.* If equipped.

phone
Voice-control your phone for hands-free calling with your phone securely
put away. With SYNC, you won’t even need to know the phone number.
Just say the name of the person you want from your contacts. Your
phone connects you with many other features:
• Call for a Vehicle Health Report.
• Automatically connects with a 911 Operator in the event of an
accident (the feature must be turned on prior to an incident).
• Transfer calls seamlessly from SYNC to phone as you get in
or out of your vehicle.
SYNC Services, available with a subscription, will allow you to:
• Connect to SYNC Services for traffic, directions, business
searches and information favorites.
•
Connect to Operator Assist to help locate a listing or destination.
Refer to the SYNC chapter of your Owner’s Manual for complete details.
na Vigation*
Get started with your navigation system
by pressing the upper-right, green corner.
The available, voice-activated navigation
system includes:
• SiriusXM Traffic
™
• SiriusXM Travel Link™
• Global positioning system
(GPS) technology
• 3-D mapping
• Turn-by-turn navigation
Set a Destination
You can use the touchscreen to set a
destination in many ways, like a street address,
a city center, a place on the map or a POI. Use
the voice control system or the touchscreen
to set a destination. Narrow your choices by
city or street as you type, and the system will
automatically provide the fastest route using
the quickest moving roads. Use the Navigation
Settings menu to select other choices:
- Shortest: Uses the shortest
distance possible.
- Eco (EcoRoute): Uses the most
fuel efficient route.

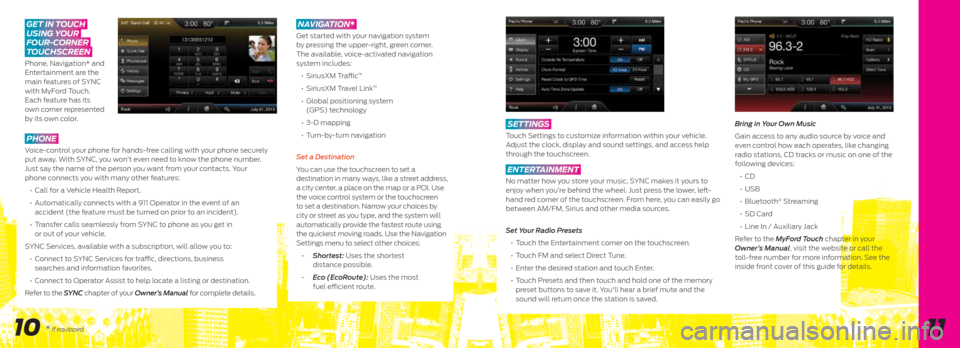

get in touch
using your
four-corner
touchscreen
Phone, Navigation* and
Entertainment are the
main features of SYNC
with MyFord Touch.
Each feature has its
own corner represented
by its own color.
10 11
settings
Touch Settings to customize information within your vehicle.
Adjust the clock, display and sound settings, and access help
through the touchscreen.
entertainment
No matter how you store your music, SYNC makes it yours to
enjoy when you’re behind the wheel. Just press the lower, left-
hand red corner of the touchscreen. From here, you can easily go
between AM/FM, Sirius and other media sources.
Set Your Radio Presets
• Touch the Entertainment corner on the touchscreen.
• Touch FM and select Direct Tune.
• Enter the desired station and touch Enter.
• Touch Presets and then touch and hold one of the memory
preset buttons to save it. You'll hear a brief mute and the
sound will return once the station is saved.
Bring in Your Own Music
Gain access to any audio source by voice and
even control how each operates, like changing
radio stations, CD tracks or music on one of the
following devices:
• CD
• USB
• Bluetooth
® Streaming
• SD Card
• Line In / Auxiliary Jack
Refer to the MyFord Touch chapter in your
Owner’s Manual, visit the website or call the
toll-free number for more information. See the
inside front cover of this guide for details.
* If equipped.

1213
heateD seats*
Pressonce for seat
heating. A light will illuminate
on the switch.
Press
once more to turn
the seat heater off. No lights
will illuminate on the switch.
moonroof*
Your moonroof is equipped
with an automatic one-touch
express open feature.
To open, press and release
the rear of the SLIDE control.
The sliding shade will
automatically open, if closed,
while the moonroof opens.
To close, press and hold the
front of the SLIDE control.
Close the sunshade manually. To vent the moonroof,
press and hold the rear of
the TILT control.
To close from a venting
position, press and hold the
front of the TILT control.

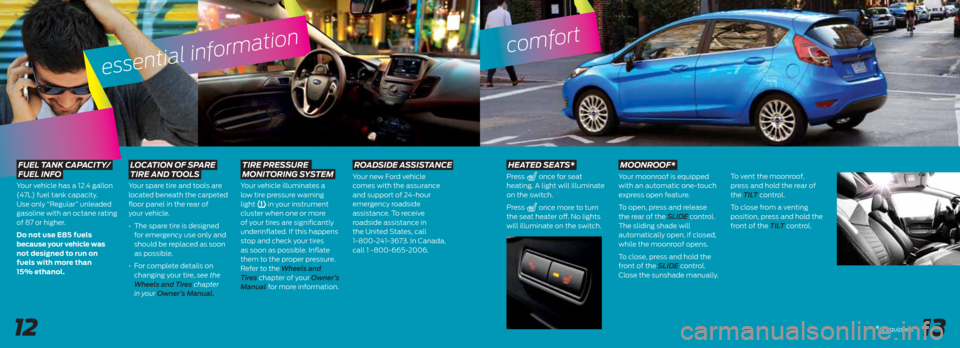

comfort
fuel t
ank capacity/
fuel info
Your vehicle has a 12.4 gallon
(47L) fuel tank capacity.
Use only “Regular” unleaded
gasoline with an octane rating
of 87 or higher.
Do not use E85 fuels
because your vehicle was
not designed to run on
fuels with more than
15% ethanol.
location of spare
tire anD tools
Your spare tire and tools are
located beneath the carpeted
floor panel in the rear of
your vehicle.
• The spare tire is designed
for emergency use only and
should be replaced as soon
as possible.
• For complete details on
changing your tire, see the
Wheels and Tires chapter
in your Owner’s Manual.
tire pressure
monitoring s ystem
Your vehicle illuminates a
low tire pressure warning
light
in your instrument
cluster when one or more
of your tires are significantly
underinflated. If this happens
stop and check your tires
as soon as possible. Inflate
them to the proper pressure.
Refer to the Wheels and
Tires chapter of your Owner’s
Manual for more information.
r oaD siDe a ssistance
Your new Ford vehicle
comes with the assurance
and support of 24-hour
emergency roadside
assistance. To receive
roadside assistance in
the United States, call
1-800-241-3673. In Canada,
call 1 -800-665-2006.
essential information
* If equipped.

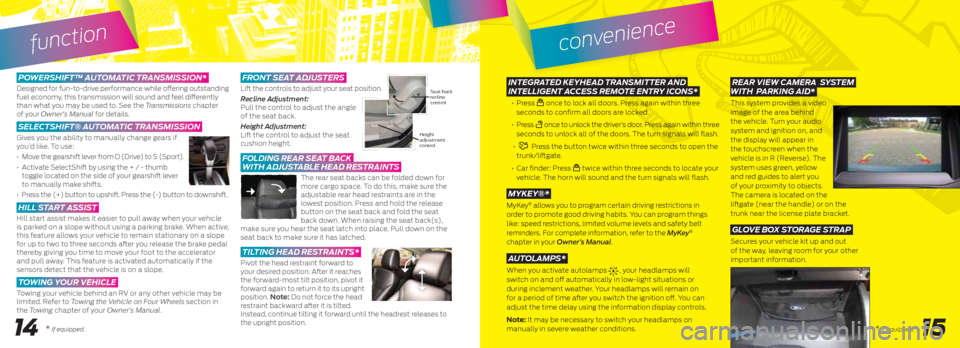

poWershift™ automatic transmission*
Designed for fun-to-drive performance while offering outstanding
fuel economy, this transmission will sound and feel differently
than what you may be used to. See the t ransmissions chapter
of your Owner's manual for details.
selectshift® automatic transmission
Gives you the ability to manually change gears if
you’d like. To use:
• Move the gearshift lever from D (Drive) to S (Sport).
• Activate SelectShift by using the + / - thumb
toggle located on the side of your gearshift lever
to manually make shifts.
• Press the (+) button to upshift. Press the (-) button to downshift.
hill start assist
Hill start assist makes it easier to pull away when your vehicle
is parked on a slope without using a parking brake. When active,
this feature allows your vehicle to remain stationary on a slope
for up to two to three seconds after you release the brake pedal
thereby giving you time to move your foot to the accelerator
and pull away. This feature is activated automatically if the
sensors detect that the vehicle is on a slope.
toWing your Vehicle
Towing your vehicle behind an RV or any other vehicle may be
limited. Refer to t owing the Vehicle on Four w heels section in
the t owing chapter of your Owner’s manual.
front seat aD justers
Lift the controls to adjust your seat position.
Recline Adjustment:
Pull the control to adjust the angle
of the seat back.
Height Adjustment:
Lift the control to adjust the seat
cushion height.
folDing rear seat Back
With aD justaBle heaD restraints
The rear seat backs can be folded down for
more cargo space. To do this, make sure the
adjustable rear head restraints are in the
lowest position. Press and hold the release
button on the seat back and fold the seat
back down. When raising the seat back(s),
make sure you hear the seat latch into place. Pull down on the
seat back to make sure it has latched.
tilting heaD restraints*
Pivot the head restraint forward to
your desired position. After it reaches
the forward-most tilt position, pivot it
forward again to return it to its upright
position. note: Do not force the head
restraint backward after it is tilted.
Instead, continue tilting it forward until the headrest releases to
the upright position.
function
14
Height
adjustment
control
Seat back
recline
control integrateD keyheaD transmitter anD
intelligent a ccess remote entry icons*
• Pressonce to lock all doors. Press again within three
seconds to confirm all doors are locked.
•
Press
once to unlock the driver’s door. Press again within three
seconds to unlock all of the doors. The turn signals will flash.
•
Press the button twice within three seconds to open the
trunk/liftgate.
•
Car finder: Press
twice within three seconds to locate your
vehicle. The horn will sound and the turn signals will flash.
mykey®*
MyKey® allows you to program certain driving restrictions in
order to promote good driving habits. You can program things
like: speed restrictions, limited volume levels and safety belt
reminders. For complete information, refer to the MyKey
®
chapter in your Owner’s Manual.
a utolamps*
When you activate autolamps , your headlamps will
switch on and off automatically in low-light situations or
during inclement weather. Your headlamps will remain on
for a period of time after you switch the ignition off. You can
adjust the time delay using the information display controls.
note: It may be necessary to switch your headlamps on
manually in severe weather conditions.
convenience
rear VieW c amera system
With p arking aiD*
This system provides a video
image of the area behind
the vehicle. Turn your audio
system and ignition on, and
the display will appear in
the touchscreen when the
vehicle is in R (Reverse). The
system uses green, yellow
and red guides to alert you
of your proximity to objects.
The camera is located on the
liftgate (near the handle) or on the
trunk near the license plate bracket.
gloVe Box s torage s trap
Secures your vehicle kit up and out
of the way, leaving room for your other
important information.
15* If equipped.* If equipped.
