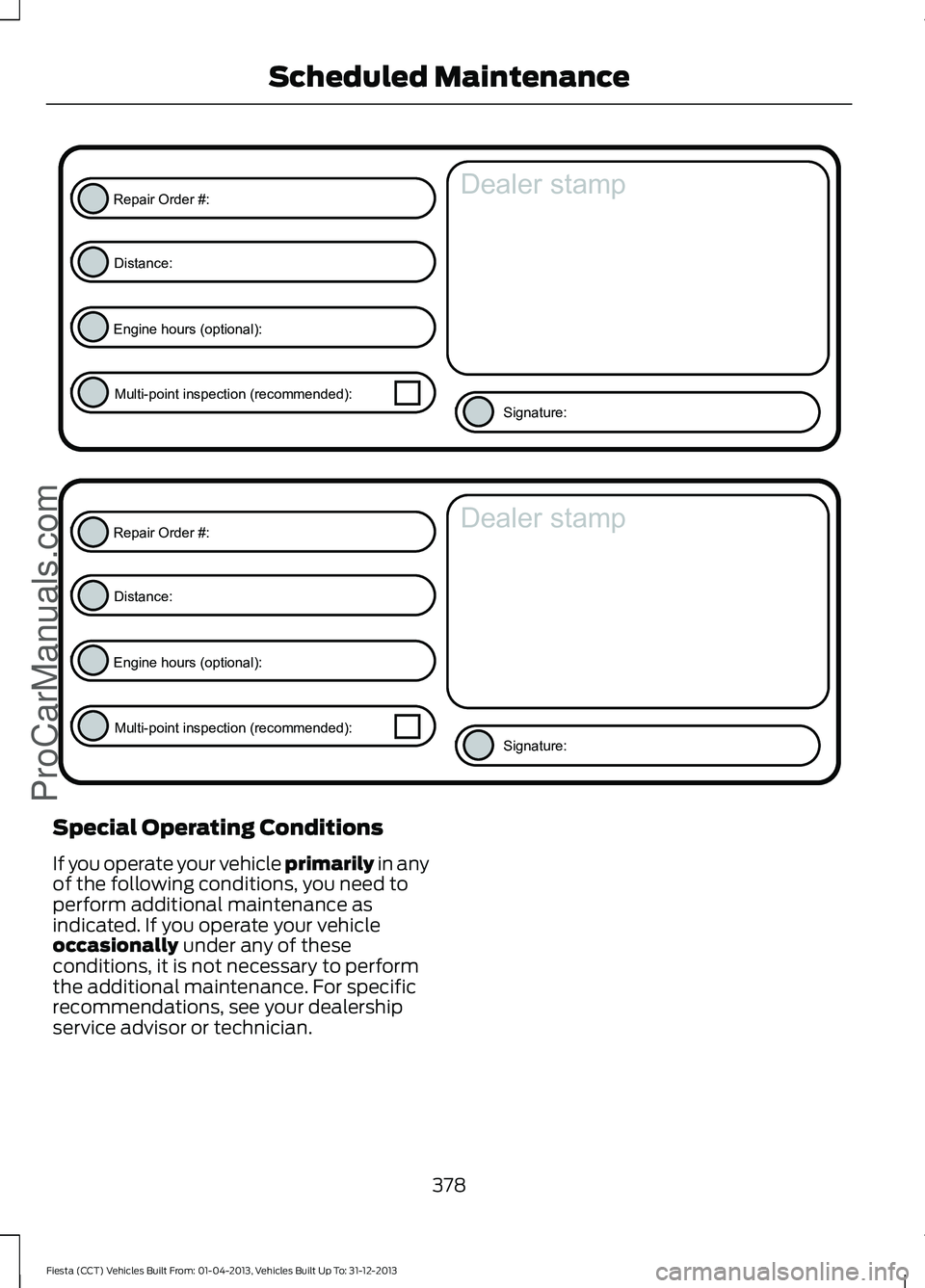

Special Operating Conditions
If you operate your vehicle primarily in any
of the following conditions, you need to
perform additional maintenance as
indicated. If you operate your vehicle
occasionally
under any of these
conditions, it is not necessary to perform
the additional maintenance. For specific
recommendations, see your dealership
service advisor or technician.
378
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013 Scheduled Maintenance
ProCarManuals.comE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp E146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

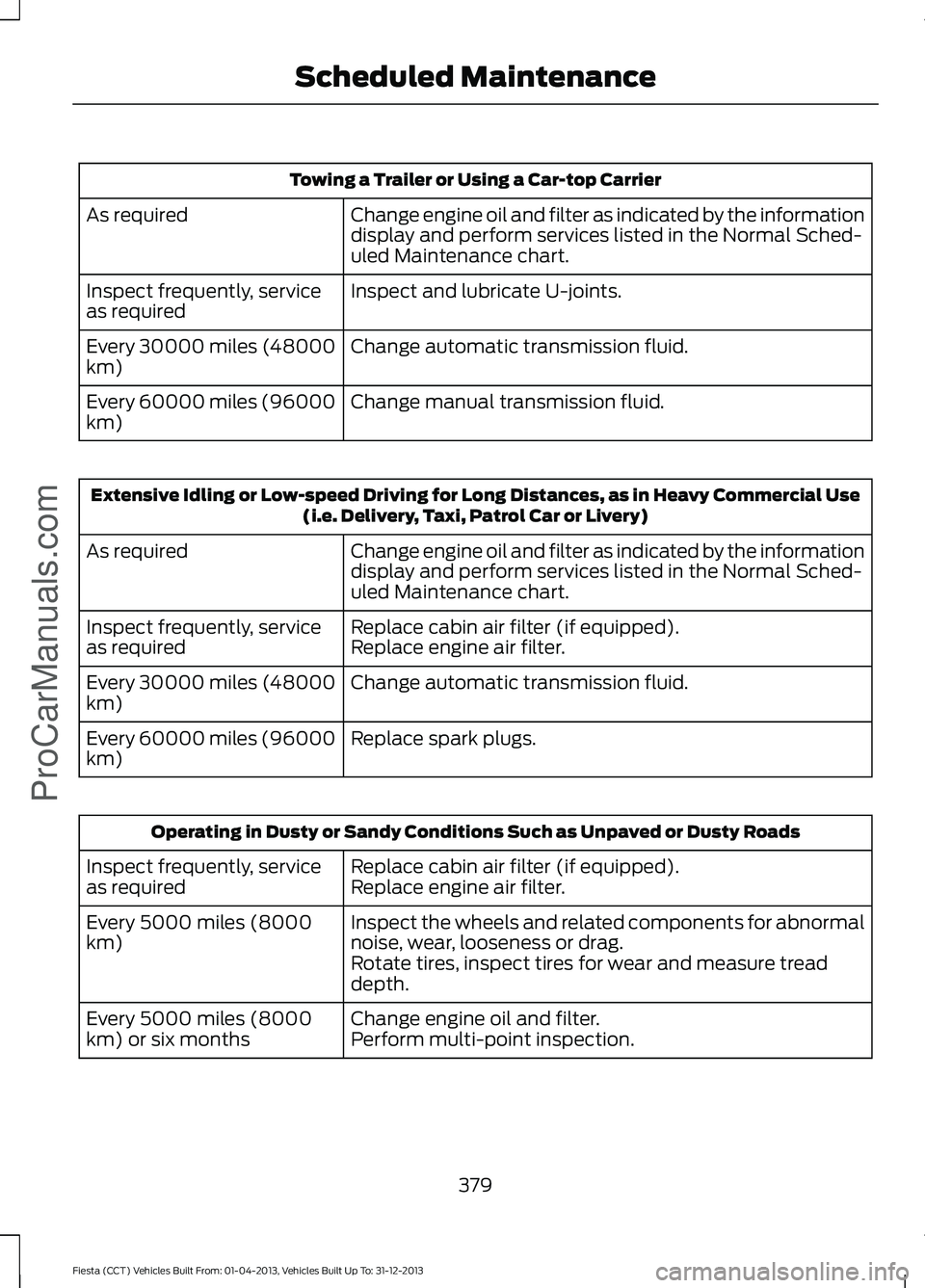

Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter as indicated by the information
display and perform services listed in the Normal Sched-
uled Maintenance chart.
As required
Inspect and lubricate U-joints.
Inspect frequently, service
as required
Change automatic transmission fluid.
Every 30000 miles (48000
km)
Change manual transmission fluid.
Every 60000 miles (96000
km) Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use
(i.e. Delivery, Taxi, Patrol Car or Livery)
Change engine oil and filter as indicated by the information
display and perform services listed in the Normal Sched-
uled Maintenance chart.
As required
Replace cabin air filter (if equipped).
Inspect frequently, service
as required Replace engine air filter.
Change automatic transmission fluid.
Every 30000 miles (48000
km)
Replace spark plugs.
Every 60000 miles (96000
km) Operating in Dusty or Sandy Conditions Such as Unpaved or Dusty Roads
Replace cabin air filter (if equipped).
Inspect frequently, service
as required Replace engine air filter.
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
Every 5000 miles (8000
km)
Rotate tires, inspect tires for wear and measure tread
depth.
Change engine oil and filter.
Every 5000 miles (8000
km) or six months Perform multi-point inspection.
379
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013 Scheduled MaintenanceProCarManuals.com

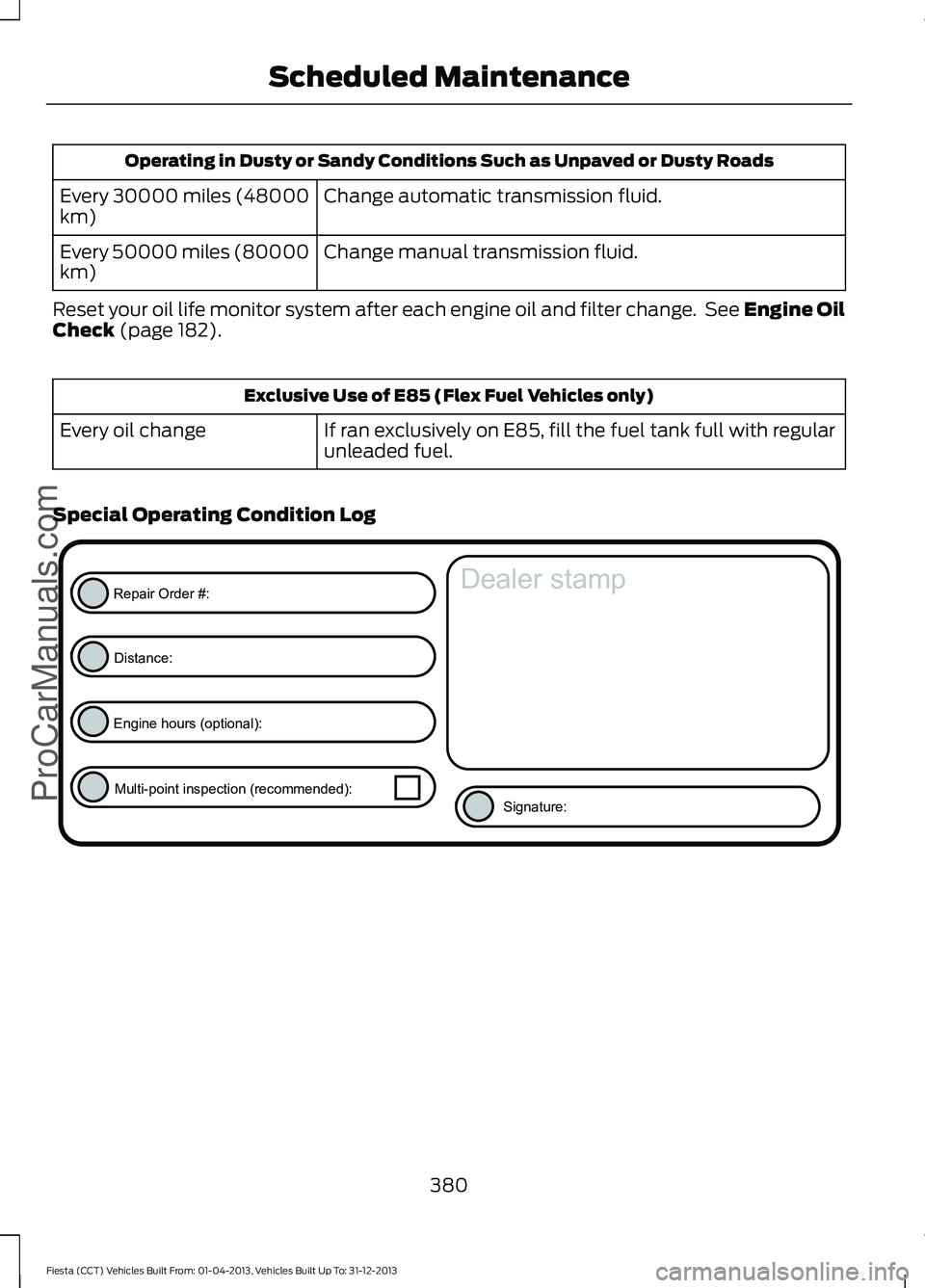

Operating in Dusty or Sandy Conditions Such as Unpaved or Dusty Roads
Change automatic transmission fluid.
Every 30000 miles (48000
km)
Change manual transmission fluid.
Every 50000 miles (80000
km)
Reset your oil life monitor system after each engine oil and filter change. See Engine Oil
Check (page 182). Exclusive Use of E85 (Flex Fuel Vehicles only)
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel.
Every oil change
Special Operating Condition Log 380
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013 Scheduled Maintenance
ProCarManuals.comE146852

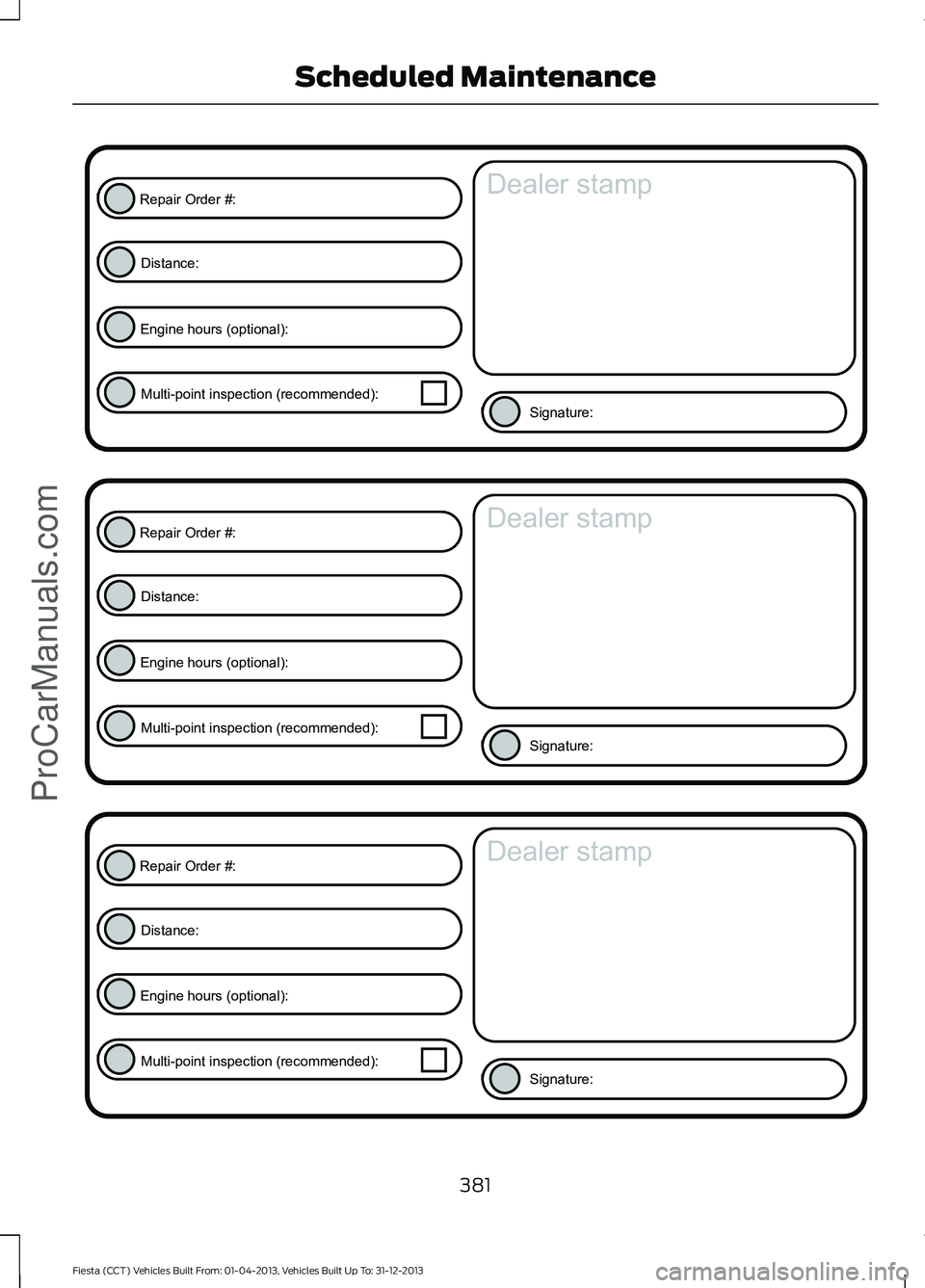

Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

381
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013 Scheduled MaintenanceProCarManuals.comE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp E146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp E146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

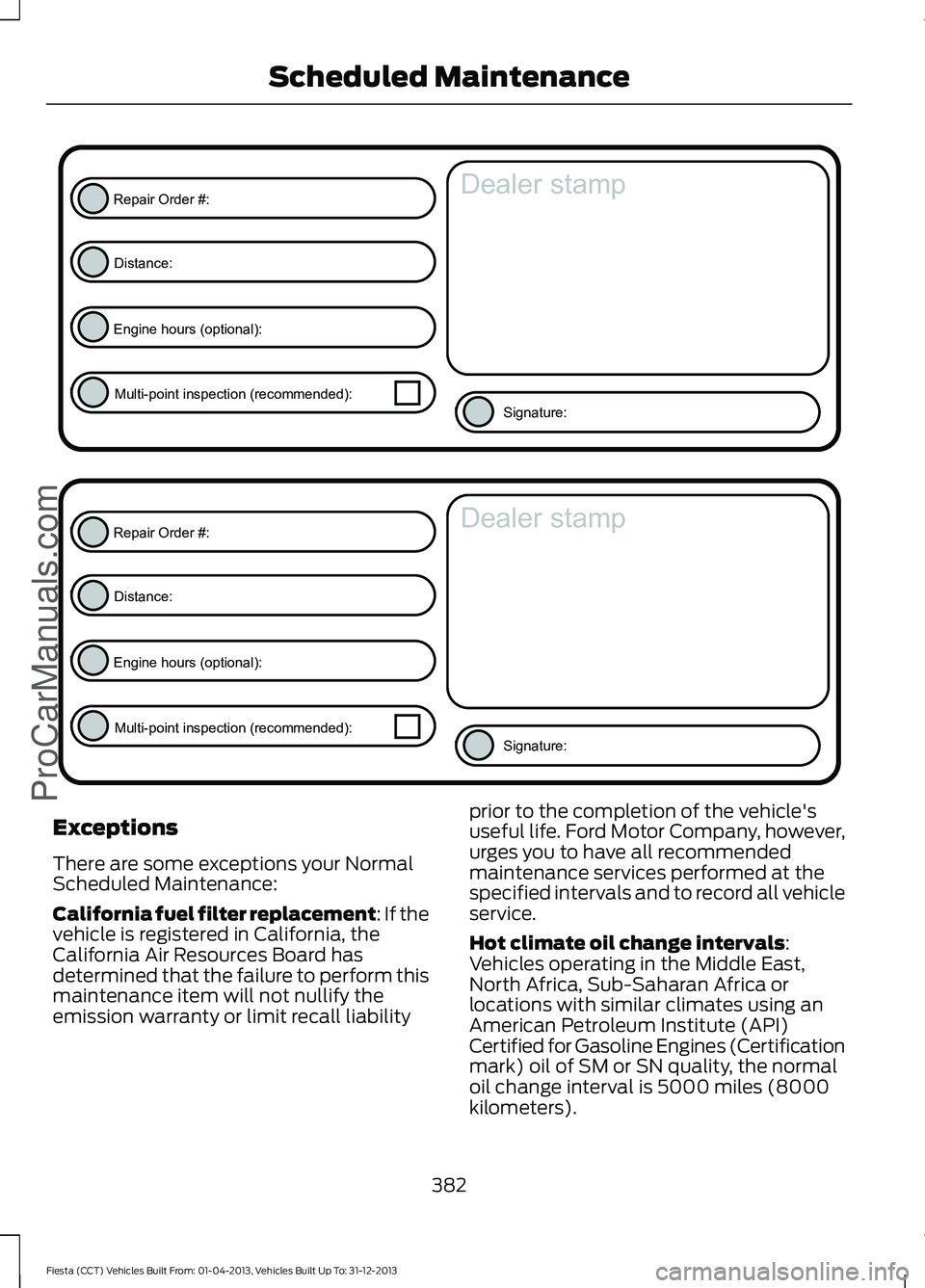

Exceptions
There are some exceptions your Normal
Scheduled Maintenance:
California fuel filter replacement: If the
vehicle is registered in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item will not nullify the
emission warranty or limit recall liability
prior to the completion of the vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service.
Hot climate oil change intervals:
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 5000 miles (8000
kilometers).
382
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013 Scheduled Maintenance
ProCarManuals.comE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp E146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

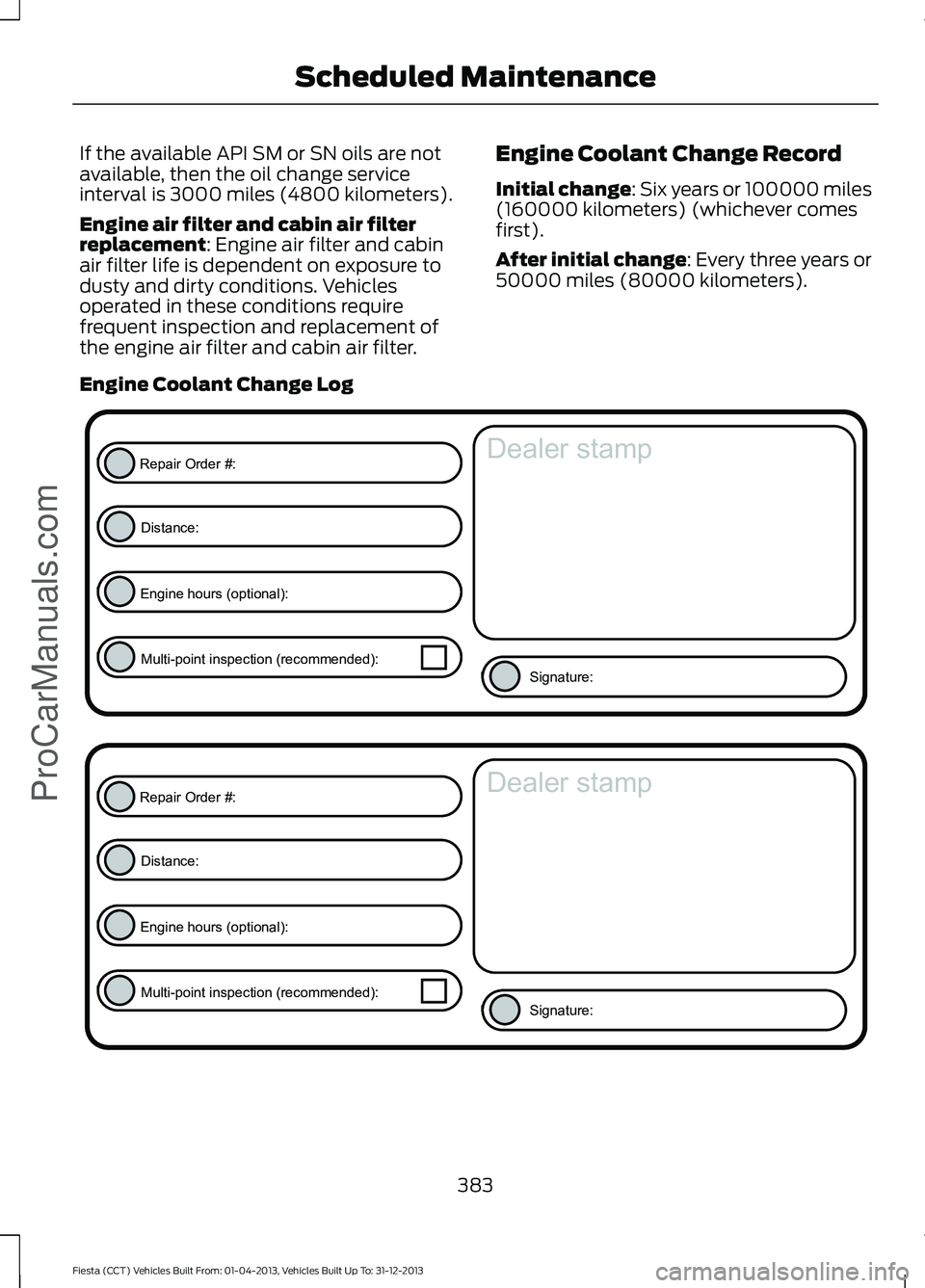

If the available API SM or SN oils are not
available, then the oil change service
interval is 3000 miles (4800 kilometers).
Engine air filter and cabin air filter
replacement: Engine air filter and cabin
air filter life is dependent on exposure to
dusty and dirty conditions. Vehicles
operated in these conditions require
frequent inspection and replacement of
the engine air filter and cabin air filter. Engine Coolant Change Record
Initial change: Six years or 100000 miles
(160000 kilometers) (whichever comes
first).
After initial change: Every three years or
50000 miles (80000 kilometers).
Engine Coolant Change Log 383
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013 Scheduled Maintenance
ProCarManuals.comE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp E146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

384
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013 Scheduled MaintenanceProCarManuals.comE146852

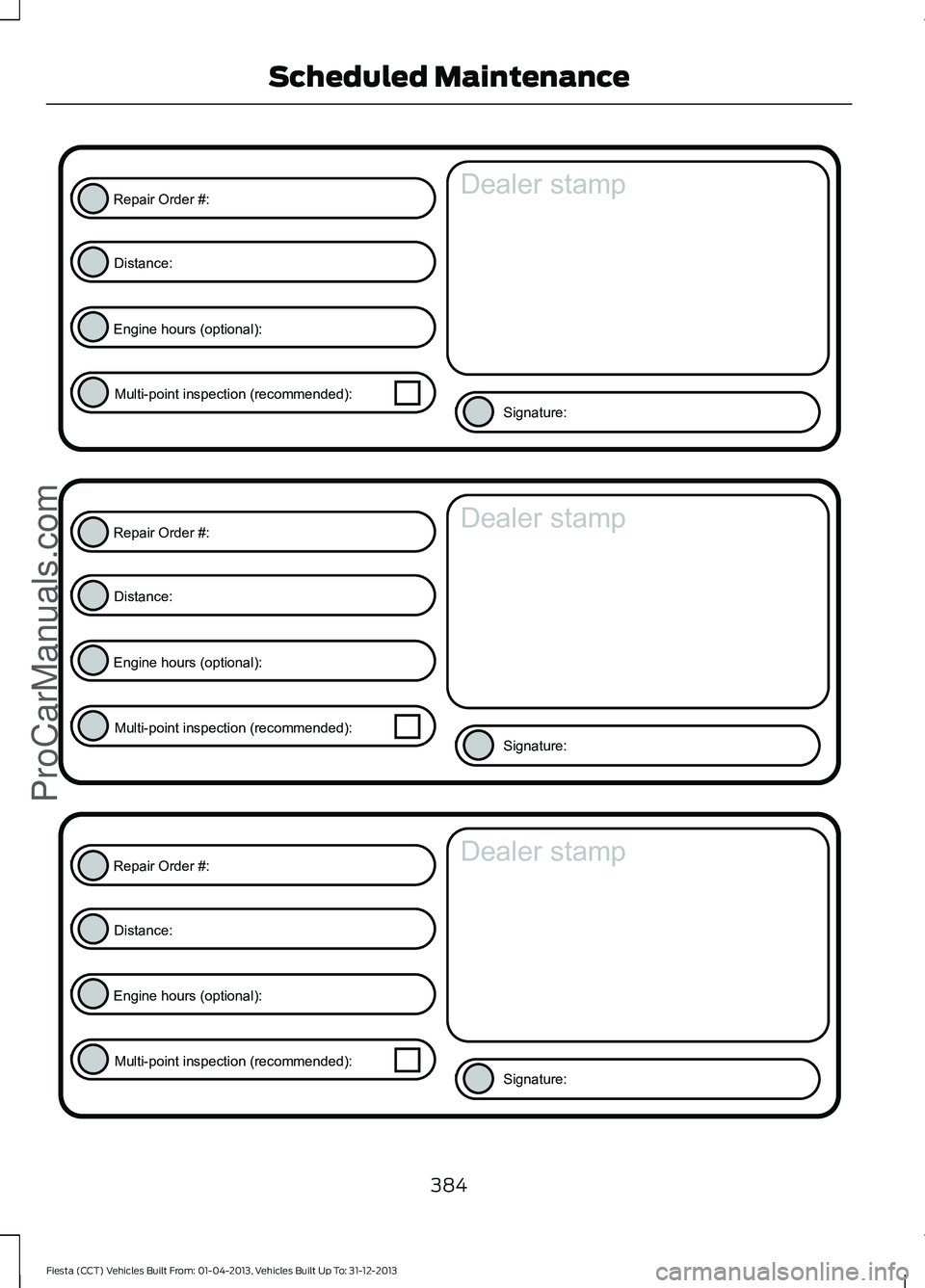

Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp E146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp E146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

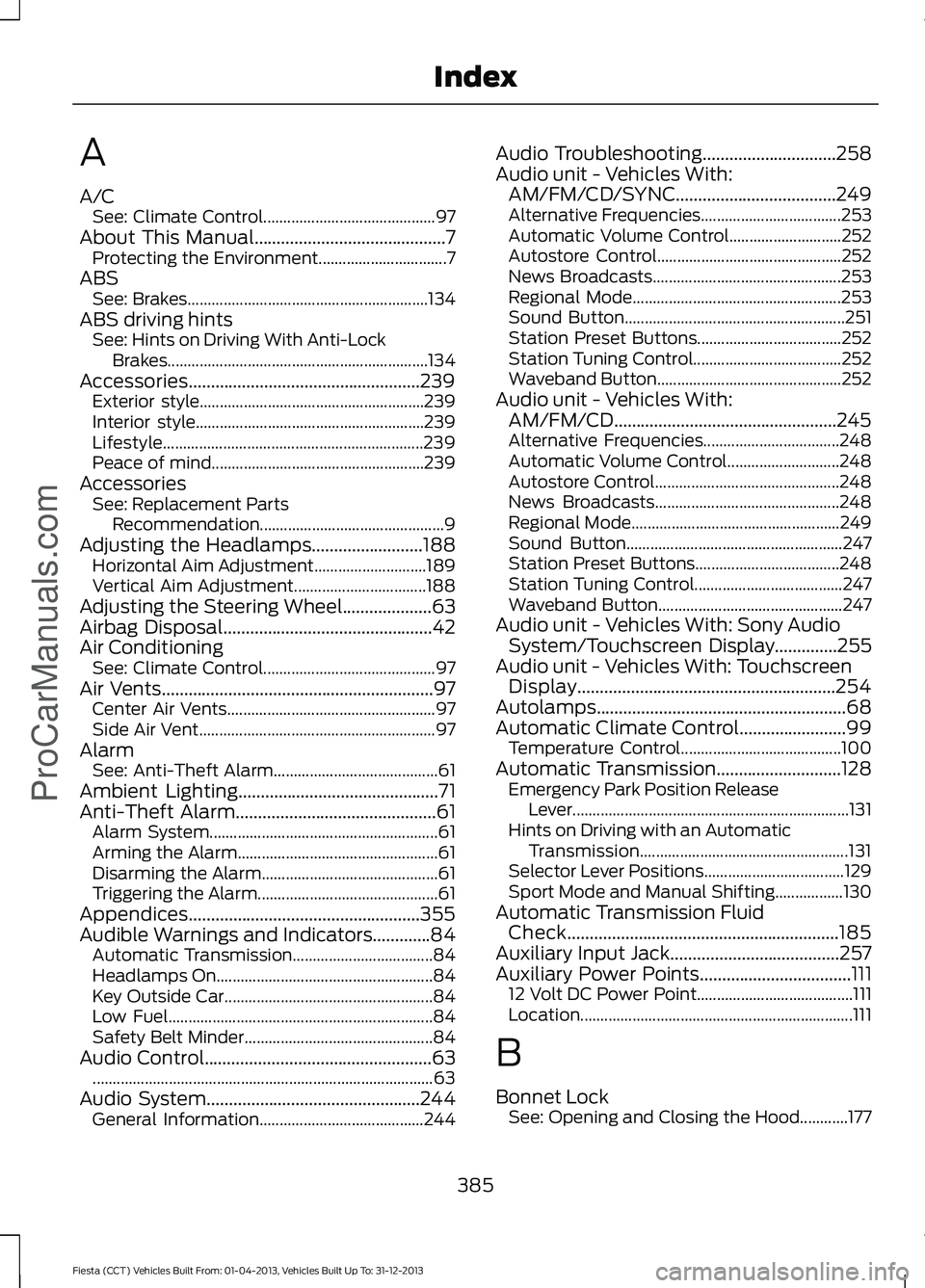

A
A/C
See: Climate Control........................................... 97
About This Manual...........................................7
Protecting the Environment................................ 7
ABS See: Brakes............................................................ 134
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes.................................................................134
Accessories....................................................239 Exterior style........................................................ 239
Interior style......................................................... 239
Lifestyle................................................................. 239
Peace of mind..................................................... 239
Accessories See: Replacement Parts
Recommendation.............................................. 9
Adjusting the Headlamps.........................188 Horizontal Aim Adjustment............................ 189
Vertical Aim Adjustment................................. 188
Adjusting the Steering Wheel
....................63
Airbag Disposal...............................................42
Air Conditioning See: Climate Control........................................... 97
Air Vents
.............................................................97
Center Air Vents.................................................... 97
Side Air Vent........................................................... 97
Alarm See: Anti-Theft Alarm......................................... 61
Ambient Lighting
.............................................71
Anti-Theft Alarm.............................................61
Alarm System......................................................... 61
Arming the Alarm.................................................. 61
Disarming the Alarm............................................ 61
Triggering the Alarm............................................. 61
Appendices....................................................355
Audible Warnings and Indicators.............84 Automatic Transmission................................... 84
Headlamps On...................................................... 84
Key Outside Car.................................................... 84
Low Fuel.................................................................. 84
Safety Belt Minder............................................... 84
Audio Control
...................................................63
........................................................................\
............. 63
Audio System................................................244 General Information......................................... 244Audio Troubleshooting
..............................258
Audio unit - Vehicles With: AM/FM/CD/SYNC....................................249
Alternative Frequencies................................... 253
Automatic Volume Control............................ 252
Autostore Control.............................................. 252
News Broadcasts............................................... 253
Regional Mode.................................................... 253
Sound Button....................................................... 251
Station Preset Buttons.................................... 252
Station Tuning Control..................................... 252
Waveband Button.............................................. 252
Audio unit - Vehicles With: AM/FM/CD..................................................245
Alternative Frequencies.................................. 248
Automatic Volume Control............................ 248
Autostore Control.............................................. 248
News Broadcasts.............................................. 248
Regional Mode.................................................... 249
Sound Button...................................................... 247
Station Preset Buttons.................................... 248
Station Tuning Control..................................... 247
Waveband Button.............................................. 247
Audio unit - Vehicles With: Sony Audio System/Touchscreen Display
..............255
Audio unit - Vehicles With: Touchscreen Display
..........................................................254
Autolamps........................................................68
Automatic Climate Control........................99 Temperature Control........................................ 100
Automatic Transmission
............................128
Emergency Park Position Release
Lever..................................................................... 131
Hints on Driving with an Automatic Transmission.................................................... 131
Selector Lever Positions................................... 129
Sport Mode and Manual Shifting.................130
Automatic Transmission Fluid Check.............................................................185
Auxiliary Input Jack......................................257
Auxiliary Power Points..................................111 12 Volt DC Power Point....................................... 111
Location.................................................................... 111
B
Bonnet Lock See: Opening and Closing the Hood............177
385
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013 Index
ProCarManuals.com

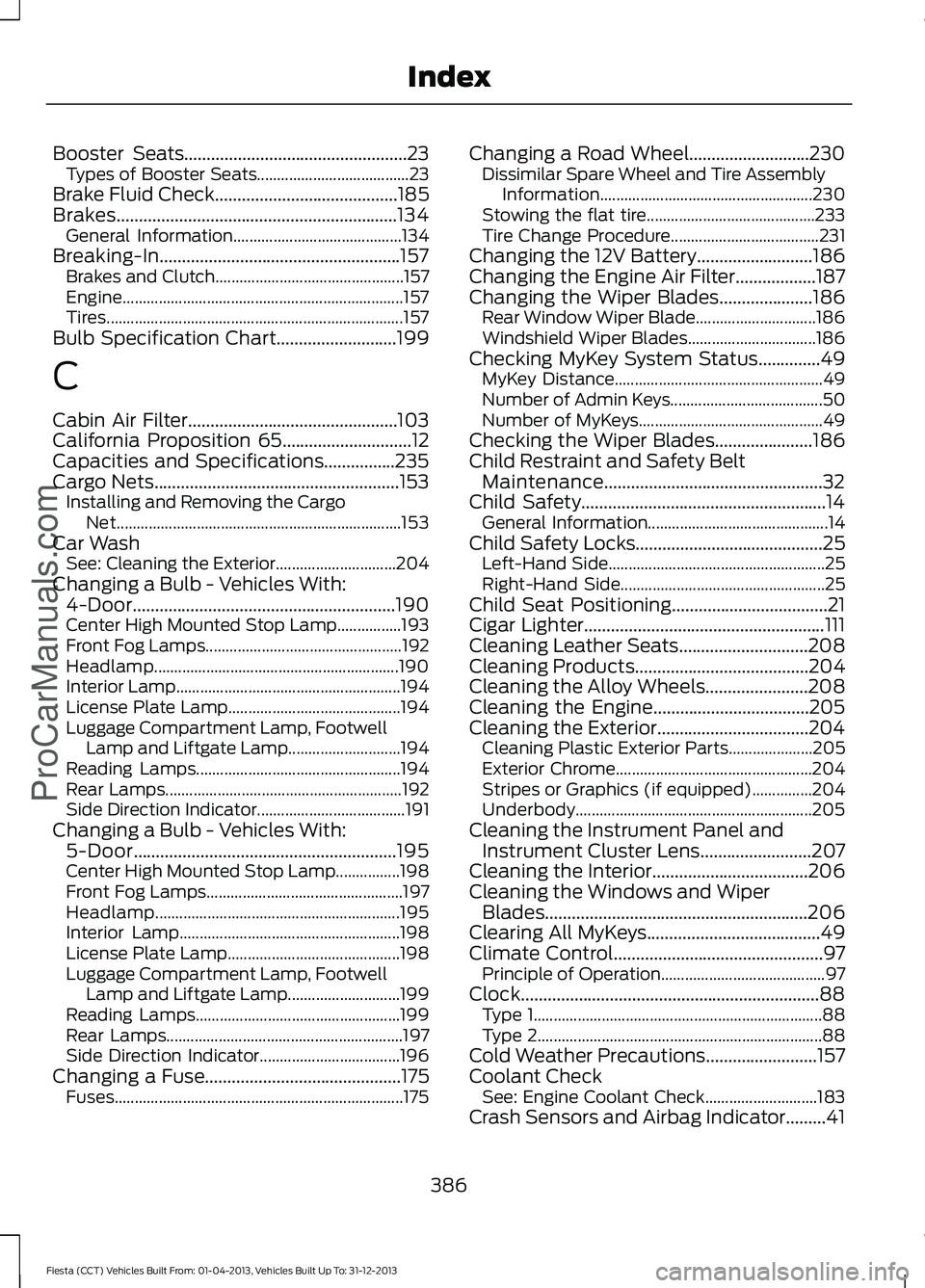

Booster Seats..................................................23
Types of Booster Seats...................................... 23
Brake Fluid Check
.........................................185
Brakes...............................................................134 General Information.......................................... 134
Breaking-In......................................................157 Brakes and Clutch............................................... 157
Engine...................................................................... 157
Tires........................................................................\
.. 157
Bulb Specification Chart...........................199
C
Cabin Air Filter...............................................103
California Proposition 65
.............................12
Capacities and Specifications................235
Cargo Nets
.......................................................153
Installing and Removing the Cargo
Net....................................................................... 153
Car Wash See: Cleaning the Exterior.............................. 204
Changing a Bulb - Vehicles With: 4-Door...........................................................190
Center High Mounted Stop Lamp................193
Front Fog Lamps................................................. 192
Headlamp............................................................. 190
Interior Lamp........................................................ 194
License Plate Lamp........................................... 194
Luggage Compartment Lamp, Footwell Lamp and Liftgate Lamp............................ 194
Reading Lamps................................................... 194
Rear Lamps........................................................... 192
Side Direction Indicator..................................... 191
Changing a Bulb - Vehicles With: 5-Door...........................................................195
Center High Mounted Stop Lamp................198
Front Fog Lamps................................................. 197
Headlamp............................................................. 195
Interior Lamp....................................................... 198
License Plate Lamp........................................... 198
Luggage Compartment Lamp, Footwell Lamp and Liftgate Lamp............................ 199
Reading Lamps................................................... 199
Rear Lamps........................................................... 197
Side Direction Indicator................................... 196
Changing a Fuse
............................................175
Fuses........................................................................\
175Changing a Road Wheel...........................230
Dissimilar Spare Wheel and Tire Assembly
Information
..................................................... 230
Stowing the flat tire.......................................... 233
Tire Change Procedure..................................... 231
Changing the 12V Battery..........................186
Changing the Engine Air Filter..................187
Changing the Wiper Blades
.....................186
Rear Window Wiper Blade.............................. 186
Windshield Wiper Blades................................ 186
Checking MyKey System Status..............49 MyKey Distance.................................................... 49
Number of Admin Keys...................................... 50
Number of MyKeys.............................................. 49
Checking the Wiper Blades......................186
Child Restraint and Safety Belt Maintenance.................................................32
Child Safety.......................................................14 General Information............................................. 14
Child Safety Locks
..........................................25
Left-Hand Side...................................................... 25
Right-Hand Side................................................... 25
Child Seat Positioning
...................................21
Cigar Lighter......................................................111
Cleaning Leather Seats.............................208
Cleaning Products
.......................................204
Cleaning the Alloy Wheels.......................208
Cleaning the Engine...................................205
Cleaning the Exterior..................................204 Cleaning Plastic Exterior Parts..................... 205
Exterior Chrome................................................. 204
Stripes or Graphics (if equipped)...............204
Underbody........................................................... 205
Cleaning the Instrument Panel and Instrument Cluster Lens
.........................207
Cleaning the Interior...................................206
Cleaning the Windows and Wiper Blades...........................................................206
Clearing All MyKeys.......................................49
Climate Control
...............................................97
Principle of Operation......................................... 97
Clock...................................................................88 Type 1........................................................................\
88
Type 2....................................................................... 88
Cold Weather Precautions.........................157
Coolant Check See: Engine Coolant Check............................ 183
Crash Sensors and Airbag Indicator
.........41
386
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013 Index
ProCarManuals.com

Creating a MyKey...........................................48
Programming or Changing Configurable
Settings............................................................... 49
Cruise Control.................................................64 Principle of Operation....................................... 142
Cruise control See: Using Cruise Control................................ 142
Cup Holders.....................................................112
Customer Assistance.................................160
D
Data Recording
................................................10
Event Data Recording.......................................... 10
Service Data Recording...................................... 10
Daytime Running Lamps............................69
Direction Indicators.......................................69
Driver and Passenger Airbags....................35 Children and Airbags........................................... 35
Proper Driver and Front Passenger Seating Adjustment........................................................ 35
Driver Knee Airbag.........................................39
Driving Aids
.....................................................144
Driving Hints....................................................157
Driving Through Water................................157
DRL See: Daytime Running Lamps......................... 69
E
Economical Driving
.......................................157
Emission Control System...........................123 On-Board Diagnostics (OBD-II).................... 124
Readiness for Inspection/Maintenance (I/M) Testing.................................................... 124
End User License Agreement..................355 SYNC® End User License Agreement
(EULA).............................................................. 355
Engine Block Heater.....................................116 Using the Engine Block Heater........................ 117
Engine Coolant Check................................183 Adding Engine Coolant.................................... 184
Checking the Engine Coolant......................... 183
Recycled Engine Coolant................................. 185
Severe Climates.................................................. 185
Engine Immobilizer See: Passive Anti-Theft System.................... 60Engine Oil Check...........................................182
Adding Engine Oil............................................... 182
Resetting the Oil Life Monitoring System............................................................... 183
Engine Oil Dipstick - 1.0L EcoBoost™..................................................182
Engine Oil Dipstick - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma..........182
Engine Oil Dipstick - 1.6L EcoBoost™..................................................182
Engine Specifications.................................235 Drivebelt Routing............................................... 235
Entertainment................................................313 AM/FM Radio....................................................... 314
Bluetooth Audio................................................. 329
Browsing Device Content................................. 313
CD........................................................................\
.... 325
SD Card Slot and USB Port........................... 326
SIRIUS® Satellite Radio (If Activated)........................................................ 320
Supported Media Players, Formats and Metadata Information................................ 329
Event Data Recording See: Data Recording............................................ 10
Export Unique Options
..................................12
Exterior Mirrors.................................................74
Fold-Away Exterior Mirrors................................ 75
Integrated Blind Spot Mirrors........................... 75
Power Exterior Mirrors......................................... 74
F
Fastening the Safety Belts..........................27 Restraint of Pregnant Women......................... 27
Safety Belt Extension Assembly.................... 29
Safety Belt Locking Modes............................... 28
Floor Mats
.......................................................158
Fog Lamps - Front See: Front Fog Lamps........................................ 69
Ford Credit
.........................................................12
(U.S. Only)................................................................ 12
Ford Extended Service Plan (ESP)........241 SERVICE PLANS (CANADA ONLY).............243
SERVICE PLANS (U.S. Only).......................... 241
Front Fog Lamps............................................69
Front Passenger Sensing System............36
Fuel and Refueling........................................118
387
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013 Index
ProCarManuals.com
