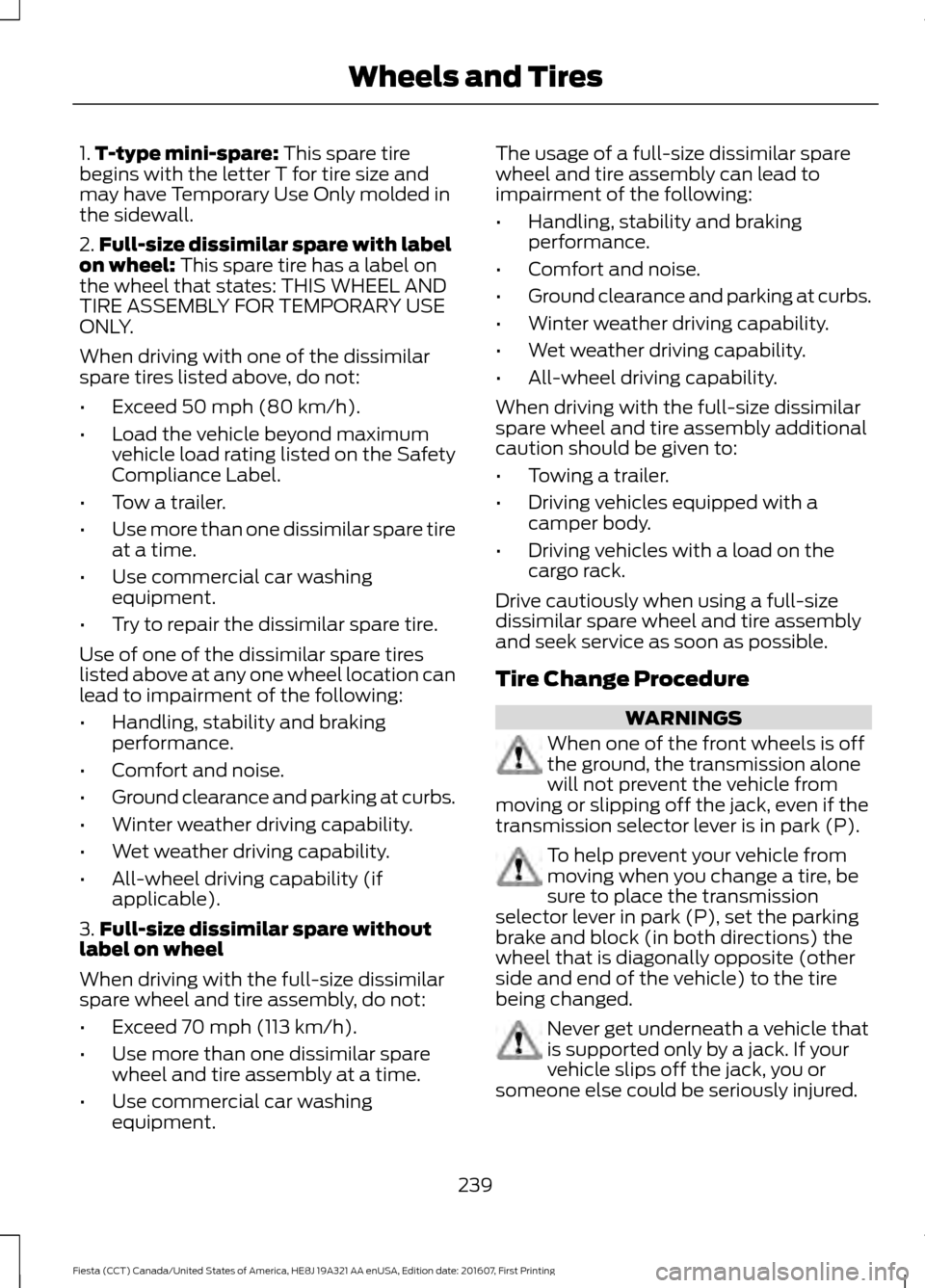

FORD FIESTA 2017 6.G Owners Manual

1.
T-type mini-spare: This spare tire
begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.
2. Full-size dissimilar spare with label
on wheel:
This spare tire has a label on
the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.
When driving with one of the dissimilar
spare tires listed above, do not:
• Exceed
50 mph (80 km/h).
• Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.
• Tow a trailer.
• Use more than one dissimilar spare tire
at a time.
• Use commercial car washing
equipment.
• Try to repair the dissimilar spare tire.
Use of one of the dissimilar spare tires
listed above at any one wheel location can
lead to impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability (if
applicable).
3. Full-size dissimilar spare without
label on wheel
When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
• Exceed
70 mph (113 km/h).
• Use more than one dissimilar spare
wheel and tire assembly at a time.
• Use commercial car washing
equipment. The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
•
Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability.
When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
• Towing a trailer.
• Driving vehicles equipped with a
camper body.
• Driving vehicles with a load on the
cargo rack.
Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.
Tire Change Procedure WARNINGS
When one of the front wheels is off
the ground, the transmission alone
will not prevent the vehicle from
moving or slipping off the jack, even if the
transmission selector lever is in park (P). To help prevent your vehicle from
moving when you change a tire, be
sure to place the transmission
selector lever in park (P), set the parking
brake and block (in both directions) the
wheel that is diagonally opposite (other
side and end of the vehicle) to the tire
being changed. Never get underneath a vehicle that
is supported only by a jack. If your
vehicle slips off the jack, you or
someone else could be seriously injured.
239
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Wheels and Tires

WARNINGS
Do not attempt to change a tire on
the side of the vehicle close to
moving traffic. Pull far enough off the
road to avoid the danger of being hit when
operating the jack or changing the wheel. Always use the jack provided as
original equipment with your vehicle.
If using a jack other than the one
provided as original equipment with your
vehicle, make sure the jack capacity is
adequate for the vehicle weight, including
any vehicle cargo or modifications. Make sure there is no lubrication
(grease or oil) on the threads or the
surface between the wheel lugs and
nuts. This can cause the lug nuts to loosen
while driving. Note:
Passengers should not remain in the
vehicle when the vehicle is being jacked.
1. Park on a level surface, set the parking
brake and activate the hazard flashers.
2. Place the transmission in park (P) (automatic transmission) or reverse
(R) (manual transmission) and turn
the engine off.
3. Remove the carpeted wheel cover.
4. Remove the spare tire bolt securing the
spare tire by turning it
counterclockwise.
5. Remove the spare tire from the spare tire compartment.
6. Remove the retaining bolt securing the
jack by turning it counterclockwise.
7. Remove the jack. 8. To remove the wrench from the jack,
turn the hex nut on the jack
counterclockwise. This will lower the
jack and loosen the mechanical lock. 9. Block the diagonally opposite wheel.
10. Loosen each wheel lug nut one-half
turn counterclockwise but do not
remove them until the wheel is raised
off the ground.
Note: Jack at the specified locations to
avoid damage to the vehicle.
11. The vehicle jacking points are shown
here, and are depicted on the yellow
warning label on the jack.
240
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Wheels and TiresE175694 E142551

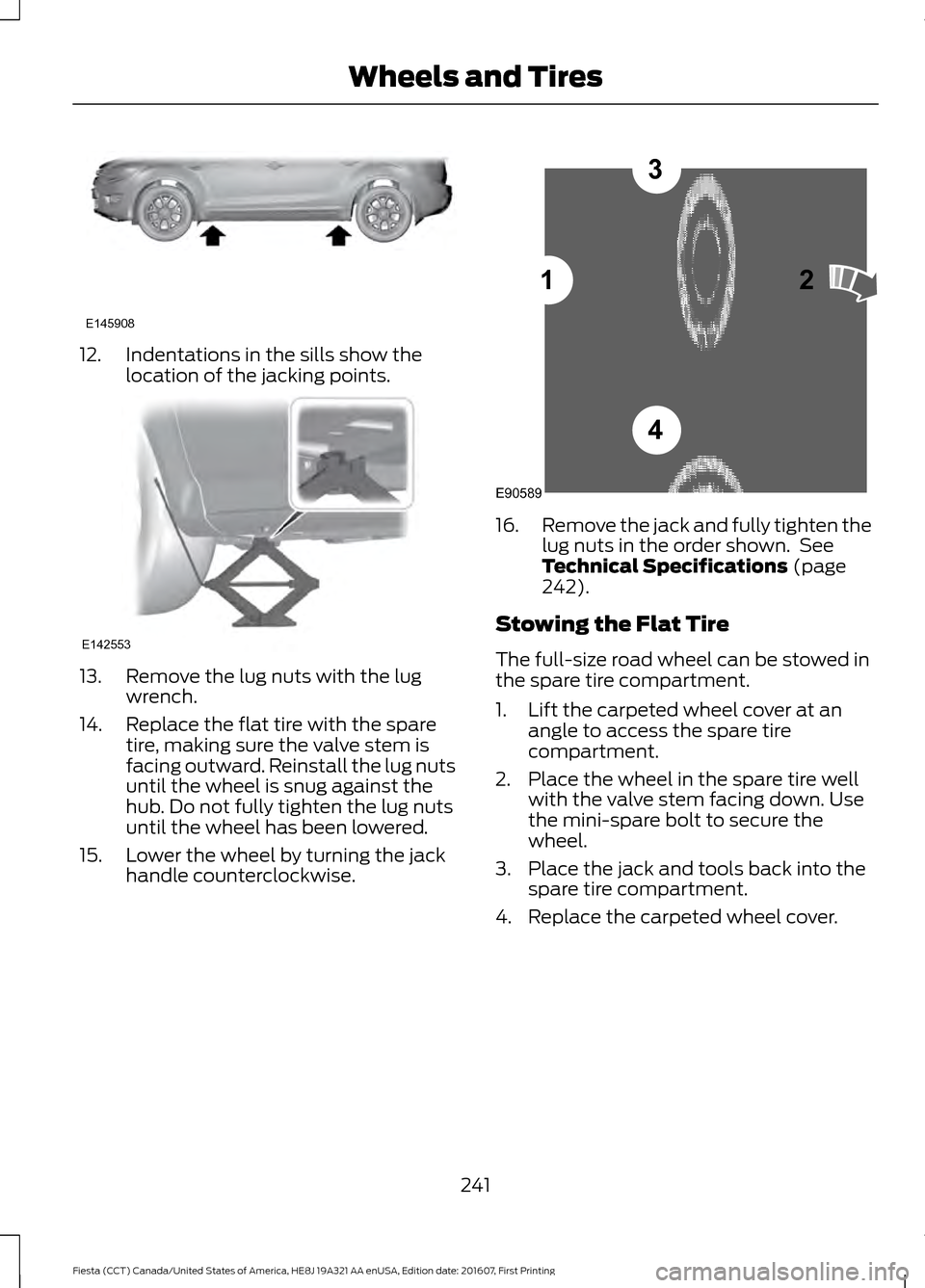

12. Indentations in the sills show the
location of the jacking points. 13. Remove the lug nuts with the lug
wrench.
14. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts
until the wheel is snug against the
hub. Do not fully tighten the lug nuts
until the wheel has been lowered.
15. Lower the wheel by turning the jack handle counterclockwise. 16.
Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page
242).
Stowing the Flat Tire
The full-size road wheel can be stowed in
the spare tire compartment.
1. Lift the carpeted wheel cover at an angle to access the spare tire
compartment.
2. Place the wheel in the spare tire well with the valve stem facing down. Use
the mini-spare bolt to secure the
wheel.
3. Place the jack and tools back into the spare tire compartment.
4. Replace the carpeted wheel cover.
241
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Wheels and TiresE145908 E142553 12
3
4
E90589

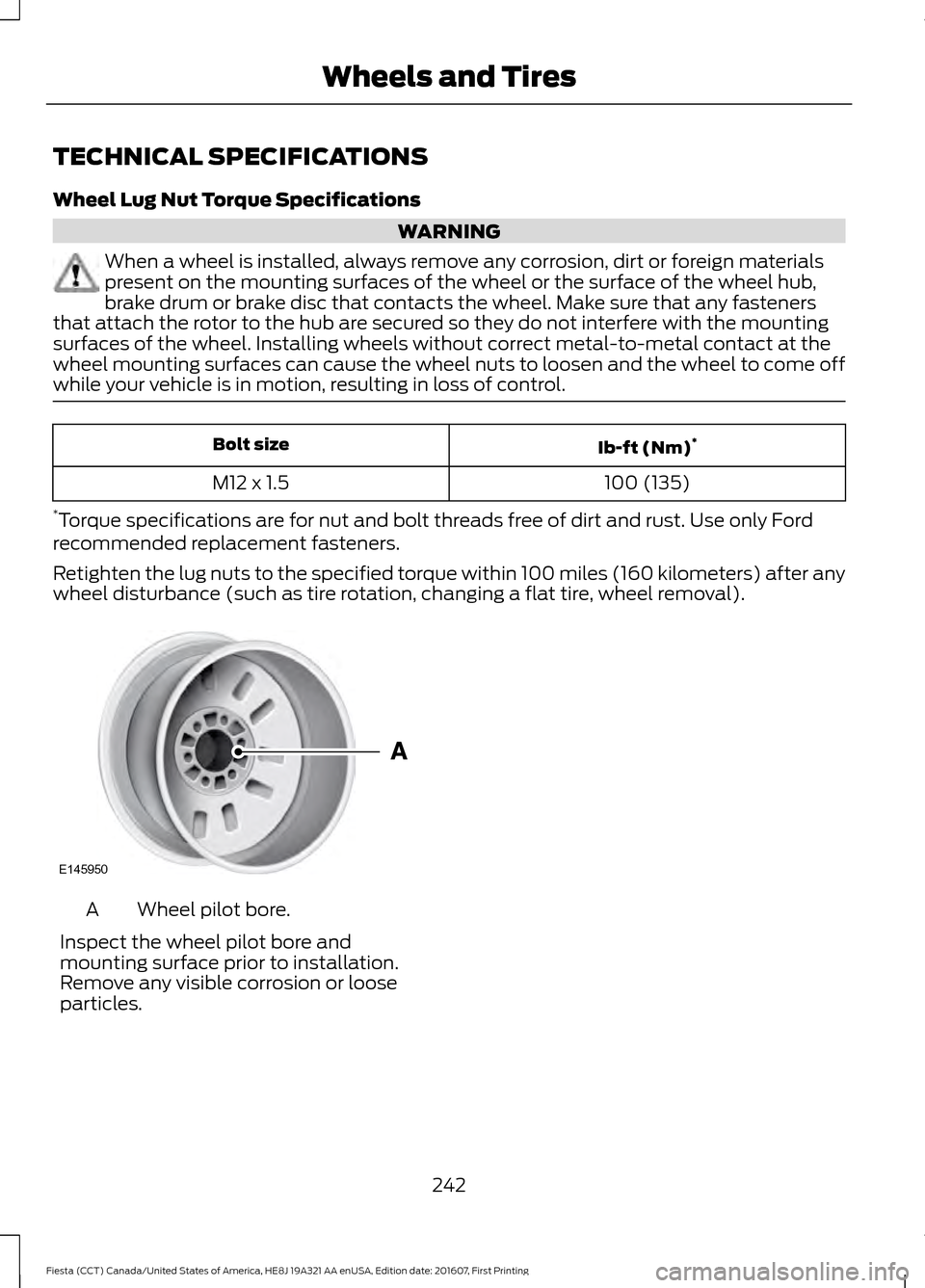

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or the surface of the wheel hub,
brake drum or brake disc that contacts the wheel. Make sure that any fasteners
that attach the rotor to the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off
while your vehicle is in motion, resulting in loss of control. Ib-ft (Nm)
*
Bolt size
100 (135)
M12 x 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal). Wheel pilot bore.
A
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
242
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Wheels and TiresE145950

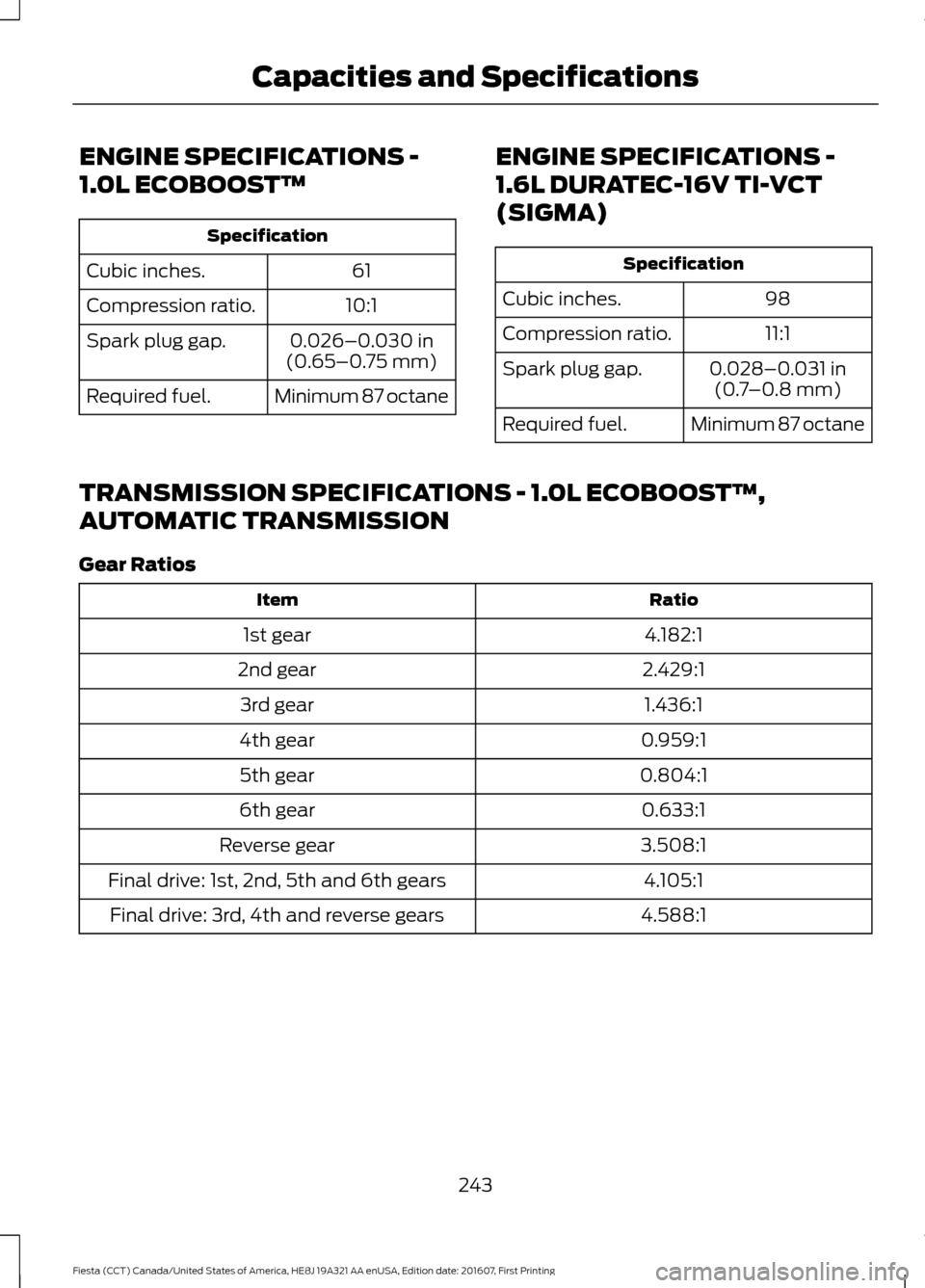

ENGINE SPECIFICATIONS -
1.0L ECOBOOST™
Specification
61
Cubic inches.
10:1
Compression ratio.
0.026–0.030 in
(0.65–0.75 mm)
Spark plug gap.
Minimum 87 octane
Required fuel. ENGINE SPECIFICATIONS -
1.6L DURATEC-16V TI-VCT
(SIGMA) Specification
98
Cubic inches.
11:1
Compression ratio.
0.028–0.031 in(0.7 –0.8 mm)
Spark plug gap.
Minimum 87 octane
Required fuel.
TRANSMISSION SPECIFICATIONS - 1.0L ECOBOOST™,
AUTOMATIC TRANSMISSION
Gear Ratios Ratio
Item
4.182:1
1st gear
2.429:1
2nd gear
1.436:1
3rd gear
0.959:1
4th gear
0.804:1
5th gear
0.633:1
6th gear
3.508:1
Reverse gear
4.105:1
Final drive: 1st, 2nd, 5th and 6th gears
4.588:1
Final drive: 3rd, 4th and reverse gears
243
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Capacities and Specifications

TRANSMISSION SPECIFICATIONS - 1.6L DURATEC-16V TI-VCT
(SIGMA), AUTOMATIC TRANSMISSION
Gear Ratios
Ratio
Item
3.917:1
1st gear
2.429:1
2nd gear
1.436:1
3rd gear
1.021:1
4th gear
0.867:1
5th gear
0.702:1
6th gear
3.507:1
Reverse gear
4.105:1
Final drive: 1st, 2nd, 5th and 6th gears
4.588:1
Final drive: 3rd, 4th and reverse gears
244
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Capacities and Specifications

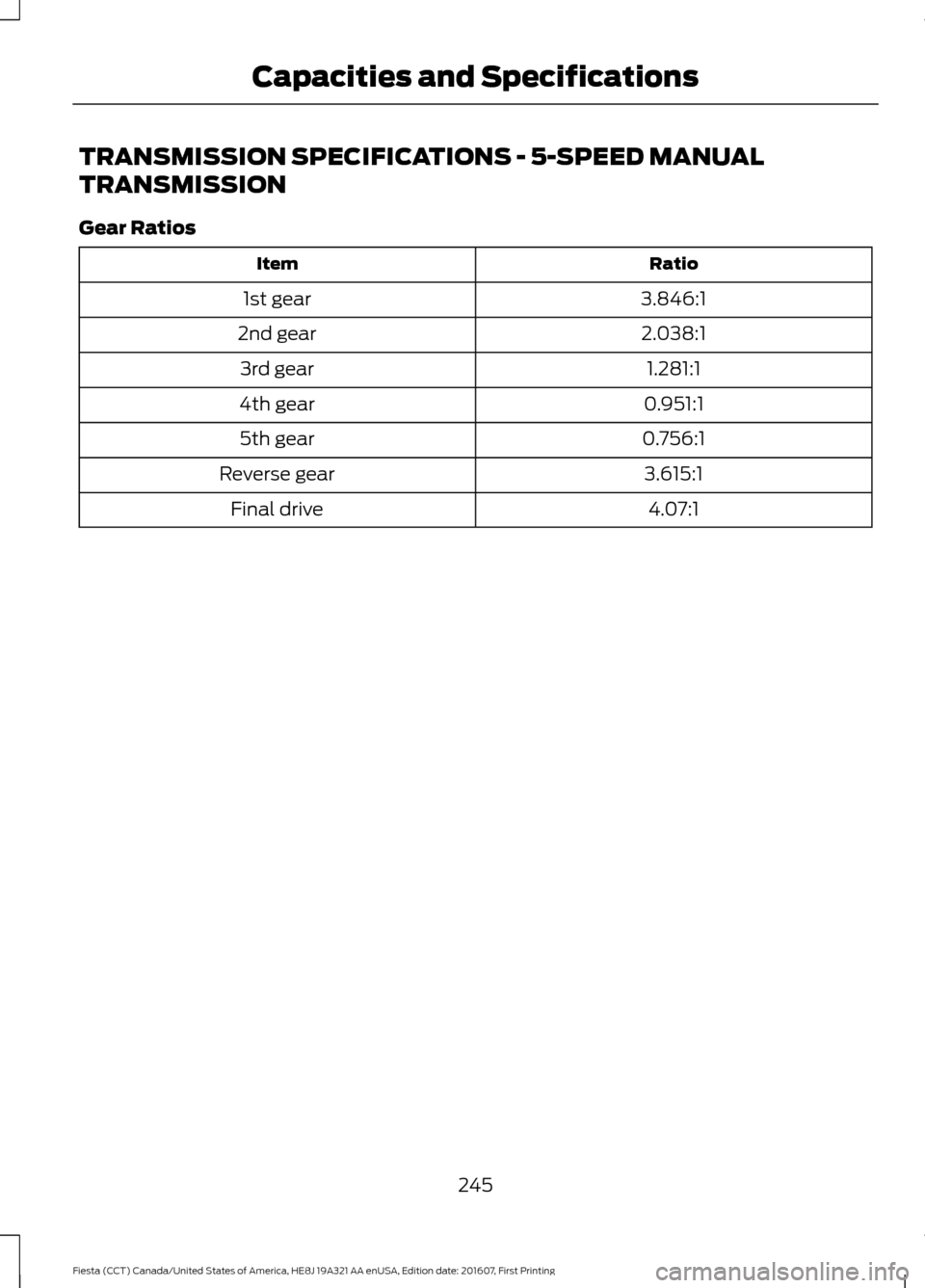

TRANSMISSION SPECIFICATIONS - 5-SPEED MANUAL
TRANSMISSION
Gear Ratios
Ratio
Item
3.846:1
1st gear
2.038:1
2nd gear
1.281:1
3rd gear
0.951:1
4th gear
0.756:1
5th gear
3.615:1
Reverse gear
4.07:1
Final drive
245
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Capacities and Specifications

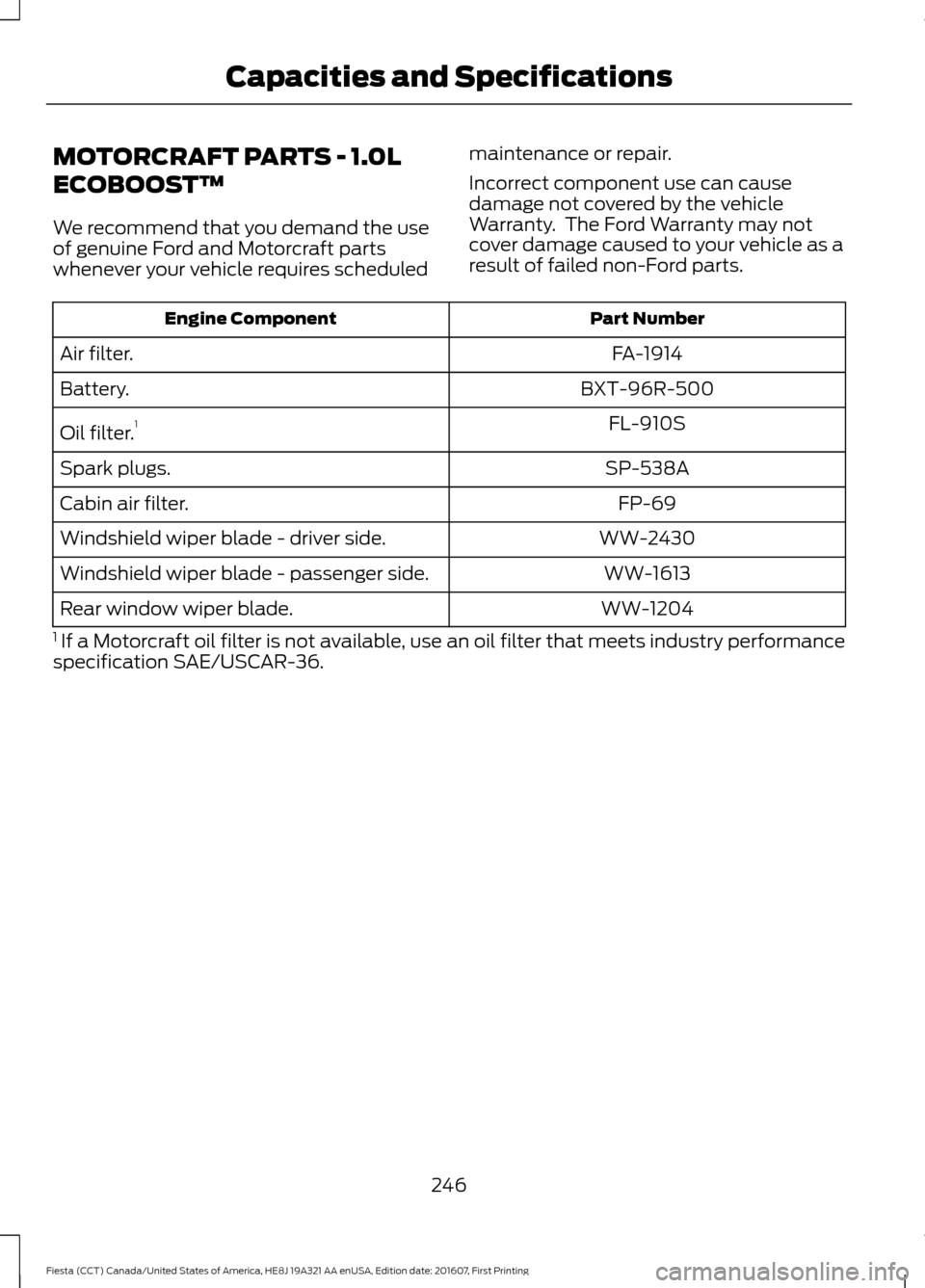

MOTORCRAFT PARTS - 1.0L
ECOBOOST™
We recommend that you demand the use
of genuine Ford and Motorcraft parts
whenever your vehicle requires scheduled
maintenance or repair.
Incorrect component use can cause
damage not covered by the vehicle
Warranty. The Ford Warranty may not
cover damage caused to your vehicle as a
result of failed non-Ford parts. Part Number
Engine Component
FA-1914
Air filter.
BXT-96R-500
Battery.
FL-910S
Oil filter. 1
SP-538A
Spark plugs.
FP-69
Cabin air filter.
WW-2430
Windshield wiper blade - driver side.
WW-1613
Windshield wiper blade - passenger side.
WW-1204
Rear window wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
246
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Capacities and Specifications

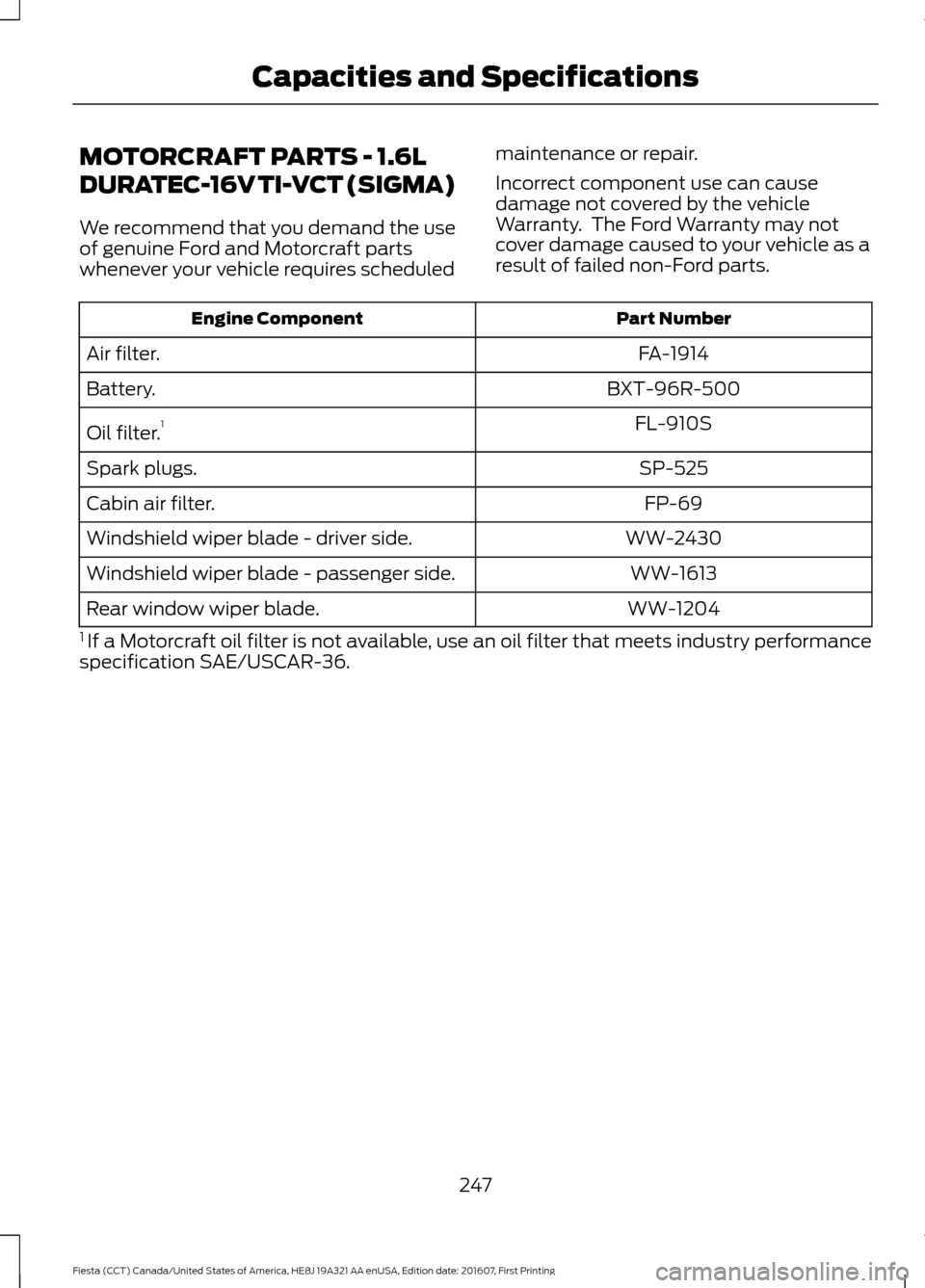

MOTORCRAFT PARTS - 1.6L
DURATEC-16V TI-VCT (SIGMA)
We recommend that you demand the use
of genuine Ford and Motorcraft parts
whenever your vehicle requires scheduled
maintenance or repair.
Incorrect component use can cause
damage not covered by the vehicle
Warranty. The Ford Warranty may not
cover damage caused to your vehicle as a
result of failed non-Ford parts. Part Number
Engine Component
FA-1914
Air filter.
BXT-96R-500
Battery.
FL-910S
Oil filter. 1
SP-525
Spark plugs.
FP-69
Cabin air filter.
WW-2430
Windshield wiper blade - driver side.
WW-1613
Windshield wiper blade - passenger side.
WW-1204
Rear window wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
247
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Capacities and Specifications

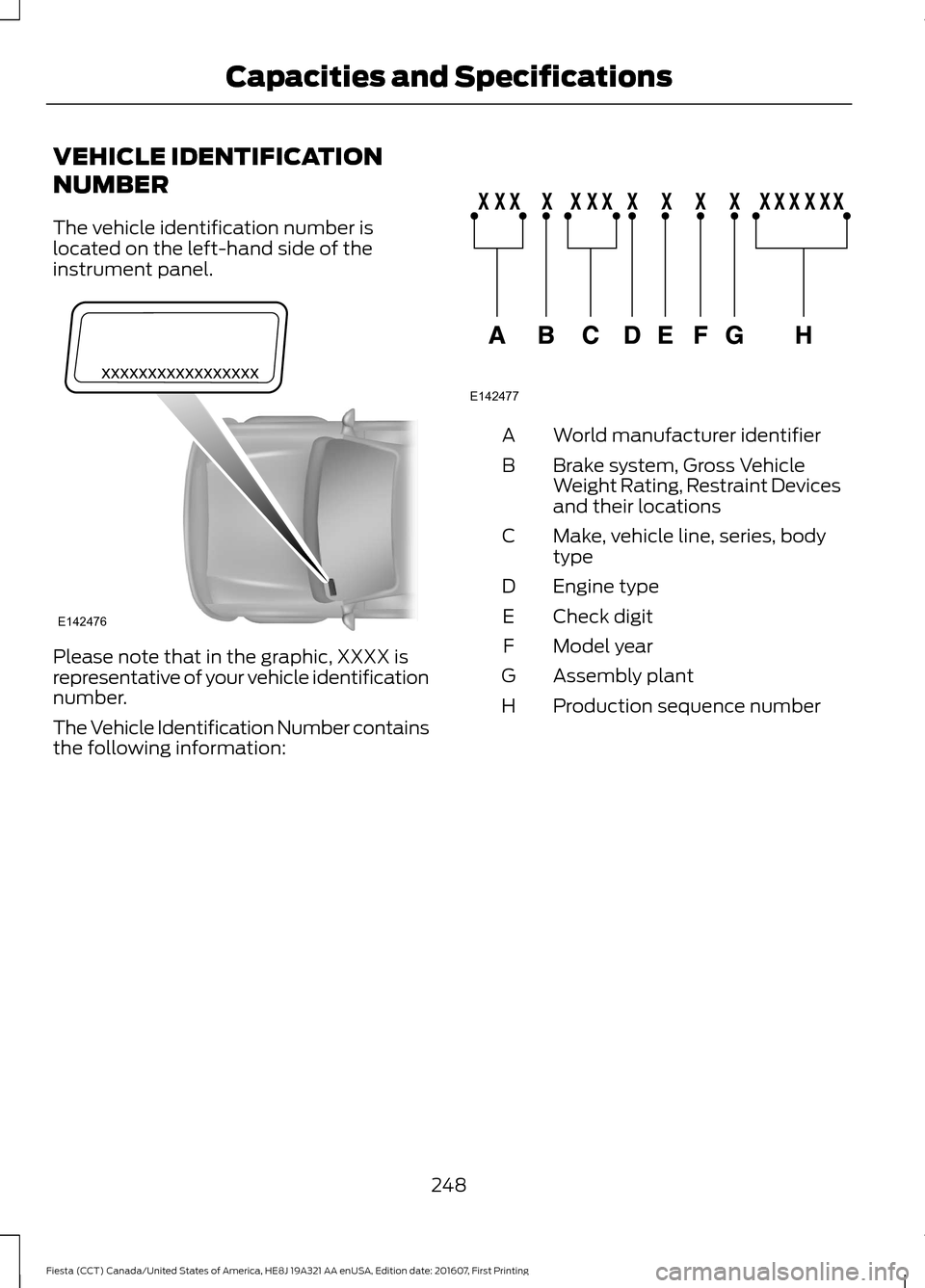

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information: World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H
248
