2. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.
3. Press and release the RESET button. HOLD RESET TO CONFIRM
CLEAR is displayed.
4. Press and hold the RESET button for two seconds until ALL MYKEYS
CLEARED is displayed.
Check MyKeyâ„¢ system status
The vehicle system check will provide the status of the following
MyKeyâ„¢ parameters:
•MYKEY MILES — This odometer only tracks mileage when a MyKey™
is used. If mileage does not accumulate as expected, then the
MyKeyâ„¢ is not being used by the intended user. The only way to
reset this odometer to zero is by disabling MyKeyâ„¢. If this odometer
is lower than the last time you checked, then the MyKeyâ„¢ system has
been recently cleared.
•# MYKEY(S) PROGRAMMED — Indicates how many MyKeys™ are
programmed to the vehicle. Can be used to detect deletion of a
MyKeyâ„¢.
•# ADMIN KEYS PROGRAMMED — Indicates how many admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle
Refer toMessage centerin theInstrument Clusterchapter for MyKeyâ„¢
system warnings displays.
Using MyKeyâ„¢ with remote start systems
MyKeyâ„¢ is not compatible with non-Ford approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford approved remote start system.
When using a Ford-approved remote start system, the default settings
will recognize the remote start system as an additional admin key with
its associated privileges. You should program the remote start system as
a MyKeyâ„¢ in addition to the key that you have already programmed as a
MyKeyâ„¢. To program the remote start system as MyKeyâ„¢, do the
following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a remote start fob.
3. Follow Steps 1-4 in theCreate a MyKeyâ„¢section.
Locks and Security
121
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKeyâ„¢ system
status menus will include the remote start system as an additional key in
the total count. See theCheck MyKeyâ„¢ system statussection.
Note:For all vehicles with remote start installed, it is possible to
program all original vehicle keys as MyKeysâ„¢, in which case, you will
need to use your remote start system to reset all MyKeysâ„¢ as admin
keys by doing the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your remote start fob.
3. Follow Steps 1-4 in theClear MyKeyâ„¢section.
Troubleshooting
Condition Potential Causes
Can’t create a MyKey™•Key in the ignition is already a
MyKeyâ„¢
•Key in the ignition is the last
remaining admin key (there always
has to be at least one admin key)
•SecuriLockpassive anti-theft
system is disabled or in unlimited
mode
•Vehicle has been started using a
remote start system that is
programmed as MyKeyâ„¢. Refer to
Using MyKeyâ„¢ with remote start
systemssection.
Cannot program the MyKeyâ„¢
optional settings•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to
the vehicle. Refer toCreate a
MyKeyâ„¢section
•Vehicle has been started using a
remote start system that is
programmed as MyKeyâ„¢. Refer to
Using MyKeyâ„¢ with remote start
systemssection.
Locks and Security
122
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Condition Potential Causes
Cannot clear MyKey™•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to
the vehicle. Refer toCreate a
MyKeyâ„¢section
•Vehicle has been started using a
remote start system that is
programmed as MyKeyâ„¢. Refer to
Using MyKeyâ„¢ with remote start
systemssection.
Lost the only admin key•Purchase a new key from your
authorized dealer
Lost any key•For programming spare keys, refer
to theProgramming spare keys
section in this chapter.
I accidentally programmed all
keys as MyKeys™•Vehicle has a remote start system
that is recognized as an admin key.
Refer to theUsing MyKeyâ„¢ with
remote start systemssection to reset
all MyKeysâ„¢ as admin keys.
MyKeyâ„¢ Programmed total
includes one additional key•Unknown key has been programmed
to the vehicle as a MyKeyâ„¢.
•Vehicle is equipped with a remote
start system. Refer toUsing MyKeyâ„¢
with remote start systemssection.
Admin Keys Programmed total
includes one additional key•Unknown key has been programmed
to the vehicle as admin key.
•Vehicle is equipped with a remote
start system. Refer toUsing MyKeyâ„¢
with remote start systemssection.
MyKeyâ„¢ miles do not
accumulate•MyKey™ is not being used by the
intended user.
•MyKey™ system has been recently
cleared.
Locks and Security
123
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

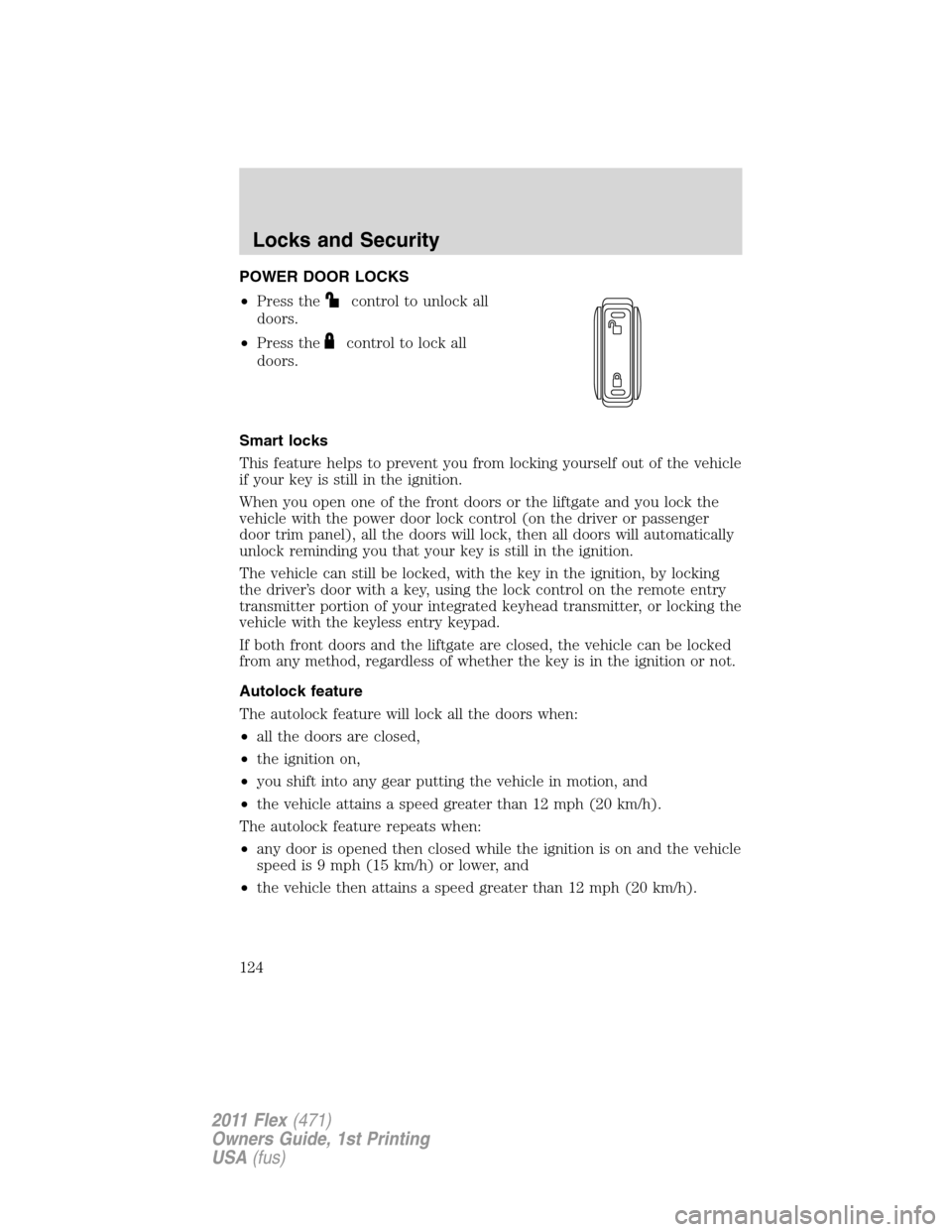

POWER DOOR LOCKS
•Press the
control to unlock all
doors.
•Press the
control to lock all
doors.
Smart locks
This feature helps to prevent you from locking yourself out of the vehicle
if your key is still in the ignition.
When you open one of the front doors or the liftgate and you lock the
vehicle with the power door lock control (on the driver or passenger
door trim panel), all the doors will lock, then all doors will automatically
unlock reminding you that your key is still in the ignition.
The vehicle can still be locked, with the key in the ignition, by locking
the driver’s door with a key, using the lock control on the remote entry
transmitter portion of your integrated keyhead transmitter, or locking the
vehicle with the keyless entry keypad.
If both front doors and the liftgate are closed, the vehicle can be locked
from any method, regardless of whether the key is in the ignition or not.
Autolock feature
The autolock feature will lock all the doors when:
•all the doors are closed,
•the ignition on,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
The autolock feature repeats when:
•any door is opened then closed while the ignition is on and the vehicle
speed is 9 mph (15 km/h) or lower, and
•the vehicle then attains a speed greater than 12 mph (20 km/h).
Locks and Security
124
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

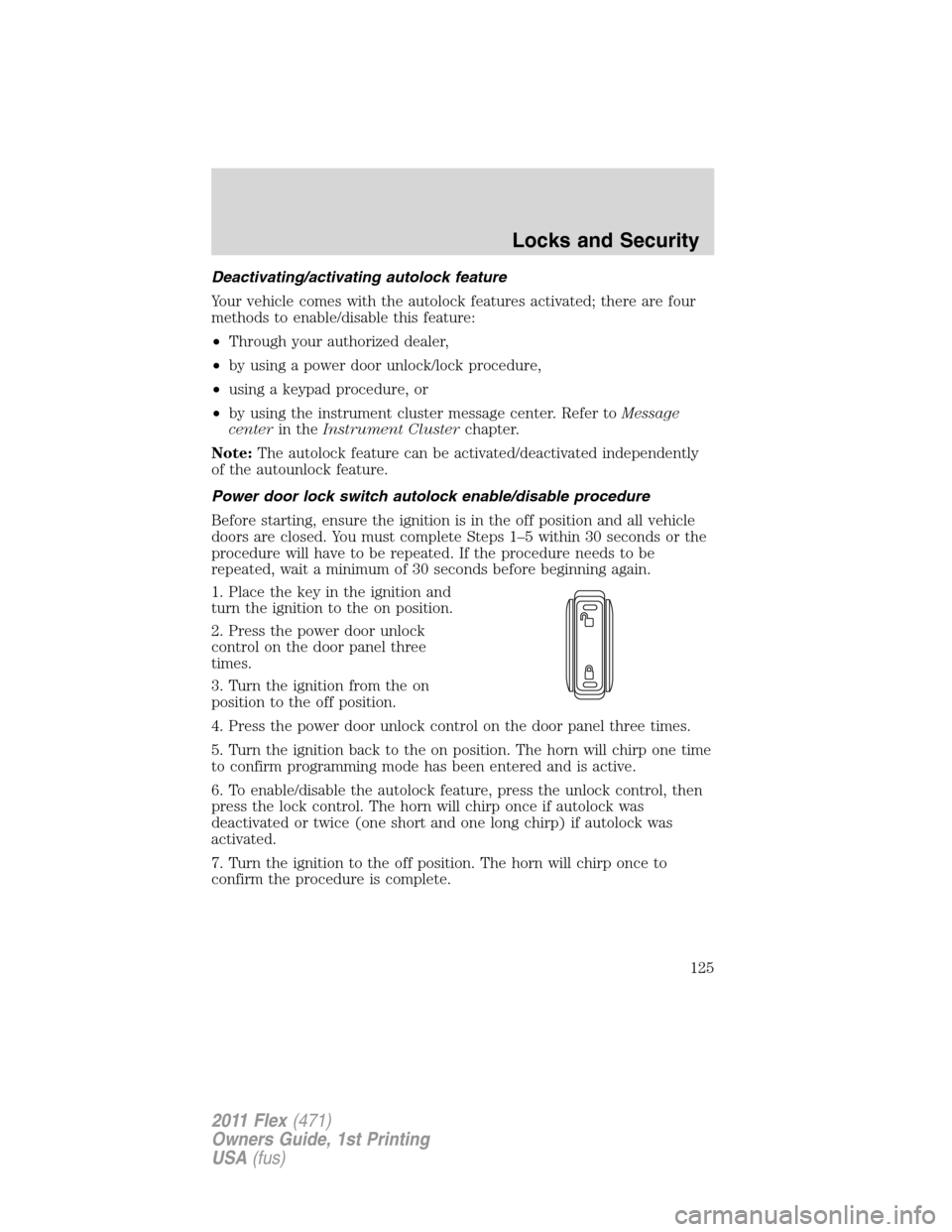

Deactivating/activating autolock feature
Your vehicle comes with the autolock features activated; there are four
methods to enable/disable this feature:
•Through your authorized dealer,
•by using a power door unlock/lock procedure,
•using a keypad procedure, or
•by using the instrument cluster message center. Refer toMessage
centerin theInstrument Clusterchapter.
Note:The autolock feature can be activated/deactivated independently
of the autounlock feature.
Power door lock switch autolock enable/disable procedure
Before starting, ensure the ignition is in the off position and all vehicle
doors are closed. You must complete Steps 1–5 within 30 seconds or the
procedure will have to be repeated. If the procedure needs to be
repeated, wait a minimum of 30 seconds before beginning again.
1. Place the key in the ignition and
turn the ignition to the on position.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition from the on
position to the off position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the on position. The horn will chirp one time
to confirm programming mode has been entered and is active.
6. To enable/disable the autolock feature, press the unlock control, then
press the lock control. The horn will chirp once if autolock was
deactivated or twice (one short and one long chirp) if autolock was
activated.
7. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Locks and Security
125
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

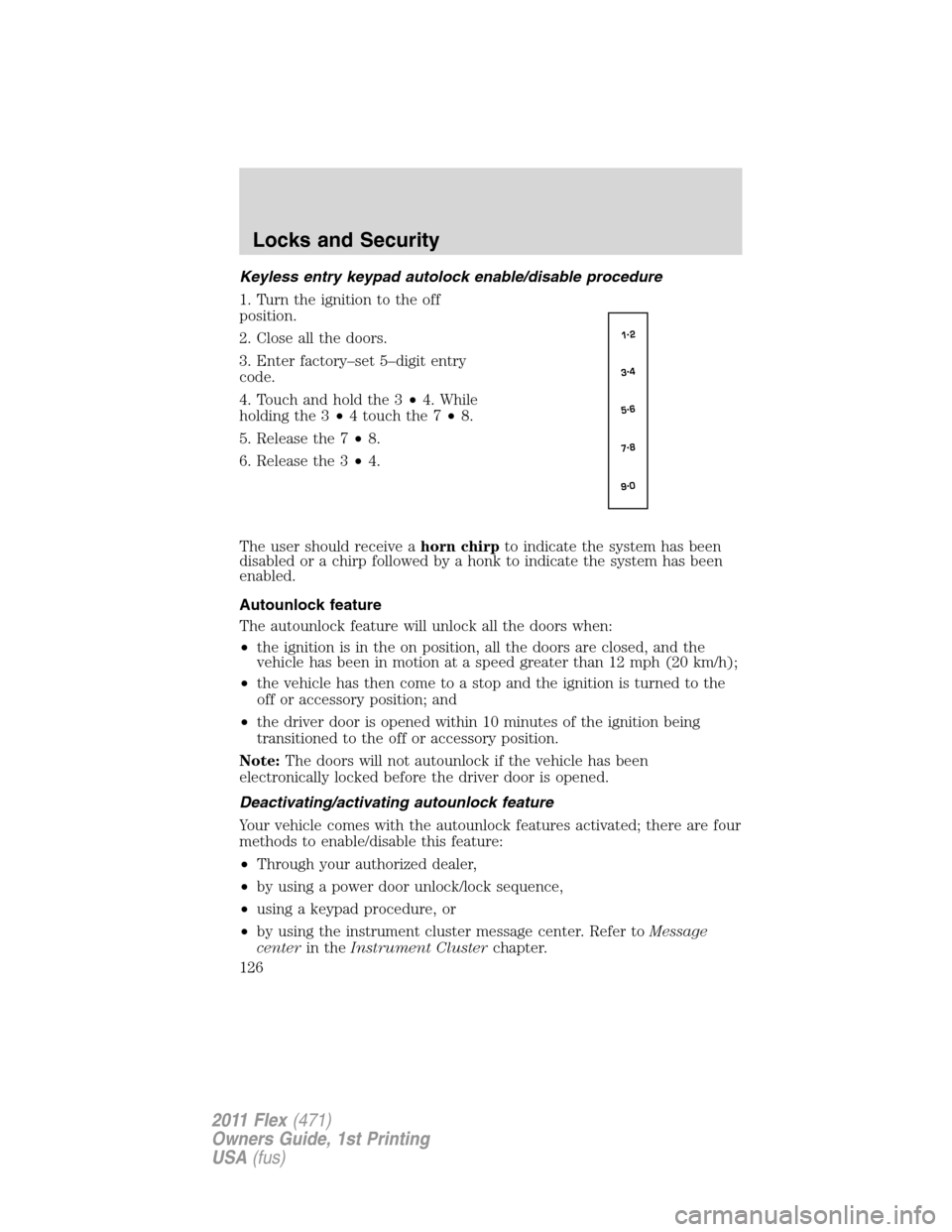

Keyless entry keypad autolock enable/disable procedure
1. Turn the ignition to the off
position.
2. Close all the doors.
3. Enter factory–set 5–digit entry
code.
4. Touch and hold the 3•4. While
holding the 3•4 touch the 7•8.
5. Release the 7•8.
6. Release the 3•4.
The user should receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Autounlock feature
The autounlock feature will unlock all the doors when:
•the ignition is in the on position, all the doors are closed, and the
vehicle has been in motion at a speed greater than 12 mph (20 km/h);
•the vehicle has then come to a stop and the ignition is turned to the
off or accessory position; and
•the driver door is opened within 10 minutes of the ignition being
transitioned to the off or accessory position.
Note:The doors will not autounlock if the vehicle has been
electronically locked before the driver door is opened.
Deactivating/activating autounlock feature
Your vehicle comes with the autounlock features activated; there are four
methods to enable/disable this feature:
•Through your authorized dealer,
•by using a power door unlock/lock sequence,
•using a keypad procedure, or
•by using the instrument cluster message center. Refer toMessage
centerin theInstrument Clusterchapter.
Locks and Security
126
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

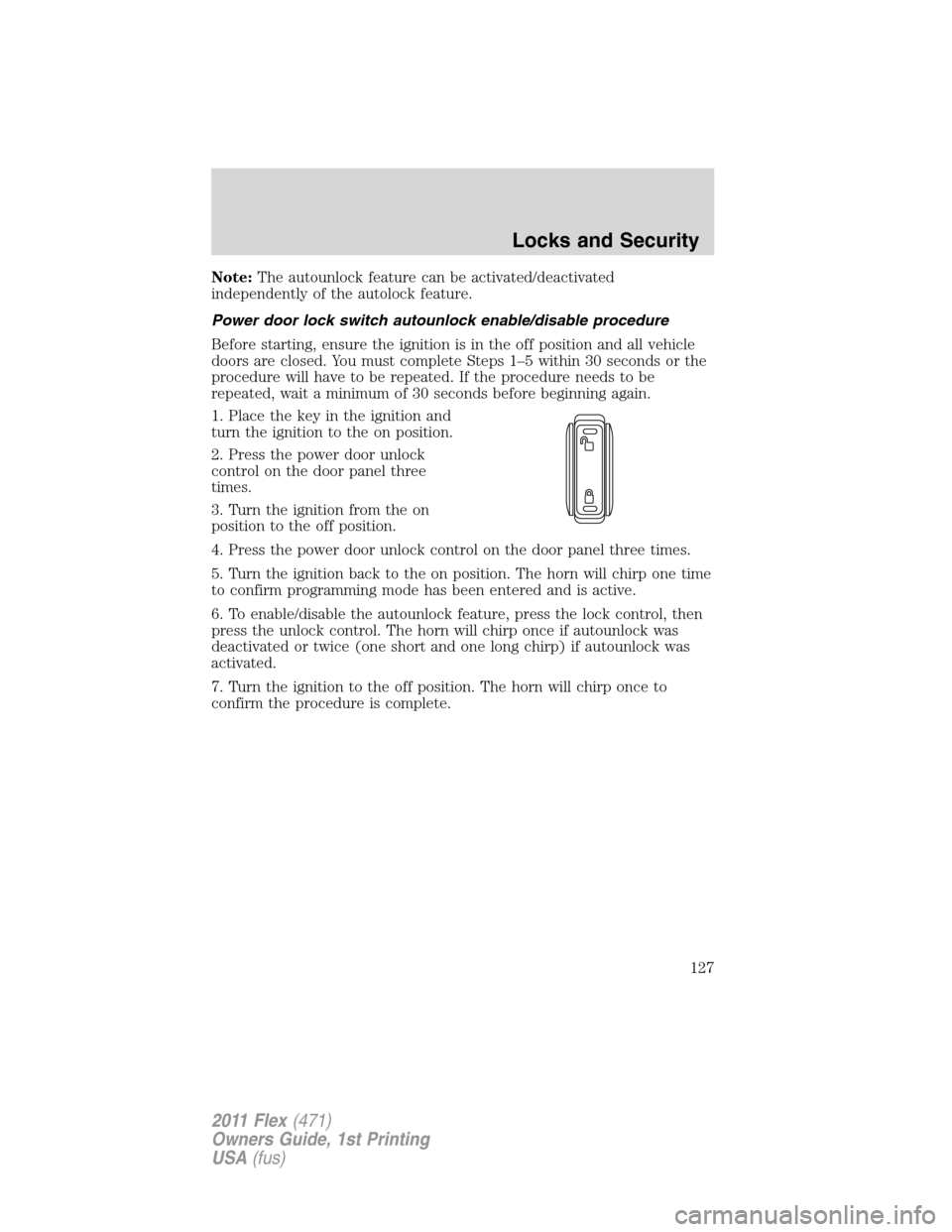

Note:The autounlock feature can be activated/deactivated
independently of the autolock feature.
Power door lock switch autounlock enable/disable procedure
Before starting, ensure the ignition is in the off position and all vehicle
doors are closed. You must complete Steps 1–5 within 30 seconds or the
procedure will have to be repeated. If the procedure needs to be
repeated, wait a minimum of 30 seconds before beginning again.
1. Place the key in the ignition and
turn the ignition to the on position.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition from the on
position to the off position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the on position. The horn will chirp one time
to confirm programming mode has been entered and is active.
6. To enable/disable the autounlock feature, press the lock control, then
press the unlock control. The horn will chirp once if autounlock was
deactivated or twice (one short and one long chirp) if autounlock was
activated.
7. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Locks and Security
127
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

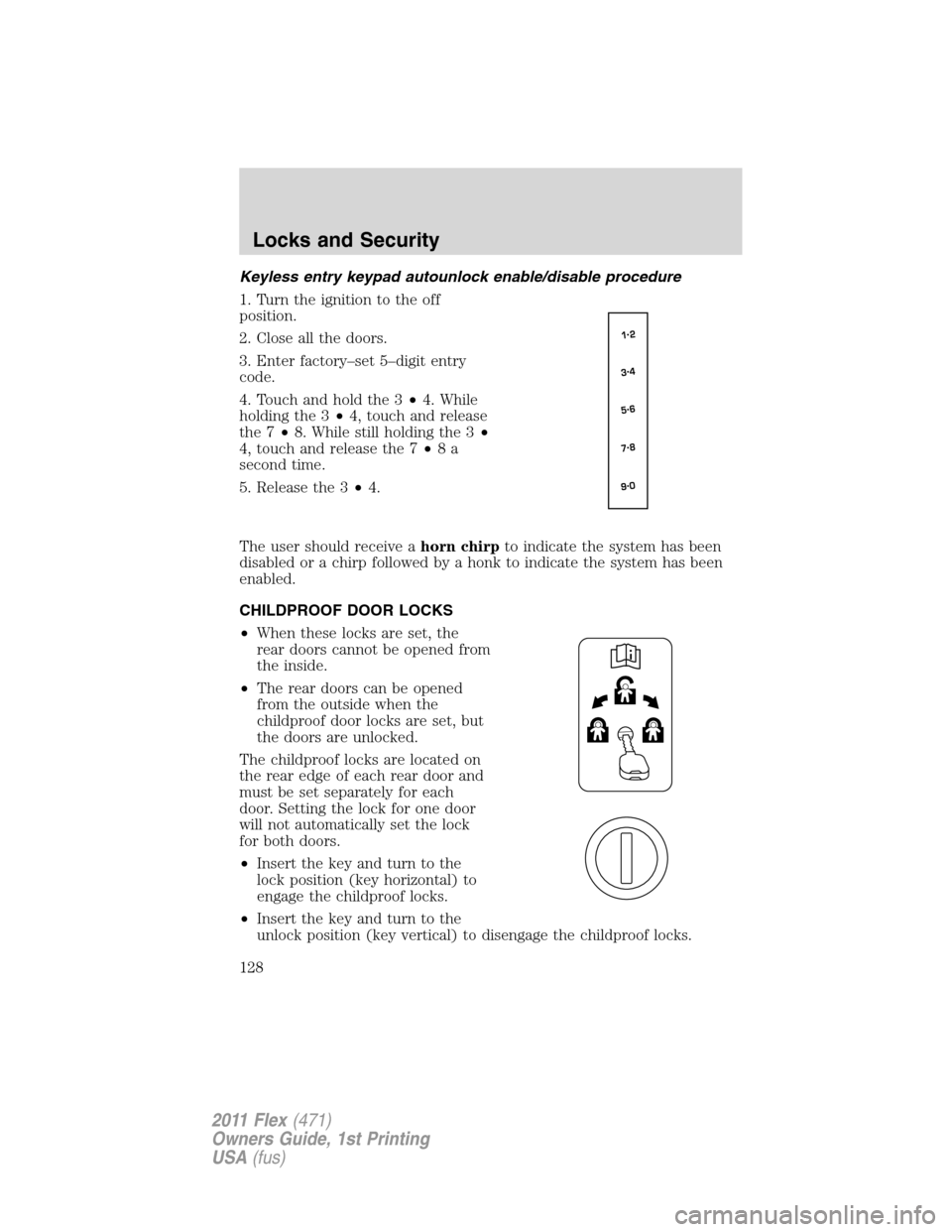

Keyless entry keypad autounlock enable/disable procedure
1. Turn the ignition to the off
position.
2. Close all the doors.
3. Enter factory–set 5–digit entry
code.
4. Touch and hold the 3•4. While
holding the 3•4, touch and release
the 7•8. While still holding the 3•
4, touch and release the 7•8a
second time.
5. Release the 3•4.
The user should receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
CHILDPROOF DOOR LOCKS
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the
childproof door locks are set, but
the doors are unlocked.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door
will not automatically set the lock
for both doors.
•Insert the key and turn to the
lock position (key horizontal) to
engage the childproof locks.
•Insert the key and turn to the
unlock position (key vertical) to disengage the childproof locks.
Locks and Security
128
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

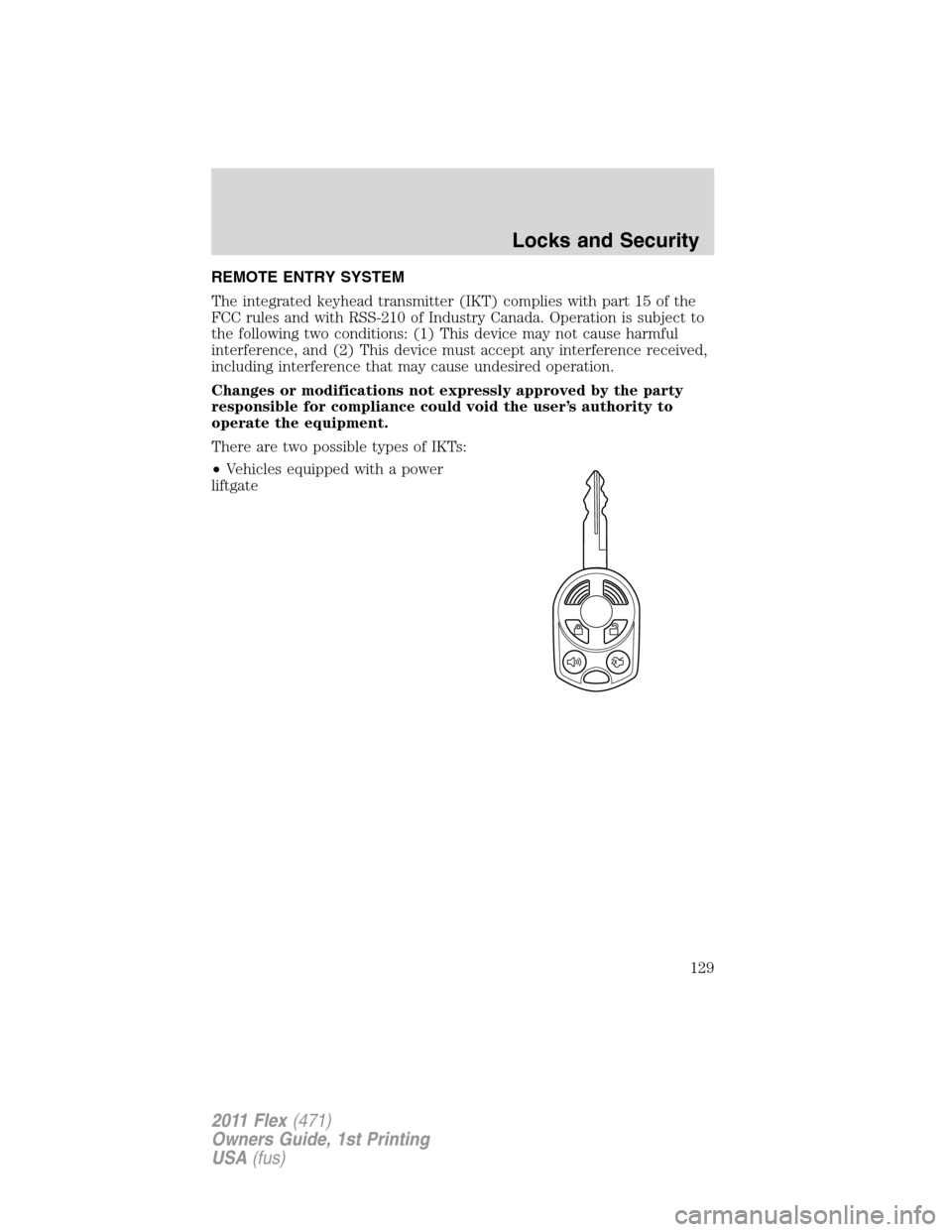

REMOTE ENTRY SYSTEM
The integrated keyhead transmitter (IKT) complies with part 15 of the
FCC rules and with RSS-210 of Industry Canada. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
There are two possible types of IKTs:
•Vehicles equipped with a power
liftgate
Locks and Security
129
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

•Vehicles not equipped with a
power liftgate
The typical operating range for your IKT is approximately 33 feet
(10 meters). A decrease in operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
The IKT allows you to:
•remotely unlock the vehicle doors.
•remotely lock all the vehicle doors.
•remotely open the power liftgate (if equipped).
•activate the personal alarm.
•arm and disarm the perimeter anti-theft system.
•operate the illuminated entry feature.
The remote entry lock/unlock feature operates in any ignition position
except while the key is held in the start position. The panic feature
operates with the key in the off position.
If there are problems with the remote entry system, make sure to take
ALL integrated keyhead transmitterswith you to the authorized
dealer in order to aid in troubleshooting the problem.
Unlocking the doors/two stage unlock
1. Pressand release to unlock the driver’s door.Note:The interior
lamps and parking lamps will illuminate.
Locks and Security
130
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)
