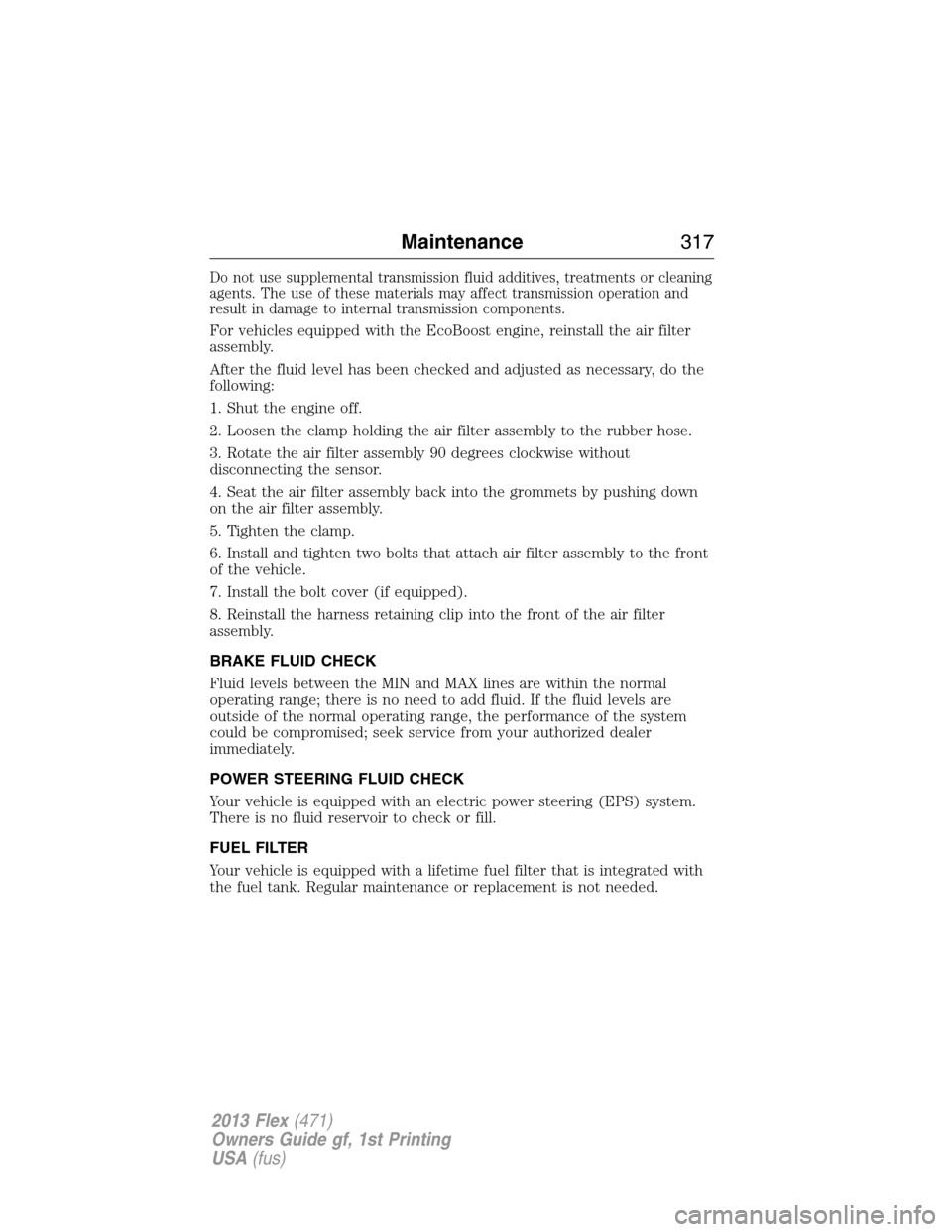

Do not use supplemental transmission fluid additives, treatments or cleaning
agents. The use of these materials may affect transmission operation and
result in damage to internal transmission components.
For vehicles equipped with the EcoBoost engine, reinstall the air filter
assembly.
After the fluid level has been checked and adjusted as necessary, do the
following:
1. Shut the engine off.
2. Loosen the clamp holding the air filter assembly to the rubber hose.
3. Rotate the air filter assembly 90 degrees clockwise without
disconnecting the sensor.
4. Seat the air filter assembly back into the grommets by pushing down
on the air filter assembly.
5. Tighten the clamp.
6. Install and tighten two bolts that attach air filter assembly to the front
of the vehicle.
7. Install the bolt cover (if equipped).
8. Reinstall the harness retaining clip into the front of the air filter
assembly.
BRAKE FLUID CHECK
Fluid levels between the MIN and MAX lines are within the normal
operating range; there is no need to add fluid. If the fluid levels are
outside of the normal operating range, the performance of the system
could be compromised; seek service from your authorized dealer
immediately.
POWER STEERING FLUID CHECK
Your vehicle is equipped with an electric power steering (EPS) system.
There is no fluid reservoir to check or fill.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
Maintenance317
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

CHANGING A ROAD WHEEL
WARNING:The use of tire sealants may damage your tire pressure
monitoring system (TPMS) and should not be used. However, if you
must use a sealant, the TPMS sensor and valve stem on the wheel must be
replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)in
this chapter for important information. If the tire pressure monitor
sensor becomes damaged, it will no longer function.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system (TPMS)
earlier in the chapter. Replace the spare tire with a road tire as soon as
possible. During repairing or replacing of the flat tire, have the
authorized dealer inspect the TPMS sensor for damage.
Dissimilar Spare Tire/Wheel Information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
362Wheels and Tires
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

MAP DVD - Loading and
Unloading .................................. 492
Map icons .................................. 528
Map mode .................................. 527
Map preferences ....................... 526
Map updates .............................. 531
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) .......................... 441
Message center ......................... 117
warning messages ........... 122, 129
Mirrors ............................... 104, 107
fold away ................................. 104
programmable memory ............ 66
side view mirrors (power) ..... 104
Moon roof .................................. 108
Motorcraftparts .............. 330, 375
MyFord Touch™ system .......... 450
MyKey .......................................... 70
N
Navigation features ................... 521
Navigation voice commands .... 531
Notifications .............................. 505
O
Octane rating ............................ 202
Overdrive ................................... 213
P
Pairing other phones ........ 409, 492
Pairing your phone ................... 491
Pairing your phone for the first
time .................................... 408, 491Parental MyKey programming ... 70
Park Assist ................................ 230
Parking brake ............................ 224
Parts (see Motorcraft
parts) ......................................... 375
Passenger Occupant
Classification Sensor ................... 53
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) .......................... 420
Phone redial .............................. 414
Phone settings .................. 496, 514
Phone voice commands ............ 497
Playing music (by artist,
album, genre, playlist, tracks,
similar) ...................................... 438
POI categories ........................... 523
Point of Interest (POI) ............. 523
Power distribution box (see
Fuses) ........................................ 295
Power door locks ........................ 76
Power liftgate .............................. 81
Power mirrors ........................... 104
Powerpoint ................................ 189
Power steering .......................... 258
fluid, refill capacity ................ 371
fluid, specifications ................. 371
Power Windows ......................... 103
Privacy information .......... 405, 456
Push button start system ......... 196
Putting a call on/off hold ......... 412
Q
Quick touch buttons ................. 530
Index555
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
