check engine light FORD FLEX 2013 1.G User Guide

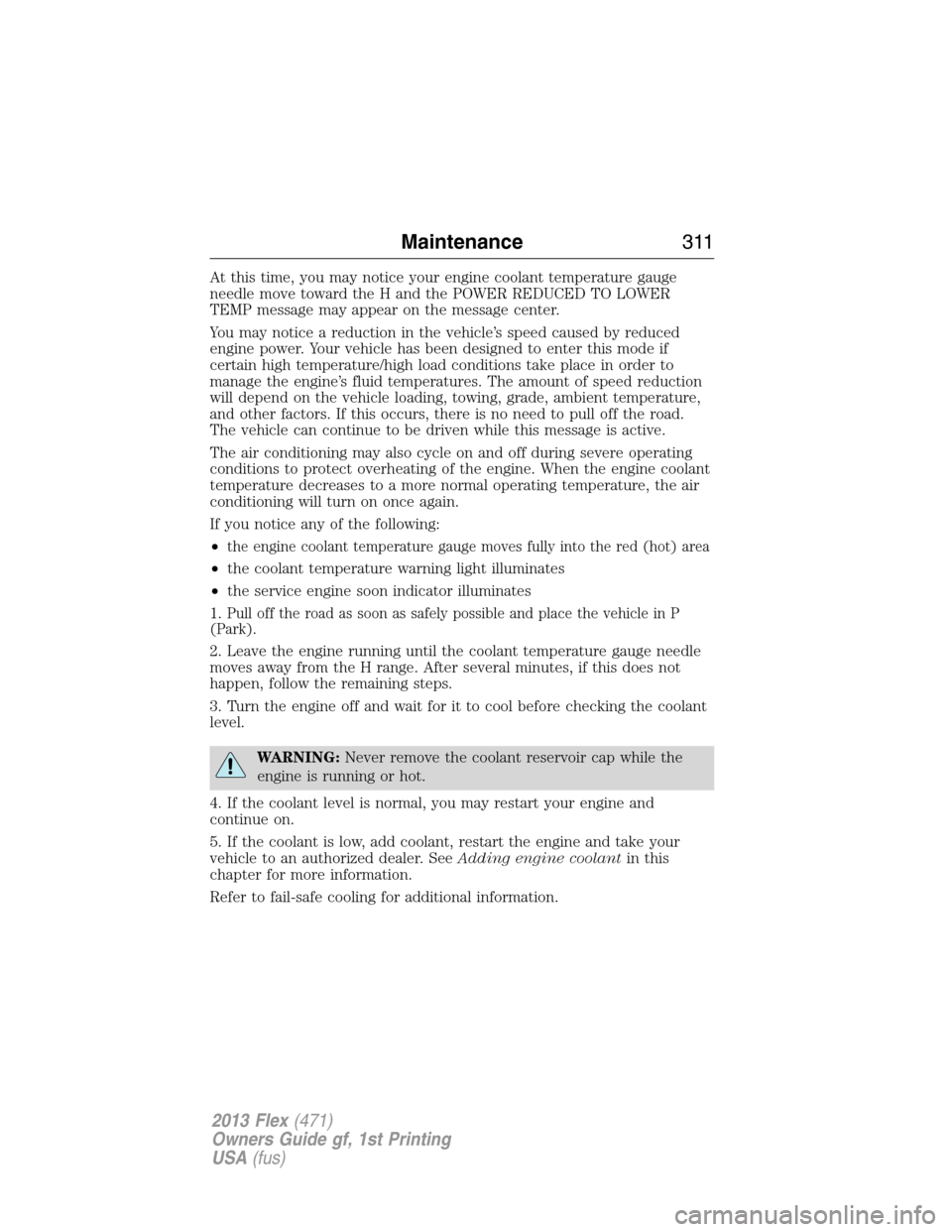

At this time, you may notice your engine coolant temperature gauge
needle move toward the H and the POWER REDUCED TO LOWER
TEMP message may appear on the message center.
You may notice a reduction in the vehicle’s speed caused by reduced
engine power. Your vehicle has been designed to enter this mode if
certain high temperature/high load conditions take place in order to
manage the engine’s fluid temperatures. The amount of speed reduction
will depend on the vehicle loading, towing, grade, ambient temperature,
and other factors. If this occurs, there is no need to pull off the road.
The vehicle can continue to be driven while this message is active.
The air conditioning may also cycle on and off during severe operating
conditions to protect overheating of the engine. When the engine coolant
temperature decreases to a more normal operating temperature, the air
conditioning will turn on once again.
If you notice any of the following:
•
the engine coolant temperature gauge moves fully into the red (hot) area
•the coolant temperature warning light illuminates
•the service engine soon indicator illuminates
1.
Pull off the road as soon as safely possible and place the vehicle in P
(Park).
2. Leave the engine running until the coolant temperature gauge needle
moves away from the H range. After several minutes, if this does not
happen, follow the remaining steps.
3. Turn the engine off and wait for it to cool before checking the coolant
level.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
4. If the coolant level is normal, you may restart your engine and
continue on.
5. If the coolant is low, add coolant, restart the engine and take your
vehicle to an authorized dealer. SeeAdding engine coolantin this
chapter for more information.
Refer to fail-safe cooling for additional information.
Maintenance311
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

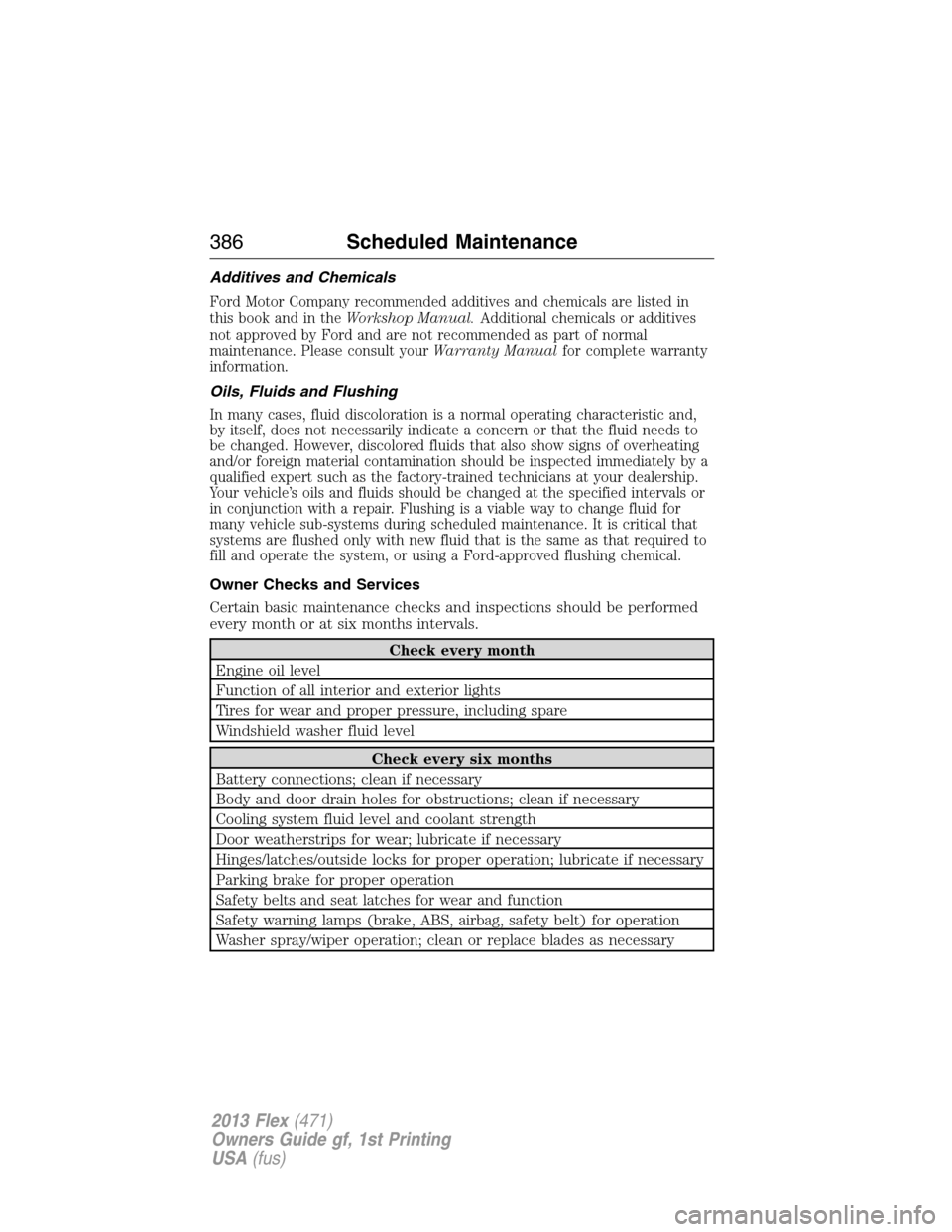

Additives and Chemicals
Ford Motor Company recommended additives and chemicals are listed in
this book and in theWorkshop Manual.Additional chemicals or additives
not approved by Ford and are not recommended as part of normal
maintenance. Please consult yourWarranty Manualfor complete warranty
information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic and,
by itself, does not necessarily indicate a concern or that the fluid needs to
be changed. However, discolored fluids that also show signs of overheating
and/or foreign material contamination should be inspected immediately by a
qualified expert such as the factory-trained technicians at your dealership.
Your vehicle’s oils and fluids should be changed at the specified intervals or
in conjunction with a repair. Flushing is a viable way to change fluid for
many vehicle sub-systems during scheduled maintenance. It is critical that
systems are flushed only with new fluid that is the same as that required to
fill and operate the system, or using a Ford-approved flushing chemical.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six months intervals.
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
386Scheduled Maintenance
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should be
changed every 3,000 miles (4,800 km) or three months, whichever comes
first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toTechnical specificationsin theCapacities and
Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5,000 miles (8,000 km).
If the available API “SM” or “SN” oils are not available, then the oil
change service interval is 3,000 mile (4,800 km).
Scheduled Maintenance401
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

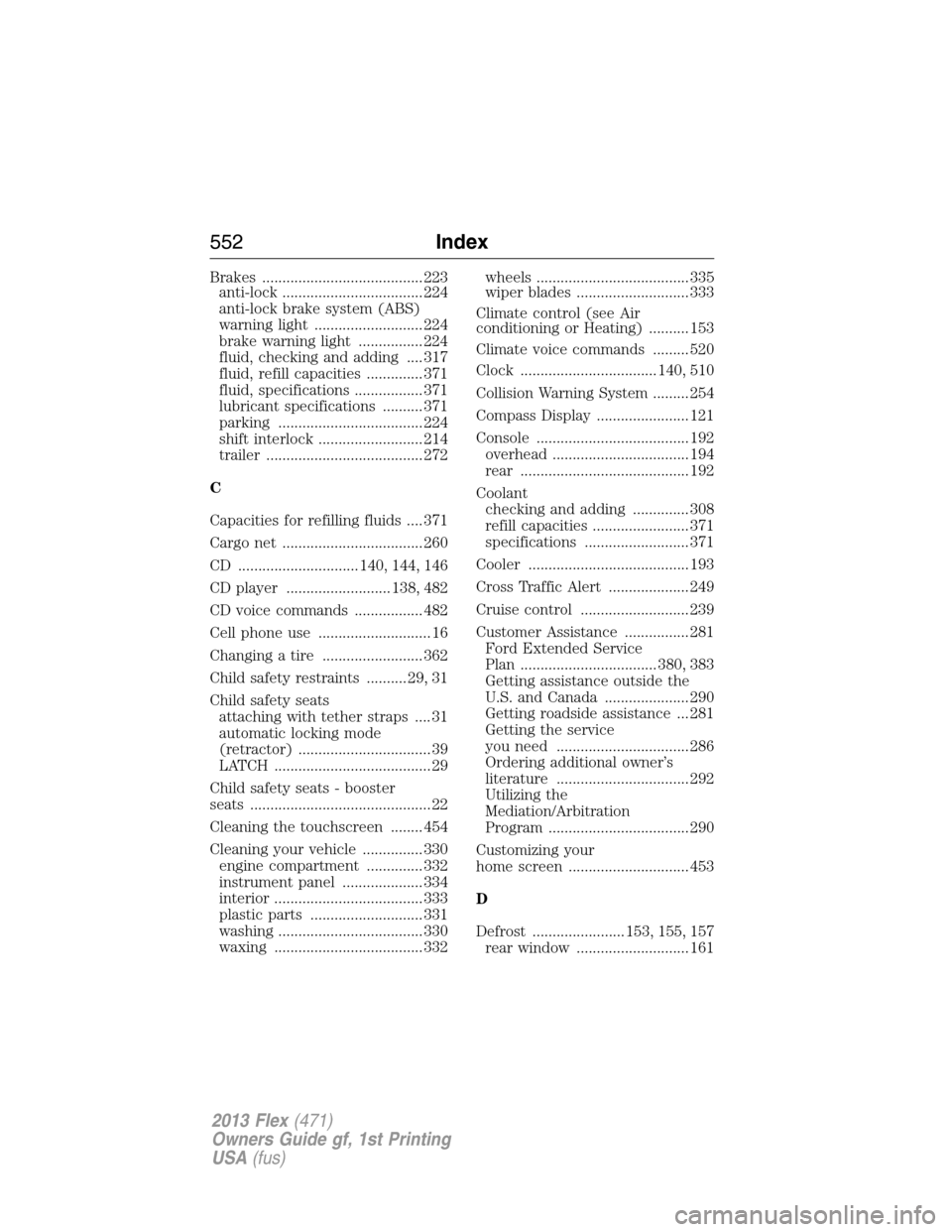

Brakes ........................................ 223
anti-lock ................................... 224
anti-lock brake system (ABS)
warning light ........................... 224
brake warning light ................ 224
fluid, checking and adding .... 317
fluid, refill capacities .............. 371
fluid, specifications ................. 371
lubricant specifications .......... 371
parking .................................... 224
shift interlock .......................... 214
trailer ....................................... 272
C
Capacities for refilling fluids .... 371
Cargo net ................................... 260
CD .............................. 140, 144, 146
CD player .......................... 138, 482
CD voice commands ................. 482
Cell phone use ............................ 16
Changing a tire ......................... 362
Child safety restraints .......... 29, 31
Child safety seats
attaching with tether straps .... 31
automatic locking mode
(retractor) ................................. 39
LATCH ....................................... 29
Child safety seats - booster
seats ............................................. 22
Cleaning the touchscreen ........ 454
Cleaning your vehicle ............... 330
engine compartment .............. 332
instrument panel .................... 334
interior ..................................... 333
plastic parts ............................ 331
washing .................................... 330
waxing ..................................... 332wheels ...................................... 335
wiper blades ............................ 333
Climate control (see Air
conditioning or Heating) .......... 153
Climate voice commands ......... 520
Clock .................................. 140, 510
Collision Warning System ......... 254
Compass Display ....................... 121
Console ...................................... 192
overhead .................................. 194
rear .......................................... 192
Coolant
checking and adding .............. 308
refill capacities ........................ 371
specifications .......................... 371
Cooler ........................................ 193
Cross Traffic Alert .................... 249
Cruise control ........................... 239
Customer Assistance ................ 281
Ford Extended Service
Plan .................................. 380, 383
Getting assistance outside the
U.S. and Canada ..................... 290
Getting roadside assistance ... 281
Getting the service
you need ................................. 286
Ordering additional owner’s
literature ................................. 292
Utilizing the
Mediation/Arbitration
Program ................................... 290
Customizing your
home screen .............................. 453
D
Defrost ....................... 153, 155, 157
rear window ............................ 161
552Index
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
