Seats 163
Sitting in the correct position............................163
Head restraints.......................................164
Manual seats.........................................167
Power seats.........................................168
Memory function......................................169
Heated seats.........................................170
Heated and cooled seats................................172
Rear seats..........................................174
Universal Garage Door Opener 184
HomeLinkwireless control system........................184
Auxiliary Power Points 189
Storage Compartments 192
Center console.......................................192
Overhead console.....................................194
Starting and Stopping the Engine 195
Ignition switch.......................................196
Keyless starting......................................196
Engine block heater...................................199
Fuel and Refueling 201
Fuel quality.........................................202
Running out of fuel....................................203
Refueling ...........................................204
Fuel consumption.....................................206
Transmission 210
Automatic transmission.................................210
All-Wheel Drive 216
All wheel drive.......................................216
4Table of Contents
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 6 of 558
Driving Hints 277
Economical driving....................................277
Floormats..........................................279
Roadside Emergencies 281
Getting roadside assistance..............................281
Hazard warning flashers................................282
Fuel cut-off switch....................................283
Jump-starting the vehicle...............................283
Customer Assistance 286
Reporting safety defects (U.S. only)........................293
Reporting safety defects (Canada only).....................293

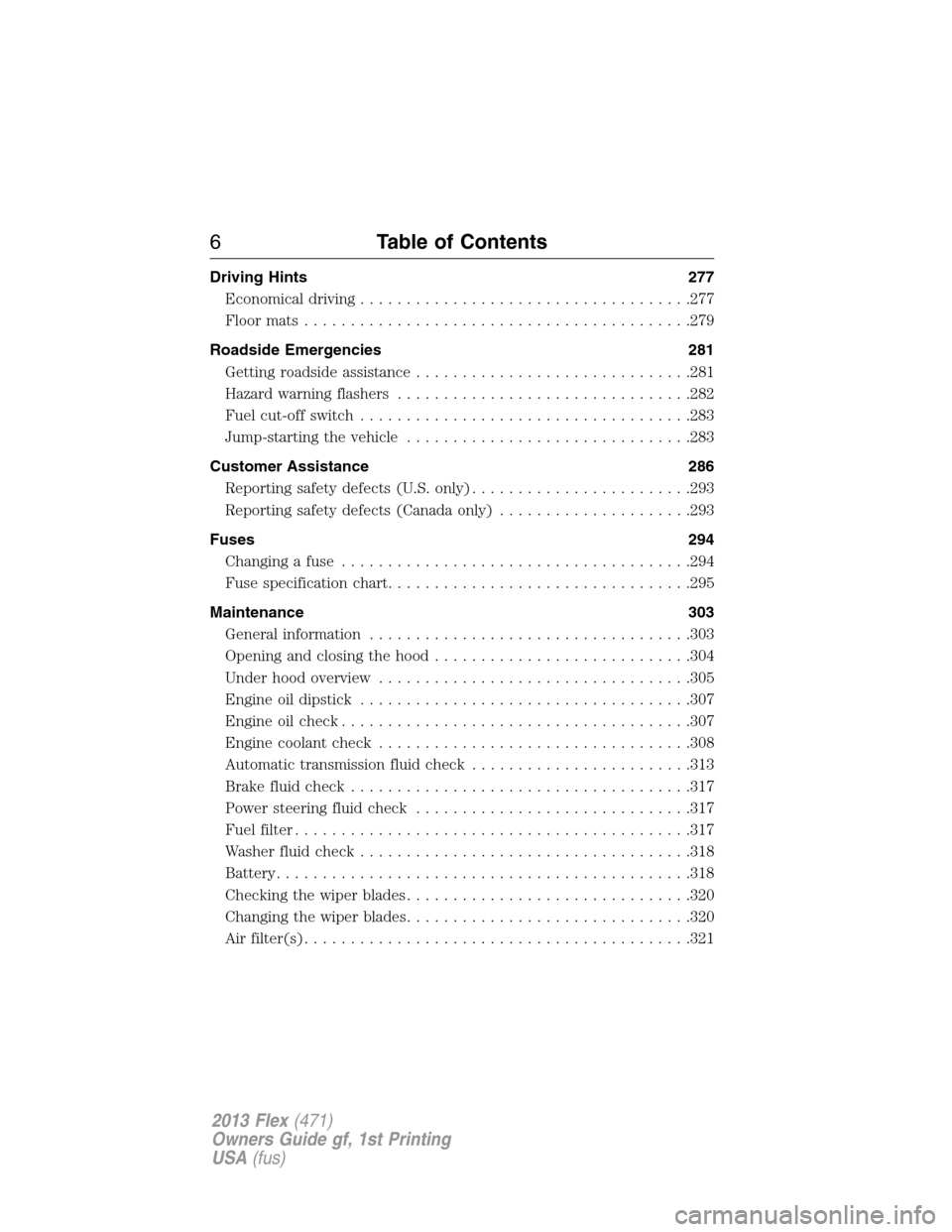

Fuses 294
Changing a fuse......................................294
Fuse specification chart.................................295
Maintenance 303
General information...................................303
Opening and closing the hood............................304
Under hood overview..................................305
Engine oil dipstick....................................307
Engine oil check......................................307
Engine coolant check..................................308
Automatic transmission fluid check........................313
Brake fluid check.....................................317
Power steering fluid check..............................317
Fuel filter...........................................317
Washer fluid check....................................318
Battery.............................................318
Checking the wiper blades...............................320
Changing the wiper blades...............................320
Air filter(s)..........................................321
6Table of Contents
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 7 of 558
Adjusting the headlamps................................324
Changing a bulb......................................325
Vehicle Care 330
Cleaning products.....................................330
Cleaning the exterior...................................330
Waxing.............................................332
Repairing minor paint damage............................332
Cleaning the engine...................................332
Cleaning the windows and wiper blades.....................333
Cleaning the interior...................................333
Cleaning the instrument panel and instrument cluster lens.......334
Cleaning leather seats..................................335
Cleaning the alloy wheels...............................335
Vehicle storage.......................................336
Wheels and Tires 339
Tire care...........................................341
Tire Pressure Monitoring System (TPMS)....................358
Changing a road wheel.................................362
Technical specifications.................................368
Wheel lug nut torque..................................368
Capacities and Specifications 370
Engine specifications...................................370
Maintenance product specifications and capacities.............371
Part numbers........................................375
Vehicle identification number.............................375
Vehicle certification label................................376
Transmission code designation............................377
Accessories 378
Accessories..........................................378
Table of Contents7
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 10 of 558
SYMBOL GLOSSARY
WARNING:You risk death or serious injury to yourself and
others if you do not follow the instruction highlighted by the
warning symbol.
These are some of the symbols you may see on your vehicle.
Symbol Description Symbol Description Symbol Description
Safety alertSee Owner’s
ManualAnti-lock
braking
system
Avoid
smoking,
flames, or
sparksBatteryBattery acid
Brake fluid –
non
petroleum
baseBrake systemCabin air
filter
Check fuel
capChild Safety
Door Lock
and UnlockChild seat
lower anchor
Child seat
tether anchorCruise
controlDo not open
when hot
Engine air
filterEngine
coolantEngine
coolant
temperature
Engine
oilExplosive
gasFan warning
Fasten safety
beltFront airbagFront fog
lamps
10Introduction
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 11 of 558

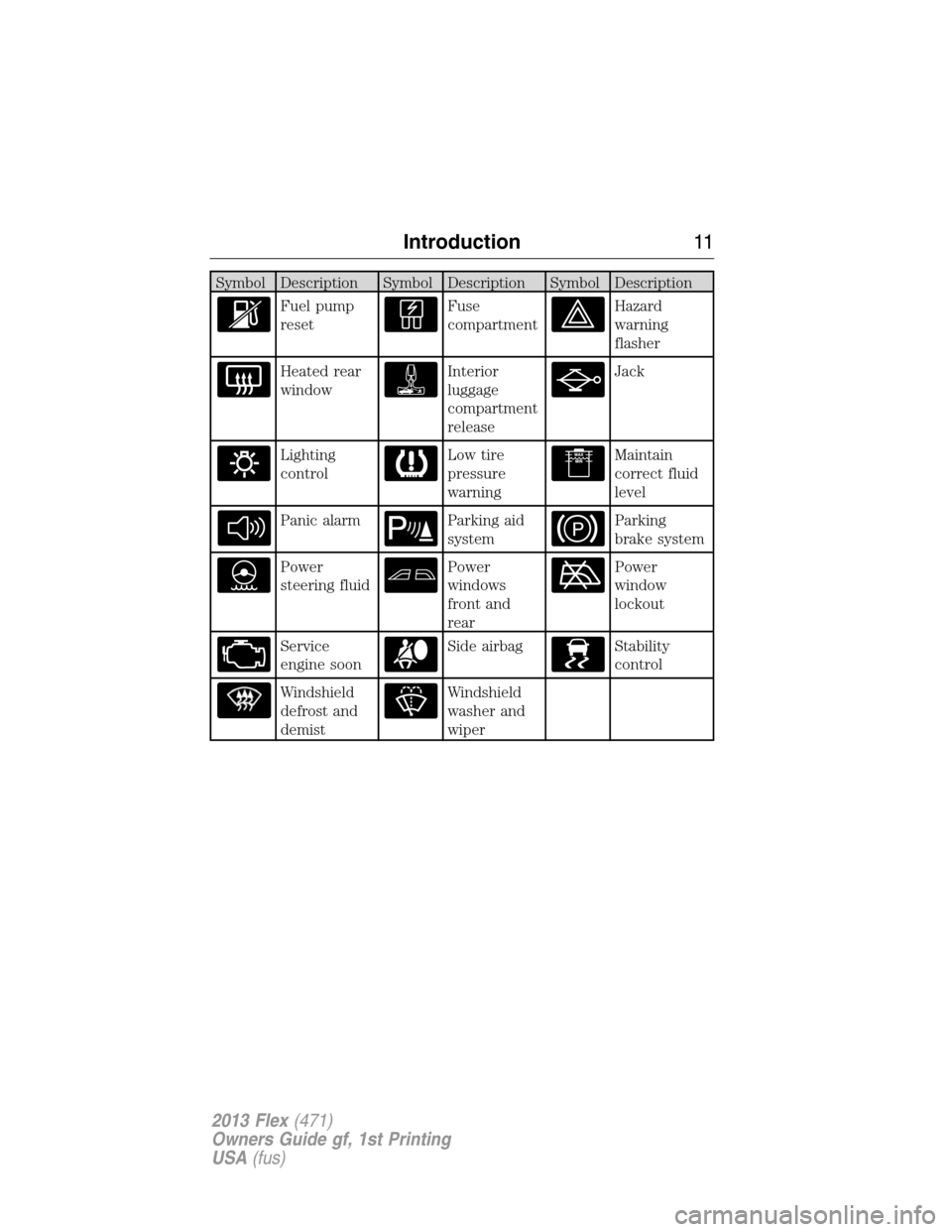

Symbol Description Symbol Description Symbol Description
Fuel pump
resetFuse
compartmentHazard
warning
flasher
Heated rear
windowInterior
luggage
compartment
releaseJack
Lighting
controlLow tire
pressure
warningMaintain
correct fluid
level
Panic alarmParking aid
systemParking
brake system
Power
steering fluidPower
windows
front and
rearPower
window
lockout
Service
engine soonSide airbagStability
control
Windshield
defrost and
demistWindshield
washer and
wiper
Introduction11
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 12 of 558

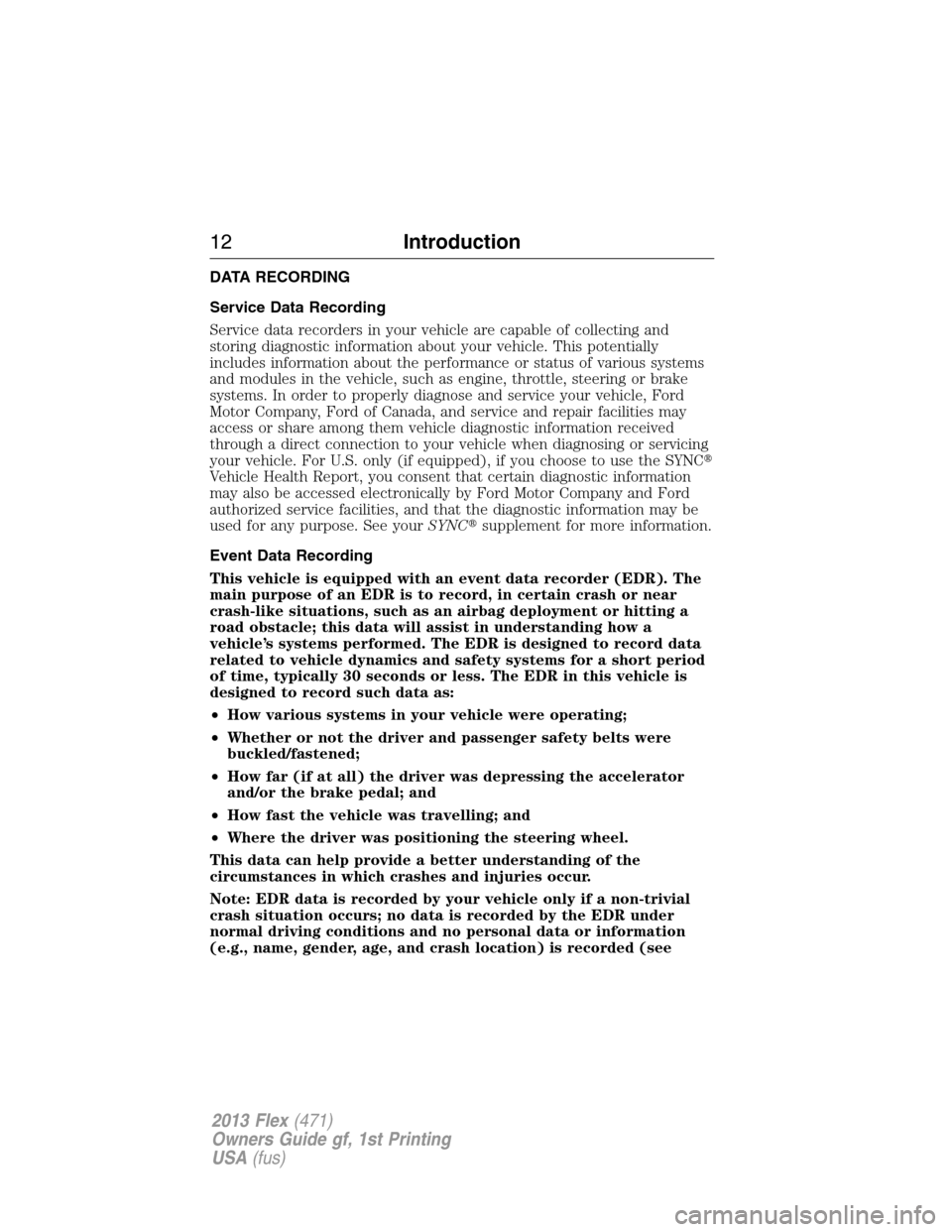

DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access or share among them vehicle diagnostic information received
through a direct connection to your vehicle when diagnosing or servicing
your vehicle. For U.S. only (if equipped), if you choose to use the SYNC
Vehicle Health Report, you consent that certain diagnostic information
may also be accessed electronically by Ford Motor Company and Ford
authorized service facilities, and that the diagnostic information may be
used for any purpose. See yourSYNCsupplement for more information.
Event Data Recording
This vehicle is equipped with an event data recorder (EDR). The
main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an airbag deployment or hitting a
road obstacle; this data will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data
related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
•How various systems in your vehicle were operating;
•Whether or not the driver and passenger safety belts were
buckled/fastened;
•How far (if at all) the driver was depressing the accelerator
and/or the brake pedal; and
•How fast the vehicle was travelling; and
•Where the driver was positioning the steering wheel.
This data can help provide a better understanding of the
circumstances in which crashes and injuries occur.
Note: EDR data is recorded by your vehicle only if a non-trivial
crash situation occurs; no data is recorded by the EDR under
normal driving conditions and no personal data or information
(e.g., name, gender, age, and crash location) is recorded (see
12Introduction
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 14 of 558

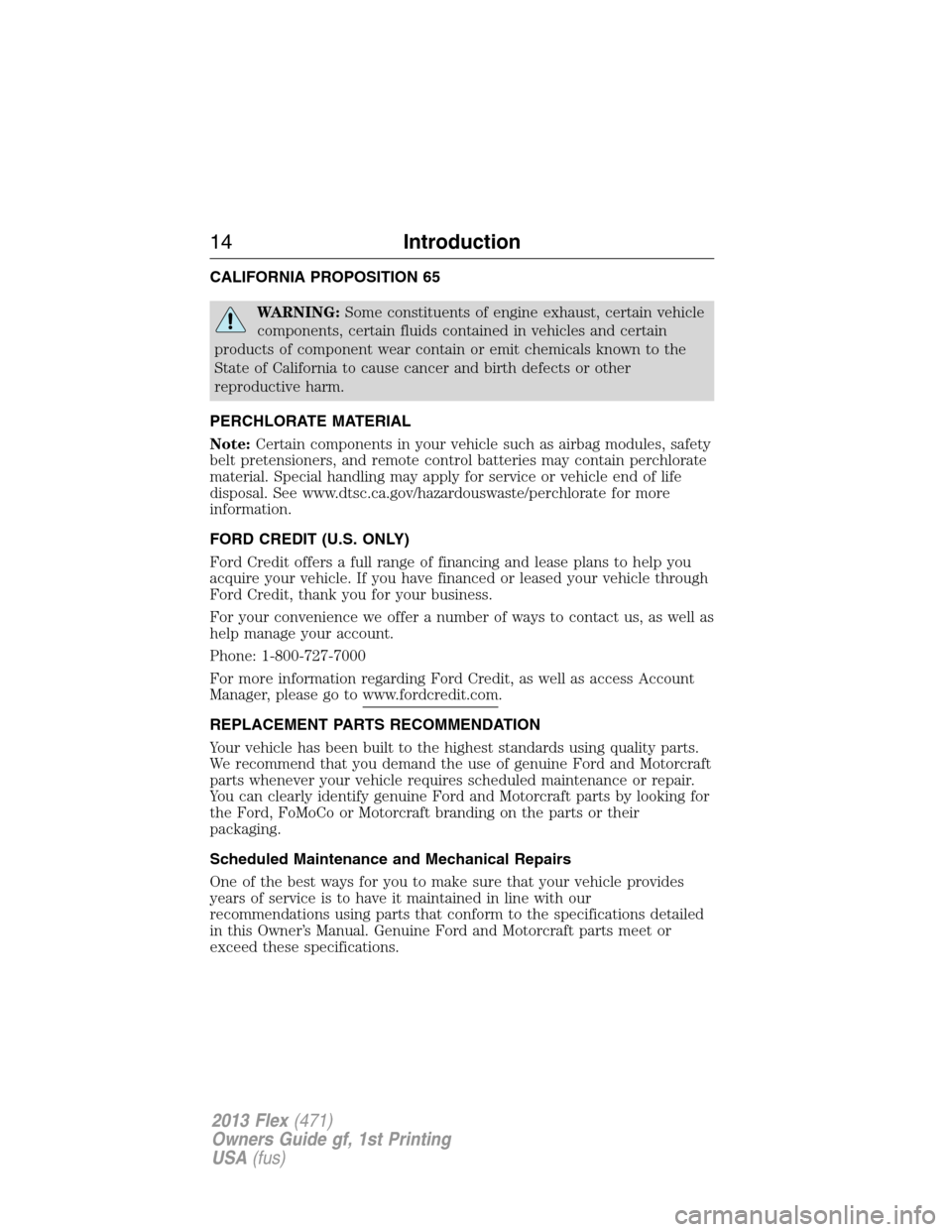

CALIFORNIA PROPOSITION 65
WARNING:Some constituents of engine exhaust, certain vehicle
components, certain fluids contained in vehicles and certain
products of component wear contain or emit chemicals known to the
State of California to cause cancer and birth defects or other
reproductive harm.
PERCHLORATE MATERIAL
Note:Certain components in your vehicle such as airbag modules, safety
belt pretensioners, and remote control batteries may contain perchlorate
material. Special handling may apply for service or vehicle end of life
disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate for more
information.
FORD CREDIT (U.S. ONLY)
Ford Credit offers a full range of financing and lease plans to help you
acquire your vehicle. If you have financed or leased your vehicle through
Ford Credit, thank you for your business.
For your convenience we offer a number of ways to contact us, as well as
help manage your account.
Phone: 1-800-727-7000
For more information regarding Ford Credit, as well as access Account
Manager, please go to www.fordcredit.com.
REPLACEMENT PARTS RECOMMENDATION
Your vehicle has been built to the highest standards using quality parts.
We recommend that you demand the use of genuine Ford and Motorcraft
parts whenever your vehicle requires scheduled maintenance or repair.
You can clearly identify genuine Ford and Motorcraft parts by looking for
the Ford, FoMoCo or Motorcraft branding on the parts or their
packaging.
Scheduled Maintenance and Mechanical Repairs
One of the best ways for you to make sure that your vehicle provides
years of service is to have it maintained in line with our
recommendations using parts that conform to the specifications detailed
in this Owner’s Manual. Genuine Ford and Motorcraft parts meet or
exceed these specifications.
14Introduction
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 44 of 558

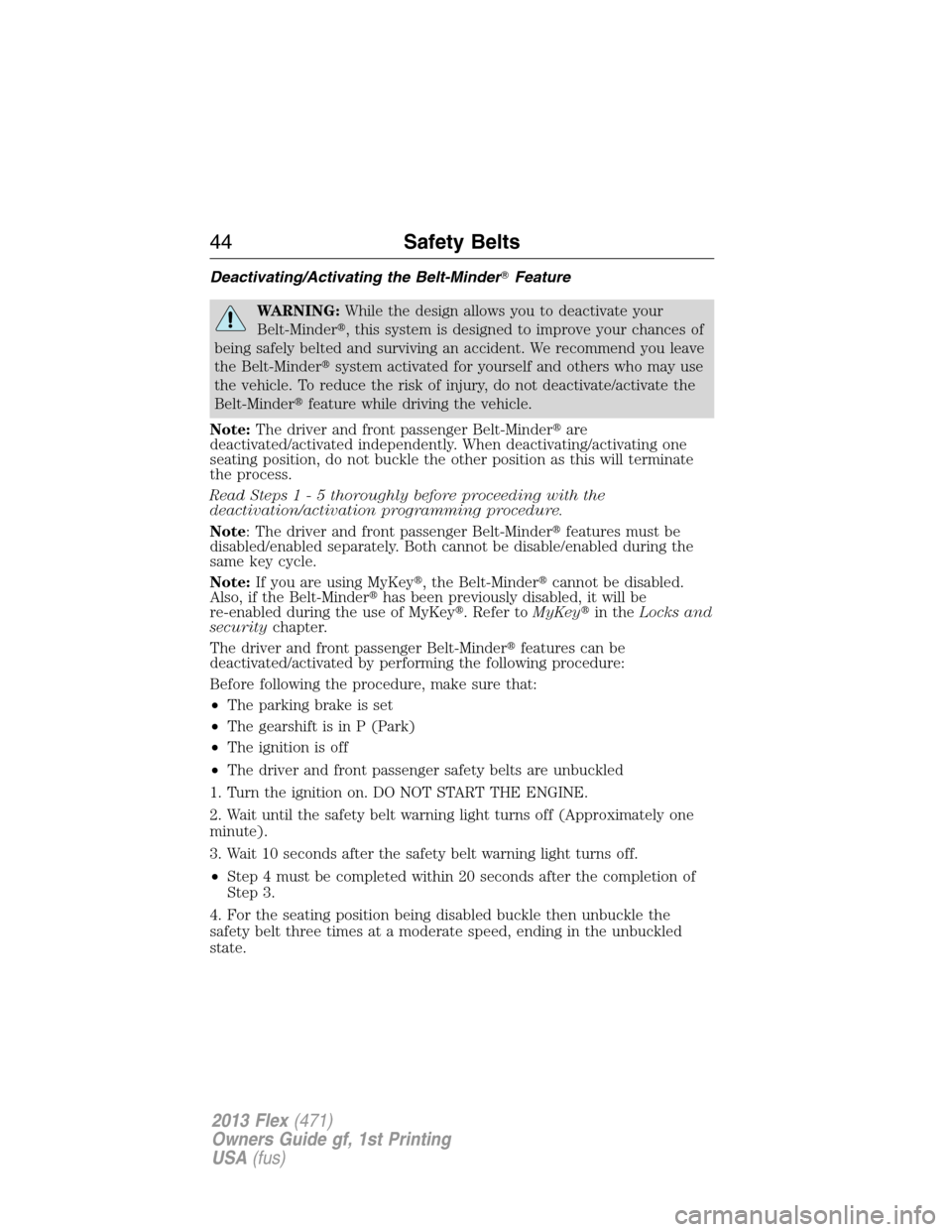

Deactivating/Activating the Belt-MinderFeature
WARNING:While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you leave
the Belt-Mindersystem activated for yourself and others who may use
the vehicle. To reduce the risk of injury, do not deactivate/activate the
Belt-Minderfeature while driving the vehicle.
Note:The driver and front passenger Belt-Minderare
deactivated/activated independently. When deactivating/activating one
seating position, do not buckle the other position as this will terminate
the process.
Read Steps1-5thoroughly before proceeding with the
deactivation/activation programming procedure.
Note: The driver and front passenger Belt-Minderfeatures must be
disabled/enabled separately. Both cannot be disable/enabled during the
same key cycle.
Note:If you are using MyKey, the Belt-Mindercannot be disabled.
Also, if the Belt-Minderhas been previously disabled, it will be
re-enabled during the use of MyKey. Refer toMyKeyin theLocks and
securitychapter.
The driver and front passenger Belt-Minderfeatures can be
deactivated/activated by performing the following procedure:
Before following the procedure, make sure that:
•The parking brake is set
•The gearshift is in P (Park)
•The ignition is off
•The driver and front passenger safety belts are unbuckled
1. Turn the ignition on. DO NOT START THE ENGINE.
2. Wait until the safety belt warning light turns off (Approximately one
minute).
3. Wait 10 seconds after the safety belt warning light turns off.
•Step 4 must be completed within 20 seconds after the completion of
Step 3.
4. For the seating position being disabled buckle then unbuckle the
safety belt three times at a moderate speed, ending in the unbuckled
state.
44Safety Belts
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 62 of 558
PRINCIPLE OF OPERATION
The remote control allows you to:
•remotely lock or unlock the vehicle doors
•remotely open the power liftgate (if equipped)
•remotely start or stop the engine (if equipped)
•arm and disarm the anti-theft system (if equipped)
•activate the panic alarm
Intelligent Access (If Equipped)
Your vehicle will allow you to unlock and enter your vehicle without
actively using a key or remote control. You can use this feature at the
front doors or at the liftgate/trunk. You can activate the intelligent access
feature as long as you have one of your intelligent access keys within
range of the front doors or the liftgate/trunk.
GENERAL INFORMATION ON RADIO FREQUENCIES
The remote control complies with part 15 of the FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference
that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around the vehicle
•other vehicles parked next to your vehicle.
62Keys and Remote Control
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 67 of 558
Car Finder
Press the button twice within three seconds. The horn will chirp
and the turn signals will flash. It is recommended that this method
be used to locate your vehicle, rather than using the panic alarm.
Sounding a Panic Alarm
Note:The panic alarm will only operate when the ignition is off.
Press the button to activate the alarm. Press the button again
or turn the ignition on to deactivate.
Remote Start (If Equipped)
WARNING:To avoid exhaust fumes, do not use remote start if your
vehicle is parked indoors or areas that are not well ventilated.
Note:Do not use remote start if your vehicle is low on fuel.
Your vehicle has remote start if the transmitter has this button.
The remote start feature allows you to start the engine from outside the
vehicle. The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. Refer to theClimate Controlchapter
for more information. A manual climate control system will run at the
setting it was set to when the vehicle was last turned off.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
The remote start system will not work if:
•the ignition is on
•the alarm system is triggered
•the feature has been disabled
•the hood is not closed
•two remote vehicle starts have already been attempted within the last
hour
•the vehicle is not in P (Park)
•the vehicle battery voltage is too low
•the service engine soon light is on.
Keys and Remote Control67
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
