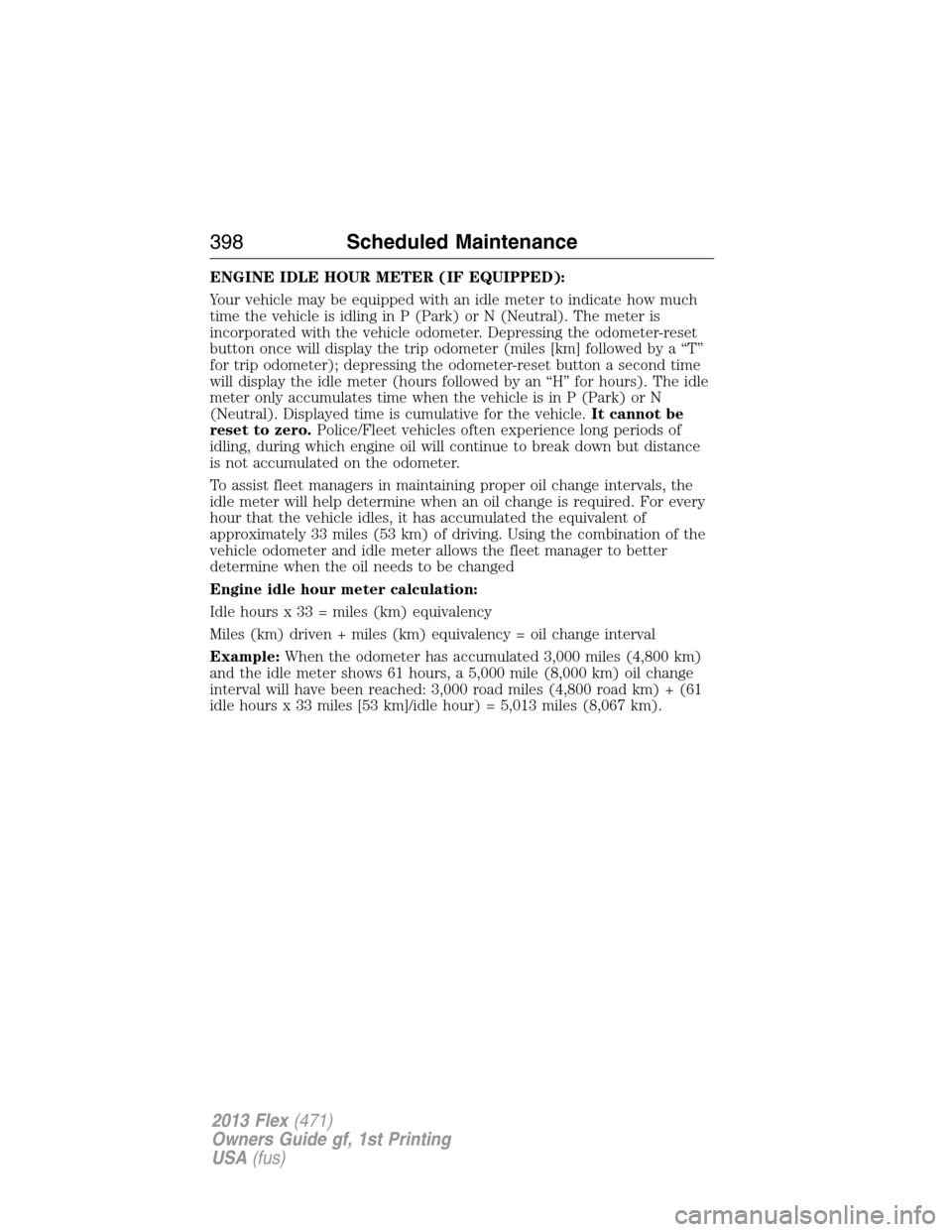

ENGINE IDLE HOUR METER (IF EQUIPPED):
Your vehicle may be equipped with an idle meter to indicate how much
time the vehicle is idling in P (Park) or N (Neutral). The meter is
incorporated with the vehicle odometer. Depressing the odometer-reset
button once will display the trip odometer (miles [km] followed by a “T”
for trip odometer); depressing the odometer-reset button a second time
will display the idle meter (hours followed by an “H” for hours). The idle
meter only accumulates time when the vehicle is in P (Park) or N
(Neutral). Displayed time is cumulative for the vehicle.It cannot be
reset to zero.Police/Fleet vehicles often experience long periods of
idling, during which engine oil will continue to break down but distance
is not accumulated on the odometer.
To assist fleet managers in maintaining proper oil change intervals, the
idle meter will help determine when an oil change is required. For every
hour that the vehicle idles, it has accumulated the equivalent of
approximately 33 miles (53 km) of driving. Using the combination of the
vehicle odometer and idle meter allows the fleet manager to better
determine when the oil needs to be changed
Engine idle hour meter calculation:
Idle hours x 33 = miles (km) equivalency
Miles (km) driven + miles (km) equivalency = oil change interval
Example:When the odometer has accumulated 3,000 miles (4,800 km)
and the idle meter shows 61 hours, a 5,000 mile (8,000 km) oil change
interval will have been reached: 3,000 road miles (4,800 road km) + (61
idle hours x 33 miles [53 km]/idle hour) = 5,013 miles (8,067 km).
398Scheduled Maintenance
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 401 of 558
EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should be
changed every 3,000 miles (4,800 km) or three months, whichever comes
first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toTechnical specificationsin theCapacities and
Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5,000 miles (8,000 km).
If the available API “SM” or “SN” oils are not available, then the oil
change service interval is 3,000 mile (4,800 km).
Scheduled Maintenance401
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 402 of 558

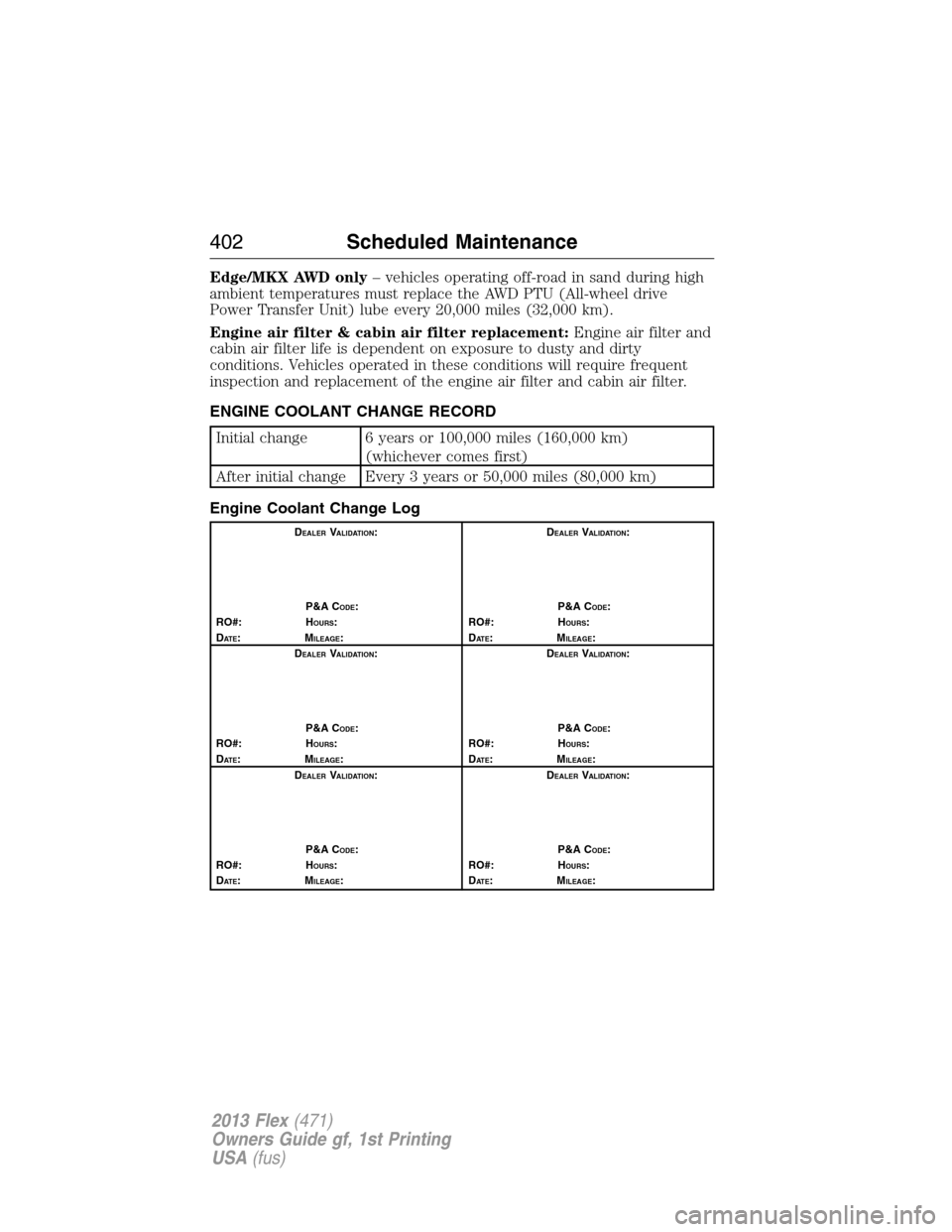

Edge/MKX AWD only– vehicles operating off-road in sand during high
ambient temperatures must replace the AWD PTU (All-wheel drive
Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change 6 years or 100,000 miles (160,000 km)
(whichever comes first)
After initial change Every 3 years or 50,000 miles (80,000 km)
Engine Coolant Change Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
402Scheduled Maintenance
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 534 of 558
IF YOU DO NOT AGREE TO THIS END USER LICENSE
AGREEMENT (“EULA”), DO NOT USE THE DEVICE OR COPY
THE SOFTWARE. ANY USE OF THE SOFTWARE, INCLUDING
BUT NOT LIMITED TO USE ON THE DEVICE, WILL
CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR
RATIFICATION OF ANY PREVIOUS CONSENT).
GRANT OF SOFTWARE LICENSE:This EULA grants you the
following license:
•You may use the SOFTWARE as installed on the DEVICE and as
otherwise interfacing with systems and/or services provide by or
through FORD MOTOR COMPANY or its third party software and
service providers.
DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS:
•Speech Recognition:If the SOFTWARE includes speech recognition
component(s), you should understand that speech recognition is an
inherently statistical process and that recognition errors are inherent
in the process. Neither FORD MOTOR COMPANY nor its suppliers
shall be liable for any damages arising out of errors in the speech
recognition process.
•Limitations on Reverse Engineering, Decompilation and
Disassembly:You may not reverse engineer, decompile, or
disassemble nor permit others to reverse engineer, decompile or
disassemble the SOFTWARE, except and only to the extent that such
activity is expressly permitted by applicable law notwithstanding this
limitation.
•Limitations on Distributing, Copying, Modifying and Creating
Derivative Works:You may not distribute, copy, make modifications
to or create derivative works based on the SOFTWARE, except and
only to the extent that such activity is expressly permitted by
applicable law notwithstanding this limitation.
•Single EULA:The end user documentation for the DEVICE and
related systems and services may contain multiple EULAs, such as
multiple translations and/or multiple media versions (e.g., in the user
documentation and in the software). Even if you receive multiple
EULAs, you are licensed to use only one (1) copy of the SOFTWARE.
•SOFTWARE Transfer:You may permanently transfer your rights
under this EULA only as part of a sale or transfer of the DEVICE,
provided you retain no copies, you transfer all of the SOFTWARE
(including all component parts, the media and printed materials, any
upgrades, and, if applicable, the Certificate(s) of Authenticity), and
534Appendices
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 538 of 558
No Liability for Certain Damages:EXCEPT AS PROHIBITED BY
LAW, FORD MOTOR COMPANY, ANY THRID PARTY SOFTWARE OR
SERVICES SUPPLIERS, MS, MICROSOFT CORPORATION AND THEIR
AFFILIATES SHALL HAVE NO LIABILITY FOR ANY INDIRECT,
SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING
FROM OR IN CONNECTION WITH THE USE OR PERFORMANCE OF
THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY
REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL
MS, MICROSOFT CORPORATION AND/OR THEIR AFFILIATES BE
LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO HUNDRED FIFTY
DOLLARS (U.S.$250.00).
•THERE ARE NO WARRANTIES OTHER THAN THOSE THAT MAY
EXPRESSLY BE PROVIDED FOR YOUR NEW VEHICLE.
End user notice
MicrosoftWindowsMobile for Automotive Important Safety
Information
This system Ford SYNC™ contains software that is licensed to
Manufacturer FORD MOTOR COMPANY by an affiliate of Microsoft
Corporation pursuant to a license agreement. Any removal, reproduction,
reverse engineering or other unauthorized use of the software from this
system in violation of the license agreement is strictly prohibited and
may subject you to legal action.
Read and follow instructions
Before using your Windows Automotive-based system, read and follow all
instructions and safety information provided in this end user manual
(“User’s Guide”). Not following precautions found in this User’s Guide can
lead to an accident or other serious consequences.
Keep User’s Guide in Vehicle
When kept in the vehicle, the User’s Guide will be a ready reference for
you and other users unfamiliar with the Windows Automotive-based
system. Please make certain that before using the system for the first
time, all persons have access to the User’s Guide and read its instructions
and safety information carefully.
538Appendices
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 542 of 558
3.1 License limitations
You agree not to do any of the following: (a) reverse engineer, decompile,
disassemble, translate, modify, alter or otherwise change the TeleNav
Software or any part thereof; (b) attempt to derive the source code,
audio library or structure of the TeleNav Software without the prior
express written consent of TeleNav; (c) remove from the TeleNav
Software, or alter, any of TeleNav’s or its suppliers’ trademarks, trade
names, logos, patent or copyright notices, or other notices or markings;
(d) distribute, sublicense or otherwise transfer the TeleNav Software to
others, except as part of your permanent transfer of the TeleNav
Software; or (e) use the TeleNav Software in any manner that (i)
infringes the intellectual property or proprietary rights, rights of publicity
or privacy or other rights of any party, (ii) violates any law, statute,
ordinance or regulation, including but not limited to laws and regulations
related to spamming, privacy, consumer and child protection, obscenity
or defamation, or (iii) is harmful, threatening, abusive, harassing,
tortuous, defamatory, vulgar, obscene, libelous, or otherwise
objectionable; and (f) lease, rent out, or otherwise permit unauthorized
access by third parties to the TeleNav Software without advanced written
permission of TeleNav.
4.Disclaimers
To the fullest extent permissible pursuant to applicable law, in no event
will TeleNav, its licensors and suppliers, or agents or employees of any of
the foregoing, be liable for any decision made or action taken by you or
anyone else in reliance on the information provided by the TeleNav
Software. TeleNav also does not warrant the accuracy of the map or

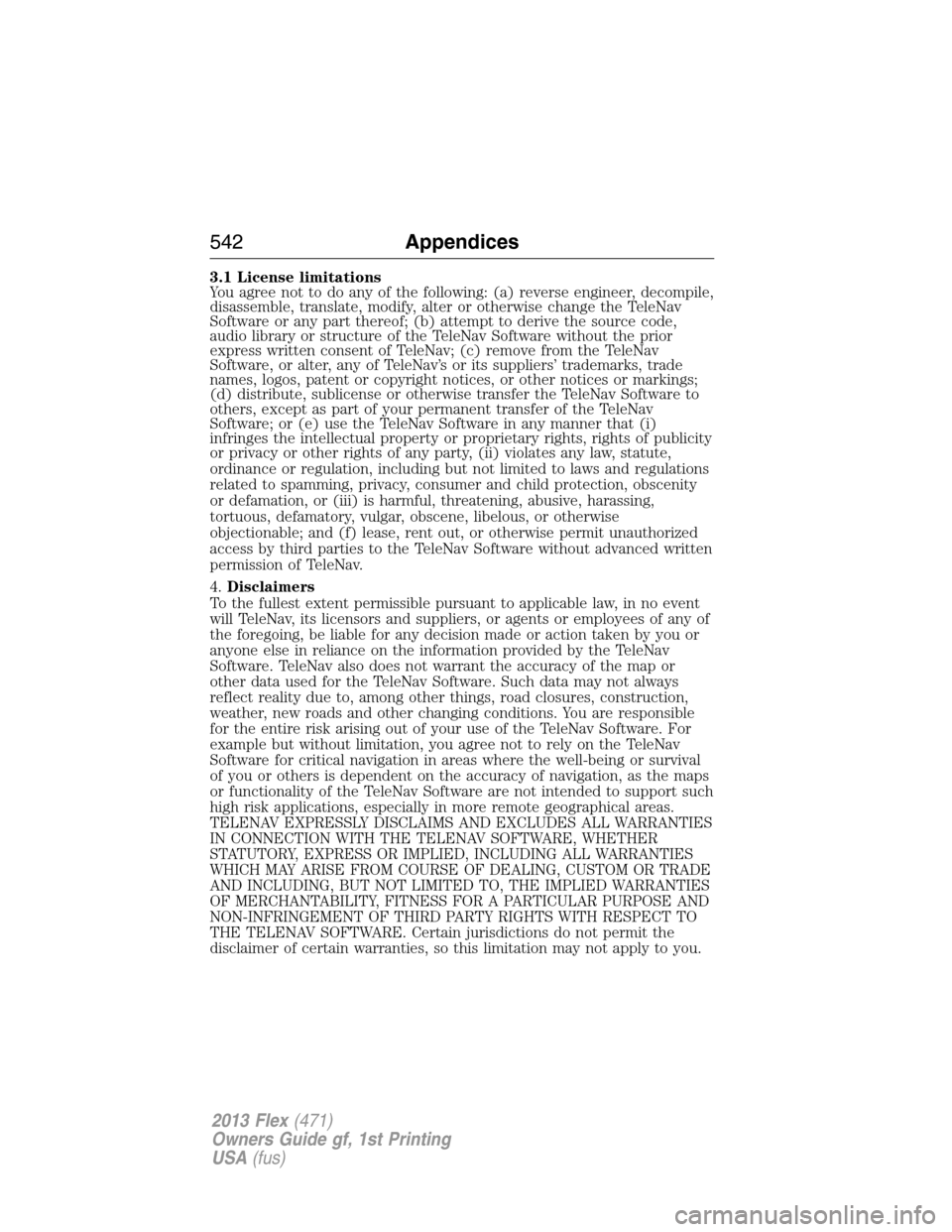

other data used for the TeleNav Software. Such data may not always
reflect reality due to, among other things, road closures, construction,
weather, new roads and other changing conditions. You are responsible
for the entire risk arising out of your use of the TeleNav Software. For
example but without limitation, you agree not to rely on the TeleNav
Software for critical navigation in areas where the well-being or survival
of you or others is dependent on the accuracy of navigation, as the maps
or functionality of the TeleNav Software are not intended to support such
high risk applications, especially in more remote geographical areas.
TELENAV EXPRESSLY DISCLAIMS AND EXCLUDES ALL WARRANTIES
IN CONNECTION WITH THE TELENAV SOFTWARE, WHETHER
STATUTORY, EXPRESS OR IMPLIED, INCLUDING ALL WARRANTIES
WHICH MAY ARISE FROM COURSE OF DEALING, CUSTOM OR TRADE
AND INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NON-INFRINGEMENT OF THIRD PARTY RIGHTS WITH RESPECT TO
THE TELENAV SOFTWARE. Certain jurisdictions do not permit the
disclaimer of certain warranties, so this limitation may not apply to you.
542Appendices
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 546 of 558
TERMS AND CONDITIONS
License Limitations on Use:You agree that your license to use this
Data is limited to and conditioned on use for solely personal,
noncommercial purposes, and not for service bureau, timesharing or
other similar purposes. Except as otherwise set forth herein, you agree
not to otherwise reproduce, copy, modify, decompile, disassemble or
reverse engineer any portion of this Data, and may not transfer or
distribute it in any form, for any purpose, except to the extent permitted
by mandatory laws.
License Limitations on Transfer:Your limited license does not allow
transfer or resale of the Data, except on the condition that you may
transfer the Data and all accompanying materials on a permanent basis if:
(a) you retain no copies of the Data; (b) the recipient agrees to the
terms of this End User License Agreement; and (c) you transfer the Data
in the exact same form as you purchased it by physically transferring the
original media (e.g., the CD-ROM or DVD you purchased), all original
packaging, all Manuals and other documentation. Specifically, Multi-disc
sets may only be transferred or sold as a complete set as provided to you
and not as a subset thereof.
Additional License Limitations:Except where you have been
specifically licensed to do so by NT in a separate written agreement, and
without limiting the preceding paragraph, your license is conditioned on
use of the Data as prescribed in this agreement, and you may not (a) use
this Data with any products, systems, or applications installed or
otherwise connected to or in communication with vehicles capable of
vehicle navigation, positioning, dispatch, real time route guidance, fleet
management or similar applications; or (b) with, or in communication
with, including without limitation, cellular phones, palmtop and handheld
computers, pagers, and personal digital assistants or PDAs.
WARNING:This Data may contain inaccurate or incomplete
information due to the passage of time, changing circumstances,
sources used and the nature of collecting comprehensive geographic
Data, any of which may lead to incorrect results.
No Warranty:This Data is provided to you “as is”, and you agree to use
it at your own risk. NT and its licensors (and their licensors and
suppliers) make no guarantees, representations or warranties of any kind,
express or implied, arising by law or otherwise, including but not limited
to, content, quality, accuracy, completeness, effectiveness, reliability,
fitness for a particular purpose, usefulness, use or results to be obtained
from this Data, or that the Data or server will be uninterrupted or error
free.
546Appendices
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 552 of 558
Brakes ........................................ 223
anti-lock ................................... 224
anti-lock brake system (ABS)
warning light ........................... 224
brake warning light ................ 224
fluid, checking and adding .... 317
fluid, refill capacities .............. 371
fluid, specifications ................. 371
lubricant specifications .......... 371
parking .................................... 224
shift interlock .......................... 214
trailer ....................................... 272
C
Capacities for refilling fluids .... 371
Cargo net ................................... 260
CD .............................. 140, 144, 146
CD player .......................... 138, 482
CD voice commands ................. 482
Cell phone use ............................ 16
Changing a tire ......................... 362
Child safety restraints .......... 29, 31
Child safety seats
attaching with tether straps .... 31
automatic locking mode
(retractor) ................................. 39
LATCH ....................................... 29
Child safety seats - booster
seats ............................................. 22
Cleaning the touchscreen ........ 454
Cleaning your vehicle ............... 330
engine compartment .............. 332
instrument panel .................... 334
interior ..................................... 333
plastic parts ............................ 331
washing .................................... 330
waxing ..................................... 332wheels ...................................... 335
wiper blades ............................ 333
Climate control (see Air
conditioning or Heating) .......... 153
Climate voice commands ......... 520
Clock .................................. 140, 510
Collision Warning System ......... 254
Compass Display ....................... 121
Console ...................................... 192
overhead .................................. 194
rear .......................................... 192
Coolant
checking and adding .............. 308
refill capacities ........................ 371
specifications .......................... 371
Cooler ........................................ 193
Cross Traffic Alert .................... 249
Cruise control ........................... 239
Customer Assistance ................ 281
Ford Extended Service
Plan .................................. 380, 383
Getting assistance outside the
U.S. and Canada ..................... 290
Getting roadside assistance ... 281
Getting the service
you need ................................. 286
Ordering additional owner’s
literature ................................. 292
Utilizing the
Mediation/Arbitration
Program ................................... 290
Customizing your
home screen .............................. 453
D
Defrost ....................... 153, 155, 157
rear window ............................ 161
552Index
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 553 of 558
Dipstick
automatic transmission
fluid .......................................... 313
engine oil ................................. 307
Display settings ......................... 510
Driving under special
conditions .................. 215, 217, 220
sand ......................................... 218
snow and ice ........................... 221
through water ................. 219, 278
Dual automatic temperature
control (DATC) ................. 155, 157
E
Electronic message center ....... 117
Electronic stability control ...... 227
Emergencies, roadside
jump-starting .......................... 283
running out of fuel ................. 203
Emergency brake (see Parking
brake) ........................................ 224
Emission control system .......... 207
End user license agreement .... 533
Engine ........................................ 370
cleaning ................................... 332
fail-safe cooling ....................... 312
idle speed control ................... 318
lubrication specifications ....... 371
refill capacities ........................ 371
service points .......................... 306
Engine block heater ................. 199
Engine oil
checking and adding .............. 307
dipstick .................................... 307
filter, specifications ................ 375
refill capacities ........................ 371
specifications .......................... 371Event data recording .................. 12
Exhaust fumes .......................... 199
F
Fail safe cooling ........................ 312
Fleet MyKey programming ........ 70
Flexible Fuel Vehicle (FFV) .... 201
Floor mats ................................. 279
Fluid capacities ......................... 371
Four-Wheel Drive vehicles
driving off road ....................... 217
Freezer ...................................... 193
Fuel
cap ........................................... 205
capacity ................................... 371
choosing the right fuel ........... 202
filler funnel ............................. 203
filling your vehicle with fuel .. 205
filter, specifications ........ 317, 375
fuel pump shut-off .................. 283
octane rating ................... 202, 370
running out of fuel ................. 203
safety information relating to
automotive fuels ..................... 201
Fuel and distance computer .... 121
outside temperature
indicator .................................. 121
to empty indicator .................. 121
trip distance ............................ 121
trip/reset button ..................... 121
Fuel - flex fuel vehicle
(FFV) ......................................... 201
Fuses .................................. 294–295
G
Gas cap (see Fuel cap) ............ 205
Index553
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
