jack points FORD FLEX 2013 1.G Owners Manual

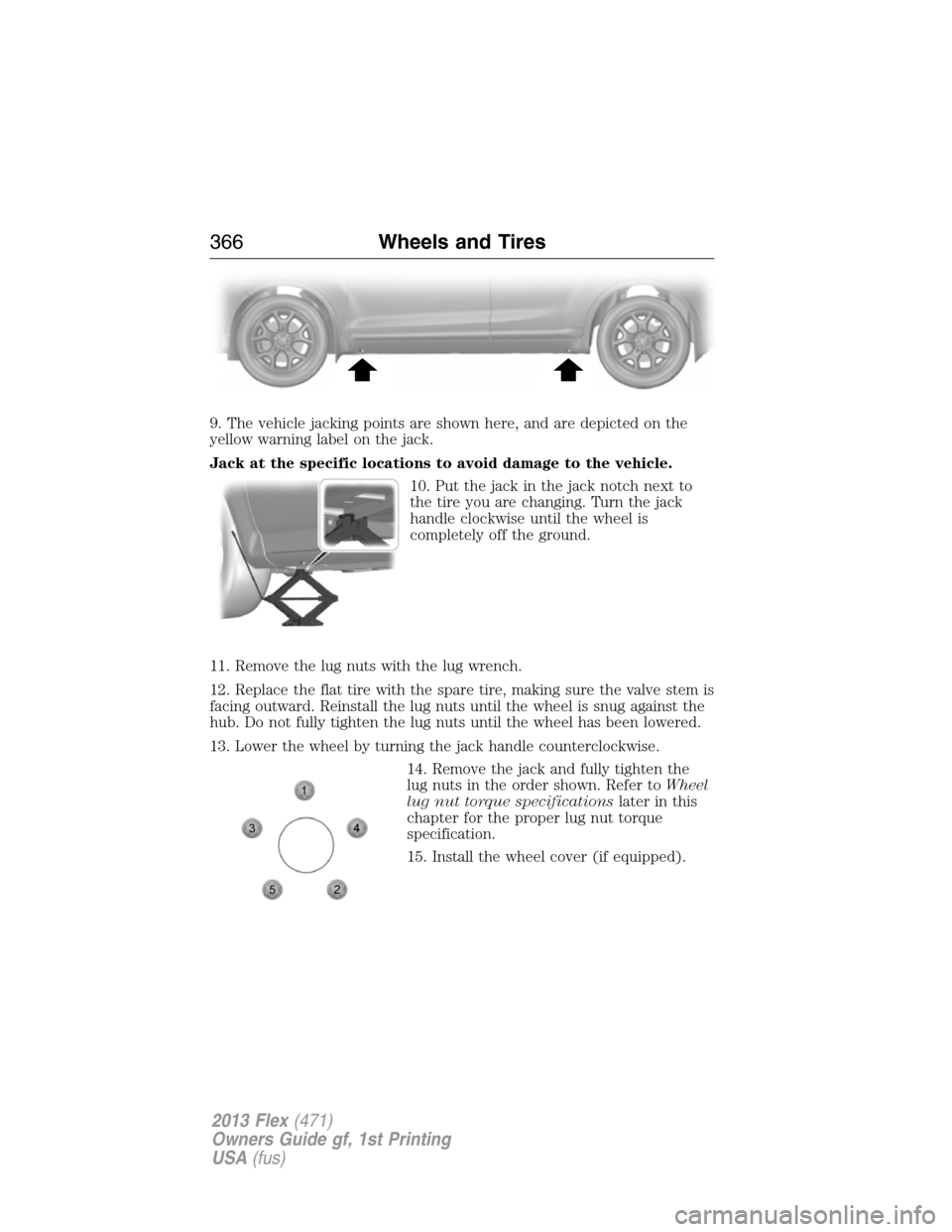

9. The vehicle jacking points are shown here, and are depicted on the
yellow warning label on the jack.
Jack at the specific locations to avoid damage to the vehicle.
10. Put the jack in the jack notch next to
the tire you are changing. Turn the jack
handle clockwise until the wheel is
completely off the ground.
11. Remove the lug nuts with the lug wrench.
12. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts until the wheel is snug against the
hub. Do not fully tighten the lug nuts until the wheel has been lowered.
13. Lower the wheel by turning the jack handle counterclockwise.
14. Remove the jack and fully tighten the
lug nuts in the order shown. Refer toWheel
lug nut torque specificationslater in this
chapter for the proper lug nut torque
specification.
15. Install the wheel cover (if equipped).
366Wheels and Tires
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
