display FORD FLEX 2015 1.G User Guide

FORD FLEX 2015 1.G User Guide FLEX 2015 1.G FORD FORD https://www.carmanualsonline.info/img/11/5116/w960_5116-0.png FORD FLEX 2015 1.G User Guide

Page 89 of 571

FORD FLEX 2015 1.G User Guide 1. Place the new unprogrammed
intelligent access key in the backup
slot inside the center console. The
key ring must be at the rear with the
buttons facing toward the right-hand
side.
2. Press the dri

Page 90 of 571

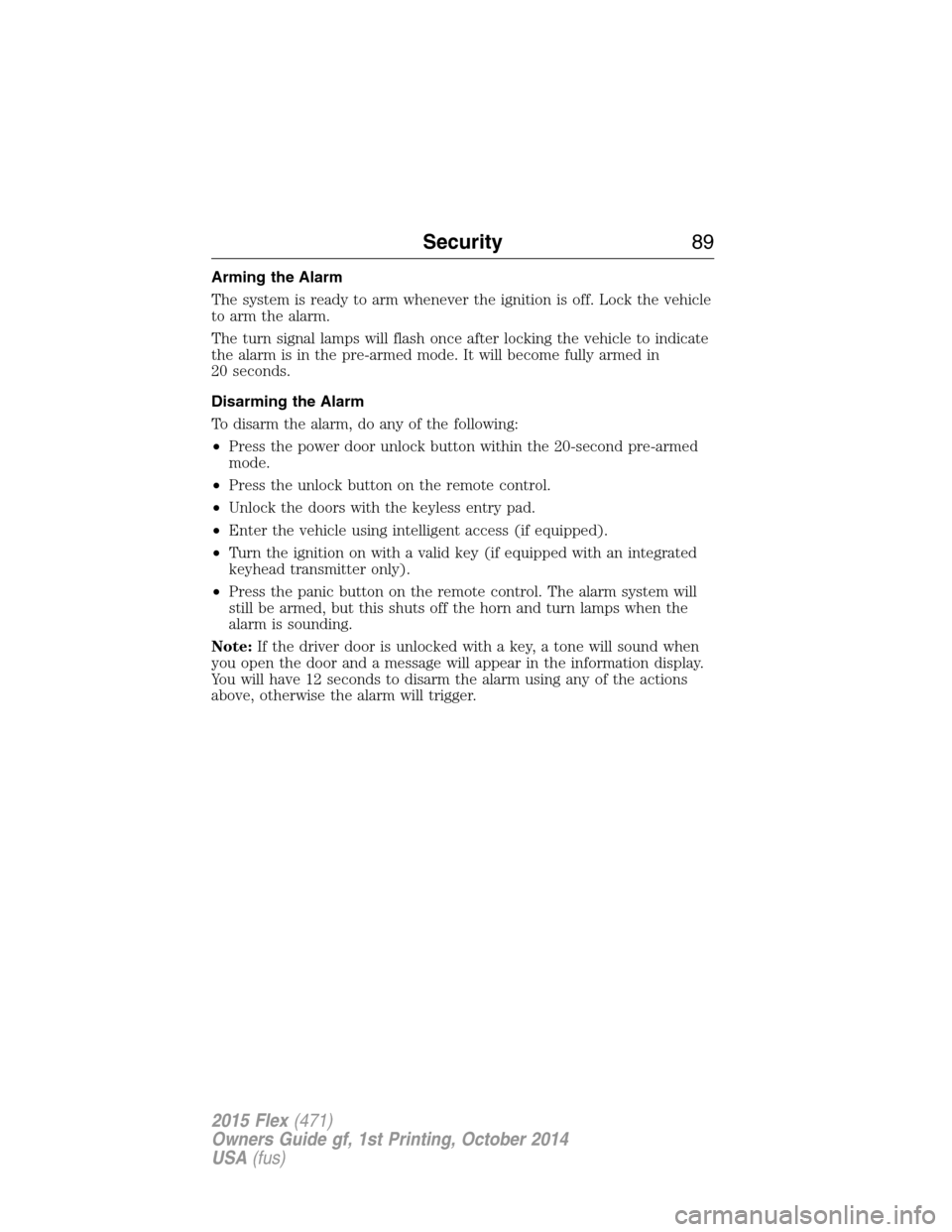

FORD FLEX 2015 1.G User Guide Arming the Alarm
The system is ready to arm whenever the ignition is off. Lock the vehicle
to arm the alarm.
The turn signal lamps will flash once after locking the vehicle to indicate
the alarm is in

Page 92 of 571

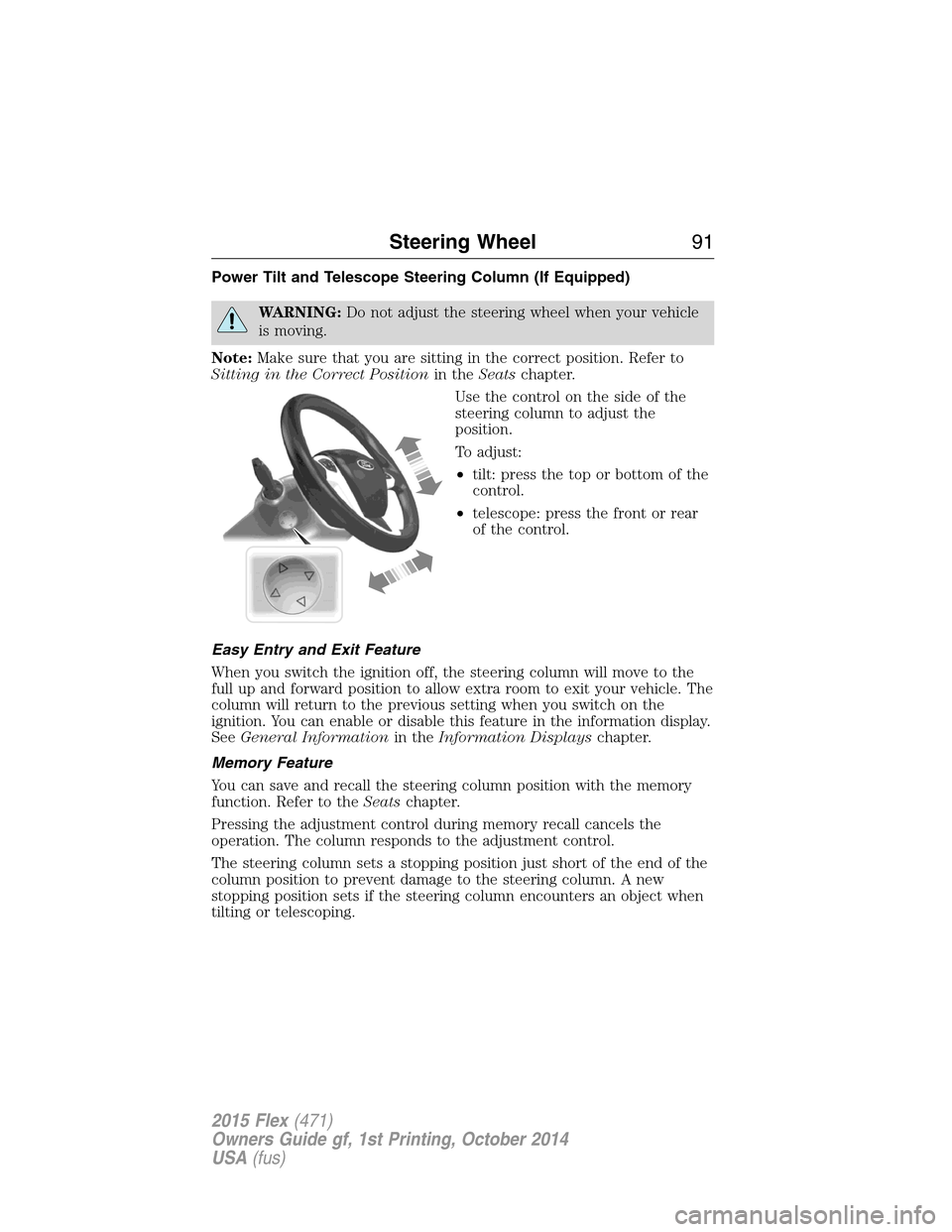

FORD FLEX 2015 1.G User Guide Power Tilt and Telescope Steering Column (If Equipped)
WARNING:Do not adjust the steering wheel when your vehicle
is moving.
Note:Make sure that you are sitting in the correct position. Refer to
Sitti

Page 95 of 571

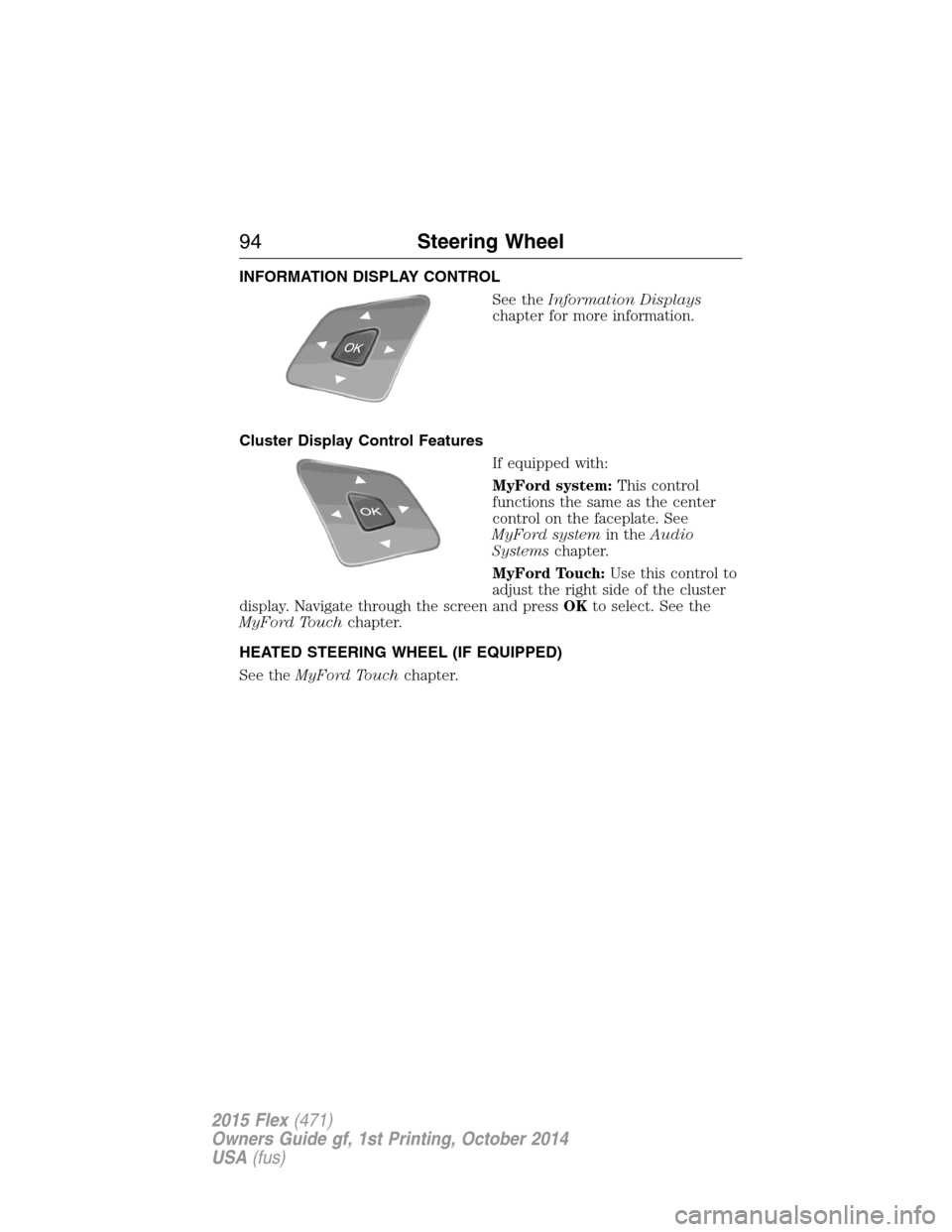

FORD FLEX 2015 1.G User Guide INFORMATION DISPLAY CONTROL
See theInformation Displays
chapter for more information.
Cluster Display Control Features
If equipped with:
MyFord system:This control
functions the same as the center
con

Page 98 of 571

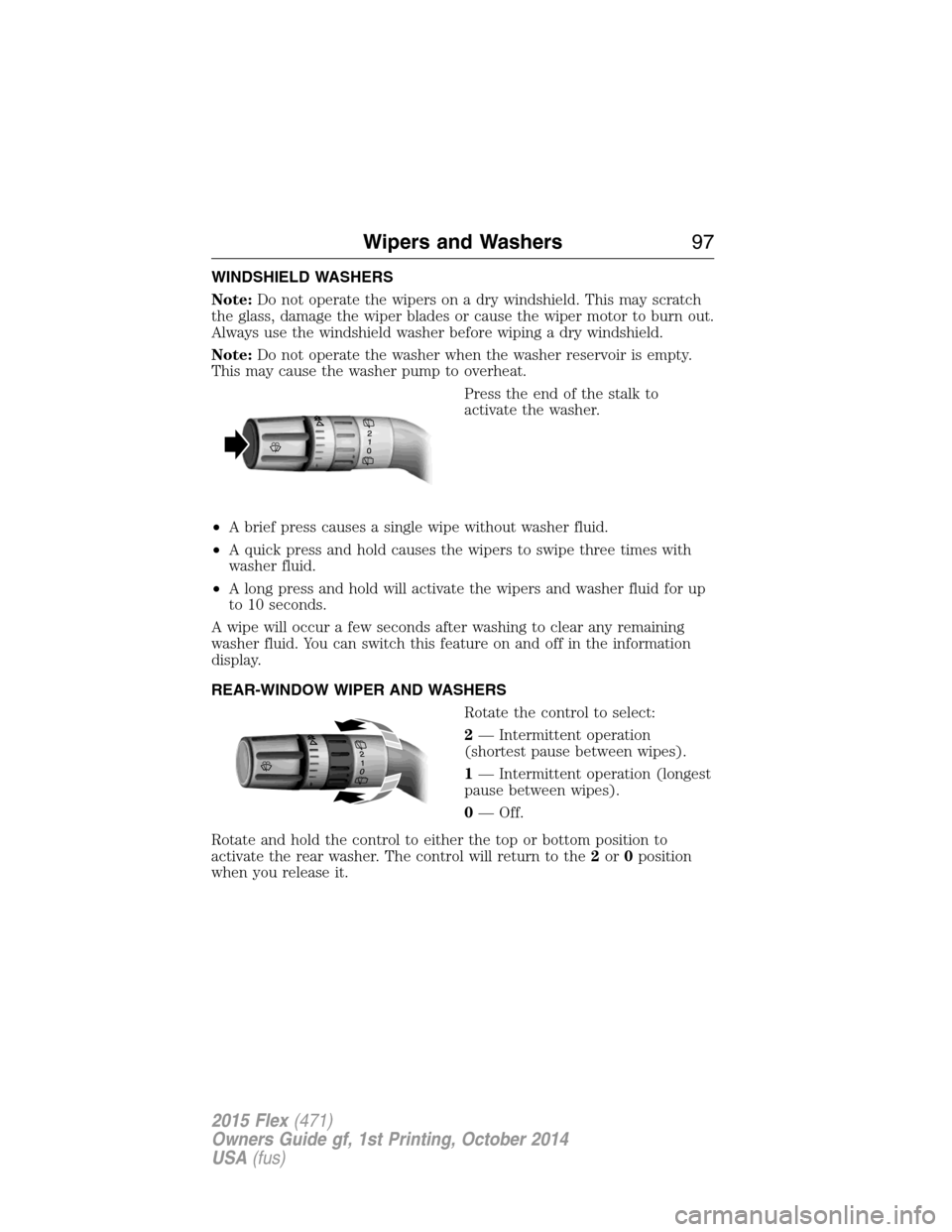

FORD FLEX 2015 1.G User Guide WINDSHIELD WASHERS
Note:Do not operate the wipers on a dry windshield. This may scratch
the glass, damage the wiper blades or cause the wiper motor to burn out.
Always use the windshield washer before

Page 100 of 571

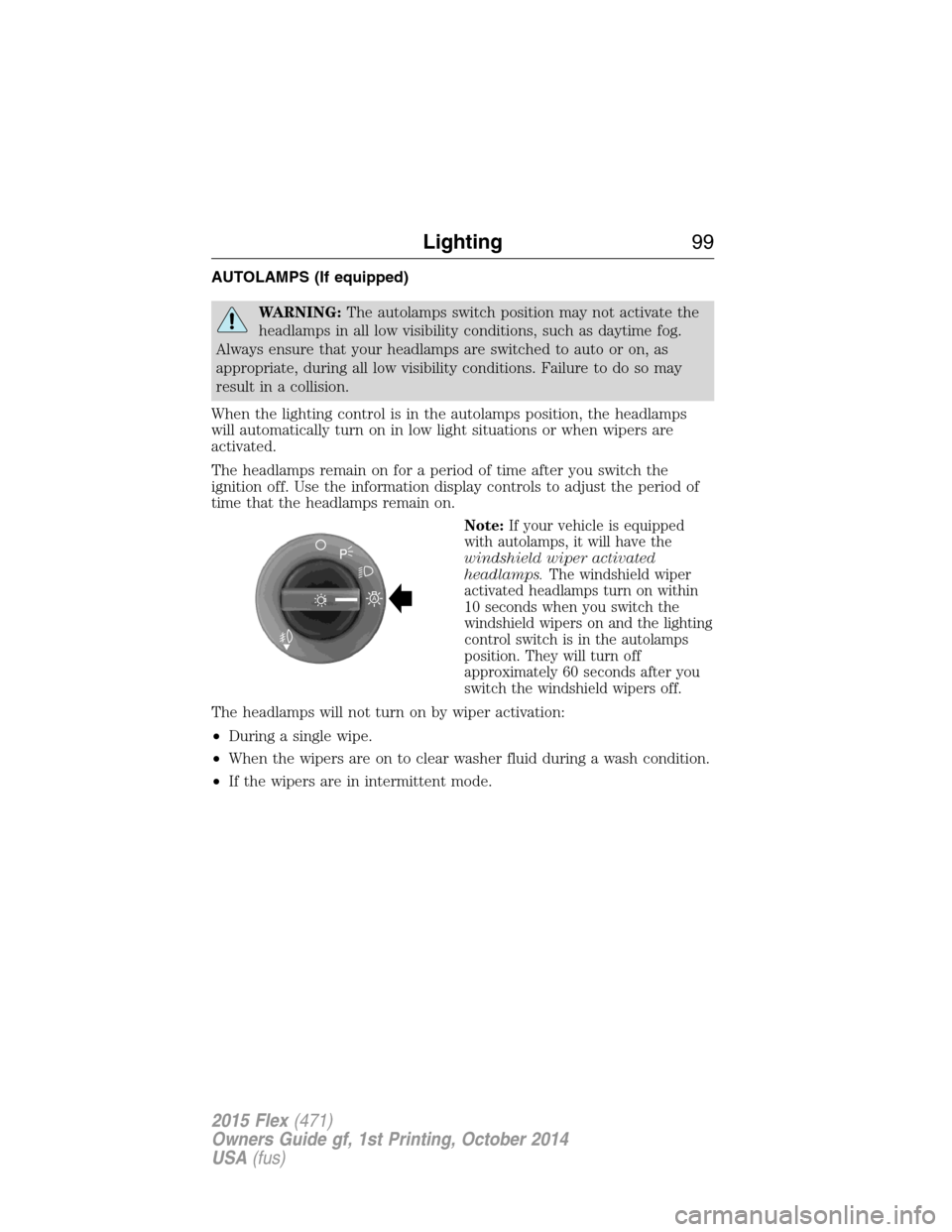

FORD FLEX 2015 1.G User Guide AUTOLAMPS (If equipped)
WARNING:The autolamps switch position may not activate the
headlamps in all low visibility conditions, such as daytime fog.
Always ensure that your headlamps are switched to au

Page 101 of 571

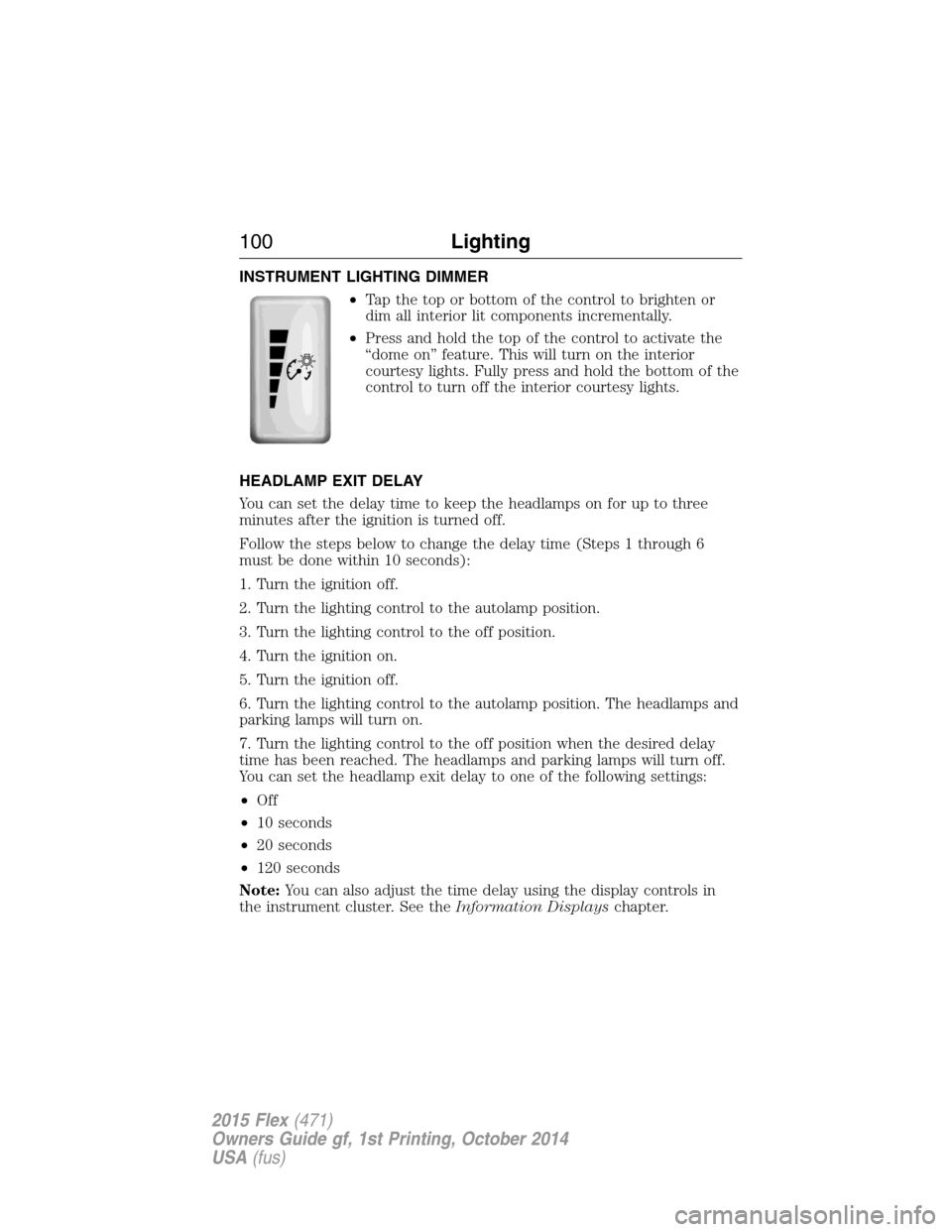

FORD FLEX 2015 1.G User Guide INSTRUMENT LIGHTING DIMMER
•Tap the top or bottom of the control to brighten or
dim all interior lit components incrementally.
•Press and hold the top of the control to activate the
“dome on”

Page 102 of 571

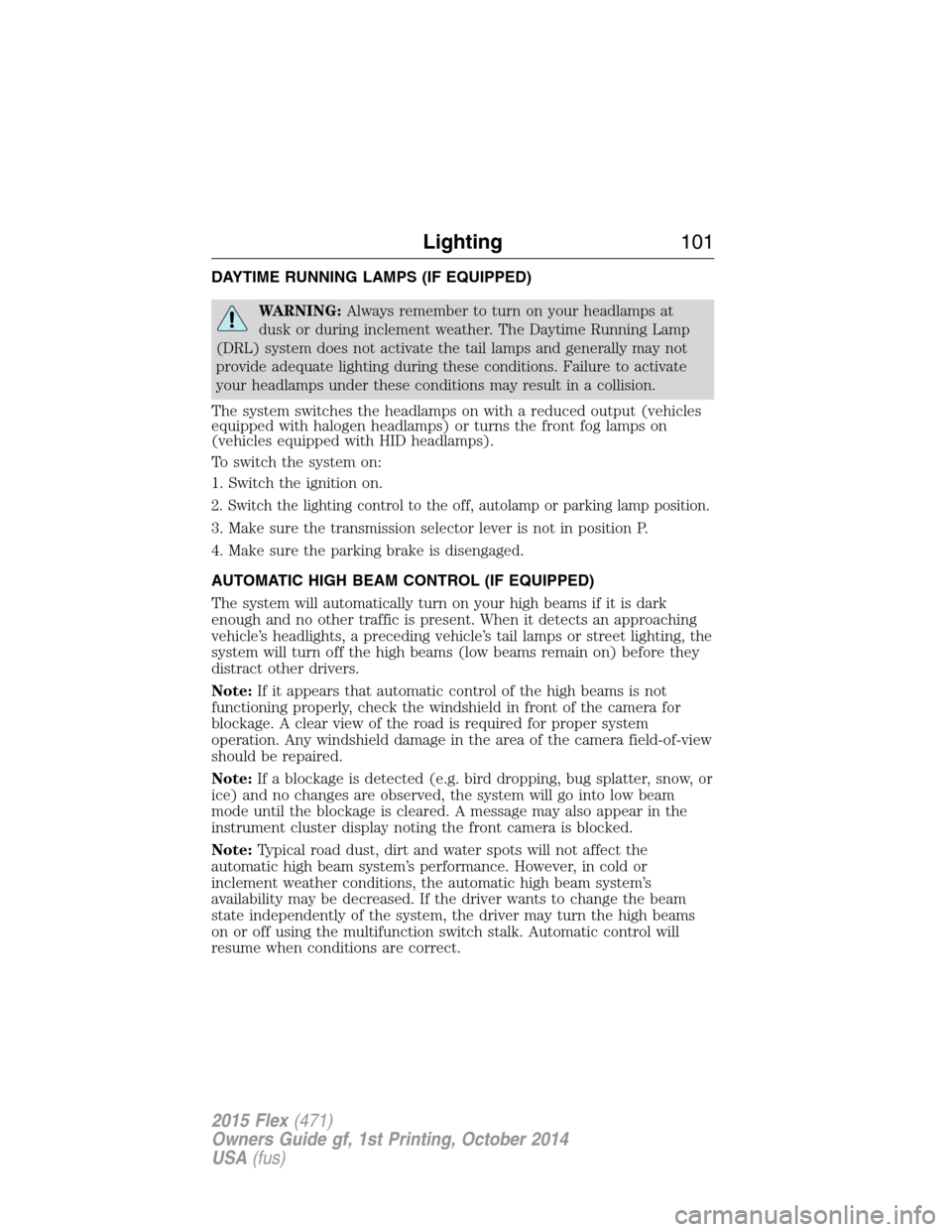

FORD FLEX 2015 1.G User Guide DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and ge

Page 103 of 571

FORD FLEX 2015 1.G User Guide Note:Modification of the vehicle ride height (e.g. using much larger
tires) may degrade feature performance.
A camera sensor is centrally mounted behind the windshield of the
vehicle, and monitors the

Page 104 of 571

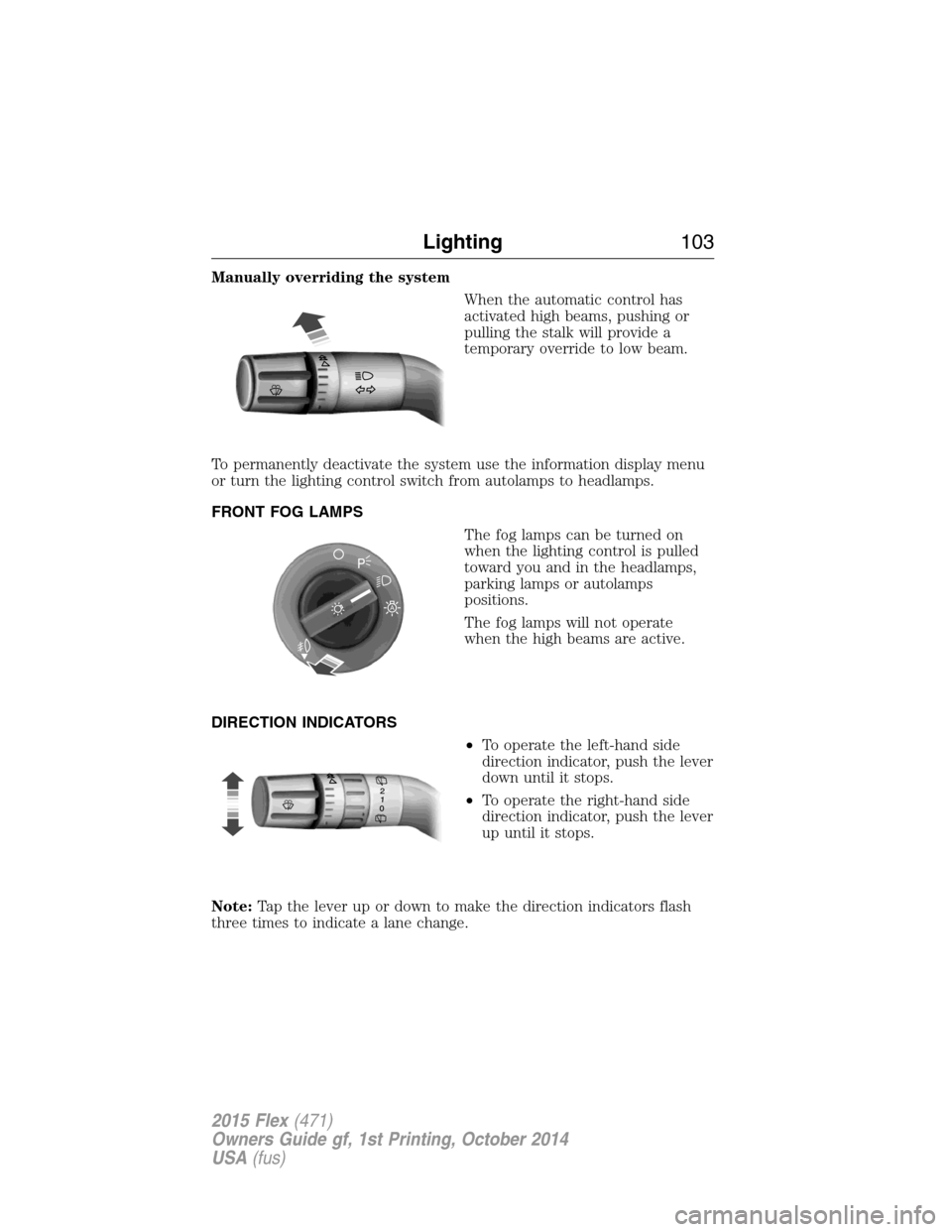

FORD FLEX 2015 1.G User Guide Manually overriding the system
When the automatic control has
activated high beams, pushing or
pulling the stalk will provide a
temporary override to low beam.
To permanently deactivate the system use
