engine coolant FORD FOCUS 2004 1.G SVT Supplement Manual

2.0L SVT ZETEC ENGINE
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Brake/Clutch fluid reservoir
4. Power distribution box
5. Air filter assembly
6. Engine coolant reservoir
7. Engine oil dipstick
8. Battery
9. Windshield washer fluid reservoir
Engine/Transmission/Drivetrain
Engine/Transmission/Drivetrain
9

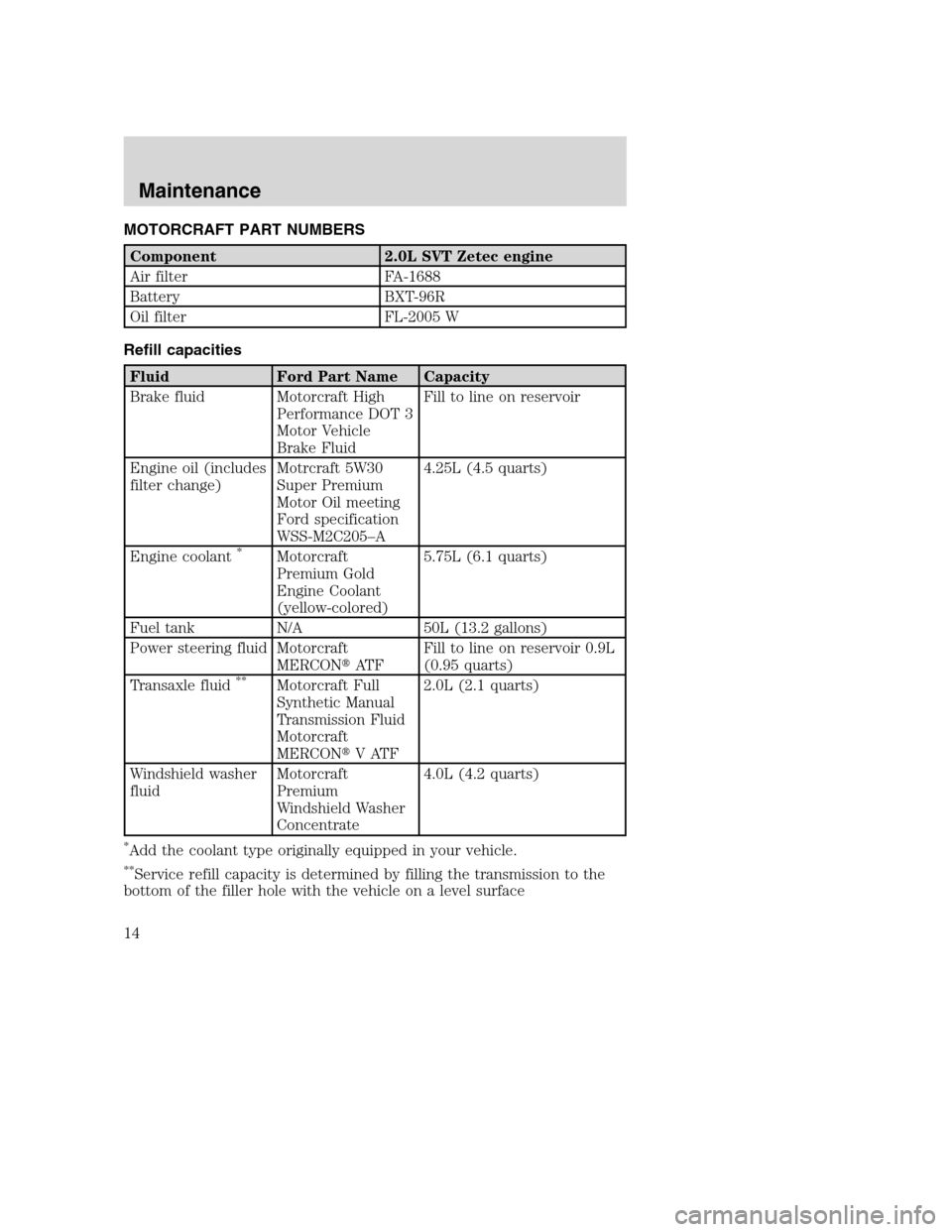

MOTORCRAFT PART NUMBERS
Component 2.0L SVT Zetec engine
Air filter FA-1688
Battery BXT-96R
Oil filter FL-2005 W
Refill capacities
Fluid Ford Part Name Capacity
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle
Brake FluidFill to line on reservoir
Engine oil (includes
filter change)Motrcraft 5W30
Super Premium
Motor Oil meeting
Ford specification
WSS-M2C205–A4.25L (4.5 quarts)
Engine coolant
*Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)5.75L (6.1 quarts)
Fuel tank N/A 50L (13.2 gallons)
Power steering fluid Motorcraft
MERCONAT FFill to line on reservoir 0.9L
(0.95 quarts)
Transaxle fluid
**Motorcraft Full
Synthetic Manual
Transmission Fluid
Motorcraft
MERCONVATF2.0L (2.1 quarts)
Windshield washer
fluidMotorcraft
Premium
Windshield Washer
Concentrate4.0L (4.2 quarts)
*Add the coolant type originally equipped in your vehicle.
**Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface
Maintenance
Maintenance
14
