FORD FOCUS 2013 3.G Owners Manual

The fuses are coded as follows:
Fuse/Relay
NumberFuse Amp
RatingProtected Components
56 20A Fuel pump supply, Mass air flow
sensor
57 — Not used
58 — Not used
59 5A Passive anti-theft transceiver
60 10A Interior light, Driver door switch
pack, Glove box illumination,
Overhead console switch bank
61 20A Cigar lighter, Power point
62 5A Rain sensor module, Humidity sensor,
Auto-dimming rear view mirror
63 — Not used
64 — Not used
65 10A Luggage compartment release
66 20A Driver door unlock supply, double
lock
67 7.5A SYNC, Multifunction display, Global
positioning system module, Compass
68 — Not used
69 5A Instrument cluster
70 20A Central lock and unlock supply
71 10A Heating control head (manual air
conditioning), Duel electronic
automatic temperature control
72 7.5A Steering wheel module
73 5A Data link connector
74 15A Low beam headlamp supply
75 15A Fog lamp supply
76 10A Reversing lamp supply
77 20A Windshield washer supply
78 5A Ignition switch, Start button
Fuses241
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Fuse/Relay
NumberFuse Amp
RatingProtected Components
79 15A Radio, Navigation DVD player, Touch
screen, Hazard light switch, Door lock
switch
80 20A Moonroof supply
81 5A Radio frequency receiver
82 20A Windshield washer relay
83 20A Central locking
84 20A Driver door unlock supply, double
lock
85 7.5A Passenger air bag deactivation
indicator, Front seat heater switch,
Heating module (manual air
conditioning), Air quality sensor,
Radio, In-car temperature and
humidity sensor
86 10A Air bag module, Occupant
classification system, Passenger air
bag deactivation indicator
87 — Not used
88 — Not used
89 — Not used
242Fuses
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

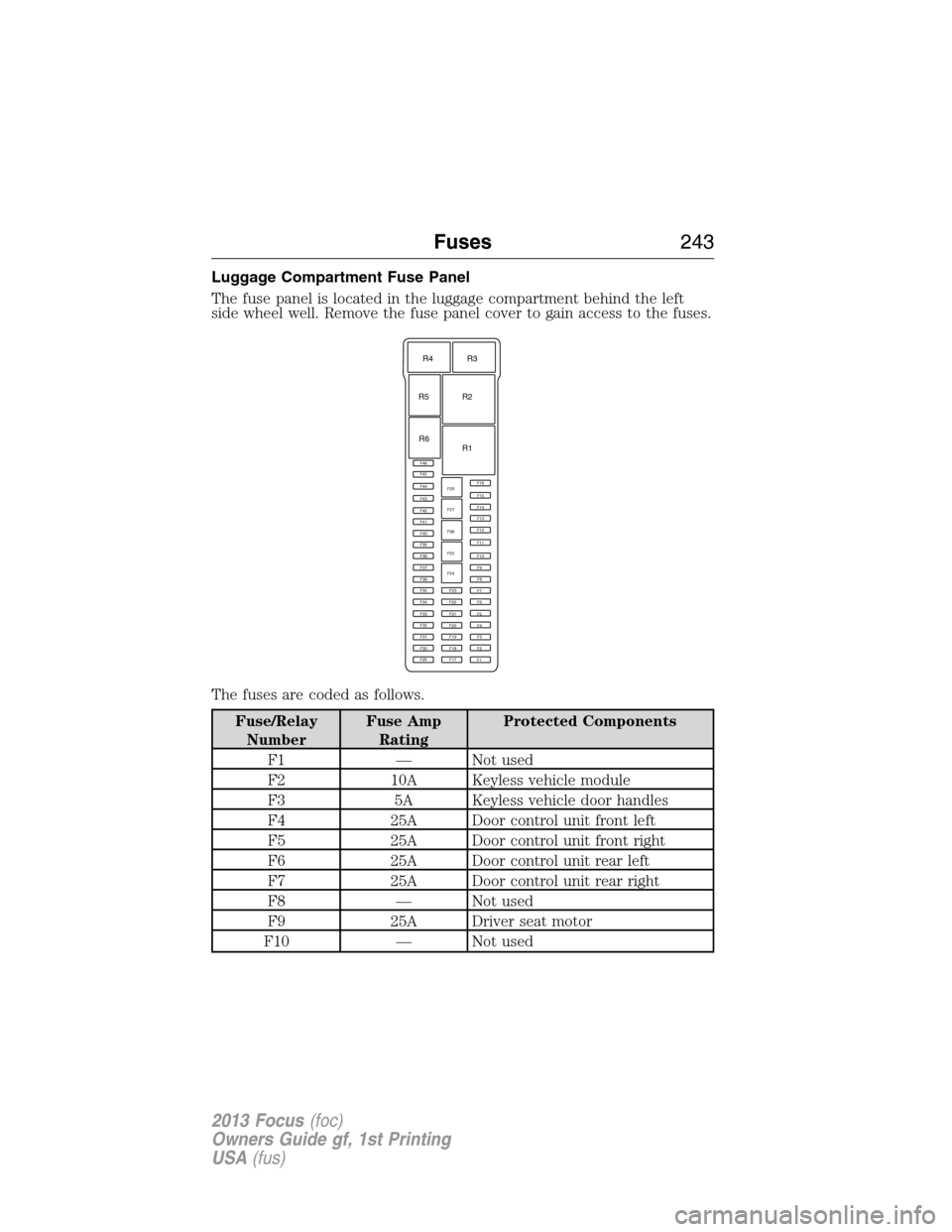

Luggage Compartment Fuse Panel
The fuse panel is located in the luggage compartment behind the left
side wheel well. Remove the fuse panel cover to gain access to the fuses.
The fuses are coded as follows.
Fuse/Relay
NumberFuse Amp
RatingProtected Components
F1 — Not used
F2 10A Keyless vehicle module
F3 5A Keyless vehicle door handles
F4 25A Door control unit front left
F5 25A Door control unit front right
F6 25A Door control unit rear left
F7 25A Door control unit rear right
F8 — Not used
F9 25A Driver seat motor
F10 — Not used
R4
R5
R6R2
R1R3
F46
F28F16
F15
F14
F13
F12
F11
F10
F9
F8
F7
F6
F5
F4
F3
F2
F1 F27
F26
F25
F24 F45
F44
F43
F42
F41
F40
F39
F38
F37
F36
F35 F23
F22
F21
F20
F19
F18
F17 F34
F33
F32
F31
F30
F29
Fuses243
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

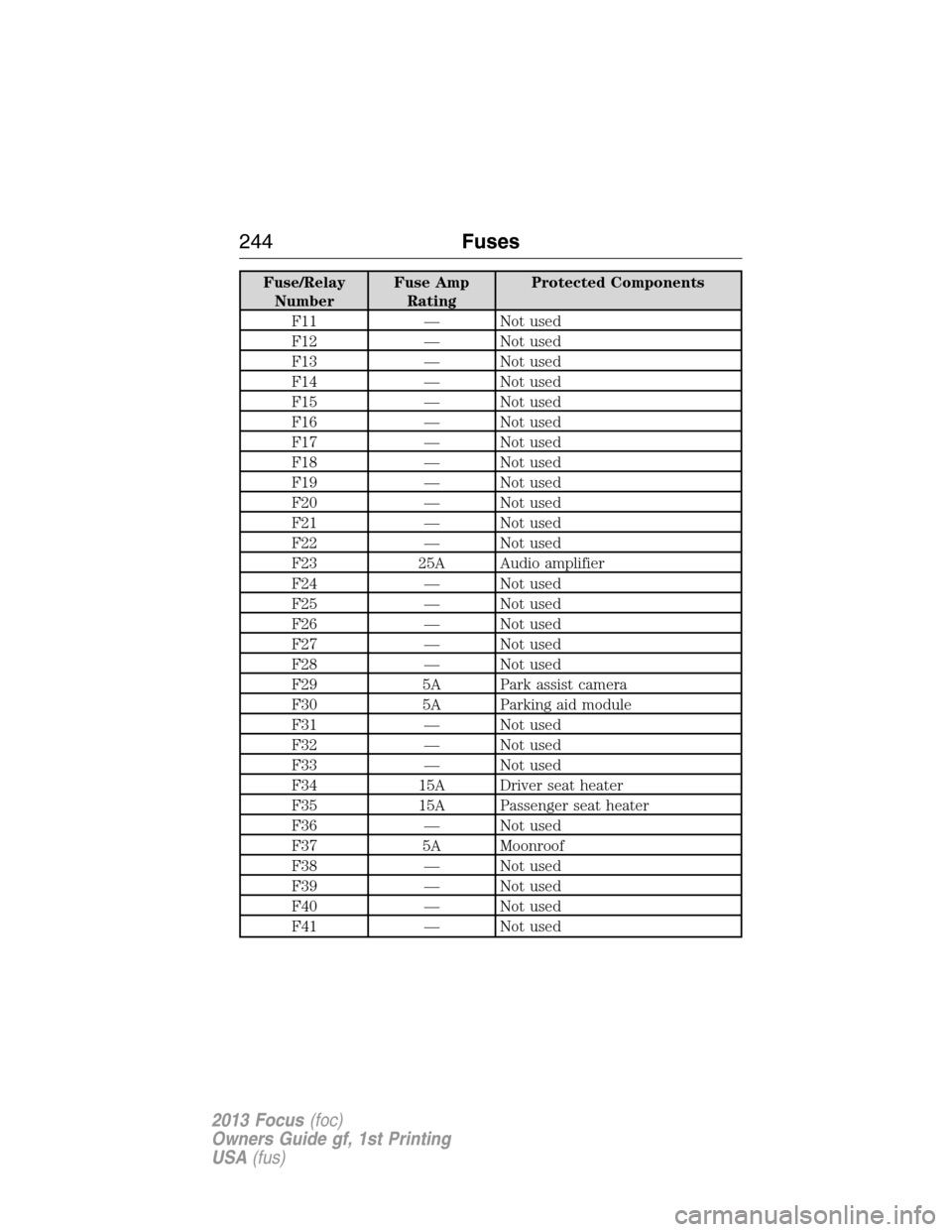

Fuse/Relay
NumberFuse Amp
RatingProtected Components
F11 — Not used
F12 — Not used
F13 — Not used
F14 — Not used
F15 — Not used
F16 — Not used
F17 — Not used
F18 — Not used
F19 — Not used
F20 — Not used
F21 — Not used
F22 — Not used
F23 25A Audio amplifier
F24 — Not used
F25 — Not used
F26 — Not used
F27 — Not used
F28 — Not used
F29 5A Park assist camera
F30 5A Parking aid module
F31 — Not used
F32 — Not used
F33 — Not used
F34 15A Driver seat heater
F35 15A Passenger seat heater
F36 — Not used
F37 5A Moonroof
F38 — Not used
F39 — Not used
F40 — Not used
F41 — Not used
244Fuses
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

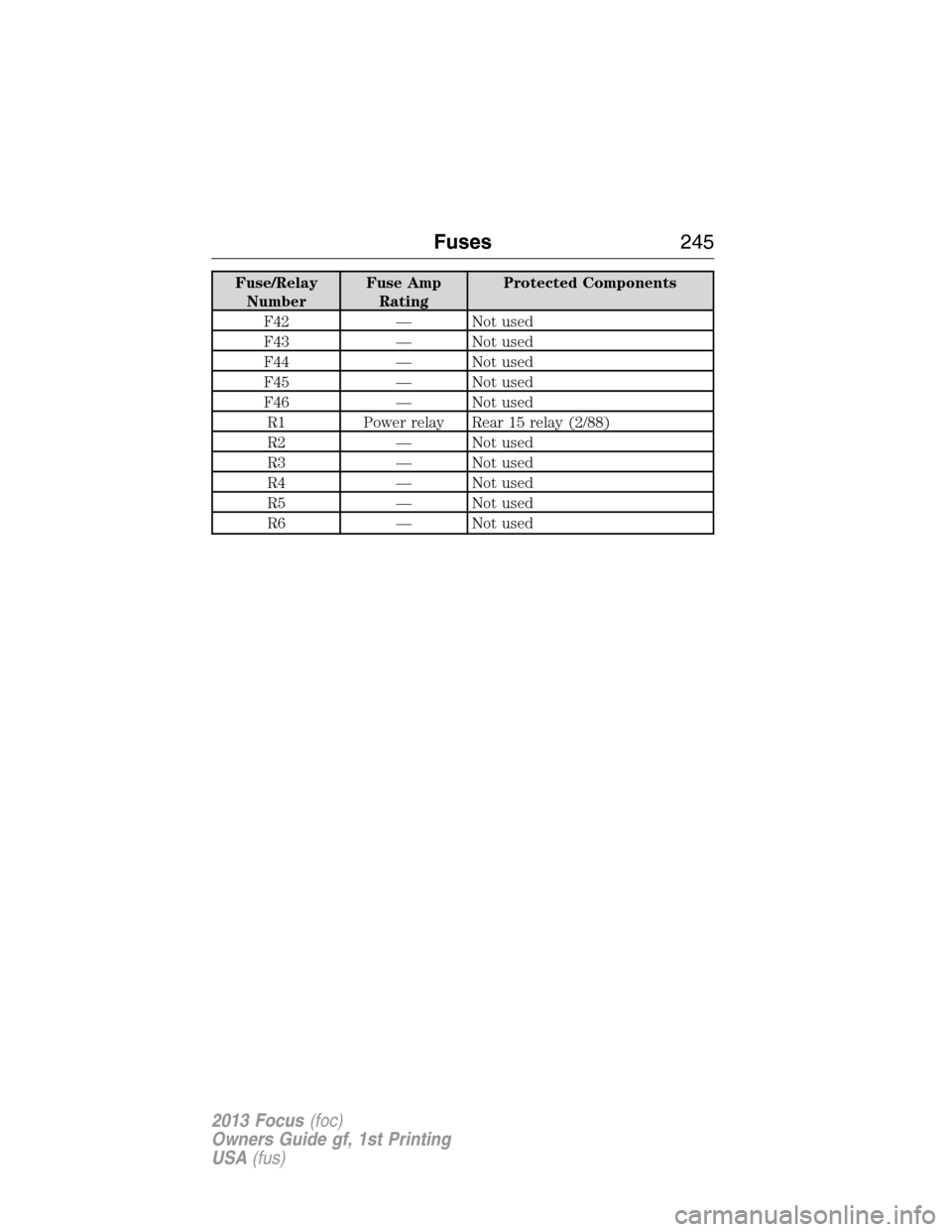

Fuse/Relay
NumberFuse Amp
RatingProtected Components
F42 — Not used
F43 — Not used
F44 — Not used
F45 — Not used
F46 — Not used
R1 Power relay Rear 15 relay (2/88)
R2 — Not used
R3 — Not used
R4 — Not used
R5 — Not used
R6 — Not used
Fuses245
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

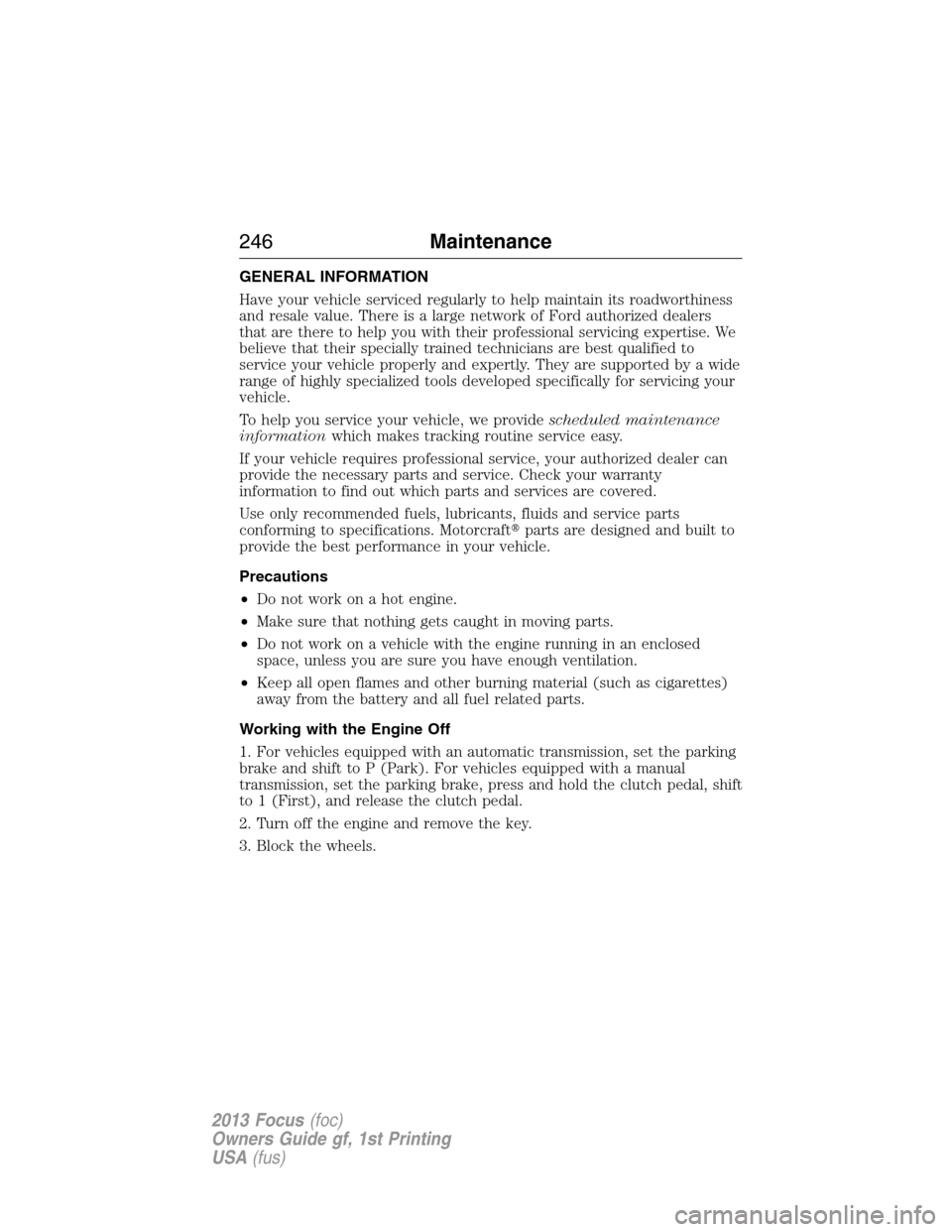

GENERAL INFORMATION
Have your vehicle serviced regularly to help maintain its roadworthiness
and resale value. There is a large network of Ford authorized dealers
that are there to help you with their professional servicing expertise. We
believe that their specially trained technicians are best qualified to
service your vehicle properly and expertly. They are supported by a wide
range of highly specialized tools developed specifically for servicing your
vehicle.
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide the necessary parts and service. Check your warranty
information to find out which parts and services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Motorcraftparts are designed and built to
provide the best performance in your vehicle.
Precautions
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other burning material (such as cigarettes)
away from the battery and all fuel related parts.
Working with the Engine Off
1. For vehicles equipped with an automatic transmission, set the parking
brake and shift to P (Park). For vehicles equipped with a manual
transmission, set the parking brake, press and hold the clutch pedal, shift
to 1 (First), and release the clutch pedal.
2. Turn off the engine and remove the key.
3. Block the wheels.
246Maintenance
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

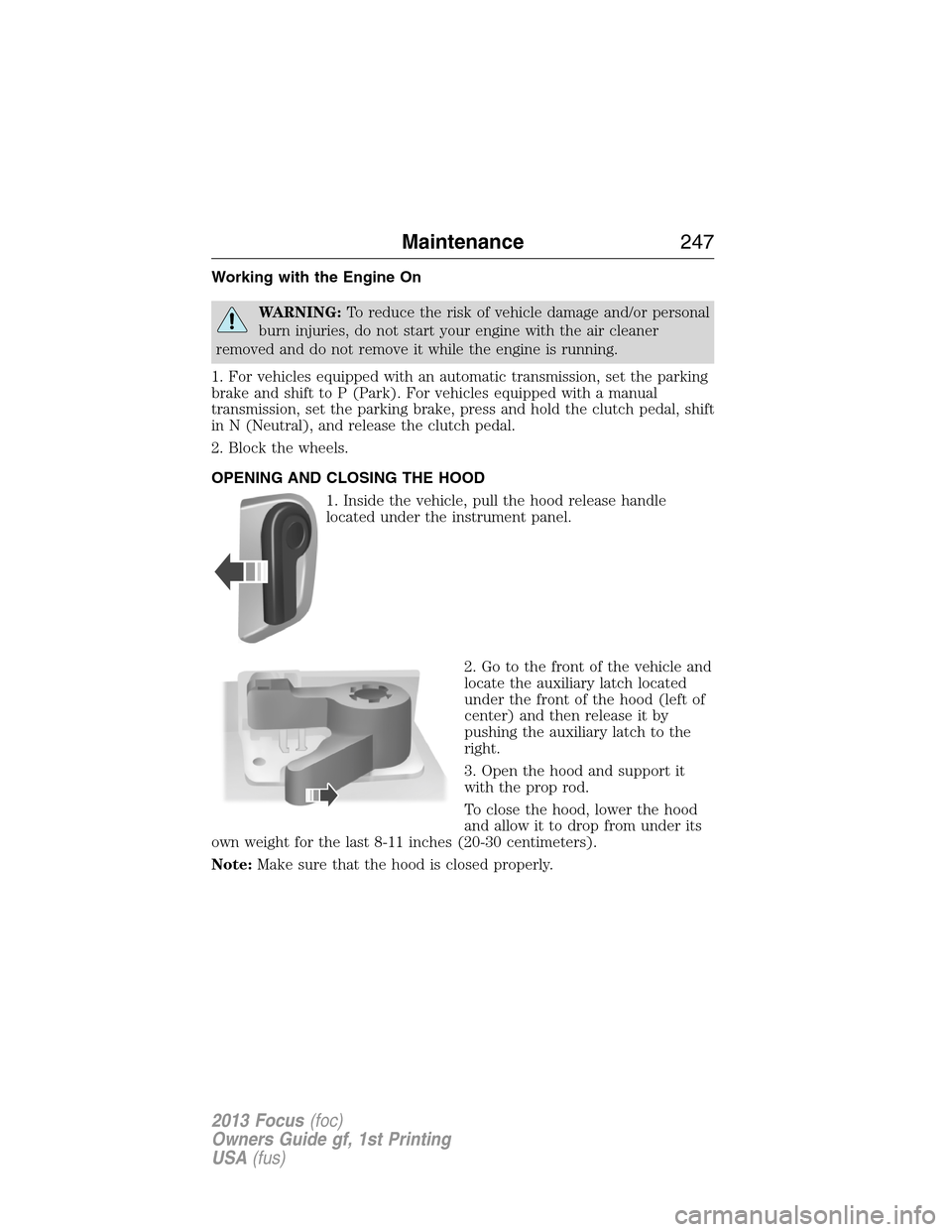

Working with the Engine On
WARNING:To reduce the risk of vehicle damage and/or personal
burn injuries, do not start your engine with the air cleaner
removed and do not remove it while the engine is running.
1. For vehicles equipped with an automatic transmission, set the parking
brake and shift to P (Park). For vehicles equipped with a manual
transmission, set the parking brake, press and hold the clutch pedal, shift
in N (Neutral), and release the clutch pedal.
2. Block the wheels.
OPENING AND CLOSING THE HOOD
1. Inside the vehicle, pull the hood release handle
located under the instrument panel.
2. Go to the front of the vehicle and
locate the auxiliary latch located
under the front of the hood (left of
center) and then release it by
pushing the auxiliary latch to the
right.
3. Open the hood and support it
with the prop rod.
To close the hood, lower the hood
and allow it to drop from under its
own weight for the last 8-11 inches (20-30 centimeters).
Note:Make sure that the hood is closed properly.
Maintenance247
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

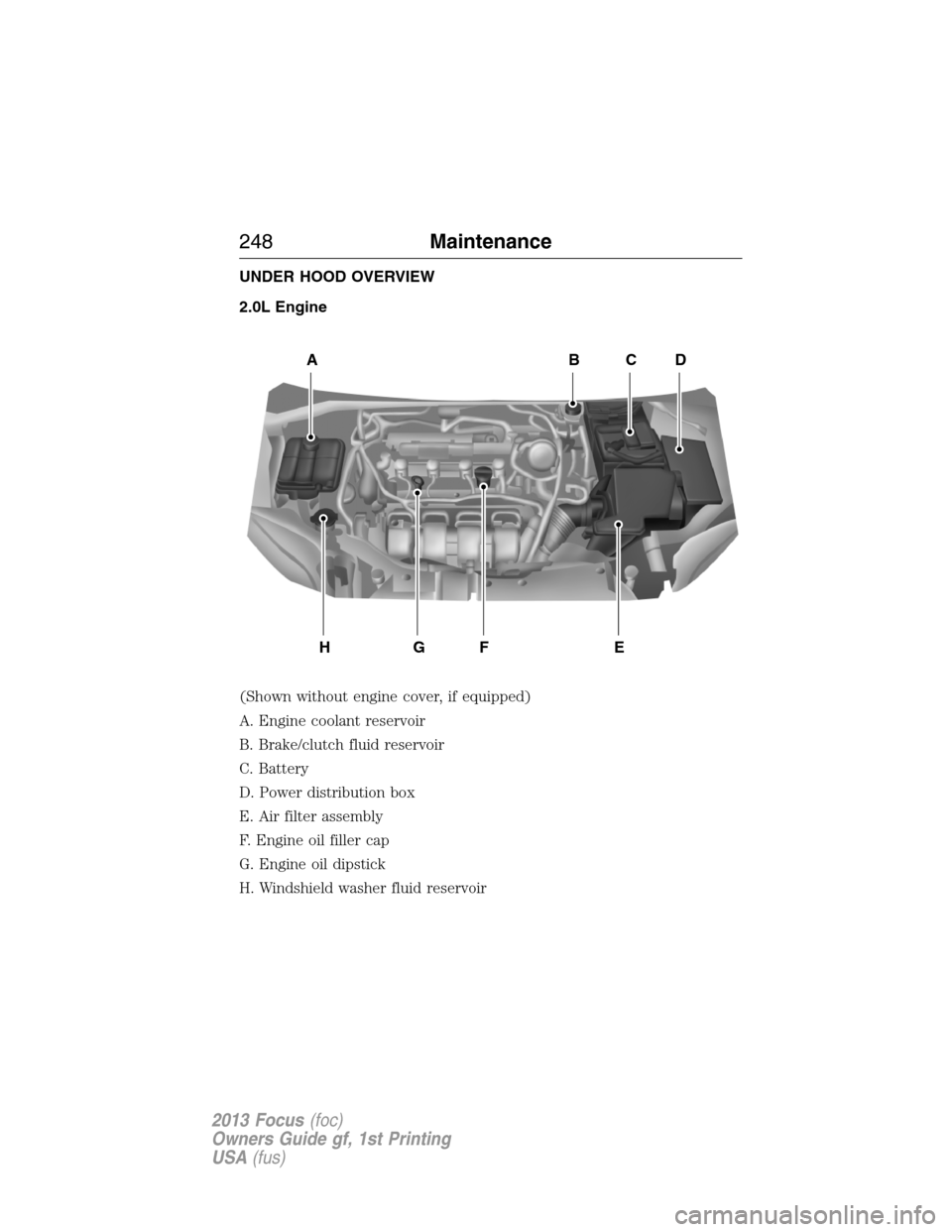

UNDER HOOD OVERVIEW
2.0L Engine
(Shown without engine cover, if equipped)
A. Engine coolant reservoir
B. Brake/clutch fluid reservoir
C. Battery
D. Power distribution box
E. Air filter assembly
F. Engine oil filler cap
G. Engine oil dipstick
H. Windshield washer fluid reservoir
ABCD
EFGH
248Maintenance
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

ENGINE OIL DIPSTICK
A.–MIN
B. – MAX
ENGINE OIL CHECK
Note:Check the level before starting the engine.
Note:Make sure that the level is between the MIN and MAX marks.
1. Make sure that your vehicle is on level ground.
2. Turn the engine off and wait 10 minutes for the oil to drain into the
oil pan.
3. Remove the dipstick and wipe it with a clean, lint-free cloth. Replace
the dipstick and remove it again to check the oil level.
If the level is at the MIN mark, add oil immediately.
Adding Engine Oil
Note:Do not remove the filler cap when the engine is running.
Note:Do not add engine oil further than the MAX mark. Oil levels above
the MAX mark may cause engine damage.
Only use oils certified for gasoline engines by the
American Petroleum Institute (API). An oil with this
trademark symbol conforms to the current engine and
emission system protection standards and fuel
economy requirements of the International Lubricants
Specification Advisory Council (ILSAC), comprised of
U.S. and Japanese automobile manufacturers.
1. Remove the filler cap.
2. Add engine oil that meets Ford specifications. SeeCapacities and
Specificationsfor more information.
3. Replace the filler cap. Turn it until you feel a strong resistance.
AB
Maintenance249
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

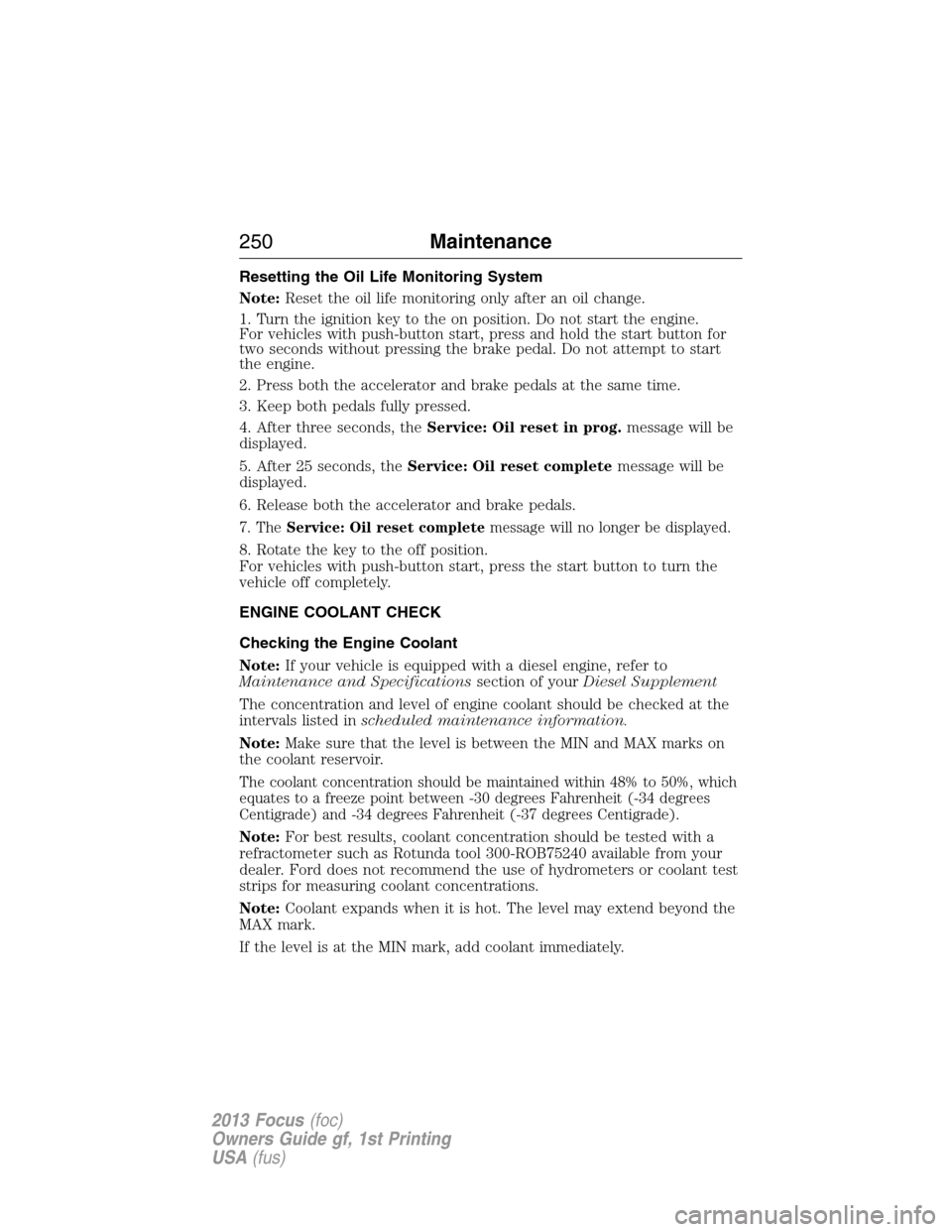

Resetting the Oil Life Monitoring System
Note:Reset the oil life monitoring only after an oil change.
1. Turn the ignition key to the on position. Do not start the engine.
For vehicles with push-button start, press and hold the start button for
two seconds without pressing the brake pedal. Do not attempt to start
the engine.
2. Press both the accelerator and brake pedals at the same time.
3. Keep both pedals fully pressed.
4. After three seconds, theService: Oil reset in prog.message will be
displayed.
5. After 25 seconds, theService: Oil reset completemessage will be
displayed.
6. Release both the accelerator and brake pedals.
7. TheService: Oil reset completemessage will no longer be displayed.
8. Rotate the key to the off position.
For vehicles with push-button start, press the start button to turn the
vehicle off completely.
ENGINE COOLANT CHECK
Checking the Engine Coolant
Note:If your vehicle is equipped with a diesel engine, refer to
Maintenance and Specificationssection of yourDiesel Supplement
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.
Note:Make sure that the level is between the MIN and MAX marks on
the coolant reservoir.
The coolant concentration should be maintained within 48% to 50%, which
equates to a freeze point between -30 degrees Fahrenheit (-34 degrees
Centigrade) and -34 degrees Fahrenheit (-37 degrees Centigrade).
Note:For best results, coolant concentration should be tested with a
refractometer such as Rotunda tool 300-ROB75240 available from your
dealer. Ford does not recommend the use of hydrometers or coolant test
strips for measuring coolant concentrations.
Note:Coolant expands when it is hot. The level may extend beyond the
MAX mark.
If the level is at the MIN mark, add coolant immediately.
250Maintenance
