Page 3 of 475
Windows and Mirrors 95
Power windows.......................................95
Exteriormirrors.......................................97
Mirrors .............................................97
Interior mirrors.......................................99
Sun visors...........................................99
Moonroof............................................99
Instrument Cluster 102
Gauges.............................................102
Warning lamps and indicators............................103
Audible warnings and indicators..........................107
Information Displays 108
Controls............................................108
Trip computer.......................................110
Information messages..................................112
Audio System 123
AM/FMstereo........................................125

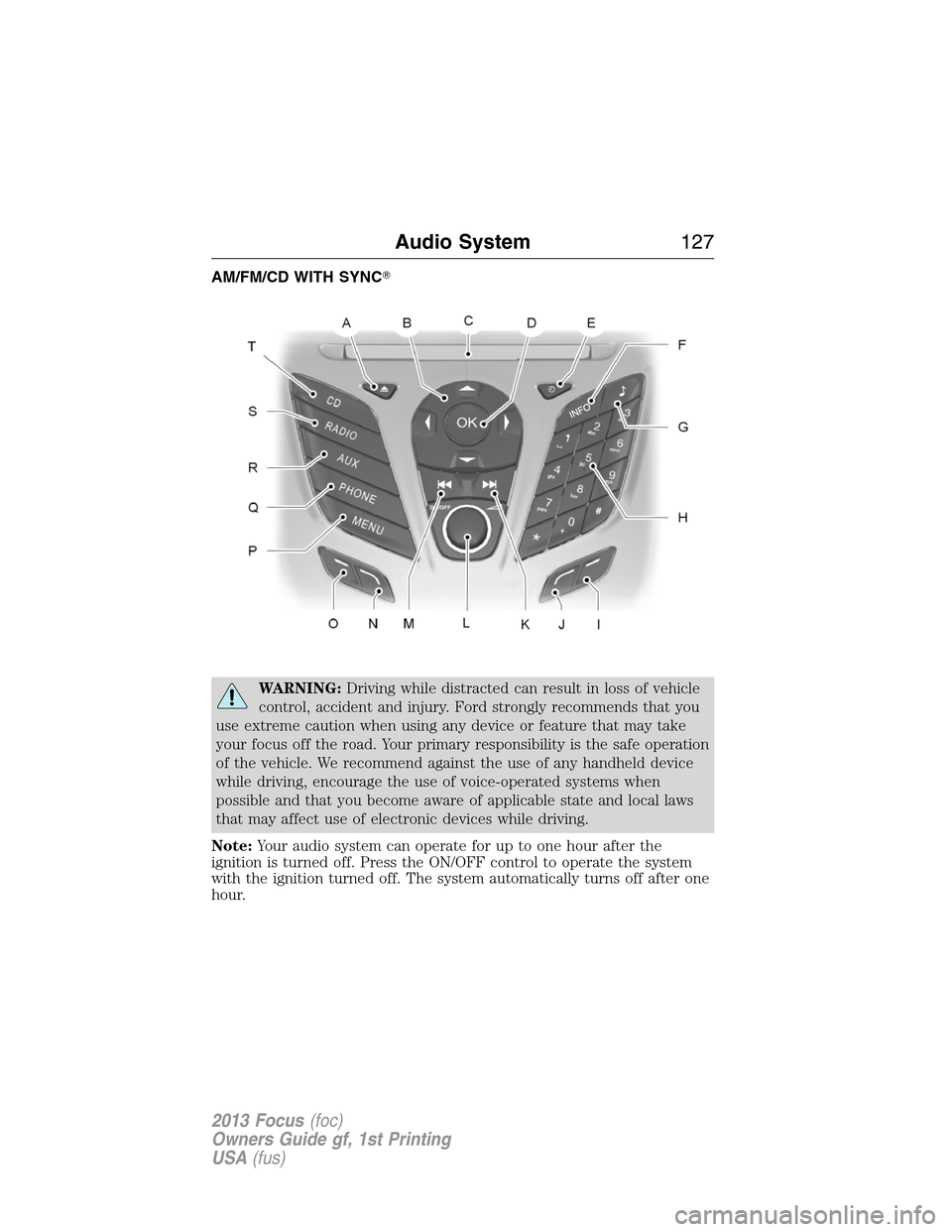

AM/FM/CD with SYNC.................................127
AM/FM/CD/SIRIUS Satellite Radio with SYNC.................130
AM/FMstereowithsingleCD ............................132
Auxiliary input jack...................................136
USBport...........................................137
Satellite radio information...............................138
Climate Control 141
Manual heating and air conditioning........................141
Dual automatic temperature control........................143
Rear window defroster.................................148
Cabin air filter.......................................149
Table of Contents3
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 66 of 475

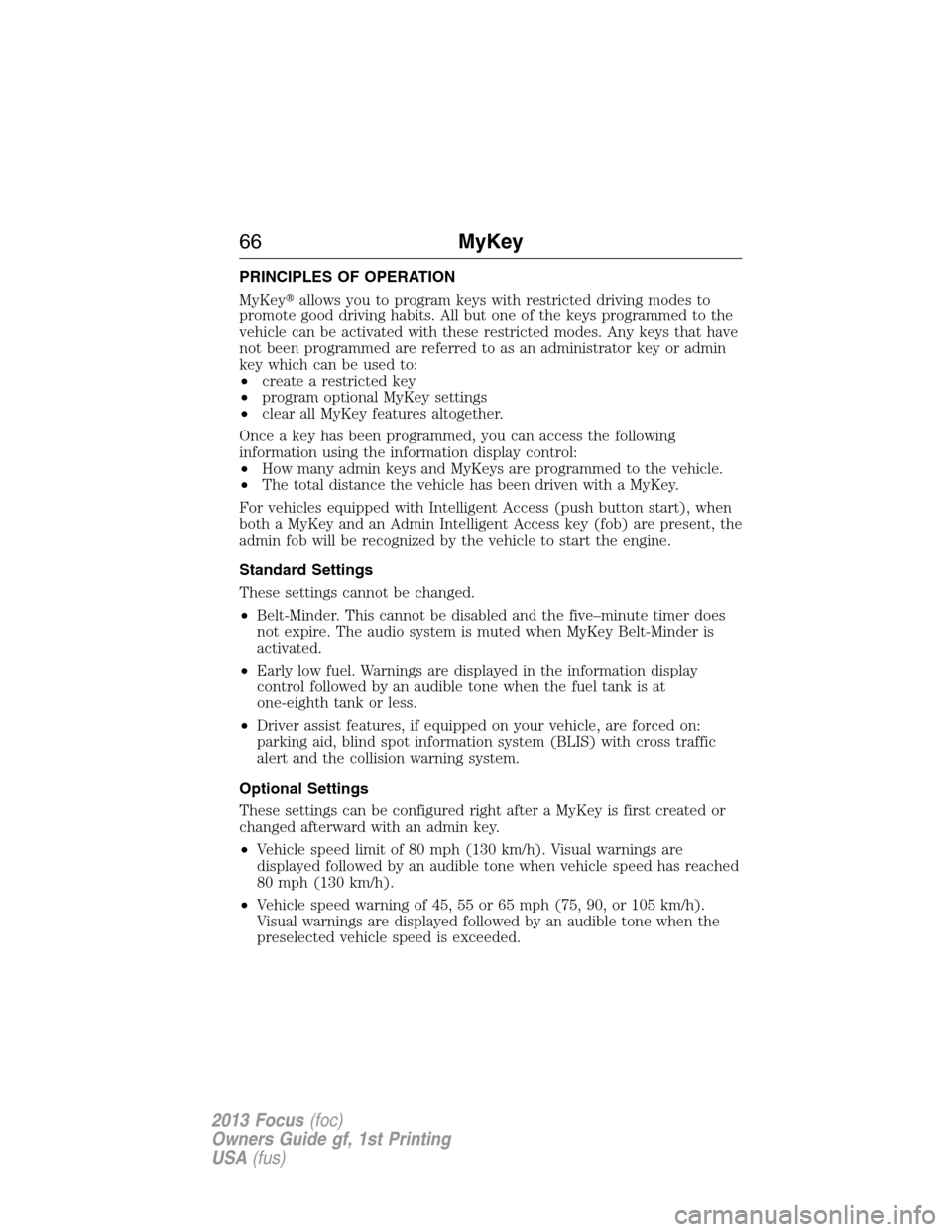

PRINCIPLES OF OPERATION
MyKeyallows you to program keys with restricted driving modes to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated with these restricted modes. Any keys that have
not been programmed are referred to as an administrator key or admin
key which can be used to:
•create a restricted key
•program optional MyKey settings
•clear all MyKey features altogether.
Once a key has been programmed, you can access the following
information using the information display control:
•How many admin keys and MyKeys are programmed to the vehicle.
•The total distance the vehicle has been driven with a MyKey.
For vehicles equipped with Intelligent Access (push button start), when
both a MyKey and an Admin Intelligent Access key (fob) are present, the
admin fob will be recognized by the vehicle to start the engine.
Standard Settings
These settings cannot be changed.
•Belt-Minder. This cannot be disabled and the five–minute timer does
not expire. The audio system is muted when MyKey Belt-Minder is
activated.
•Early low fuel. Warnings are displayed in the information display
control followed by an audible tone when the fuel tank is at
one-eighth tank or less.
•Driver assist features, if equipped on your vehicle, are forced on:
parking aid, blind spot information system (BLIS) with cross traffic
alert and the collision warning system.
Optional Settings
These settings can be configured right after a MyKey is first created or
changed afterward with an admin key.
•Vehicle speed limit of 80 mph (130 km/h). Visual warnings are
displayed followed by an audible tone when vehicle speed has reached
80 mph (130 km/h).
•Vehicle speed warning of 45, 55 or 65 mph (75, 90, or 105 km/h).
Visual warnings are displayed followed by an audible tone when the
preselected vehicle speed is exceeded.
66MyKey
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 67 of 475

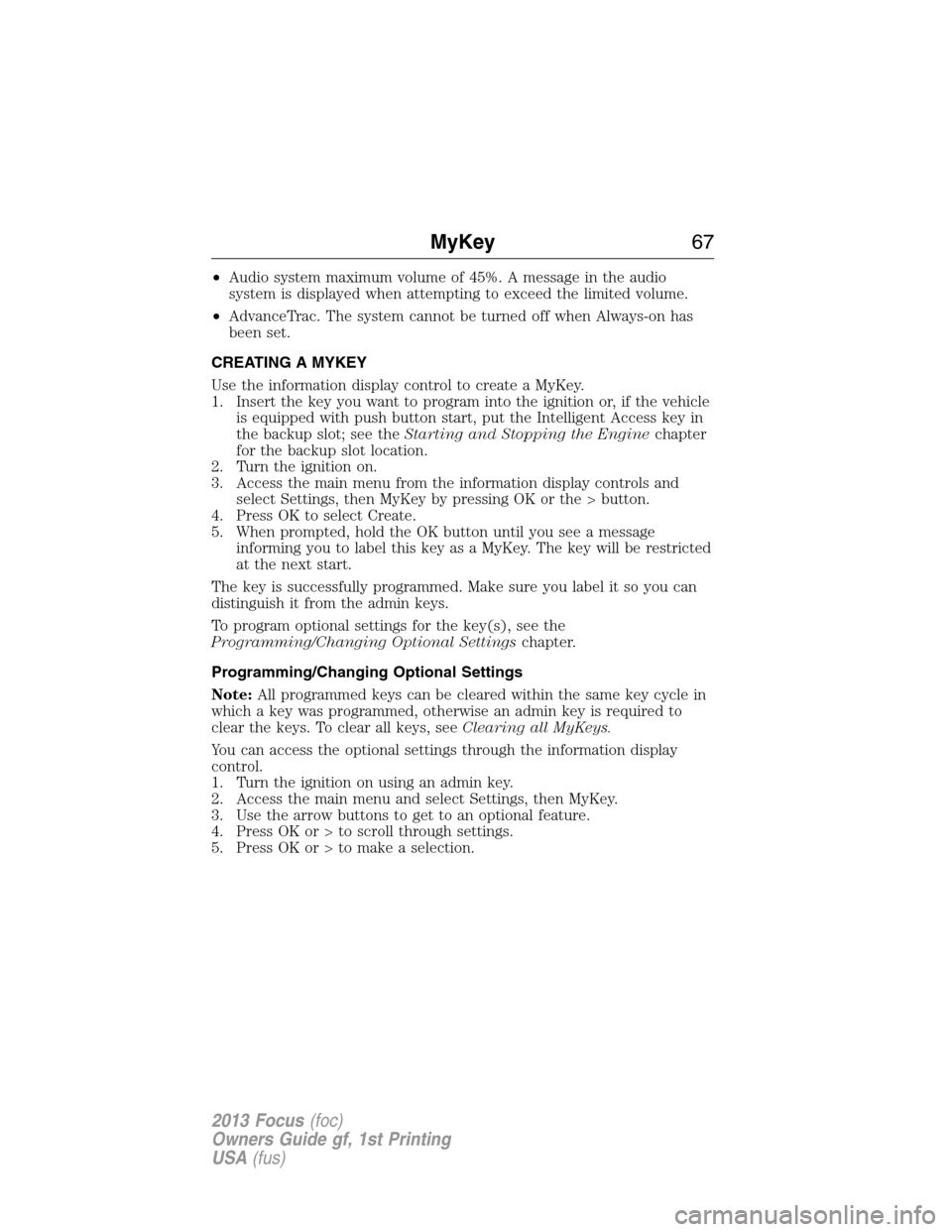

•Audio system maximum volume of 45%. A message in the audio
system is displayed when attempting to exceed the limited volume.
•AdvanceTrac. The system cannot be turned off when Always-on has
been set.
CREATING A MYKEY
Use the information display control to create a MyKey.
1. Insert the key you want to program into the ignition or, if the vehicle
is equipped with push button start, put the Intelligent Access key in
the backup slot; see theStarting and Stopping the Enginechapter
for the backup slot location.
2. Turn the ignition on.
3. Access the main menu from the information display controls and
select Settings, then MyKey by pressing OK or the > button.
4. Press OK to select Create.
5. When prompted, hold the OK button until you see a message
informing you to label this key as a MyKey. The key will be restricted
at the next start.
The key is successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.
To program optional settings for the key(s), see the
Programming/Changing Optional Settingschapter.
Programming/Changing Optional Settings
Note:All programmed keys can be cleared within the same key cycle in
which a key was programmed, otherwise an admin key is required to
clear the keys. To clear all keys, seeClearing all MyKeys.
You can access the optional settings through the information display
control.
1. Turn the ignition on using an admin key.
2. Access the main menu and select Settings, then MyKey.
3. Use the arrow buttons to get to an optional feature.
4. Press OK or > to scroll through settings.
5. Press OK or > to make a selection.
MyKey67
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 83 of 475

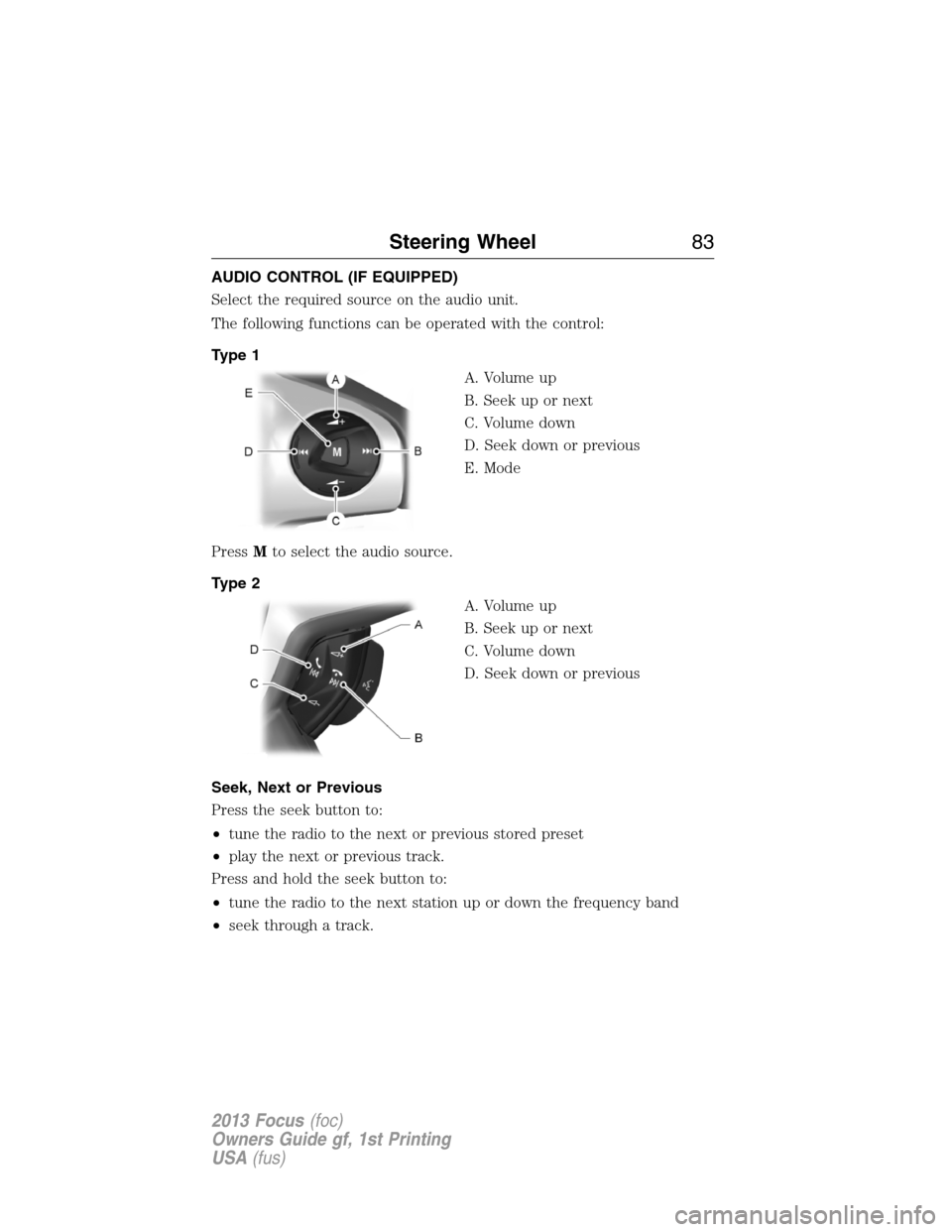

AUDIO CONTROL (IF EQUIPPED)
Select the required source on the audio unit.
The following functions can be operated with the control:
Type 1
A. Volume up
B. Seek up or next
C. Volume down
D. Seek down or previous
E. Mode
PressMto select the audio source.
Type 2
A. Volume up
B. Seek up or next
C. Volume down
D. Seek down or previous
Seek, Next or Previous
Press the seek button to:
•tune the radio to the next or previous stored preset
•play the next or previous track.
Press and hold the seek button to:
•tune the radio to the next station up or down the frequency band
•seek through a track.
Steering Wheel83
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 117 of 475

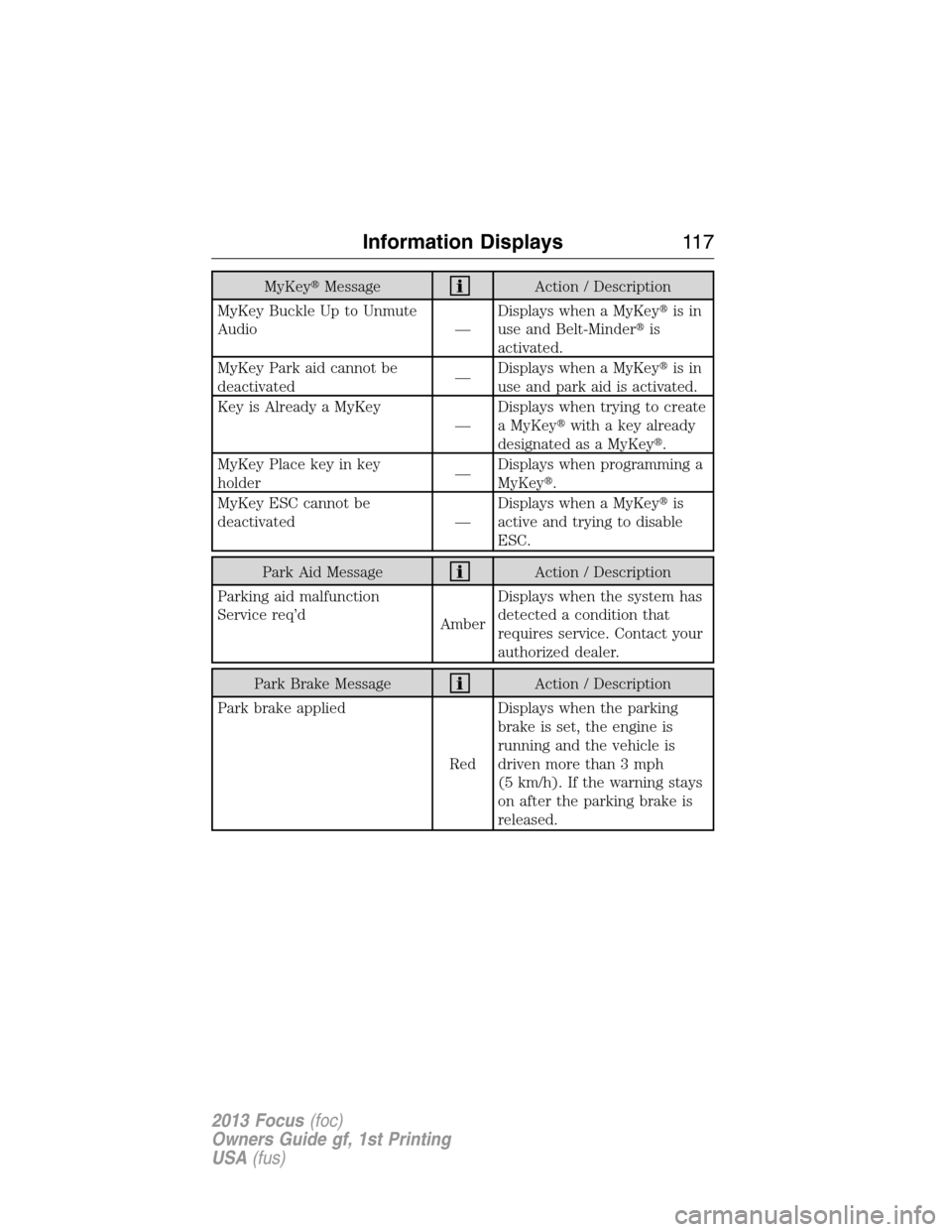

MyKeyMessageAction / Description
MyKey Buckle Up to Unmute
Audio —Displays when a MyKeyis in
use and Belt-Minderis
activated.
MyKey Park aid cannot be
deactivated—Displays when a MyKeyis in
use and park aid is activated.
Key is Already a MyKey
—Displays when trying to create
a MyKeywith a key already
designated as a MyKey.
MyKey Place key in key
holder—Displays when programming a
MyKey.
MyKey ESC cannot be
deactivated —Displays when a MyKeyis
active and trying to disable
ESC.
Park Aid MessageAction / Description
Parking aid malfunction
Service req’d
AmberDisplays when the system has
detected a condition that
requires service. Contact your
authorized dealer.
Park Brake MessageAction / Description
Park brake applied
RedDisplays when the parking
brake is set, the engine is
running and the vehicle is
driven more than 3 mph
(5 km/h). If the warning stays
on after the parking brake is
released.
Information Displays11 7
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 123 of 475

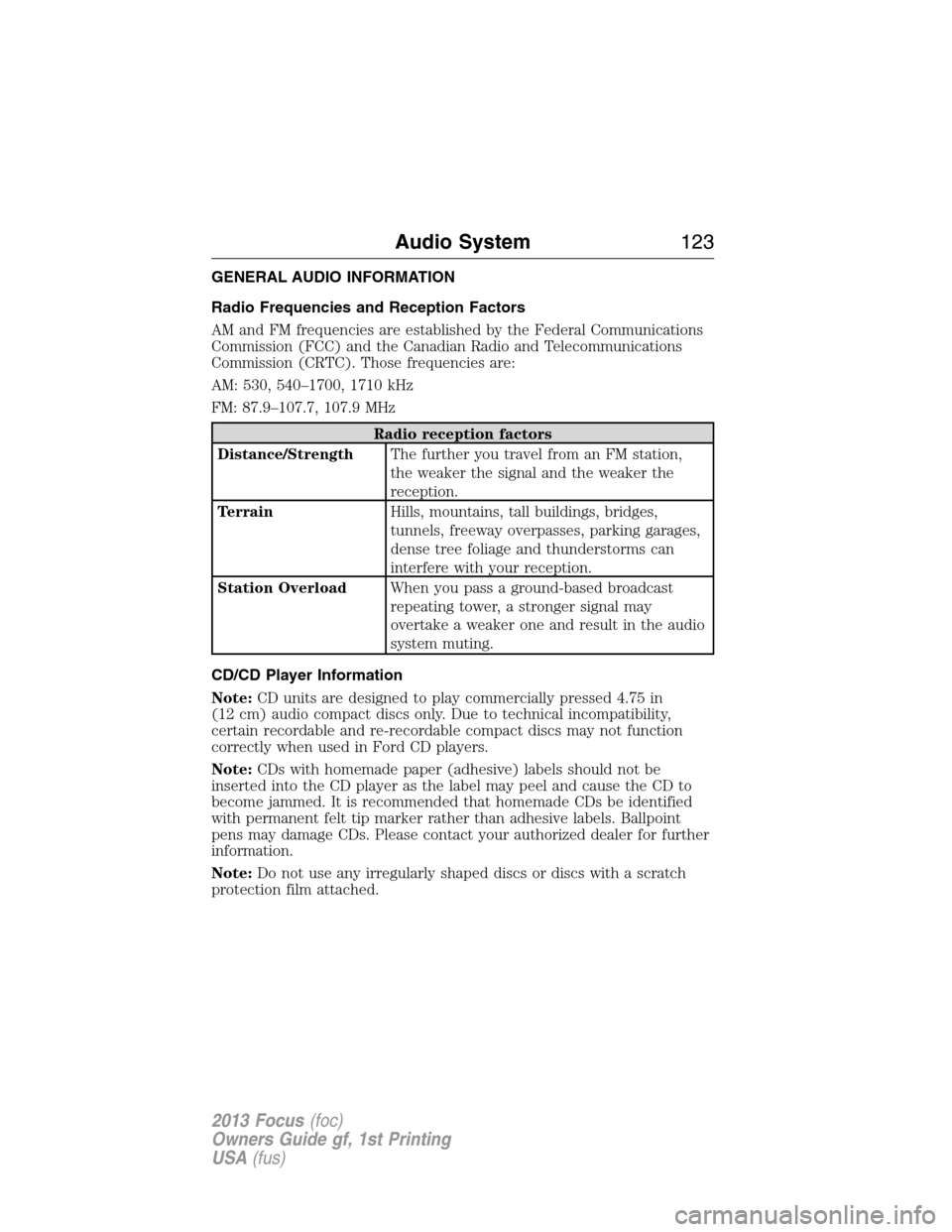

GENERAL AUDIO INFORMATION
Radio Frequencies and Reception Factors
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.9–107.7, 107.9 MHz
Radio reception factors
Distance/StrengthThe further you travel from an FM station,
the weaker the signal and the weaker the
reception.
TerrainHills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking garages,
dense tree foliage and thunderstorms can
interfere with your reception.
Station OverloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and result in the audio
system muting.
CD/CD Player Information
Note:CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not function
correctly when used in Ford CD players.
Note:CDs with homemade paper (adhesive) labels should not be
inserted into the CD player as the label may peel and cause the CD to
become jammed. It is recommended that homemade CDs be identified
with permanent felt tip marker rather than adhesive labels. Ballpoint
pens may damage CDs. Please contact your authorized dealer for further
information.
Note:Do not use any irregularly shaped discs or discs with a scratch
protection film attached.
Audio System123
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 124 of 475

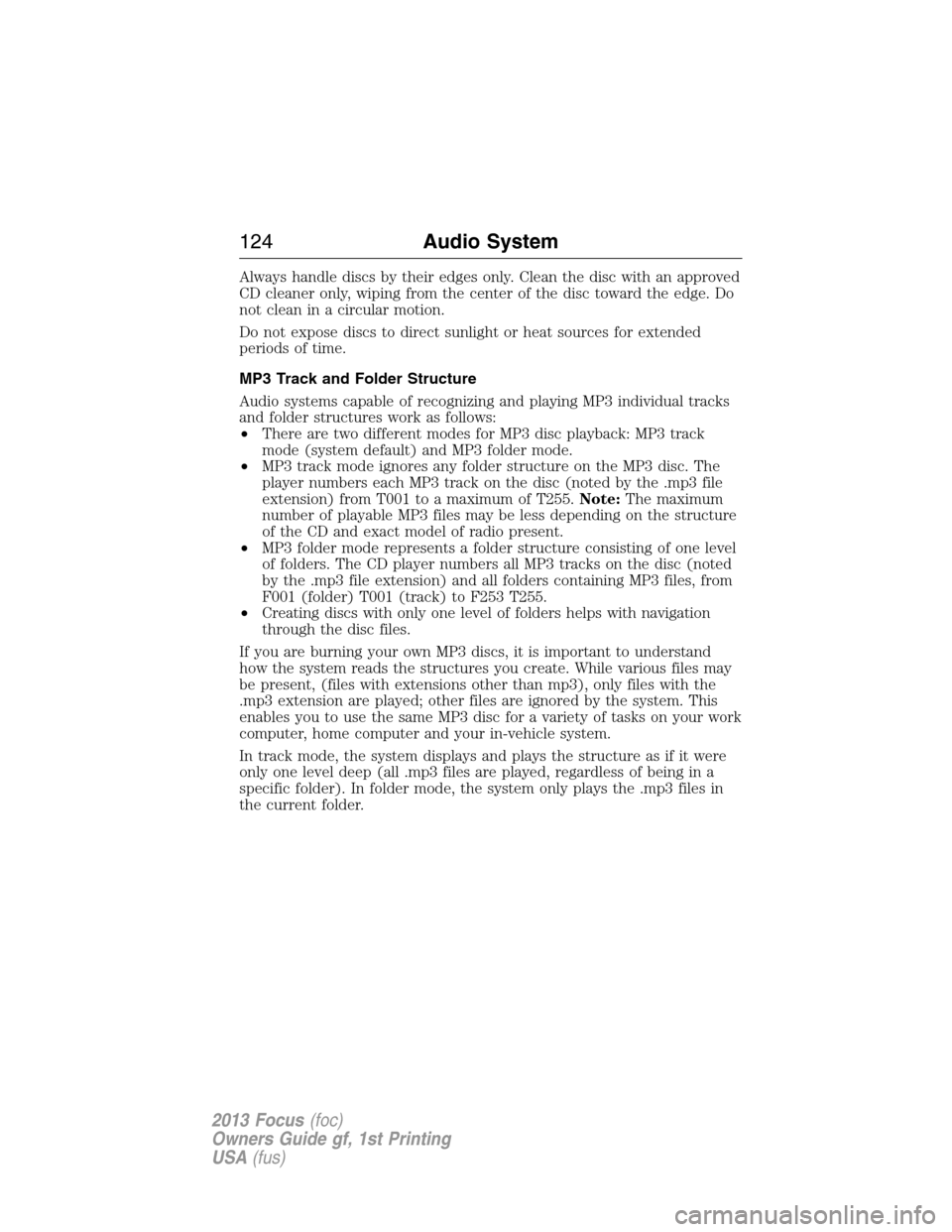

Always handle discs by their edges only. Clean the disc with an approved
CD cleaner only, wiping from the center of the disc toward the edge. Do
not clean in a circular motion.
Do not expose discs to direct sunlight or heat sources for extended
periods of time.
MP3 Track and Folder Structure
Audio systems capable of recognizing and playing MP3 individual tracks
and folder structures work as follows:
•There are two different modes for MP3 disc playback: MP3 track
mode (system default) and MP3 folder mode.
•MP3 track mode ignores any folder structure on the MP3 disc. The
player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.Note:The maximum
number of playable MP3 files may be less depending on the structure
of the CD and exact model of radio present.
•MP3 folder mode represents a folder structure consisting of one level
of folders. The CD player numbers all MP3 tracks on the disc (noted
by the .mp3 file extension) and all folders containing MP3 files, from
F001 (folder) T001 (track) to F253 T255.
•Creating discs with only one level of folders helps with navigation
through the disc files.
If you are burning your own MP3 discs, it is important to understand
how the system reads the structures you create. While various files may
be present, (files with extensions other than mp3), only files with the
.mp3 extension are played; other files are ignored by the system. This
enables you to use the same MP3 disc for a variety of tasks on your work
computer, home computer and your in-vehicle system.
In track mode, the system displays and plays the structure as if it were
only one level deep (all .mp3 files are played, regardless of being in a
specific folder). In folder mode, the system only plays the .mp3 files in
the current folder.
124Audio System
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 125 of 475

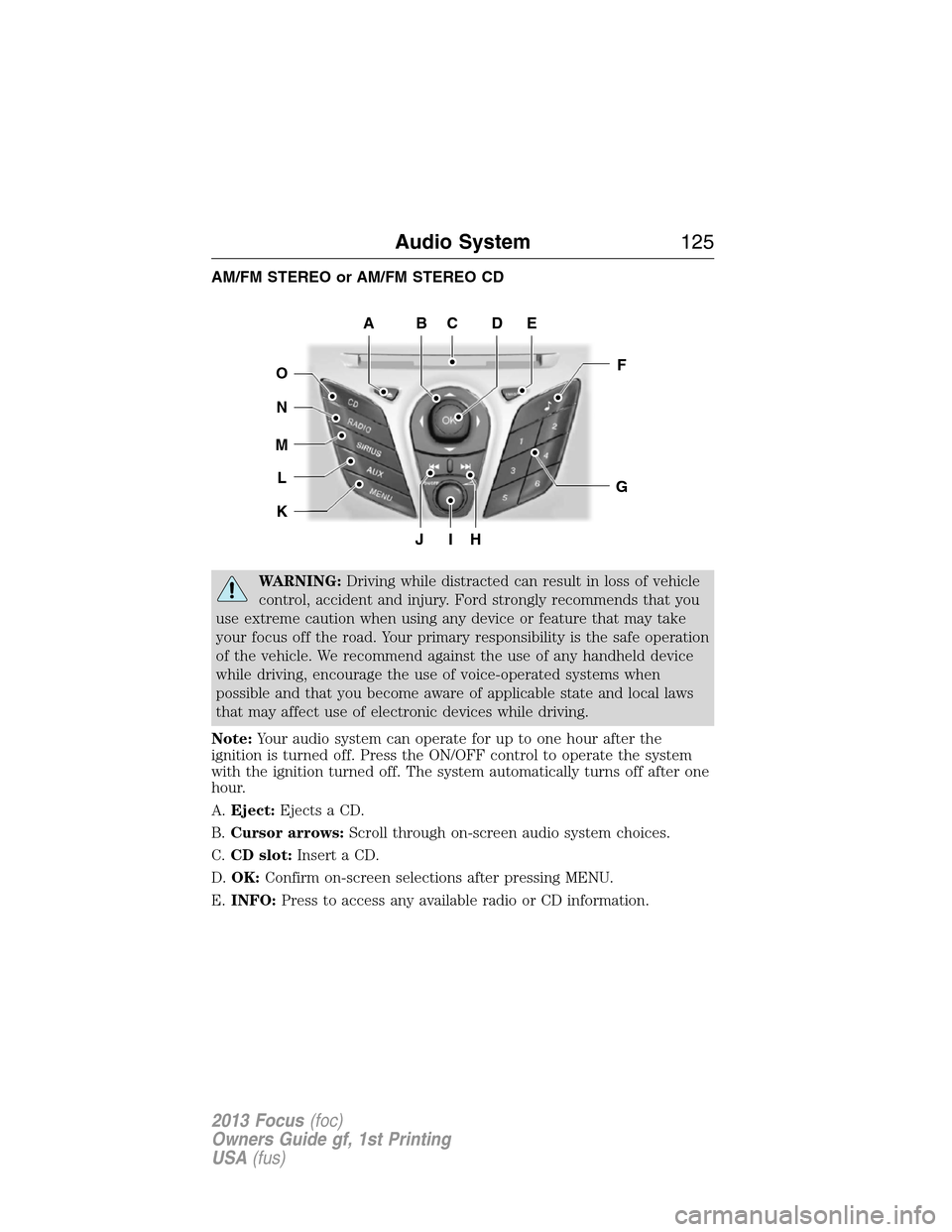

AM/FM STEREO or AM/FM STEREO CD
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
Note:Your audio system can operate for up to one hour after the
ignition is turned off. Press the ON/OFF control to operate the system
with the ignition turned off. The system automatically turns off after one
hour.
A.Eject:Ejects a CD.
B.Cursor arrows:Scroll through on-screen audio system choices.
C.CD slot:Insert a CD.
D.OK:Confirm on-screen selections after pressing MENU.
E.INFO:Press to access any available radio or CD information.
JIH
F
G
EDCBA
O
N
M
L
K
Audio System125
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 126 of 475
F.SOUND:
•Press to access Treble, Bass, Middle, Fade (if equipped) and Balance
menu options.
•Use the up and down arrow buttons to see the various options. When
you make your selection, press the left and right arrow buttons to
increase or decrease the levels. Press OK to set or press MENU to
exit.
•Sound settings can be set for each audio source independently.
G.Memory presets:Store your favorite stations for later access. When
tuned to any station, press and hold a preset button until sound returns.
H.SEEK:
•Press and release to go to the next track or preset radio station.
•Press and hold to fast forward through the current track or to the
next strong radio station (manually advances between station presets
or through radio stations).
I.ON/OFF:
•Press the power control to turn the system on and off.
•Turn to adjust the volume.
J.SEEK:
•Press and release to go to the previous track or preset radio station.
•Press and hold to reverse through the current track or to the
previous strong radio station (manually reverses between station
presets or through radio stations).
K.MENU:Access different audio system features. SeeMenu structure
information later in this section.
L.AUX:Press to access LINE IN (auxiliary input jack) mode.
M.SIRIUS:Press repeatedly to access SAT1, SAT2 and SAT3 satellite
radio modes (if equipped).
N.RADIO:Access different radio features. SeeMenu structure
information later in this section.
O.CD:Access different CD features. SeeMenu structureinformation
later in this section.
126Audio System
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 127 of 475
AM/FM/CD WITH SYNC
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
Note:Your audio system can operate for up to one hour after the
ignition is turned off. Press the ON/OFF control to operate the system
with the ignition turned off. The system automatically turns off after one
hour.
Audio System127
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
