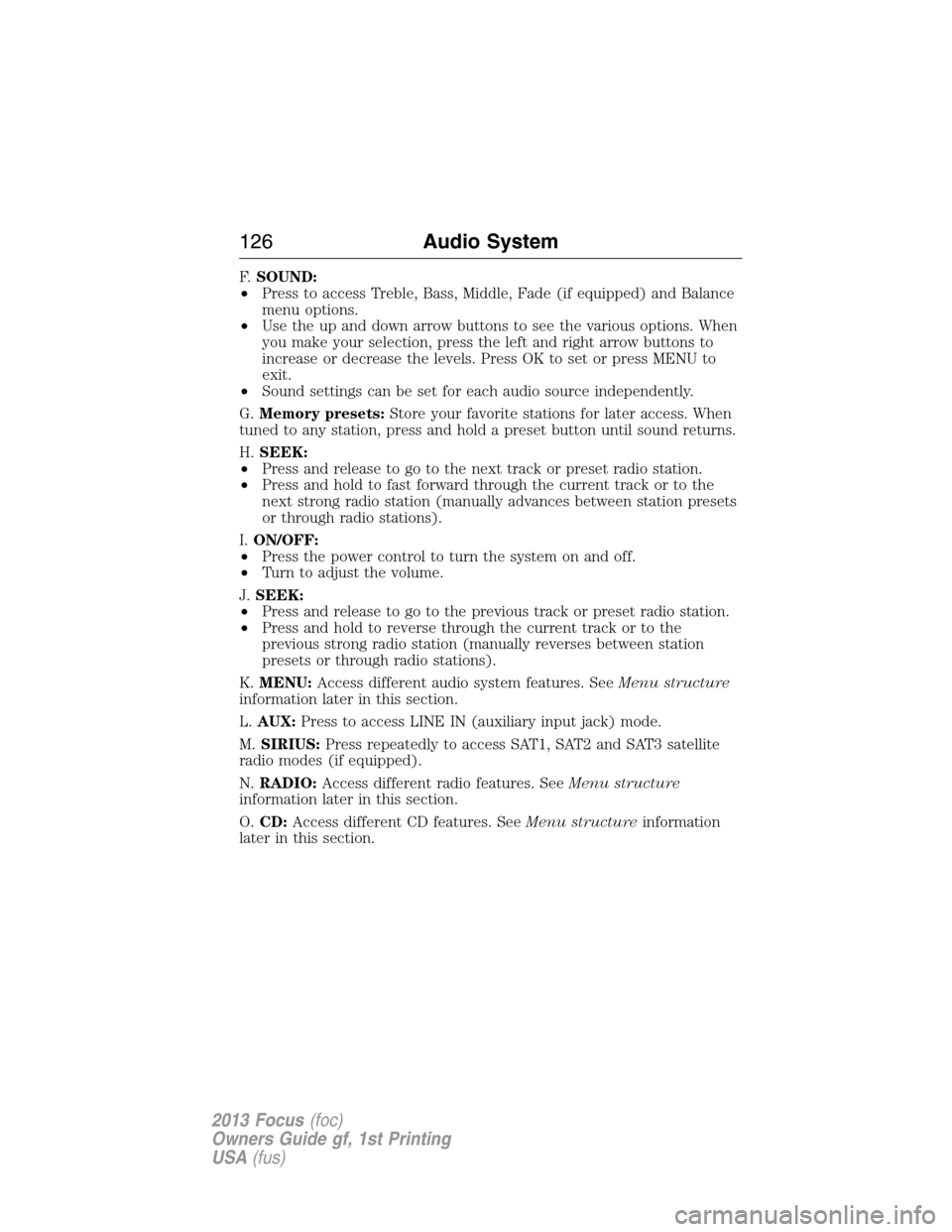

F.SOUND:
•Press to access Treble, Bass, Middle, Fade (if equipped) and Balance
menu options.
•Use the up and down arrow buttons to see the various options. When
you make your selection, press the left and right arrow buttons to
increase or decrease the levels. Press OK to set or press MENU to
exit.
•Sound settings can be set for each audio source independently.
G.Memory presets:Store your favorite stations for later access. When
tuned to any station, press and hold a preset button until sound returns.
H.SEEK:
•Press and release to go to the next track or preset radio station.
•Press and hold to fast forward through the current track or to the
next strong radio station (manually advances between station presets
or through radio stations).
I.ON/OFF:
•Press the power control to turn the system on and off.
•Turn to adjust the volume.
J.SEEK:
•Press and release to go to the previous track or preset radio station.
•Press and hold to reverse through the current track or to the
previous strong radio station (manually reverses between station
presets or through radio stations).
K.MENU:Access different audio system features. SeeMenu structure
information later in this section.
L.AUX:Press to access LINE IN (auxiliary input jack) mode.
M.SIRIUS:Press repeatedly to access SAT1, SAT2 and SAT3 satellite
radio modes (if equipped).
N.RADIO:Access different radio features. SeeMenu structure
information later in this section.
O.CD:Access different CD features. SeeMenu structureinformation
later in this section.
126Audio System
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

C.CD slot:Insert a CD.
D.OK:Confirm on-screen selections after pressing MENU.
E.INFO:Access any available radio or CD information.
F.MENU:Access different audio system features. SeeMenu structure
information later in this section.
G.Sound:Adjust the sound settings for Bass, Treble, Balance and Fade.
H.Number block:
•
In radio mode, store your favorite stations for later access. When tuned
to any station, press and hold a preset button until sound returns.
•In CD mode, select a track.
•In phone mode, enter a phone number.
•The clock function does not work with this button. Press the MENU
button and scroll to the clock settings menu.
I.Function Button 4:Select different functions of the audio system
depending on which mode (i.e., radio or CD) you are in.
J.Function Button 3:Select different functions of the audio system
depending on which mode (i.e., radio or CD) you are in.
K.SEEK:
•Press and release to go to the next track or preset radio station.
•Press and hold to fast forward through the current track or to the
next strong radio station (manually advances between station presets
or through radio stations).
L.ON/OFF:
•Press the power control to turn the system on and off.
•Turn to adjust the volume.
M.SEEK:
•Press and release to go to the previous track or preset radio station.
•Press and hold to reverse through the current track or to the
previous strong radio station (manually reverse between station
presets or through radio stations).
N.Function Button 2:Select different functions of the audio system
depending on which mode (i.e., radio or CD) you are in.
O.Function Button 1:Select different functions of the audio system
depending on which mode (i.e., radio or CD) you are in.
P.PHONE:Access the phone features of the SYNCsystem. See the
SYNCchapter for more information.
Q.AUX:Access the media features of the SYNCsystem. See the
SYNCchapter for more information.
Audio System131
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

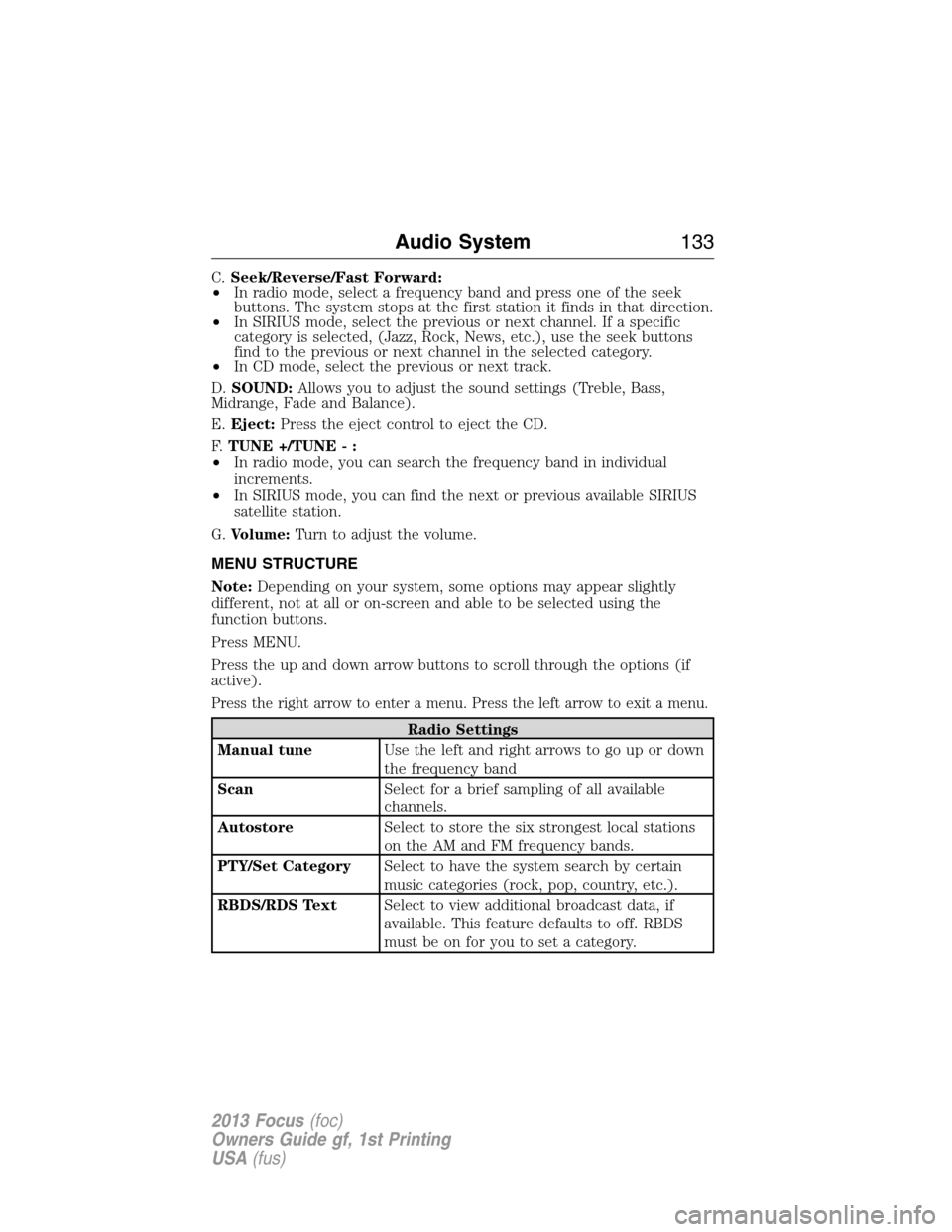

C.Seek/Reverse/Fast Forward:
•In radio mode, select a frequency band and press one of the seek
buttons. The system stops at the first station it finds in that direction.
•In SIRIUS mode, select the previous or next channel. If a specific
category is selected, (Jazz, Rock, News, etc.), use the seek buttons
find to the previous or next channel in the selected category.
•In CD mode, select the previous or next track.
D.SOUND:Allows you to adjust the sound settings (Treble, Bass,
Midrange, Fade and Balance).
E.Eject:Press the eject control to eject the CD.
F.TUNE +/TUNE - :
•In radio mode, you can search the frequency band in individual
increments.
•In SIRIUS mode, you can find the next or previous available SIRIUS
satellite station.
G.Volume:Turn to adjust the volume.
MENU STRUCTURE
Note:Depending on your system, some options may appear slightly
different, not at all or on-screen and able to be selected using the
function buttons.
Press MENU.
Press the up and down arrow buttons to scroll through the options (if
active).
Press the right arrow to enter a menu. Press the left arrow to exit a menu.
Radio Settings
Manual tuneUse the left and right arrows to go up or down
the frequency band
ScanSelect for a brief sampling of all available
channels.
AutostoreSelect to store the six strongest local stations
on the AM and FM frequency bands.
PTY/Set CategorySelect to have the system search by certain
music categories (rock, pop, country, etc.).
RBDS/RDS TextSelect to view additional broadcast data, if
available. This feature defaults to off. RBDS
must be on for you to set a category.
Audio System133
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

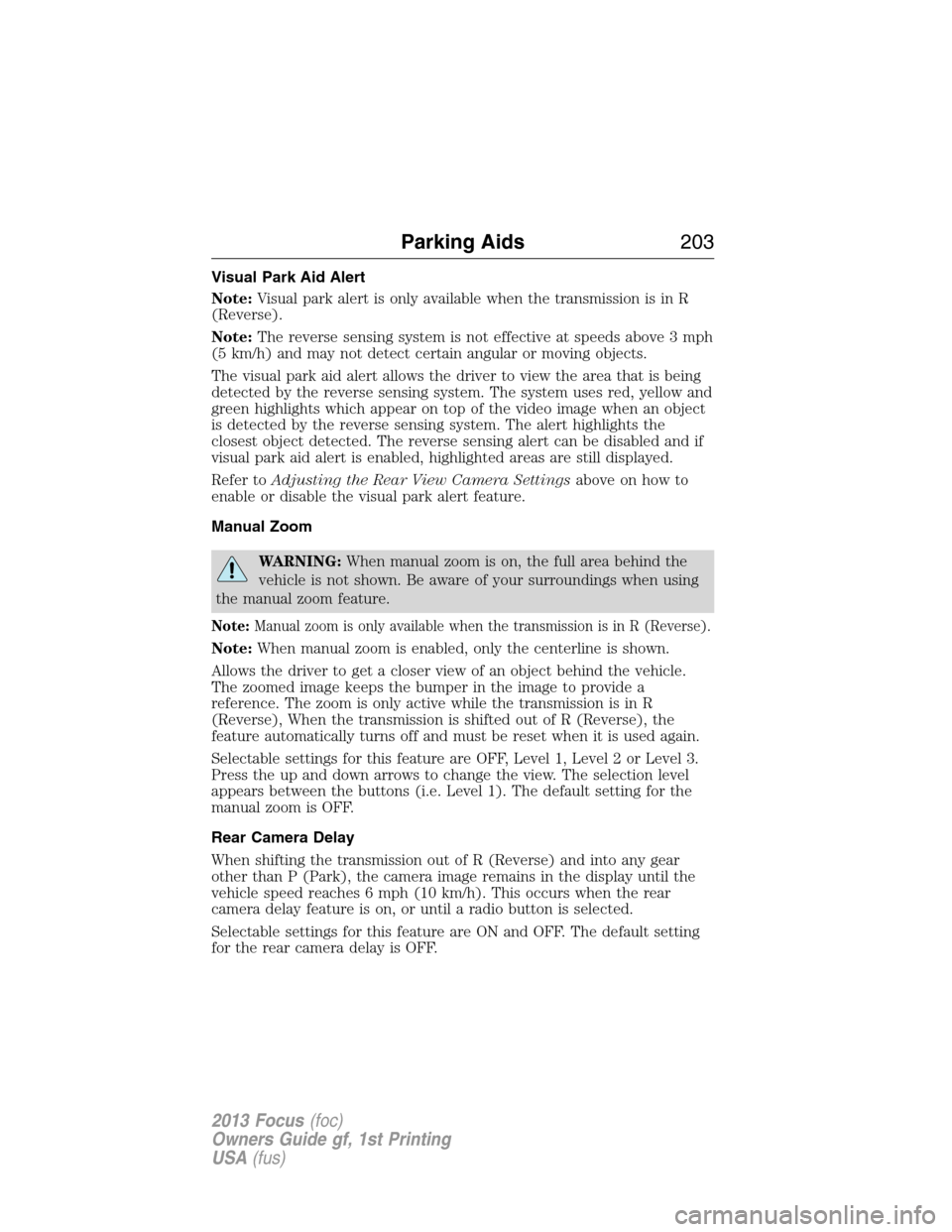

Visual Park Aid Alert
Note:Visual park alert is only available when the transmission is in R
(Reverse).
Note:The reverse sensing system is not effective at speeds above 3 mph
(5 km/h) and may not detect certain angular or moving objects.
The visual park aid alert allows the driver to view the area that is being
detected by the reverse sensing system. The system uses red, yellow and
green highlights which appear on top of the video image when an object
is detected by the reverse sensing system. The alert highlights the
closest object detected. The reverse sensing alert can be disabled and if
visual park aid alert is enabled, highlighted areas are still displayed.
Refer toAdjusting the Rear View Camera Settingsabove on how to
enable or disable the visual park alert feature.
Manual Zoom
WARNING:When manual zoom is on, the full area behind the
vehicle is not shown. Be aware of your surroundings when using
the manual zoom feature.
Note:Manual zoom is only available when the transmission is in R (Reverse).
Note:When manual zoom is enabled, only the centerline is shown.
Allows the driver to get a closer view of an object behind the vehicle.
The zoomed image keeps the bumper in the image to provide a
reference. The zoom is only active while the transmission is in R
(Reverse), When the transmission is shifted out of R (Reverse), the
feature automatically turns off and must be reset when it is used again.
Selectable settings for this feature are OFF, Level 1, Level 2 or Level 3.
Press the up and down arrows to change the view. The selection level
appears between the buttons (i.e. Level 1). The default setting for the
manual zoom is OFF.
Rear Camera Delay
When shifting the transmission out of R (Reverse) and into any gear
other than P (Park), the camera image remains in the display until the
vehicle speed reaches 6 mph (10 km/h). This occurs when the rear
camera delay feature is on, or until a radio button is selected.
Selectable settings for this feature are ON and OFF. The default setting
for the rear camera delay is OFF.
Parking Aids203
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

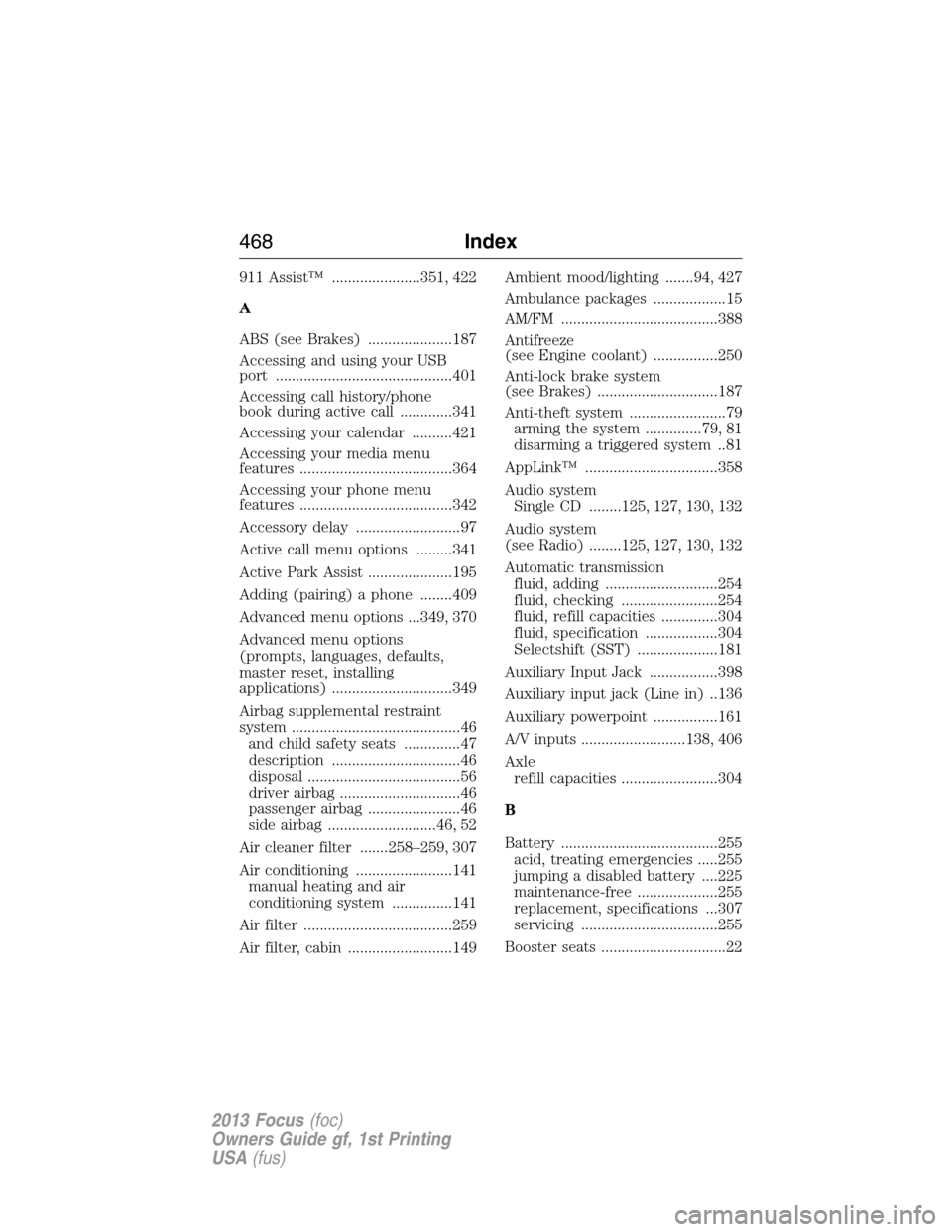

911 Assist™ ......................351, 422
A
ABS (see Brakes) .....................187
Accessing and using your USB
port ............................................401
Accessing call history/phone
book during active call .............341
Accessing your calendar ..........421
Accessing your media menu
features ......................................364
Accessing your phone menu
features ......................................342
Accessory delay ..........................97
Active call menu options .........341
Active Park Assist .....................195
Adding (pairing) a phone ........409
Advanced menu options ...349, 370
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ..............................349
Airbag supplemental restraint
system ..........................................46
and child safety seats ..............47
description ................................46
disposal ......................................56
driver airbag ..............................46
passenger airbag .......................46
side airbag ...........................46, 52
Air cleaner filter .......258–259, 307
Air conditioning ........................141
manual heating and air
conditioning system ...............141
Air filter .....................................259
Air filter, cabin ..........................149Ambient mood/lighting .......94, 427
Ambulance packages ..................15
AM/FM .......................................388
Antifreeze
(see Engine coolant) ................250
Anti-lock brake system
(see Brakes) ..............................187
Anti-theft system ........................79
arming the system ..............79, 81
disarming a triggered system ..81
AppLink™ .................................358
Audio system
Single CD ........125, 127, 130, 132
Audio system
(see Radio) ........125, 127, 130, 132
Automatic transmission
fluid, adding ............................254
fluid, checking ........................254
fluid, refill capacities ..............304
fluid, specification ..................304
Selectshift (SST) ....................181
Auxiliary Input Jack .................398
Auxiliary input jack (Line in) ..136
Auxiliary powerpoint ................161
A/V inputs ..........................138, 406
Axle
refill capacities ........................304
B
Battery .......................................255
acid, treating emergencies .....255
jumping a disabled battery ....225
maintenance-free ....................255
replacement, specifications ...307
servicing ..................................255
Booster seats ...............................22
468Index
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
