Page 21 of 29

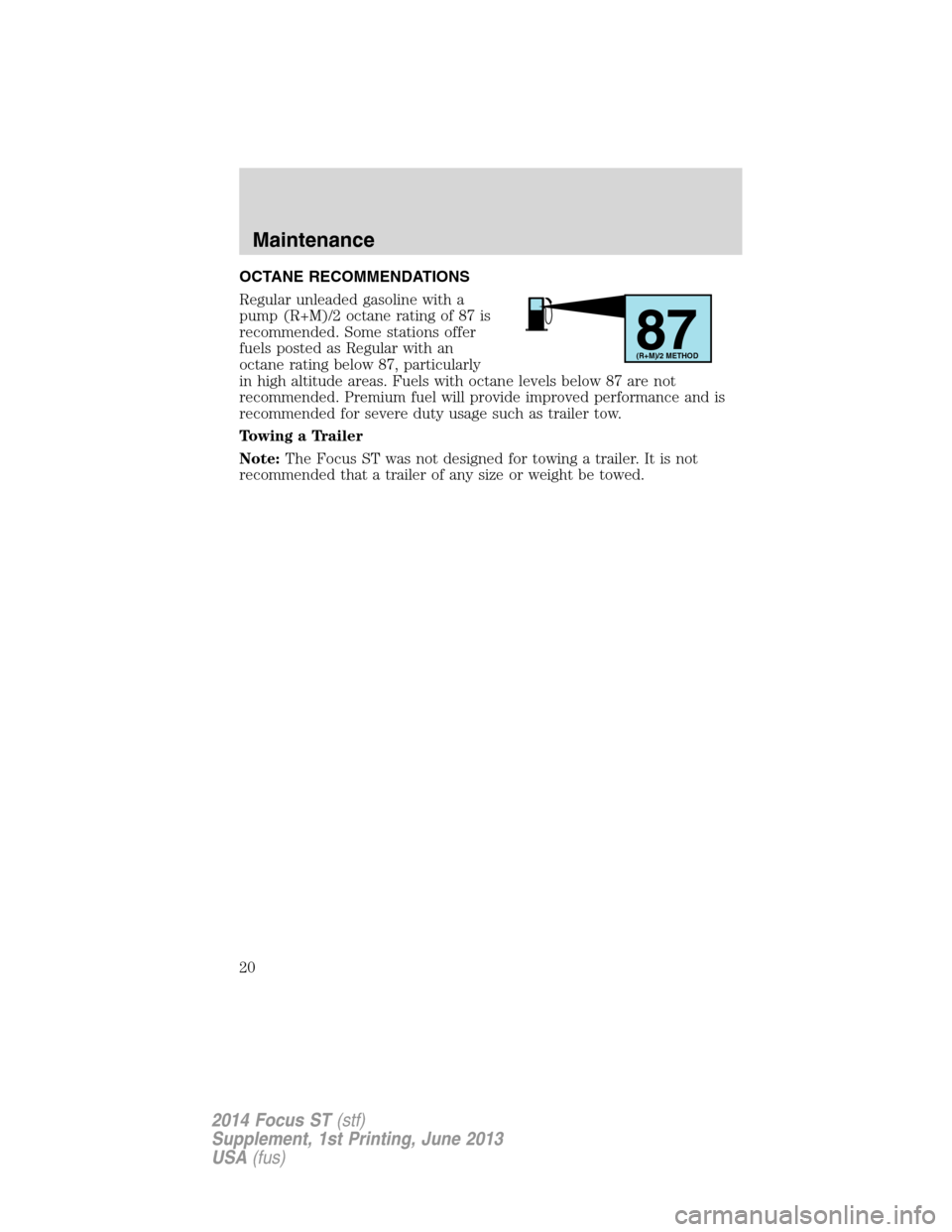

FORD FOCUS 2014 3.G ST Supplement Manual OCTANE RECOMMENDATIONS
Regular unleaded gasoline with a
pump (R+M)/2 octane rating of 87 is
recommended. Some stations offer
fuels posted as Regular with an
octane rating below 87, particularly
in hig

Page 22 of 29

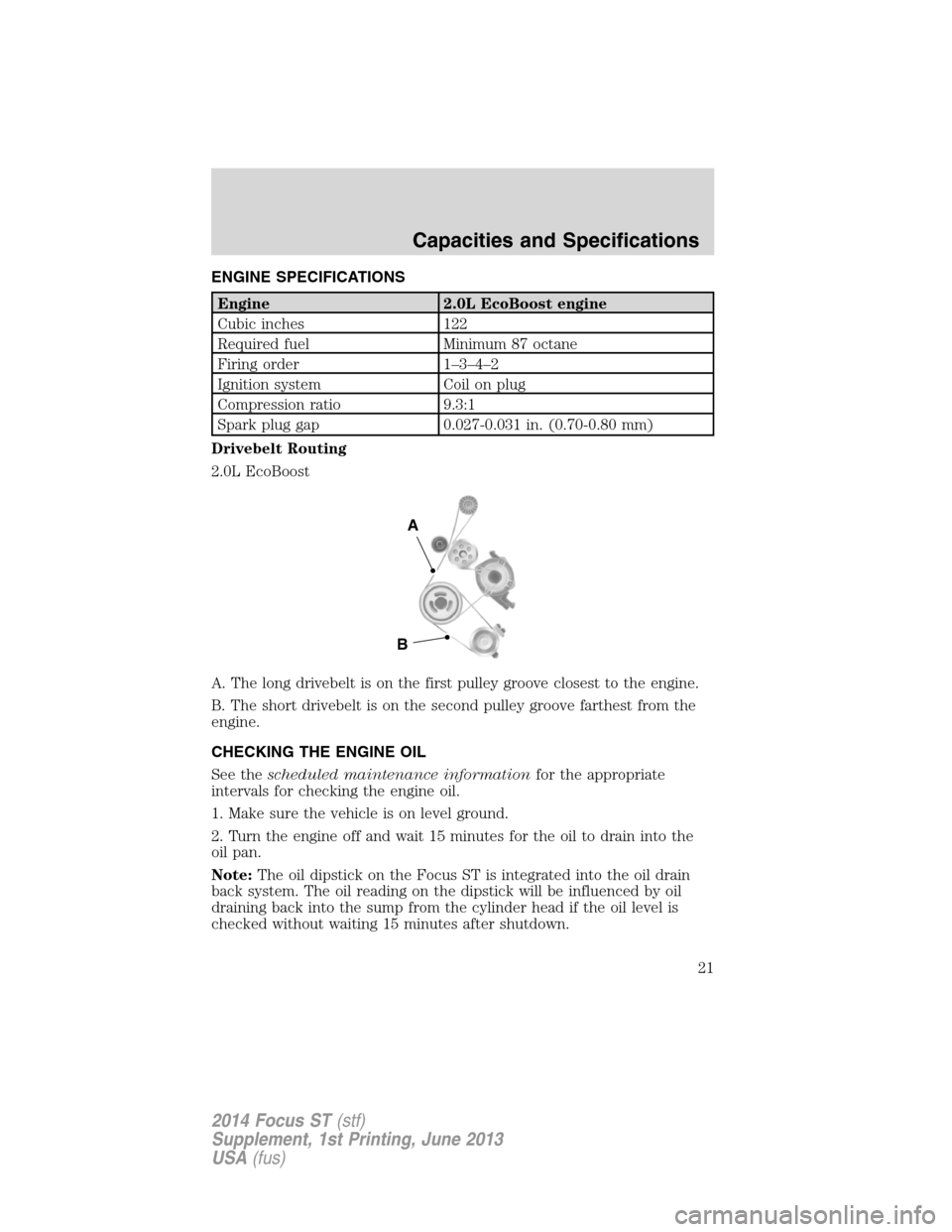

FORD FOCUS 2014 3.G ST Supplement Manual ENGINE SPECIFICATIONS
Engine 2.0L EcoBoost engine
Cubic inches 122
Required fuel Minimum 87 octane
Firing order 1–3–4–2
Ignition system Coil on plug
Compression ratio 9.3:1
Spark plug gap 0.027-

Page 23 of 29

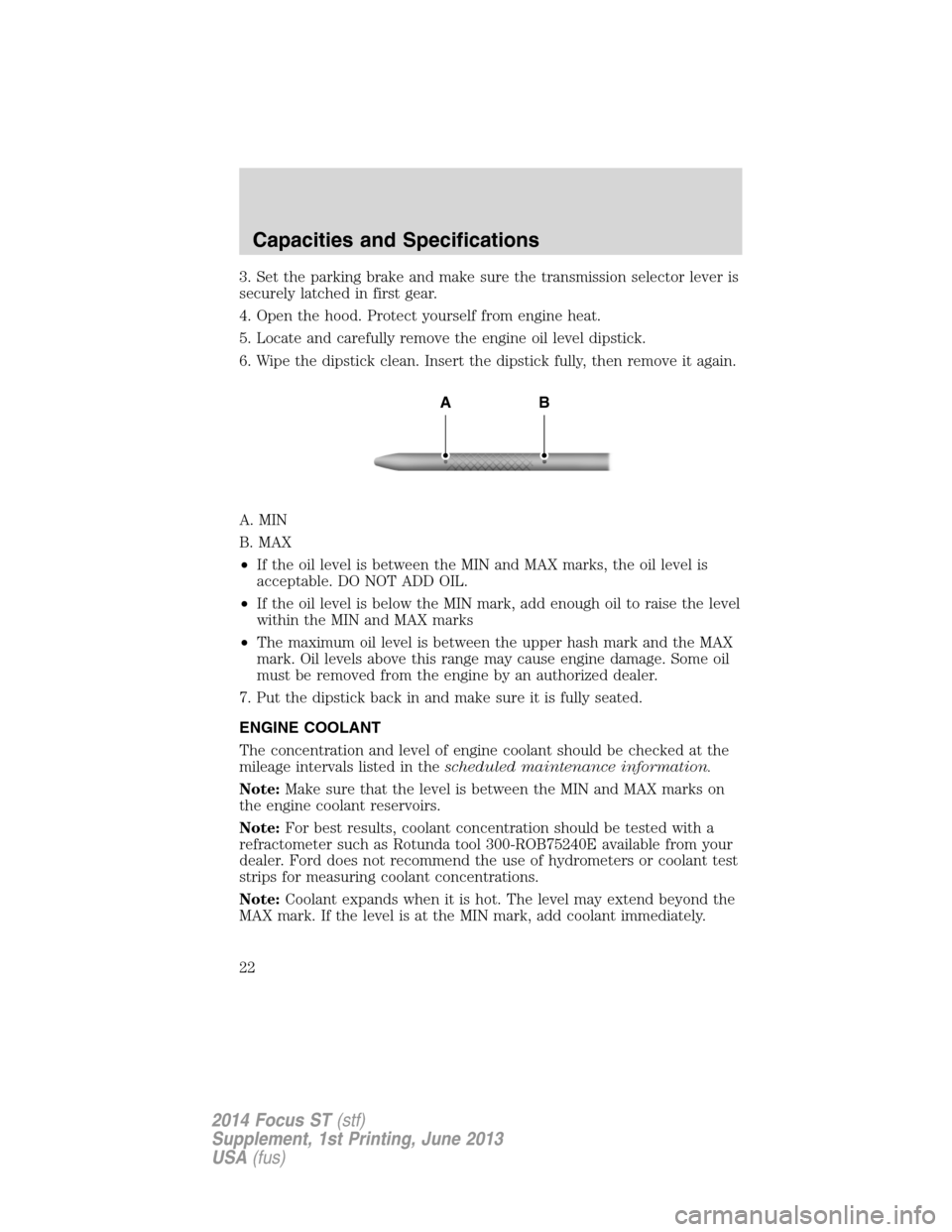

FORD FOCUS 2014 3.G ST Supplement Manual 3. Set the parking brake and make sure the transmission selector lever is
securely latched in first gear.
4. Open the hood. Protect yourself from engine heat.
5. Locate and carefully remove the engine

Page 24 of 29

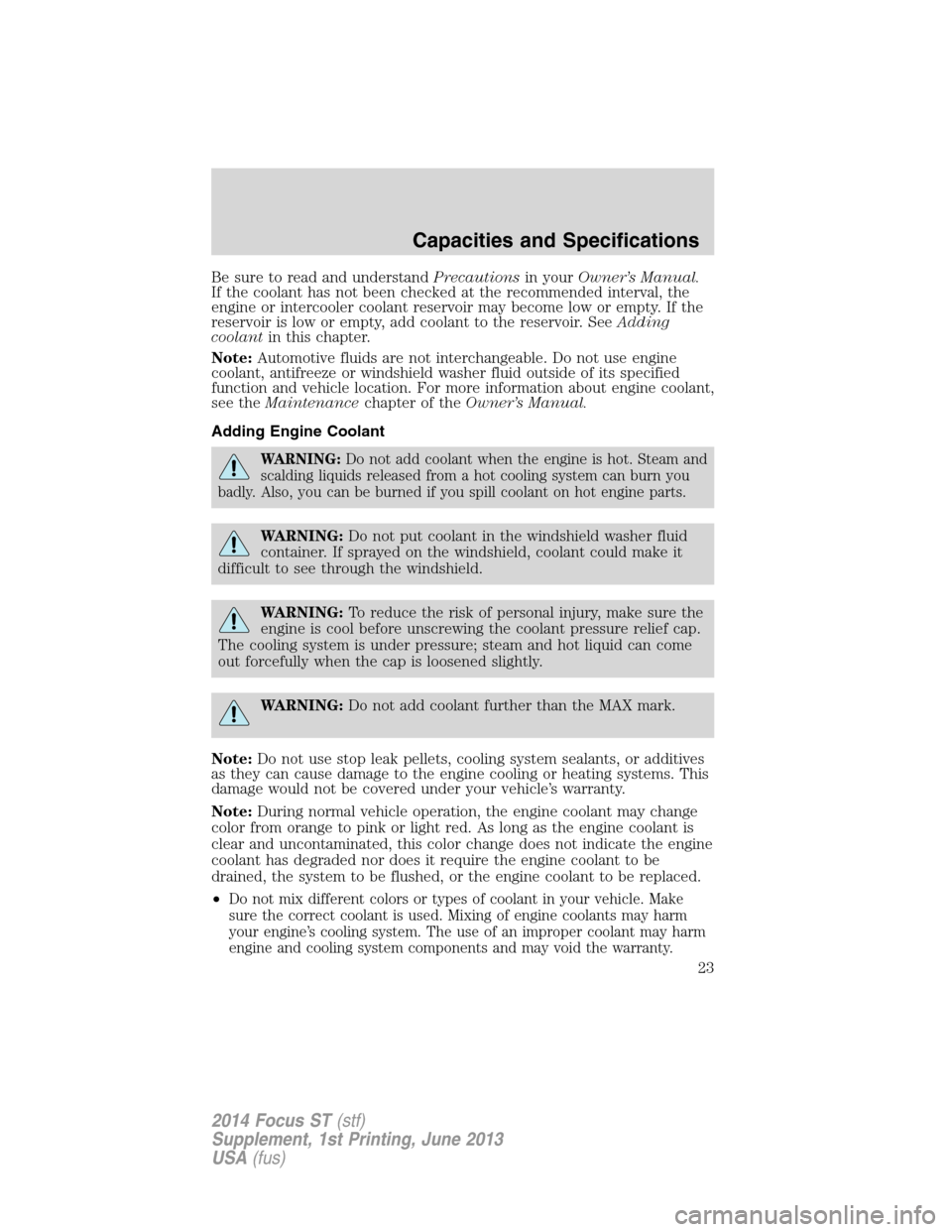

FORD FOCUS 2014 3.G ST Supplement Manual Be sure to read and understandPrecautionsin yourOwner’s Manual.
If the coolant has not been checked at the recommended interval, the
engine or intercooler coolant reservoir may become low or empty.

Page 25 of 29

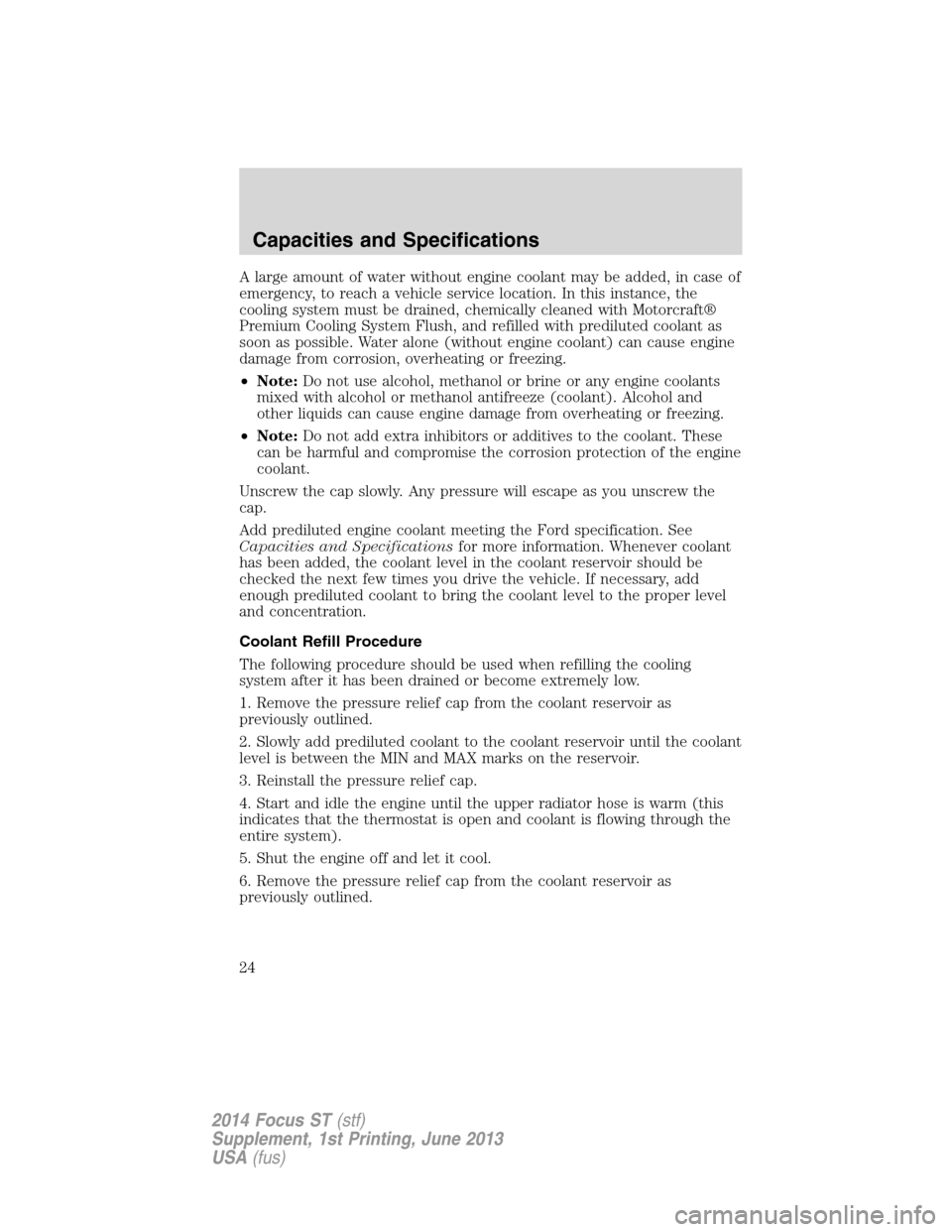

FORD FOCUS 2014 3.G ST Supplement Manual A large amount of water without engine coolant may be added, in case of
emergency, to reach a vehicle service location. In this instance, the
cooling system must be drained, chemically cleaned with Mo

Page 26 of 29

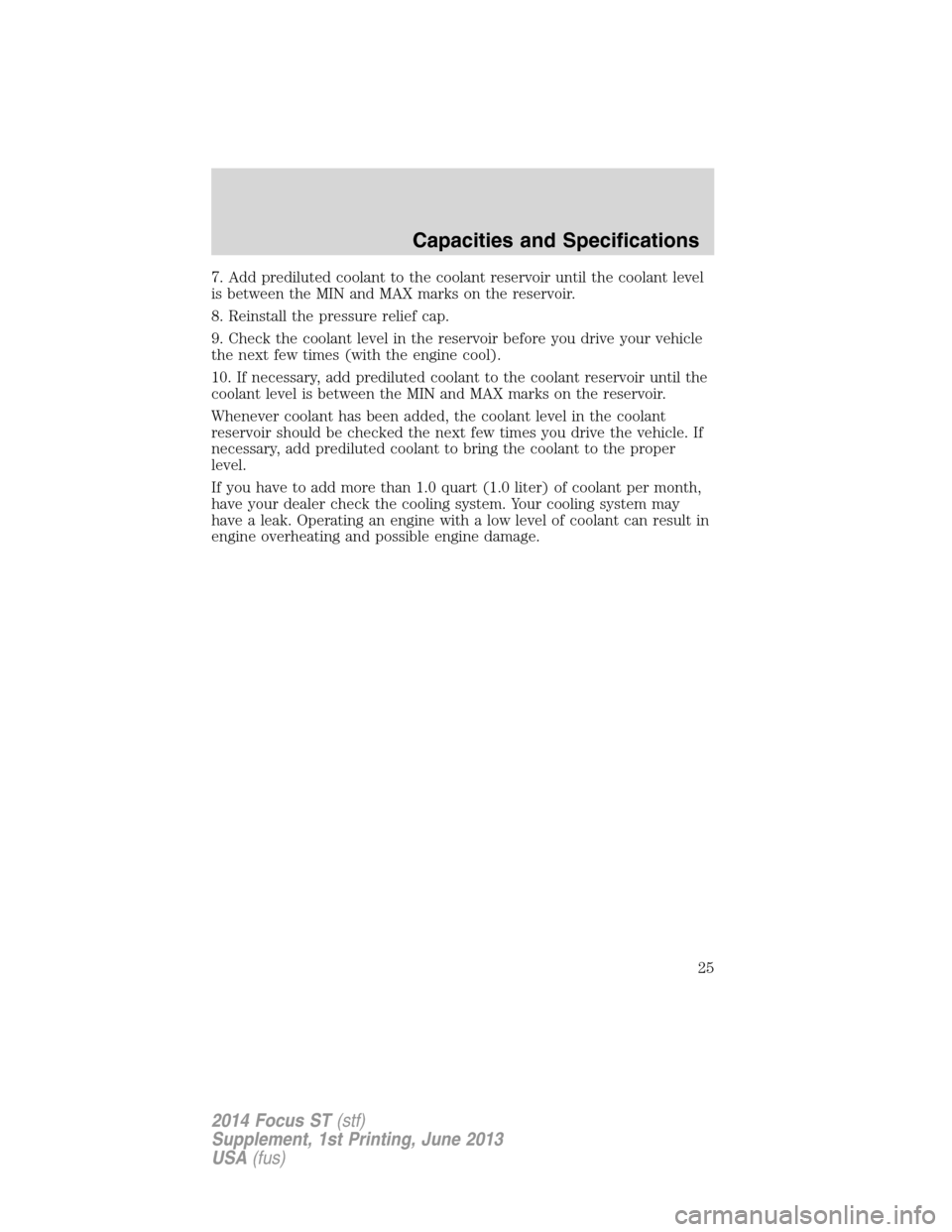

FORD FOCUS 2014 3.G ST Supplement Manual 7. Add prediluted coolant to the coolant reservoir until the coolant level
is between the MIN and MAX marks on the reservoir.
8. Reinstall the pressure relief cap.
9. Check the coolant level in the re

Page 27 of 29

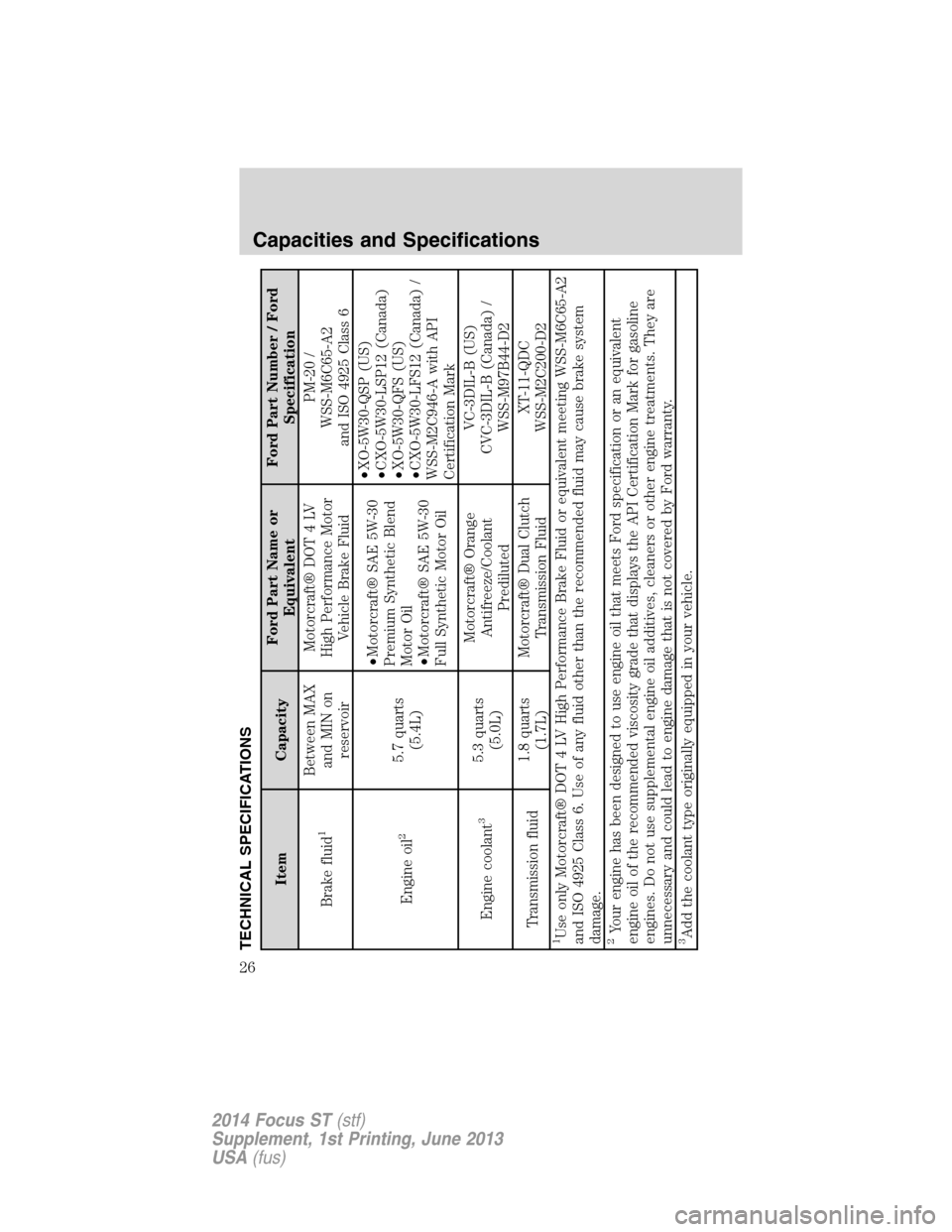

FORD FOCUS 2014 3.G ST Supplement Manual TECHNICAL SPECIFICATIONS
Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Brake fluid
1
Between MAX
and MIN on
reservoirMotorcraft® DOT 4 LV
High Performance Motor
Vehic

Page 28 of 29

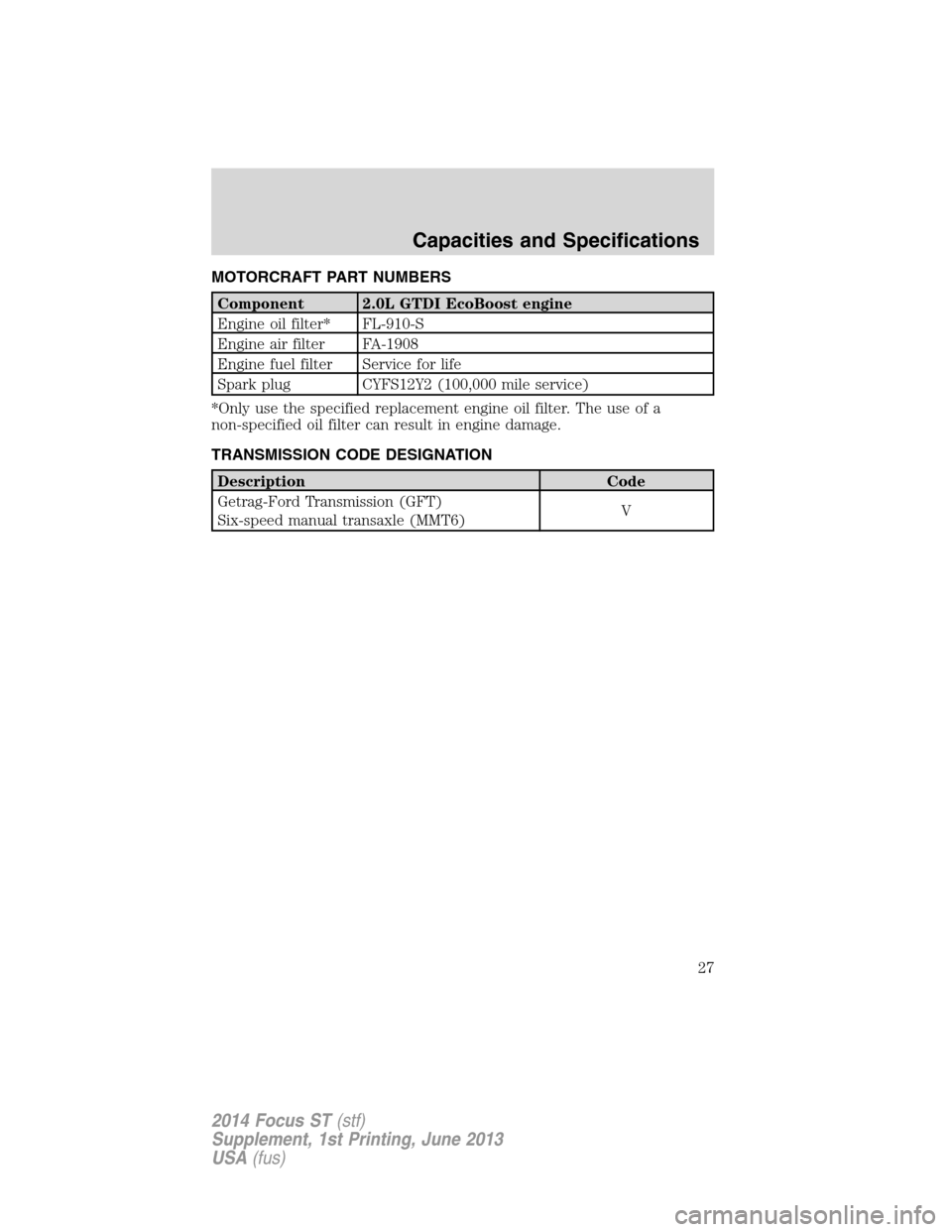

FORD FOCUS 2014 3.G ST Supplement Manual MOTORCRAFT PART NUMBERS
Component 2.0L GTDI EcoBoost engine
Engine oil filter* FL-910-S
Engine air filter FA-1908
Engine fuel filter Service for life
Spark plug CYFS12Y2 (100,000 mile service)
*Only u

Page 29 of 29

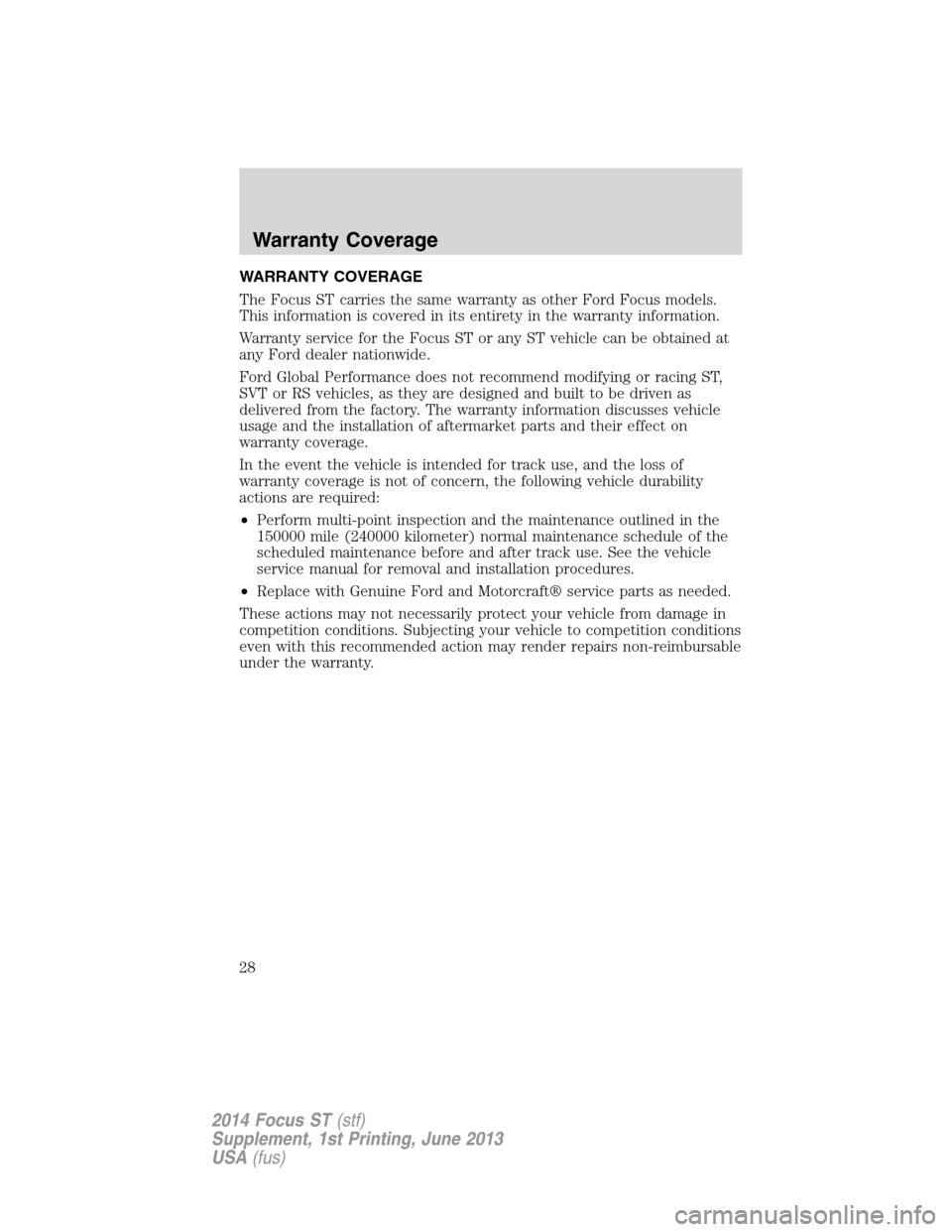

FORD FOCUS 2014 3.G ST Supplement Manual WARRANTY COVERAGE
The Focus ST carries the same warranty as other Ford Focus models.
This information is covered in its entirety in the warranty information.
Warranty service for the Focus ST or any S
