Introduction
2
Welcome 2
Breaking-in your vehicle 4
Focus ST Unique Features
5
Gauges 6
Driving Your Focus ST
10
Transmission operation 10
AdvanceTrac® 11
Engine over-rev 13
Wheels and Tires
14
Wheels 14
Wheel lug nut torque 14
Tire information 15
Roadside Emergencies
18
Wrecker towing 18
Maintenance
19
Under hood overview 19
Capacities and Specifications
21
Engine specifications 21
Technical specifications 26
Transmission code designation 27
Warranty Coverage
28
The information contained in this publication was correct at the time of going to
print. In the interest of continuous development, we reserve the right to change
specifications, design or equipment at any time without notice or obligation. No
part of this publication may be reproduced, transmitted, stored in a retrieval
system or translated into any language in any form by any means without our
written permission. Errors and omissions excepted.
© Ford Motor Company 2013

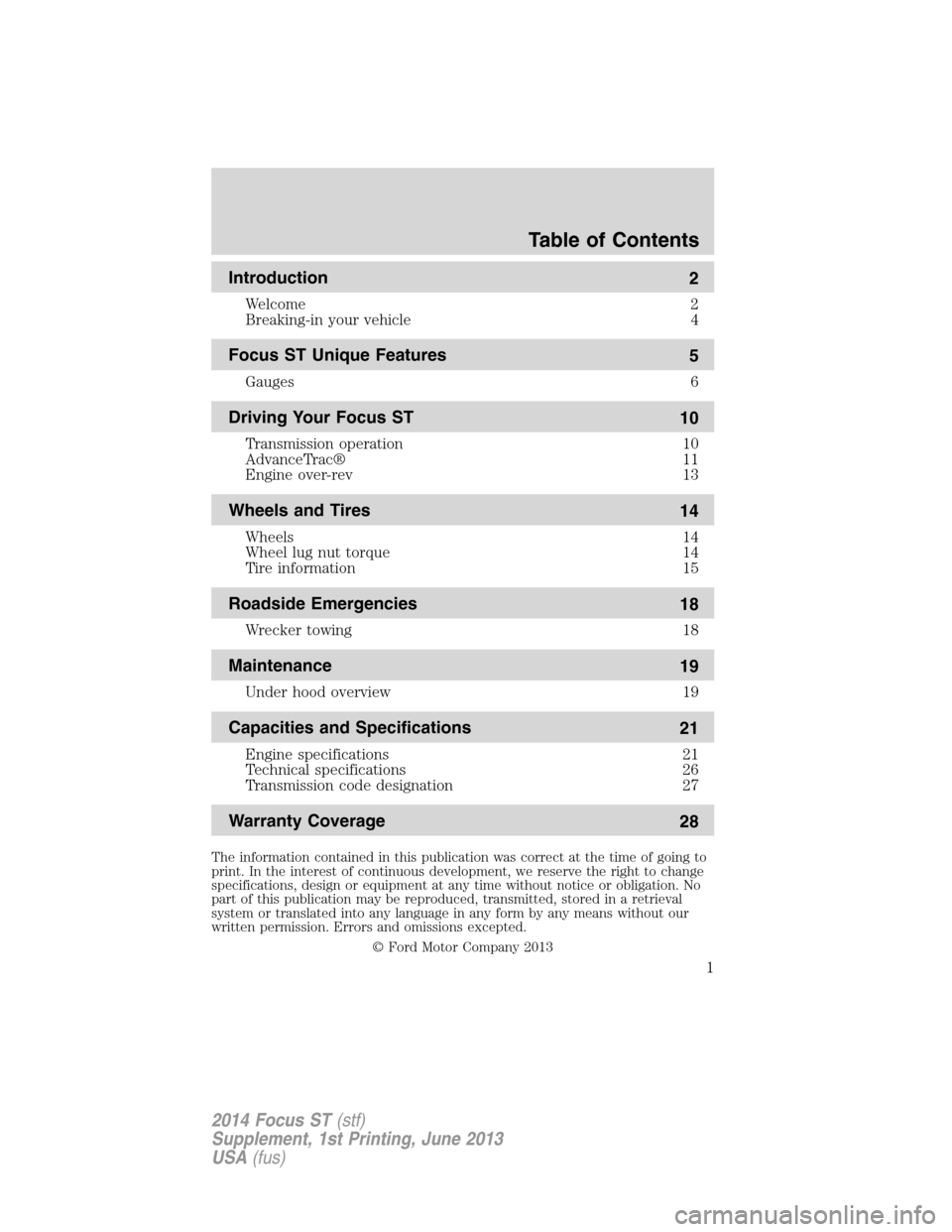

Table of Contents
1
2014 Focus ST(stf)
Supplement, 1st Printing, June 2013
USA(fus)

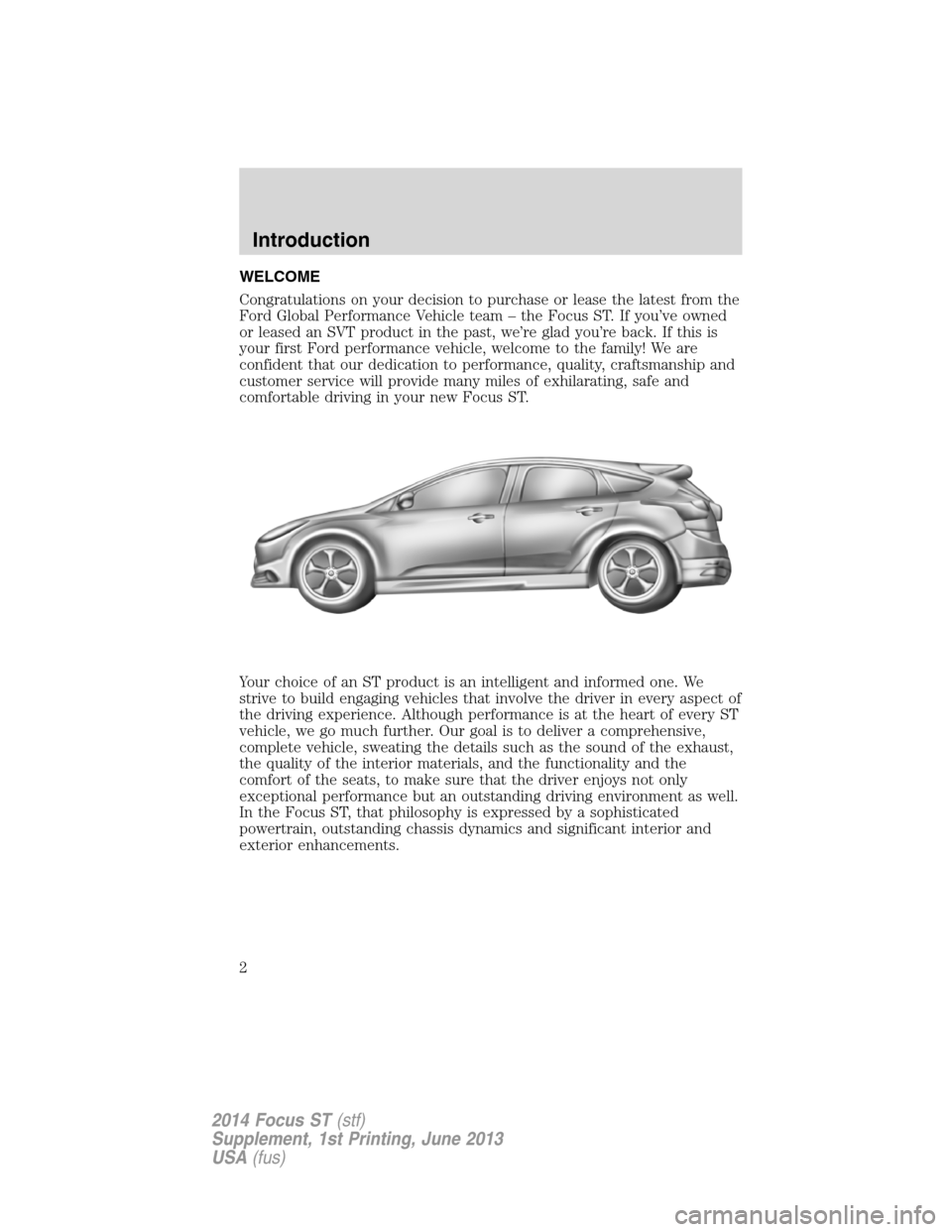

WELCOME
Congratulations on your decision to purchase or lease the latest from the
Ford Global Performance Vehicle team – the Focus ST. If you’ve owned
or leased an SVT product in the past, we’re glad you’re back. If this is
your first Ford performance vehicle, welcome to the family! We are
confident that our dedication to performance, quality, craftsmanship and
customer service will provide many miles of exhilarating, safe and
comfortable driving in your new Focus ST.
Your choice of an ST product is an intelligent and informed one. We
strive to build engaging vehicles that involve the driver in every aspect of
the driving experience. Although performance is at the heart of every ST
vehicle, we go much further. Our goal is to deliver a comprehensive,
complete vehicle, sweating the details such as the sound of the exhaust,
the quality of the interior materials, and the functionality and the
comfort of the seats, to make sure that the driver enjoys not only
exceptional performance but an outstanding driving environment as well.
In the Focus ST, that philosophy is expressed by a sophisticated
powertrain, outstanding chassis dynamics and significant interior and
exterior enhancements.
Introduction
2
2014 Focus ST(stf)
Supplement, 1st Printing, June 2013
USA(fus)

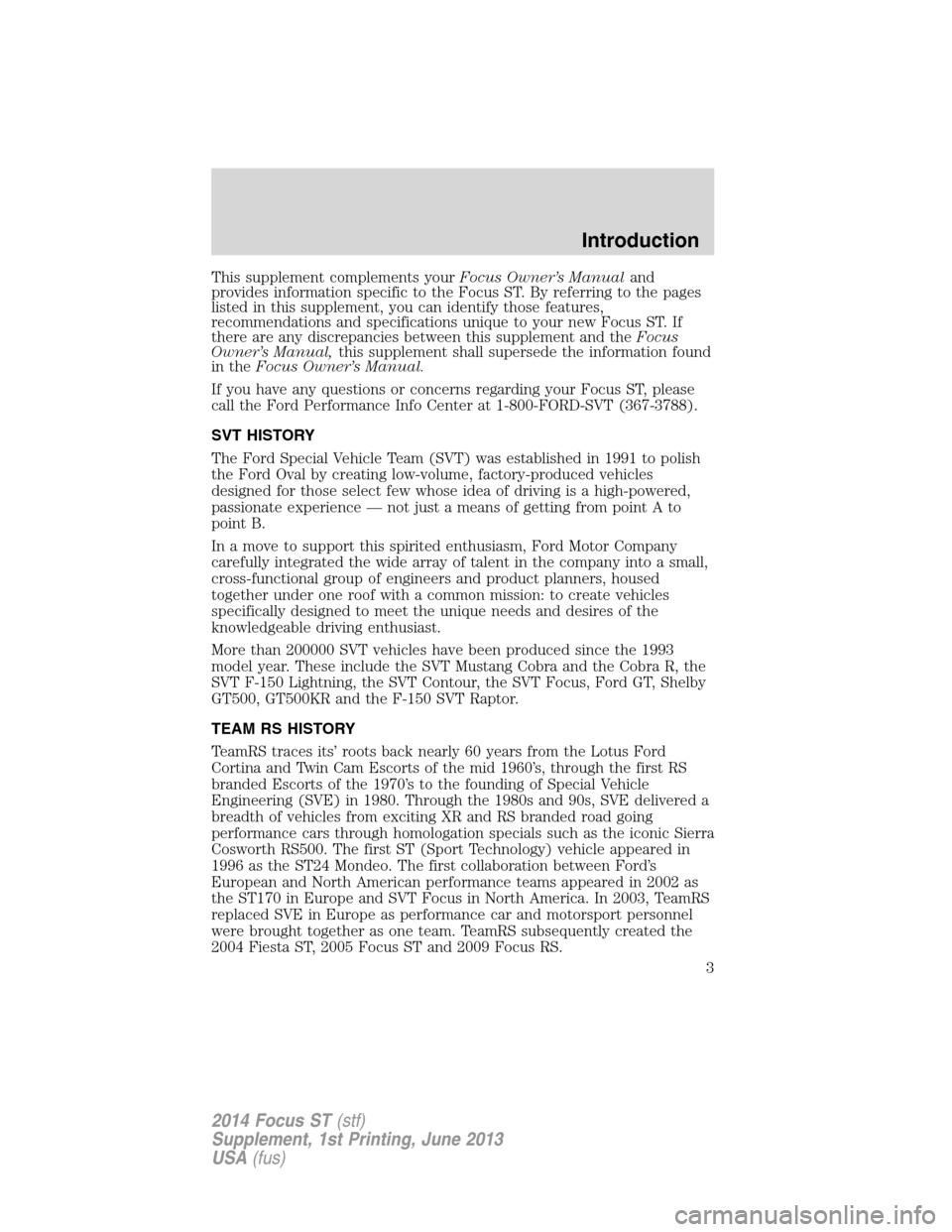

This supplement complements yourFocus Owner’s Manualand
provides information specific to the Focus ST. By referring to the pages
listed in this supplement, you can identify those features,
recommendations and specifications unique to your new Focus ST. If
there are any discrepancies between this supplement and theFocus
Owner’s Manual,this supplement shall supersede the information found
in theFocus Owner’s Manual.
If you have any questions or concerns regarding your Focus ST, please
call the Ford Performance Info Center at 1-800-FORD-SVT (367-3788).
SVT HISTORY
The Ford Special Vehicle Team (SVT) was established in 1991 to polish
the Ford Oval by creating low-volume, factory-produced vehicles
designed for those select few whose idea of driving is a high-powered,
passionate experience — not just a means of getting from point A to
point B.
In a move to support this spirited enthusiasm, Ford Motor Company
carefully integrated the wide array of talent in the company into a small,
cross-functional group of engineers and product planners, housed
together under one roof with a common mission: to create vehicles
specifically designed to meet the unique needs and desires of the
knowledgeable driving enthusiast.
More than 200000 SVT vehicles have been produced since the 1993
model year. These include the SVT Mustang Cobra and the Cobra R, the
SVT F-150 Lightning, the SVT Contour, the SVT Focus, Ford GT, Shelby
GT500, GT500KR and the F-150 SVT Raptor.
TEAM RS HISTORY
TeamRS traces its’ roots back nearly 60 years from the Lotus Ford
Cortina and Twin Cam Escorts of the mid 1960’s, through the first RS
branded Escorts of the 1970’s to the founding of Special Vehicle
Engineering (SVE) in 1980. Through the 1980s and 90s, SVE delivered a
breadth of vehicles from exciting XR and RS branded road going
performance cars through homologation specials such as the iconic Sierra
Cosworth RS500. The first ST (Sport Technology) vehicle appeared in
1996 as the ST24 Mondeo. The first collaboration between Ford’s
European and North American performance teams appeared in 2002 as
the ST170 in Europe and SVT Focus in North America. In 2003, TeamRS
replaced SVE in Europe as performance car and motorsport personnel
were brought together as one team. TeamRS subsequently created the
2004 Fiesta ST, 2005 Focus ST and 2009 Focus RS.
Introduction
3
2014 Focus ST(stf)
Supplement, 1st Printing, June 2013
USA(fus)

GLOBAL PERFORMANCE VEHICLES
The Global Performance Vehicle group was formally established in 2009,
joining the performance product development excellence and heritage of
SVT in North America and TeamRS in Europe. The Focus ST is the first
vehicle to emerge from this group and represents the best of what Ford
performance has to offer from around the globe. Your Focus ST has been
designed and developed with the four hallmarks of the Ford Global
Performance Group in mind: Performance, Substance, Exclusivity and
Value. We are proud and passionate about what we do, and we’re glad
you have made us your choice.

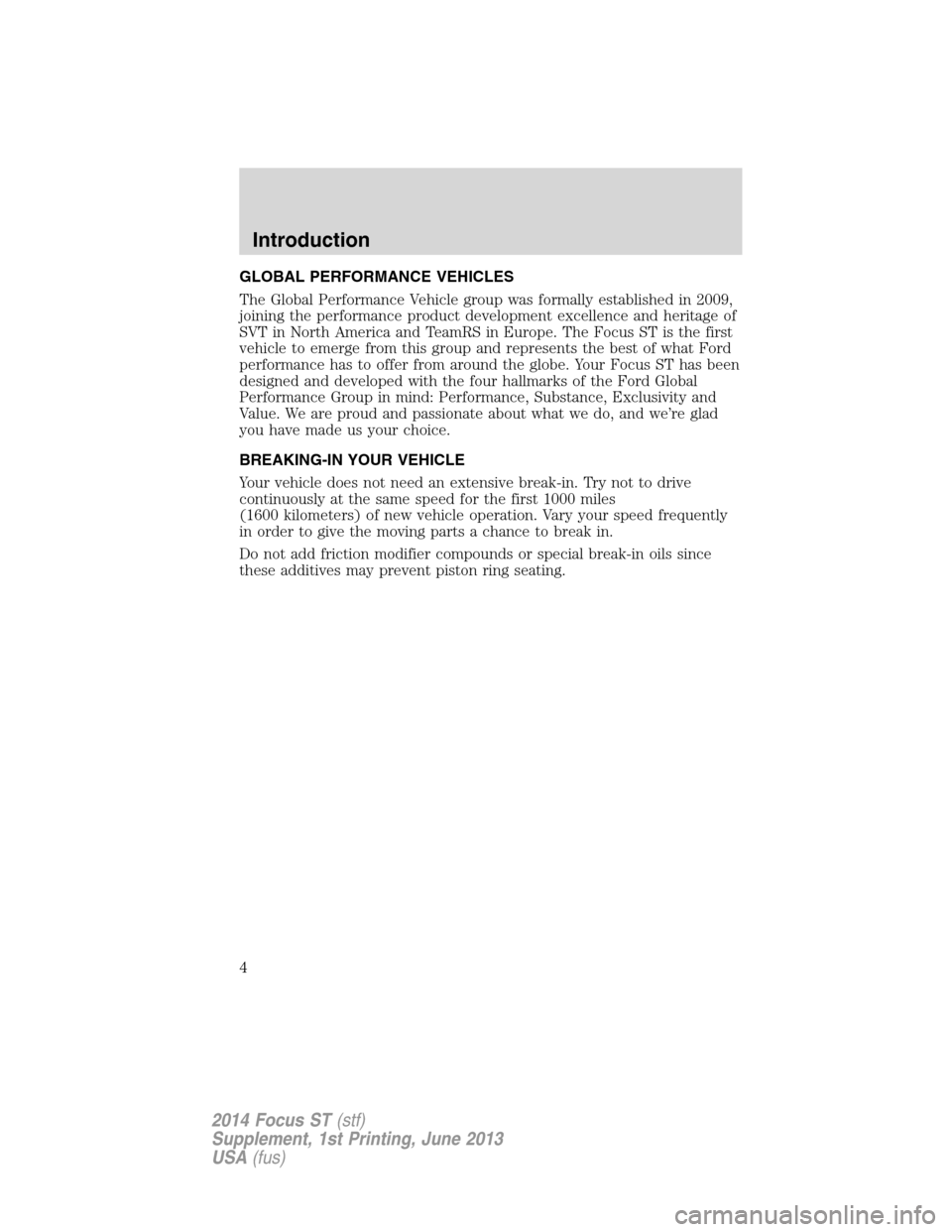

BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1000 miles
(1600 kilometers) of new vehicle operation. Vary your speed frequently
in order to give the moving parts a chance to break in.
Do not add friction modifier compounds or special break-in oils since
these additives may prevent piston ring seating.
Introduction
4
2014 Focus ST(stf)
Supplement, 1st Printing, June 2013
USA(fus)

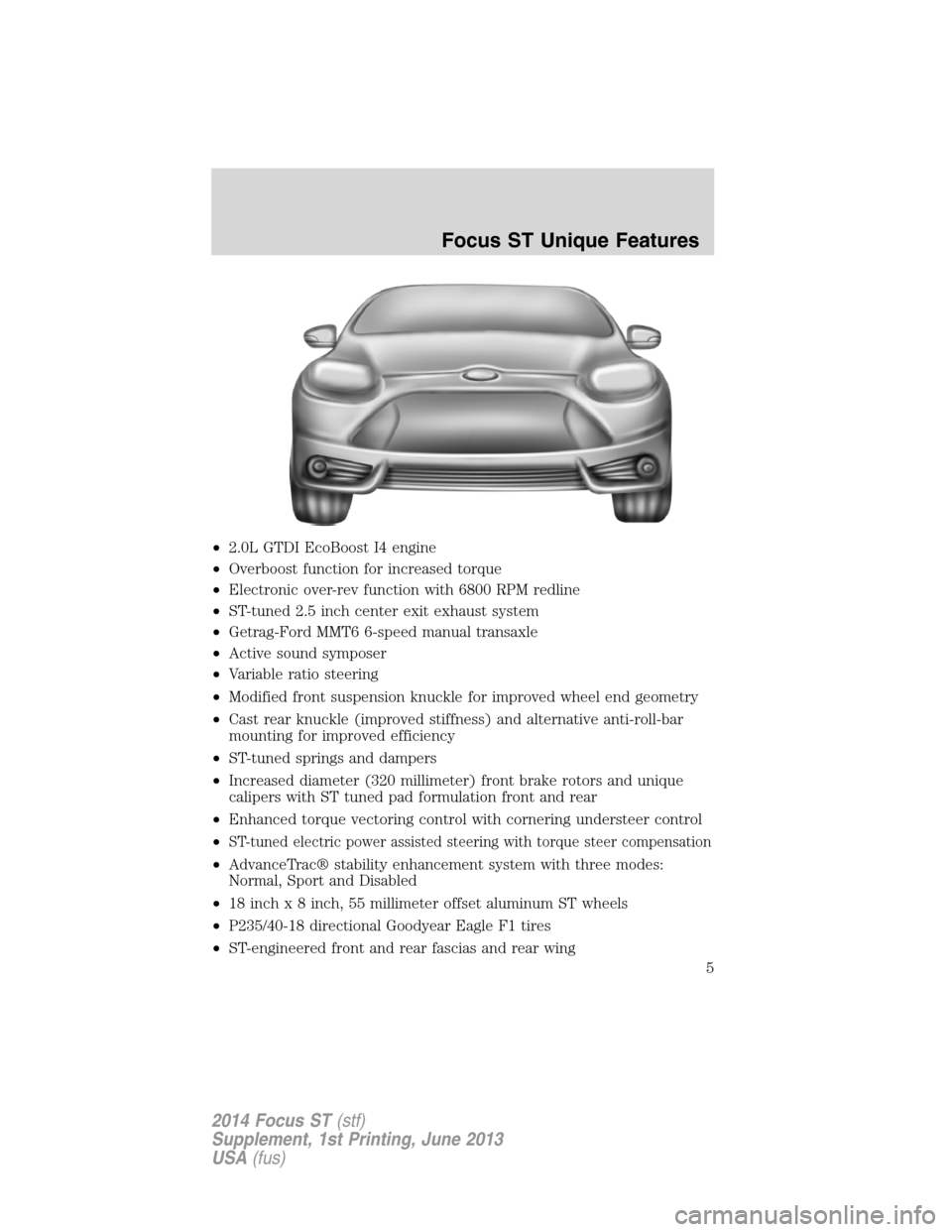

•2.0L GTDI EcoBoost I4 engine
•Overboost function for increased torque
•Electronic over-rev function with 6800 RPM redline
•ST-tuned 2.5 inch center exit exhaust system
•Getrag-Ford MMT6 6-speed manual transaxle
•Active sound symposer
•Variable ratio steering
•Modified front suspension knuckle for improved wheel end geometry
•Cast rear knuckle (improved stiffness) and alternative anti-roll-bar
mounting for improved efficiency
•ST-tuned springs and dampers
•Increased diameter (320 millimeter) front brake rotors and unique
calipers with ST tuned pad formulation front and rear
•Enhanced torque vectoring control with cornering understeer control
•
ST-tuned electric power assisted steering with torque steer compensation
•AdvanceTrac® stability enhancement system with three modes:
Normal, Sport and Disabled
•18inchx8inch, 55 millimeter offset aluminum ST wheels
•P235/40-18 directional Goodyear Eagle F1 tires
•ST-engineered front and rear fascias and rear wing
Focus ST Unique Features
5
2014 Focus ST(stf)
Supplement, 1st Printing, June 2013
USA(fus)

•Optional Recaro front seats with increased lateral support and
matching rear seat covers
•Leather wrapped ST sport steering wheel with improved grip contour
•ST-unique instrument panel appliques, shift knob, shift boot and pedal
pads
•ST high-speed instrument cluster and auxiliary cluster with oil
temperature, oil pressure and boost gauges

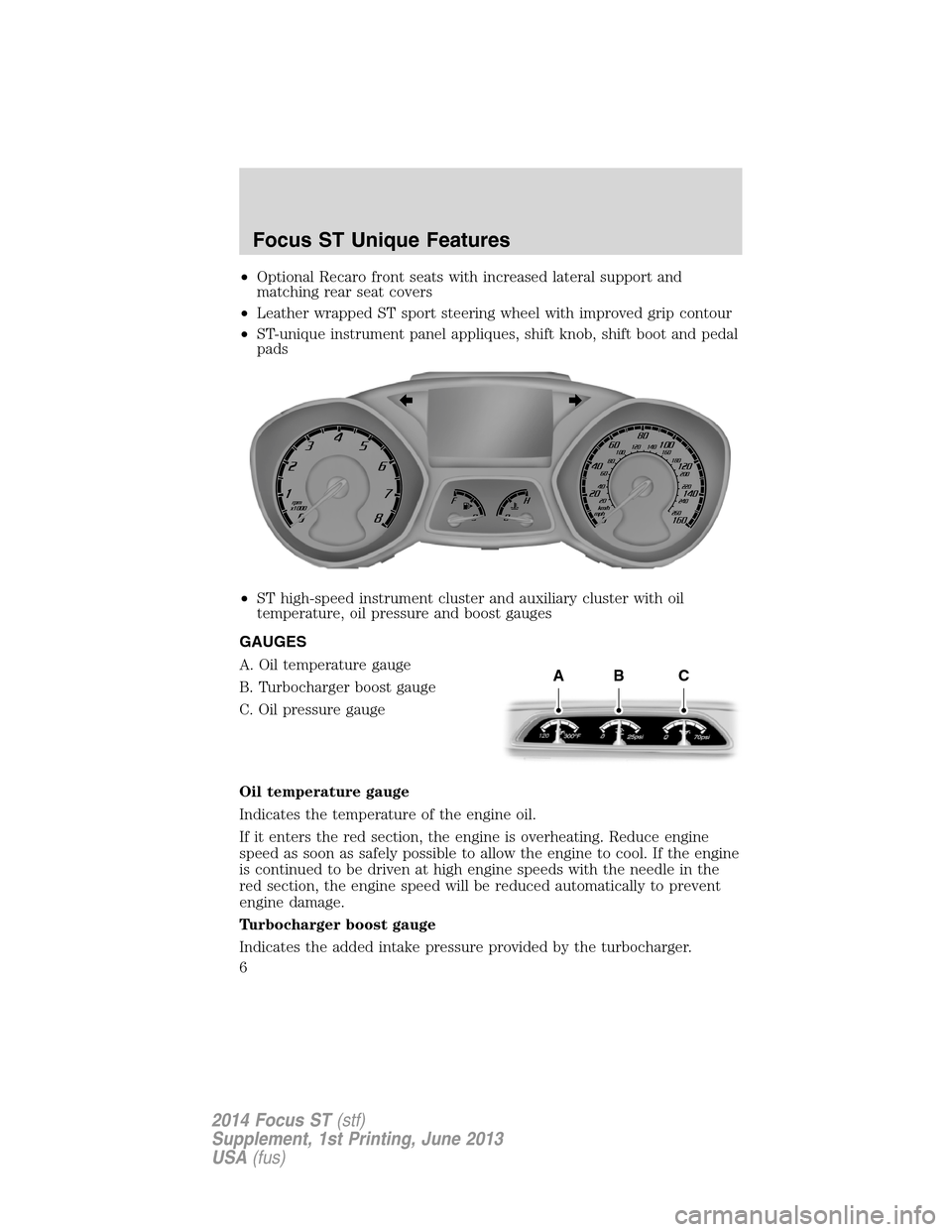

GAUGES
A. Oil temperature gauge
B. Turbocharger boost gauge
C. Oil pressure gauge
Oil temperature gauge
Indicates the temperature of the engine oil.
If it enters the red section, the engine is overheating. Reduce engine
speed as soon as safely possible to allow the engine to cool. If the engine
is continued to be driven at high engine speeds with the needle in the
red section, the engine speed will be reduced automatically to prevent
engine damage.
Turbocharger boost gauge
Indicates the added intake pressure provided by the turbocharger.
CAB
Focus ST Unique Features
6
2014 Focus ST(stf)
Supplement, 1st Printing, June 2013
USA(fus)

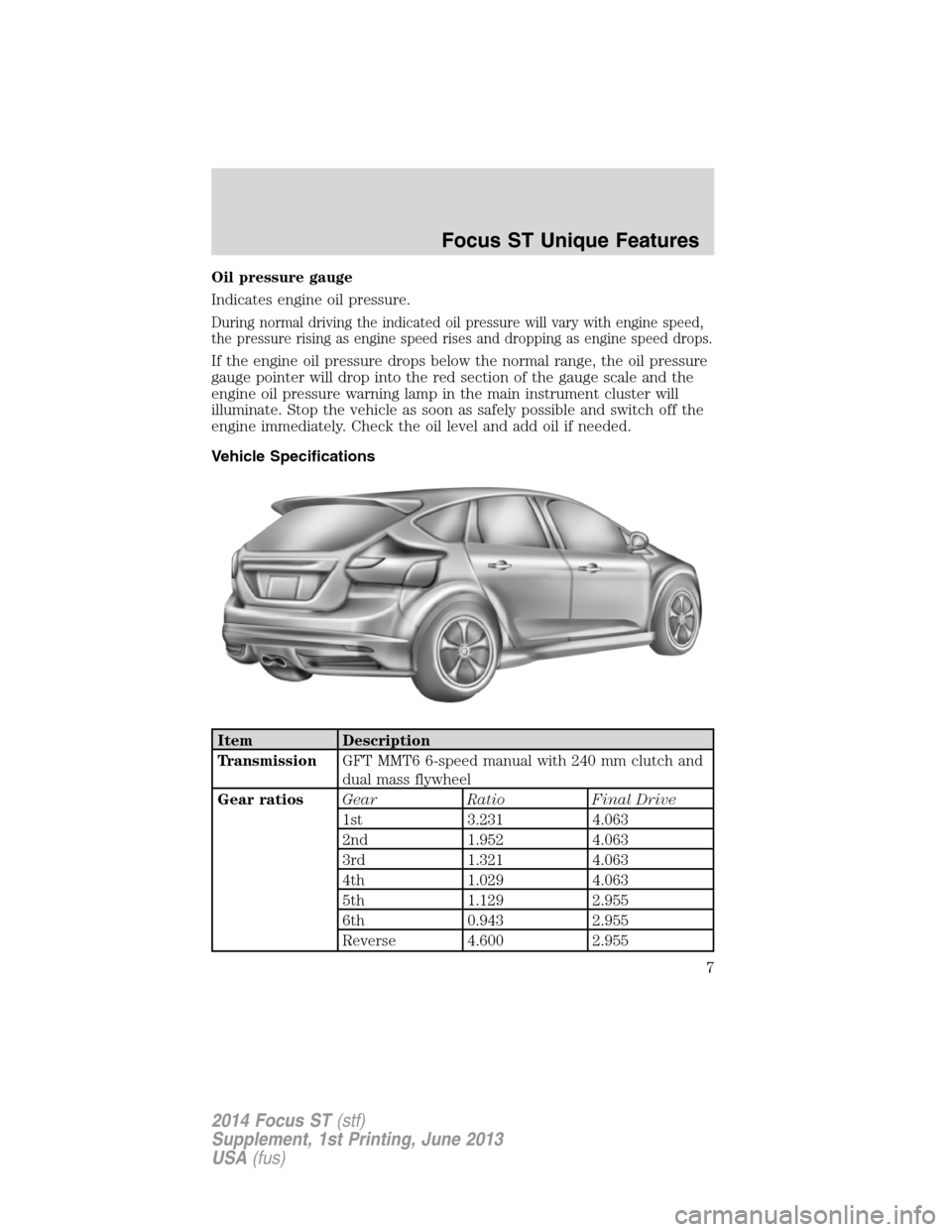

Oil pressure gauge
Indicates engine oil pressure.
During normal driving the indicated oil pressure will vary with engine speed,
the pressure rising as engine speed rises and dropping as engine speed drops.
If the engine oil pressure drops below the normal range, the oil pressure
gauge pointer will drop into the red section of the gauge scale and the
engine oil pressure warning lamp in the main instrument cluster will
illuminate. Stop the vehicle as soon as safely possible and switch off the
engine immediately. Check the oil level and add oil if needed.
Vehicle Specifications
Item Description
TransmissionGFT MMT6 6-speed manual with 240 mm clutch and
dual mass flywheel
Gear ratiosGear Ratio Final Drive
1st 3.231 4.063
2nd 1.952 4.063
3rd 1.321 4.063
4th 1.029 4.063
5th 1.129 2.955
6th 0.943 2.955
Reverse 4.600 2.955
Focus ST Unique Features
7
2014 Focus ST(stf)
Supplement, 1st Printing, June 2013
USA(fus)

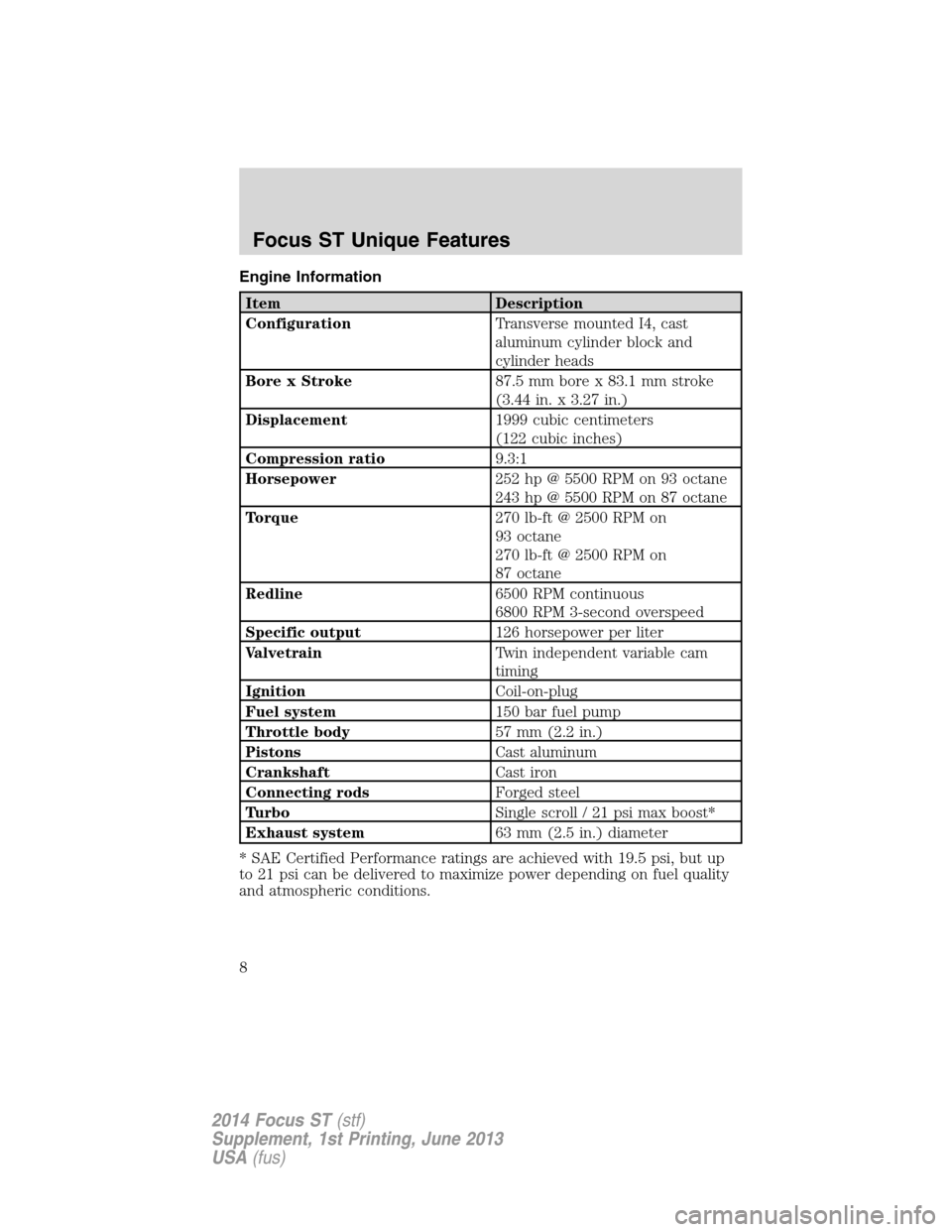

Engine Information
Item Description
ConfigurationTransverse mounted I4, cast
aluminum cylinder block and
cylinder heads
Bore x Stroke87.5 mm bore x 83.1 mm stroke
(3.44 in. x 3.27 in.)
Displacement1999 cubic centimeters
(122 cubic inches)
Compression ratio9.3:1
Horsepower252 hp @ 5500 RPM on 93 octane
243 hp @ 5500 RPM on 87 octane
Torque270 lb-ft @ 2500 RPM on
93 octane
270 lb-ft @ 2500 RPM on
87 octane
Redline6500 RPM continuous
6800 RPM 3-second overspeed
Specific output126 horsepower per liter
ValvetrainTwin independent variable cam
timing
IgnitionCoil-on-plug
Fuel system150 bar fuel pump
Throttle body57 mm (2.2 in.)
PistonsCast aluminum
CrankshaftCast iron
Connecting rodsForged steel
TurboSingle scroll / 21 psi max boost*
Exhaust system63 mm (2.5 in.) diameter
* SAE Certified Performance ratings are achieved with 19.5 psi, but up
to 21 psi can be delivered to maximize power depending on fuel quality
and atmospheric conditions.
Focus ST Unique Features
8
2014 Focus ST(stf)
Supplement, 1st Printing, June 2013
USA(fus)

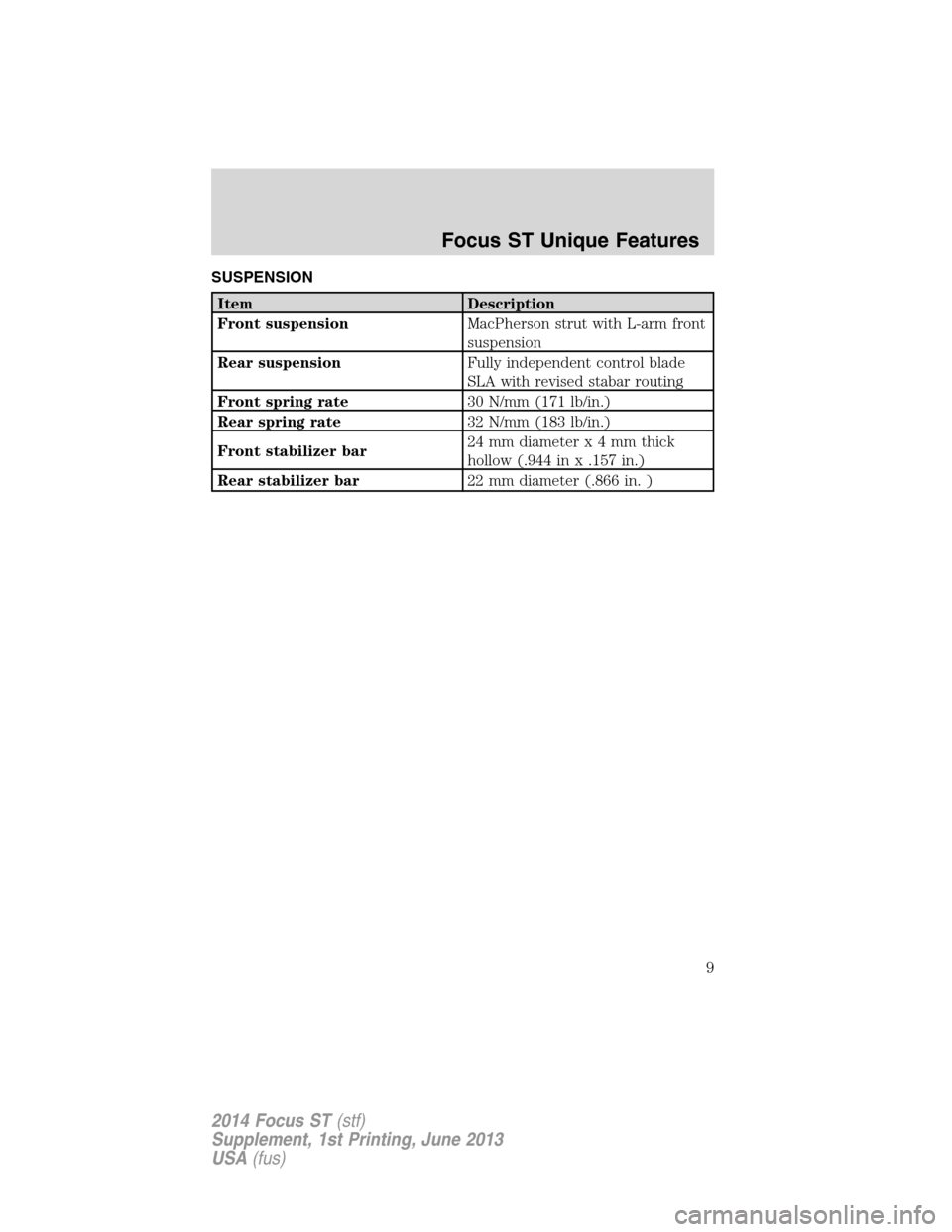

SUSPENSION
Item Description
Front suspensionMacPherson strut with L-arm front
suspension
Rear suspensionFully independent control blade
SLA with revised stabar routing
Front spring rate30 N/mm (171 lb/in.)
Rear spring rate32 N/mm (183 lb/in.)
Front stabilizer bar24 mm diameterx4mmthick
hollow (.944 in x .157 in.)
Rear stabilizer bar22 mm diameter (.866 in. )
Focus ST Unique Features
9
2014 Focus ST(stf)
Supplement, 1st Printing, June 2013
USA(fus)
