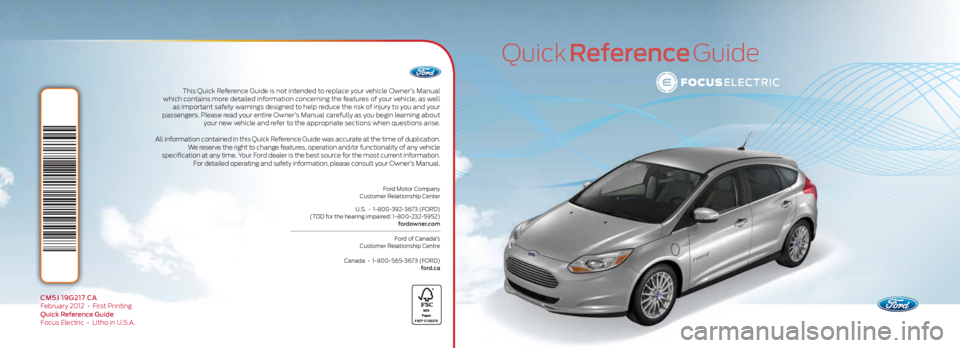

FORD FOCUS ELECTRIC 2013 3.G Quick Reference Guide

This Quick Reference Guide is not intended to replace your vehicle Owner’s Manual
which contains more detailed information concerning the features of your vehicle, as well as important safety warnings designed to help reduce the risk of injury to you and your
passengers. Please read your entire Owner’s Manual carefully as you begin learning about your new vehicle and refer to the appropriate sections when questions arise.
All information contained in this Quick Reference Guide was accurate at the time of duplication. We reserve the right to change features, operation and/or functionality of any vehicle
specification at any time. Your Ford dealer is the best source for the most current information. For detailed operating
and safety information, please consult your Owner’s Manual.
CM5J 19G217 CA
February 2012 • First Printing
Quick Reference Guide
Focus Electric • Litho in U.S.A.
QuickReference Guide
Ford Motor Company
Customer Relationship Center
U.S. • 1-800-392-3673 (FORD)
(TDD for the hearing impaired: 1-800-232-5952) fordowner.com
Ford of Canada’s
Customer Relationship Centre
Canada • 1-800-565-3673 (FORD) ford.ca

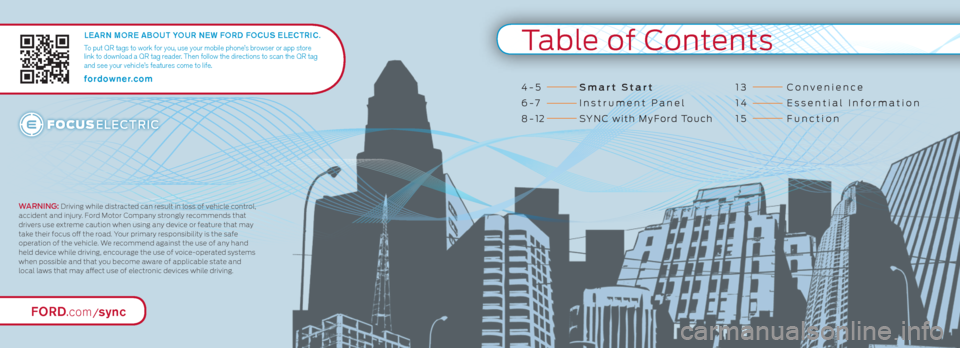

Table of Contents
Learn more about your new Ford Focus eLectric.
To put QR tags to work for you, use your mobile phone’s browser or app store
link to download a QR tag reader. Then follow the directions to scan the QR tag
and see your vehicle’s features come to life.
fordowner.com
Ford.com
/sync
4-5
Smart Start
6-7 Instrument Panel
8 - 12 SYNC with MyFord Touch 13
Convenience
14 Essential Information
15 Function
WARninG: Driving while distracted can result in loss of vehicle control,
accident and injury. Ford Motor Company strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any hand
held device while driving, encourage the use of voice-operated systems
when possible and that you become aware of applicable state and
local laws that may affect use of electronic devices while driving.

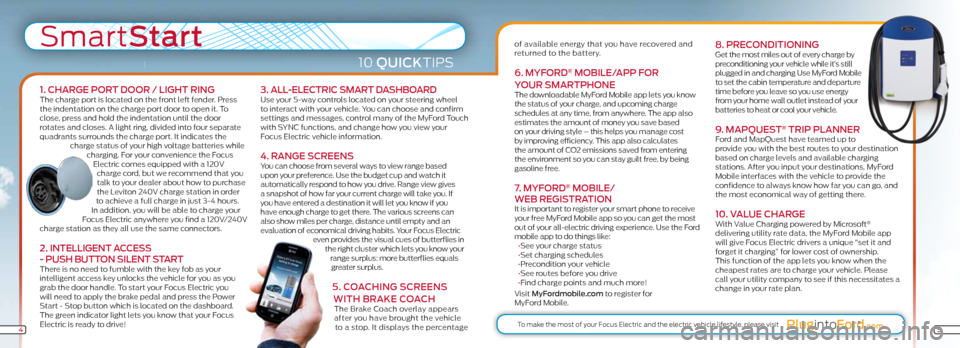

SmartStart
10 QuiCkTIPS
1. ChARGe PoR t DooR / LiGht RinGThe charge port is located on the front left fender. Press
the indentation on the charge port door to open it. To
close, press and hold the indentation until the door
rotates and closes. A light ring, divided into four separate
quadrants surrounds the charge port. It indicates the
charge status of your high voltage batteries while charging. For your convenience the Focus Electric comes equipped with a 120V charge cord, but we recommend that you
talk to your dealer about how to purchase
the Leviton 240V charge station in order
to achieve a full charge in just 3-4 hours.
In addition, you will be able to charge your
Focus Electric anywhere you find a 120V/240V
charge station as they all use the same connectors.
2. inteLLiGent A CCeSS
- Pu Sh Button SiLent St ARt
There is no need to fumble with the key fob as your
intelligent access key unlocks the vehicle for you as you
grab the door handle. To start your Focus Electric you
will need to apply the brake pedal and press the Power
Start - Stop button which is located on the dashboard.
The green indicator light lets you know that your Focus
Electric is ready to drive!
3. ALL -eLeCtRiC SMAR t DAShBo ARDUse your 5-way controls located on your steering wheel
to interact with your vehicle. You can choose and confirm
settings and messages, control many of the MyFord Touch
with SYNC functions, and change how you view your
Focus Electric vehicle information.
4. RAnGe S CReenSYou can choose from several ways to view range based
upon your preference. Use the budget cup and watch it
automatically respond to how you drive. Range view gives
a snapshot of how far your current charge will take you. If
you have entered a destination it will let you know if you
have enough charge to get there. The various screens can
also show miles per charge, distance until empty and an
evaluation of economical driving habits. Your Focus Electric
even provides the visual cues of butterflies in the right cluster which lets you know your range surplus: more butterflies equals greater surplus.
5. Co AChinG S CReenS
With BRAke Co ACh
The Brake Coach overlay appears
after you have brought the vehicle
to a stop. It displays the percentage of available energy that you have recovered and
returned to the battery.
6. MyFoRD® MoBiLe/APP F
oR
youR SMAR tPhone
The downloadable MyFord Mobile app lets you know
the status of your charge, and upcoming charge
schedules at any time, from anywhere. The app also
estimates the amount of money you save based
on your driving style – this helps you manage cost
by improving efficiency. This app also calculates
the amount of CO2 emissions saved from entering
the environment so you can stay guilt free, by being
gasoline free.
7. MyFoRD® MoBiLe/
WeB Re GiStRA tion
It is important to register your smart phone to receive
your free MyFord Mobile app so you can get the most
out of your all-electric driving experience. Use the Ford
mobile app to do things like:
•See your charge status
•Set charging schedules
•Precondition your vehicle
•See routes before you drive
•Find charge points and much more!
Visit MyFordmobile.com to register for
MyFord Mobile.
8. PRe ConDitioninGGet the most miles out of every charge by
preconditioning your vehicle while it’s still
plugged in and charging Use MyFord Mobile
to set the cabin temperature and departure
time before you leave so you use energy
from your home wall outlet instead of your
batteries to heat or cool your vehicle.
9. MAP QueSt® tRiP PLAnneRFord and MapQuest have teamed up to
provide you with the best routes to your destination
based on charge levels and available charging
stations. After you input your destinations, MyFord
Mobile interfaces with the vehicle to provide the
confidence to always know how far you can go, and
the most economical way of getting there.

10. V ALue ChARGeWith Value Charging powered by Microsoft®
delivering utility rate data, the MyFord Mobile app
will give Focus Electric drivers a unique “set it and
forget it charging” for lower cost of ownership.
This function of the app lets you know when the
cheapest rates are to charge your vehicle. Please
call your utility company to see if this necessitates a
change in your rate plan.
45Plug intoFord.comTo make the most of your Focus Electric and the electric vehicle lifestyle, please visit

1
3
4
5
6
7
2
InstrumentPanel1
2
3
4
5
6
7
8
7
* if equippedCRUISE ContRoLS
To set your cruise control speed:
1. Press the on control and release.
2. Accelerate to the desired speed.
3. Press the Set+ control and release, then take your
foot off the accelerator.
After your speed has been set, you can press Set
+/- to adjust cruise speed. To disable, press the
oFF control.
INFORMATION DiSPLA yS
Provides specific information about various
systems on your vehicle including the status of your
high-voltage battery and the other unique features
of your electric vehicle.
Use the left-hand, 5-way controls located on the
steering wheel to choose and confirm settings and
messages. Refer to the Instrument Cluster chapter of
your Owner’s Manual for more information.
SERVICE VEhICLE S OON LiGht
Illuminates when a powertrain or high-voltage
charge system fault has been detected. If the
indicator stays on or continues to come on, contact
your authorized dealer as soon as possible.
TILT /TELESCOPE S TEERINg CoLuMn
Unlock the steering wheel by pulling the lever down.
Adjust the steering wheel to the desired position.
Push the lever up to lock the steering wheel in place .
INFOTAINMENT DiSPLAy
Displays information about Entertainment, Phone,
Navigation and Surplus. Use the right hand 5-way
controls located on your steering wheel to scroll
through, highlight and make minor adjustments
within a selected menu. Refer to the MyFord Touch
®
chapter in your Owner’s Manual for more information.
MEDIA S TEERINg WhEEL ContR oLS
: Press to increase (+) or decrease (-) volume levels. : Pull toward you to access voice recognition. : Press to answer an incoming phone call. : Press to end a phone call and exit phone mode .
PUSh BUTTON St ARt- ReAD y to DRiVe
note: Your intelligent access key must be inside the vehicle to
put the vehicle in accessory mode or “Ready to Drive” .
Allows you to go into “Ready to Drive” mode by
pressing the P oWeR S tAR t/S toP button while
fully pressing down on the brake pedal. A green
“Ready to Drive” indicator light
will appear in
the instrument cluster after you start the vehicle.
This lets you know that the vehicle is turned on and
ready for driving. Press the P oWeR S tAR t/S toP
button again to turn the vehicle off .
hAzARD ContR oL-unL oCk /L OCk
8
6

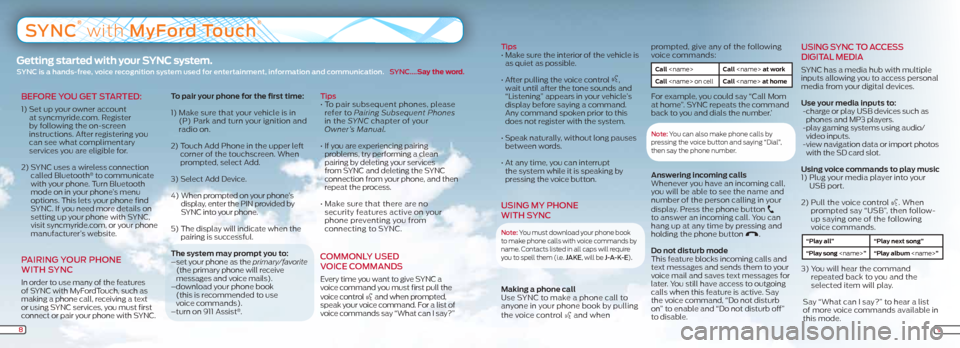

SynC
®
with MyFord t ouch
®
Getting started with your SYNC system.
SynC is a hands-free, voice recognition system used for entertainment, information and communication. SynC….Say the word .
BeFoRe you Get S tAR teD:
1)
Set up your owner account
at syncmyride.com. Register
by following the on-screen
instructions. After registering you
can see what complimentary
services you are eligible for.
2) SYNC uses a wireless connection
called Bluetooth
® to communicate
with your phone. Turn Bluetooth
mode on in your phone’s menu
options. This lets your phone find
SYNC. If you need more details on
setting up your phone with SYNC,
visit syncmyride.com, or your phone
manufacturer’s website.
P AiRinG y ouR Phone
With S ynC
In order to use many of the features
of SYNC with MyFordTouch, such as
making a phone call, receiving a text
or using SYNC services, you must first
connect or pair your phone with SYNC. To pair your phone for the first time:
1)
Make sure that your vehicle is in
(P) Park and turn your ignition and
radio on.
2) Touch Add Phone in the upper left
corner of the touchscreen. When
prompted, select Add.
3) Select Add Device.
4) When prompted on your phone’s
display, enter the PIN provided by
SYNC into your phone.
5) The display will indicate when the
pairing is successful.

The system may prompt you to:
– set your phone as the primary/favorite
(the primary phone will receive
messages and voice mails).
– download your phone book
(this is recommended to use
voice commands).
–turn on 911 Assist
®. tips
•
To pair subsequent phones, please
refer to Pairing Subsequent Phones
in the SYNC chapter of your
Owner’s Manual.
• If you are experiencing pairing
problems, try performing a clean
pairing by deleting your services
from SYNC and deleting the SYNC
connection from your phone, and then
repeat the process.
• Make sure that there are no
security features active on your
phone preventing you from
connecting to SYNC.
CoMMonL y uSeD
VoiCe CoMMAnDS
Every time you want to give SYNC a
voice command you must first pull the
voice control
and when prompted,
speak your voice command. For a list of
voice commands say “What can I say?”
tips
• Make sure the interior of the vehicle is
as quiet as possible.
• After pulling the voice control
,
wait until after the tone sounds and
“Listening” appears in your vehicle’s
display before saying a command.
Any command spoken prior to this
does not register with the system.
• Speak naturally, without long pauses
between words.
• At any time, you can interrupt
the system while it is speaking by
pressing the voice button.
uSinG My Phone
With S ynC
note: You must download your phone book
to make phone calls with voice commands by
name. Contacts listed in all caps will require
you to spell them (i.e. JAke, will be J-A- k-e)
.
Making a phone call
Use SYNC to make a phone call to
anyone in your phone book by pulling
the voice control
and when prompted, give any of the following
voice commands:
For example, you could say “Call Mom
at home”. SYNC repeats the command
back to you and dials the number.’
note: You can also make phone calls by
pressing the voice button and saying “Dial”,
then say the phone number.
Answering incoming calls
Whenever you have an incoming call,
you will be able to see the name and
number of the person calling in your
display. Press the phone button

to answer an incoming call. You can
hang up at any time by pressing and
holding the phone button
.
Do not disturb mode
This feature blocks incoming calls and
text messages and sends them to your
voice mail and saves text messages for
later. You still have access to outgoing
calls when this feature is active. Say
the voice command, “Do not disturb
on” to enable and “Do not disturb off”
to disable.
uSinG S ynC to A CCeSS
DiGit AL MeDiA
SYNC has a media hub with multiple
inputs allowing you to access personal
media from your digital devices.

Use your media inputs to:
- charge or play USB devices such as
phones and MP3 players.
- play gaming systems using audio/
video inputs.
- view navigation data or import photos
with the SD card slot.
Using voice commands to play music
1) Plug your media player into your
USB port.
2) Pull the voice control
. When
prompted say “USB”, then follow-
up saying one of the following
voice commands.
3) You will hear the command
repeated back to you and the
selected item will play.
Say “What can I say?” to hear a list
of more voice commands available in
this mode.
Call Call at work
Call on cell Call at home
“Play all”“Play next song”
“Play song ” “Play album ”
89

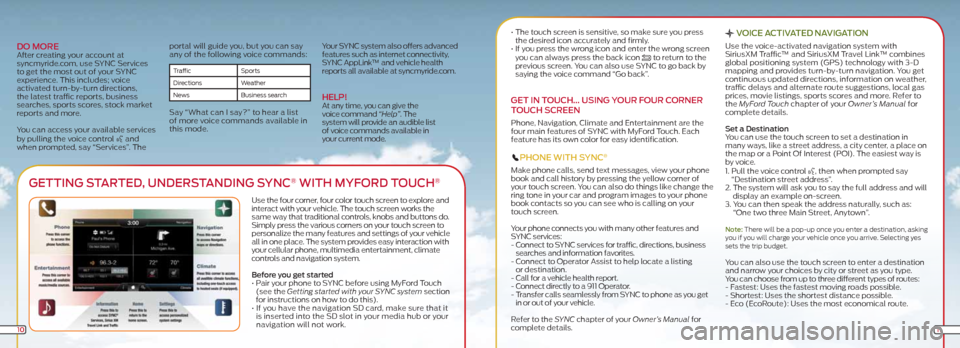

Do MoRe After creating your account at
syncmyride.com, use SYNC Services
to get the most out of your SYNC
experience. This includes; voice
activated turn-by-turn directions,
the latest traffic reports, business
searches, sports scores, stock market
reports and more.
You can access your available services
by pulling the voice control
and
when prompted, say “Services”. The portal will guide you, but you can say
any of the following voice commands:
Say “What can I say?” to hear a list
of more voice commands available in
this mode.
Your SYNC system also offers advanced
features such as internet connectivity,
SYNC AppLink™ and vehicle health
reports all available at syncmyride.com.
heLP!At any time, you can give the

voice command “Help”. The
system will provide an audible list
of voice commands available in
your current mode.
Tr a ffi c Sports
Directions Weather
News Business search
GettinG StAR teD , unDeRS tAnDinG S ynC® With MyFoRD t ouCh®
Use the four corner, four color touch screen to explore and
interact with your vehicle. The touch screen works the
same way that traditional controls, knobs and buttons do.
Simply press the various corners on your touch screen to
personalize the many features and settings of your vehicle
all in one place. The system provides easy interaction with
your cellular phone, multimedia entertainment, climate
controls and navigation system.
Before you get started
• Pair your phone to SYNC before using MyFord Touch
(see the Getting started with your SYNC system section
for instructions on how to do this).
• If you have the navigation SD card, make sure that it
is inserted into the SD slot in your media hub or your
navigation will not work.
• The touch screen is sensitive, so make sure you press
the desired icon accurately and firmly.
• If you press the wrong icon and enter the wrong screen
you can always press the back icon
to return to the
previous screen. You can also use SYNC to go back by
saying the voice command “Go back”.
Get in t ouCh... uSinG y ouR FouR CoRneR
t ou Ch S CReen
Phone, Navigation, Climate and Entertainment are the
four main features of SYNC with MyFord Touch. Each
feature has its own color for easy identification.
Phone With S ynC®
Make phone calls, send text messages, view your phone
book and call history by pressing the yellow corner of
your touch screen. You can also do things like change the
ring tone in your car and program images to your phone
book contacts so you can see who is calling on your
touch screen.
Your phone connects you with many other features and
SYNC services:
- Connect to SYNC services for traffic, directions, business
searches and information favorites.
- Connect to Operator Assist to help locate a listing
or destination.
- Call for a vehicle health report.
- Connect directly to a 911 Operator.
- Transfer calls seamlessly from SYNC to phone as you get
in or out of your vehicle.
Refer to the SYNC chapter of your Owner’s Manual for
complete details.
V oiCe AC tiVAteD nAViGA tion
Use the voice-activated navigation system with
SiriusXM Traffic™ and SiriusXM Travel Link™ combines
global positioning system ( gPS) technology with 3-D
mapping and provides turn-by-turn navigation. You get
continuous updated directions, information on weather,
traffic delays and alternate route suggestions, local gas
prices, movie listings, sports scores and more. Refer to
the MyFord Touch chapter of your Owner’s Manual for
complete details.

Set a Destination
You can use the touch screen to set a destination in
many ways, like a street address, a city center, a place on
the map or a Point Of Interest (POI). The easiest way is
by voice.
1. Pull the voice control
, then when prompted say
“Destination street address”.
2. The system will ask you to say the full address and will
display an example on-screen.
3. You can then speak the address naturally, such as:
“One two three Main Street, Anytown”.
note: There will be a pop-up once you enter a destination, asking
you if you will charge your vehicle once you arrive. Selecting yes
sets the trip budget.
You can also use the touch screen to enter a destination
and narrow your choices by city or street as you type.
You can choose from up to three different types of routes:
- Fastest: Uses the fastest moving roads possible.
- Shortest: Uses the shortest distance possible.
- Eco (EcoRoute): Uses the most economical route.
1011

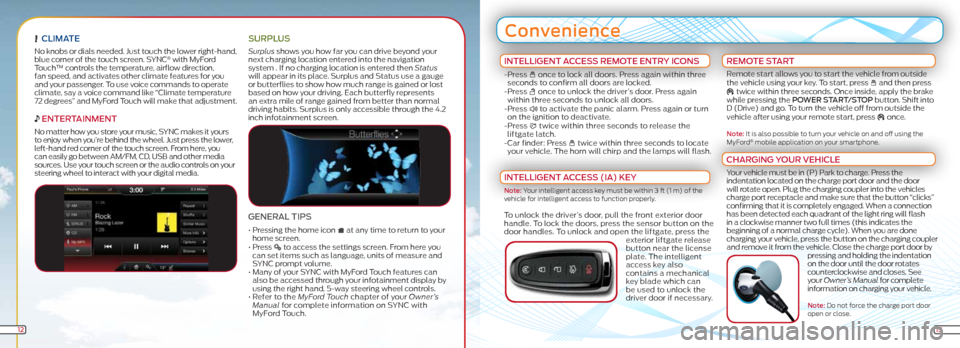

CLiMA te
No knobs or dials needed. Just touch the lower right-hand,
blue corner of the touch screen. SYNC® with MyFord
Touch™ controls the temperature, airflow direction,
fan speed, and activates other climate features for you
and your passenger. To use voice commands to operate
climate, say a voice command like “Climate temperature
72 degrees” and MyFord Touch will make that adjustment.
enteR tAinMent
No matter how you store your music, SYNC makes it yours
to enjoy when you’re behind the wheel. Just press the lower,
left-hand red corner of the touch screen. From here, you
can easily go between AM/FM, CD, USB and other media
sources. Use your touch screen or the audio controls on your
steering wheel to interact with your digital media.
SuRPLu S
Surplus shows you how far you can drive beyond your
next charging location entered into the navigation
system . If no charging location is entered then Status
will appear in its place. Surplus and Status use a gauge
or butterflies to show how much range is gained or lost
based on how your driving. Each butterfly represents
an extra mile of range gained from better than normal
driving habits. Surplus is only accessible through the 4.2
inch infotainment screen.
GeneRAL tiPS
• Pressing the home icon at any time to return to your
home screen.
• Press
to access the settings screen. From here you
can set items such as language, units of measure and
SYNC prompt volume.
• Many of your SYNC with MyFord Touch features can
also be accessed through your infotainment display by
using the right hand, 5-way steering wheel controls.
• Refer to the MyFord Touch chapter of your Owner’s
Manual for complete information on SYNC with
MyFord Touch.
Convenience
inteLLiGent A CCeSS ReMote entR y iConS
-
Press once to lock all doors. Press again within three
seconds to confirm all doors are locked.
-
Press
once to unlock the driver’s door. Press again
within three seconds to unlock all doors.
-
Press
to activate the panic alarm. Press again or turn
on the ignition to deactivate.
-
Press
twice within three seconds to release the
liftgate latch.
- Car finder: Press
twice within three seconds to locate
your vehicle. The horn will chirp and the lamps will flash.
inteLLiGent A CCeSS (iA) key
note: Your intelligent access key must be within 3 ft (1 m) of the
vehicle for intelligent access to function properly.
To unlock the driver’s door, pull the front exterior door
handle. To lock the doors, press the sensor button on the
door handles. To unlock and open the liftgate, press the
exterior liftgate release
button near the license
plate. The intelligent
access key also
contains a mechanical
key blade which can
be used to unlock the
driver door if necessary.
ReMote StARt
Remote start allows you to start the vehicle from outside
the vehicle using your key. To start, press and then press twice within three seconds. Once inside, apply the brake
while pressing the P oWeR S tAR t/S toP button. Shift into
D (Drive) and go. To turn the vehicle off from outside the
vehicle after using your remote start, press
once.
note: It is also possible to turn your vehicle on and off using the
MyFord® mobile application on your smartphone.
ChARGinG y ouR VehiCLe
Your vehicle must be in (P) Park to charge. Press the
indentation located on the charge port door and the door
will rotate open. Plug the charging coupler into the vehicles
charge port receptacle and make sure that the button “clicks”
confirming that it is completely engaged. When a connection
has been detected each quadrant of the light ring will flash
in a clockwise manner two full times (this indicates the
beginning of a normal charge cycle). When you are done
charging your vehicle, press the button on the charging coupler
and remove it from the vehicle. Close the charge port door by
pressing and holding the indentation
on the door until the door rotates
counterclockwise and closes. See
your Owner’s Manual for complete
information on charging your vehicle.
note: Do not force the charge port door
open or close.
1213

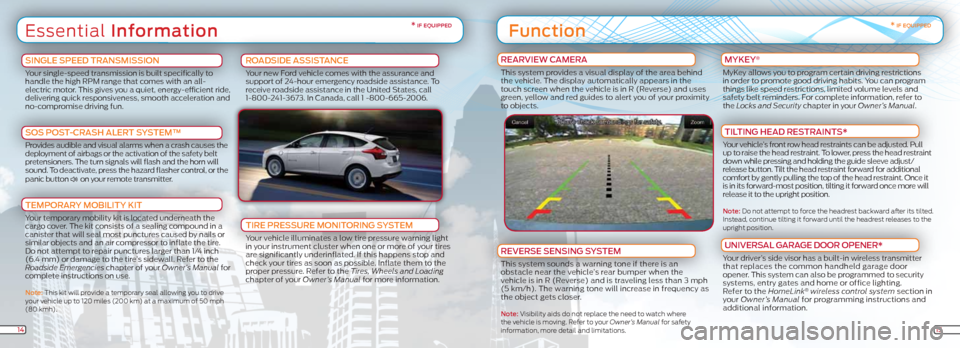

Essential information
1415
* if equipped
SinGLe SPeeD tRAnSMiSSion
Your single-speed transmission is built specifically to
handle the high RPM range that comes with an all-
electric motor. This gives you a quiet, energy-efficient ride,
delivering quick responsiveness, smooth acceleration and
no-compromise driving fun.
So S Po St-CRASh ALeR t SySteM™
Provides audible and visual alarms when a crash causes the
deployment of airbags or the activation of the safety belt
pretensioners. The turn signals will flash and the horn will
sound. To deactivate, press the hazard flasher control, or the
panic button
on your remote transmitter.
teMP oRAR y MoBiLity kit
Your temporary mobility kit is located underneath the
cargo cover. The kit consists of a sealing compound in a
canister that will seal most punctures caused by nails or
similar objects and an air compressor to inflate the tire.
Do not attempt to repair punctures larger than 1⁄4 inch
(6.4 mm) or damage to the tire’s sidewall. Refer to the
Roadside Emergencies chapter of your Owner’s Manual for
complete instructions on use.
note: This kit will provide a temporary seal allowing you to drive
your vehicle up to 120 miles (200 km) at a maximum of 50 mph
(80 kmh).
RoADSiDe A SSiStAnCe
Your new Ford vehicle comes with the assurance and
support of 24-hour emergency roadside assistance. To
receive roadside assistance in the United States, call
1-800-241-3673. In Canada, call 1 -800-665-2006.
tiRe PRe SSuRe MonitoRinG S ySteM
Your vehicle illuminates a low tire pressure warning light
in your instrument cluster when one or more of your tires
are significantly underinflated. If this happens stop and
check your tires as soon as possible. Inflate them to the
proper pressure. Refer to the Tires, Wheels and Loading
chapter of your Owner’s Manual for more information.
Function
ReARVieW C AMeRA
This system provides a visual display of the area behind
the vehicle. The display automatically appears in the
touch screen when the vehicle is in R (Reverse) and uses
green, yellow and red guides to alert you of your proximity
to objects.




ReVeRSe SenSinG Sy SteM
This system sounds a warning tone if there is an
obstacle near the vehicle’s rear bumper when the
vehicle is in R (Reverse) and is traveling less than 3 mph
(5 km/h). The warning tone will increase in frequency as
the object gets closer.
note: Visibility aids do not replace the need to watch where
the vehicle is moving. Refer to your Owner’s Manual for safety
information, more detail and limitations.
Mykey®
Myk ey allows you to program certain driving restrictions
in order to promote good driving habits. You can program
things like speed restrictions, limited volume levels and
safety belt reminders. For complete information, refer to
the Locks and Security chapter in your Owner’s Manual.


tiL tinG heAD Re StRAint S*
Your vehicle’s front row head restraints can be adjusted. Pull
up to raise the head restraint. To lower, press the head restraint
down while pressing and holding the guide sleeve adjust/
release button. Tilt the head restraint forward for additional
comfort by gently pulling the top of the head restraint. Once it
is in its forward-most position, tilting it forward once more will
release it to the upright position.

note: Do not attempt to force the headrest backward after its tilted.
Instead, continue tilting it forward until the headrest releases to the
upright position.
uniVeRSAL G ARAGe DooR oPeneR*
Your driver’s side visor has a built-in wireless transmitter
that replaces the common handheld garage door
opener. This system can also be programmed to security
systems, entry gates and home or office lighting.
Refer to the HomeLink
® wireless control system section in
your Owner’s Manual for programming instructions and
additional information.
* if equipped
