under-inflated, carefully drive the vehicle to the nearest location where
air can be added to the tires. Inflate all the tires to the recommended
inflation pressure.
SNOW TIRES AND CHAINS
WARNING:Snow tires must be the same size, load index, speed
rating as those originally provided by Ford. Use of any tire or wheel
not recommended by Ford can affect the safety and performance of your
vehicle, which could result in an increased risk of loss of vehicle control,
vehicle rollover, personal injury and death. Additionally, the use of
non-recommended tires and wheels could cause steering, suspension, axle
or transfer case/power transfer unit failure.
The tires on your vehicle have all weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use chains, it is recommended that steel
wheels (of the same size and specifications) be used, as chains may chip
aluminum wheels.
Note:The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when using
snow tires and chains.
Follow these guidelines when using snow tires and chains:
•If possible, avoid fully loading your vehicle.
•Use only SAE Class S cables or equivalent on the front axle for
P205/60R16 equipped vehicles. SAE Class S chains or other
conventional link chains may cause damage to the vehicles wheel
house and/or body.
•
Do not install tire chains, cables, or optional traction devices on the rear
tires. This could cause damage to the vehicle’s wheel house or body.
•Do not use tire chains, cables, or optional traction devices with
optional P225/50R17 or P225/45R18 tires.
•Install cable chains securely, verifying that the cables do not touch any
wiring, brake lines or fuel lines.
•Do not exceed 30 mph (48 km/h) with tire cables on your vehicle.
•Drive cautiously. If you hear the cables rub or bang against your
vehicle, stop and retighten the cables. If this does not work, remove
the cables to prevent damage to your vehicle.
•Remove the tire cables when they are no longer needed. Do not use
tire cables on dry roads.
Tires, Wheels and Loading
189
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

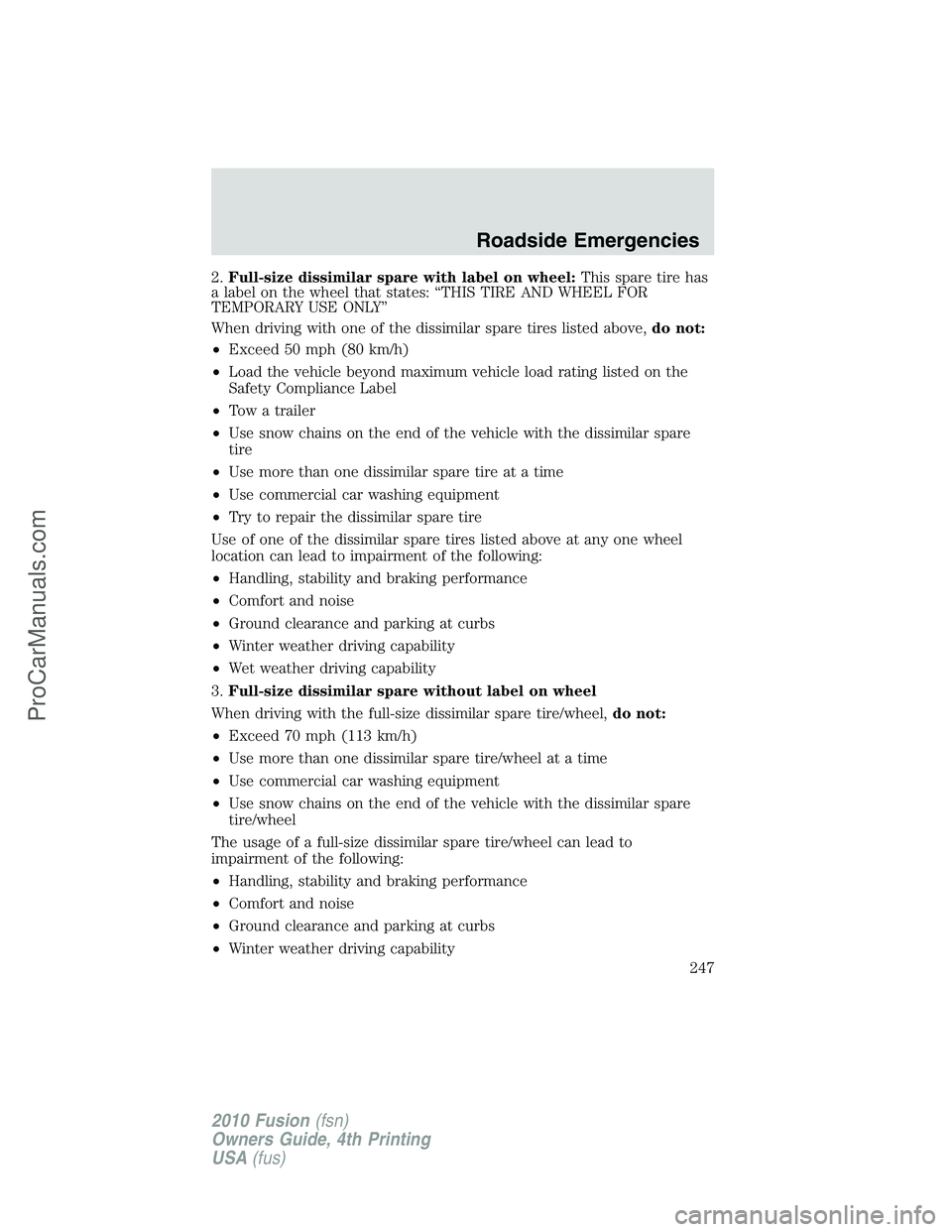

2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
Roadside Emergencies
247
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

Seats ..........................................107
child safety seats ....................154
front seats ...............................110
heated ......................................114
SecuriCode keyless entry
system ........................................100
SecuriLock passive anti-theft
system ........................................101
Servicing your vehicle ..............275
Side air curtain .........................146
SOS Post Crash Alert ...............149
Spark plugs,
specifications .....................320, 325
Specification chart,
lubricants ...................................321
Speed control ..............................81
Starting your vehicle .......198–199,
201
jump starting ..........................253
Steering
speed sensitive .......................210
Steering wheel
controls ......................................84
tilting .........................................73
Stereo
CD-MP3 .....................................28
SYNC..........................................44
T
Tilt steering wheel ......................73
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....184
Tires ...........................169–170, 246
alignment ................................177
care ..........................................173changing ..................................246
checking the pressure ............173
inflating ...................................171
label .........................................183
replacing ..................................175
rotating ....................................177
safety practices .......................176
sidewall information ...............178
snow tires and chains ............189
spare tire .................................246
terminology .............................170
tire grades ...............................170
treadwear ........................169, 174
Towing .......................................195
recreational towing .................195
trailer towing ..........................195
wrecker ....................................258
Transmission .............................212
brake-shift interlock (BSI) ....210
fluid, checking and adding
(automatic) .............................313
fluid, checking and adding
(manual) .........................313, 317
fluid, refill capacities ..............321
lubricant specifications ..........321
manual operation ....................217
Trunk ...........................................93
remote release ....................87, 96
Turn signal ..................................59
U
USB port ......................................38
V
Vehicle Identification Number
(VIN) ..........................................327
Vehicle loading ..........................190
Ventilating your vehicle ...........201
Index
339
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
