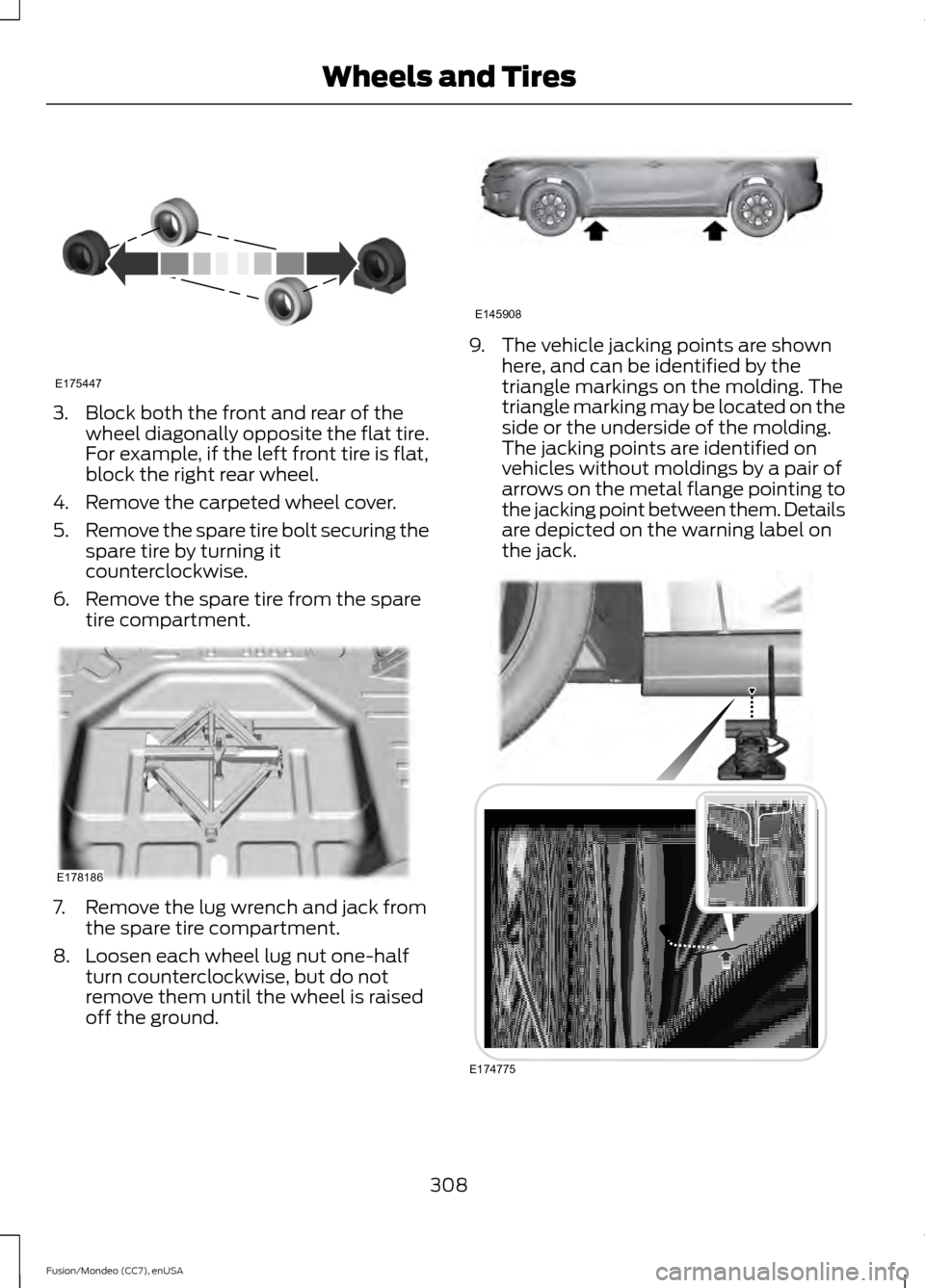

3. Block both the front and rear of the
wheel diagonally opposite the flat tire.
For example, if the left front tire is flat,
block the right rear wheel.
4. Remove the carpeted wheel cover.
5. Remove the spare tire bolt securing the
spare tire by turning it
counterclockwise.
6. Remove the spare tire from the spare tire compartment. 7. Remove the lug wrench and jack from
the spare tire compartment.
8. Loosen each wheel lug nut one-half turn counterclockwise, but do not
remove them until the wheel is raised
off the ground. 9. The vehicle jacking points are shown
here, and can be identified by the
triangle markings on the molding. The
triangle marking may be located on the
side or the underside of the molding.
The jacking points are identified on
vehicles without moldings by a pair of
arrows on the metal flange pointing to
the jacking point between them. Details
are depicted on the warning label on
the jack. 308
Fusion/Mondeo (CC7), enUSA Wheels and TiresE175447 E178186 E145908 E174775

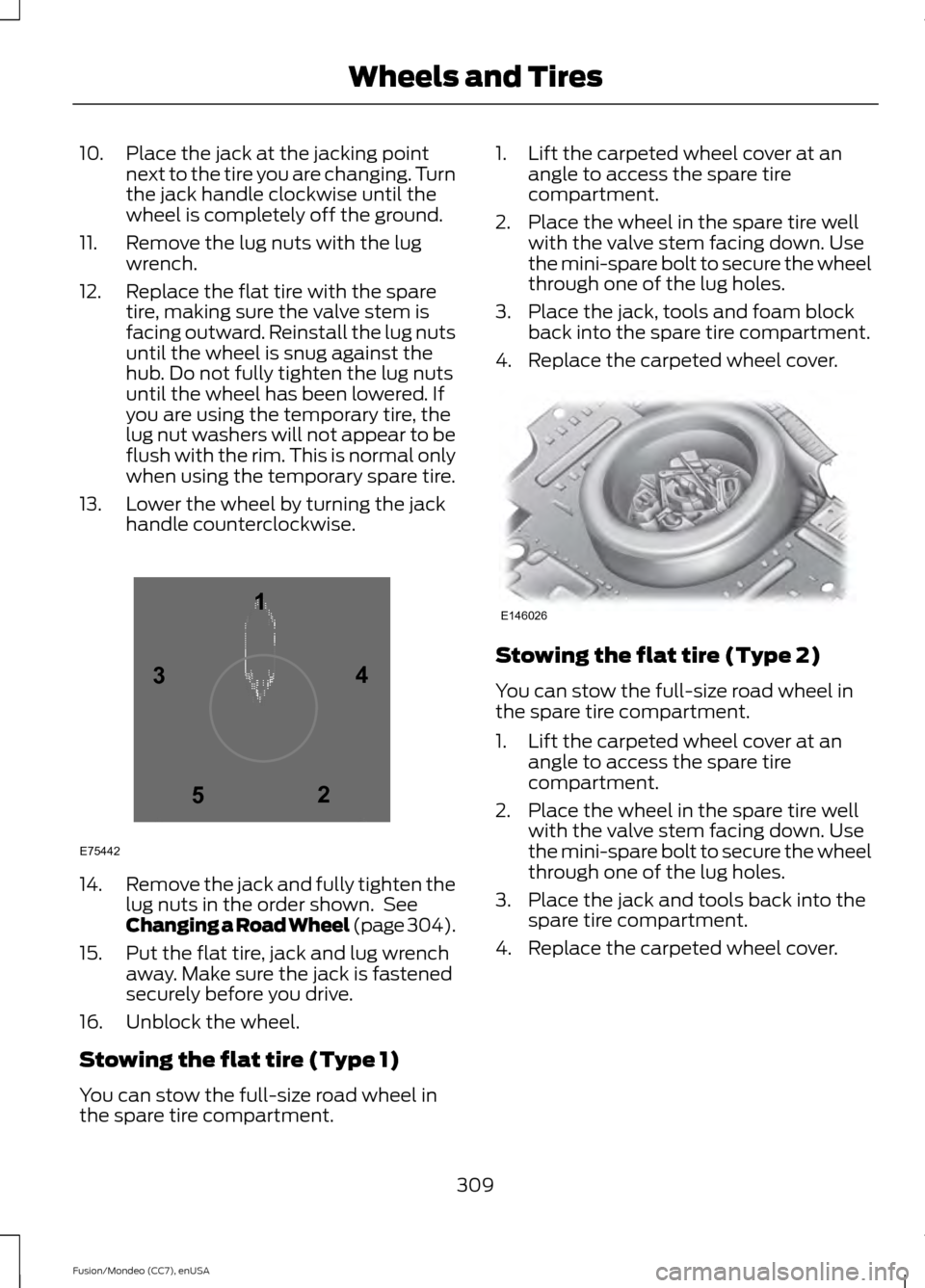

10. Place the jack at the jacking point
next to the tire you are changing. Turn
the jack handle clockwise until the
wheel is completely off the ground.
11. Remove the lug nuts with the lug wrench.
12. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts
until the wheel is snug against the
hub. Do not fully tighten the lug nuts
until the wheel has been lowered. If
you are using the temporary tire, the
lug nut washers will not appear to be
flush with the rim. This is normal only
when using the temporary spare tire.
13. Lower the wheel by turning the jack handle counterclockwise. 14.
Remove the jack and fully tighten the
lug nuts in the order shown. See
Changing a Road Wheel (page 304).
15. Put the flat tire, jack and lug wrench away. Make sure the jack is fastened
securely before you drive.
16. Unblock the wheel.
Stowing the flat tire (Type 1)
You can stow the full-size road wheel in
the spare tire compartment. 1. Lift the carpeted wheel cover at an
angle to access the spare tire
compartment.
2. Place the wheel in the spare tire well with the valve stem facing down. Use
the mini-spare bolt to secure the wheel
through one of the lug holes.
3. Place the jack, tools and foam block back into the spare tire compartment.
4. Replace the carpeted wheel cover. Stowing the flat tire (Type 2)
You can stow the full-size road wheel in
the spare tire compartment.
1. Lift the carpeted wheel cover at an
angle to access the spare tire
compartment.
2. Place the wheel in the spare tire well with the valve stem facing down. Use
the mini-spare bolt to secure the wheel
through one of the lug holes.
3. Place the jack and tools back into the spare tire compartment.
4. Replace the carpeted wheel cover.
309
Fusion/Mondeo (CC7), enUSA Wheels and Tires12
3
4
5
E75442 E146026

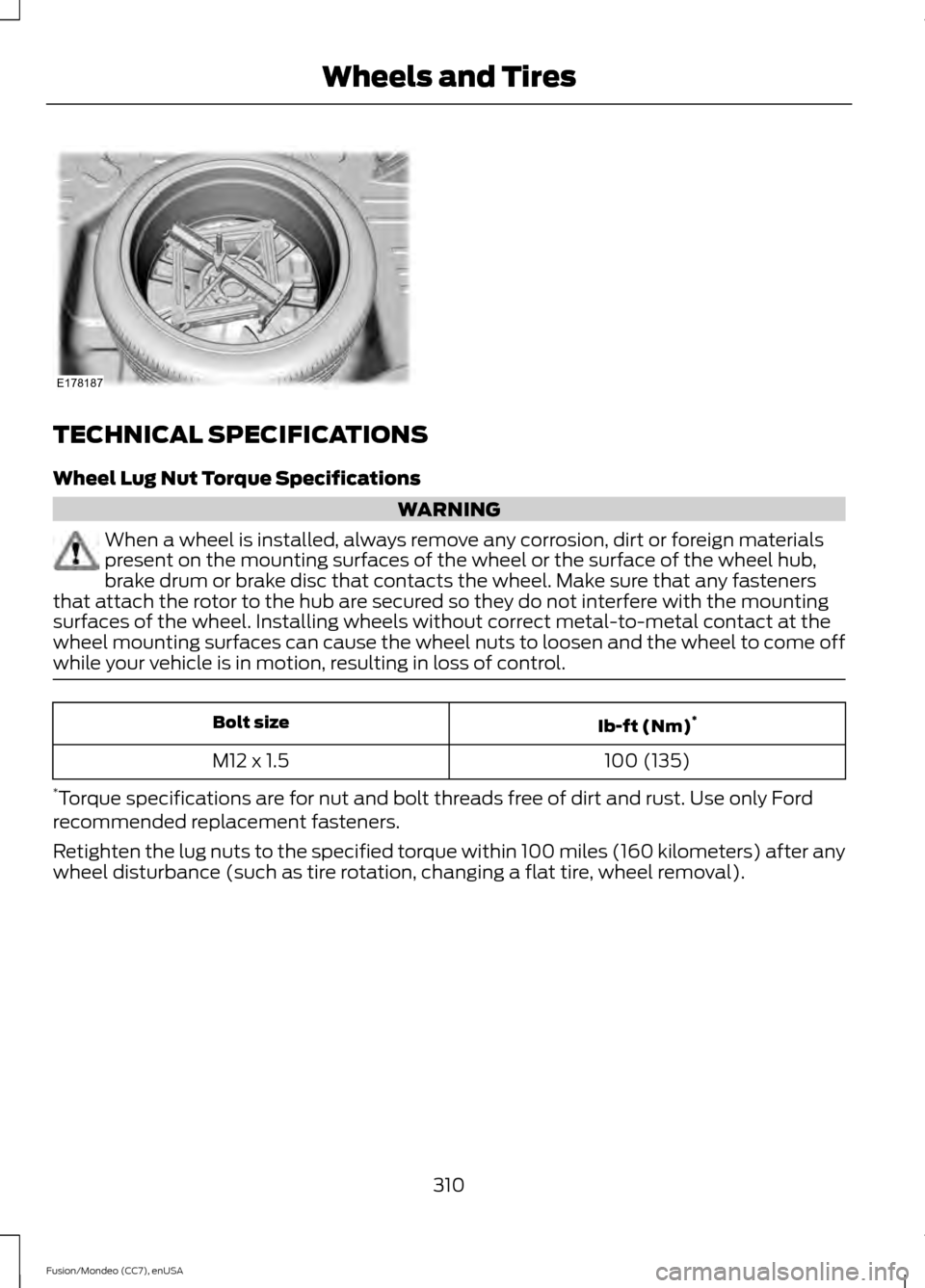

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or the surface of the wheel hub,
brake drum or brake disc that contacts the wheel. Make sure that any fasteners
that attach the rotor to the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off
while your vehicle is in motion, resulting in loss of control. Ib-ft (Nm)
*
Bolt size
100 (135)
M12 x 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal).
310
Fusion/Mondeo (CC7), enUSA Wheels and TiresE178187

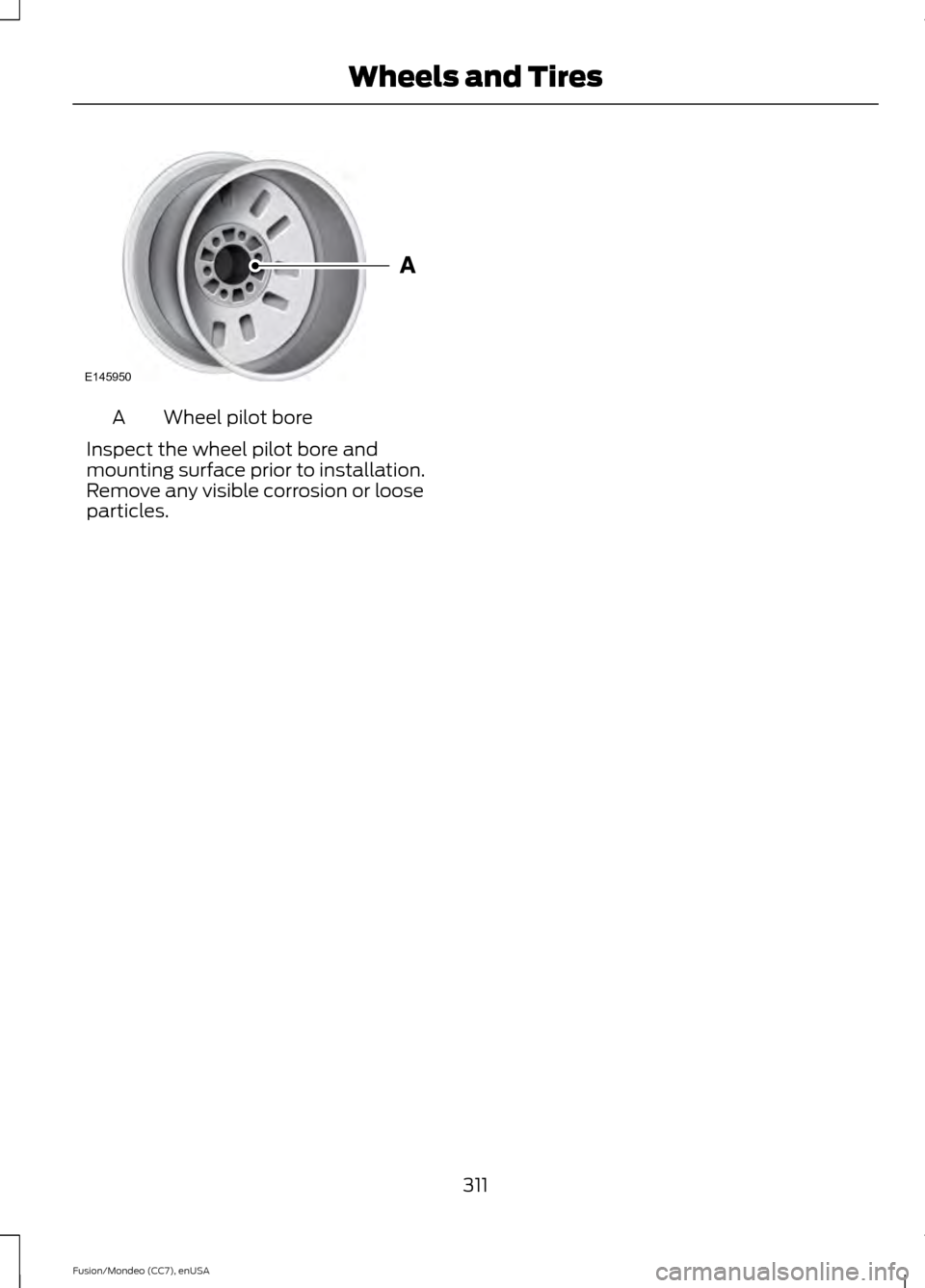

Wheel pilot bore
A
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
311
Fusion/Mondeo (CC7), enUSA Wheels and TiresE145950

ENGINE SPECIFICATIONS
2.5L engine
2.0L EcoBoost
engine
1.6L EcoBoost
engine
1.5L EcoBoost
engine
Engine
152
122
98
92
Cubic inches
Minimum 87octane
Minimum 87
octane
Minimum 87 octane
Minimum 87
octane
Required
fuel
9.7:1
9.3:1
10.0:1
10.0:1
Compression
ratio
0.049-0.053in. (1.25-1.35 mm)
0.027-0.031 in.
(0.70-0.80 mm)
0.027-0.031 in.
(0.70- 0.80 mm)
0.025-0.029 in.
(0.65-0.75 mm)
Spark plug
gap
Drivebelt Routing (If Equipped)
1.5L engine 1.6L engine 2.0L and 2.5L engines
A. Long drivebelt is on first pulley groove
closest to engine
B. Short drivebelt is on second pulley groove farthest from engine
312
Fusion/Mondeo (CC7), enUSA Capacities and SpecificationsE167586 E161372 E161383
A
B

MOTORCRAFT PARTS
2.5L Engine
2.0L EcoBoost
Engine
1.6L EcoBoost
Engine
1.5L EcoBoost
Engine
Component
FA-1912
Air filter element
FL-910S
Oil filter
BXT-90T5-500
BXT-90T5-590 1
BXT-90T5-
500
BXT-90T5-
500
Battery BXT-90T5-
590 1
BXT-90T5-
590 1
BXT-90T5-5901
BAGM-48H6-
7602
BAGM-48H6-
7602
SP-530
SP-537
SP-532
SP-539
Spark plugs
FP-71
Cabin air filter
WW-2601 (driver side)
Windshield wiper
blade WW-2700 (passenger side)
We recommend Motorcraft replacement parts available at your Ford dealer or at
fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor
Company ’s specifications and are engineered for your vehicle. Use of other parts may
impact vehicle performance, emissions and durability. Your warranty may be void for any
damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the
appropriate intervals. See Scheduled Maintenance (page 458).
1 This part is designed for vehicles with Intelligent Access.
2 This part is designed for vehicles with Automatic-Start-Stop.
313
Fusion/Mondeo (CC7), enUSA Capacities and Specifications

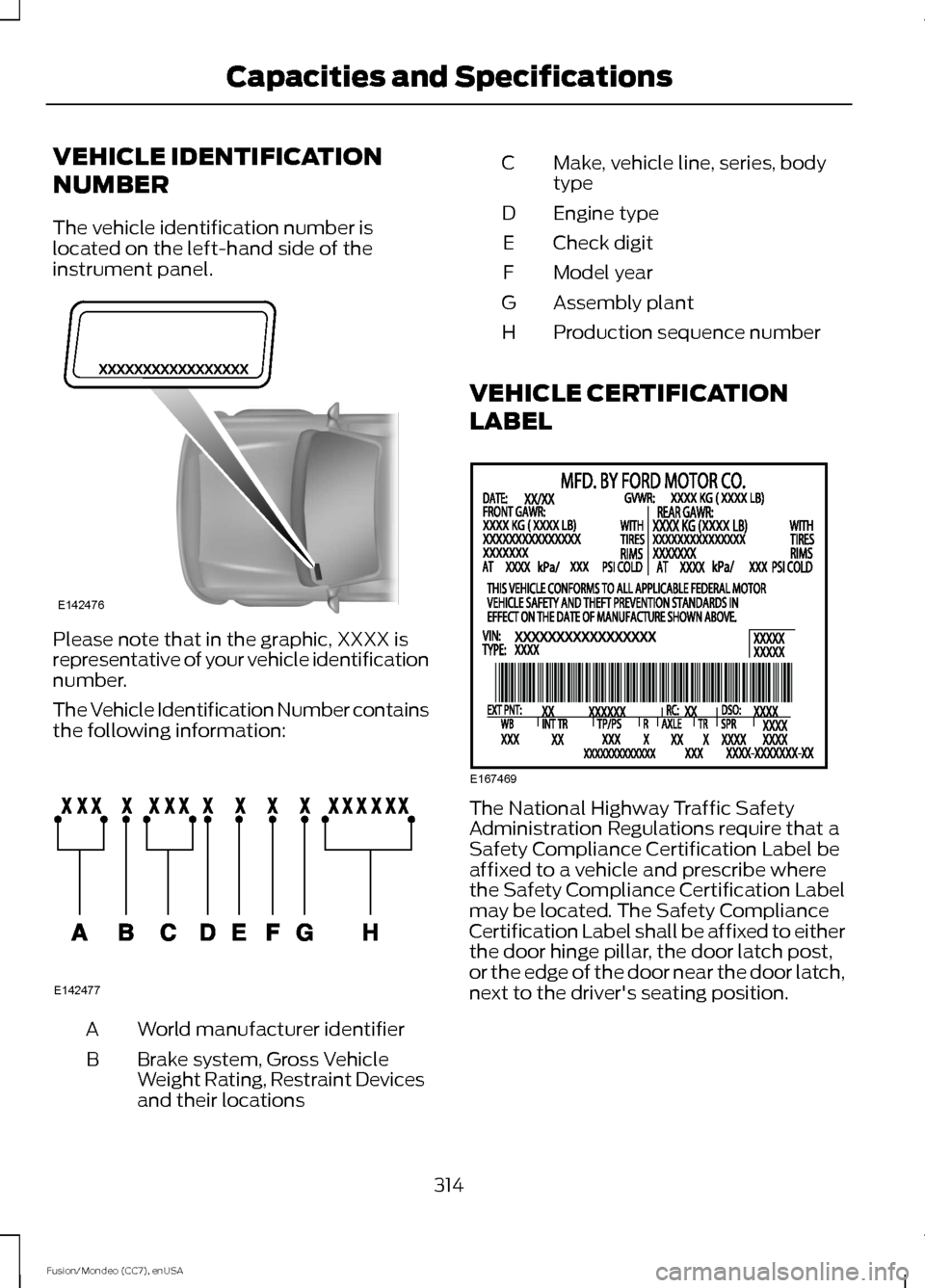

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information:
World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H
VEHICLE CERTIFICATION
LABEL The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.
314
Fusion/Mondeo (CC7), enUSA Capacities and SpecificationsE142476 E142477 E167469

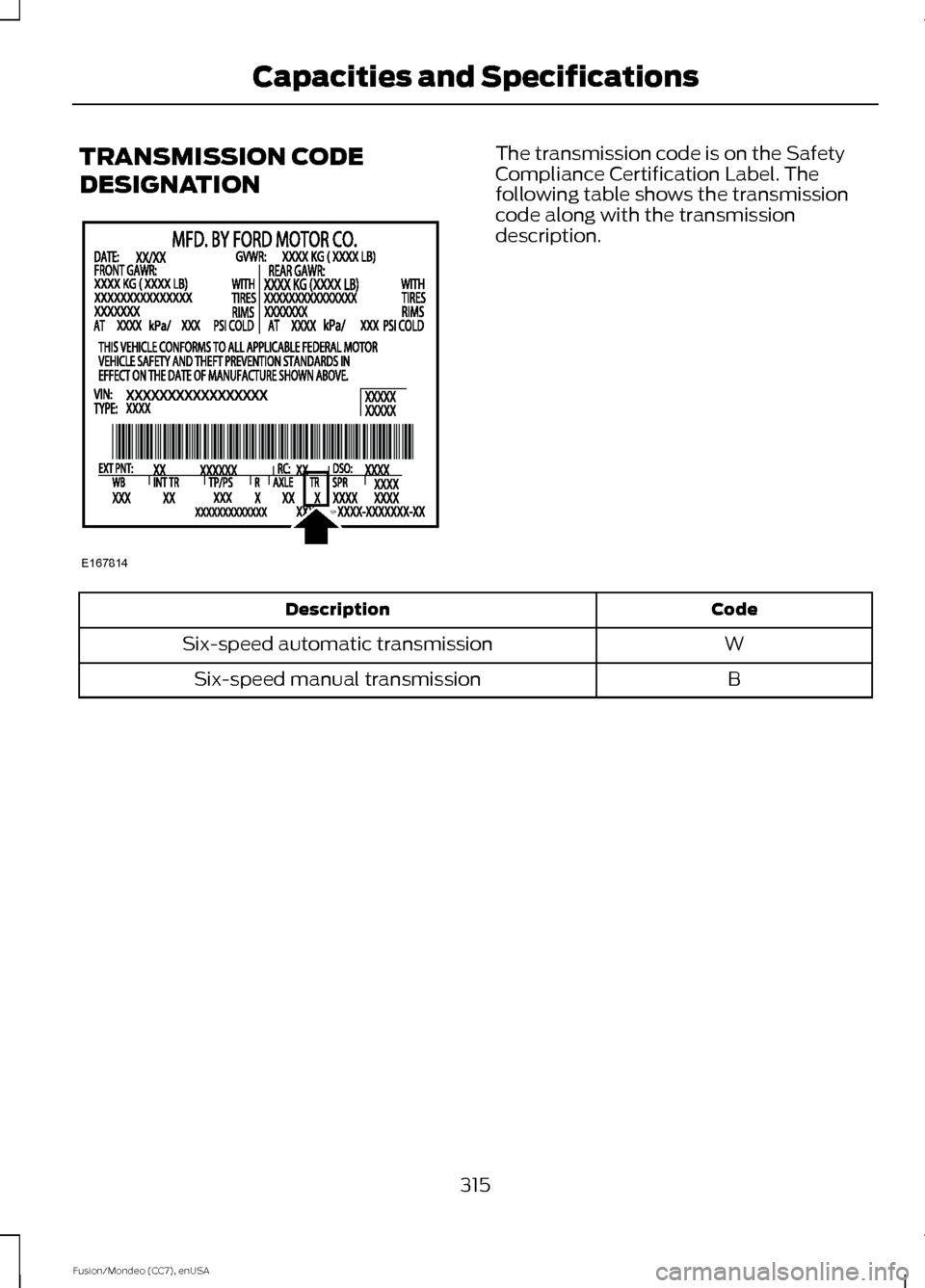

TRANSMISSION CODE
DESIGNATION The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.
Code
Description
W
Six-speed automatic transmission
B
Six-speed manual transmission
315
Fusion/Mondeo (CC7), enUSA Capacities and SpecificationsE167814

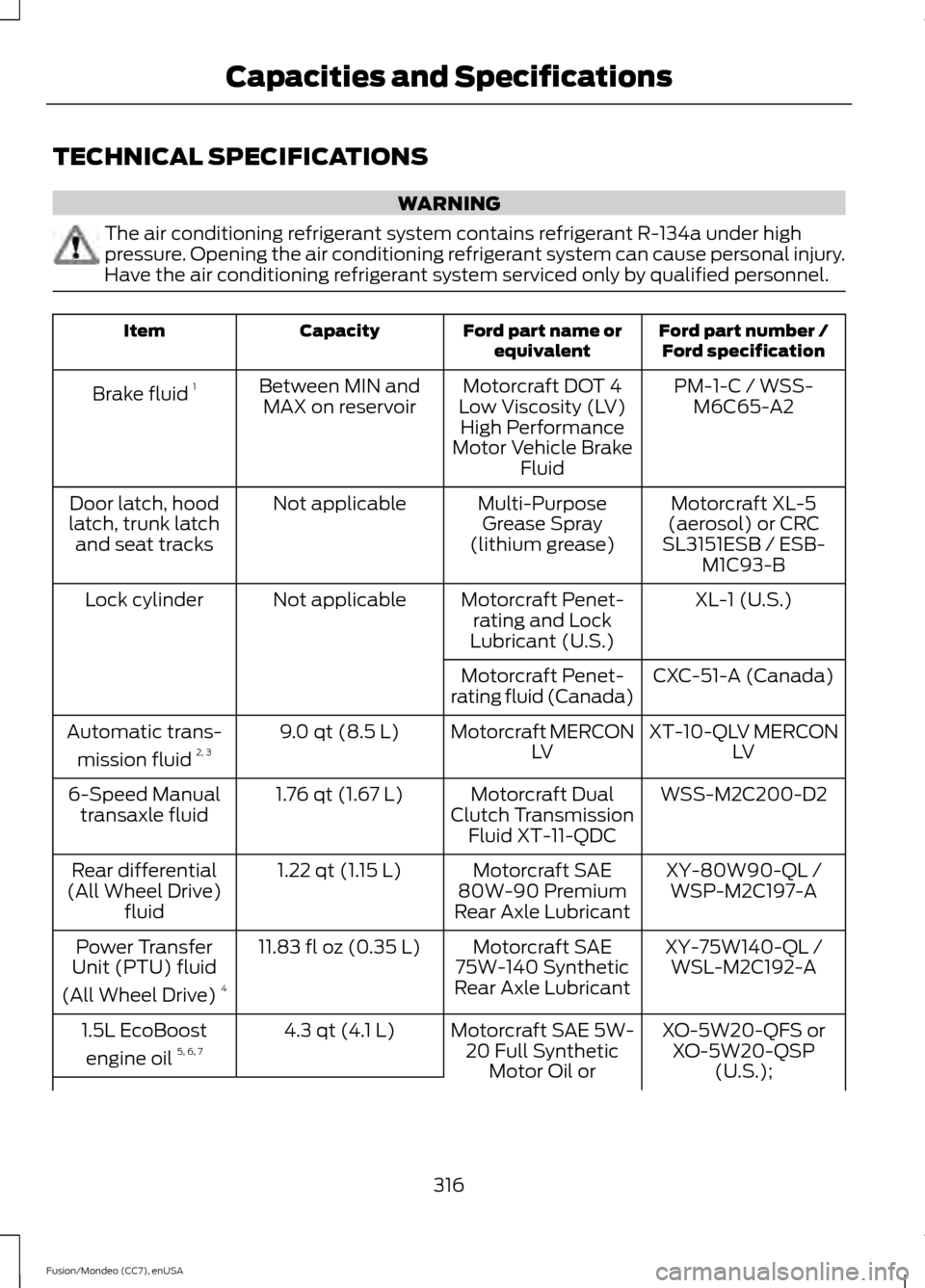

TECHNICAL SPECIFICATIONS
WARNING
The air conditioning refrigerant system contains refrigerant R-134a under high
pressure. Opening the air conditioning refrigerant system can cause personal injury.
Have the air conditioning refrigerant system serviced only by qualified personnel.
Ford part number /
Ford specification
Ford part name or
equivalent
Capacity
Item
PM-1-C / WSS-M6C65-A2
Motorcraft DOT 4
Low Viscosity (LV) High Performance
Motor Vehicle Brake Fluid
Between MIN and
MAX on reservoir
Brake fluid
1
Motorcraft XL-5
(aerosol) or CRC
SL3151ESB / ESB- M1C93-B
Multi-Purpose
Grease Spray
(lithium grease)
Not applicable
Door latch, hood
latch, trunk latch and seat tracks
XL-1 (U.S.)
Motorcraft Penet-
rating and Lock
Lubricant (U.S.)
Not applicable
Lock cylinder
CXC-51-A (Canada)
Motorcraft Penet-
rating fluid (Canada)
XT-10-QLV MERCONLV
Motorcraft MERCON
LV
9.0 qt (8.5 L)
Automatic trans-
mission fluid 2, 3
WSS-M2C200-D2
Motorcraft Dual
Clutch Transmission Fluid XT-11-QDC
1.76 qt (1.67 L)
6-Speed Manual
transaxle fluid
XY-80W90-QL /WSP-M2C197-A
Motorcraft SAE
80W-90 Premium
Rear Axle Lubricant
1.22 qt (1.15 L)
Rear differential
(All Wheel Drive) fluid
XY-75W140-QL /WSL-M2C192-A
Motorcraft SAE
75W-140 Synthetic
Rear Axle Lubricant
11.83 fl oz (0.35 L)
Power Transfer
Unit (PTU) fluid
(All Wheel Drive) 4
XO-5W20-QFS orXO-5W20-QSP (U.S.);
Motorcraft SAE 5W-
20 Full Synthetic Motor Oil or
4.3 qt (4.1 L)
1.5L EcoBoost
engine oil 5, 6, 7
316
Fusion/Mondeo (CC7), enUSA Capacities and Specifications

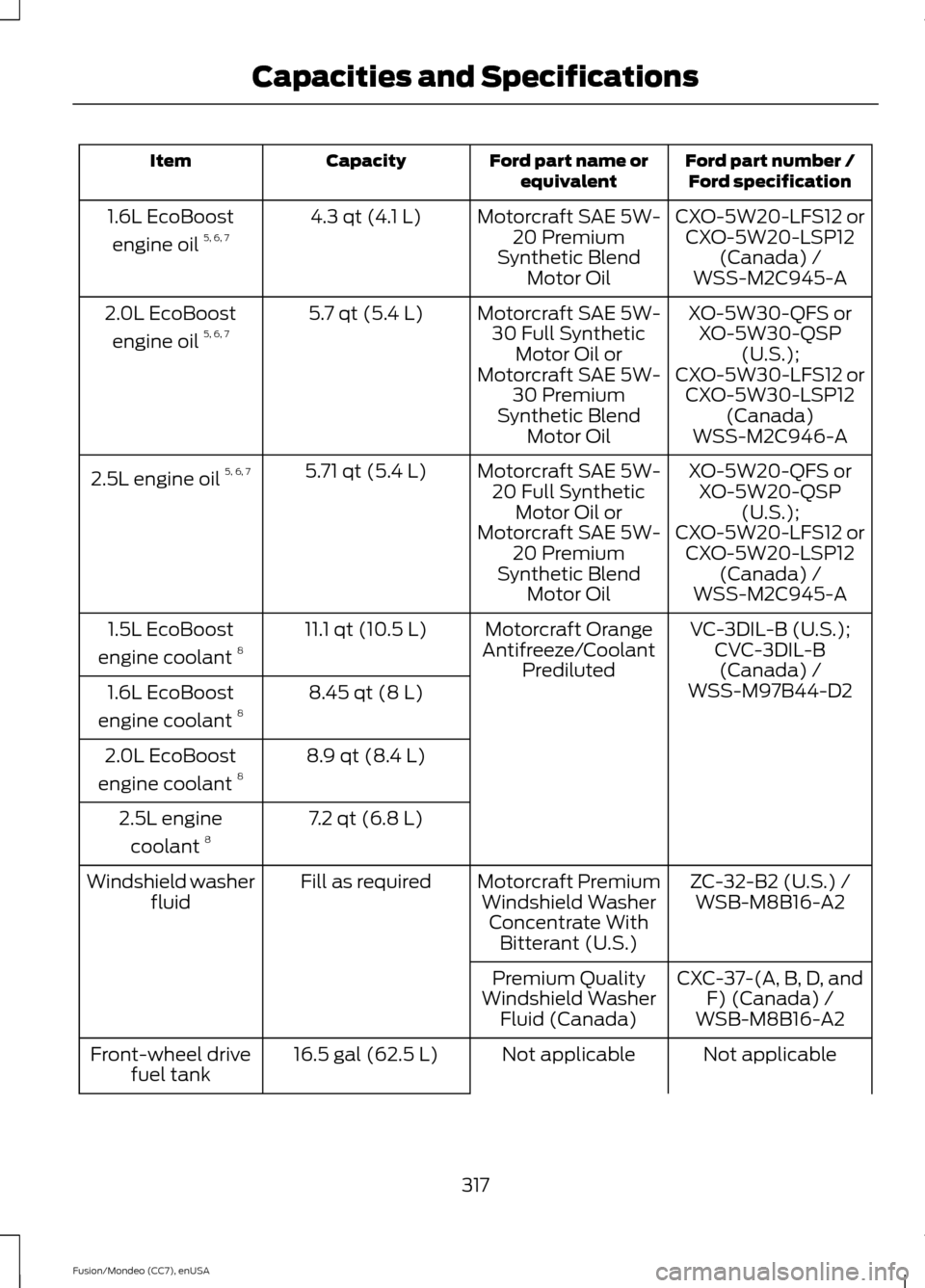

Ford part number /
Ford specification
Ford part name or
equivalent
Capacity
Item
4.3 qt (4.1 L)
1.6L EcoBoost
engine oil 5, 6, 7 CXO-5W20-LFS12 or
CXO-5W20-LSP12 (Canada) /
Motorcraft SAE 5W-
20 Premium
Synthetic Blend Motor Oil WSS-M2C945-A
XO-5W30-QFS orXO-5W30-QSP (U.S.);
Motorcraft SAE 5W-
30 Full Synthetic Motor Oil or
5.7 qt (5.4 L)
2.0L EcoBoost
engine oil 5, 6, 7
CXO-5W30-LFS12 orCXO-5W30-LSP12 (Canada)
Motorcraft SAE 5W-
30 Premium
Synthetic Blend Motor Oil WSS-M2C946-A
XO-5W20-QFS orXO-5W20-QSP (U.S.);
Motorcraft SAE 5W-
20 Full Synthetic Motor Oil or
5.71 qt (5.4 L)
2.5L engine oil 5, 6, 7
CXO-5W20-LFS12 orCXO-5W20-LSP12 (Canada) /
Motorcraft SAE 5W-
20 Premium
Synthetic Blend Motor Oil WSS-M2C945-A
VC-3DIL-B (U.S.);
Motorcraft Orange
Antifreeze/Coolant Prediluted
11.1 qt (10.5 L)
1.5L EcoBoost
engine coolant 8
CVC-3DIL-B
(Canada) /
8.45 qt (8 L)
1.6L EcoBoost
engine coolant 8 WSS-M97B44-D2
8.9 qt (8.4 L)
2.0L EcoBoost
engine coolant 8
7.2 qt (6.8 L)
2.5L engine
coolant 8
ZC-32-B2 (U.S.) /
Motorcraft Premium
Windshield Washer Concentrate With Bitterant (U.S.)
Fill as required
Windshield washer
fluid WSB-M8B16-A2
CXC-37-(A, B, D, and F) (Canada) /
Premium Quality
Windshield Washer Fluid (Canada) WSB-M8B16-A2
Not applicable
Not applicable
16.5 gal (62.5 L)
Front-wheel drive
fuel tank
317
