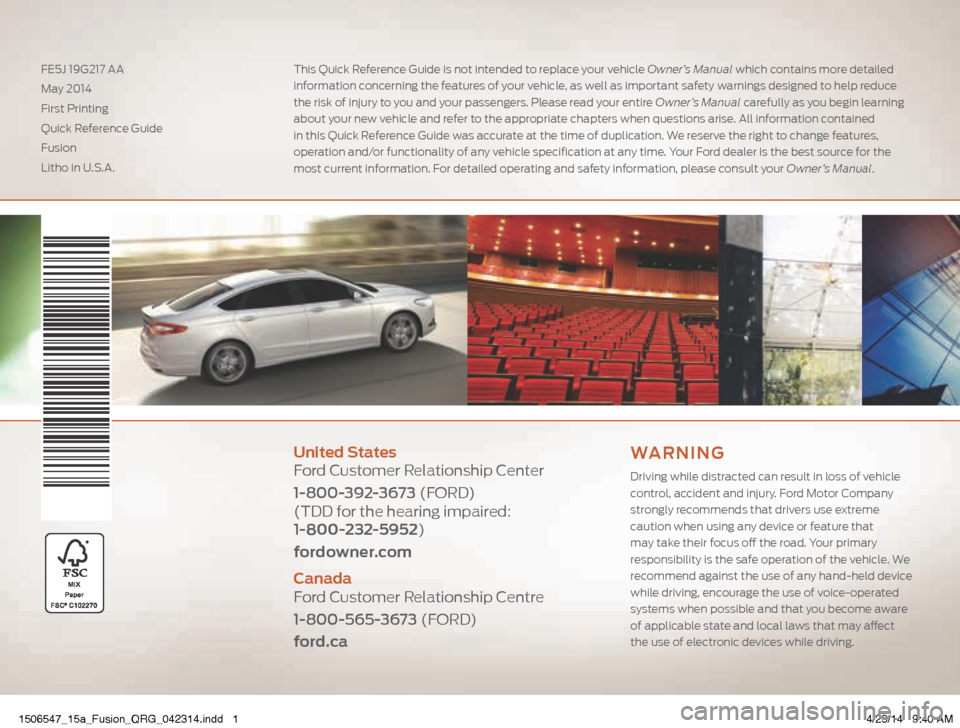

FORD FUSION (AMERICAS) 2015 2.G Quick Reference Guide

United States
Ford Customer Relationship Center
1-800-392-3673 (FORD)
(TDD for the hearing impaired:
1-800-232-5952)
fordowner.com
Canada
Ford Customer Relationship Centre
1-800-565-3673 (FORD)
ford.ca
FE5J 19G217 AA
May 2014
First Printing
Quick Reference Guide
Fusion
Litho in U.S.A.This Quick Reference Guide is not intended to replace your vehicle Owner’s Manual which contains more detailed
information concerning the features of your vehicle, as well as important safety warnings designed to help reduce
the risk of injury to you and your passengers. Please read your entire Owner’s Manual carefully as you begin learning
about your new vehicle and refer to the appropriate chapters when questions arise. All information contained
in this Quick Reference Guide was accurate at the time of duplication. We reserve the right to change features,
operation and/or functionality of any vehicle specification at any time. Your Ford dealer is the best source for the
most current information. For detailed operating and safety information, please consult your Owner’s Manual.Driving while distracted can result in loss of vehicle
control, accident and injury. Ford Motor Company
strongly recommends that drivers use extreme
caution when using any device or feature that
may take their focus off the road. Your primary
responsibility is the safe operation of the vehicle. We
recommend against the use of any hand-held device
while driving, encourage the use of voice-operated
systems when possible and that you become aware
of applicable state and local laws that may affect
the use of electronic devices while driving.
WARNING
1506547_15a_Fusion_QRG_042314.indd 14/23/14 9:40 AM

Quick
Reference
Guide
1506547_15a_Fusion_QRG_042314.indd 24/23/14 9:40 AM
TWO THOUSAND FIFTEEN
FUSION

Touch the voice button on the steering wheel and then say:Basic Commands
• What can I say?
• List of commands
• Main menu
• Previous
• Next
• Go back
• Exit
• Help
• Pair my phone
Phone• Phone list of commands
- Dial
- Call on cell/
at home/at work
- Call voicemail
- Do not disturb
- Listen to text messages
(phone-dependent feature)
Entertainment • Audio list of commands:
You can also get detailed
lists of commands for
radio, USB, Bluetooth
®
audio, SiriusXM and
SD card
• Radio
-
- FM <87.9-107.9>
- FM preset <#>
• CD
- Play track <1-512>
- Shuffle
• USB
- Play song
- Play album
• SiriusXM
-
- Preset <#>
Climate*• Climate control list
of commands
- Climate
- Climate my temperature
- Climate temperature
Navigation*
• Navigation list of commands
- Destination street address

- Destination home
- Navigation voice
- Navigation voice volume

- Repeat instruction
- Show

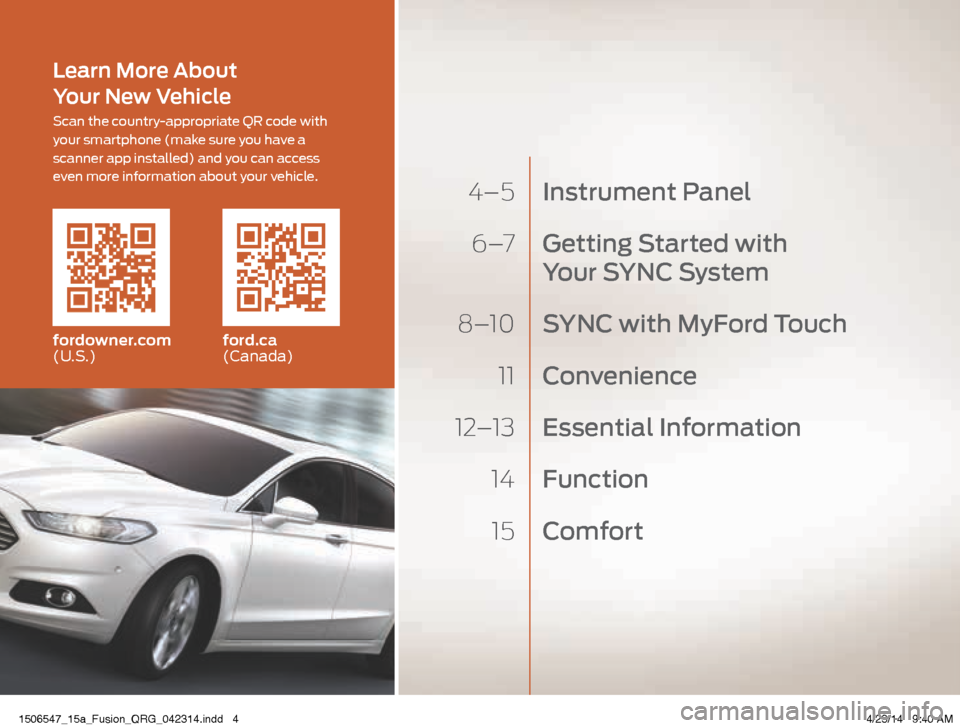

4–5 Instrument Panel
6 –7 Getting Started with
Your SYNC S ystem
8–10 SYNC with MyFord Touch
11 Convenience
12–13 Essential Information
14 Function
15 Comfort
fordowner.com
(U.S.)
Learn More About
Your New Vehicle
Scan the country-appropriate QR code with
your smartphone (make sure you have a
scanner app installed) and you can access
even more information about your vehicle.
ford.ca
(Canada)
1506547_15a_Fusion_QRG_042314.indd 44/23/14 9:40 AM

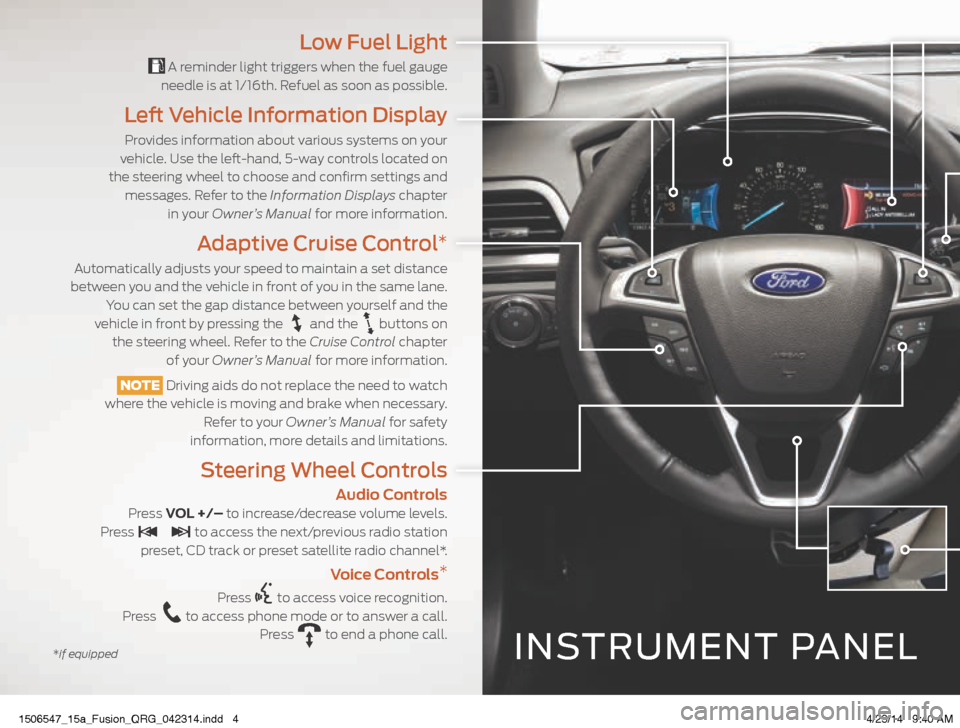

INSTRUMENT PANEL
Low Fuel Light
A reminder light triggers when the fuel gauge
needle is at 1/16th. Refuel as soon as possible.
Left Vehicle Information Display
Provides information about various systems on your
vehicle. Use the left-hand, 5-way controls located on
the steering wheel to choose and confirm settings and messages. Refer to the Information Displays chapter in your Owner’s Manual for more information.

Adaptive Cruise Control*
Automatically adjusts your speed to maintain a set distance
between you and the vehicle in front of you in the same lane.
You can set the gap distance between yourself and the
vehicle in front by pressing the
and the buttons on
the steering wheel. Refer to the Cruise Control chapter of your Owner’s Manual for more information.
NOTE Driving aids do not replace the need to watch
where the vehicle is moving and brake when necessary.
Refer to your Owner’s Manual for safety
information, more details and limitations.
Steering Wheel Controls
Audio Controls Press VOL +/– to increase/decrease volume levels.
Press to access the next/previous radio station
preset, CD track or preset satellite radio channel*.
Voice Controls *
Press to access voice recognition.
Press to access phone mode or to answer a call.
Press to end a phone call.
*if equipped
1506547_15a_Fusion_QRG_042314.indd 44/23/14 9:40 AM

Right Vehicle Information Display*
Displays information about Entertainment, Phone, Climate
and Navigation*. Use the right-hand, 5-way controls located on
your steering wheel to scroll through, highlight and make minor
adjustments within a selected menu. Refer to the MyFord Touch
®
chapter in your Owner’s Manual for more information.
Wiper Control
Adjust the lever to switch the wipers on and off. Rotate the dial to
adjust the intermittent wipe speed. Push the end of the stalk to
use the washer.
Push Button Start*
Allows you to start your vehicle by pressing the ENGINE
START STOP button while fully pressing down on the brake
pedal (for automatic transmission vehicles) or both the brake
and clutch pedals (with manual transmission). Press the button
again to switch the engine off. If your vehicle has been idling for an
extended period of time, it will automatically shut down. Before
the engine shuts down, a message appears in the information
display, allowing the driver to override the shutdown feature.
NOTE Your intelligent access transmitter must be inside the
vehicle for the ignition to start. The keyless warning alert sounds
the horn twice when you exit the vehicle with the intelligent
access transmitter and your vehicle is in RUN, indicating that
the vehicle is still on.
Tilt/Telescope Steering Column
Pull the lever down to unlock the steering column. Adjust the
steering column to your desired position. Push the lever up to lock
the desired position into place.
5*if equipped
1506547_15a_Fusion_QRG_042314.indd 54/23/14 9:40 AM

Pairing Your Phone with SYNC
In order to use many of the features of SYNC, such as making a phone call, receiving a
text, you must first connect or pair your phone with SYNC.
To Pair Your Phone for the First Time
1. Make sure that your vehicle is in park (P) or neutral (N) with the parking brake applied
(with manual transmission only), then switch your ignition and radio on.
2. Press the phone button
. When the display indicates No Phone Found, press OK.
3. When Add Bluetooth Device? appears in the display, press OK.
4. When Find SYNC appears in the display, press OK. When prompted on your
phone’s display, enter the PIN provided by SYNC into your phone.
5. The display will indicate when the pairing is successful.
The System May Prompt You to
» Set your phone as the primary/favorite (the primary phone will receive messages
and voicemail).
» Download your phone book (this is required to use the full set of voice commands).
» Switch on 911 Assist
®.
TIPS
» Make sure you accept the request from SYNC to access your phone.
» To pair subsequent phones, please refer to Pairing Subsequent Phones in the SYNC
chapter of your Owner’s Manual.
» If you are experiencing pairing problems, try performing a clean pairing by deleting your
services from SYNC, deleting the SYNC connection from your phone and then repeating
the Pairing Your Phone with SYNC process.
SYNC is a Hands-free,
Voice Recognition System
Used for Entertainment,
Information and
Communication.
SYNC. Say the Word.
Before You Get Started
1. Set up your owner account
at SyncMyRide.com (U.S.)
or SyncMyRide.ca (Canada).
Register by following the on-screen
instructions. After registering
you can see which complimentary
services you are eligible for.
2. SYNC uses a wireless connection
called
Bluetooth® to communicate
with your phone. Switch on Bluetooth
mode in your phone’s menu
options. This lets your phone find
SYNC. If you need more details on
setting up your phone with SYNC,
visit SyncMyRide.com (U.S.) or
SyncMyRide.ca (Canada) or your
phone manufacturer’s website.
GETTING STARTED
WITH YOUR SYNC
® SYSTEM
1506547_15a_Fusion_QRG_042314.indd 64/23/14 9:40 AM

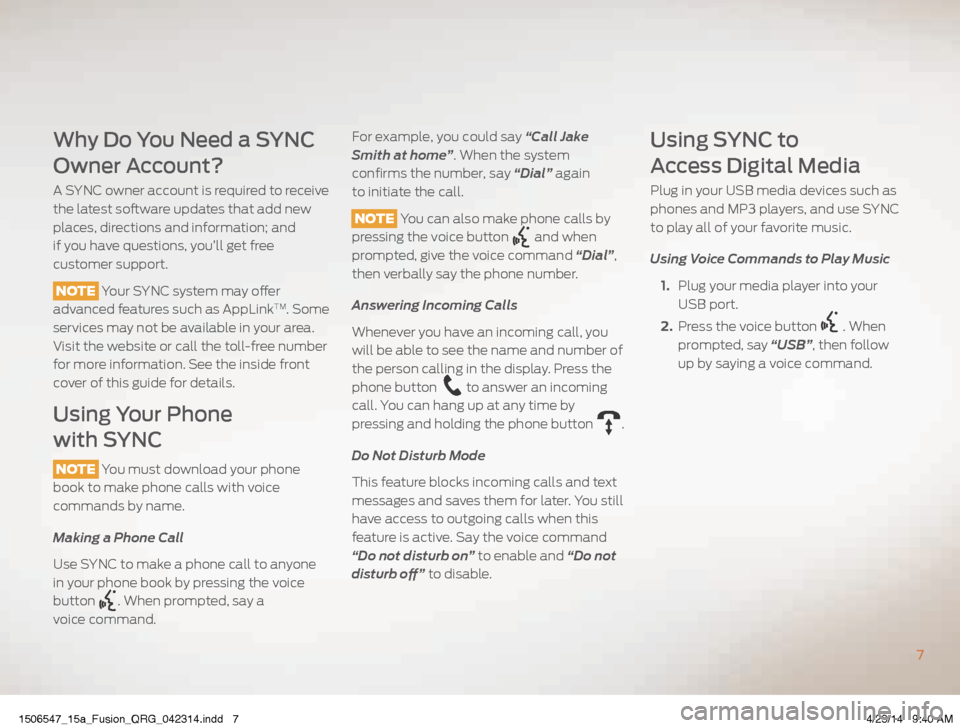

Why Do You Need a SYNC
Owner Account?
A SYNC owner account is required to receive
the latest software updates that add new
places, directions and information; and
if you have questions, you’ll get free
customer support.
NOTE Your SYNC system may offer
advanced features such as AppLink
TM. Some
services may not be available in your area.
Visit the website or call the toll-free number
for more information. See the inside front
cover of this guide for details.
Using Your Phone
with SYNC
NOTE You must download your phone
book to make phone calls with voice
commands by name.
Making a Phone Call
Use SYNC to make a phone call to anyone
in your phone book by pressing the voice
button
. When prompted, say a
voice command.
For example, you could say “Call Jake
Smith at home”. When the system
confirms the number, say “Dial” again
to initiate the call.
NOTE You can also make phone calls by
pressing the voice button
and when
prompted, give the voice command “Dial”,
then verbally say the phone number.
Answering Incoming Calls
Whenever you have an incoming call, you
will be able to see the name and number of
the person calling in the display. Press the
phone button
to answer an incoming
call. You can hang up at any time by
pressing and holding the phone button
.
Do Not Disturb Mode
This feature blocks incoming calls and text
messages and saves them for later. You still
have access to outgoing calls when this
feature is active. Say the voice command
“Do not disturb on” to enable and “Do not
disturb off” to disable.
Using SYNC to
Access Digital Media
Plug in your USB media devices such as
phones and MP3 players, and use SYNC
to play all of your favorite music.
Using Voice Commands to Play Music
1. Plug your media player into your
USB port.
2. Press the voice button
. When
prompted, say “USB”, then follow
up by saying a voice command.
7
1506547_15a_Fusion_QRG_042314.indd 74/23/14 9:40 AM

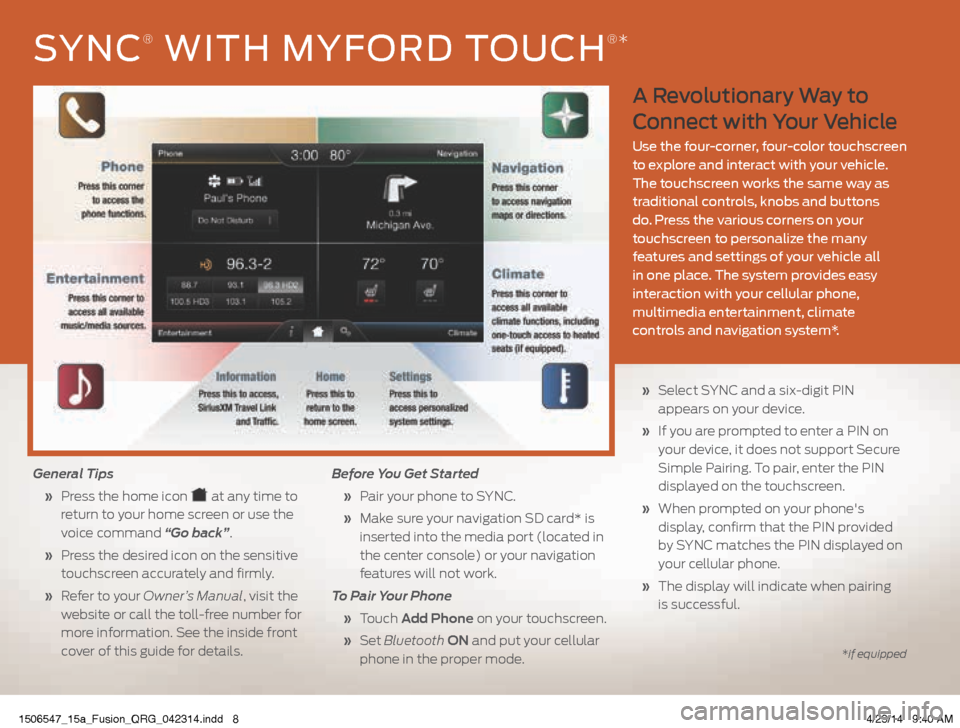

A Revolutionary Way to
Connect with Your Vehicle
Use the four-corner, four-color touchscreen
to explore and interact with your vehicle.
The touchscreen works the same way as
traditional controls, knobs and buttons
do. Press the various corners on your
touchscreen to personalize the many
features and settings of your vehicle all
in one place. The system provides easy
interaction with your cellular phone,
multimedia entertainment, climate
controls and navigation system*.
General Tips
» Press the home icon
at any time to
return to your home screen or use the
voice command “Go back”.
» Press the desired icon on the sensitive
touchscreen accurately and firmly.
» Refer to your Owner’s Manual, visit the
website or call the toll-free number for
more information. See the inside front
cover of this guide for details. Before You Get Started

» Pair your phone to SYNC.
» Make sure your navigation SD card* is
inserted into the media port (located in
the center console) or your navigation
features will not work.
To Pair Your Phone
» Touch Add Phone on your touchscreen.
» Set Bluetooth ON and put your cellular
phone in the proper mode.
» Select SYNC and a six-digit PIN
appears on your device.
» If you are prompted to enter a PIN on
your device, it does not support Secure
Simple Pairing. To pair, enter the PIN
displayed on the touchscreen.
» When prompted on your phone's
display, confirm that the PIN provided
by SYNC matches the PIN displayed on
your cellular phone.
» The display will indicate when pairing
is successful.
SYNC® WITH MYFORD TOUCH®*
*if equipped
1506547_15a_Fusion_QRG_042314.indd 84/23/14 9:40 AM

Phone
Voice-control your phone for hands-free
calling with your phone securely put away.
With SYNC, you won't even need to know
the phone number. Just say the name of
the person you want from your contacts.
Your Phone Connects You with
Many Other Features
» Automatically connect to a
911 Operator in the event of an
accident (feature needs to be
activated prior to the event).
» Transfer calls seamlessly from SYNC
to phone as you get in or out of
your vehicle.
Refer to the MyFord Touch chapter of your
Owner’s Manual for complete details.
Navigation*
Press the upper-right, green corner to
access features within your available,
voice-activated navigation system:
» SiriusXM Traffic
TM
» Sirius Travel LinkTM
» GPS (Global Positioning
System) technology
» 3-D mapping
» Turn-by-turn navigation
Some features may require activation.
Refer to the MyFord Touch chapter of your
Owner's Manual for complete details.
Set a Destination
Set a destination by using a street
address, a city center, a place on the
map or a point of interest (POI). The
easiest way, however, is by voice.
1. Press the voice button
.
When prompted, say “Destination
street address”.
2. The system will ask you to say the full
address and will display an example
on screen.
3. You can then speak the address
naturally, such as: One two three
Main Street, Anytown.
You can also use the touchscreen to
enter a destination and narrow your
choices by city or street as you type.
You can choose from up to three
different types of routes:
» Fastest: Uses the fastest moving
roads possible.
» Shortest: Uses the shortest
distance possible.
» Eco (EcoRoute): Uses the most
fuel efficient route.
9

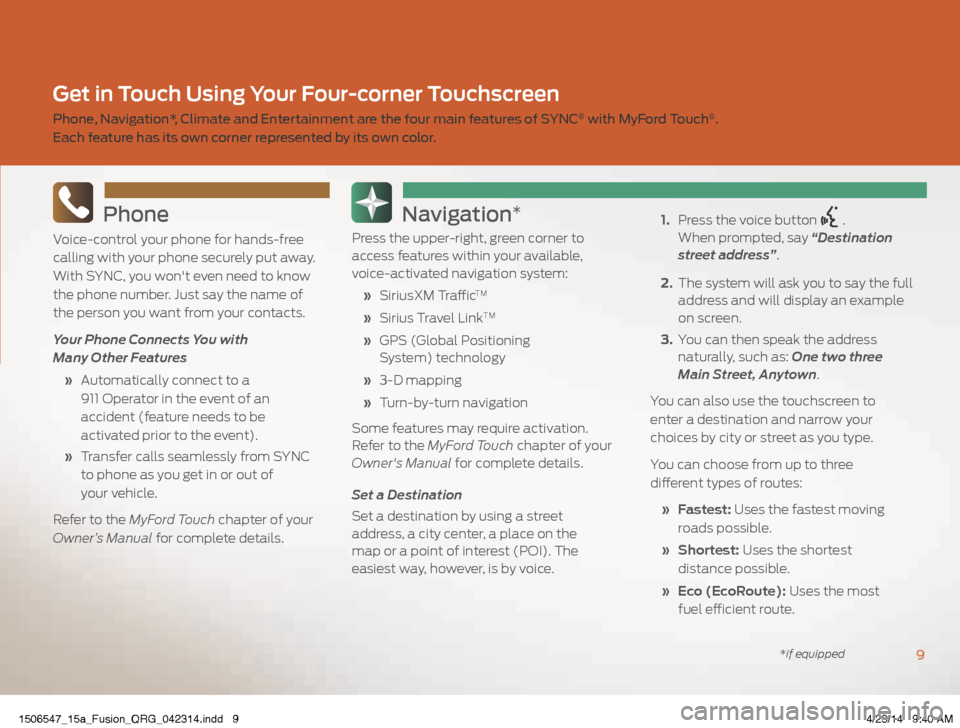

Get in Touch Using Your Four-corner Touchscreen
Phone, Navigation*, Climate and Entertainment are the four main features of SYNC® with MyFord Touch®.
Each feature has its own corner represented by its own color.
*if equipped
1506547_15a_Fusion_QRG_042314.indd 94/23/14 9:40 AM
