FORD FUSION HYBRID 2014 Owners Manual

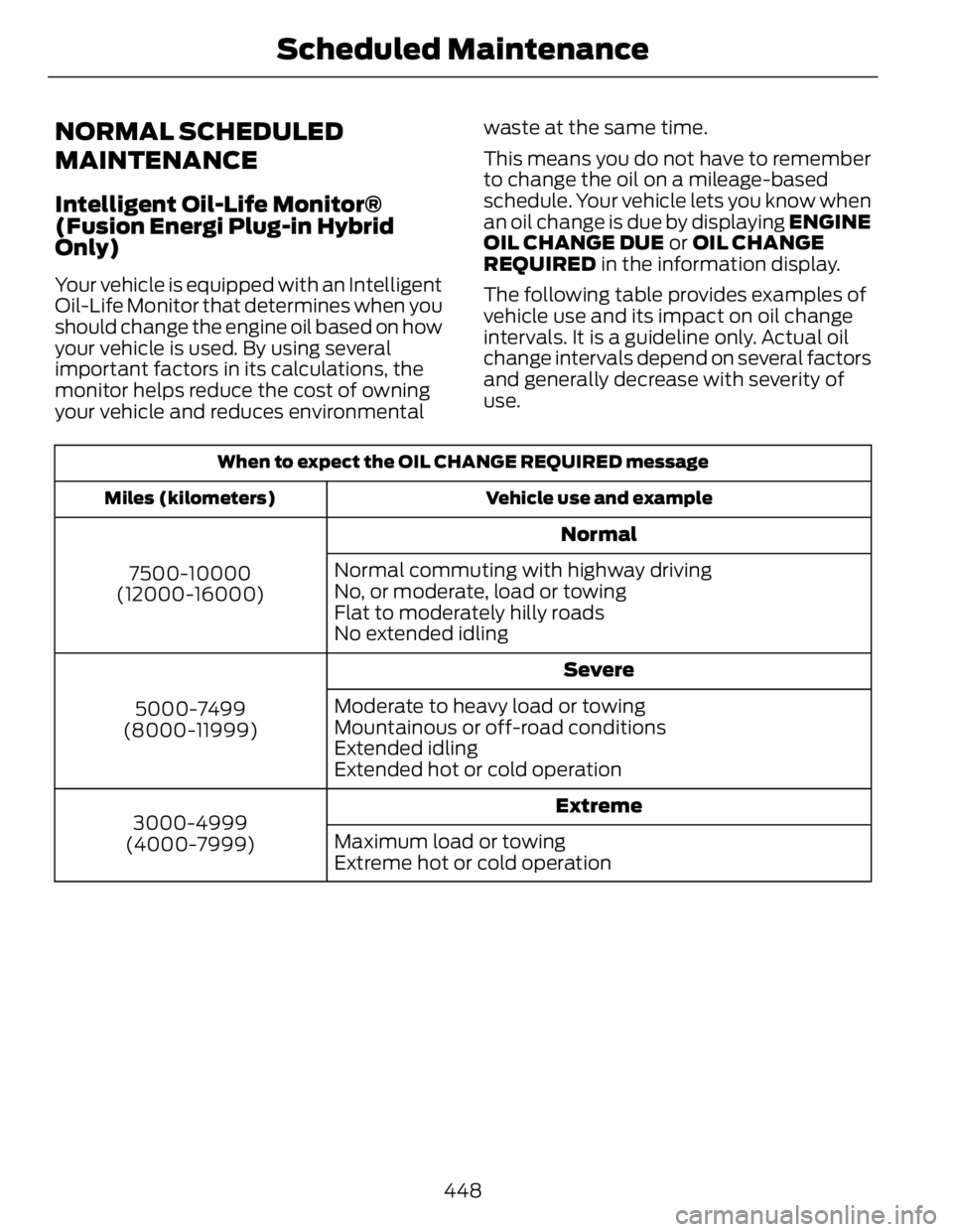

NORMAL SCHEDULED
MAINTENANCE Intelligent Oil-Life Monitor®
(Fusion Energi Plug-in Hybrid
Only) Your vehicle is equipped with an Intelligent
Oil-Life Monitor that determines when you
should change the engine oil based on how
your vehicle is used. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning
your vehicle and reduces environmental waste at the same time.
This means you do not have to remember
to change the oil on a mileage-based
schedule. Your vehicle lets you know when
an oil change is due by displaying ENGINE
OIL CHANGE DUE or OIL CHANGE
REQUIRED in the information display.
The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of
use.When to expect the OIL CHANGE REQUIRED message
Vehicle use and exampleMiles (kilometers)
Normal
7500-10000
(12000-16000) Normal commuting with highway driving
No, or moderate, load or towing
Flat to moderately hilly roads
No extended idling
Severe
5000-7499
(8000-11999) Moderate to heavy load or towing
Mountainous or off-road conditions
Extended idling
Extended hot or cold operation
Extreme
3000-4999
(4000-7999) Maximum load or towing
Extreme hot or cold operation
448Scheduled Maintenance

Normal Maintenance Intervals Fusion Full Hybrid Normal scheduled maintenance 1, 2
Change engine oil and filter. 3
Every 12 months or 10000
miles (16000 km). The oil
monitoring system displays
a message in the informa-
tion display. Rotate tires, inspect tire wear and measure tread depth.
Inspect automatic transmission fluid level. Consult dealer
for requirements.
Inspect brake pads, shoes, rotors, drums, brake linings,
hoses and parking brake.
Inspect engine cooling system and motor/electronics
cooling system strength and hoses.
Inspect exhaust system and heat shields.
Inspect half-shaft boots.
Inspect steering linkage, ball joints, suspension and tie-
rod ends.
Inspect wheels and related components for abnormal
noise, wear, looseness or drag.1
Do not exceed one year or 10000 miles (16000 kilometers) between service intervals. 2
Perform multi-point inspection (recommended). 3
Reset the oil monitoring system after engine oil and filter changes. See Engine Oil
Check (page 244).
Other maintenance items *
Replace cabin air filter.Every 20000 miles (32000
km)
Replace engine air filter.Every 30000 miles (48000
km)
Change engine coolant and motor/electronics coolant. **
At 100000 miles (160000
km)
449Scheduled Maintenance

Other maintenance items *
Replace spark plugs.Every 100000 miles
(160000 km)
Change automatic transmission fluid.Every 150000 miles
(240000 km) *
Perform these maintenance items within 3000 miles (4800 kilometers) of the last
engine oil and filter change. Do not exceed the designated distance for the interval. **
Initial replacement at six years or 100000 miles (160000 kilometers), then every three
years or 50000 miles (80000 kilometers).
Fusion Energi Plug-in Hybrid At every oil change interval as indicated by the information display. 1, 2
Change engine oil and filter. 3
Inspect automatic transmission fluid level. Consult dealer for requirements.
Inspect brake pads, shoes, rotors, drums, brake linings, hoses and parking brake.
Inspect engine cooling system and motor/electronics cooling system strength and
hoses.
Inspect exhaust system and heat shields.
Inspect half-shaft boots.
Inspect steering linkage, ball joints, suspension and tie-rod ends.
Inspect wheels and related components for abnormal noise, wear, looseness or drag. 1
Do not exceed two years or 20000 miles (32000 kilometers) between service intervals. 2
Perform multi-point inspection (recommended). 3
Reset the Intelligent Oil-Life Monitor system after engine oil and filter changes. See
Engine Oil Check (page 244).
450Scheduled Maintenance

Other maintenance items 1
Rotate tires, inspect tire wear and measure tread depth.
Every 10000 miles (16000
km) Inspect engine oil filter for corrosion. 2
Perform multi-point inspection (recommended).
Replace cabin air filter.Every 20000 miles (32000
km)
Replace engine air filter.Every 30000 miles (48000
km)
Change engine coolant and motor/electronics coolant. 3
At 100000 miles (160000
km)
Replace spark plugs.Every 100000 miles
(160000 km)
Change automatic transmission fluid.Every 150000 miles
(240000 km) 1
Perform these maintenance items within 3000 miles (4800 kilometers) of the last
engine oil and filter change. Do not exceed the designated distance for the interval. 2
Inspect the engine oil filter for corrosion every one year or 10000 miles (16000
kilometers). If corrosion is present, change the filter then top-off the engine oil, if required.
Do not reset the Intelligent Oil-Life Monitor. 3
Initial replacement at six years or 100000 miles (160000 kilometers), then every three
years or 50000 miles (80000 kilometers).
SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE If you operate your vehicle primarily in any
of the following conditions, you need to
perform extra maintenance as indicated.
If you operate your vehicle occasionally
under any of these conditions, it is not
necessary to perform the extra
maintenance. For specific
recommendations, see your dealership
service advisor or technician.
451Scheduled Maintenance

Perform the services shown in the
following tables when specified or within
3000 miles (4800 kilometers) of the OIL
CHANGE REQUIRED message appearing
in the information display.
• Example 1 : The OIL CHANGE
REQUIRED message comes on at
28751 miles (46270 kilometers).
Perform the 30000-mile (48000
kilometer) automatic transmission
fluid replacement. • Example 2 : The OIL CHANGE
REQUIRED message has not come
on, but the odometer reads 30000
miles (48000 kilometers) (for
example, the Intelligent Oil-Life
Monitor was reset at 25000 miles
[40000 kilometers]). Perform the
engine air filter replacement.
Extensive idling or low-speed driving for long distances, as in heavy commercial use
(such as delivery, taxi, patrol car or livery)
Fusion full hybrid: Change engine oil and filter every 12
months or 10000 miles (16000 km). The oil monitoring
system displays a message in the information display.
Perform services listed in the Normal Scheduled Mainten-
ance chart.As required
Fusion Energi plug-in hybrid: Change engine oil and
filter as indicated by information display and perform
services listed in the Normal Scheduled Maintenance
chart. *
Replace cabin air filter.Inspect frequently, service
as required
Replace engine air filter.
Replace spark plugs.Every 60000 miles (96000
km) *
Fusion Energi Plug-in Hybrid only: Reset the Intelligent Oil-Life Monitor after engine
oil and filter changes. See Engine Oil Check (page 244).
Operating in dusty or sandy conditions (such as unpaved or dusty roads)
Replace cabin air filter.Inspect frequently, service
as required
Replace engine air filter.
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.Every 5000 miles (8000
km)
Rotate tires, inspect tires for wear and measure tread
depth.
452Scheduled Maintenance

Operating in dusty or sandy conditions (such as unpaved or dusty roads)
Change engine oil and filter. *
Every 5000 miles (8000
km) or six months
Perform multi-point inspection.*
Fusion Energi Plug-in Hybrid only: Reset the Intelligent Oil-Life Monitor after engine
oil and filter changes. See Engine Oil Check (page 244).
Exceptions There are some exceptions your Normal
Scheduled Maintenance:
California fuel filter replacement : If you
register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service. Hot climate oil change intervals :
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 5000 miles (8000
kilometers).
If the available API SM or SN oils are not
available, then the oil change interval is
3000 miles (4800 kilometers).
Engine air filter and cabin air filter
replacement : The life of the engine air
filter and cabin air filter is dependent on
exposure to dusty and dirty conditions.
Vehicles operated in these conditions
require frequent inspection and
replacement of the engine air filter and
cabin air filter.
453Scheduled Maintenance

SCHEDULED MAINTENANCE RECORD E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:
Dealer stamp
E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:
Dealer stamp
454Scheduled Maintenance

E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:
Dealer stamp
E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:
Dealer stamp
E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:Dealer stamp
455Scheduled Maintenance

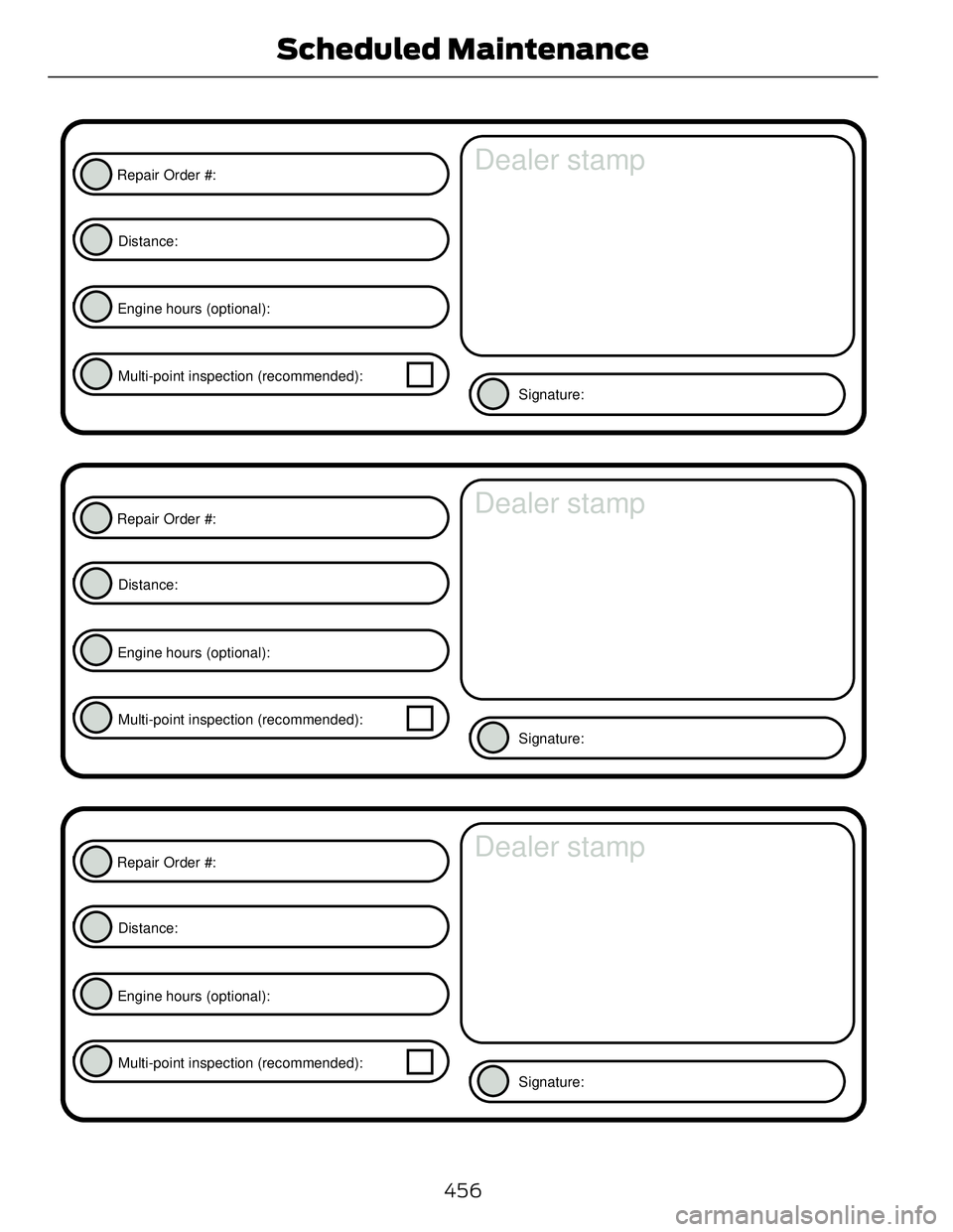

E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:
Dealer stamp
E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:
Dealer stamp
E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:Dealer stamp
456Scheduled Maintenance

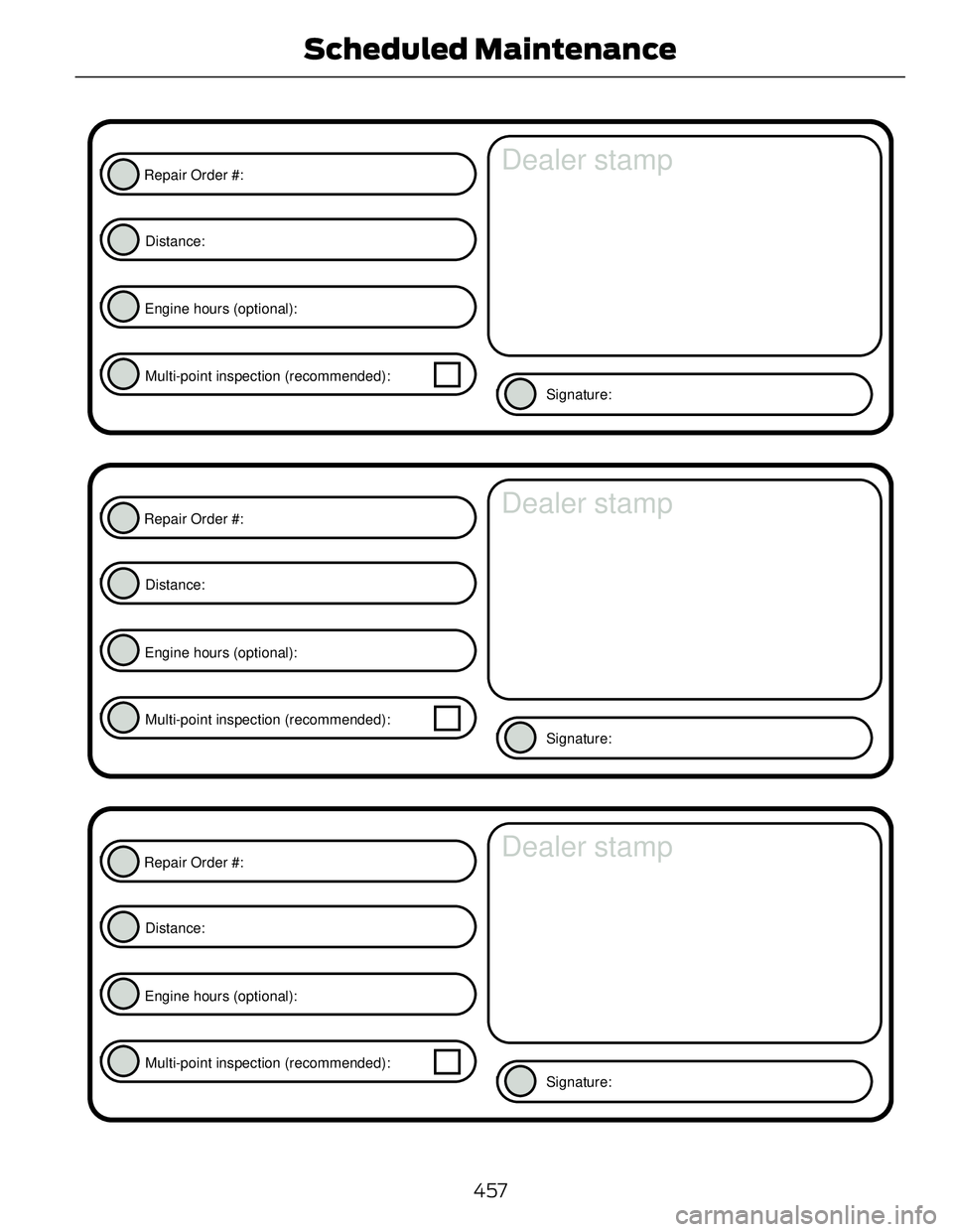

E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:
Dealer stamp
E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:
Dealer stamp
E146852 Repair Order #:
Distance:
Engine hours (optional):
Multi-point inspection (recommended):
Signature:Dealer stamp
457Scheduled Maintenance
