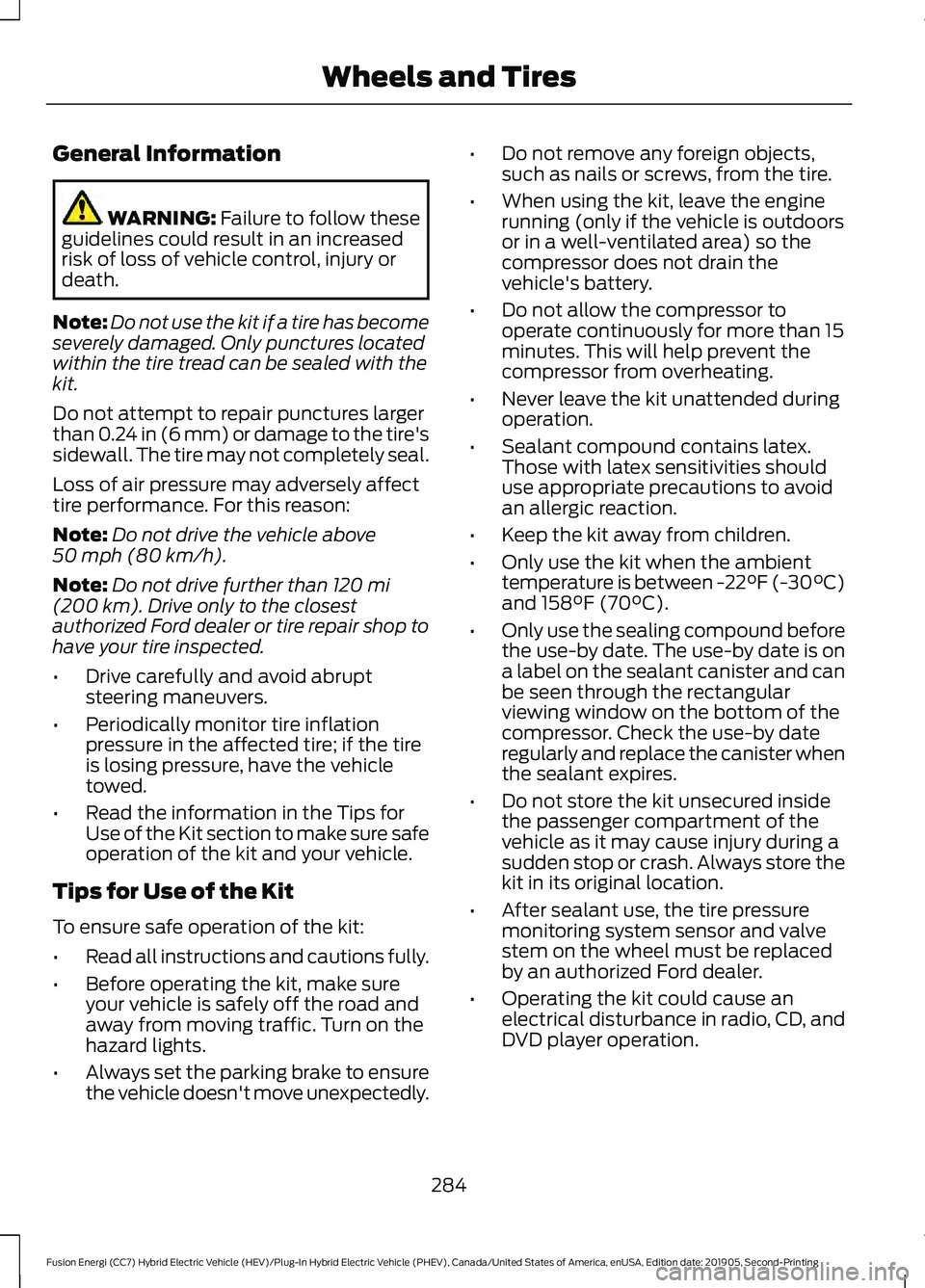

General Information
WARNING: Failure to follow these
guidelines could result in an increased
risk of loss of vehicle control, injury or
death.
Note: Do not use the kit if a tire has become
severely damaged. Only punctures located
within the tire tread can be sealed with the
kit.
Do not attempt to repair punctures larger
than 0.24 in (6 mm) or damage to the tire's
sidewall. The tire may not completely seal.
Loss of air pressure may adversely affect
tire performance. For this reason:
Note: Do not drive the vehicle above
50 mph (80 km/h)
.
Note: Do not drive further than
120 mi
(200 km). Drive only to the closest
authorized Ford dealer or tire repair shop to
have your tire inspected.
• Drive carefully and avoid abrupt
steering maneuvers.
• Periodically monitor tire inflation
pressure in the affected tire; if the tire
is losing pressure, have the vehicle
towed.
• Read the information in the Tips for
Use of the Kit section to make sure safe
operation of the kit and your vehicle.
Tips for Use of the Kit
To ensure safe operation of the kit:
• Read all instructions and cautions fully.
• Before operating the kit, make sure
your vehicle is safely off the road and
away from moving traffic. Turn on the
hazard lights.
• Always set the parking brake to ensure
the vehicle doesn't move unexpectedly. •
Do not remove any foreign objects,
such as nails or screws, from the tire.
• When using the kit, leave the engine
running (only if the vehicle is outdoors
or in a well-ventilated area) so the
compressor does not drain the
vehicle's battery.
• Do not allow the compressor to
operate continuously for more than 15
minutes. This will help prevent the
compressor from overheating.
• Never leave the kit unattended during
operation.
• Sealant compound contains latex.
Those with latex sensitivities should
use appropriate precautions to avoid
an allergic reaction.
• Keep the kit away from children.
• Only use the kit when the ambient
temperature is between -22°F (-30°C)
and 158°F (70°C).
• Only use the sealing compound before
the use-by date. The use-by date is on
a label on the sealant canister and can
be seen through the rectangular
viewing window on the bottom of the
compressor. Check the use-by date
regularly and replace the canister when
the sealant expires.
• Do not store the kit unsecured inside
the passenger compartment of the
vehicle as it may cause injury during a
sudden stop or crash. Always store the
kit in its original location.
• After sealant use, the tire pressure
monitoring system sensor and valve
stem on the wheel must be replaced
by an authorized Ford dealer.
• Operating the kit could cause an
electrical disturbance in radio, CD, and
DVD player operation.
284
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Wheels and Tires

WARNING: Always inflate
steel carcass tires with a remote
air fill with the person inflating
standing at a minimum of
12 ft
(3.66 m) away from the wheel
and tire assembly.
Important: Remember to replace
the wheel valve stems when the
road tires are replaced on your
vehicle
It is recommended that the two
front tires or two rear tires
generally be replaced as a pair.
The tire pressure sensors mounted
in the wheels (originally installed
on your vehicle) are not designed
to be used in aftermarket wheels.
The use of wheels or tires not
recommended by Ford Motor
Company may affect the
operation of your tire pressure
monitoring system.
If the tire pressure monitoring
system indicator is flashing, the
system is malfunctioning. Your
replacement tire might be
incompatible with your tire
pressure monitoring system, or
some component of the system
may be damaged. Safety Practices WARNING:
If your vehicle
is stuck in snow, mud or sand, do
not rapidly spin the tires;
spinning the tires can tear the
tire and cause an explosion. A
tire can explode in as little as
three to five seconds. WARNING:
Do not spin the
wheels at over 34 mph
(55 km/h). The tires may fail and
injure a passenger or bystander.
Driving habits have a great deal
to do with your tire mileage and
safety.
*Observe posted speed limits
*Avoid fast starts, stops and turns
*Avoid potholes and objects on
the road
*Do not run over curbs or hit the
tire against a curb when parking
Highway Hazards
No matter how carefully you drive
there ’s always the possibility that
you may eventually have a flat tire
on the highway. Drive slowly to the
closest safe area out of traffic.
This may further damage the flat
tire, but your safety is more
important.
302
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Wheels and Tires

The original equipment tires on your vehicle
may have an all-weather tread design to
provide traction, handling, and braking
performance in year-round driving. You
may install snow tires for improved traction
when driving in areas with sustained
periods of snow or icy driving conditions
TIRE PRESSURE MONITORING
SYSTEM
WARNING: The tire pressure
monitoring system is not a substitute for
manually checking tire pressures. You
should periodically check tire pressures
using a pressure gauge. Failure to
correctly maintain tire pressures could
increase the risk of tire failure, loss of
control, vehicle rollover and personal
injury.
Note: You should only use tire sealants in
roadside emergencies as they could cause
damage to the tire pressure monitoring
system sensor.
Note: If the tire pressure monitoring system
sensor becomes damaged, it will not
function. Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated
to the inflation pressure recommended by
the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If
your vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires). As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes the
tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and could affect the
vehicle
’s handling and stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance, and
it is the driver ’s responsibility to maintain
correct tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale.
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
approximately one minute and then remain
continuously illuminated. This sequence
will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is
illuminated, the system will not be able to
detect or signal low tire pressure as
intended. TPMS malfunctions could occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
305
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Wheels and Tires

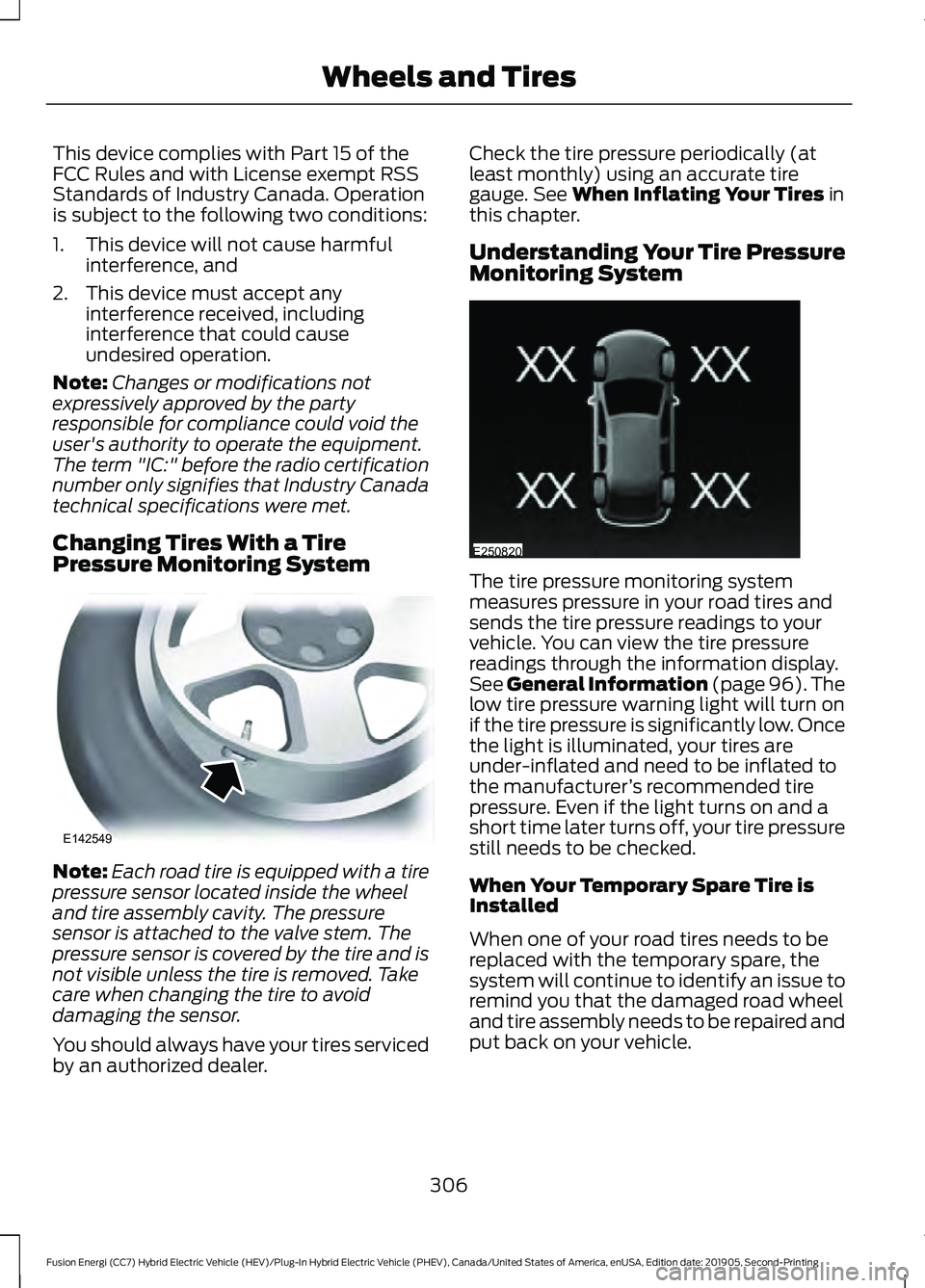

This device complies with Part 15 of the
FCC Rules and with License exempt RSS
Standards of Industry Canada. Operation
is subject to the following two conditions:
1. This device will not cause harmful
interference, and
2. This device must accept any interference received, including
interference that could cause
undesired operation.
Note: Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.
Changing Tires With a Tire
Pressure Monitoring System Note:
Each road tire is equipped with a tire
pressure sensor located inside the wheel
and tire assembly cavity. The pressure
sensor is attached to the valve stem. The
pressure sensor is covered by the tire and is
not visible unless the tire is removed. Take
care when changing the tire to avoid
damaging the sensor.
You should always have your tires serviced
by an authorized dealer. Check the tire pressure periodically (at
least monthly) using an accurate tire
gauge. See When Inflating Your Tires in
this chapter.
Understanding Your Tire Pressure
Monitoring System The tire pressure monitoring system
measures pressure in your road tires and
sends the tire pressure readings to your
vehicle. You can view the tire pressure
readings through the information display.
See
General Information (page 96). The
low tire pressure warning light will turn on
if the tire pressure is significantly low. Once
the light is illuminated, your tires are
under-inflated and need to be inflated to
the manufacturer ’s recommended tire
pressure. Even if the light turns on and a
short time later turns off, your tire pressure
still needs to be checked.
When Your Temporary Spare Tire is
Installed
When one of your road tires needs to be
replaced with the temporary spare, the
system will continue to identify an issue to
remind you that the damaged road wheel
and tire assembly needs to be repaired and
put back on your vehicle.
306
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Wheels and TiresE142549 E250820

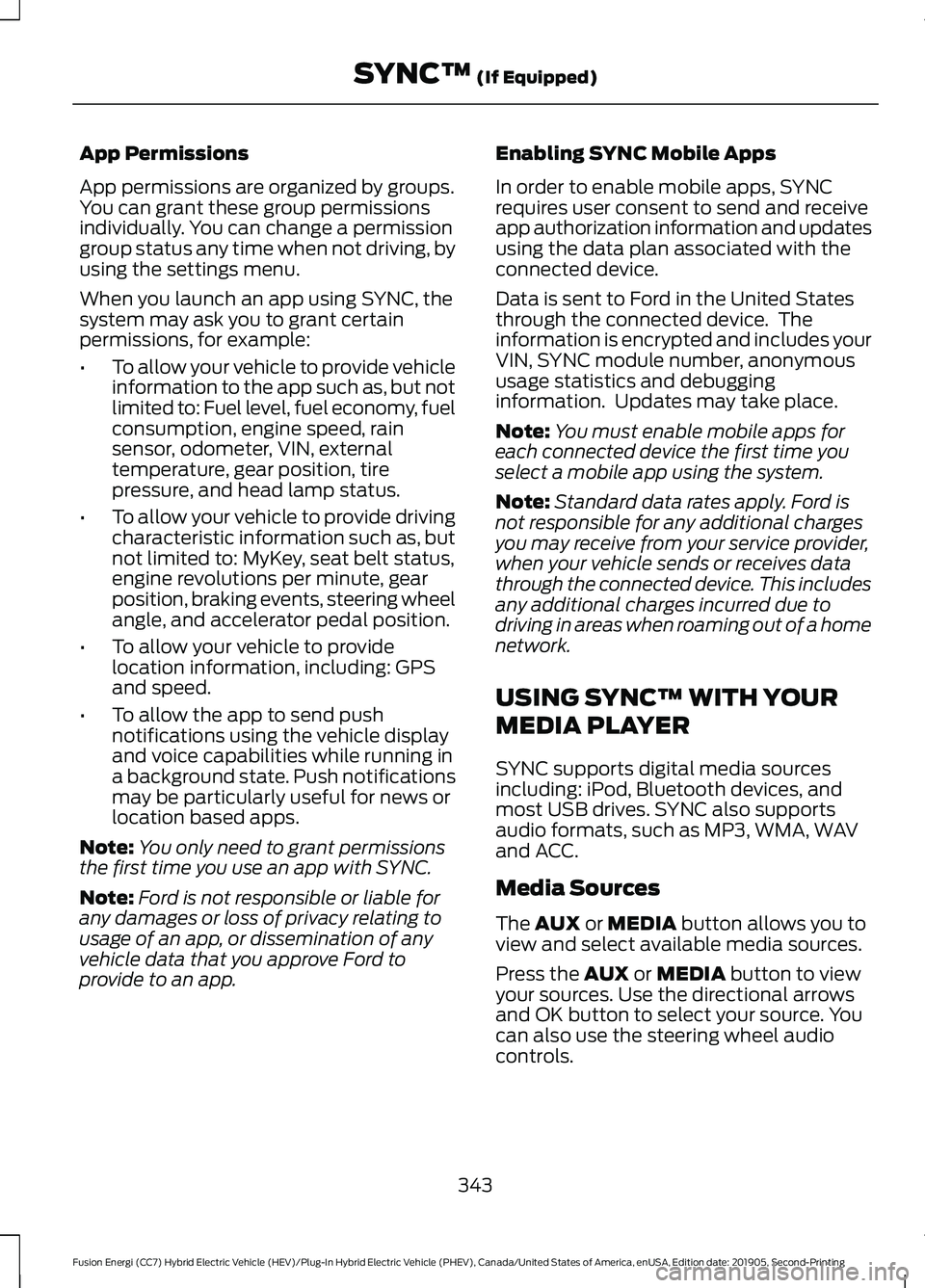

App Permissions
App permissions are organized by groups.
You can grant these group permissions
individually. You can change a permission
group status any time when not driving, by
using the settings menu.
When you launch an app using SYNC, the
system may ask you to grant certain
permissions, for example:
•
To allow your vehicle to provide vehicle
information to the app such as, but not
limited to: Fuel level, fuel economy, fuel
consumption, engine speed, rain
sensor, odometer, VIN, external
temperature, gear position, tire
pressure, and head lamp status.
• To allow your vehicle to provide driving
characteristic information such as, but
not limited to: MyKey, seat belt status,
engine revolutions per minute, gear
position, braking events, steering wheel
angle, and accelerator pedal position.
• To allow your vehicle to provide
location information, including: GPS
and speed.
• To allow the app to send push
notifications using the vehicle display
and voice capabilities while running in
a background state. Push notifications
may be particularly useful for news or
location based apps.
Note: You only need to grant permissions
the first time you use an app with SYNC.
Note: Ford is not responsible or liable for
any damages or loss of privacy relating to
usage of an app, or dissemination of any
vehicle data that you approve Ford to
provide to an app. Enabling SYNC Mobile Apps
In order to enable mobile apps, SYNC
requires user consent to send and receive
app authorization information and updates
using the data plan associated with the
connected device.
Data is sent to Ford in the United States
through the connected device. The
information is encrypted and includes your
VIN, SYNC module number, anonymous
usage statistics and debugging
information. Updates may take place.
Note:
You must enable mobile apps for
each connected device the first time you
select a mobile app using the system.
Note: Standard data rates apply. Ford is
not responsible for any additional charges
you may receive from your service provider,
when your vehicle sends or receives data
through the connected device. This includes
any additional charges incurred due to
driving in areas when roaming out of a home
network.
USING SYNC™ WITH YOUR
MEDIA PLAYER
SYNC supports digital media sources
including: iPod, Bluetooth devices, and
most USB drives. SYNC also supports
audio formats, such as MP3, WMA, WAV
and ACC.
Media Sources
The AUX or MEDIA button allows you to
view and select available media sources.
Press the
AUX or MEDIA button to view
your sources. Use the directional arrows
and OK button to select your source. You
can also use the steering wheel audio
controls.
343
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing SYNC™
(If Equipped)

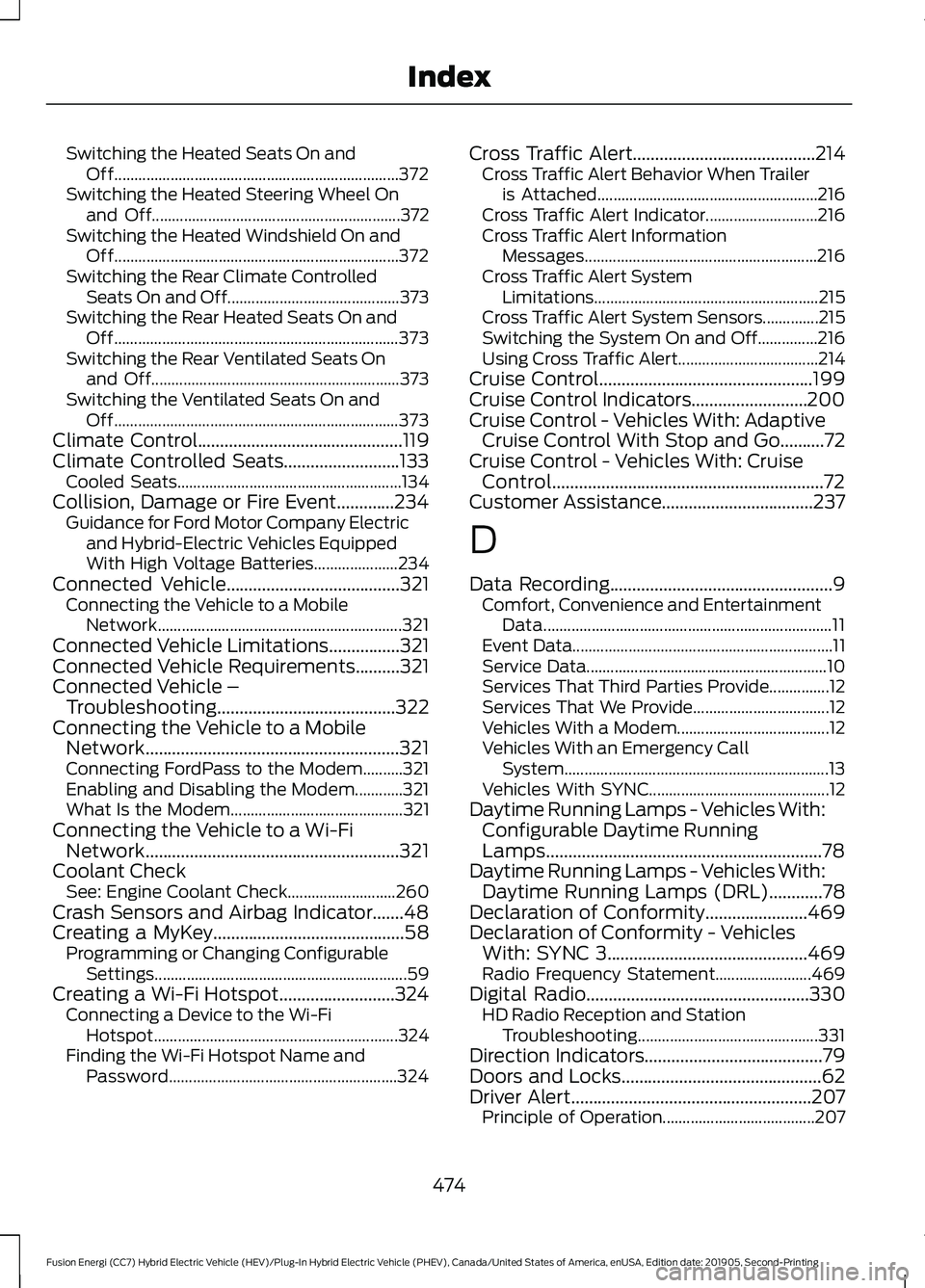

Switching the Heated Seats On and
Off....................................................................... 372
Switching the Heated Steering Wheel On and Off.............................................................. 372
Switching the Heated Windshield On and Off....................................................................... 372
Switching the Rear Climate Controlled Seats On and Off........................................... 373
Switching the Rear Heated Seats On and Off....................................................................... 373
Switching the Rear Ventilated Seats On and Off.............................................................. 373
Switching the Ventilated Seats On and Off....................................................................... 373
Climate Control..............................................119
Climate Controlled Seats..........................133 Cooled Seats........................................................ 134
Collision, Damage or Fire Event.............234 Guidance for Ford Motor Company Electric
and Hybrid-Electric Vehicles Equipped
With High Voltage Batteries..................... 234
Connected Vehicle
.......................................321
Connecting the Vehicle to a Mobile
Network............................................................. 321
Connected Vehicle Limitations
................321
Connected Vehicle Requirements..........321
Connected Vehicle – Troubleshooting........................................322
Connecting the Vehicle to a Mobile Network.........................................................321
Connecting FordPass to the Modem..........321
Enabling and Disabling the Modem............321
What Is the Modem........................................... 321
Connecting the Vehicle to a Wi-Fi Network.........................................................321
Coolant Check See: Engine Coolant Check........................... 260
Crash Sensors and Airbag Indicator.......48
Creating a MyKey
...........................................58
Programming or Changing Configurable
Settings............................................................... 59
Creating a Wi-Fi Hotspot..........................324 Connecting a Device to the Wi-Fi
Hotspot............................................................. 324
Finding the Wi-Fi Hotspot Name and Password......................................................... 324Cross Traffic Alert
.........................................214
Cross Traffic Alert Behavior When Trailer
is Attached....................................................... 216
Cross Traffic Alert Indicator............................ 216
Cross Traffic Alert Information Messages.......................................................... 216
Cross Traffic Alert System Limitations........................................................ 215
Cross Traffic Alert System Sensors..............215
Switching the System On and Off...............216
Using Cross Traffic Alert................................... 214
Cruise Control................................................199
Cruise Control Indicators..........................200
Cruise Control - Vehicles With: Adaptive Cruise Control With Stop and Go
..........72
Cruise Control - Vehicles With: Cruise Control.............................................................72
Customer Assistance
..................................237
D
Data Recording
..................................................9
Comfort, Convenience and Entertainment
Data........................................................................\
11
Event Data................................................................. 11
Service Data............................................................ 10
Services That Third Parties Provide...............12
Services That We Provide.................................. 12
Vehicles With a Modem...................................... 12
Vehicles With an Emergency Call System.................................................................. 13
Vehicles With SYNC............................................. 12
Daytime Running Lamps - Vehicles With: Configurable Daytime Running
Lamps..............................................................78
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)............78
Declaration of Conformity
.......................469
Declaration of Conformity - Vehicles With: SYNC 3.............................................469
Radio Frequency Statement........................ 469
Digital Radio
..................................................330
HD Radio Reception and Station
Troubleshooting............................................. 331
Direction Indicators........................................79
Doors and Locks.............................................62
Driver Alert
......................................................207
Principle of Operation...................................... 207
474
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

Plug-In Hybrid Vehicle Operation..........150
ECO Cruise.............................................................. 151
EV Modes.............................................................. 150
Fuel Freshness..................................................... 152
Low Engine Use.................................................... 151
Plug-in Power Mode and Hybrid Mode.................................................................. 150
Post-Crash Alert System..........................235
Power Door Locks See: Locking and Unlocking............................. 62
Power Seats....................................................128
10-way power seat............................................. 130
6-way power seat............................................... 129
Power Lumbar..................................................... 130
Power Windows
..............................................83
Accessory Delay................................................... 84
Bounce-Back......................................................... 83
One-Touch Down................................................. 83
One-Touch Up....................................................... 83
Window Lock......................................................... 84
Pre-Collision Assist
......................................217
Adjusting Pre-Collision Assist
Settings............................................................. 219
Blocked Sensors................................................. 219
Using the Pre-Collision Assist System............................................................... 218
Protecting the Environment........................17
R
Rear Parking Aid
...........................................184
Object Distance Indicator............................... 186
Rear Seat Armrest
........................................142
Rear Seats........................................................131
Rear View Camera.......................................196 Camera Guidelines............................................. 197
Camera System Settings................................ 198
Enhanced Park Aids or Park Pilot.................198
Manual Zoom...................................................... 198
Rear Camera Delay............................................ 198
Using the Rear View Camera System.........196
Rear View Camera See: Rear View Camera................................... 196
Reduced Engine Performance.................227
Refueling..........................................................158 Fuel Filler Door Manual Override
Lever................................................................... 160
System Warnings............................................... 160Remote Control
...............................................51
Car Finder................................................................ 54
Intelligent Access Key.......................................... 51
Remote Start......................................................... 55
Replacing the Battery......................................... 53
Sounding the Panic Alarm................................ 54
Using the Key Blade............................................. 52
Remote Start
..................................................125
Automatic Settings............................................ 125
Heated and Cooled Features......................... 125
Last Settings......................................................... 125
Removing a Headlamp
..............................270
Repairing Minor Paint Damage..............280
Replacement Parts Recommendation........................................14
Collision Repairs.................................................... 14
Scheduled Maintenance and Mechanical Repairs.................................................................. 14
Warranty on Replacement Parts..................... 14
Replacing a Lost Key or Remote Control............................................................56
Reporting Safety Defects (Canada Only)..............................................................242
Reporting Safety Defects (U.S. Only)..............................................................242
Resuming the Set Speed
.........................200
Roadside Assistance..................................230
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 231
Vehicles Sold in the United States: Getting Roadside Assistance................................... 230
Vehicles Sold in the United States: Using Roadside Assistance................................... 230
Roadside Emergencies..............................230
Running-In See: Breaking-In................................................. 228
Running Out of Fuel
.....................................157
Adding Fuel From a Portable Fuel
Container........................................................... 157
Filling a Portable Fuel Container................... 157
S
Safety Canopy ™
.............................................47
Safety Precautions.......................................155
Satellite Radio...............................................332
Satellite Radio Electronic Serial Number
(ESN)................................................................. 333
479
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

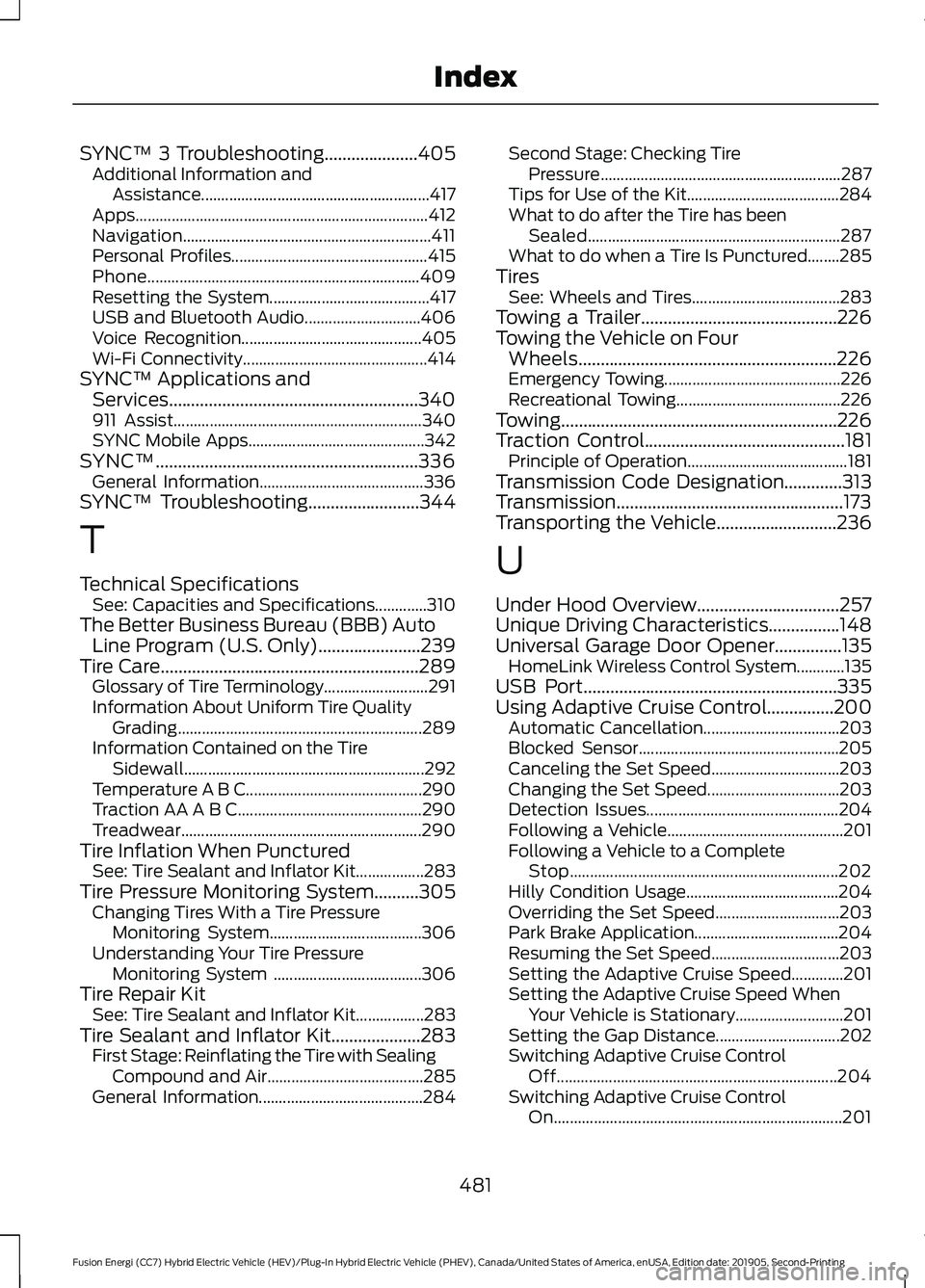

SYNC™ 3 Troubleshooting.....................405
Additional Information and
Assistance......................................................... 417
Apps........................................................................\
. 412
Navigation.............................................................. 411
Personal Profiles................................................. 415
Phone.................................................................... 409
Resetting the System........................................ 417
USB and Bluetooth Audio............................. 406
Voice Recognition............................................. 405
Wi-Fi Connectivity.............................................. 414
SYNC™ Applications and Services........................................................340
911 Assist.............................................................. 340
SYNC Mobile Apps............................................ 342
SYNC™...........................................................336 General Information......................................... 336
SYNC™ Troubleshooting.........................344
T
Technical Specifications See: Capacities and Specifications.............310
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................239
Tire Care
..........................................................289
Glossary of Tire Terminology.......................... 291
Information About Uniform Tire Quality Grading............................................................. 289
Information Contained on the Tire Sidewall............................................................ 292
Temperature A B C............................................ 290
Traction AA A B C.............................................. 290
Treadwear............................................................ 290
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................283
Tire Pressure Monitoring System..........305 Changing Tires With a Tire Pressure
Monitoring System...................................... 306
Understanding Your Tire Pressure Monitoring System ..................................... 306
Tire Repair Kit See: Tire Sealant and Inflator Kit.................283
Tire Sealant and Inflator Kit
....................283
First Stage: Reinflating the Tire with Sealing
Compound and Air....................................... 285
General Information......................................... 284Second Stage: Checking Tire
Pressure............................................................ 287
Tips for Use of the Kit...................................... 284
What to do after the Tire has been Sealed............................................................... 287
What to do when a Tire Is Punctured........285
Tires See: Wheels and Tires..................................... 283
Towing a Trailer
............................................226
Towing the Vehicle on Four Wheels..........................................................226
Emergency Towing............................................ 226
Recreational Towing......................................... 226
Towing..............................................................226
Traction Control
.............................................181
Principle of Operation........................................ 181
Transmission Code Designation.............313
Transmission...................................................173
Transporting the Vehicle...........................236
U
Under Hood Overview................................257
Unique Driving Characteristics................148
Universal Garage Door Opener...............135 HomeLink Wireless Control System............135
USB Port
.........................................................335
Using Adaptive Cruise Control...............200
Automatic Cancellation.................................. 203
Blocked Sensor.................................................. 205
Canceling the Set Speed................................ 203
Changing the Set Speed................................. 203
Detection Issues................................................ 204
Following a Vehicle............................................ 201
Following a Vehicle to a Complete Stop................................................................... 202
Hilly Condition Usage...................................... 204
Overriding the Set Speed............................... 203
Park Brake Application.................................... 204
Resuming the Set Speed................................ 203
Setting the Adaptive Cruise Speed.............201
Setting the Adaptive Cruise Speed When Your Vehicle is Stationary........................... 201
Setting the Gap Distance............................... 202
Switching Adaptive Cruise Control Off...................................................................... 204
Switching Adaptive Cruise Control On........................................................................\
201
481
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index
