FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses
that protect your vehicle's main electrical
systems from overloads.
If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 266).
244
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE144783

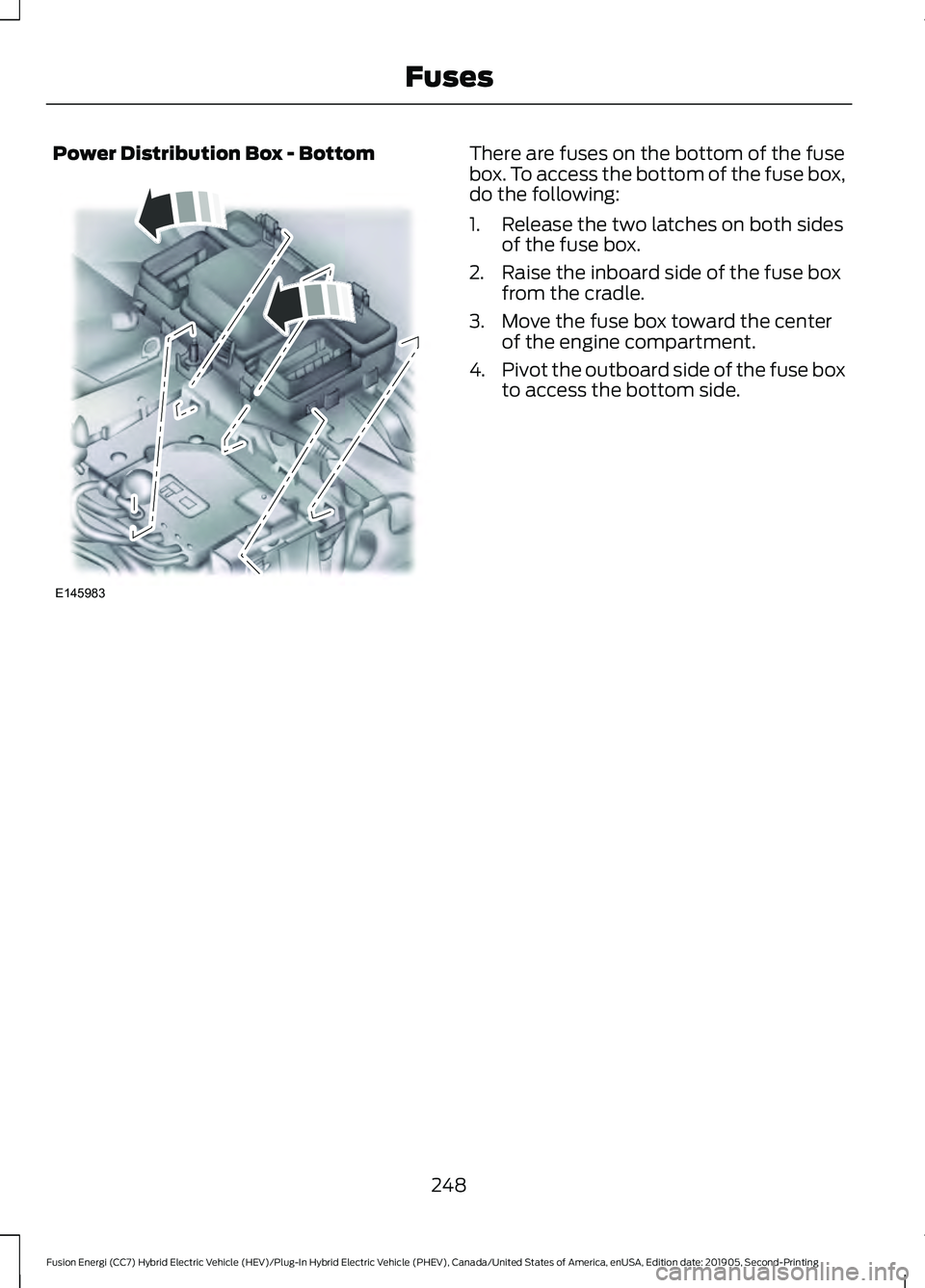

Power Distribution Box - Bottom There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:
1. Release the two latches on both sides
of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box
to access the bottom side.
248
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE145983

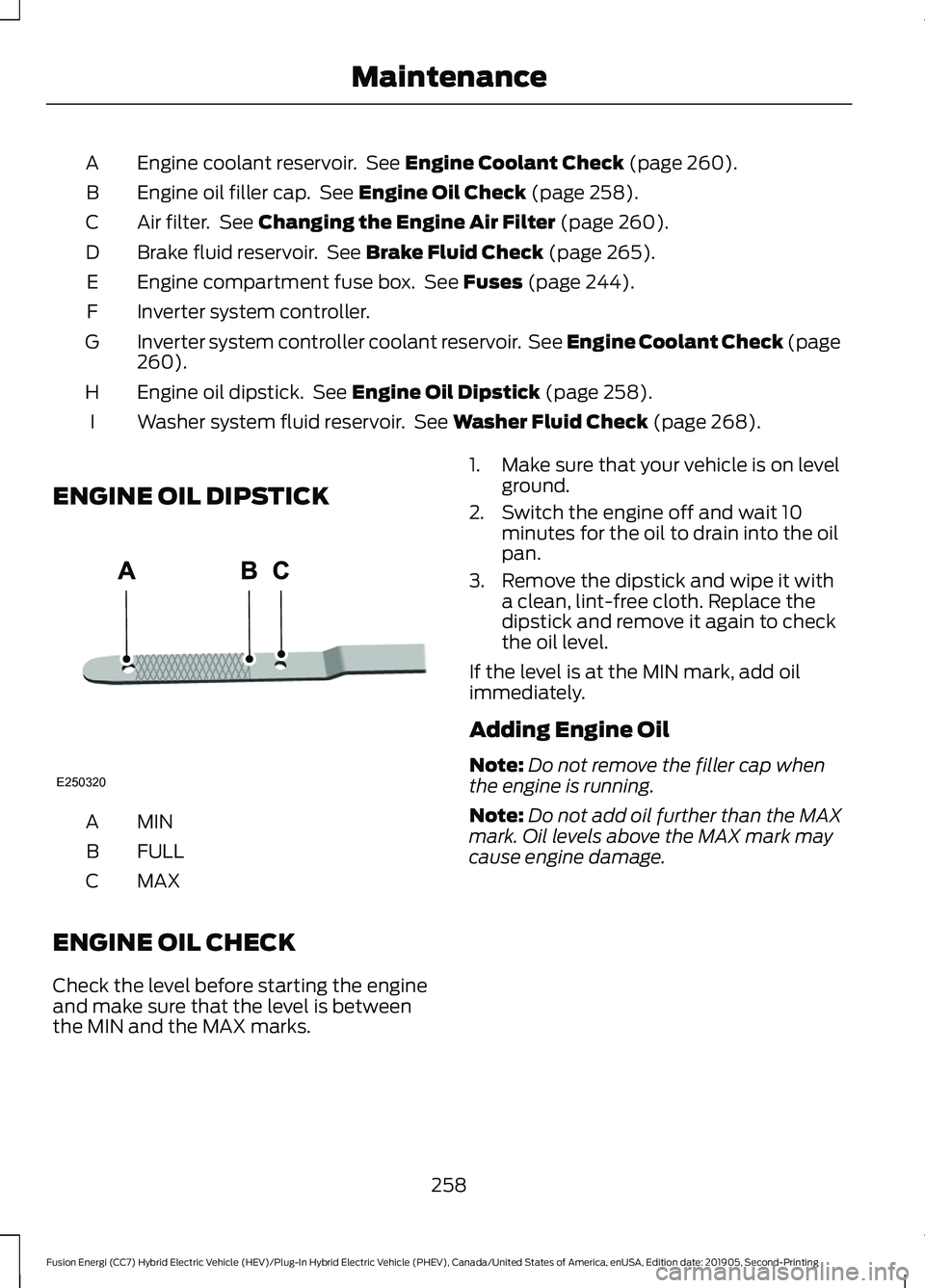

Engine coolant reservoir. See Engine Coolant Check (page 260).
A
Engine oil filler cap. See
Engine Oil Check (page 258).
B
Air filter. See
Changing the Engine Air Filter (page 260).
C
Brake fluid reservoir. See
Brake Fluid Check (page 265).
D
Engine compartment fuse box. See
Fuses (page 244).
E
Inverter system controller.
F
Inverter system controller coolant reservoir. See Engine Coolant Check (page
260
).
G
Engine oil dipstick. See
Engine Oil Dipstick (page 258).
H
Washer system fluid reservoir. See
Washer Fluid Check (page 268).
I
ENGINE OIL DIPSTICK MINA
FULL
B
MAX
C
ENGINE OIL CHECK
Check the level before starting the engine
and make sure that the level is between
the MIN and the MAX marks. 1. Make sure that your vehicle is on level
ground.
2. Switch the engine off and wait 10 minutes for the oil to drain into the oil
pan.
3. Remove the dipstick and wipe it with a clean, lint-free cloth. Replace the
dipstick and remove it again to check
the oil level.
If the level is at the MIN mark, add oil
immediately.
Adding Engine Oil
Note: Do not remove the filler cap when
the engine is running.
Note: Do not add oil further than the MAX
mark. Oil levels above the MAX mark may
cause engine damage.
258
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing MaintenanceE250320
