Page 211 of 255

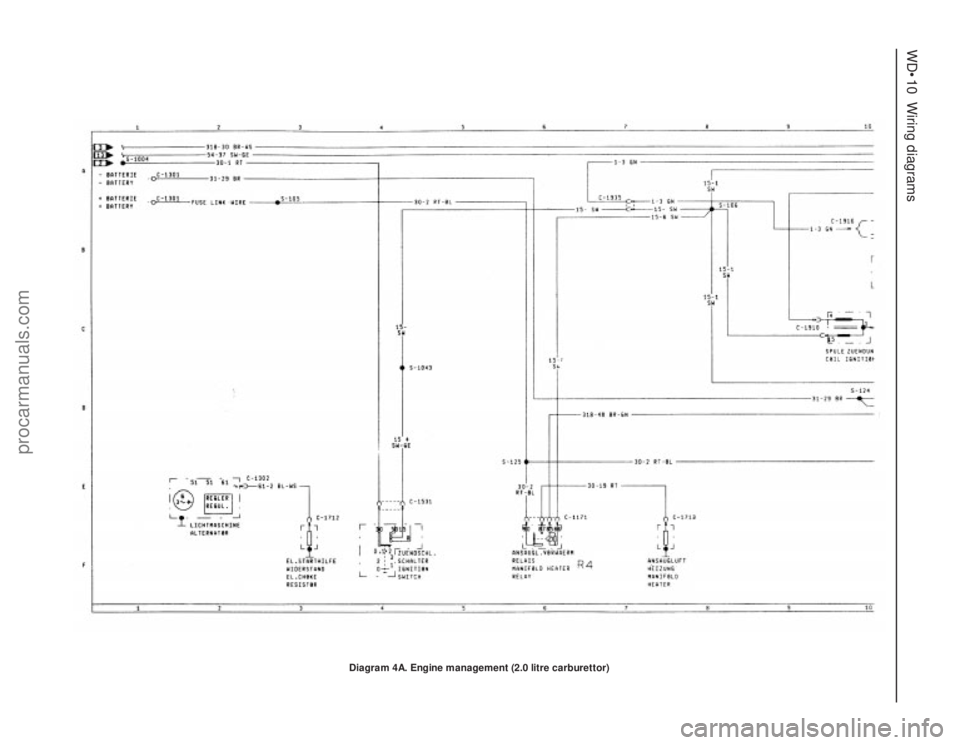

FORD GRANADA 1985 Service Repair Manual WD•10Wiring diagrams Diagram 4A. Engine management (2.0 litre carburettor) procarmanuals.com

Page 212 of 255

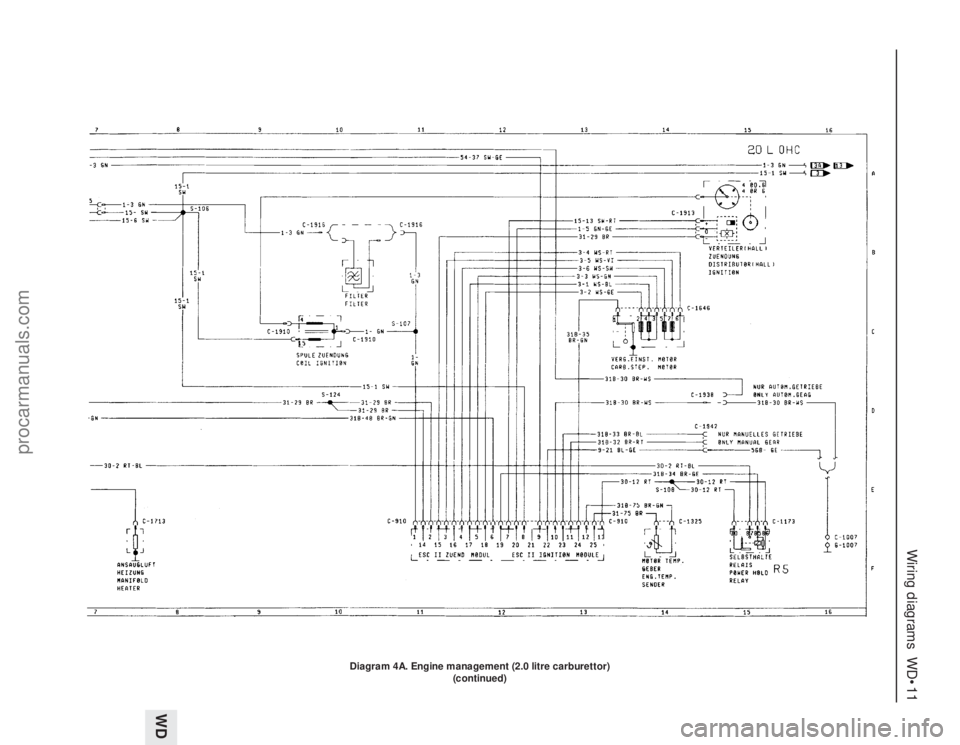

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•11 WD Diagram 4A. Engine management (2.0 litre carburettor) (continued) procarmanuals.com

Page 213 of 255

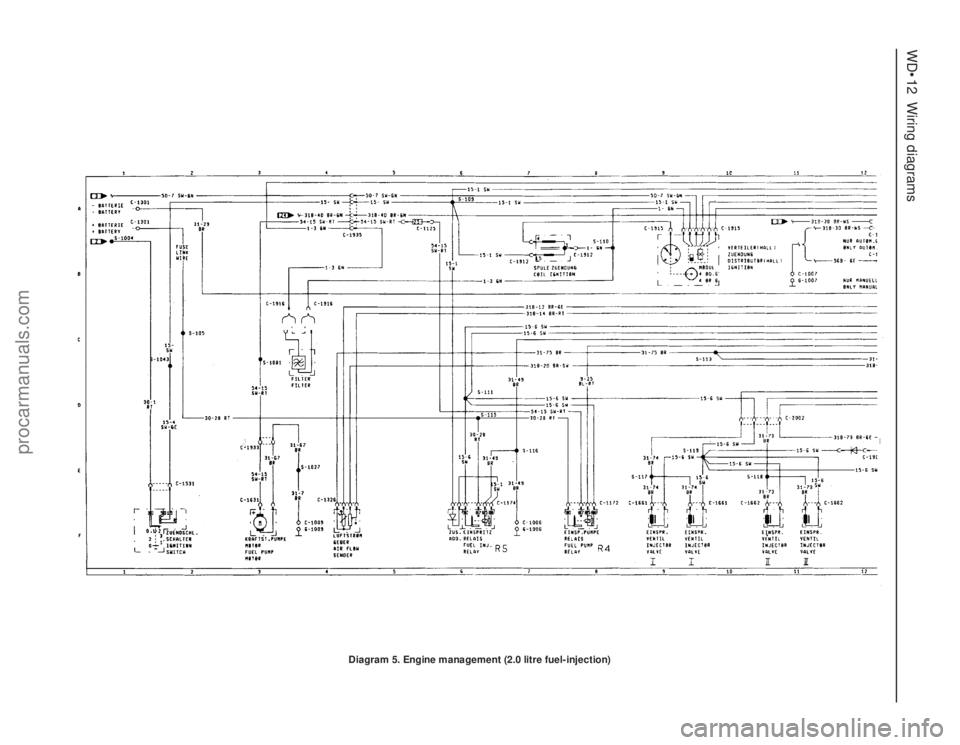

FORD GRANADA 1985 Service Repair Manual WD•12Wiring diagrams Diagram 5. Engine management (2.0 litre fuel-injection) procarmanuals.com

Page 214 of 255

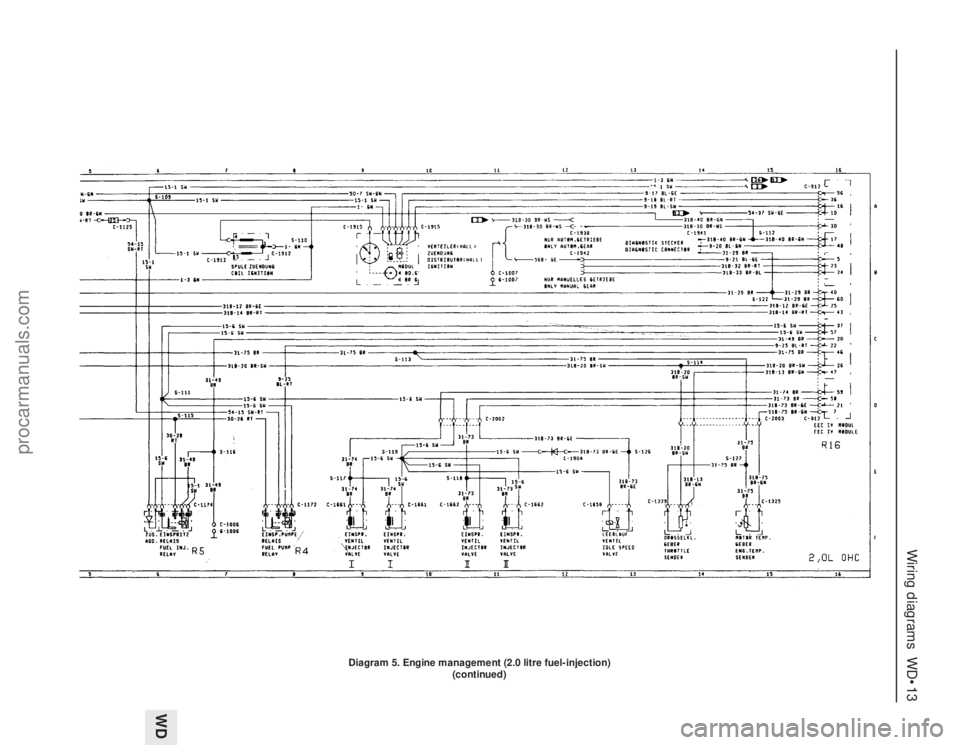

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•13 WD Diagram 5. Engine management (2.0 litre fuel-injection) (continued) procarmanuals.com

Page 215 of 255

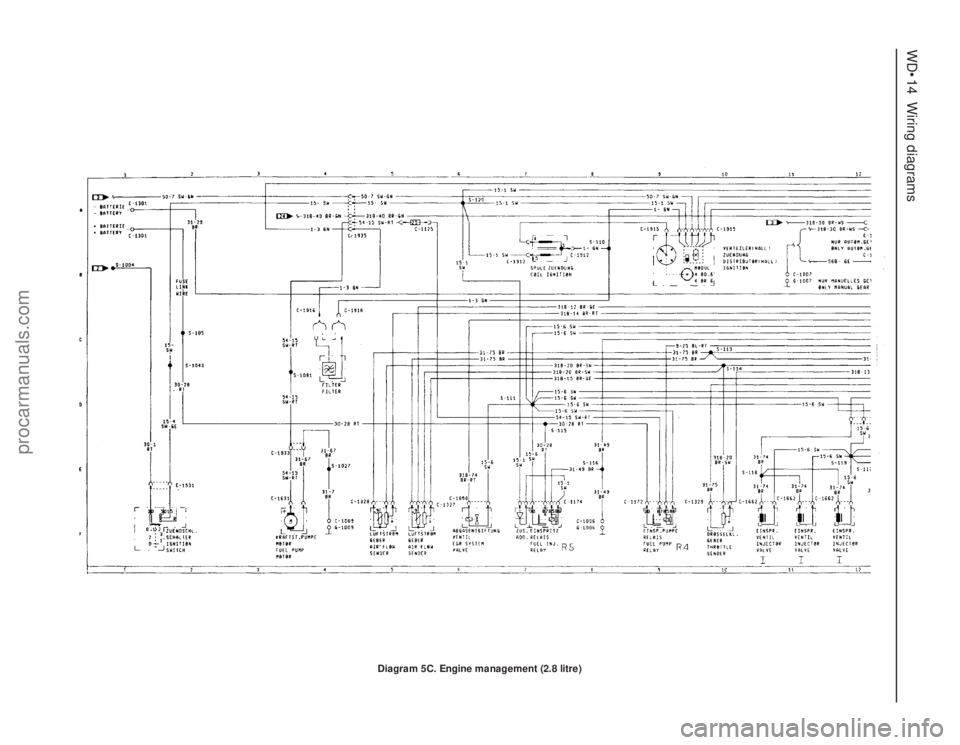

FORD GRANADA 1985 Service Repair Manual WD•14Wiring diagrams Diagram 5C. Engine management (2.8 litre) procarmanuals.com

Page 216 of 255

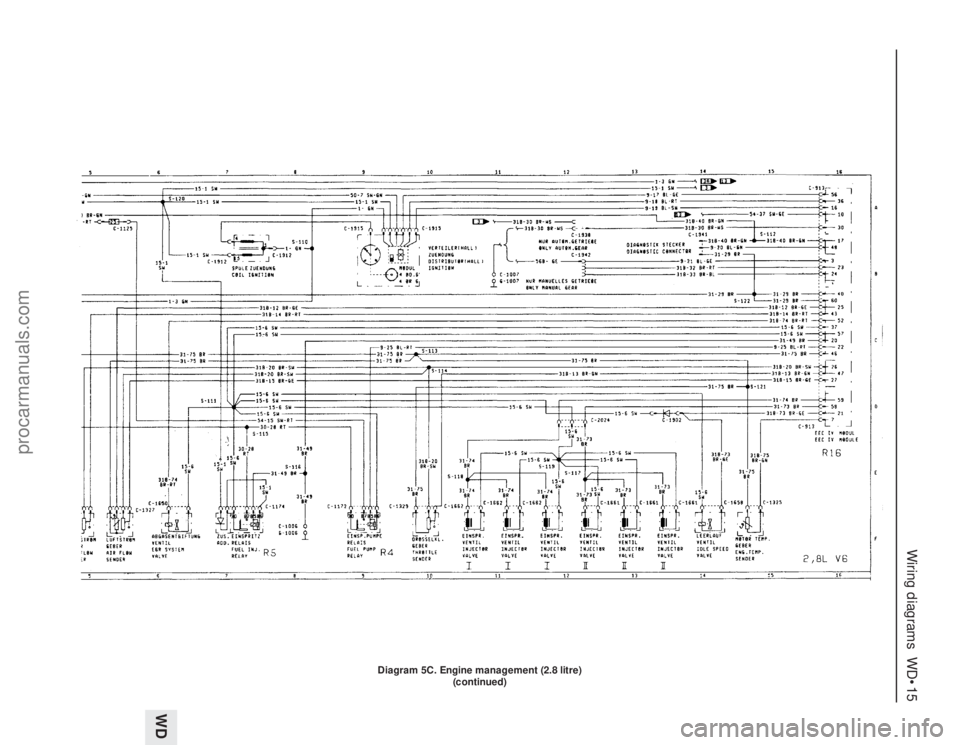

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•15 WD Diagram 5C. Engine management (2.8 litre) (continued) procarmanuals.com

Page 217 of 255

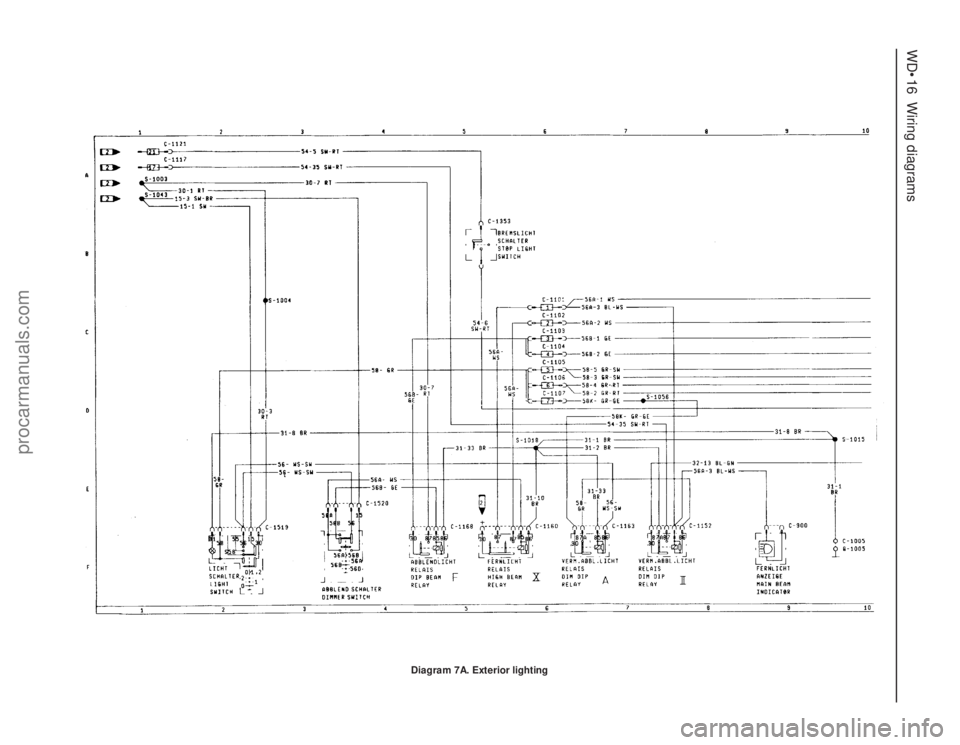

FORD GRANADA 1985 Service Repair Manual WD•16Wiring diagrams Diagram 7A. Exterior lighting procarmanuals.com

Page 218 of 255

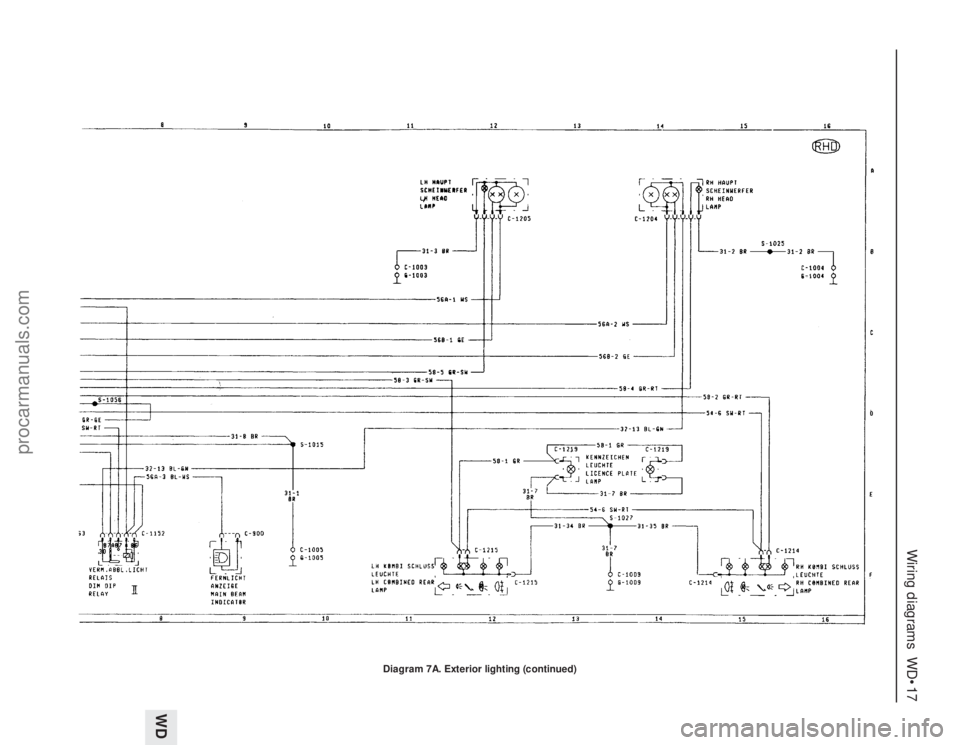

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•17 WD Diagram 7A. Exterior lighting (continued) procarmanuals.com

Page 219 of 255

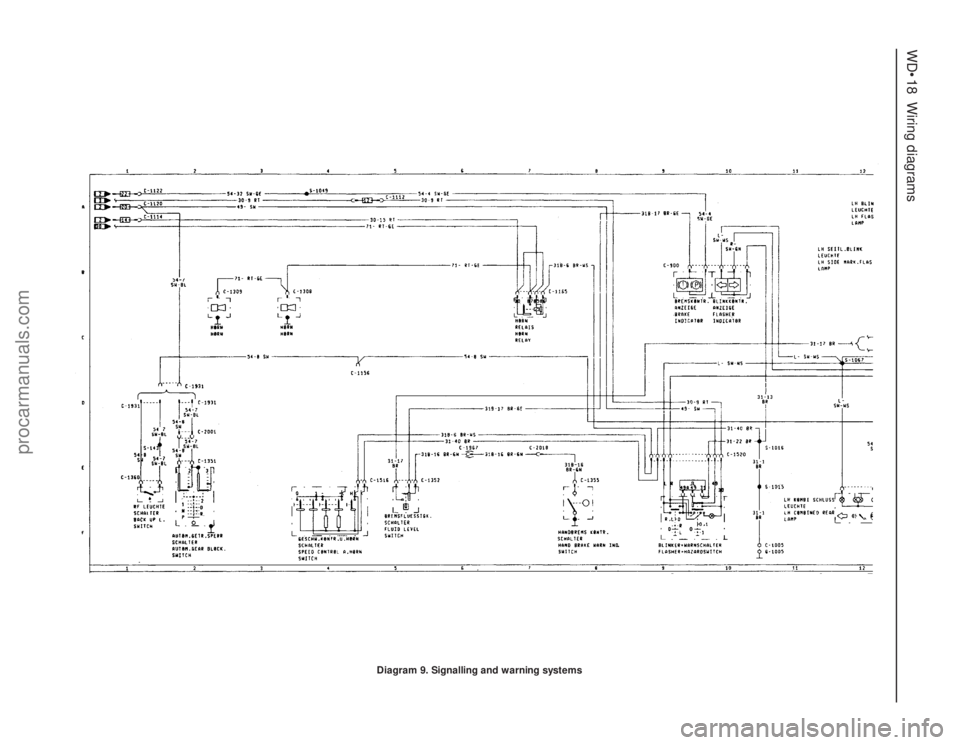

FORD GRANADA 1985 Service Repair Manual WD•18Wiring diagrams Diagram 9. Signalling and warning systems procarmanuals.com

Page 220 of 255

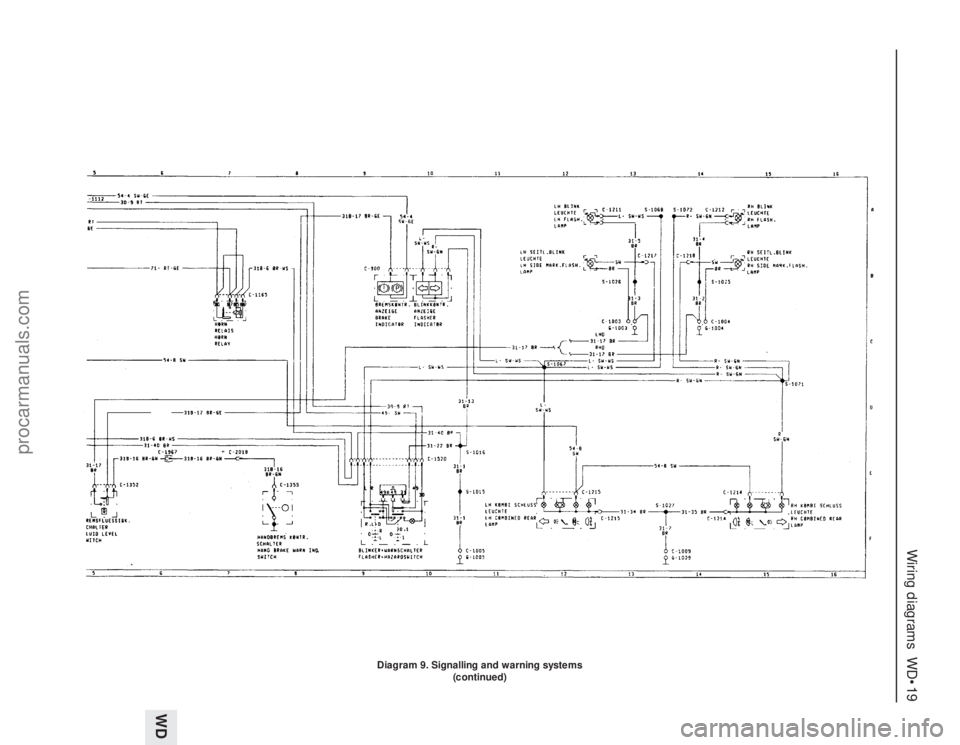

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•19 WD Diagram 9. Signalling and warning systems (continued) procarmanuals.com
