FORD GRANADA 1985 Service Repair Manual WD•20Wiring diagrams Diagram 10. Interior lighting procarmanuals.com

Page 222 of 255

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•21 WD Diagram 10. Interior lighting (continued) procarmanuals.com

Page 223 of 255

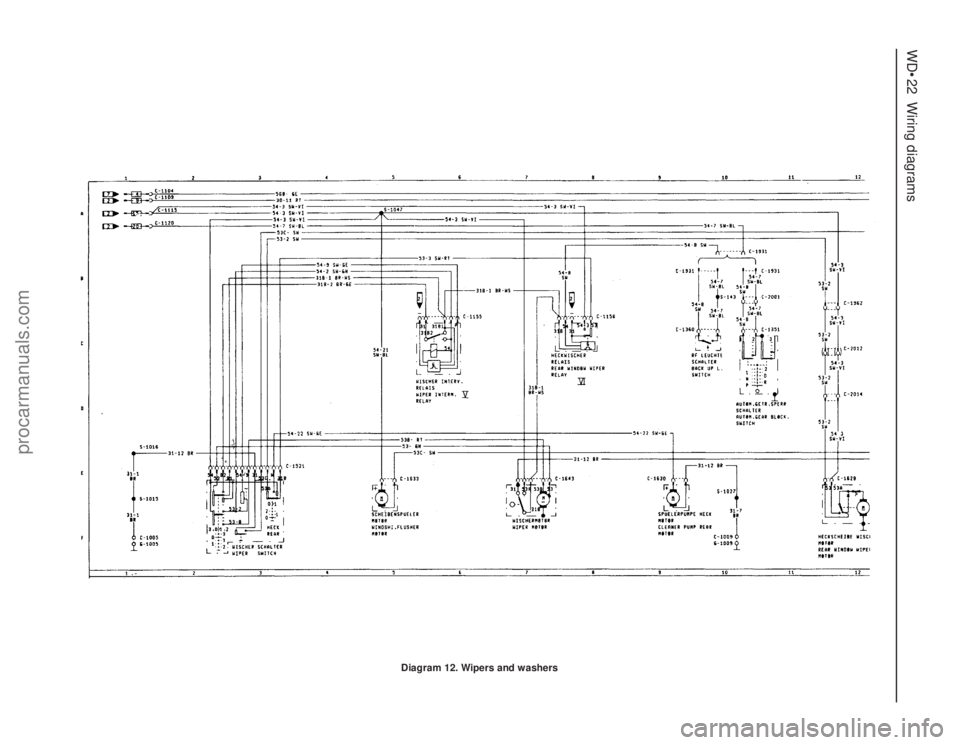

FORD GRANADA 1985 Service Repair Manual WD•22Wiring diagrams Diagram 12. Wipers and washers procarmanuals.com

Page 224 of 255

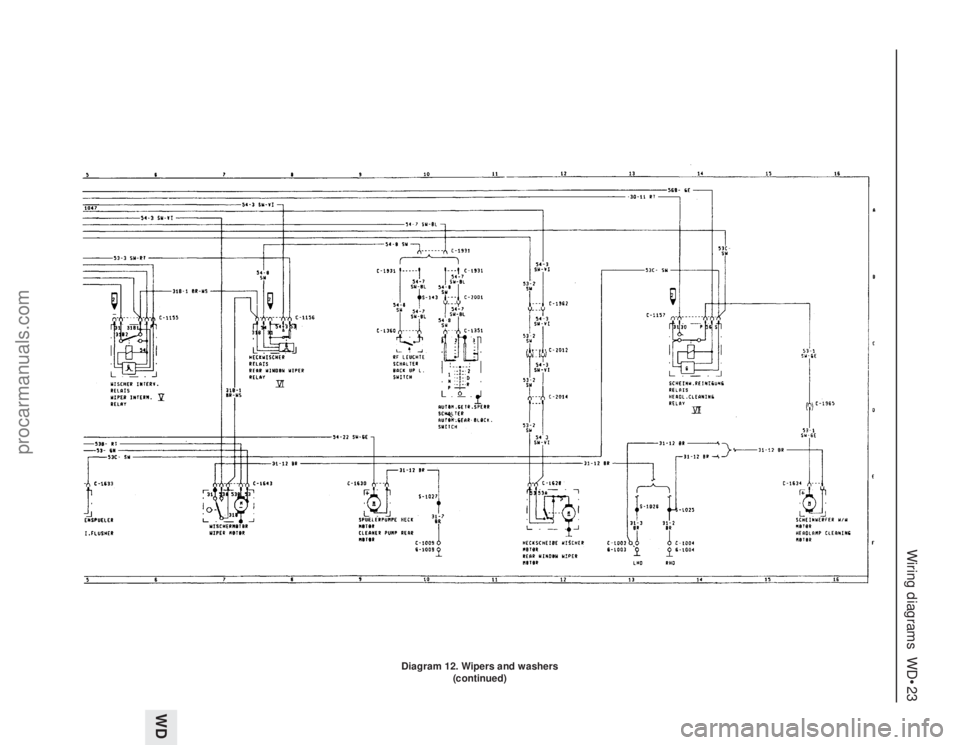

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•23 WD Diagram 12. Wipers and washers (continued) procarmanuals.com

Page 225 of 255

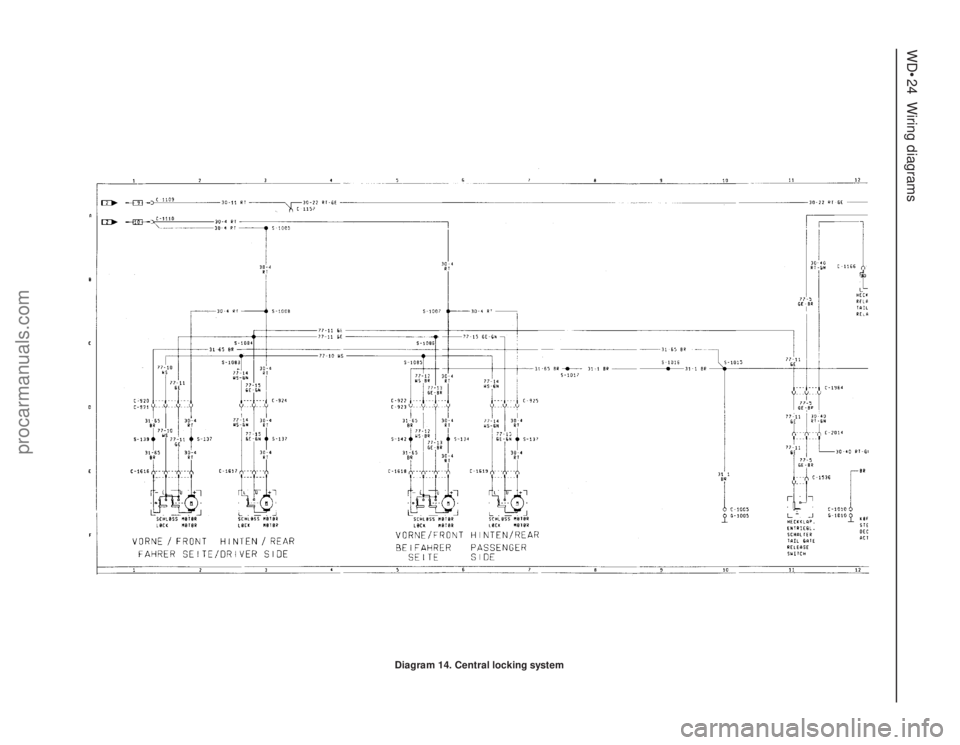

FORD GRANADA 1985 Service Repair Manual WD•24Wiring diagrams Diagram 14. Central locking system procarmanuals.com

Page 226 of 255

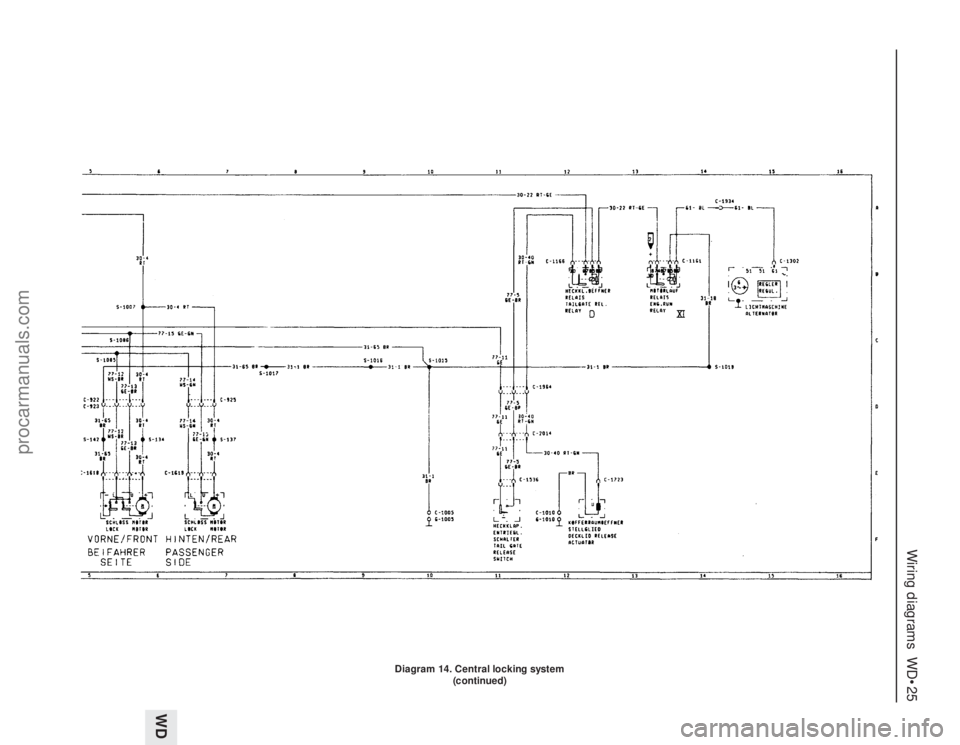

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•25 WD Diagram 14. Central locking system (continued) procarmanuals.com

Page 227 of 255

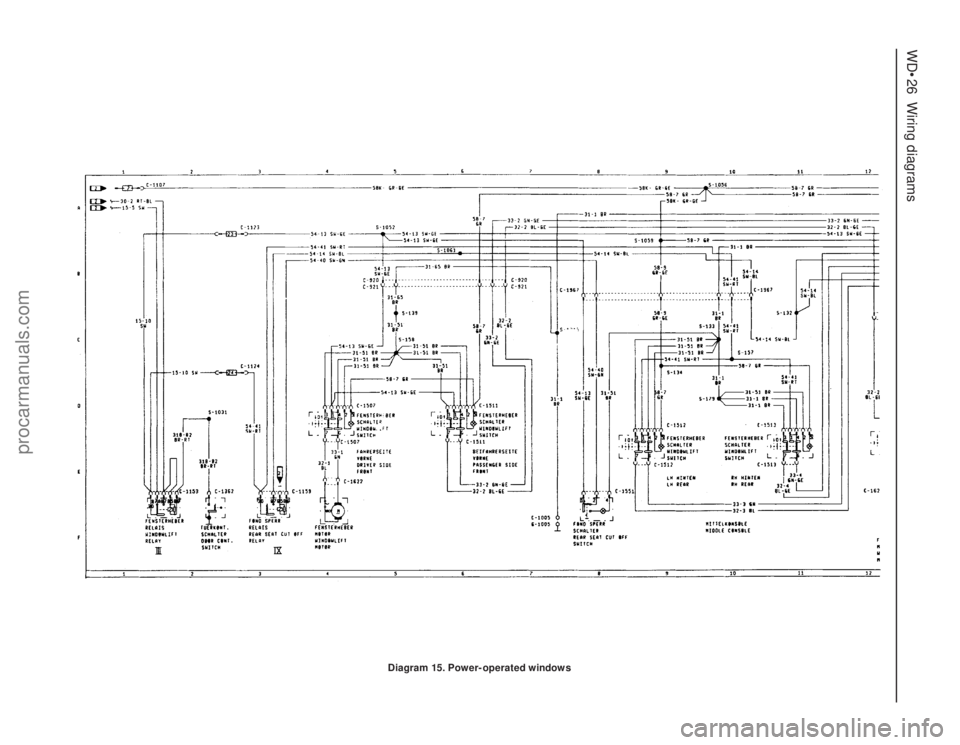

FORD GRANADA 1985 Service Repair Manual WD•26Wiring diagrams Diagram 15. Power-operated windows procarmanuals.com

Page 228 of 255

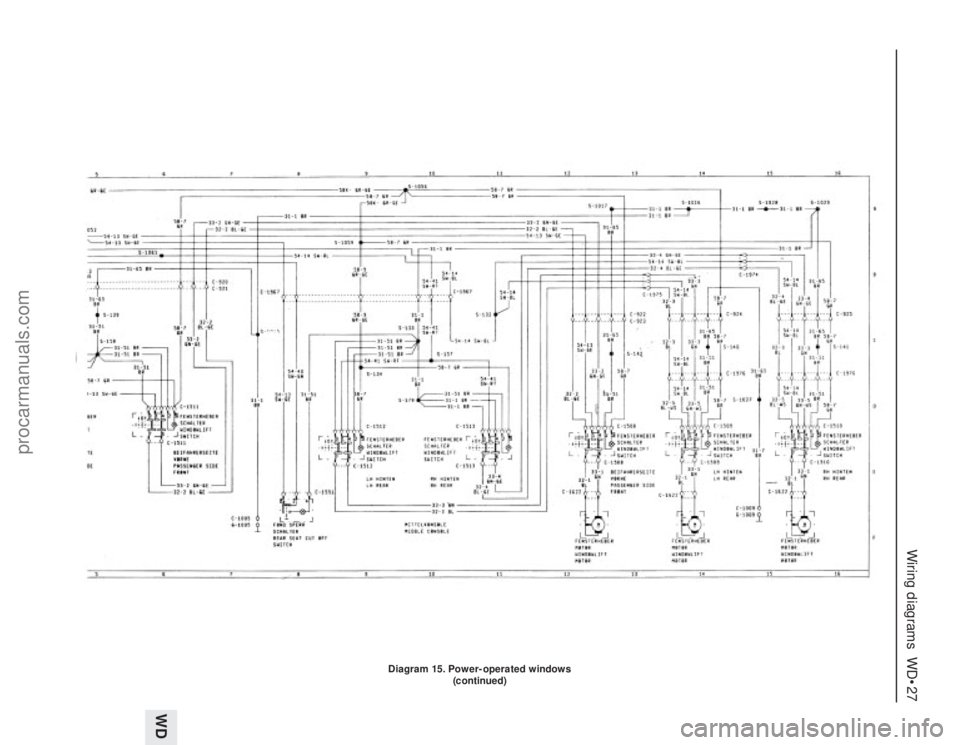

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•27 WD Diagram 15. Power-operated windows (continued) procarmanuals.com

Page 229 of 255

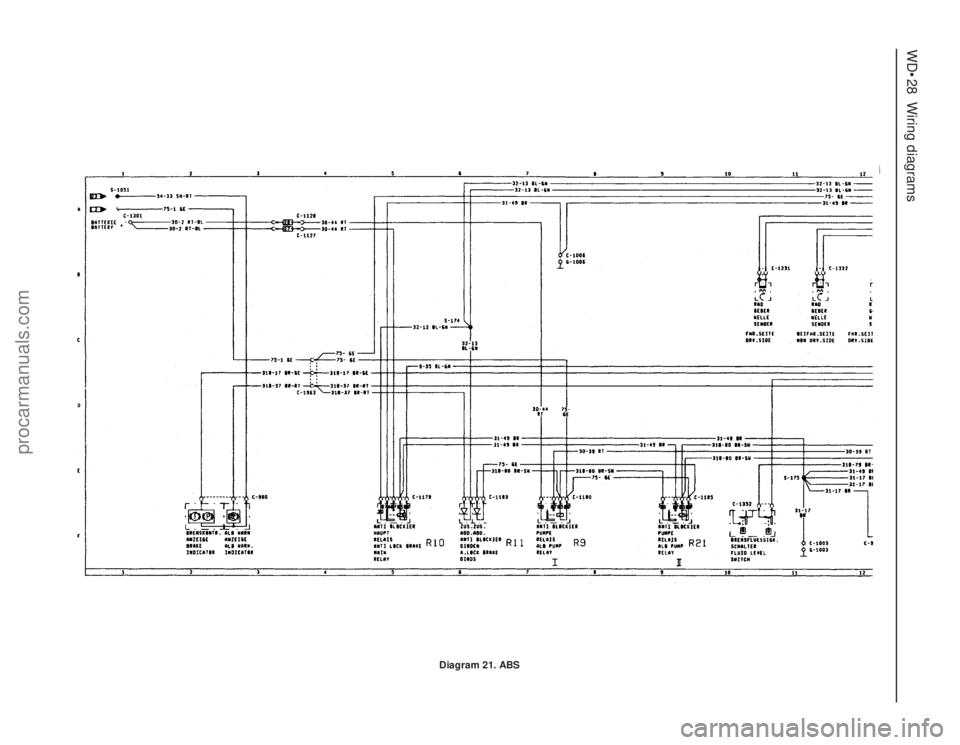

FORD GRANADA 1985 Service Repair Manual WD•28Wiring diagrams Diagram 21. ABS procarmanuals.com

Page 230 of 255

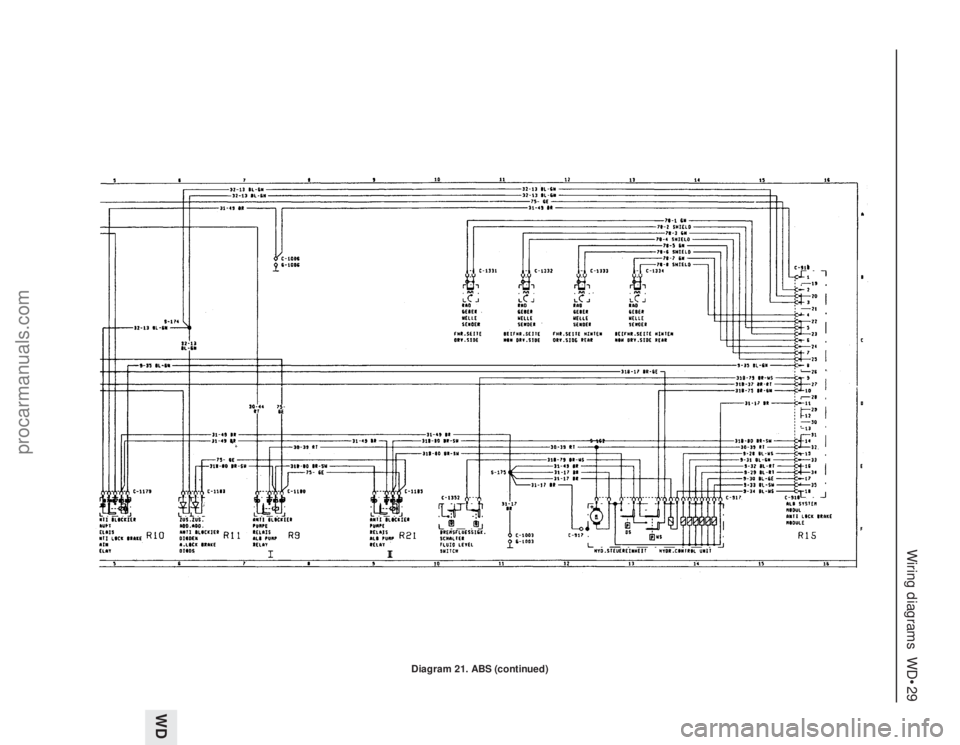

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•29 WD Diagram 21. ABS (continued) procarmanuals.com
