Page 15 of 200

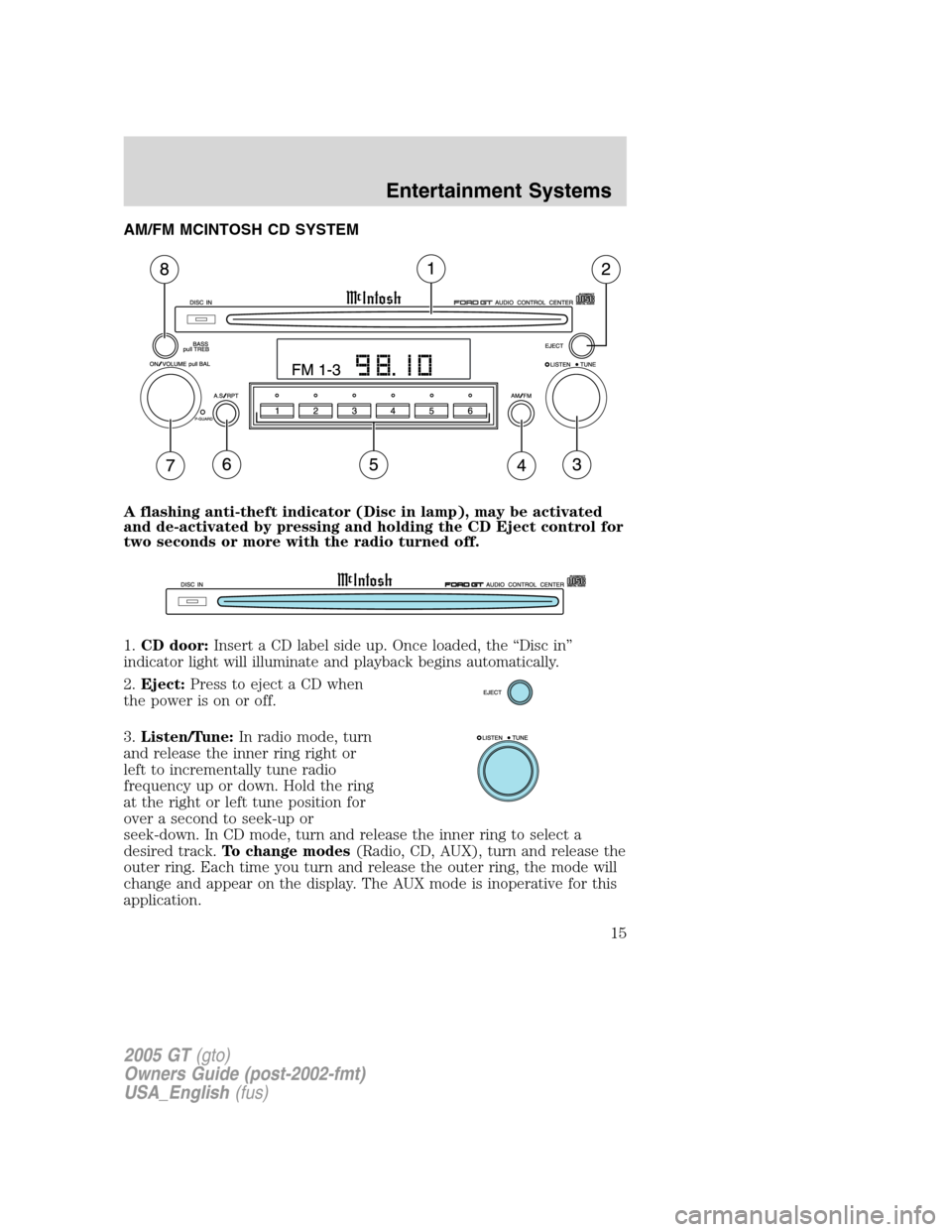

AM/FM MCINTOSH CD SYSTEM
A flashing anti-theft indicator (Disc in lamp), may be activated
and de-activated by pressing and holding the CD Eject control for
two seconds or more with the radio turned off.
1.CD door: Insert a CD label side up. Once loaded, the “Disc in ”
indicator light will illuminate and playback begins automatically.
2. Eject: Press to eject a CD when
the power is on or off.
3. Listen/Tune: In radio mode, turn
and release the inner ring right or
left to incrementally tune radio
frequency up or down. Hold the ring
at the right or left tune position for
over a second to seek-up or
seek-down. In CD mode, turn and release the inner ring to select a
desired track. To change modes (Radio, CD, AUX), turn and release the
outer ring. Each time you turn and release the outer ring, the mode will
change and appear on the display. The AUX mode is inoperative for this
application.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Entertainment Systems
Entertainment Systems
15
Page 16 of 200

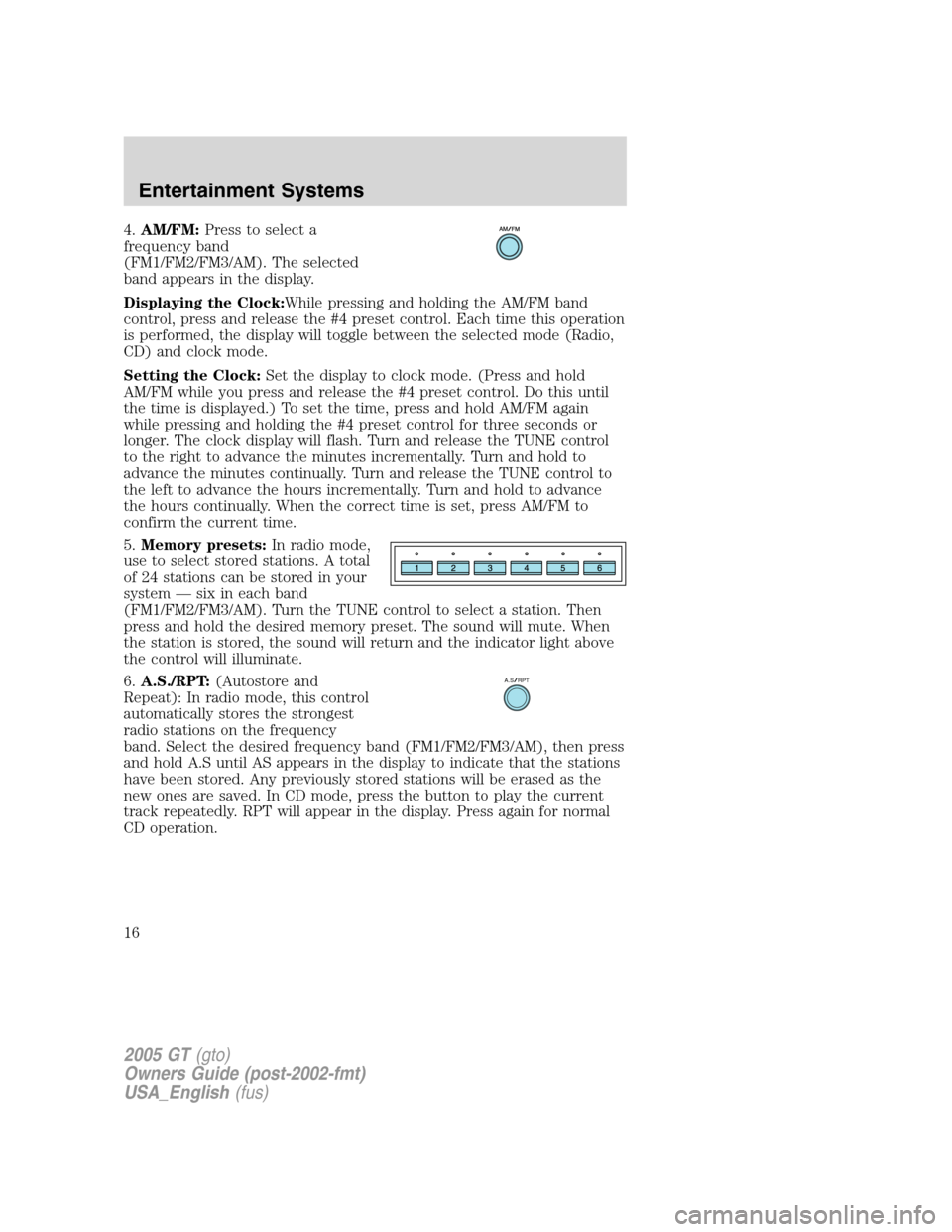

4.AM/FM: Press to select a
frequency band
(FM1/FM2/FM3/AM). The selected
band appears in the display.
Displaying the Clock: While pressing and holding the AM/FM band
control, press and release the #4 preset control. Each time this operation
is performed, the display will toggle between the selected mode (Radio,
CD) and clock mode.
Setting the Clock: Set the display to clock mode. (Press and hold
AM/FM while you press and release the #4 preset control. Do this until
the time is displayed.) To set the time, press and hold AM/FM again
while pressing and holding the #4 preset control for three seconds or
longer. The clock display will flash. Turn and release the TUNE control
to the right to advance the minutes incrementally. Turn and hold to
advance the minutes continually. Turn and release the TUNE control to
the left to advance the hours incrementally. Turn and hold to advance
the hours continually. When the correct time is set, press AM/FM to
confirm the current time.
5. Memory presets: In radio mode,
use to select stored stations. A total
of 24 stations can be stored in your
system —six in each band
(FM1/FM2/FM3/AM). Turn the TUNE control to select a station. Then
press and hold the desired memory preset. The sound will mute. When
the station is stored, the sound will return and the indicator light above
the control will illuminate.
6. A.S./RPT: (Autostore and
Repeat): In radio mode, this control
automatically stores the strongest
radio stations on the frequency
band. Select the desired frequency band (FM1/FM2/FM3/AM), then press
and hold A.S until AS appears in the display to indicate that the stations
have been stored. Any previously stored stations will be erased as the
new ones are saved. In CD mode, press the button to play the current
track repeatedly. RPT will appear in the display. Press again for normal
CD operation.
A.S RPT
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Entertainment Systems
16
Page 17 of 200

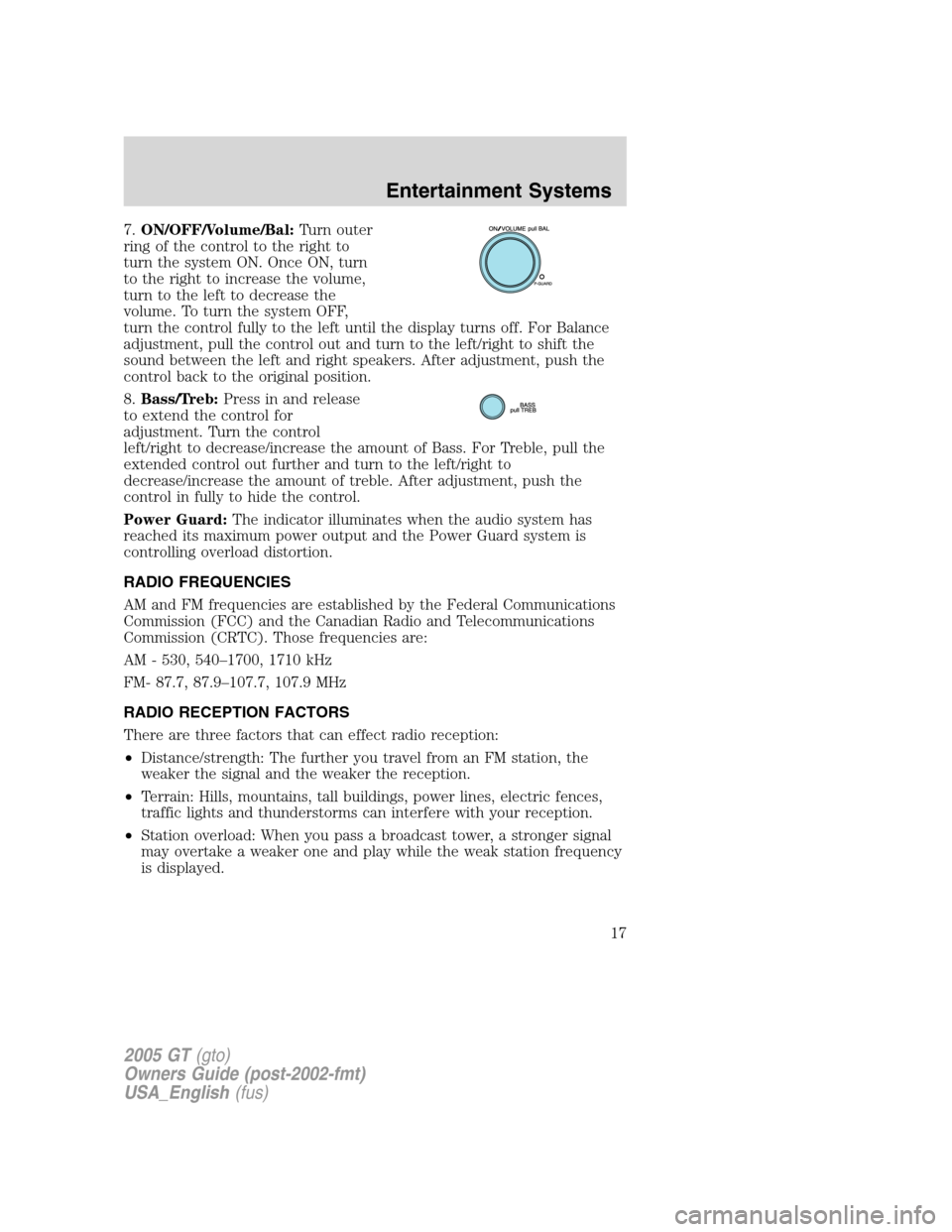

7.ON/OFF/Volume/Bal: Turn outer
ring of the control to the right to
turn the system ON. Once ON, turn
to the right to increase the volume,
turn to the left to decrease the
volume. To turn the system OFF,
turn the control fully to the left until the display turns off. For Balance
adjustment, pull the control out and turn to the left/right to shift the
sound between the left and right speakers. After adjustment, push the
control back to the original position.
8. Bass/Treb: Press in and release
to extend the control for
adjustment. Turn the control
left/right to decrease/increase the amount of Bass. For Treble, pull the
extended control out further and turn to the left/right to
decrease/increase the amount of treble. After adjustment, push the
control in fully to hide the control.
Power Guard: The indicator illuminates when the audio system has
reached its maximum power output and the Power Guard system is
controlling overload distortion.
RADIO FREQUENCIES
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM - 530, 540 –1700, 1710 kHz
FM- 87.7, 87.9 –107.7, 107.9 MHz
RADIO RECEPTION FACTORS
There are three factors that can effect radio reception:
• Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
• Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
• Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Entertainment Systems
17
