FORD GT 2006 1.G Owners Manual

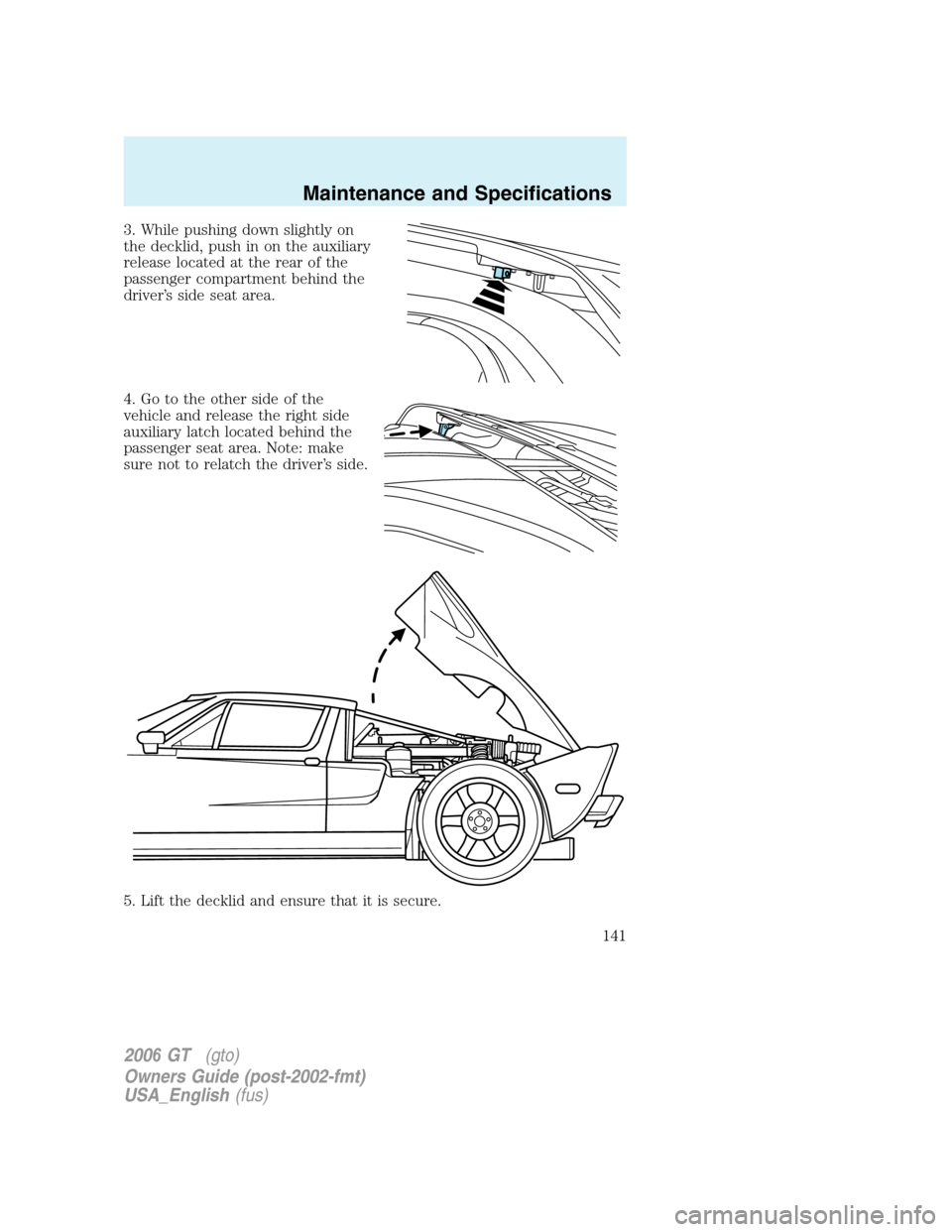

3. While pushing down slightly on
the decklid, push in on the auxiliary
release located at the rear of the
passenger compartment behind the
driver’s side seat area.
4. Go to the other side of the
vehicle and release the right side
auxiliary latch located behind the
passenger seat area. Note: make
sure not to relatch the driver’s side.
5. Lift the decklid and ensure that it is secure.
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
141

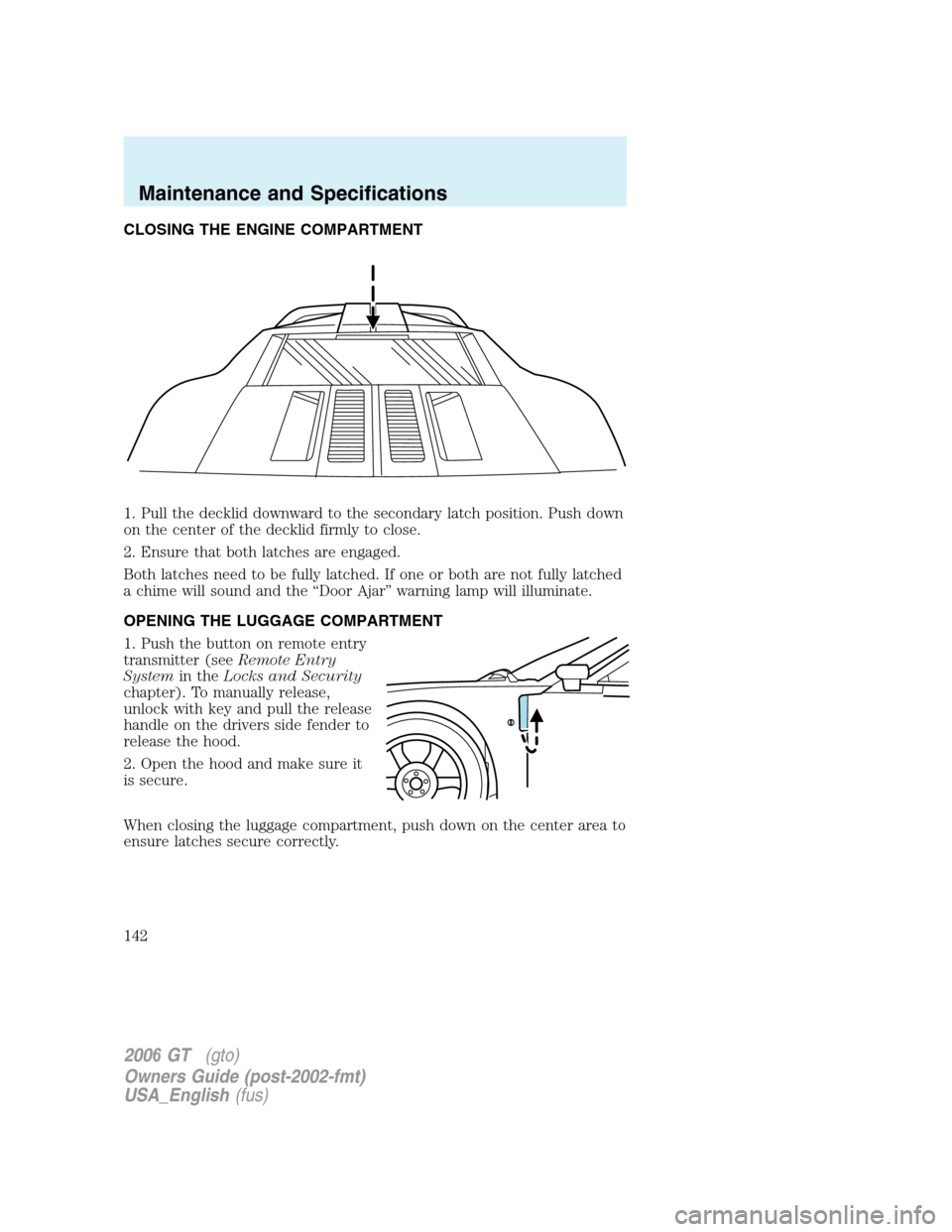

CLOSING THE ENGINE COMPARTMENT
1. Pull the decklid downward to the secondary latch position. Push down
on the center of the decklid firmly to close.
2. Ensure that both latches are engaged.
Both latches need to be fully latched. If one or both are not fully latched
a chime will sound and the “Door Ajar” warning lamp will illuminate.
OPENING THE LUGGAGE COMPARTMENT
1. Push the button on remote entry
transmitter (seeRemote Entry
System in theLocks and Security
chapter). To manually release,
unlock with key and pull the release
handle on the drivers side fender to
release the hood.
2. Open the hood and make sure it
is secure.
When closing the luggage compartment, push down on the center area to
ensure latches secure correctly.
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
142

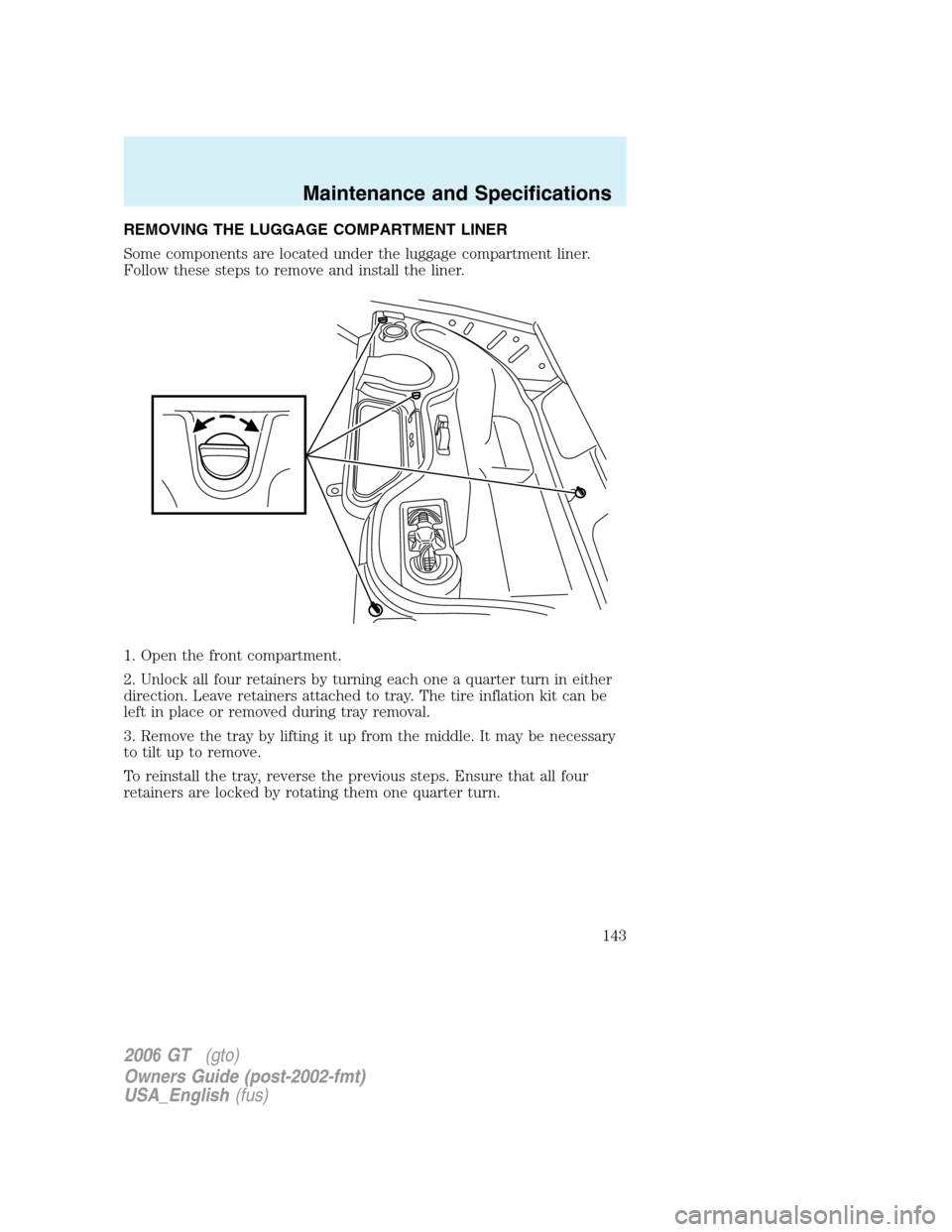

REMOVING THE LUGGAGE COMPARTMENT LINER
Some components are located under the luggage compartment liner.
Follow these steps to remove and install the liner.
1. Open the front compartment.
2. Unlock all four retainers by turning each one a quarter turn in either
direction. Leave retainers attached to tray. The tire inflation kit can be
left in place or removed during tray removal.
3. Remove the tray by lifting it up from the middle. It may be necessary
to tilt up to remove.
To reinstall the tray, reverse the previous steps. Ensure that all four
retainers are locked by rotating them one quarter turn.
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
143

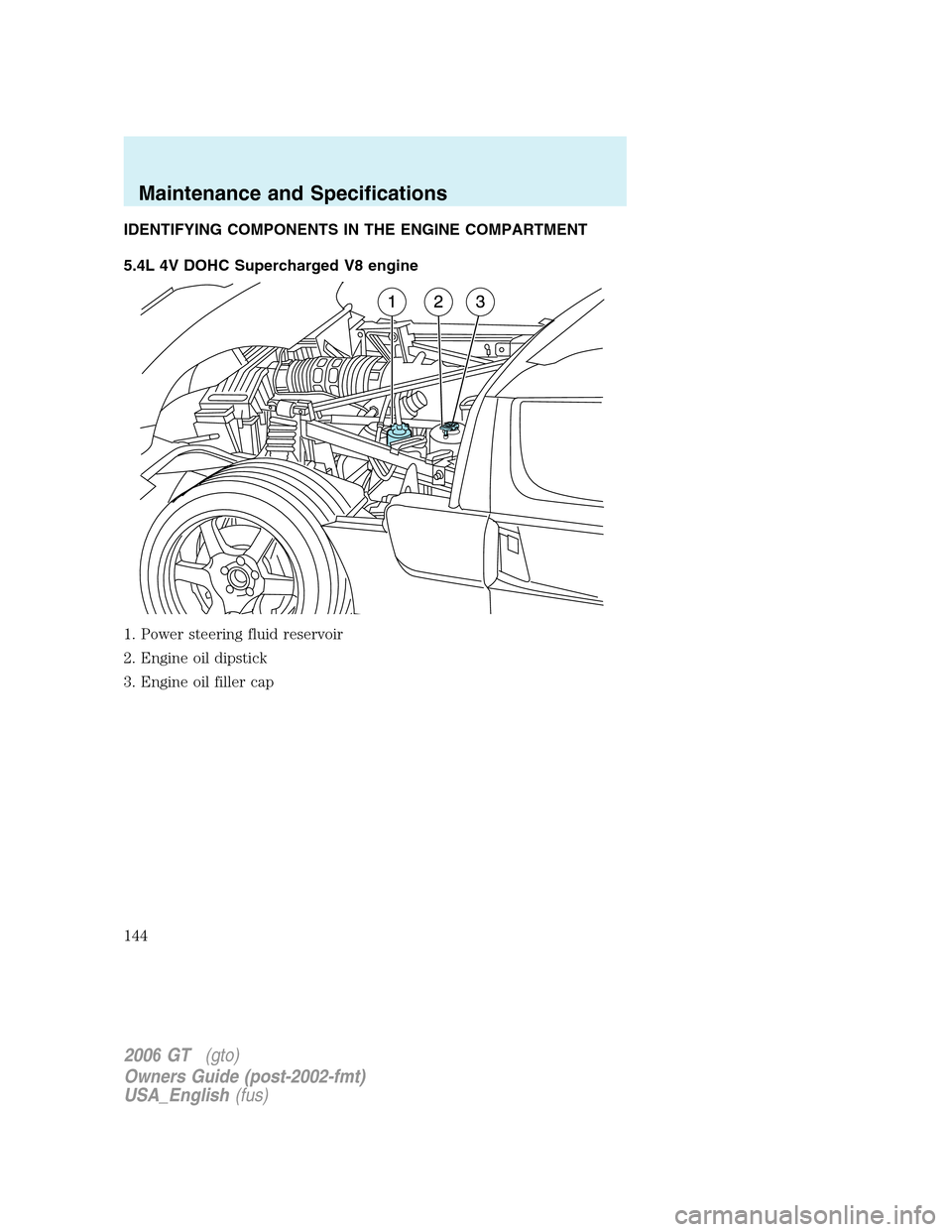

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
5.4L 4V DOHC Supercharged V8 engine
1. Power steering fluid reservoir
2. Engine oil dipstick
3. Engine oil filler cap
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
144

4. Engine oil filter
5. Engine coolant reservoir
6. Intercooler coolant reservoir
7. Engine air filter
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
145

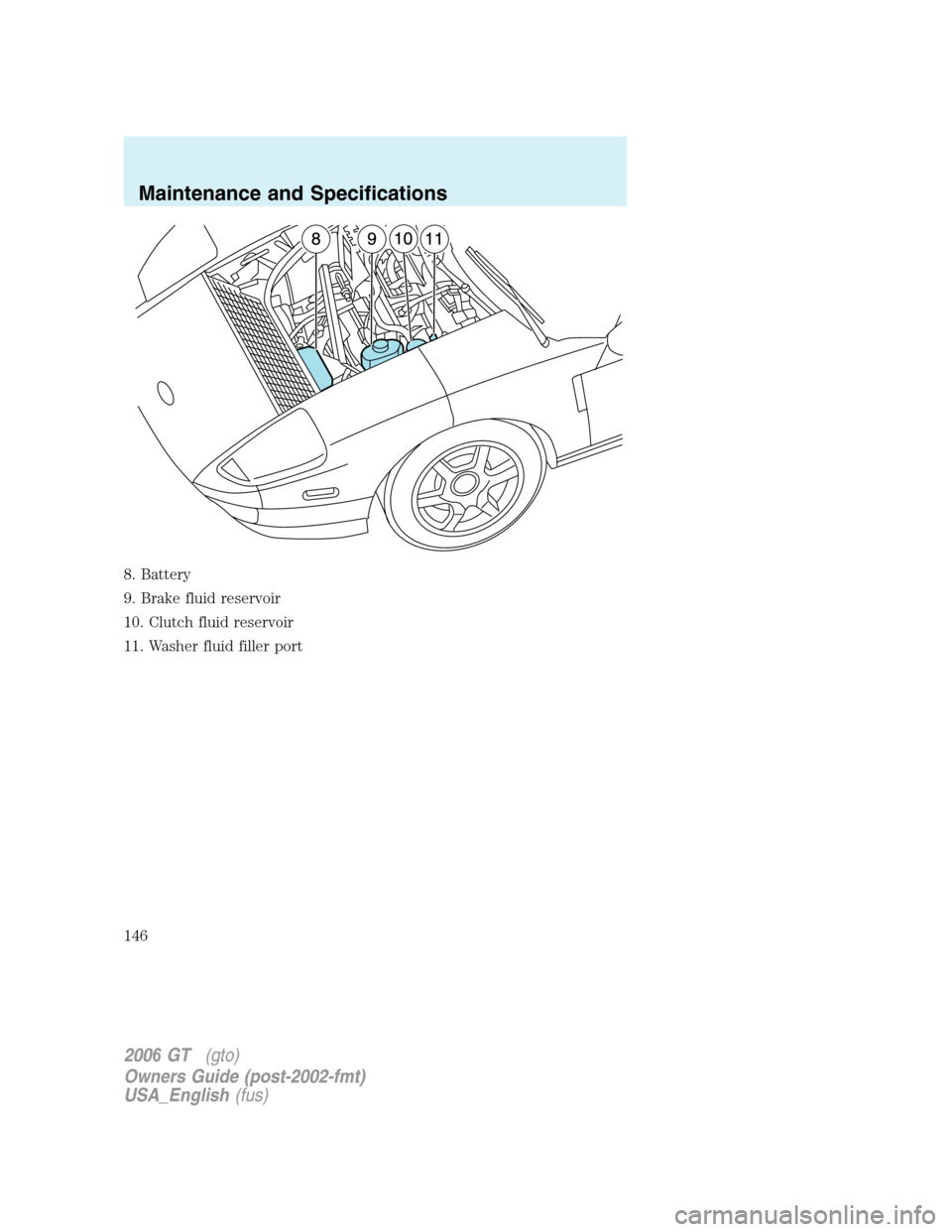

8. Battery
9. Brake fluid reservoir
10. Clutch fluid reservoir
11. Washer fluid filler port
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
146

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. Standard fill amount is 1
quart (0.9 L).
Only use a washer fluid that meets
Ford specification WSB-M8B16–A2.
Refer toLubricant specifications
in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
If you operate your vehicle in temperatures below 40° F (4.5°C),
use washer fluid with antifreeze protection. Failure to use
washer fluid with antifreeze protection in cold weather could result in
impaired windshield vision and increase the risk of injury or accident.
Note: Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
ENGINE OIL
Checking the engine oil
Refer to the scheduled maintenance guide for the appropriate intervals
for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off.
3. Set the parking brake and ensure the gearshift is securely latched in 1
(First).
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
147

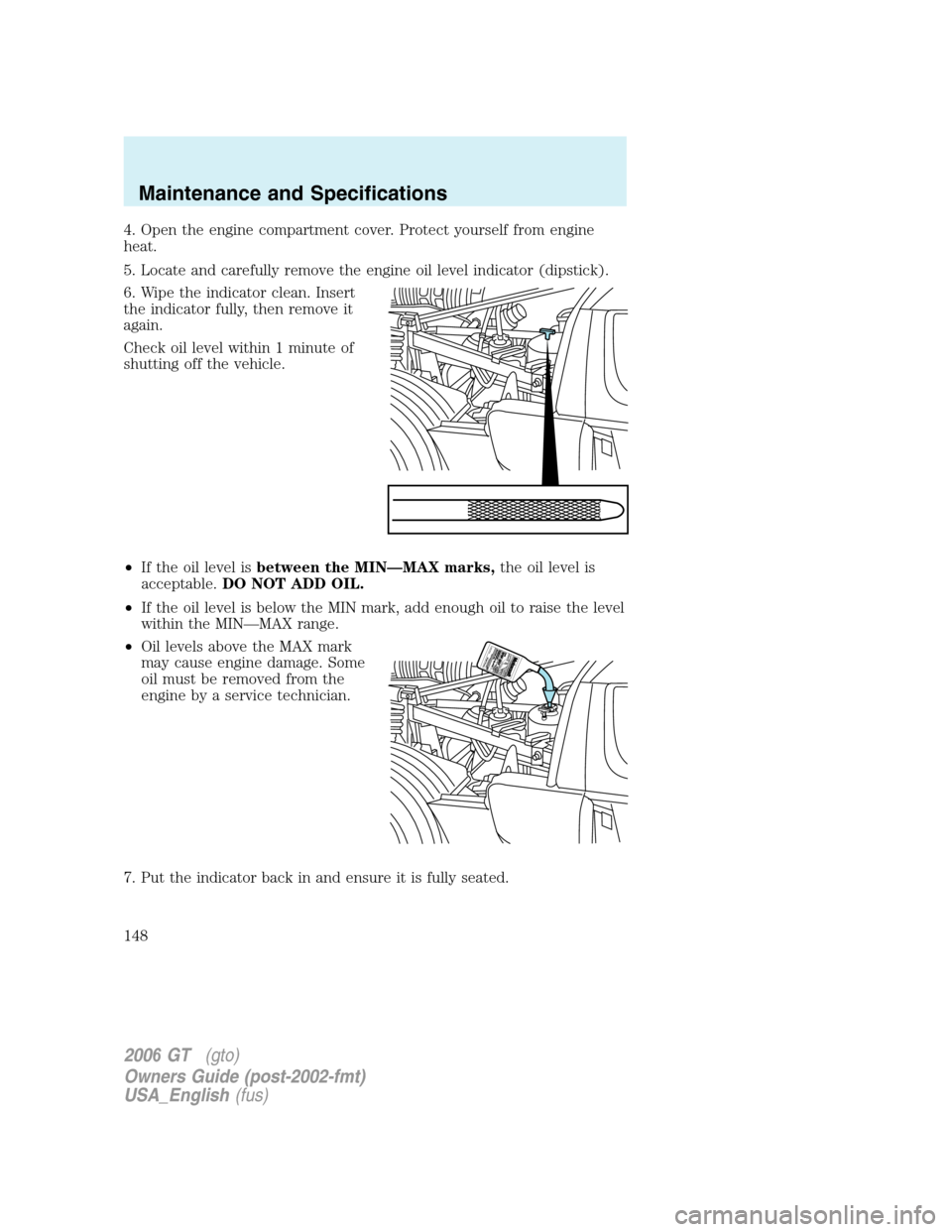

4. Open the engine compartment cover. Protect yourself from engine
heat.
5. Locate and carefully remove the engine oil level indicator (dipstick).
6. Wipe the indicator clean. Insert
the indicator fully, then remove it
again.
Check oil level within 1 minute of
shutting off the vehicle.
•If the oil level is between the MIN—MAX marks, the oil level is
acceptable. DO NOT ADD OIL.
• If the oil level is below the MIN mark, add enough oil to raise the level
within the MIN—MAX range.
• Oil levels above the MAX mark
may cause engine damage. Some
oil must be removed from the
engine by a service technician.
7. Put the indicator back in and ensure it is fully seated.
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
148

Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oil in this chapter.
2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
MAX mark on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
1/4 of a turn until three clicks are heard or until the cap is fully seated.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Use SAE 5W-50 full synthetic engine oil.
To protect your engine’s warranty use Motorcraft SAE 5W-50 full
synthetic or an equivalent 5W-50 full synthetic oil meeting Ford
specification WSS-M2C931–A. SAE 5W-50 full synthetic oil provides
durability performance meeting all requirements for your
vehicle’s engine .
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in the scheduled maintenance guide.
Ford production and aftermarket (Motorcraft) oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraft oil filter (or
another brand meeting Ford specifications) for your engine application.
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
149

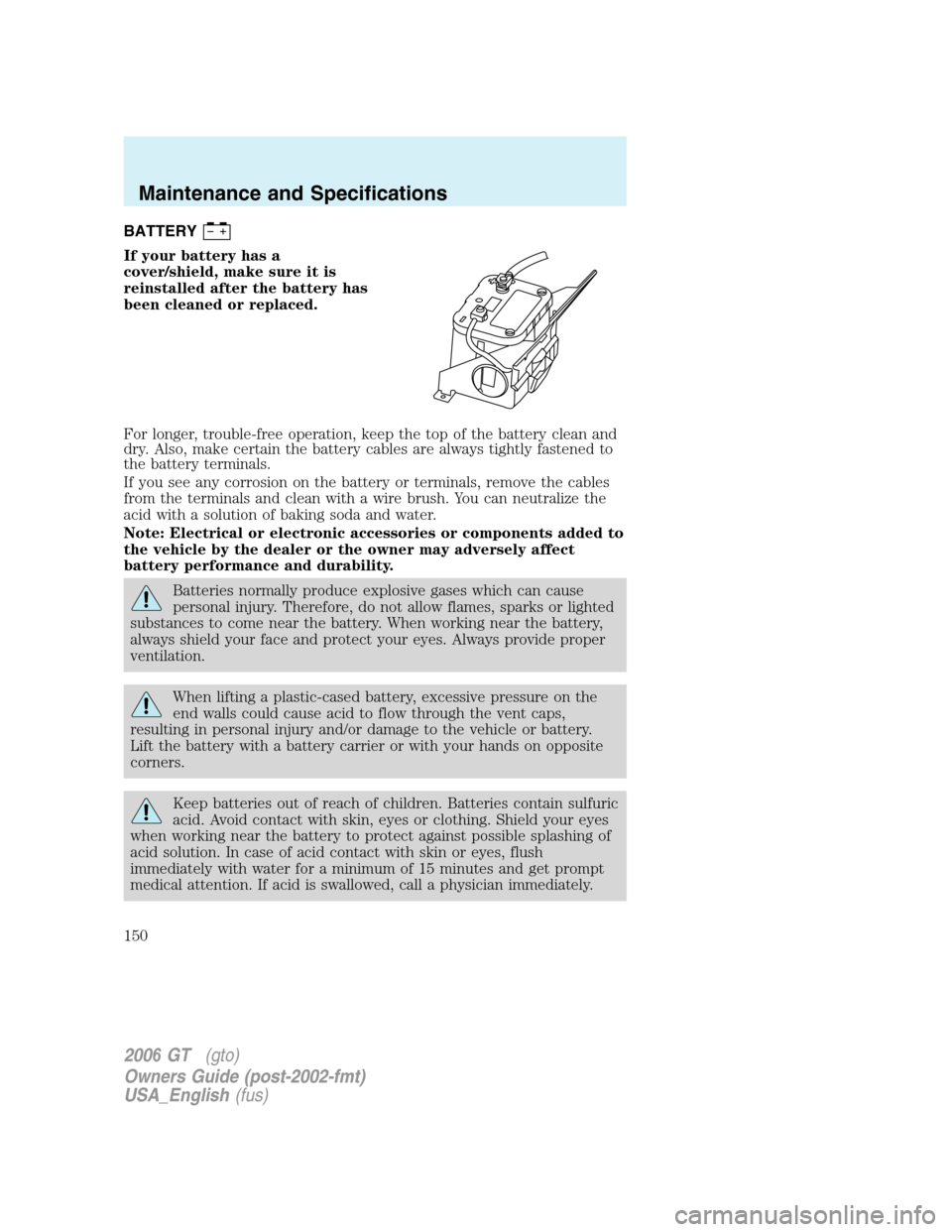

BATTERY
If your battery has a
cover/shield, make sure it is
reinstalled after the battery has
been cleaned or replaced.
For longer, trouble-free operation, keep the top of the battery clean and
dry. Also, make certain the battery cables are always tightly fastened to
the battery terminals.
If you see any corrosion on the battery or terminals, remove the cables
from the terminals and clean with a wire brush. You can neutralize the
acid with a solution of baking soda and water.
Note: Electrical or electronic accessories or components added to
the vehicle by the dealer or the owner may adversely affect
battery performance and durability.
Batteries normally produce explosive gases which can cause
personal injury. Therefore, do not allow flames, sparks or lighted
substances to come near the battery. When working near the battery,
always shield your face and protect your eyes. Always provide proper
ventilation.
When lifting a plastic-cased battery, excessive pressure on the
end walls could cause acid to flow through the vent caps,
resulting in personal injury and/or damage to the vehicle or battery.
Lift the battery with a battery carrier or with your hands on opposite
corners.
Keep batteries out of reach of children. Batteries contain sulfuric
acid. Avoid contact with skin, eyes or clothing. Shield your eyes
when working near the battery to protect against possible splashing of
acid solution. In case of acid contact with skin or eyes, flush
immediately with water for a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed, call a physician immediately.
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
150
