FORD GT 2006 1.G Owners Manual

ENGINE DATA
Engine 5.4L DOHC Supercharged V8engine
Displacement (cubic inches) 330
Required fuel 91 octane
Firing order 1-3-7-2-6-5-4-8
Spark plug gap 1.1–1.2mm (0.042–0.046 inch)
Ignition system Coil on plug
Compression ratio 8.4:1
VEHICLE DIMENSIONS
Vehicle dimensions Inches (mm)
(1) Overall length 182.8 (4644)
(2) Overall width 76.9 (1952.5)
(3) Overall height 44.3 (1124.8)
(4) Wheelbase 106.7 (2709.9)
(5) Tread - Front 63.0 (1599.4)
(5) Tread - Rear 63.6 (1617.6)
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
171

3
5
2
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
172

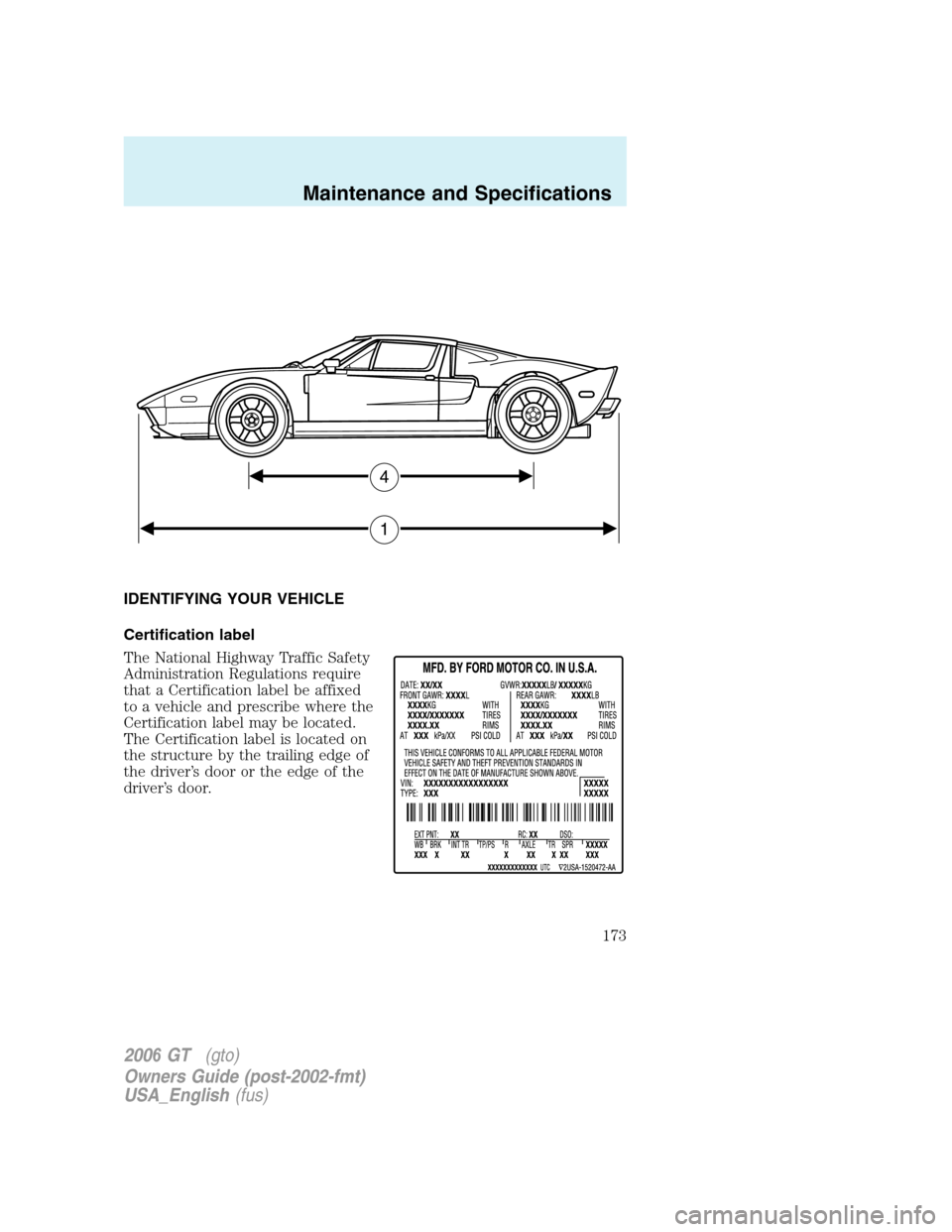

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the structure by the trailing edge of
the driver’s door or the edge of the
driver’s door.
4
1
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
173

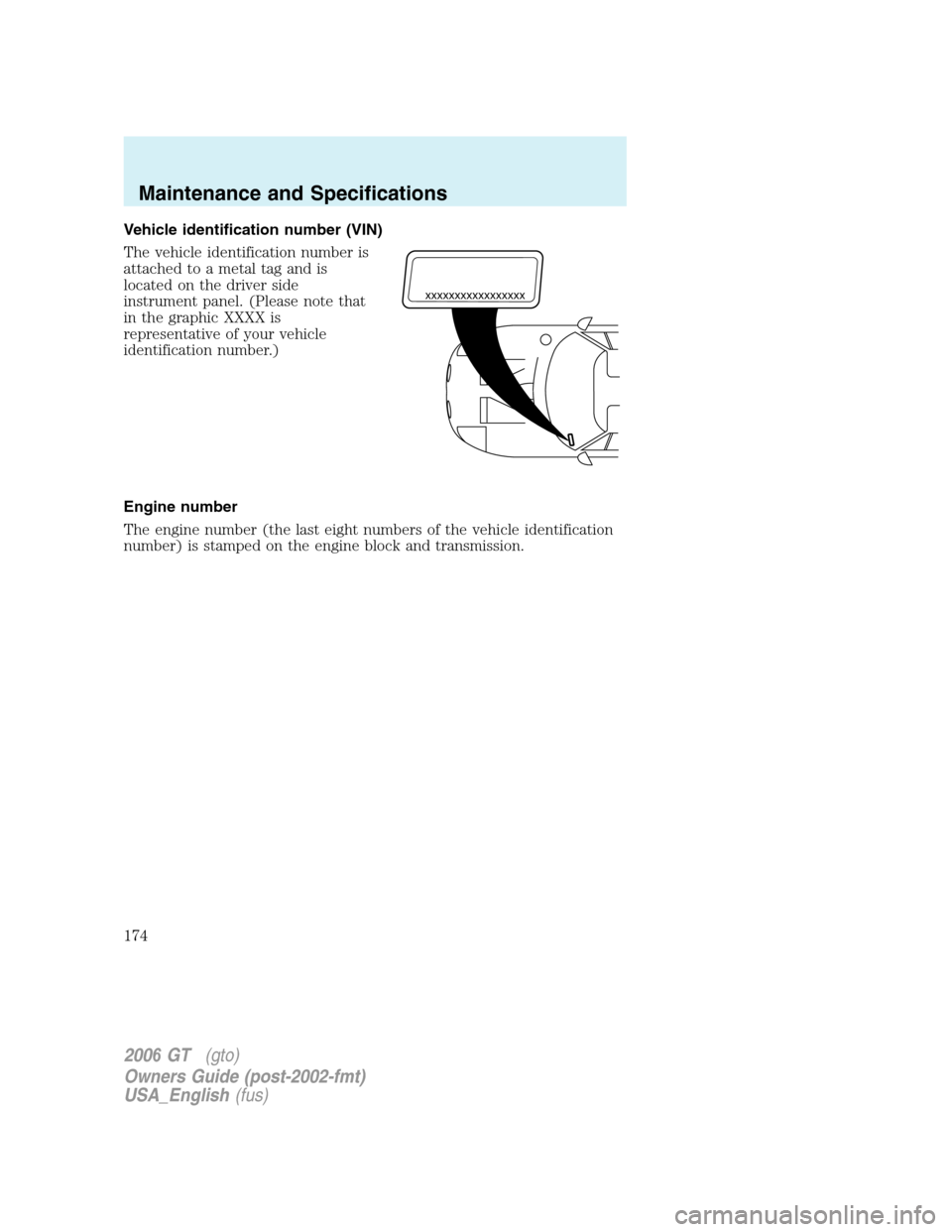

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transmission.
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
174

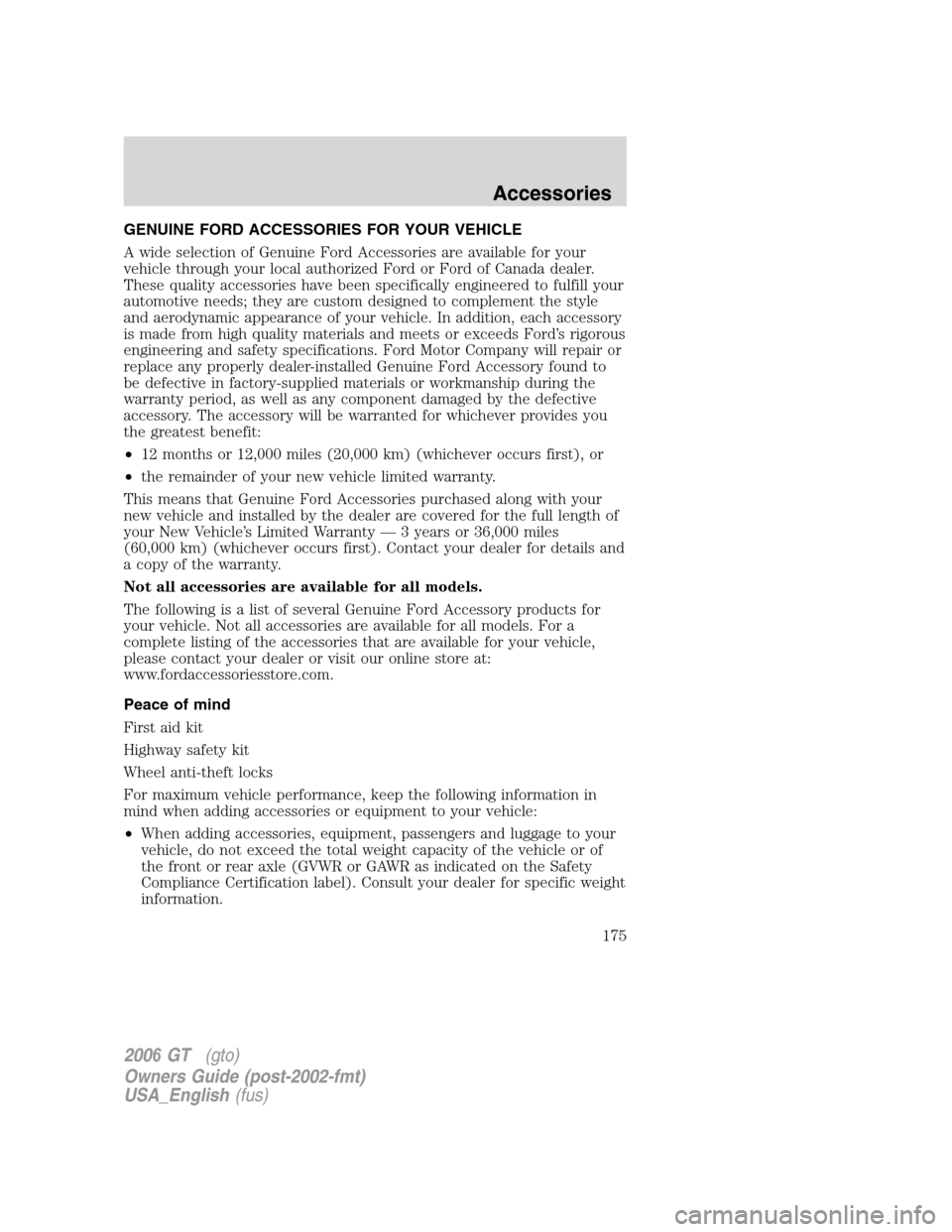

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessory found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
• the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles
(60,000 km) (whichever occurs first). Contact your dealer for details and
a copy of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your dealer or visit our online store at:
www.fordaccessoriesstore.com.
Peace of mind
First aid kit
Highway safety kit
Wheel anti-theft locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your dealer for specific weight
information.
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Accessories
Accessories
175

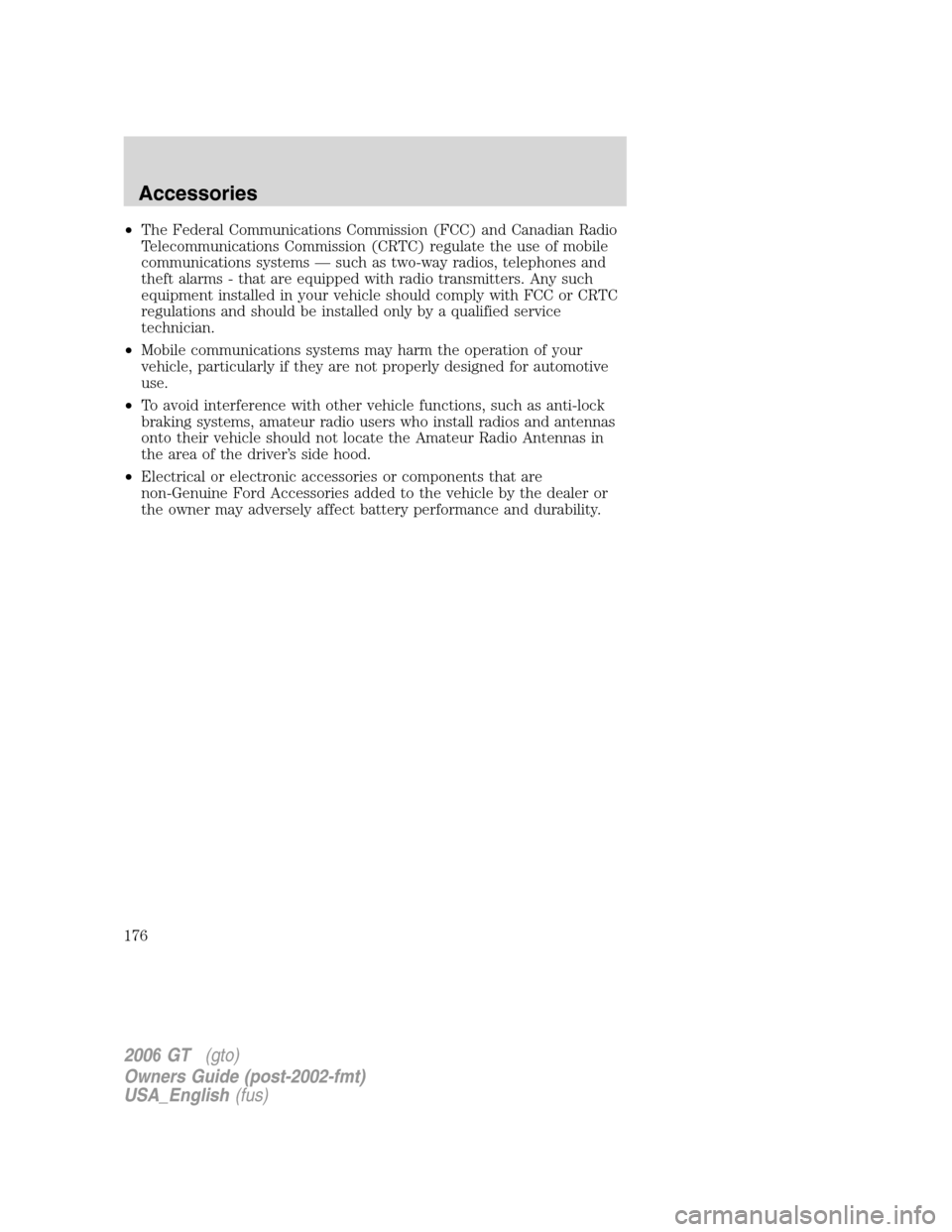

•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
• Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
• To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
• Electrical or electronic accessories or components that are
non-Genuine Ford Accessories added to the vehicle by the dealer or
the owner may adversely affect battery performance and durability.
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Accessories
176

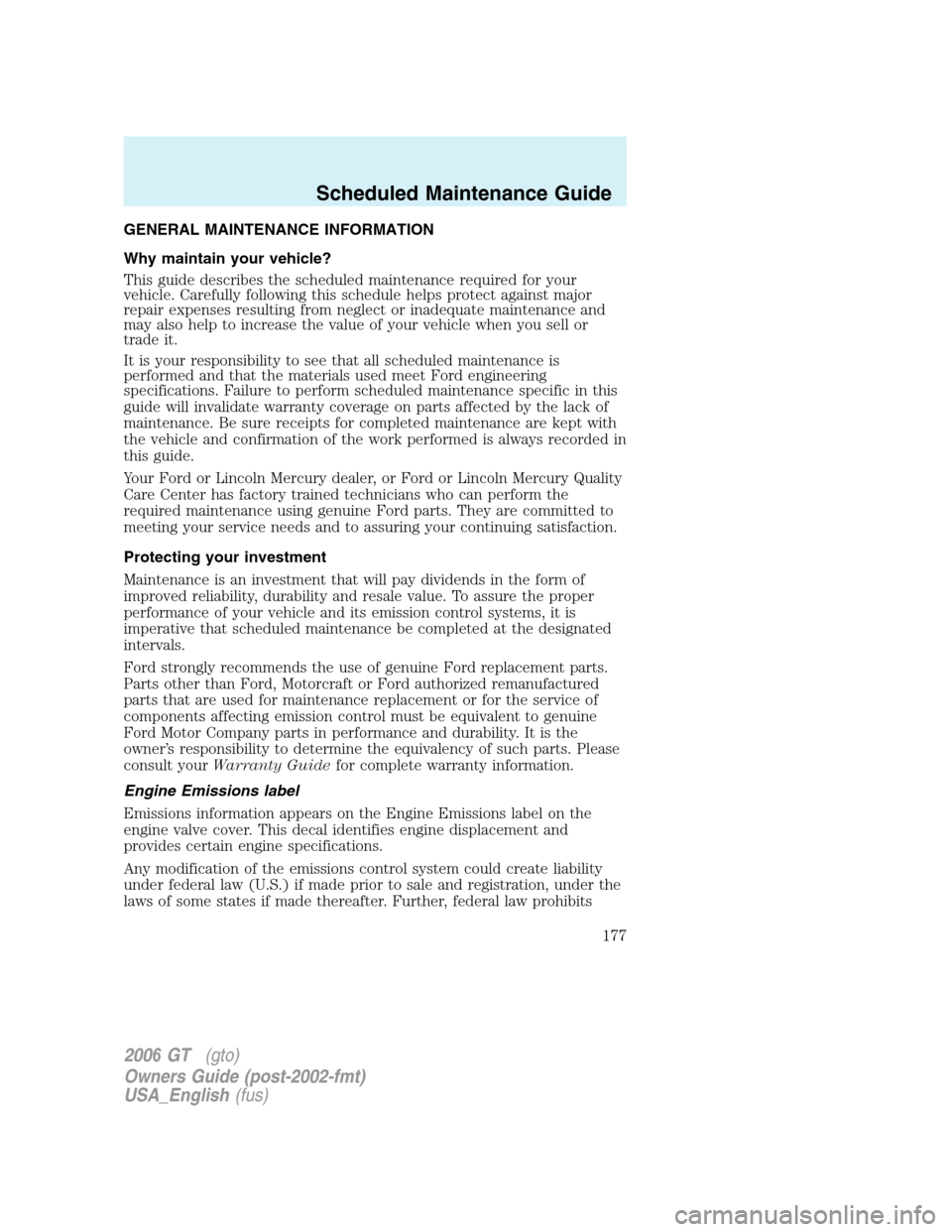

GENERAL MAINTENANCE INFORMATION
Why maintain your vehicle?
This guide describes the scheduled maintenance required for your
vehicle. Carefully following this schedule helps protect against major
repair expenses resulting from neglect or inadequate maintenance and
may also help to increase the value of your vehicle when you sell or
trade it.
It is your responsibility to see that all scheduled maintenance is
performed and that the materials used meet Ford engineering
specifications. Failure to perform scheduled maintenance specific in this
guide will invalidate warranty coverage on parts affected by the lack of
maintenance. Be sure receipts for completed maintenance are kept with
the vehicle and confirmation of the work performed is always recorded in
this guide.
Your Ford or Lincoln Mercury dealer, or Ford or Lincoln Mercury Quality
Care Center has factory trained technicians who can perform the
required maintenance using genuine Ford parts. They are committed to
meeting your service needs and to assuring your continuing satisfaction.
Protecting your investment
Maintenance is an investment that will pay dividends in the form of
improved reliability, durability and resale value. To assure the proper
performance of your vehicle and its emission control systems, it is
imperative that scheduled maintenance be completed at the designated
intervals.
Ford strongly recommends the use of genuine Ford replacement parts.
Parts other than Ford, Motorcraft or Ford authorized remanufactured
parts that are used for maintenance replacement or for the service of
components affecting emission control must be equivalent to genuine
Ford Motor Company parts in performance and durability. It is the
owner’s responsibility to determine the equivalency of such parts. Please
consult yourWarranty Guide for complete warranty information.
Engine Emissions label
Emissions information appears on the Engine Emissions label on the
engine valve cover. This decal identifies engine displacement and
provides certain engine specifications.
Any modification of the emissions control system could create liability
under federal law (U.S.) if made prior to sale and registration, under the
laws of some states if made thereafter. Further, federal law prohibits
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Scheduled Maintenance Guide
Scheduled Maintenance Guide
177

vehicle manufacturers, dealers and other persons engaged in the
business of repairing, servicing, selling, leasing or trading motor vehicles
as well as fleet operations from knowingly removing or rendering an
emissions control system inoperative after sale and delivery to an
ultimate purchaser. In Canada, modifications of the emissions control
system could create liability under applicable federal or provincial laws.
Genuine Ford Parts and Service
When planning your maintenance services, consider your Ford and
Lincoln Mercury dealership for all your vehicle’s needs.
Get the most from your service and maintenance visits
There are a lot of reasons why your Ford and Lincoln Mercury dealership
is a great way to help keep your vehicle running great.
Convenience
To make your service visit even more convenient, in many cases, you’ll
find extended evening hours and Saturday hours. How’s that for quality
service?
Factory-trained Technicians
Ford and Lincoln Mercury service technicians participate in extensive
factory-sponsored training to help them become the experts on the
operation of your vehicle. Many participate in Ford-sponsored training to
become certified. Ask your dealer about the training and certification
their technicians have received.
Genuine Ford and Motorcraft Replacement Parts
Ford and Lincoln Mercury dealerships stock Ford and Motorcraft
branded replacement parts. These parts meet or exceed Ford Motor
Company’s specifications, and we stand behind them. Maintenance parts
installed at your Ford or Lincoln Mercury dealership carry a nationwide,
12 months, 12,000 mile parts and labor limited warranty. Your dealer can
give you details.
Value Shopping for Your Vehicle’s Maintenance Needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your Ford and
Lincoln Mercury dealers can offer.
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Scheduled Maintenance Guide
178

WHICH MAINTENANCE SCHEDULE SHOULD YOU FOLLOW?
Owner Checks and Services
Refer to Mileage Intervals for Additional Checks and Services
Certain basic maintenance checks and inspections should be performed by
the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this Owner’s Guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or lubricants used.
Maximum Oil Change Interval:
12 months or 5,000 miles (8,000 km), whichever occurs first.
Check every month:
•Check function of all interior and exterior lights
• Check tires for wear and correct air pressure
• Check engine oil sump tank fluid level
• Check windshield washer fluid level
Check every six months:
• Check lap/shoulder belts and seat latches for wear and function
• Check power steering fluid level
• Check safety warning lamps (brake, ABS, air bag, safety belt) for
operation
• Check cooling system fluid level and coolant strength
• Check intercooler system fluid level and correct strength
• Check battery connections and clean if necessary
• Check clutch fluid level
• Check washer spray, wiper operation and clean all wiper blades
(replace as necessary)
• Check and lubricate all hinges, latches and outside locks. Inspect for
correct operation
• Check and lubricate door rubber weatherstrips. Inspect for excessive
wear
• Check and clean body and door drain holes. Inspect for clogs and
obstructions
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Scheduled Maintenance Guide
179

Multi-point Inspection
In order to keep your vehicle running right, it is important that you have
the systems on your vehicle checked regularly. This can help identify any
potential issue before there are any problems. Ford Motor Company
suggests the following multi-point inspection to be performed at every
scheduled maintenance as the way to ensure your vehicle keeps running
right.
Multi-point inspection - Recommended at every visit
•Check and top up fluid levels: brake, engine coolant recovery
reservoir, intercooler coolant, power steering and window washer.
• Inspect tires for wear and correct air pressure.
• Check exhaust system for leaks, damage, loose parts and foreign
materials.
• Check battery performance.
• Check operation of horn, exterior lamps, turn signals and hazard
warning lights.
• Check radiator, coolers and heater and air conditioning hoses.
• Inspect windshield washer spray and wiper operation.
• Check windshield for cracks, chips and pitting.
• Inspect for oil and fluid leaks.
• Inspect engine air cleaner filter and elements.
• Inspect half-shaft dust boots.
• Check shocks, struts and other suspension components for leaks and
damage.
NORMAL SCHEDULED MAINTENANCE AND LOG
The following maintenance schedule applies only if the vehicle is
operated in a typical manner. If the vehicle is operated in a non-typical
manner, maintenance frequency will be increased. The following
maintenance schedules are listed in both time intervals and mileage
(kilometer) intervals.
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Scheduled Maintenance Guide
180
