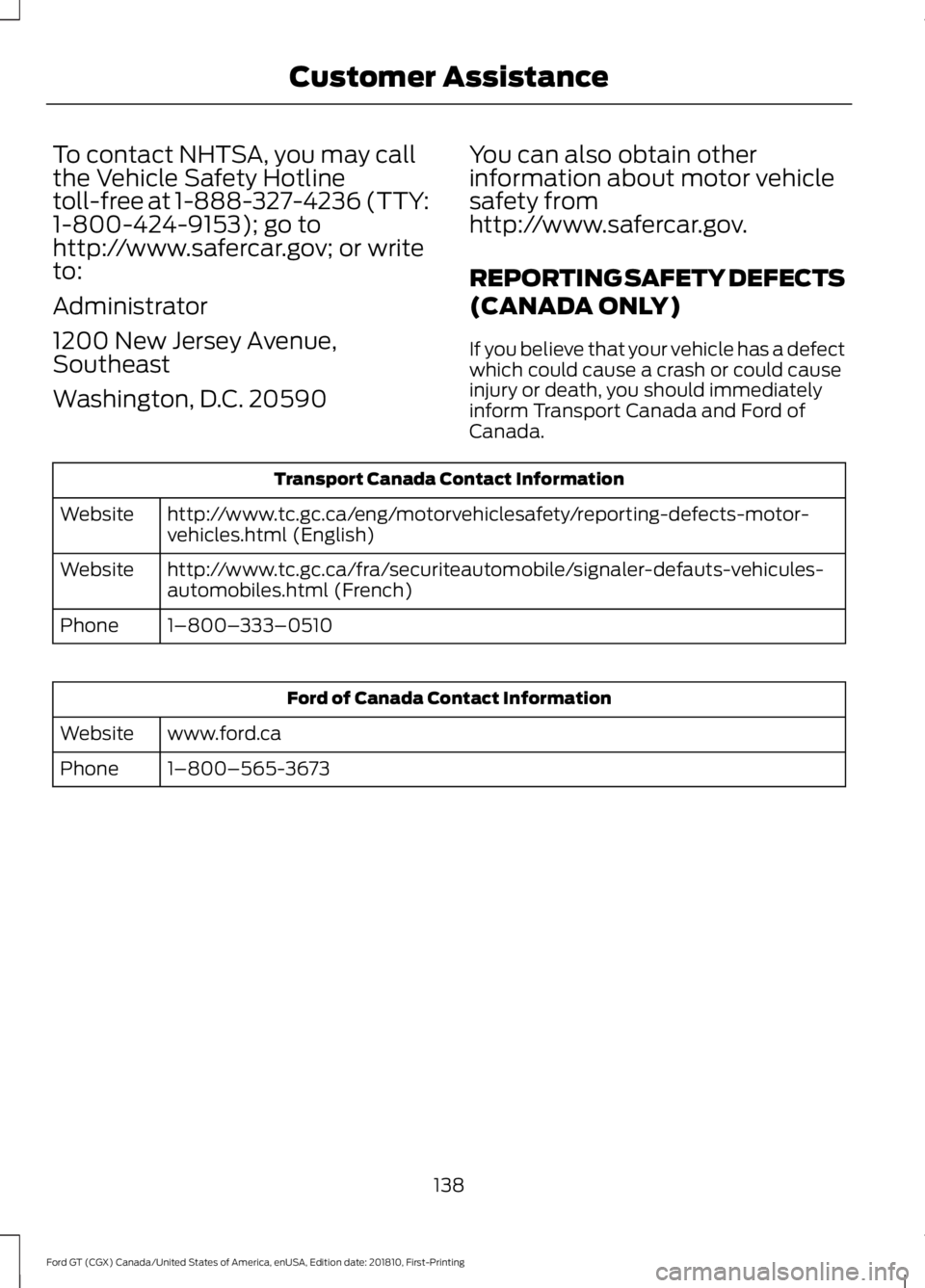

To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov; or write
to:
Administrator
1200 New Jersey Avenue,
Southeast
Washington, D.C. 20590
You can also obtain other
information about motor vehicle
safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada and Ford of
Canada.Transport Canada Contact Information
http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-
vehicles.html (English)
Website
http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-
automobiles.html (French)
Website
1–800–333–0510
Phone Ford of Canada Contact Information
www.ford.ca
Website
1–800–565-3673
Phone
138
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Customer Assistance

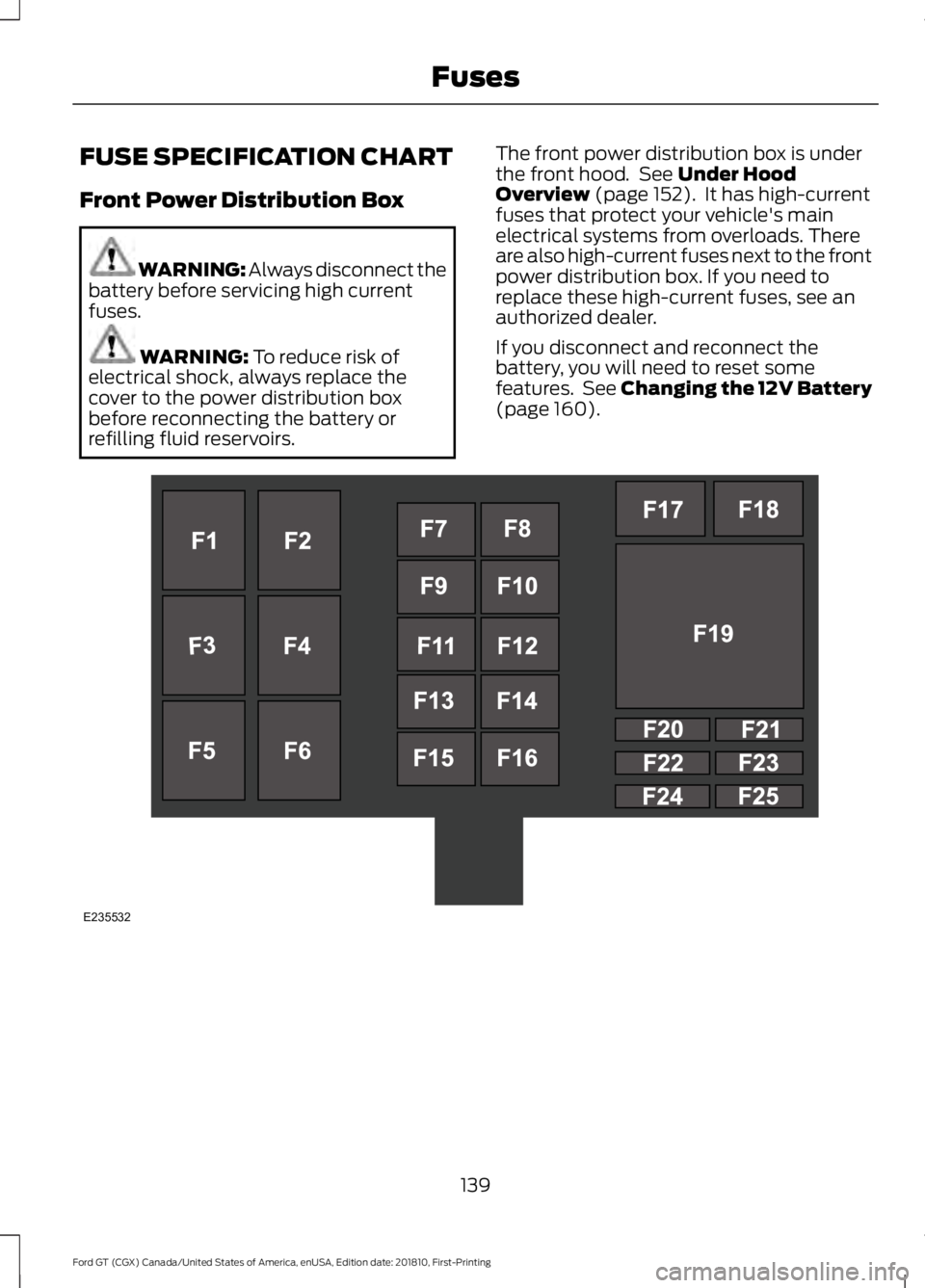

FUSE SPECIFICATION CHART
Front Power Distribution Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING: To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The front power distribution box is under
the front hood. See
Under Hood
Overview (page 152). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. There
are also high-current fuses next to the front
power distribution box. If you need to
replace these high-current fuses, see an
authorized dealer.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page
160). 139
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing FusesE235532

Protected Components
Fuse Rating
Fuse or Relay
Number
Vehicle dynamics module relay.
—
F1
Radiator fan 1 relay.
—
F2
Heating ventilation and air conditioning
(HVAC) blower relay.
—
F3
Wipers relay.
—
F4
Radiator fan 2 relay.
—
F5
Horn relay.
—
F6
Body control module.
50A 1
F7
Shunt relay.
—
F8
Vacuum pump.
40A 1
F9
Wiper.
25A 1
F10
Radiator fan 2.
40A 1
F11
Body control module.
50A 1
F12
Body control module.
60A 1
F13
Radiator fan 1.
40A 1
F14
Heating ventilation and air conditioning
(HVAC) blower.
40A 1
F15
Antilock brake system.
40A 1
F16
Antilock brake system.
40A 1
F17
Body control module.
30A 1
F18
Vacuum pump relay.
—
F19
Vehicle dynamics module.
5A 2
F20
Left headlamp.
20A 2
F21
140
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay
Number
Antilock brake system.
5A 2
F22
Horn.
20A 2
F23
Electronic door system.
20A 2
F24
Right headlamp.
20A 2
F25
1 J-case low profile fuse.
2 Mini fuse.
Rear Power Distribution Box 1
The rear power distribution box is in the
engine compartment. See Under Hood
Overview (page 152). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right side of the engine
compartment behind an access door in the
engine surround panel. If you need to
replace these high-current fuses, see an
authorized dealer. If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page
160).
141
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay
Number
Vehicle power 3.
15A 1
F1
Mass airflow.
5A 1
F2
Engine control module.
10A 1
F3
Transmission control module.
5A 1
F4
Vehicle power 1.
20A 1
F5
Keep alive power.
5A 1
F6
Not used.
—
F7
Rear video camera.
5A 1
F8
Not used.
—
F9
Alternator sense.
10A 1
F10
142
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing FusesE235533

Protected Components
Fuse Rating
Fuse or Relay
Number
Air conditioner.
10A 1
F11
Damper.
10A 1
F12
Vehicle power 4.
15A 1
F13
Not used.
—
F14
Battery backup sounder.
5A 1
F15
Engine control module.
5A 1
F16
Run/start.
Vehicle power 2.
20A 1
F17
Injector.
15A 1
F18
Fuel pump 1.
30A 2
F19
Fuel pump 2.
30A 2
F20
Transmission control module.
30A 2
F21
Starter.
30A 2
F22
Charge air cooler fan.
30A 2
F23
Shunt relay.
—
F24
Charge air cooler fan relay.
—
F25
Not used.
—
F26
Fuel pump 1 relay.
—
F27
AC clutch relay.
—
F28
Starter relay.
—
F29
Fuel injection relay.
—
F30
143
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay
Number
Fuel pump 2 relay.
—
F31
Engine control module relay.
—
F32
1 Mini fuse.
2 J-case low profile fuse.
Rear Power Distribution Box 2
The rear power distribution box is in the
engine compartment. See Under Hood
Overview (page 152). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right side of the engine
compartment behind an access door in the
engine surround panel. If you need to
replace these high-current fuses, see an
authorized dealer. If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 160). Protected Components
Fuse Rating
Fuse or Relay
Number
Transmission gear fluid cooler fan relay.
—
1
Engine oil cooler fan relay.
—
2
Transmission clutch fluid cooler fan relay.
—
3
144
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing FusesE270327

Protected Components
Fuse Rating
Fuse or Relay
Number
Not used.
—
4
Not used.
—
5
Not used.
—
6
Engine oil cooler fan.
20A 1
7
Transmission clutch fluid cooler fan.
25A 1
8
Transmission gear fluid cooler fan.
20A 1
9
Trunk power point.
20A 1
10
1 J-case fuse.
Passenger Compartment Fuse
Panel
The fuse panel is in the passenger footwell
behind the toeboard panel. To remove the toeboard panel, rotate each
of the four fasteners, and then pull the
toeboard panel toward you. Once you
remove this panel, you can access the fuse
panel. After replacing a fuse, reinstall the
toeboard panel and rotate the fasteners
back to their original position.
145
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing FusesE238973

Protected Components
Fuse Rating
Fuse or Relay
Number
Not used.
—
1
Not used (spare).
7.5A 1
2
Driver unlock relay.
20A 1
3
Double lock relay.
Not used (spare).
5A 1
4
Not used (spare).
20A 1
5
Not used (spare).
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Brake on/off (BOO) switch.
10A 2
9
Push button start switch.
5A 2
10
Right and left exterior door locks and
handles.
5A 2
11
146
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing FusesE145984

Protected Components
Fuse Rating
Fuse or Relay
Number
RF transceiver module (RTM).
7.5A 2
12
Steering column control module logic.
7.5A 2
13
Smart datalink connector logic.
Instrument cluster.
Extended power mode (EPM) module.
10A 2
14
Smart datalink connector (SDLC) power.
10A 2
15
Decklid release relay.
15A 1
16
Combined sensor module.
5A 2
17
Telematics control unit (TCU) - Modem.
5A 2
18
Not used (spare).
7.5A 2
19
Front damper controllers.
7.5A 2
20
Shift indicator module head-up display
(HUD).
5A 2
21
Interior temperature sensor.
Extended power mode module.
5A 2
22
Right window switch illumination.
10A 1
23
Right door lock switch illumination.
Left door lock switch illumination.
Power mirror/window switch (motor).
Right smart window motor (logic).
Left smart window motor (logic).
Central lock relay.
20A 1
24
Central unlock relay.
Left smart window motor.
30A 1
25
Right smart window motor.
30A 1
26
Not used (spare).
30A 1
27
Electronic steering column lock (relay
supply).
20A 1
28
147
