FORD GT 2020 Owners Manual

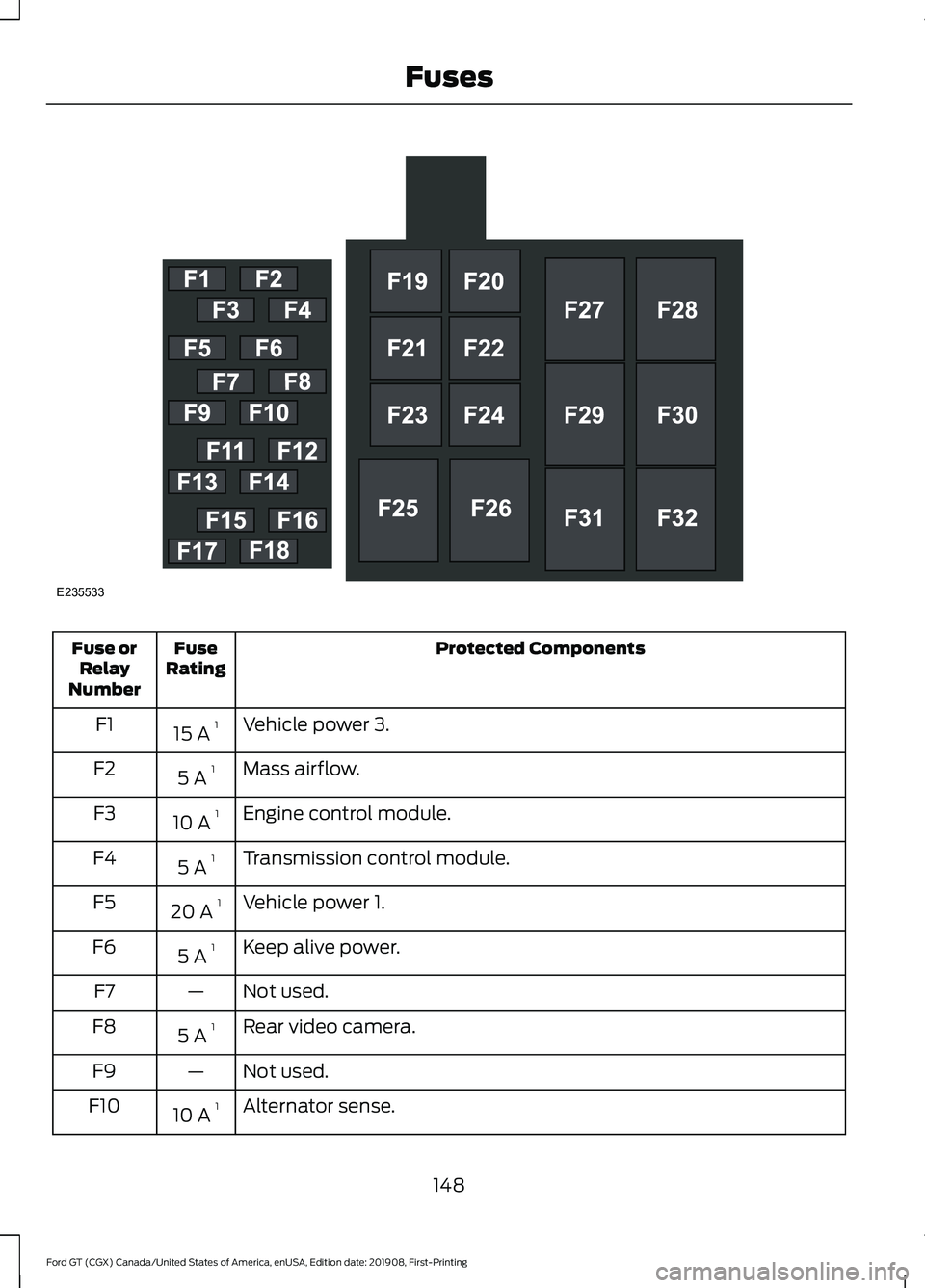

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Vehicle power 3.
15 A 1
F1
Mass airflow.
5 A 1
F2
Engine control module.
10 A 1
F3
Transmission control module.
5 A 1
F4
Vehicle power 1.
20 A 1
F5
Keep alive power.
5 A 1
F6
Not used.
—
F7
Rear video camera.
5 A 1
F8
Not used.
—
F9
Alternator sense.
10 A 1
F10
148
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201908, First-Printing FusesE235533

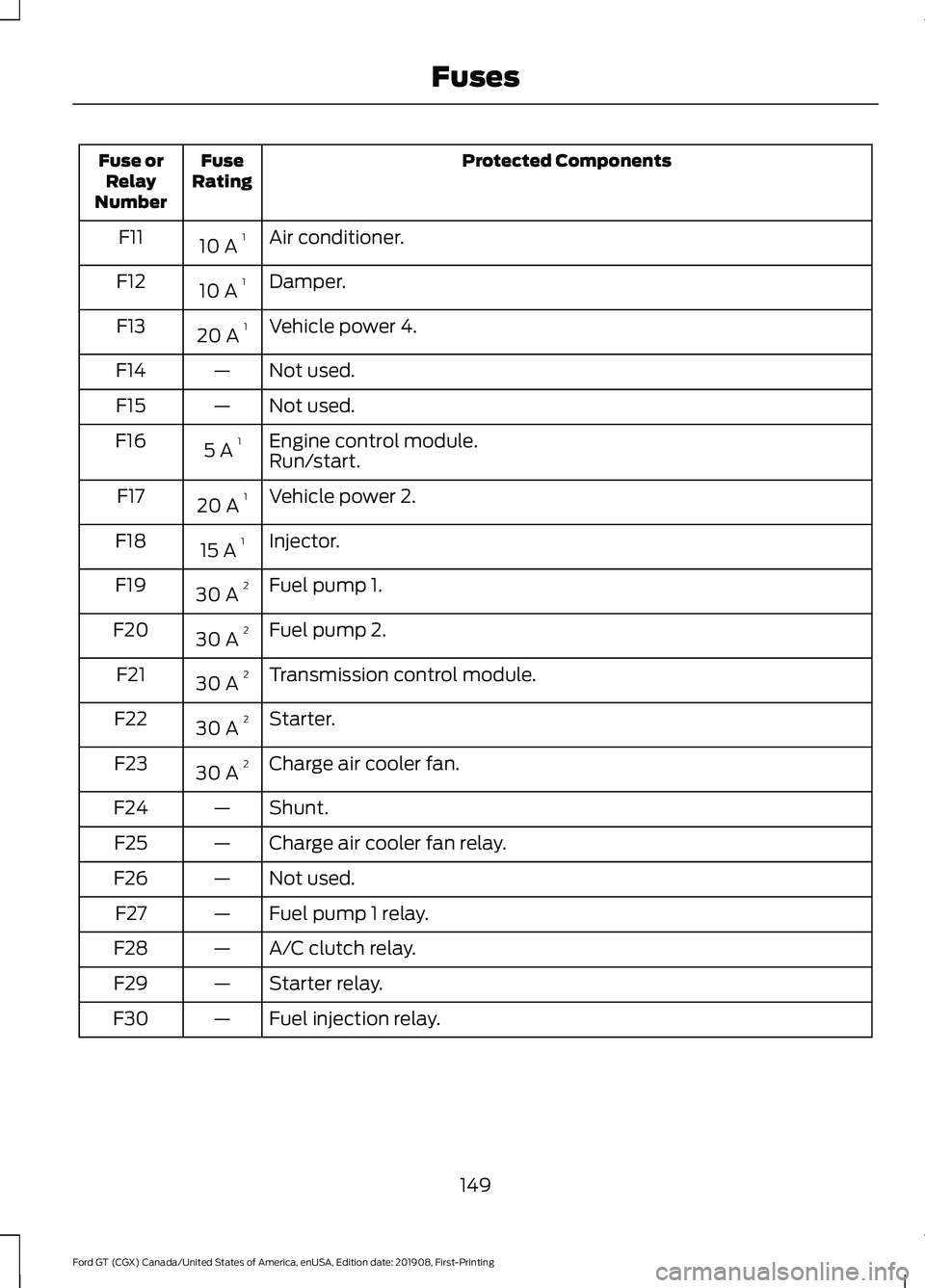

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Air conditioner.
10 A 1
F11
Damper.
10 A 1
F12
Vehicle power 4.
20 A 1
F13
Not used.
—
F14
Not used.
—
F15
Engine control module.
5 A 1
F16
Run/start.
Vehicle power 2.
20 A 1
F17
Injector.
15 A 1
F18
Fuel pump 1.
30 A 2
F19
Fuel pump 2.
30 A 2
F20
Transmission control module.
30 A 2
F21
Starter.
30 A 2
F22
Charge air cooler fan.
30 A 2
F23
Shunt.
—
F24
Charge air cooler fan relay.
—
F25
Not used.
—
F26
Fuel pump 1 relay.
—
F27
A/C clutch relay.
—
F28
Starter relay.
—
F29
Fuel injection relay.
—
F30
149
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201908, First-Printing Fuses

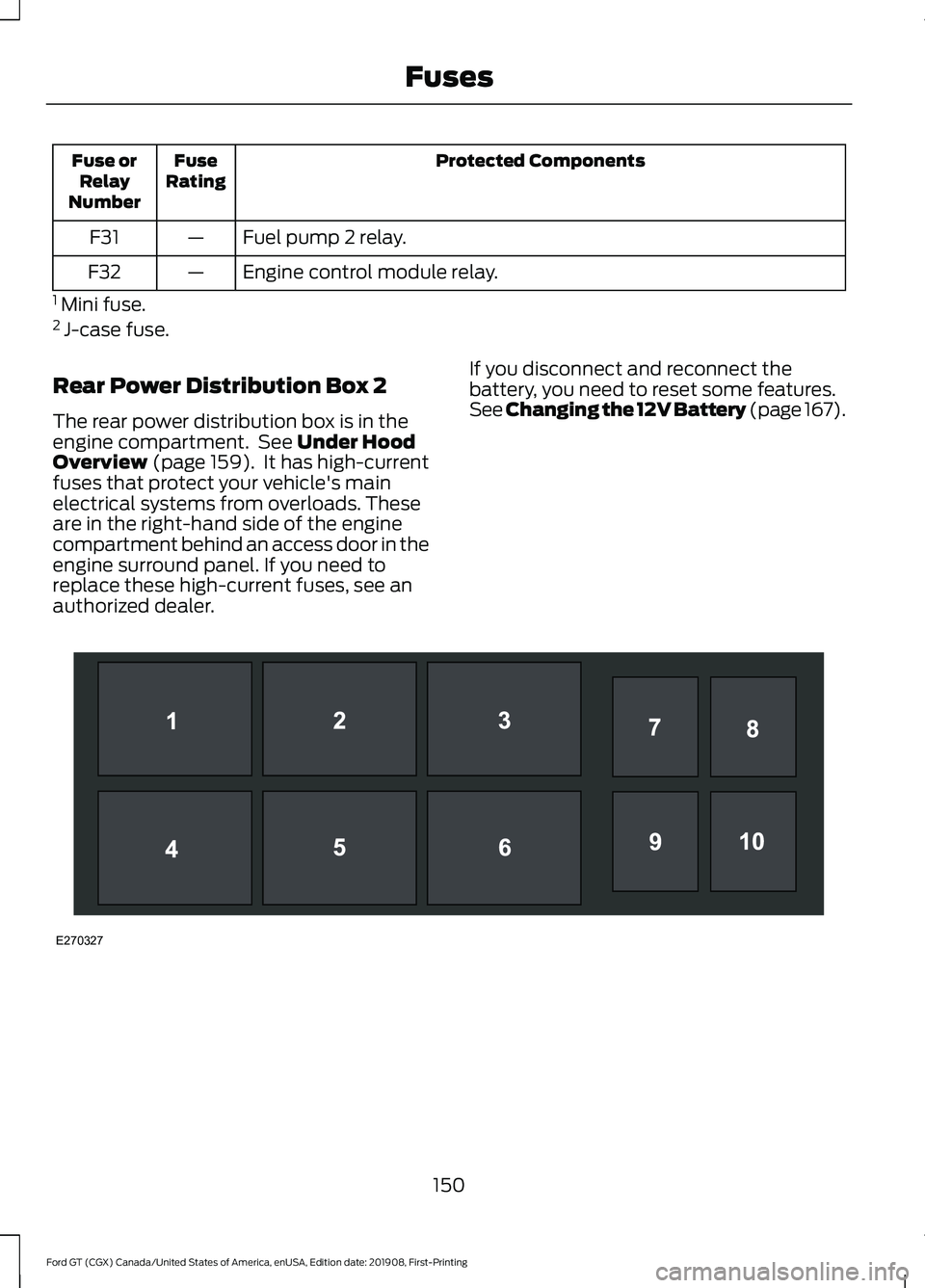

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Fuel pump 2 relay.
—
F31
Engine control module relay.
—
F32
1 Mini fuse.
2 J-case fuse.
Rear Power Distribution Box 2
The rear power distribution box is in the
engine compartment. See Under Hood
Overview (page 159). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right-hand side of the engine
compartment behind an access door in the
engine surround panel. If you need to
replace these high-current fuses, see an
authorized dealer. If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 167
).
150
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201908, First-Printing FusesE270327

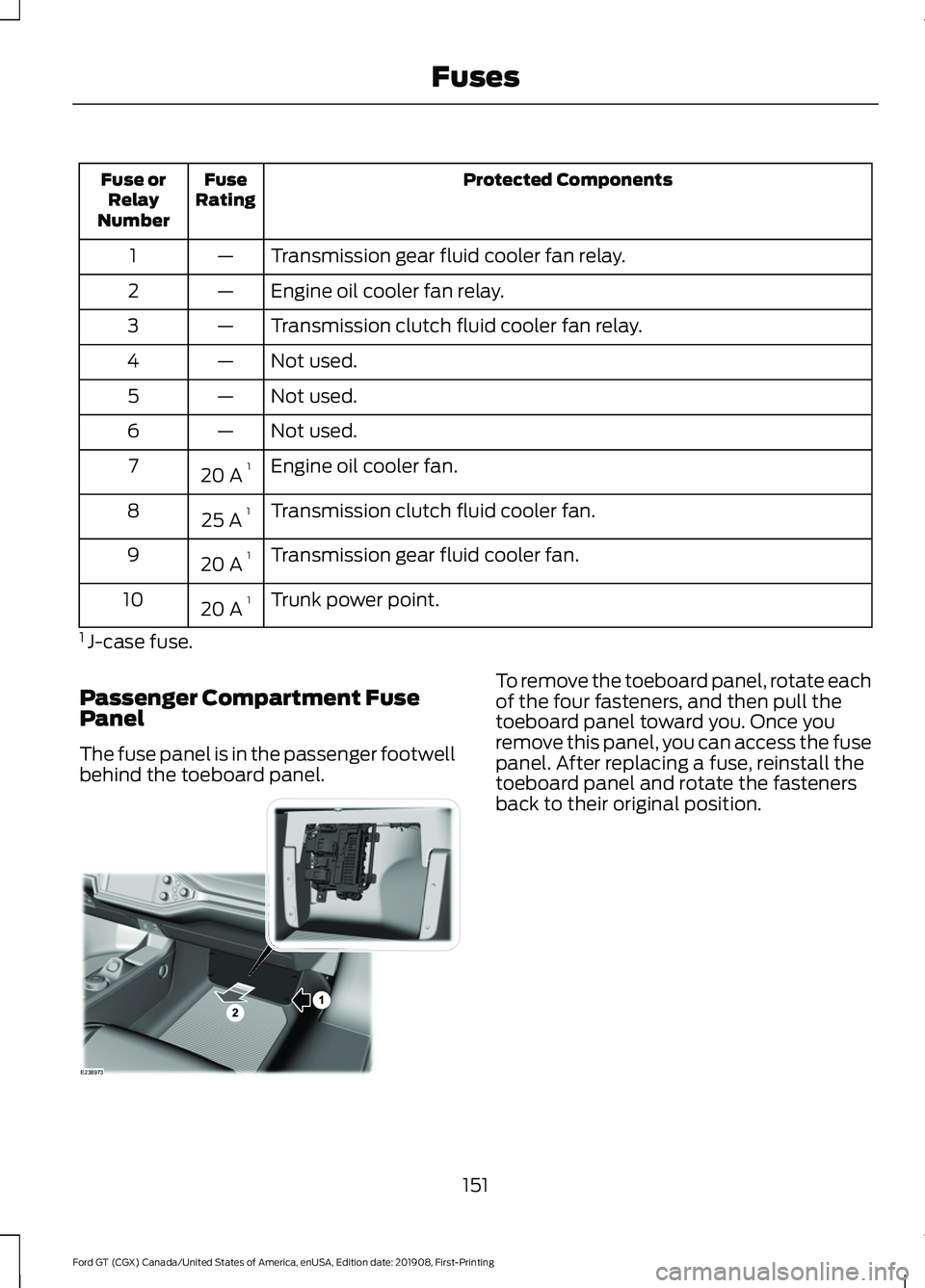

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Transmission gear fluid cooler fan relay.
—
1
Engine oil cooler fan relay.
—
2
Transmission clutch fluid cooler fan relay.
—
3
Not used.
—
4
Not used.
—
5
Not used.
—
6
Engine oil cooler fan.
20 A 1
7
Transmission clutch fluid cooler fan.
25 A 1
8
Transmission gear fluid cooler fan.
20 A 1
9
Trunk power point.
20 A 1
10
1 J-case fuse.
Passenger Compartment Fuse
Panel
The fuse panel is in the passenger footwell
behind the toeboard panel. To remove the toeboard panel, rotate each
of the four fasteners, and then pull the
toeboard panel toward you. Once you
remove this panel, you can access the fuse
panel. After replacing a fuse, reinstall the
toeboard panel and rotate the fasteners
back to their original position.
151
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201908, First-Printing FusesE238973

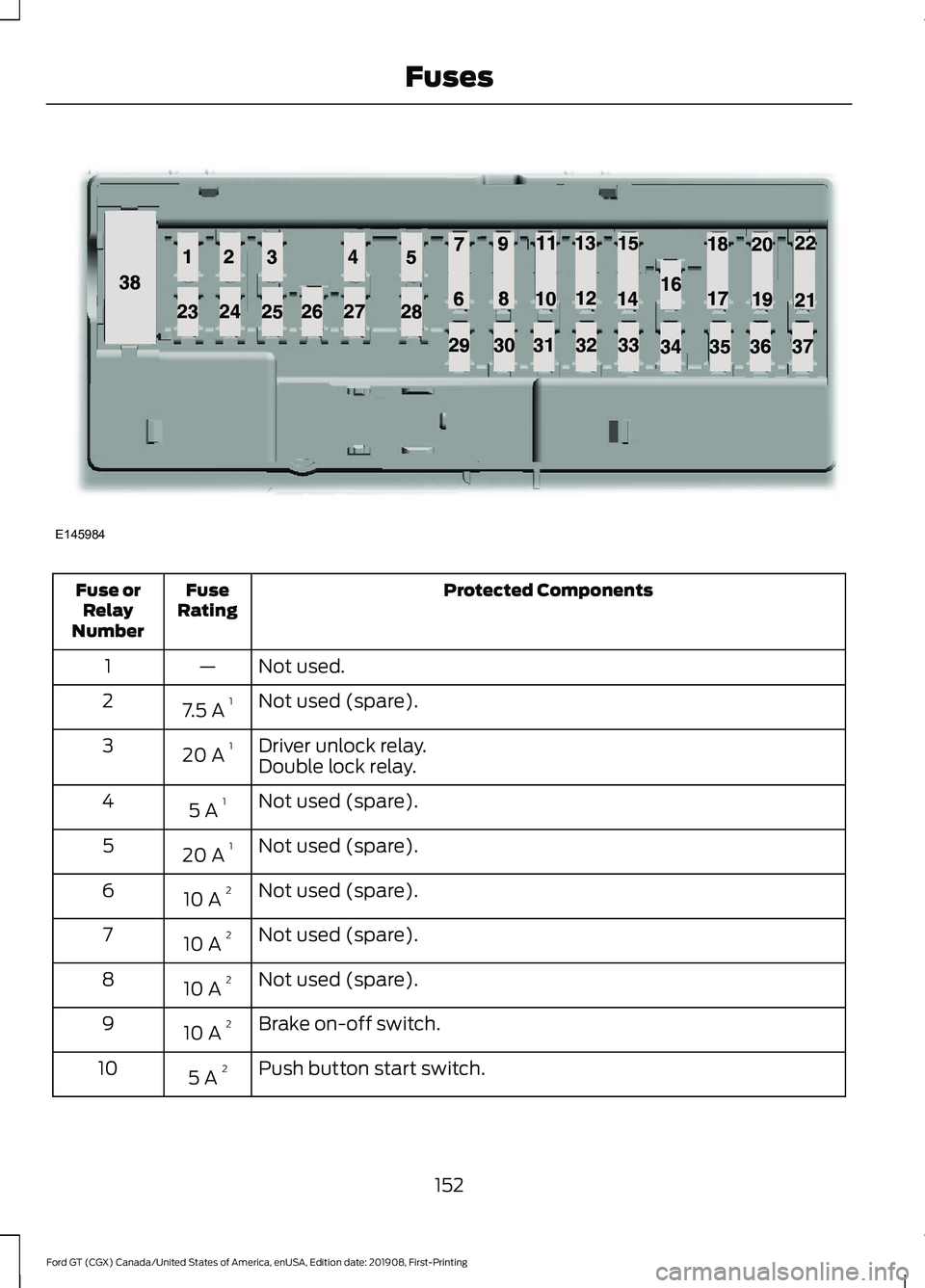

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Not used.
—
1
Not used (spare).
7.5 A 1
2
Driver unlock relay.
20 A 1
3
Double lock relay.
Not used (spare).
5 A 1
4
Not used (spare).
20 A 1
5
Not used (spare).
10 A 2
6
Not used (spare).
10 A 2
7
Not used (spare).
10 A 2
8
Brake on-off switch.
10 A 2
9
Push button start switch.
5 A 2
10
152
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201908, First-Printing FusesE145984

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Right-hand and left-hand exterior door locks and handles.
5 A 2
11
RF transceiver module.
7.5 A 2
12
Steering column control module logic.
7.5 A 2
13
Smart datalink connector logic.
Instrument cluster.
Extended power mode module.
10 A 2
14
Smart datalink connector power.
10 A 2
15
Decklid release relay.
15 A 1
16
Combined sensor module.
5 A 2
17
Telematics control unit - modem.
5 A 2
18
Not used (spare).
7.5 A 2
19
Front damper controllers.
7.5 A 2
20
Shift indicator module head up display.
5 A 2
21
Interior temperature sensor.
Extended power mode module.
5 A 2
22
Right-hand window switch illumination.
10 A 1
23
Right-hand door lock switch illumination.
Left-hand door lock switch illumination.
Power mirror/window switch (motor).
Right-hand smart window motor (logic).
Left-hand smart window motor (logic).
Central lock relay.
20 A 1
24
Central unlock relay.
Left-hand smart window motor.
30 A 1
25
Right-hand smart window motor.
30 A 1
26
Not used (spare).
30 A 1
27
153
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201908, First-Printing Fuses

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Electronic steering column lock (relay supply).
20 A 1
28
Not used (spare).
30 A 1
29
Not used (spare).
30 A 1
30
Not used (spare).
15 A 1
31
SYNC.
10 A 1
32
Audio on/off switch.
Gear shift module.
Heating ventilation and air conditioning electronic control unit
power.
Audio control module.
20 A 1
33
Run-start relay (R12).
30 A 1
34
Steering angle sensor module.
5 A 1
35
Auxiliary power point.
15 A 1
36
Heating ventilation and air conditioning electronic control unit
ignition.
20 A 1
37
Front power distribution box ignition (F1, F3, F20, F22).
Rear power distribution box 1 ignition (F4, F8, F12, F16).
Not used.
—
38
1 Micro 2 fuse.
2 Micro 3 fuse.
Note: Spare fuses can vary per amperage
depending on the trim level of the vehicle.
154
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201908, First-Printing Fuses

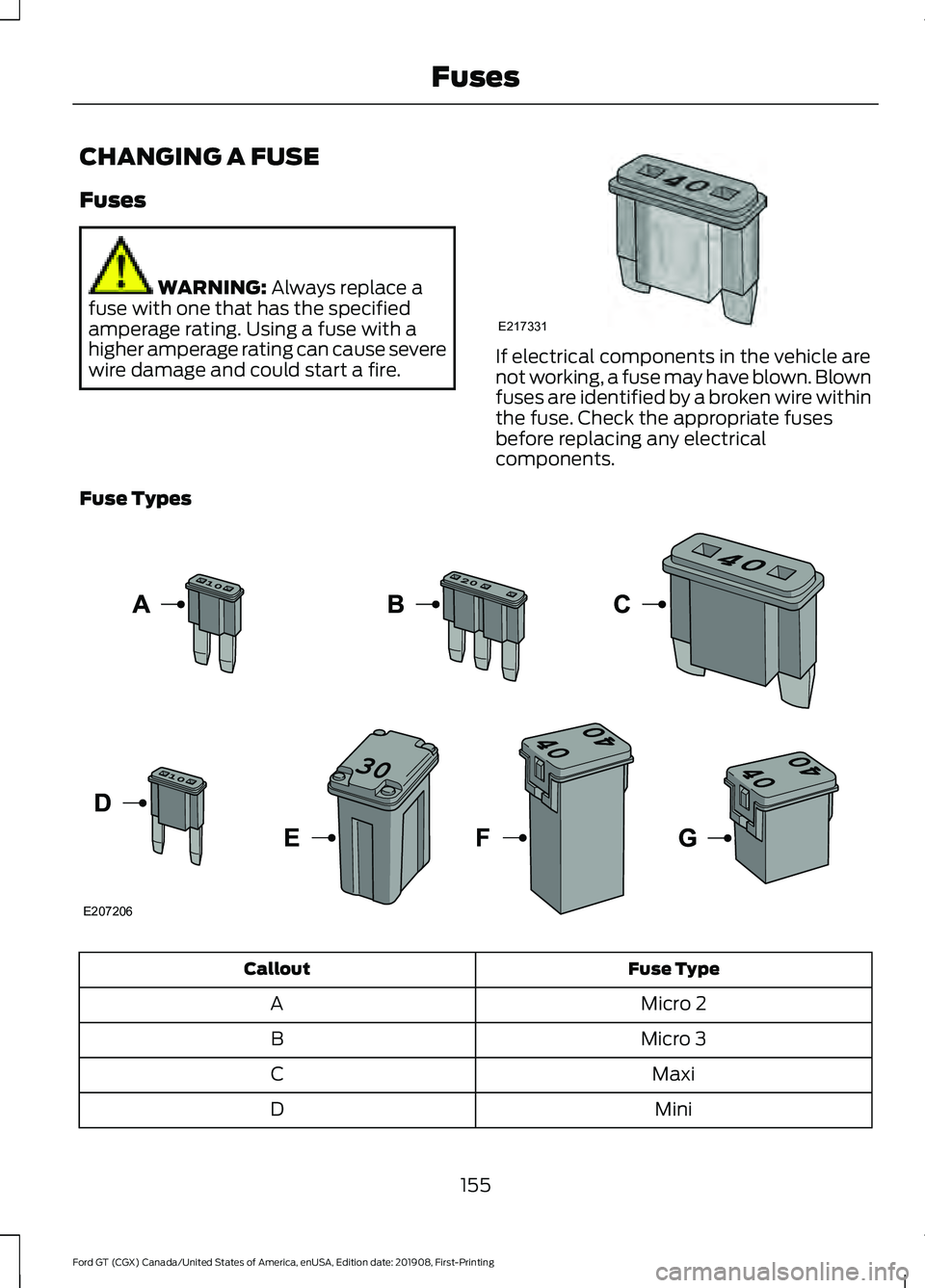

CHANGING A FUSE
Fuses
WARNING: Always replace a
fuse with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
Fuse Types Fuse Type
Callout
Micro 2
A
Micro 3
B
Maxi
C
Mini
D
155
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201908, First-Printing FusesE217331 E207206

Fuse Type
Callout
M Case
E
J Case
F
J Case Low Profile
G
156
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201908, First-Printing Fuses

GENERAL INFORMATION
Have your Ford GT serviced regularly to
help maintain its roadworthiness and
resale value. There is a network of Ford GT
service dealers that are certified to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a range of highly
specialized tools developed specifically
for servicing the Ford GT.
If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.
Precautions
•
Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.
Working with the Engine Off
1. Set the parking brake and shift to park
(P).
2. Switch off the engine.
3. Block the wheels. Working with the Engine On WARNING: To reduce the risk
of vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.
1. Set the parking brake and shift to park
(P).
2. Block the wheels.
OPENING AND CLOSING THE
HOOD
Opening the Front Hood 157
