Lighting Control
.............................................58
Adjustable Pedals
Adjusting the Pedals ...................................
60
Wipers and Washers
Windshield Wipers .........................................
61
Windshield Washers .....................................
61
Lighting
General Information .....................................
62
Lighting Control .............................................
62
Autolamps .......................................................
63
Instrument Lighting Dimmer ....................
63
Daytime Running Lamps ............................
63
Direction Indicators ......................................
64
Interior Lamps ................................................
64
Windows and Mirrors
Power Windows ............................................
65
Global Opening ..............................................
65
Exterior Mirrors ...............................................
66
Interior Mirror ..................................................
66
Instrument Cluster
Gauges ...............................................................
67
Warning Lamps and Indicators ...............
69
Audible Warnings and Indicators .............
72
Information Displays
General Information .....................................
73
Information Messages .................................
76
Climate Control
Automatic Climate Control .......................
83
Hints on Controlling the Interior Climate ........................................................................\
..
84
Cabin Air Filter ................................................
85Seats
Sitting in the Correct Position
..................
86
Manual Seats .................................................
86
Auxiliary Power Points
Auxiliary Power Points .................................
87
Storage Compartments
Cup Holders ....................................................
88
Map Pockets ...................................................
88
Under Seat Storage .....................................
88
Starting and Stopping the Engine
General Information ....................................
89
Keyless Starting .............................................
89
Steering Wheel Lock ...................................
90
Starting the Engine ......................................
90
Fuel and Refueling
Safety Precautions .......................................
93
Fuel Quality .....................................................
93
Fuel Filler Funnel Location ........................
94
Running Out of Fuel .....................................
94
Refueling ..........................................................
96
Fuel Consumption ........................................
97
Engine Emission Control
Emission Law .................................................
99
Catalytic Converter ....................................
100
Transmission
Automatic Transmission ..........................
103
Brakes
General Information ...................................
108
Hints on Driving With Anti-Lock Brakes ........................................................................\
109
Electric Parking Brake ................................
109
2
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Table of Contents

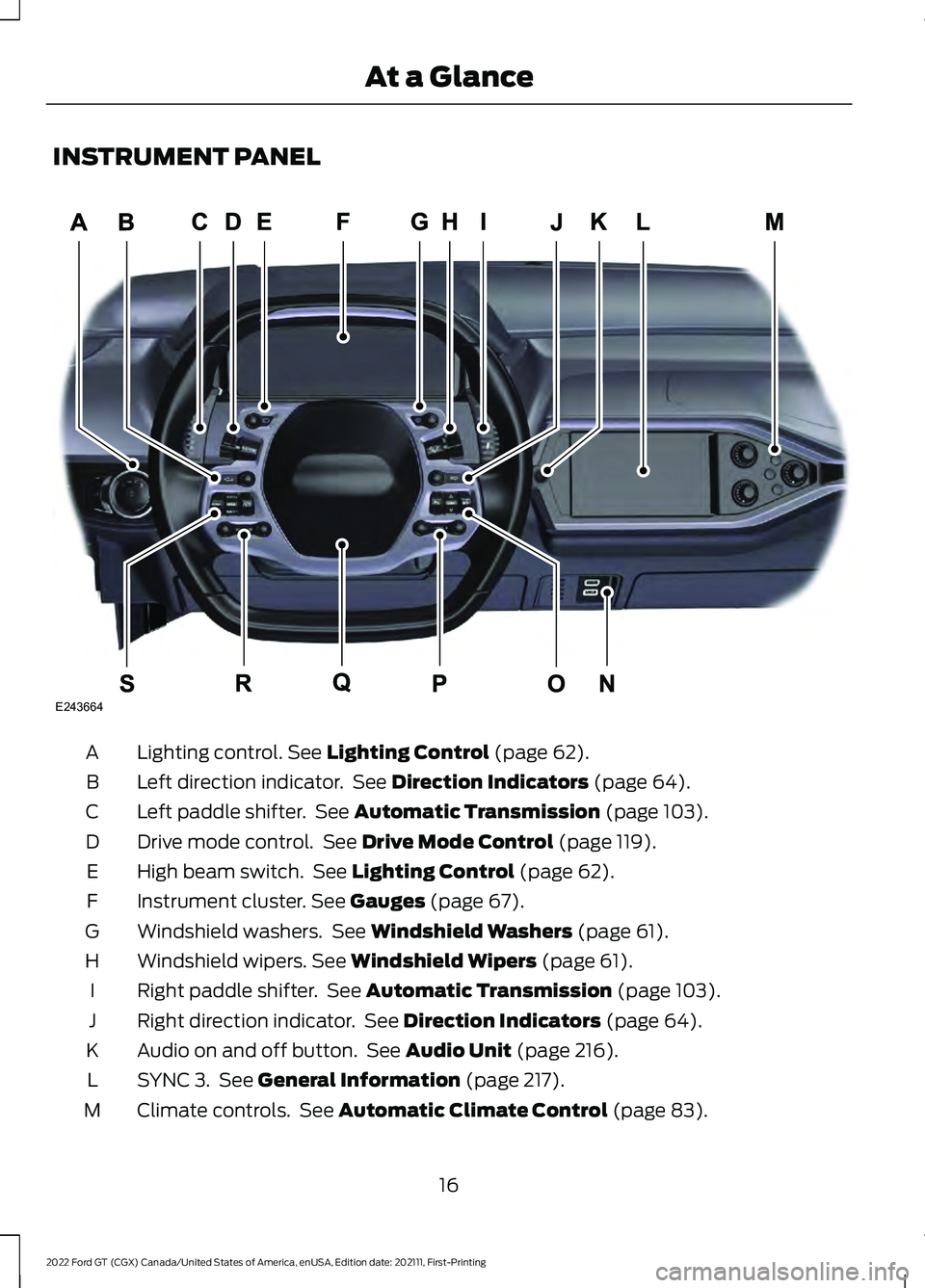

INSTRUMENT PANEL
Lighting control. See Lighting Control (page 62).
A
Left direction indicator. See
Direction Indicators (page 64).
B
Left paddle shifter. See
Automatic Transmission (page 103).
C
Drive mode control. See
Drive Mode Control (page 119).
D
High beam switch. See
Lighting Control (page 62).
E
Instrument cluster.
See Gauges (page 67).
F
Windshield washers. See
Windshield Washers (page 61).
G
Windshield wipers.
See Windshield Wipers (page 61).
H
Right paddle shifter. See
Automatic Transmission (page 103).
I
Right direction indicator. See
Direction Indicators (page 64).
J
Audio on and off button. See
Audio Unit (page 216).
K
SYNC 3. See
General Information (page 217).
L
Climate controls. See
Automatic Climate Control (page 83).
M
16
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing At a GlanceE243664

INFORMATION DISPLAY
CONTROL
See Information Displays (page 73).
HORN Press on the center of the
steering wheel near the horn icon
to activate the horn.
DRIVE MODE CONTROL See
Driving Aids (page 119). WIPER AND WASHER
CONTROL
Windshield Washers.
A
Windshield Wipers.
B
See
Wipers and Washers (page 61).
LIGHTING CONTROL Highbeam control.
A
58
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Steering WheelE227121 E270945 E227821 E227822 E227823

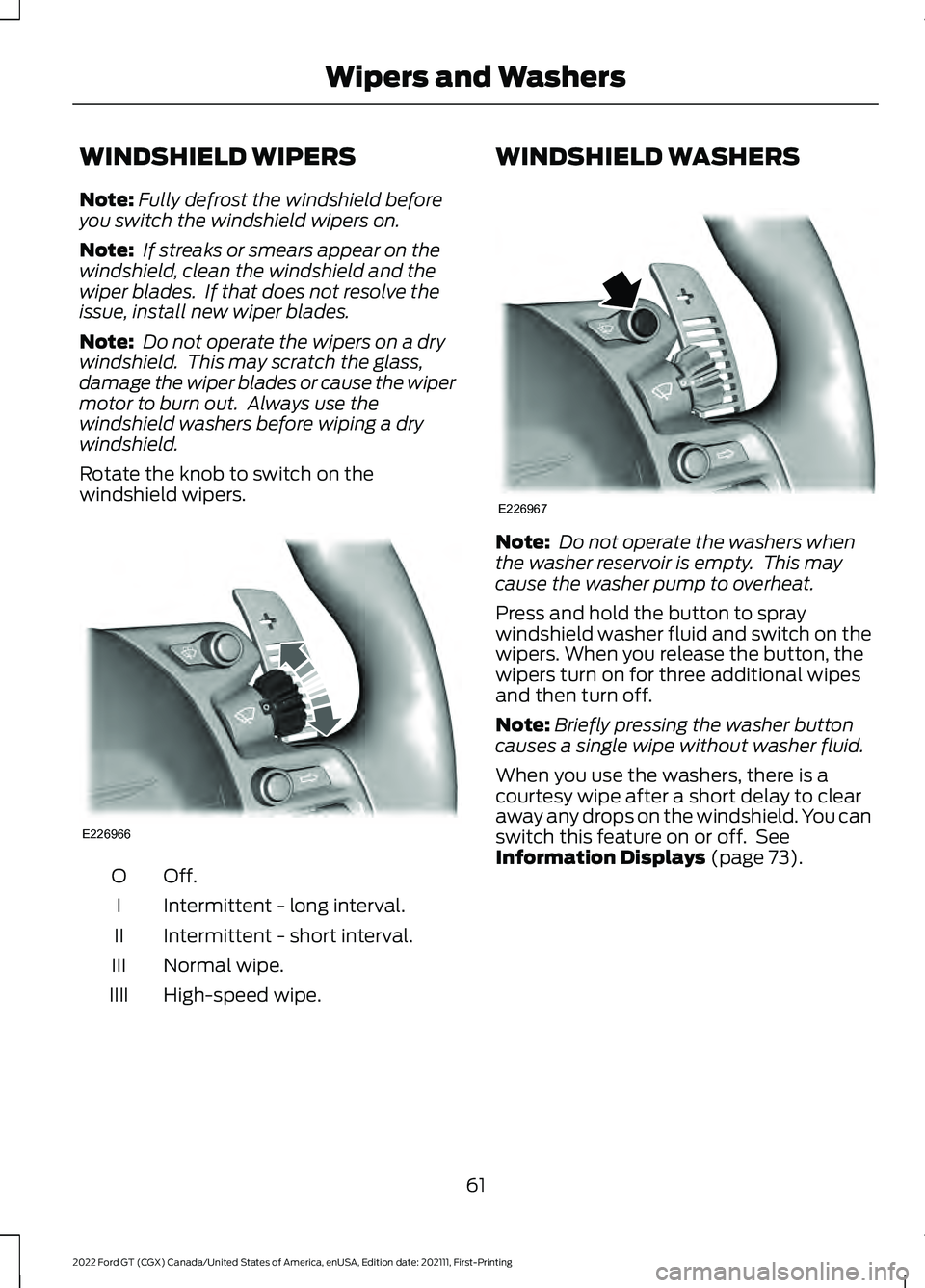

WINDSHIELD WIPERS
Note:
Fully defrost the windshield before
you switch the windshield wipers on.
Note: If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades. If that does not resolve the
issue, install new wiper blades.
Note: Do not operate the wipers on a dry
windshield. This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out. Always use the
windshield washers before wiping a dry
windshield.
Rotate the knob to switch on the
windshield wipers. Off.O
Intermittent - long interval.
I
Intermittent - short interval.
II
Normal wipe.
III
High-speed wipe.
IIII WINDSHIELD WASHERS
Note:
Do not operate the washers when
the washer reservoir is empty. This may
cause the washer pump to overheat.
Press and hold the button to spray
windshield washer fluid and switch on the
wipers. When you release the button, the
wipers turn on for three additional wipes
and then turn off.
Note: Briefly pressing the washer button
causes a single wipe without washer fluid.
When you use the washers, there is a
courtesy wipe after a short delay to clear
away any drops on the windshield. You can
switch this feature on or off. See
Information Displays (page 73).
61
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Wipers and WashersE226966 E226967

Run the tip of your fingers over the edge of
the blade to check for roughness.
Clean the wiper blades with washer fluid
or water applied with a soft sponge or
cloth.

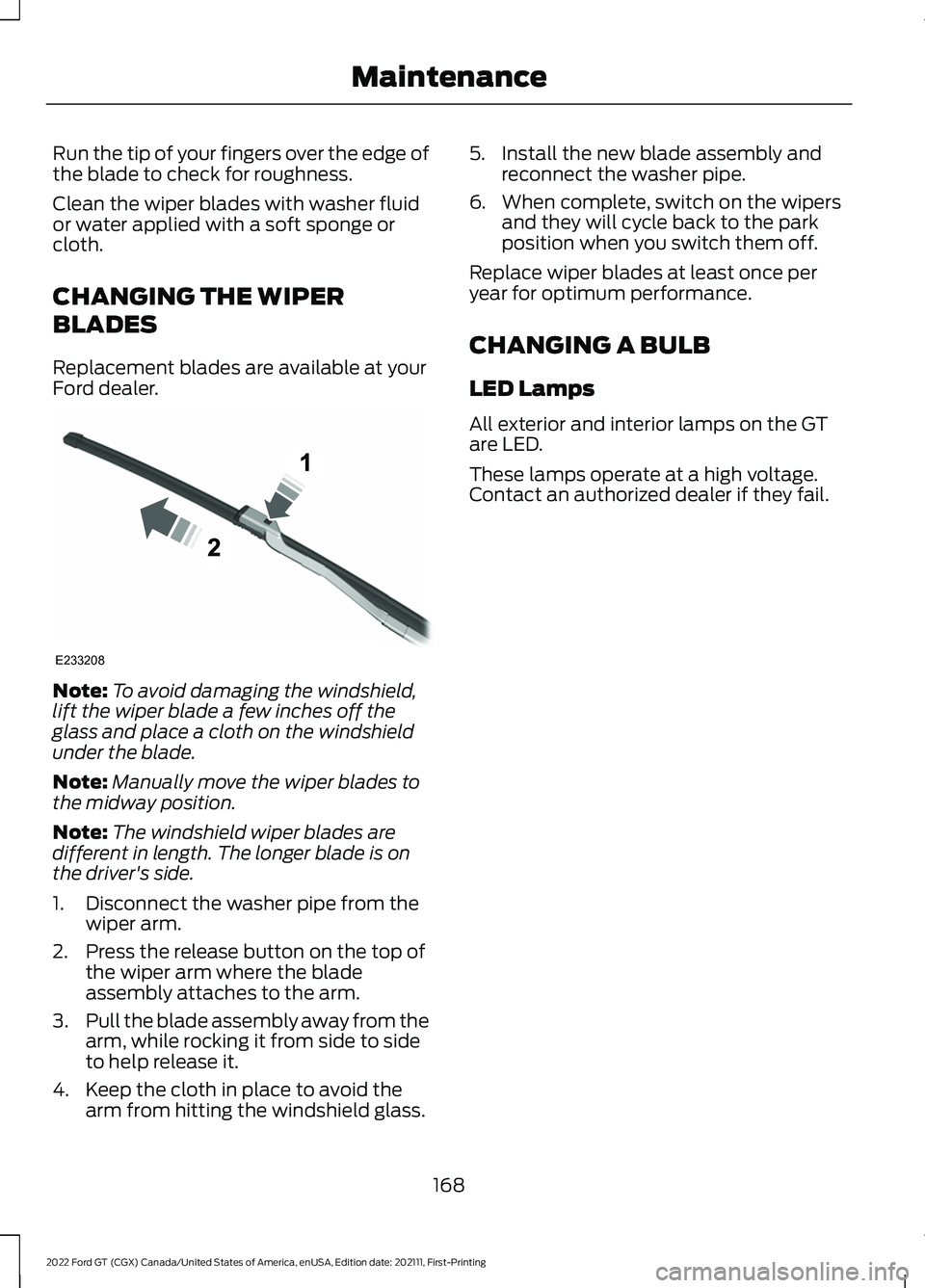

CHANGING THE WIPER
BLADES
Replacement blades are available at your
Ford dealer.
Note:
To avoid damaging the windshield,
lift the wiper blade a few inches off the
glass and place a cloth on the windshield
under the blade.
Note: Manually move the wiper blades to
the midway position.
Note: The windshield wiper blades are
different in length. The longer blade is on
the driver's side.
1. Disconnect the washer pipe from the wiper arm.
2. Press the release button on the top of the wiper arm where the blade
assembly attaches to the arm.
3. Pull the blade assembly away from the
arm, while rocking it from side to side
to help release it.
4. Keep the cloth in place to avoid the arm from hitting the windshield glass. 5. Install the new blade assembly and
reconnect the washer pipe.
6. When complete, switch on the wipers and they will cycle back to the park
position when you switch them off.
Replace wiper blades at least once per
year for optimum performance.
CHANGING A BULB
LED Lamps
All exterior and interior lamps on the GT
are LED.
These lamps operate at a high voltage.
Contact an authorized dealer if they fail.
168
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing MaintenanceE233208

When washing:
•
Do not spray a hot engine with cold
water to avoid cracking the engine
block or other engine components.
• Spray Motorcraft® Engine Shampoo
and Degreaser on all parts that require
cleaning and pressure rinse clean. In
Canada, use Motorcraft Engine
Shampoo.
• Never wash or rinse the engine while it
is hot or running; water in the running
engine may cause internal damage.
• Never wash or rinse any ignition coil,
spark plug wire or spark plug well, or
the area in and around these locations.
• Never spray water on electrical
components such as modules,
connectors and fuse boxes. Cover all
electrical components before cleaning
to prevent water damage.
CLEANING THE WINDOWS AND
WIPER BLADES
Dirty windshield and wipers will result in
poor windshield wiper operation. Keep the
windshield and wiper blades clean to
maintain windshield wiper performance.
To clean exterior glass surfaces and wiper
blades:
• Clean the exterior surface of the
windshield with a non-abrasive glass
cleaner.
• For windshields contaminated with
tree sap, chemicals, wax or bugs, clean
the outside surface of the windshield
with Motorcraft Bug and Tar Remover.
• Clean the wiper blades with isopropyl
rubbing alcohol or windshield washer
concentrate. The interior glass surface of the windshield
and engine cover glass, and both the inner
and outer surface of the bulkhead glass,
have a laminate coating that requires
special care.
To clean interior glass surfaces:
•
When cleaning the inside of the
windshield, avoid getting any glass
cleaner on the instrument panel or door
panels. Wipe any excess cleaner off
these surfaces immediately.
• Use a microfiber towel and plain water,
or a mixture of one-half water and
one-half white vinegar, to clean the
interior glass surfaces.
Note: Never use alcohol or ammonia based
cleaners, aerosol sprays or abrasive
compounds to clean the interior glass
surfaces of your vehicle. Using improper
cleaning products can cause damage to
your vehicle.
CLEANING THE INTERIOR WARNING: Do not use cleaning
solvents, bleach or dye on the vehicle's
seatbelts, as these actions may weaken
the belt webbing.
Clean safety belts with water applied with
a soft sponge. Let them dry naturally, away
from artificial heat.
Wipe carbon fiber surfaces with a clean,
damp and soft cloth to remove dust. Then
use a clean, dry and soft cloth to dry these
areas.
Cleaning Alcantara Microfiber
Cloth
Note: Some models have Alcantara
microfiber cloth fabric on the seats,
headliner, instrument panel and door panels.
175
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Vehicle Care

•
With your foot on the brake, shift
through all the gears while the engine
is running.
• If your vehicle is stored for more than
a few months, we recommend that you
change the engine oil before you use
your vehicle again.
Fuel system
• Fill the fuel tank with high-quality fuel
until the first automatic shutoff of the
fuel pump nozzle and add
commercially available fuel stabilizer.
Run the engine for a minimum of one
minute to ensure that treated fuel has
circulated through the system.
Cooling system
• Protect against freezing temperatures.
• When removing your vehicle from
storage, check coolant fluid level.
Confirm that there are no cooling
system leaks and that fluid is at the
recommended level.
Battery
• Connect your vehicle to the battery
charger/maintainer provided with your
vehicle whenever you store your vehicle
for more than 2 weeks.
• Connect the wires as shown in the
illustration. See Changing the 12V
Battery (page 164).
Brakes
• Make sure the brakes and parking brake
release fully. Tires
•
To minimize flat spots on the tires,
inflate all four tires to the
recommended cold pressures listed on
the Safety Compliance Certification
label or Tire Label. When the vehicle is
taken out of storage, reset the tire
pressures as necessary to the
recommended levels listed on the
Safety Compliance Certification label
or Tire Label affixed to your vehicle.
Note: If you store your vehicle in a location
with low ambient temperatures, follow the
instructions for care of summer tires. See
Using Summer Tires
(page 199).
Miscellaneous
• Move vehicles at least
25 ft (7.5 m)
every 15 days to lubricate working parts
and prevent flat spots in the tires.
Removing Vehicle From Storage
When your vehicle is ready to come out of
storage, do the following:
• Wash your vehicle to remove any dirt
or grease film build-up on window
surfaces.
• Check windshield wipers for any
deterioration.
• Check under the hood and engine cover
for any foreign material that may have
collected during storage such as mice
or squirrel nests.
• Check the exhaust for any foreign
material that may have collected
during storage.
• Check tire pressures and set tire
inflation per the Tire Label.
179
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Vehicle Care

MOTORCRAFT PARTS
Part Number
Component
FA-1912-A1
Air filter element.
MG7Z-10655-A2
Battery.
FP-701
Cabin air filter.
HG7Z-6731-A2
Oil filter.
SP-5831
Spark plugs.
HG7Z-17528-A (right-hand side)
Windshield wipers. 2
HG7Z-17528-B (left-hand side)
1 Motorcraft® part number.
2 Ford part number.
We recommend Motorcraft parts that are
available at your authorized dealer or at
www.fordparts.com. We engineer these
parts for your vehicle to meet or exceed
our specifications. Use of other parts could
impact vehicle performance, emissions
and durability. Your warranty could be void
for any damage related to use of other
parts.
For spark plug replacement, contact your
authorized dealer. Replace the spark plugs
at the appropriate intervals.
VEHICLE IDENTIFICATION
NUMBER
You can find the vehicle identification
number at the following locations.
On the vehicle certification label inside the
driver's door opening. On the left-hand side of the instrument
panel.
207
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Capacities and SpecificationsE227109

Ventilation
See: Climate Control........................................... 83
VIN See: Vehicle Identification Number............207
Voice Control....................................................57
W
Warning Lamps and Indicators................69
Washer Fluid Check.....................................167
Washers See: Cleaning the Exterior................................ 173
See: Wipers and Washers.................................. 61
Waxing...............................................................174
What Is 911 Assist...........................................43
What Is Launch Control...............................171
Wheel Nuts See: Changing a Road Wheel....................... 203
Wheels and Tires...........................................181 Technical Specifications................................ 204
Windows and Mirrors....................................65
Windshield Washers......................................61
Windshield Wipers..........................................61
Wiper and Washer Control.........................58
Wiper Blades See: Checking the Wiper Blades................... 167
Wipers and Washers
......................................61
315
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Index
