Index FORD KUGA 2011 1.G Workshop Manual

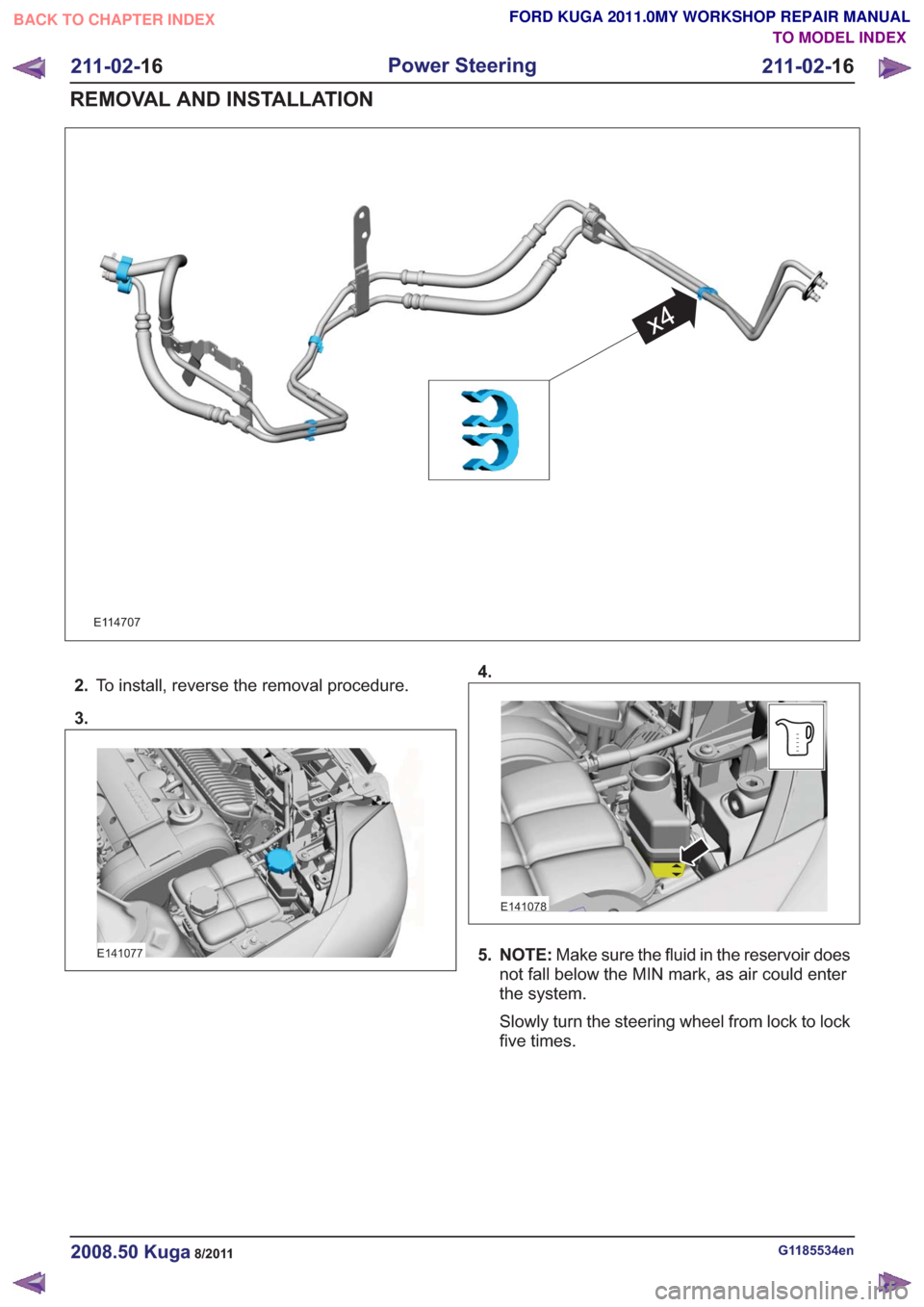

E114707
x4
2.To install, reverse the removal procedure.
3.
E141077
4.
E141078
5. NOTE: Make sure the fluid in the reservoir does
not fall below the MIN mark, as air could enter
the system.
Slowly turn the steering wheel from lock to lock
five times.
G1185534en2008.50 Kuga8/2011
211-02- 16
Power Steering
211-02- 16
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

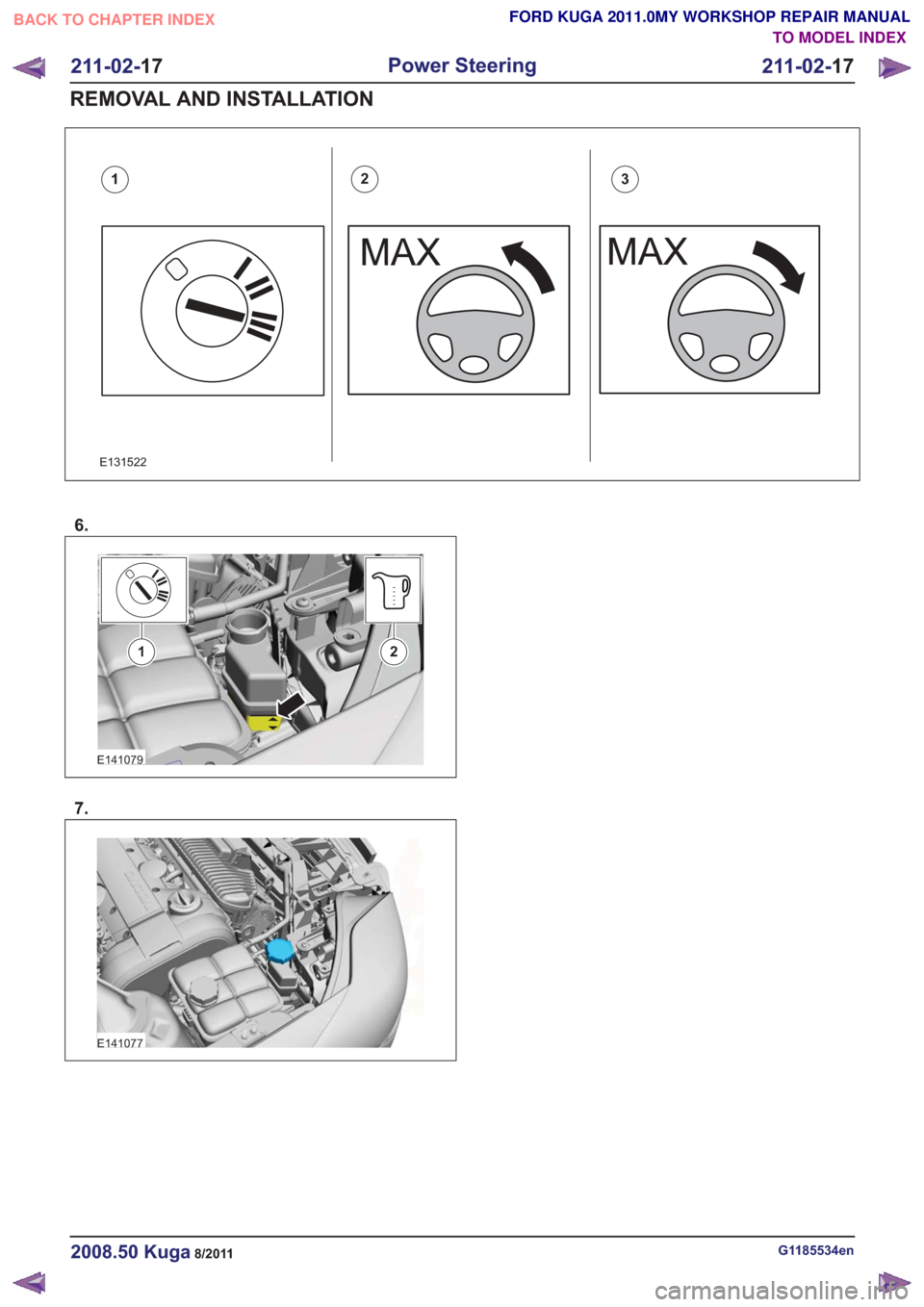

E131522
123
6.
E141079
12
7.
E141077
G1185534en2008.50 Kuga8/2011
211-02-17
Power Steering
211-02- 17
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

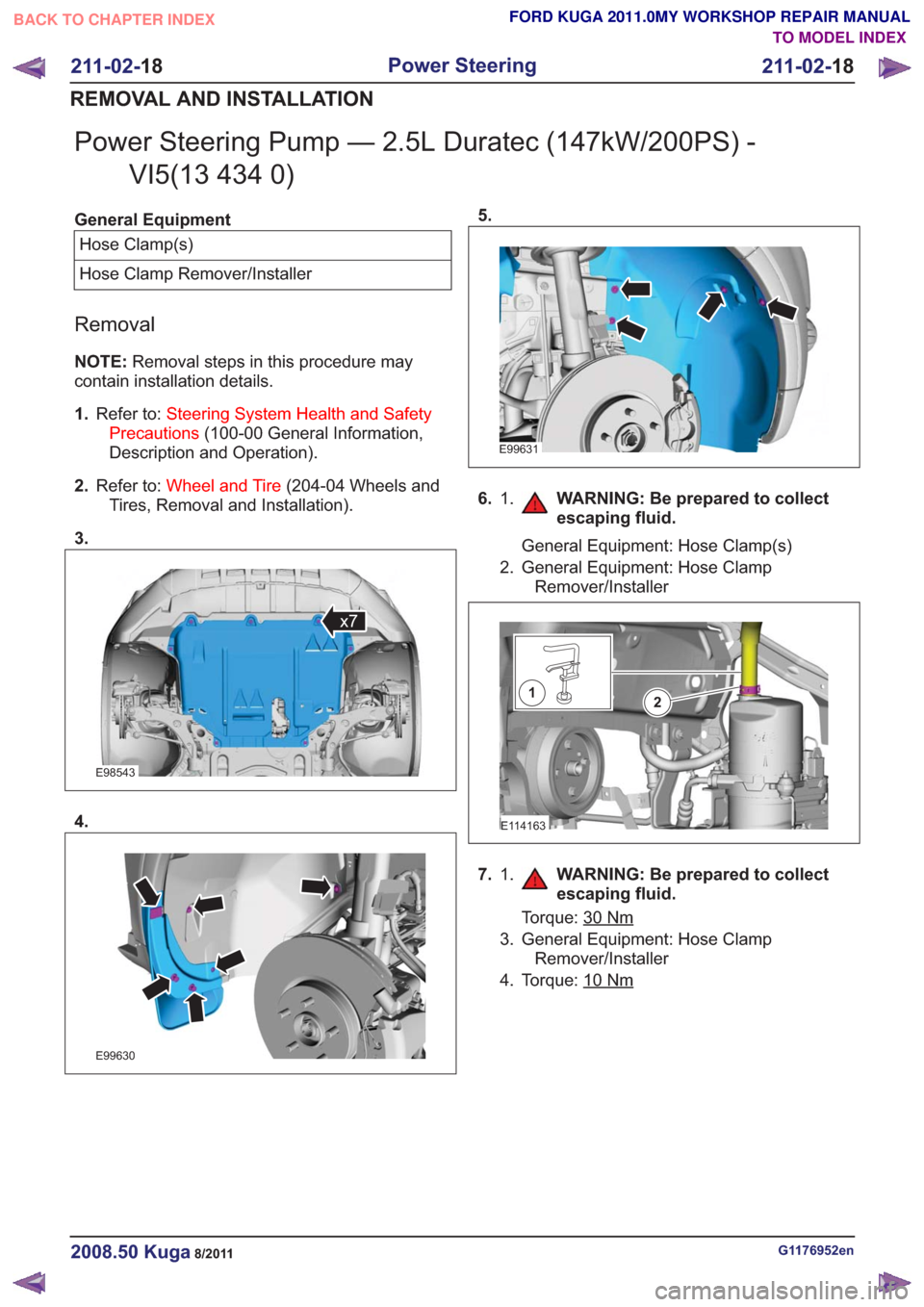

Power Steering Pump — 2.5L Duratec (147kW/200PS) -VI5(13 434 0)
General Equipment
Hose Clamp(s)
Hose Clamp Remover/Installer
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Steering System Health and Safety
Precautions (100-00 General Information,
Description and Operation).
2. Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
3.
E98543
x7
4.
E99630
5.
E99631
6. 1. WARNING: Be prepared to collect
escaping fluid.
General Equipment: Hose Clamp(s)
2. General Equipment: Hose Clamp Remover/Installer
E114163
12
7.1. WARNING: Be prepared to collect
escaping fluid.
Torque: 30Nm
3. General Equipment: Hose Clamp
Remover/Installer
4. Torque: 10
Nm
G1176952en2008.50 Kuga8/2011
211-02- 18
Power Steering
211-02- 18
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

1
3
4
2
x34
x3
2
x3
8.
Installation
1.To install, reverse the removal procedure. 2.
G1176952en2008.50 Kuga8/2011
211-02-
19
Power Steering
211-02- 19
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

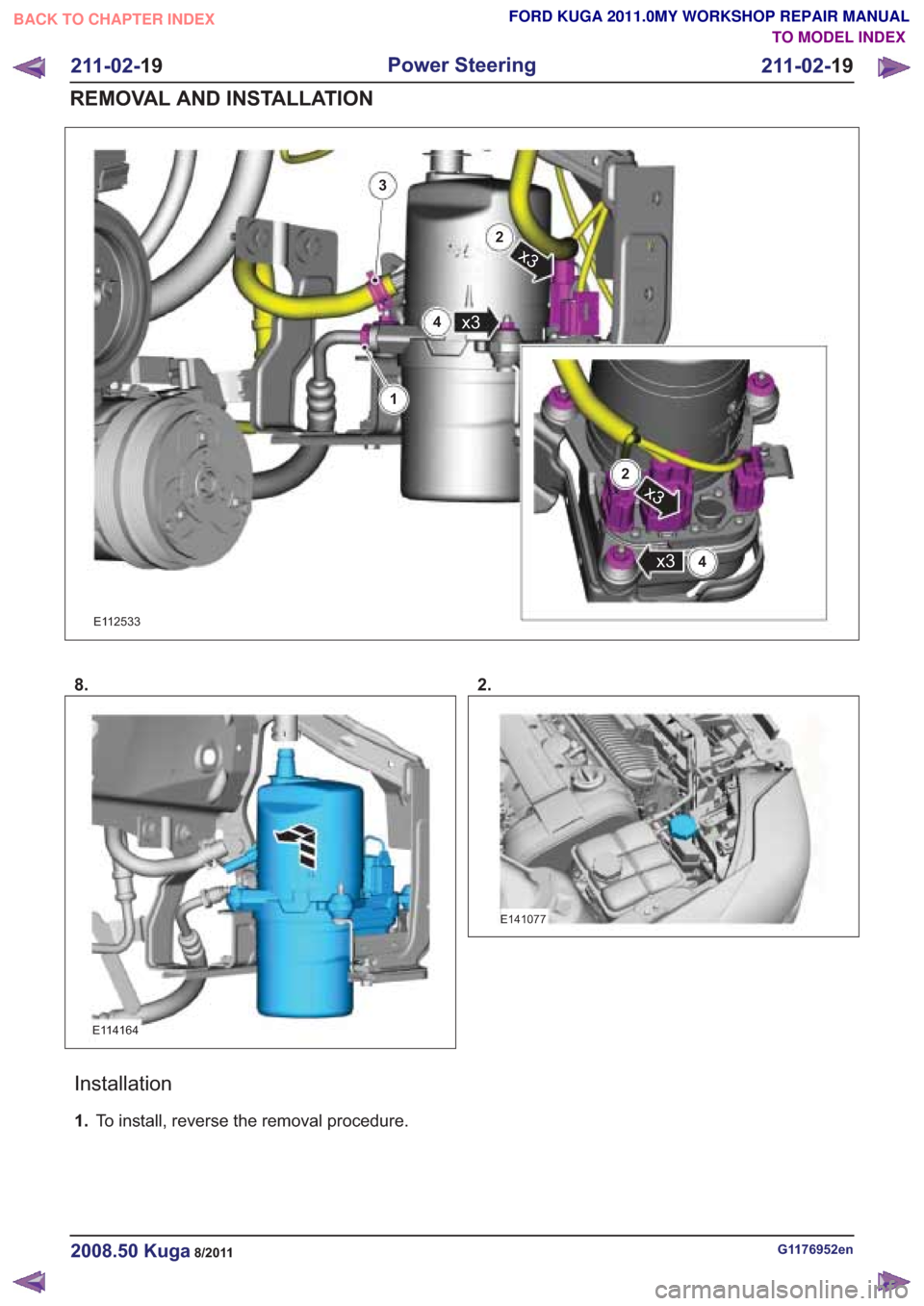

E112533
x3
E114164
E141077

3.
E141078

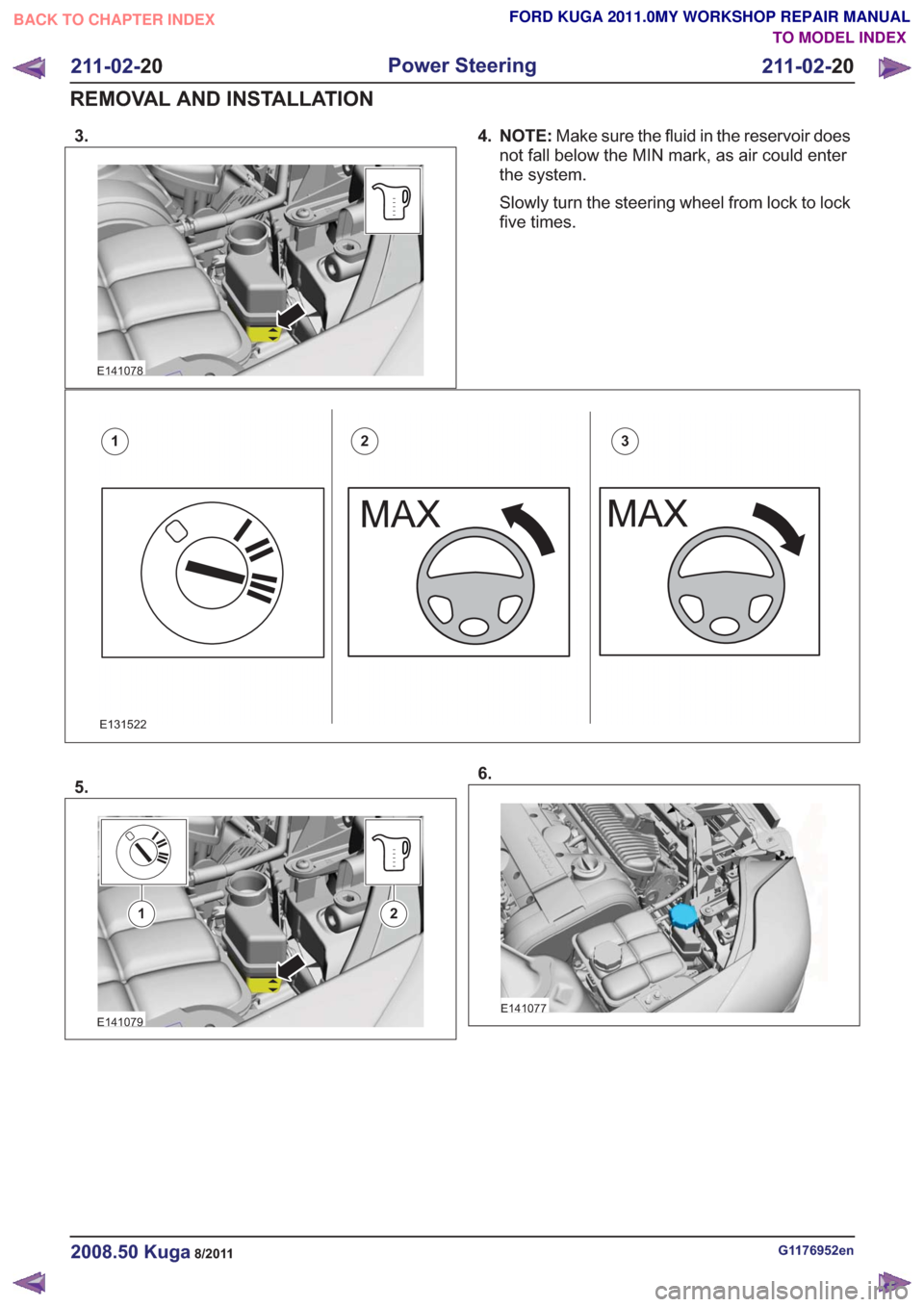

4. NOTE:Make sure the fluid in the reservoir does
not fall below the MIN mark, as air could enter
the system.
Slowly turn the steering wheel from lock to lock
five times.
E131522
123
5.
E141079
12
6.
E141077
G1176952en2008.50 Kuga8/2011
211-02- 20
Power Steering
211-02- 20
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

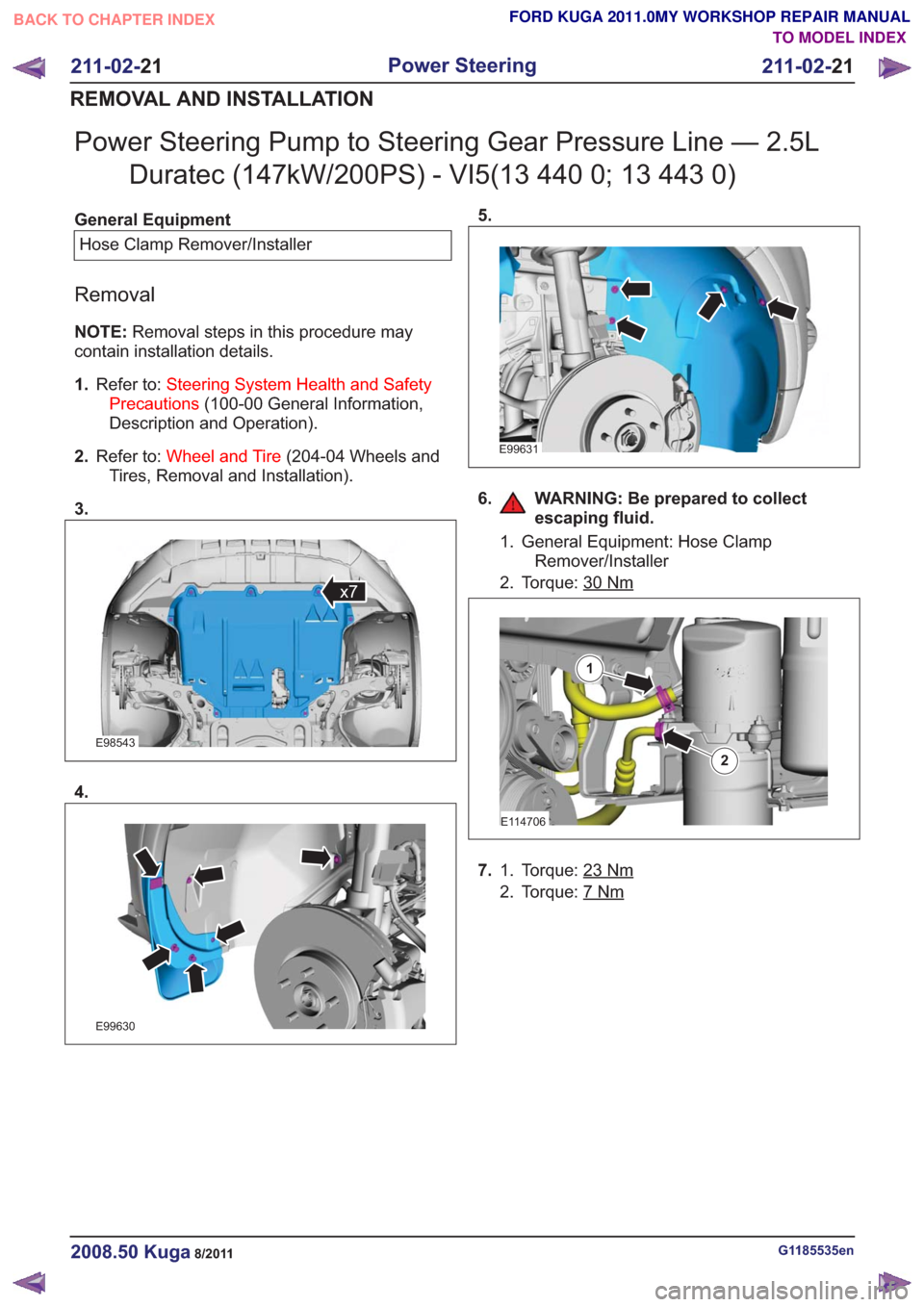

Power Steering Pump to Steering Gear Pressure Line — 2.5LDuratec (147kW/200PS) - VI5(13 440 0; 13 443 0)
General Equipment
Hose Clamp Remover/Installer
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Steering System Health and Safety
Precautions (100-00 General Information,
Description and Operation).
2. Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
3.
E98543
x7
4.
E99630
5.
E99631
6. WARNING: Be prepared to collect escaping fluid.
1. General Equipment: Hose ClampRemover/Installer
2. Torque: 30
Nm
E114706
1
2
7. Torque: 23Nm1.
2. Torque: 7
Nm
G1185535en2008.50 Kuga8/2011
211-02- 21
Power Steering
211-02- 21
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

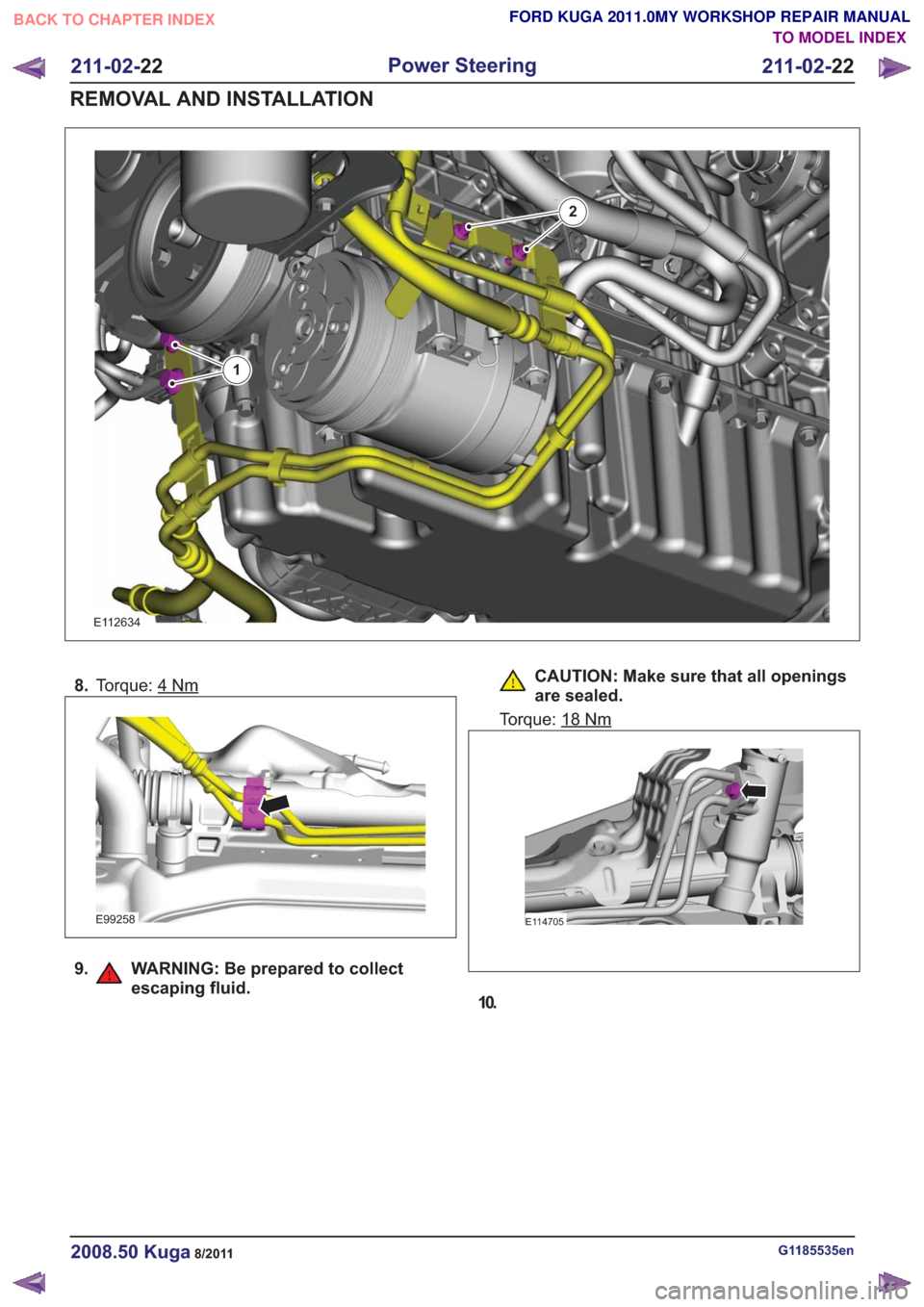

E112634
2
1
8.Torque: 4Nm
E99258
9. WARNING: Be prepared to collect
escaping fluid.
CAUTION: Make sure that all openings
are sealed.
Torque: 18
Nm
E114705
10.
G1185535en2008.50 Kuga8/2011
211-02- 22
Power Steering
211-02- 22
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

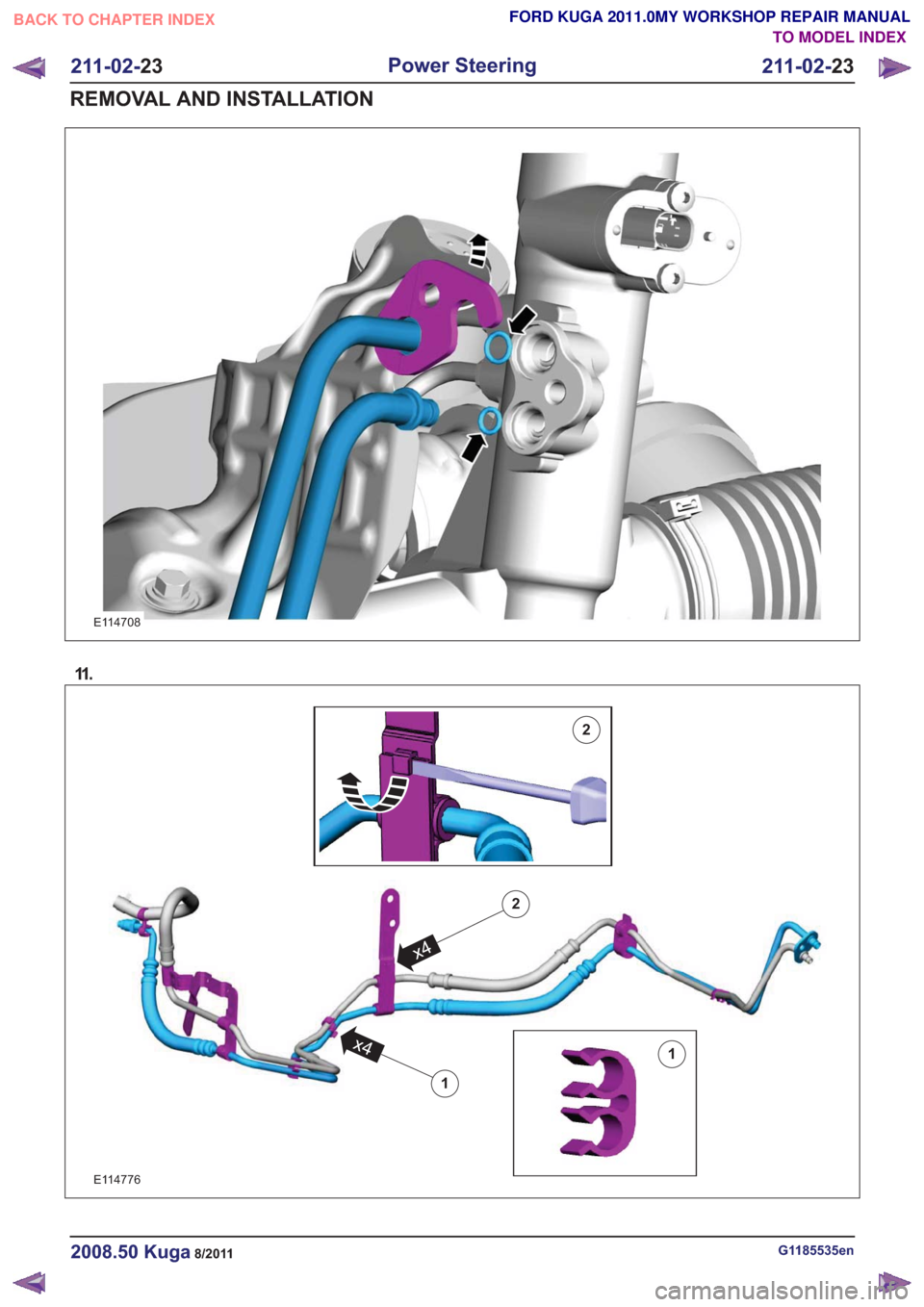

E114708
11 .
E114776
1
1
x4
2
x4
2
G1185535en2008.50 Kuga8/2011
211-02-23
Power Steering
211-02- 23
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Installation
1.To install, reverse the removal procedure.
2.
E141077
3.
E141078
4. NOTE: Make sure the fluid in the reservoir does
not fall below the MIN mark, as air could enter
the system.
Slowly turn the steering wheel from lock to lock
five times.
E131522
123
5.
E141079
12
6.
E141077
G1185535en2008.50 Kuga8/2011
211-02- 24
Power Steering
211-02- 24
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

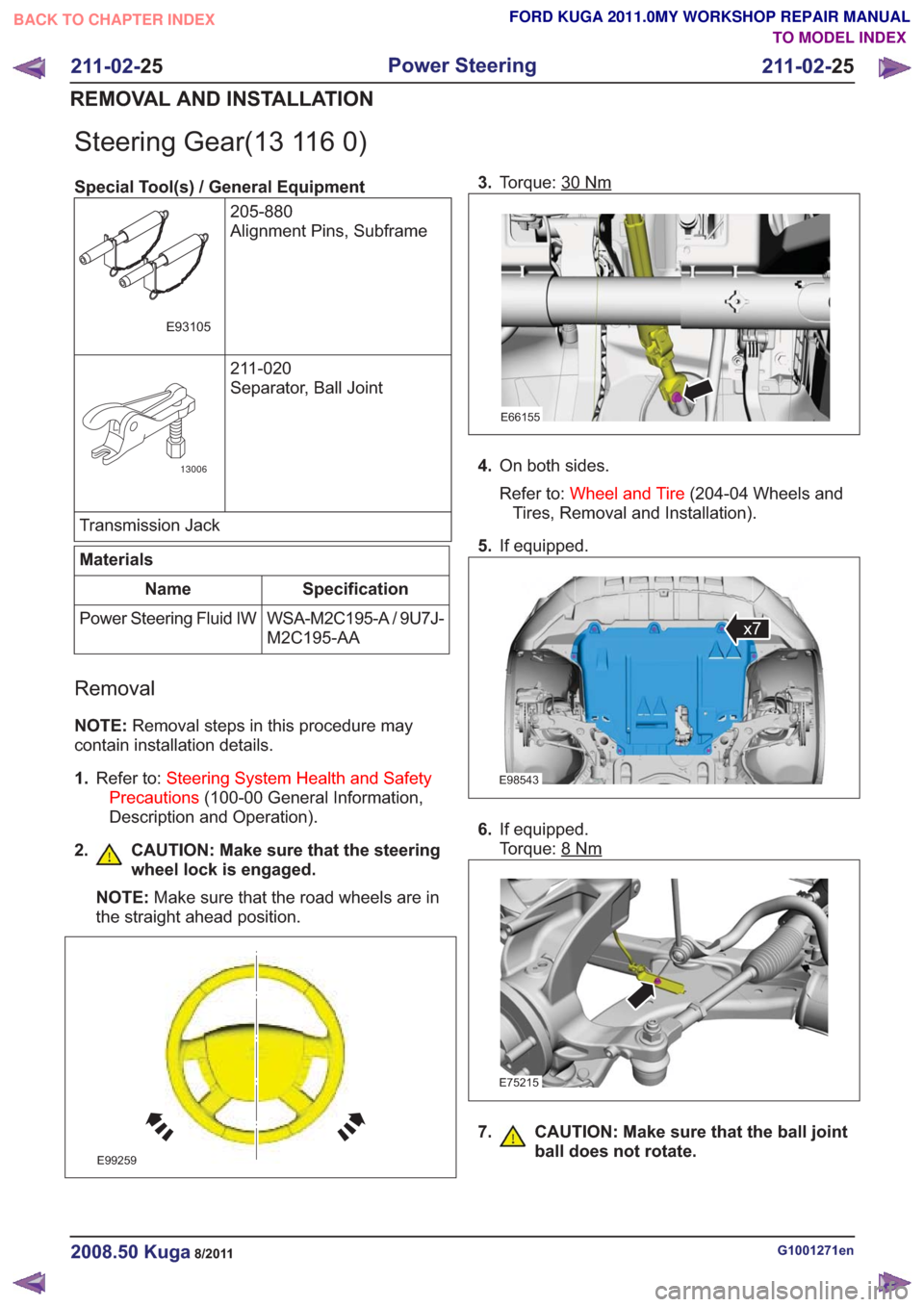

Steering Gear(13 116 0)
Special Tool(s) / General Equipment205-880
Alignment Pins, Subframe
E93105
211-020
Separator, Ball Joint
13006
Transmission Jack
Materials
Specification
Name
WSA-M2C195-A / 9U7J-
M2C195-AA
Power Steering Fluid IW
Removal
NOTE:
Removal steps in this procedure may
contain installation details.
1. Refer to: Steering System Health and Safety
Precautions (100-00 General Information,
Description and Operation).
2. CAUTION: Make sure that the steering wheel lock is engaged.
NOTE: Make sure that the road wheels are in
the straight ahead position.
E99259
3. Torque: 30Nm
E66155
4.On both sides.
Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
5. If equipped.
E98543
x7
6.If equipped.
Torque: 8
Nm
E75215
7. CAUTION: Make sure that the ball joint
ball does not rotate.
G1001271en2008.50 Kuga8/2011
211-02- 25
Power Steering
211-02- 25
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
