Index FORD KUGA 2011 1.G Workshop Manual

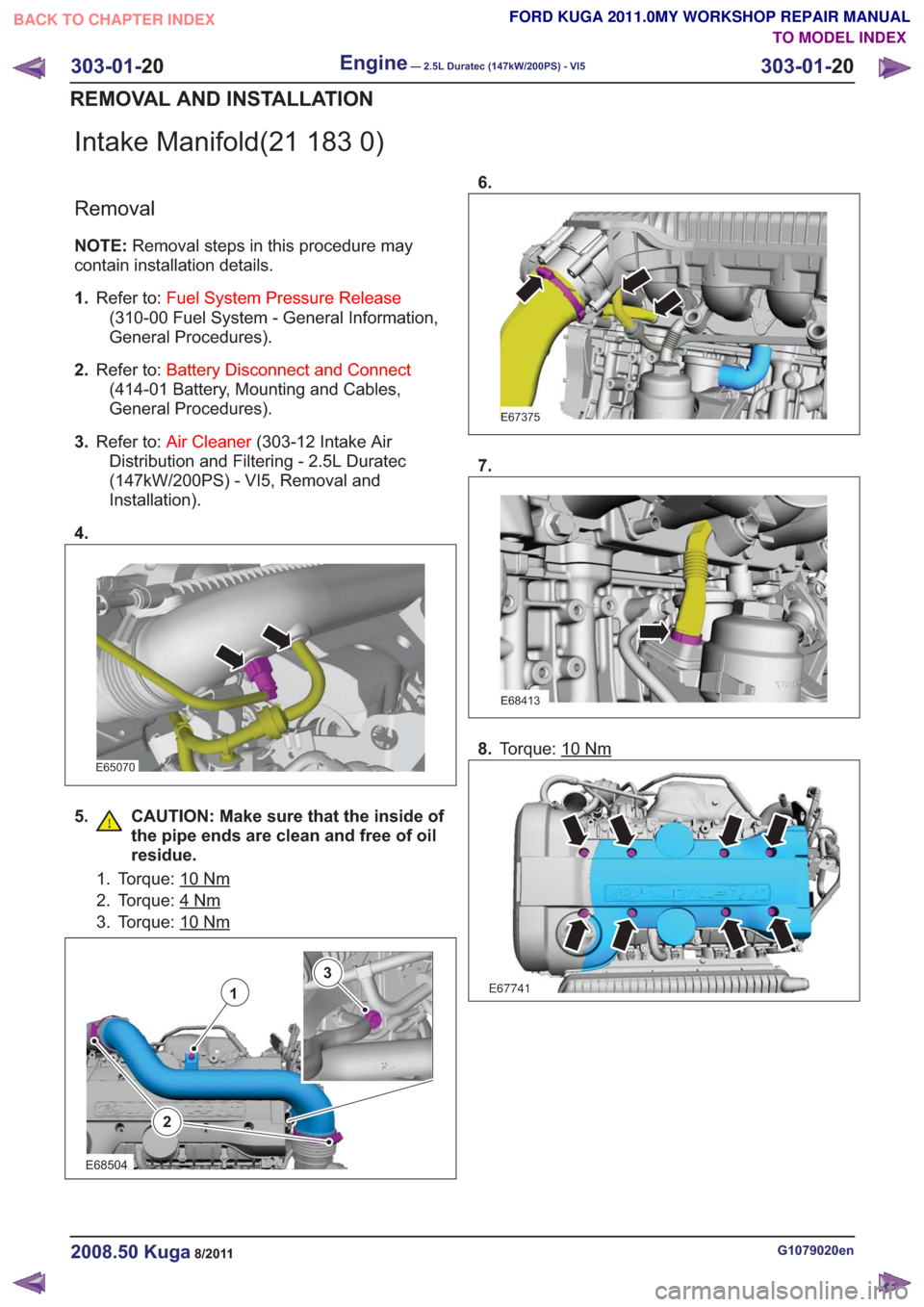

Intake Manifold(21 183 0)
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1. Refer to: Fuel System Pressure Release
(310-00 Fuel System - General Information,
General Procedures).
2. Refer to: Battery Disconnect and Connect
(414-01 Battery, Mounting and Cables,
General Procedures).
3. Refer to: Air Cleaner (303-12 Intake Air
Distribution and Filtering - 2.5L Duratec
(147kW/200PS) - VI5, Removal and
Installation).
4.
E65070
5. CAUTION: Make sure that the inside of the pipe ends are clean and free of oil
residue.
1. Torque: 10Nm
2. Torque: 4Nm
3. Torque: 10Nm
2
1
3
E68504
6.
E67375
7.
E68413
8.Torque: 10Nm
E67741
G1079020en2008.50 Kuga8/2011
303-01- 20
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
20
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

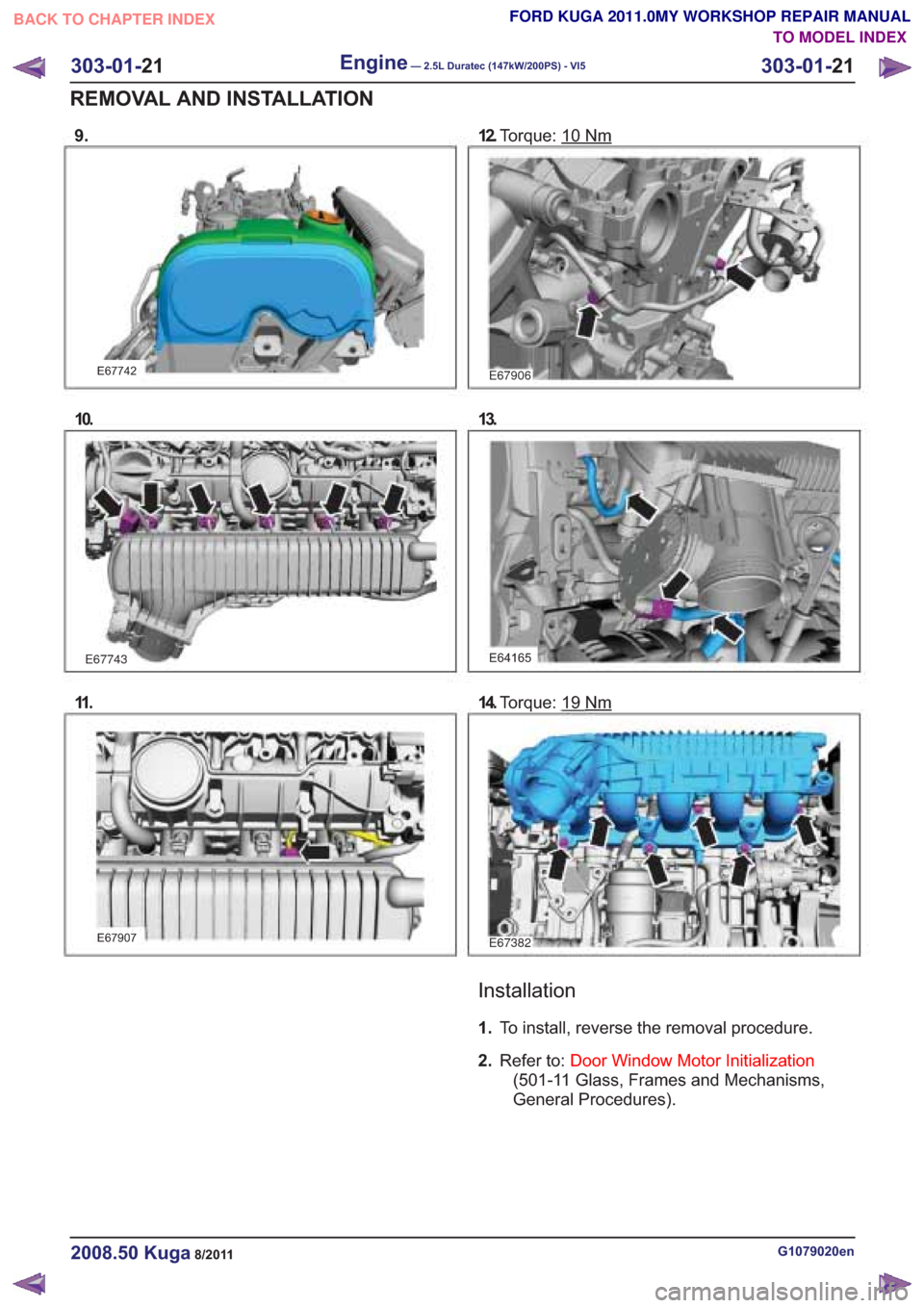

9.
E67742
10.
E67743
11 .
E67907
12.Torque: 10Nm
E67906
13.
E64165
14.Torque: 19Nm
Installation
1.To install, reverse the removal procedure.
2. Refer to: Door Window Motor Initialization
(501-11 Glass, Frames and Mechanisms,
General Procedures).
G1079020en2008.50 Kuga8/2011
303-01- 21
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
21
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
E67382

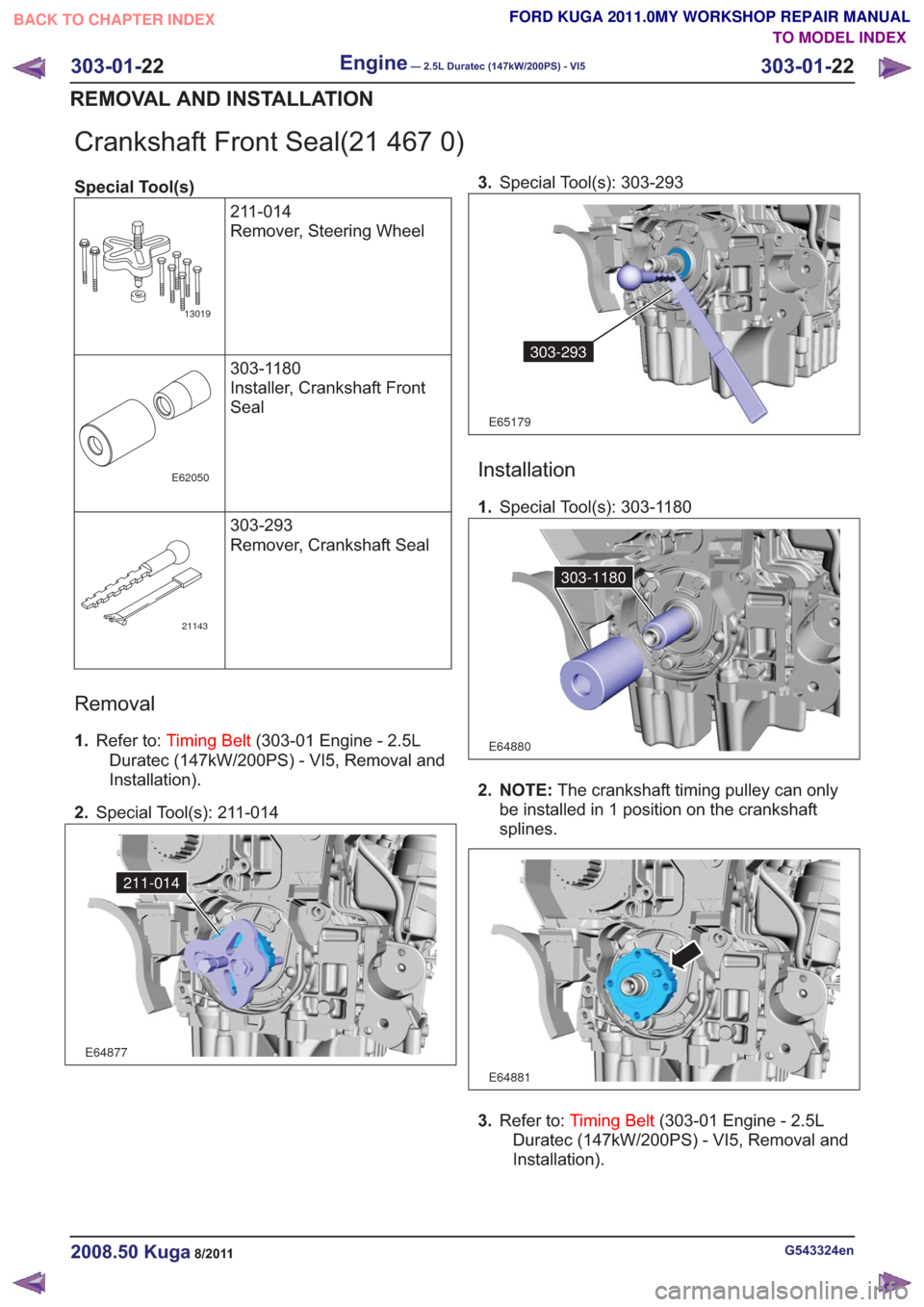

Crankshaft Front Seal(21 467 0)
Special Tool(s)211-014
Remover, Steering Wheel
13019
303-1180
Installer, Crankshaft Front
Seal
E62050
303-293
Remover, Crankshaft Seal
21143
Removal
1.Refer to: Timing Belt (303-01 Engine - 2.5L
Duratec (147kW/200PS) - VI5, Removal and
Installation).
2. Special Tool(s): 211-014
E64877
211-014
3.Special Tool(s): 303-293
E65179
303-293
Installation
1.Special Tool(s): 303-1180
E64880
303-1180
2. NOTE: The crankshaft timing pulley can only
be installed in 1 position on the crankshaft
splines.
E64881
3. Refer to: Timing Belt (303-01 Engine - 2.5L
Duratec (147kW/200PS) - VI5, Removal and
Installation).
G543324en2008.50 Kuga8/2011
303-01- 22
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
22
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

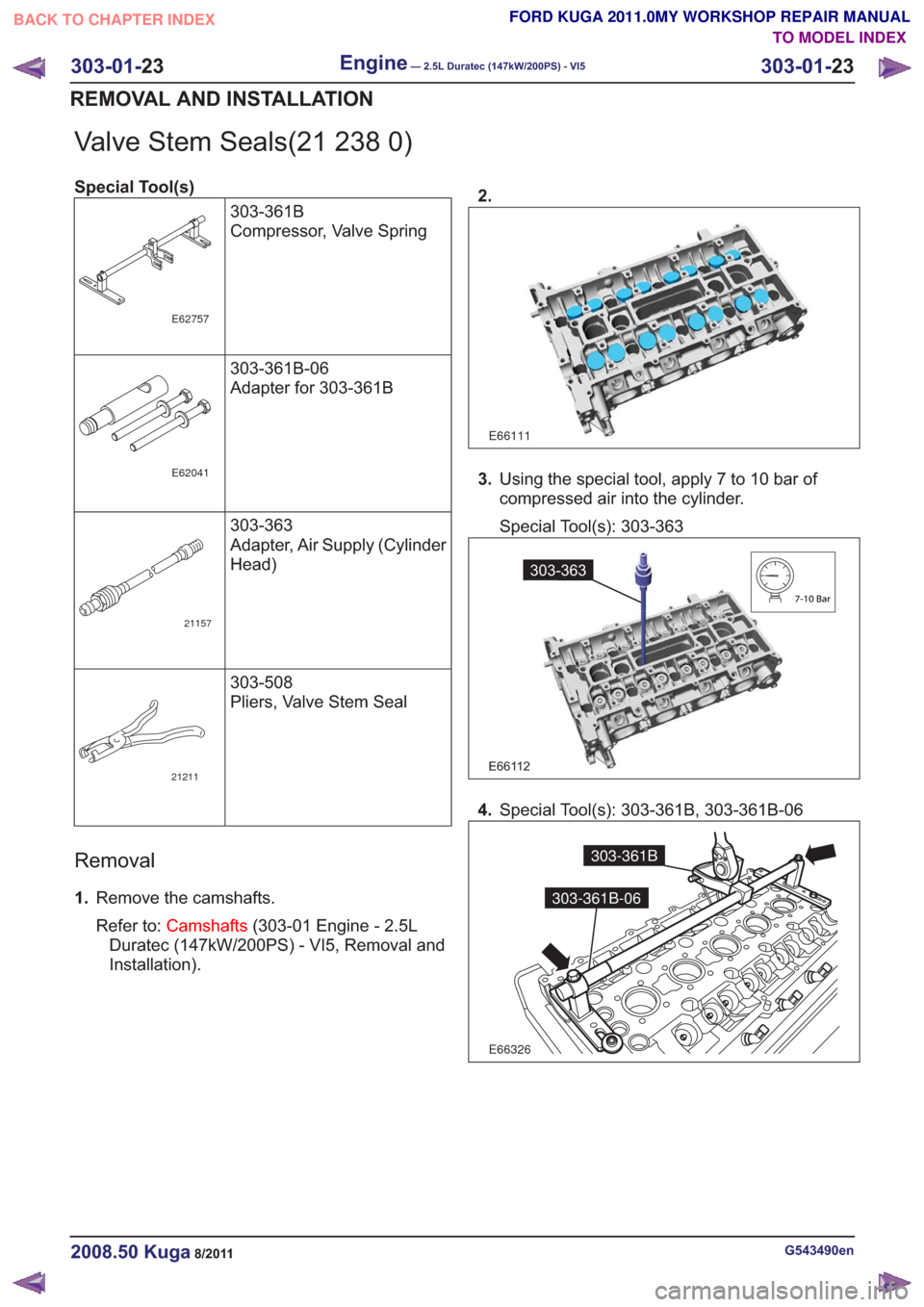

Valve Stem Seals(21 238 0)
Special Tool(s)303-361B
Compressor, Valve Spring
E62757
303-361B-06
Adapter for 303-361B
E62041
303-363
Adapter, Air Supply (Cylinder
Head)
21157
303-508
Pliers, Valve Stem Seal
21211
Removal
1.Remove the camshafts.
Refer to: Camshafts (303-01 Engine - 2.5L
Duratec (147kW/200PS) - VI5, Removal and
Installation). 2.
E66111
3.
Using the special tool, apply 7 to 10 bar of
compressed air into the cylinder.
Special Tool(s): 303-363
E66112
303-363
4.Special Tool(s): 303-361B, 303-361B-06
E66326
303-361B
303-361B-06
G543490en2008.50 Kuga8/2011
303-01- 23
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
23
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

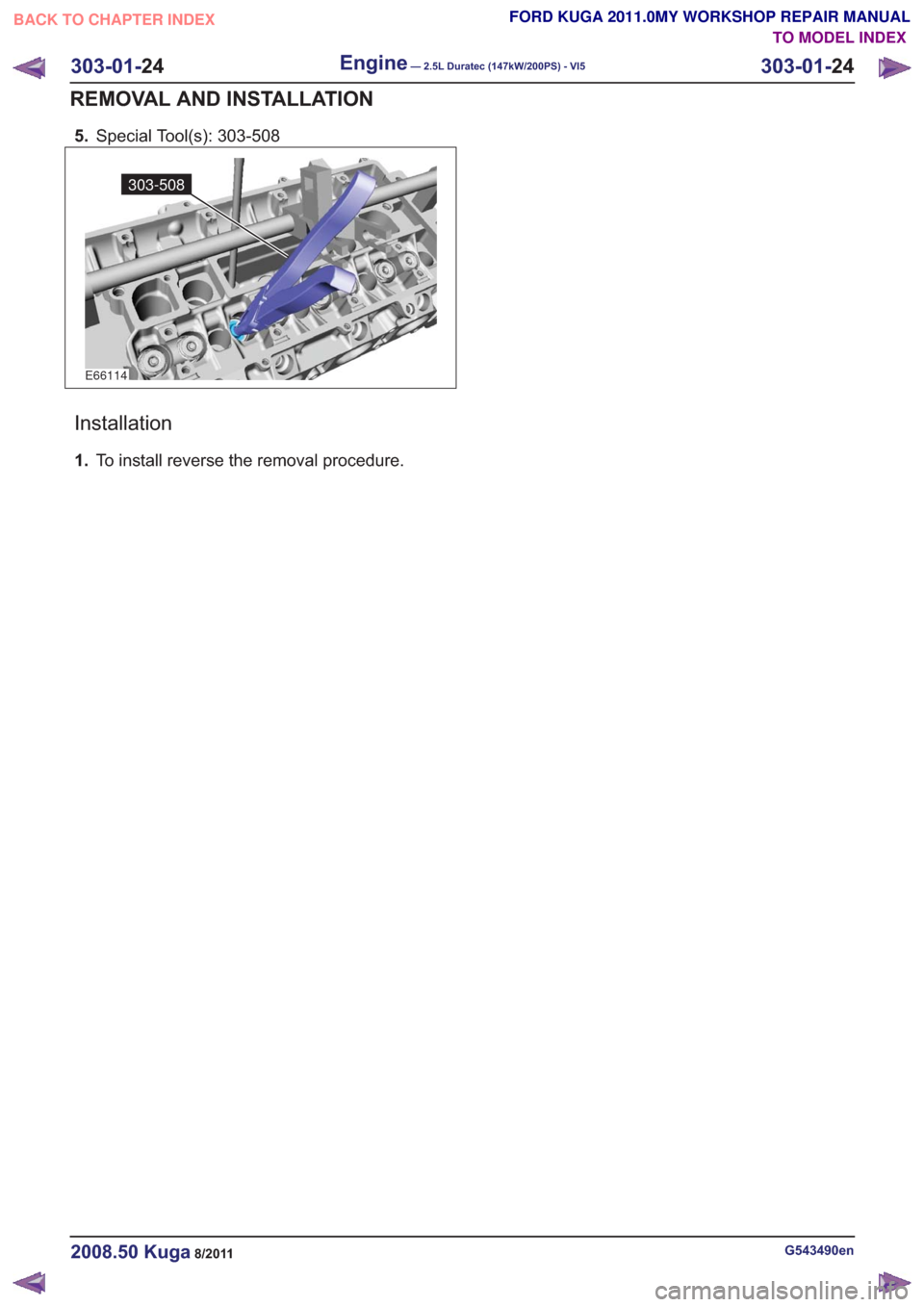

5.Special Tool(s): 303-508
E66114
303-508
Installation
1.To install reverse the removal procedure.
G543490en2008.50 Kuga8/2011
303-01- 24
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
24
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

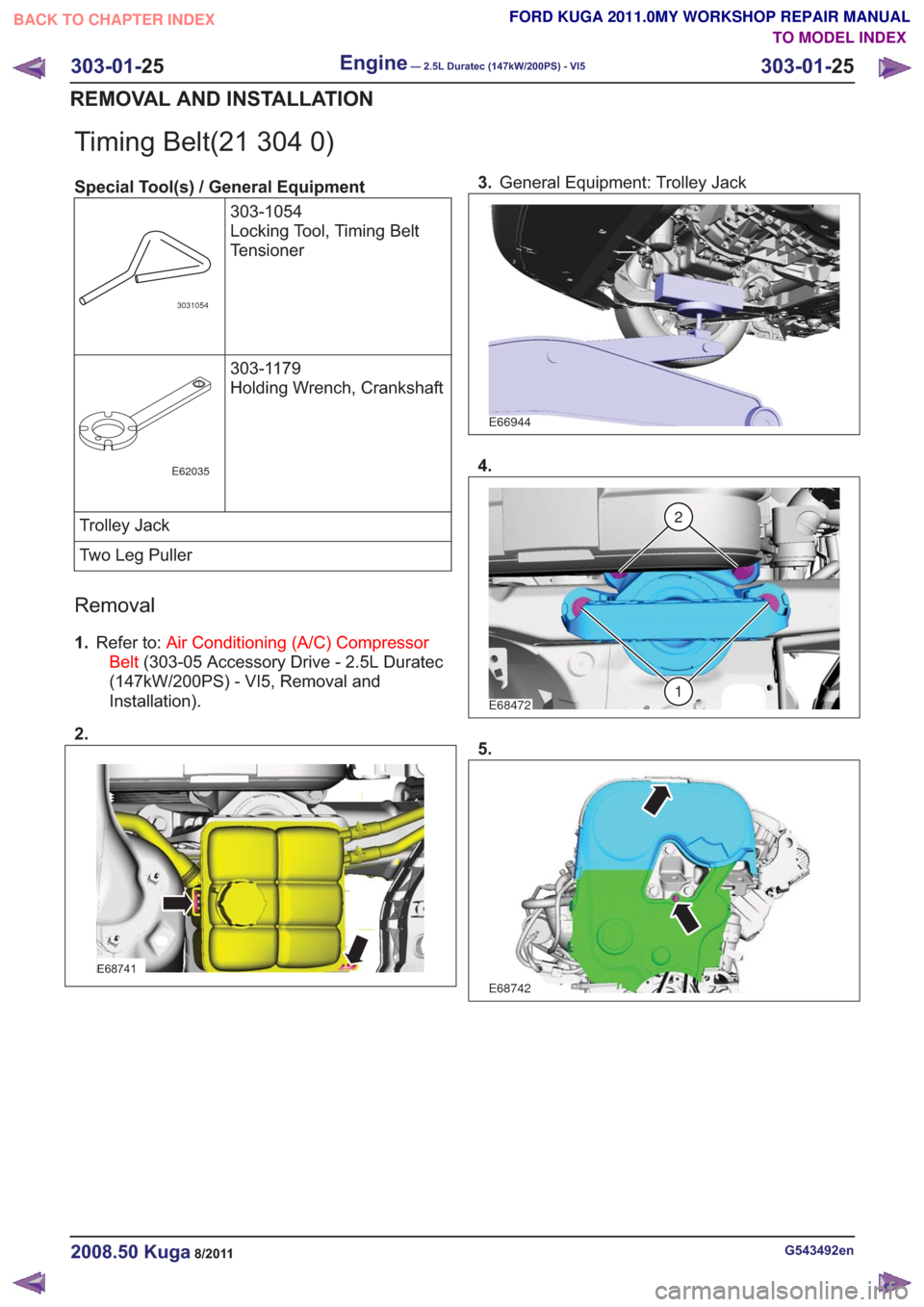

Timing Belt(21 304 0)
Special Tool(s) / General Equipment303-1054
Locking Tool, Timing Belt
Tensioner
3031054
303-1179
Holding Wrench, Crankshaft
E62035
Trolley Jack
Two Leg Puller
Removal
1.Refer to: Air Conditioning (A/C) Compressor
Belt (303-05 Accessory Drive - 2.5L Duratec
(147kW/200PS) - VI5, Removal and
Installation).
2.
E68741
3. General Equipment: Trolley Jack
E66944
4.
E68472
2
1
5.
E68742
G543492en2008.50 Kuga8/2011
303-01- 25
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
25
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

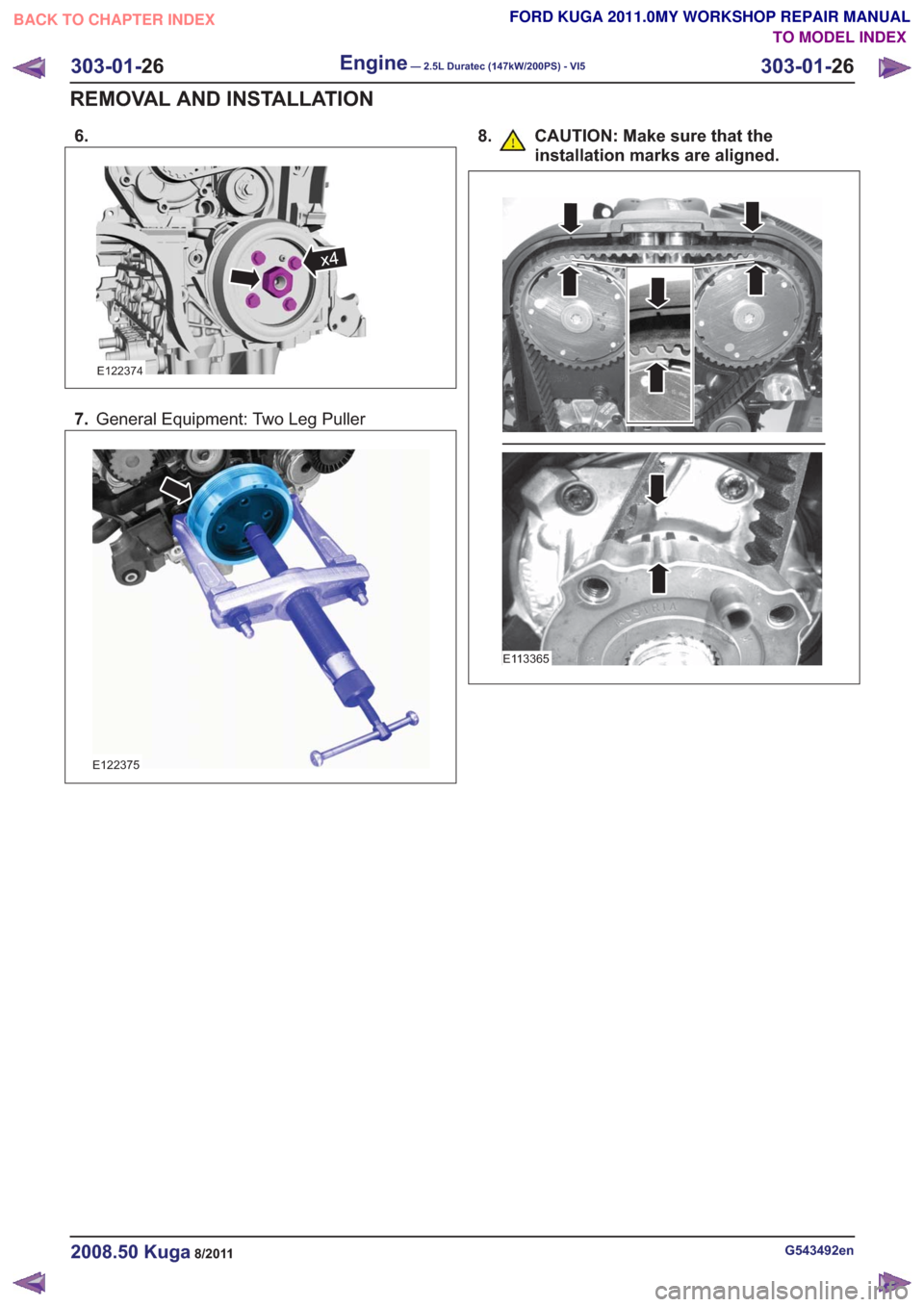

6.
E122374
x4
7.General Equipment: Two Leg Puller
E122375
8. CAUTION: Make sure that the
installation marks are aligned.
E113365
G543492en2008.50 Kuga8/2011
303-01- 26
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
26
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

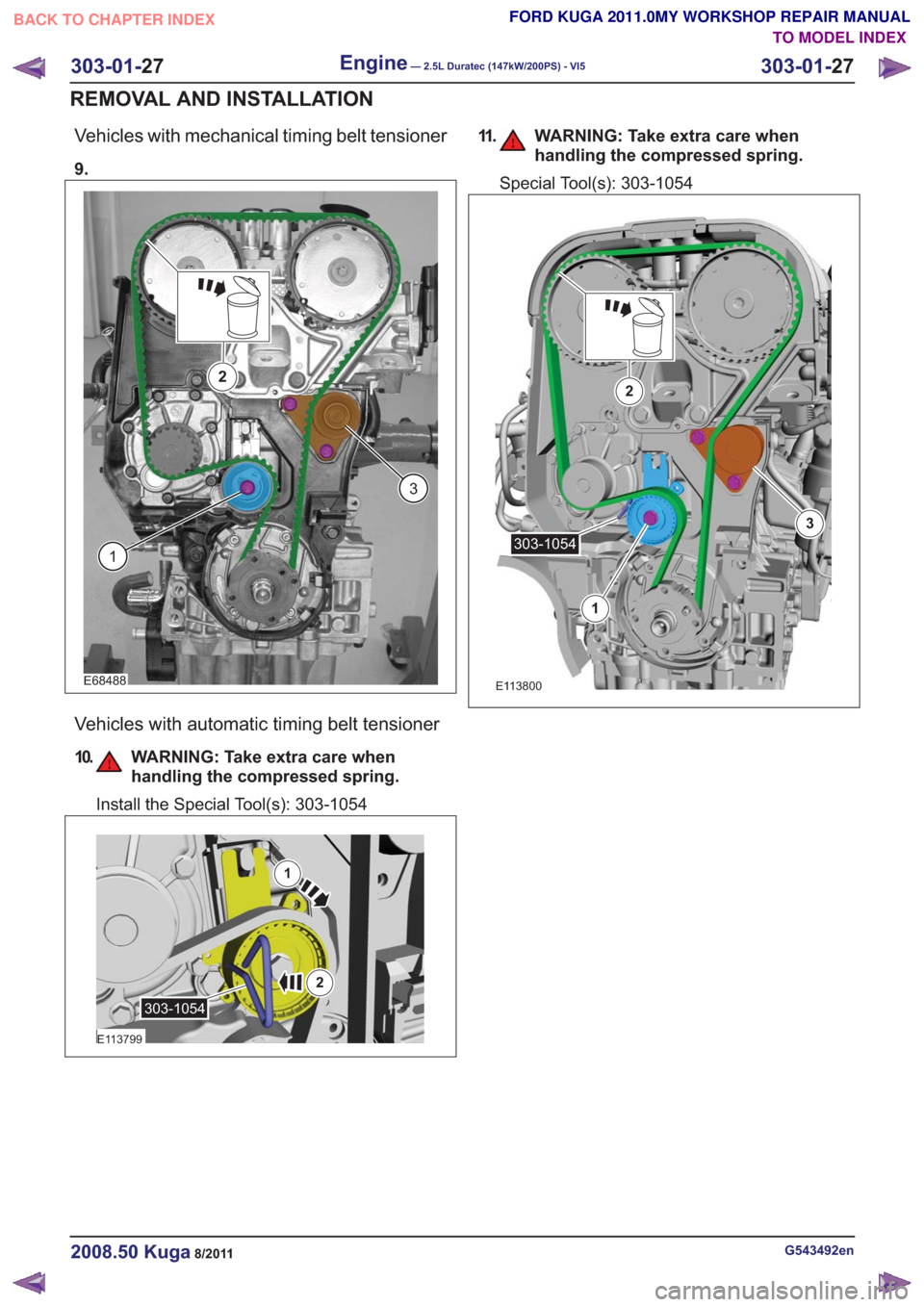

Vehicles with mechanical timing belt tensioner
9.
E68488
1
3
2
Vehicles with automatic timing belt tensioner
10. WARNING: Take extra care whenhandling the compressed spring.
Install the Special Tool(s): 303-1054
1
2
E113799
303-1054
11. WARNING: Take extra care whenhandling the compressed spring.
Special Tool(s): 303-1054
E113800
1
2
3
303-1054
G543492en2008.50 Kuga8/2011
303-01- 27
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
27
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

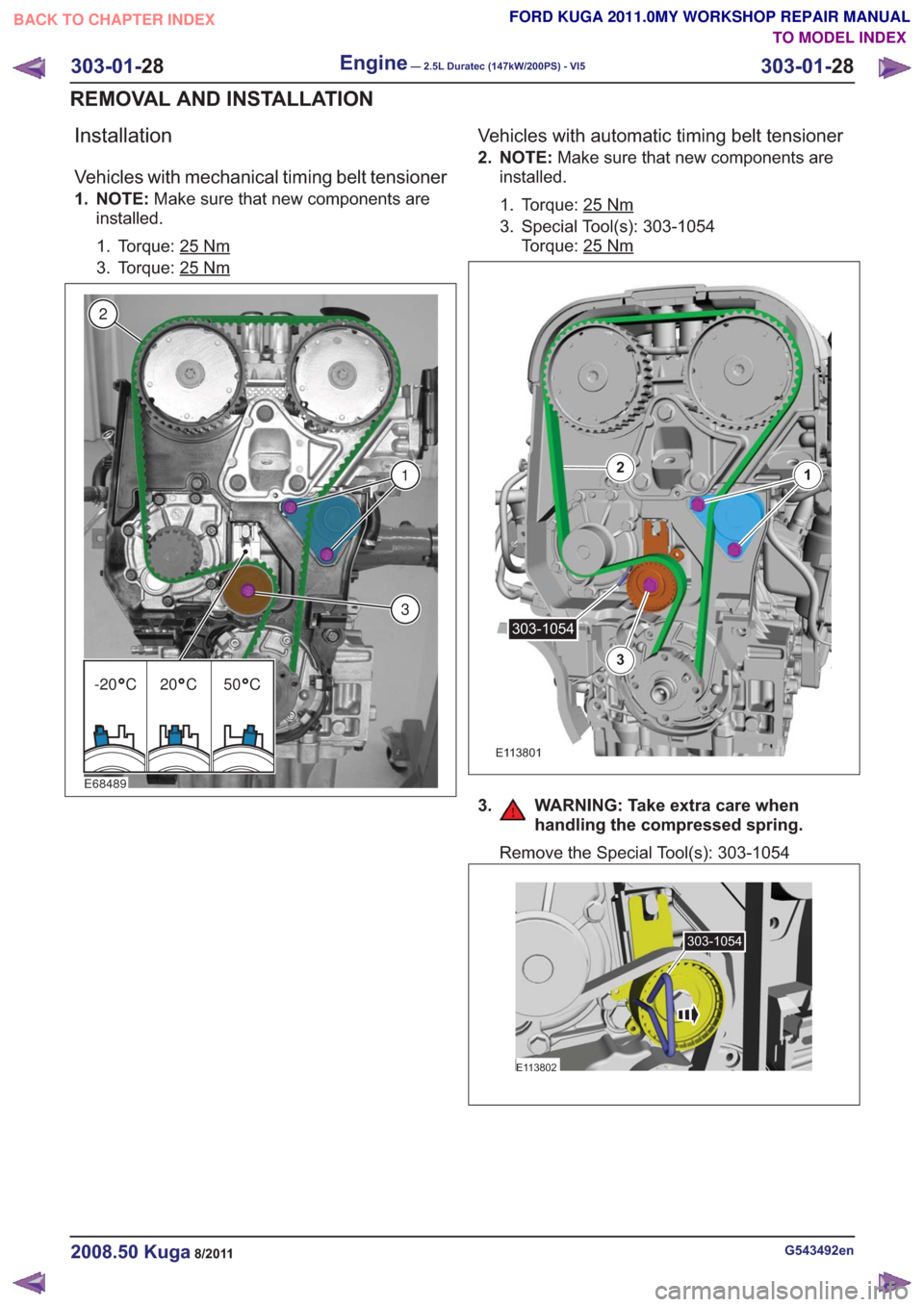

Installation
Vehicles with mechanical timing belt tensioner
1. NOTE:Make sure that new components are
installed.
1. Torque: 25
Nm
3. Torque: 25Nm
E68489
3
1
2
-20 C 20 C 50 C
Vehicles with automatic timing belt tensioner
2. NOTE: Make sure that new components are
installed.
1. Torque: 25
Nm
3. Special Tool(s): 303-1054 Torque: 25
Nm
E113801
12
3
303-1054
3. WARNING: Take extra care when handling the compressed spring.
Remove the Special Tool(s): 303-1054
E113802
303-1054
G543492en2008.50 Kuga8/2011
303-01- 28
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
28
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

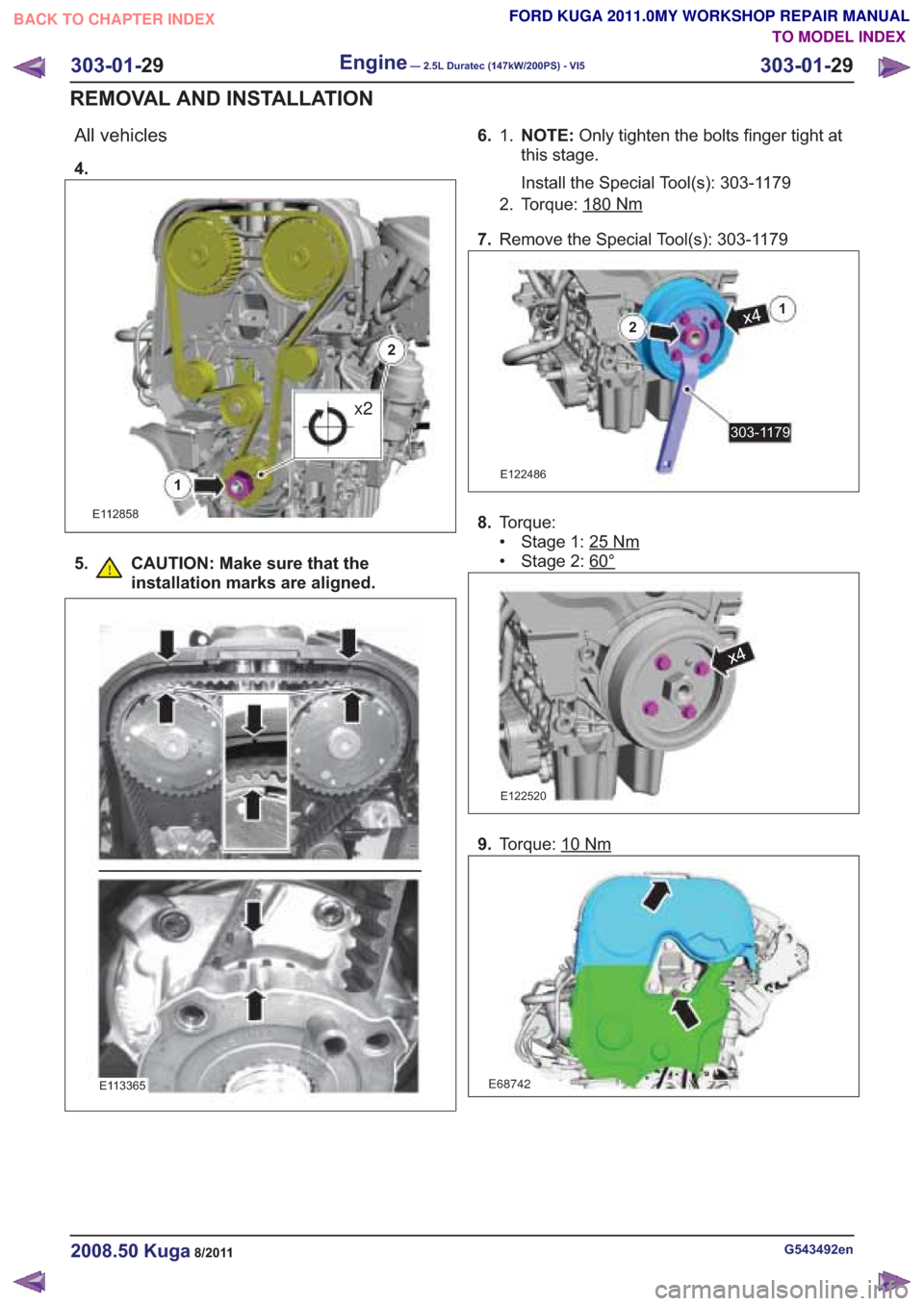

All vehicles
4.
E112858
1
x2
2
5. CAUTION: Make sure that theinstallation marks are aligned.
E113365
6. NOTE: Only tighten the bolts finger tight at
this stage.
Install the Special Tool(s): 303-1179
1.
2. Torque: 180
E122486
1
2
303-1179
G543492en2008.50 Kuga8/2011
303-01-
29
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
29
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Nm
7.
Remove the Special Tool(s): 303-1179
8.Torque:
• Stage 1: 25
Nm
• Stage 2: 60°
E122520
x4
9.Torque: 10
E68742
x4
Nm
