Vehicles with automatic timing belt tensioner
7. NOTE:Make sure that new components are
installed.
1. Torque: 25
Nm
3. Special Tool(s): 303-1054 Torque: 25
Nm
E113801
12
3
303-1054
8. WARNING: Take extra care when handling the compressed spring.
Remove the Special Tool(s): 303-1054
E113802
303-1054
All vehicles
9.Torque: 120Nm
E68746
10.Remove the Special Tool(s): 303-1178
E66324
303-1178
11 .Remove the Special Tool(s): 303-1182
E66328
303-1182
G1166799en2008.50 Kuga8/2011
303-01- 40
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
40
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

G1166799en2008.50 Kuga8/2011
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
x2
E66328
303-1182
E68749

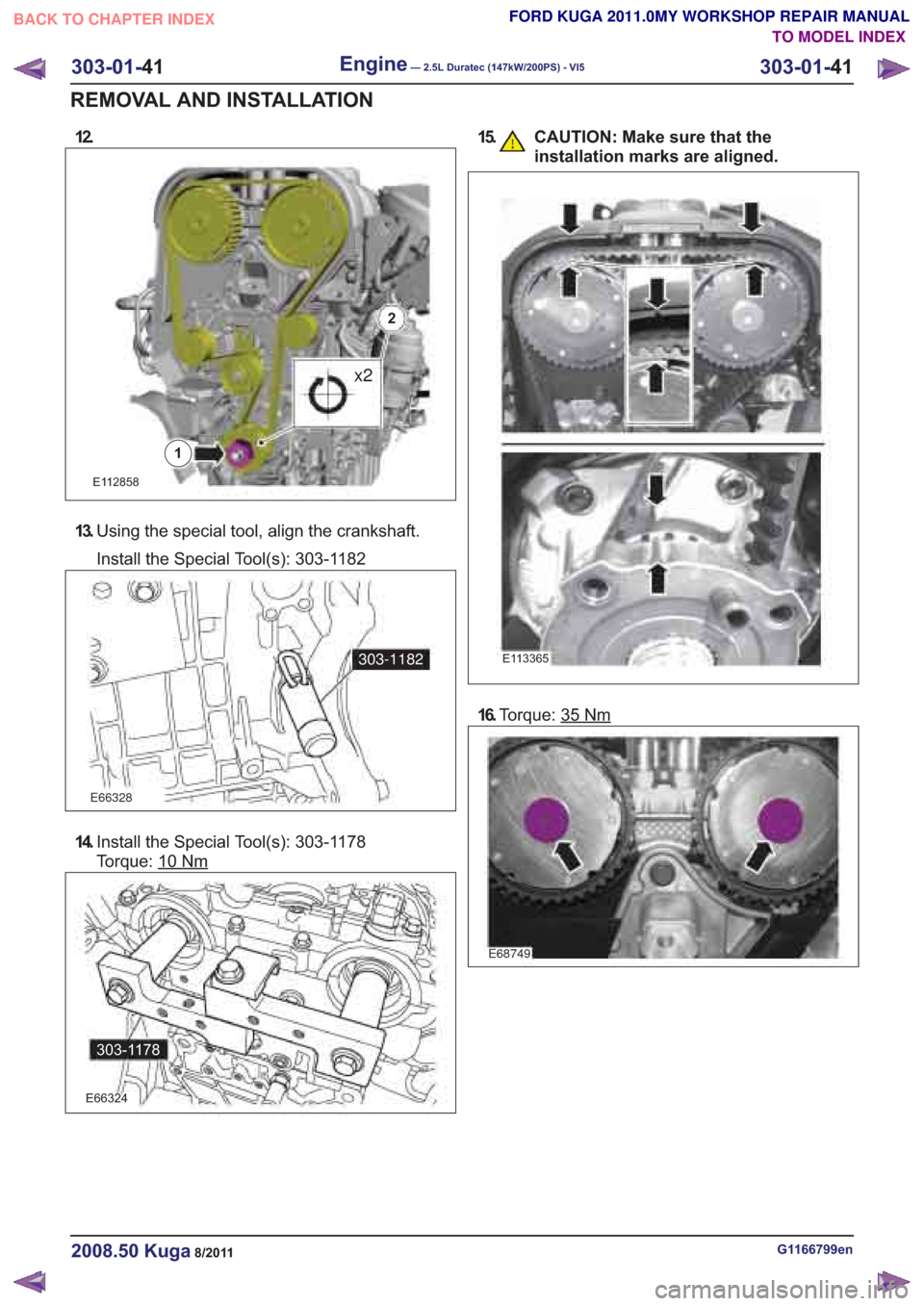

12.15. CAUTION: Make sure that theinstallation marks are aligned.
303-01- 41
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
41
REMOVAL AND INSTALLATION
E112858
13. Using the special tool, align the crankshaft.
Install the Special Tool(s): 303-1182
14.Install the Special Tool(s): 303-1178
Torque: 10
Nm
16.Torque: 35Nm
E66324
303-1178
E113365
1
2

17.Remove the Special Tool(s): 303-1182
E66328
303-1182
18.Remove the Special Tool(s): 303-1178
E66324
303-1178
19.Torque: 17Nm
E68745
20.Torque: 40Nm
E83911
21. N O T E : Make sure that new components are
installed.
1.
2. Torque: 40
Nm
E113556
x21
x22
22.
Torque: 10Nm
E67905
G1166799en2008.50 Kuga8/2011
303-01- 42
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
42
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

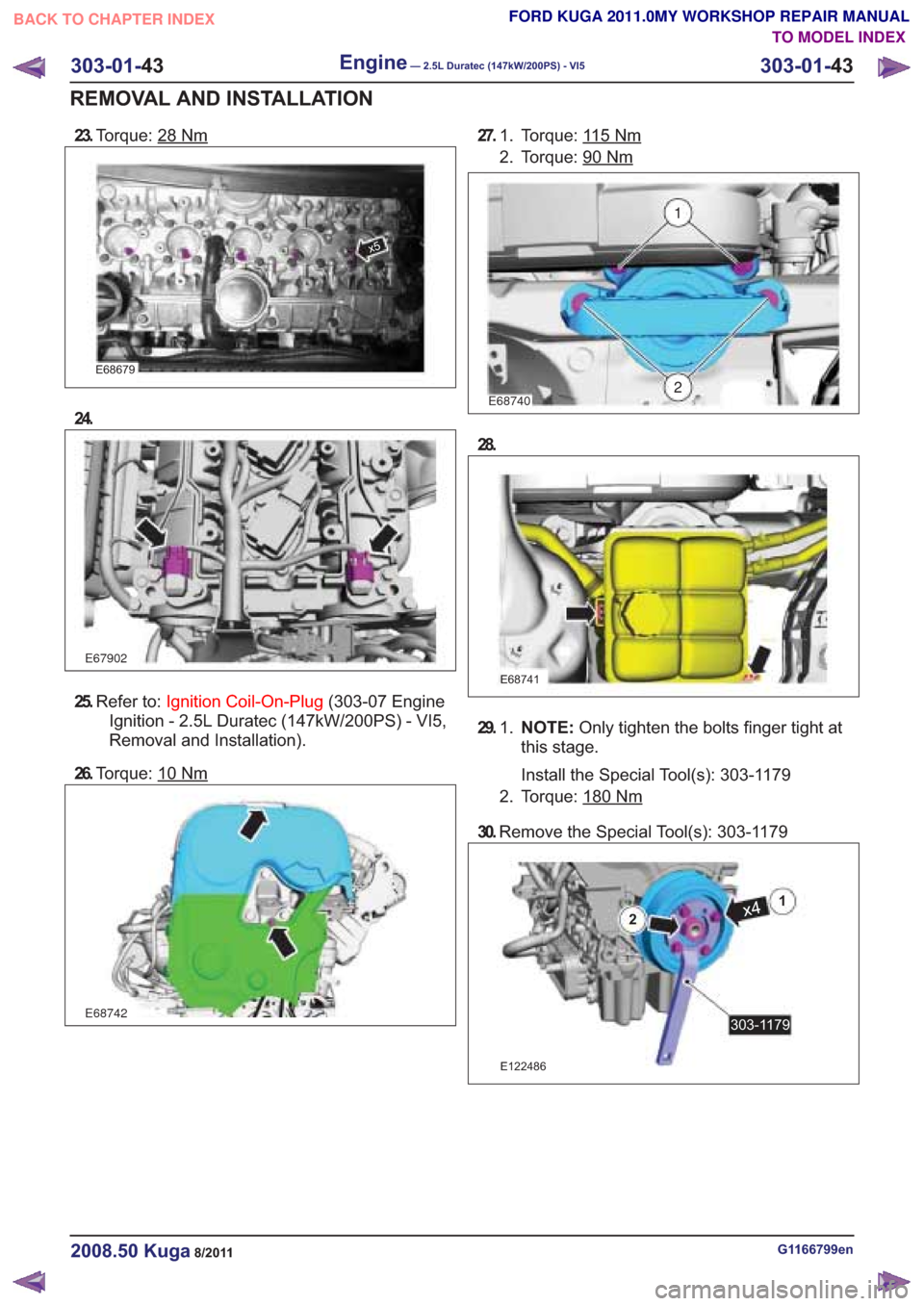

23.Torque: 28Nm
x5
24.
25.Refer to: Ignition Coil-On-Plug (303-07 Engine
Ignition - 2.5L Duratec (147kW/200PS) - VI5,
Removal and Installation).
26. Torque: 10
E68742
27. To r q u e : 115Nm1.
2. Torque: 90
Nm
E68740
1
2
28.
E68741
29. N O T E : Only tighten the bolts finger tight at
this stage.
Install the Special Tool(s): 303-1179
1.
2. Torque: 180
30.
Remove the Special Tool(s): 303-1179
E122486
x41
2
303-1179
G1166799en2008.50 Kuga8/2011
303-01- 43
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
43
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
E68679
E67902
Nm
Nm

31.Torque:
• Stage 1: 25
Nm
• Stage 2: 60°
E122520
x4
32.Install the following items:
1. Refer to: Air Conditioning (A/C) Compressor
Belt (303-05 Accessory Drive - 2.5L
Duratec (147kW/200PS) - VI5, Removal
and Installation).
2. Refer to: Starter Motor (303-06 Starting
System - 2.5L Duratec (147kW/200PS) -
VI5, Removal and Installation).
G1166799en2008.50 Kuga8/2011
303-01- 44
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
44
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

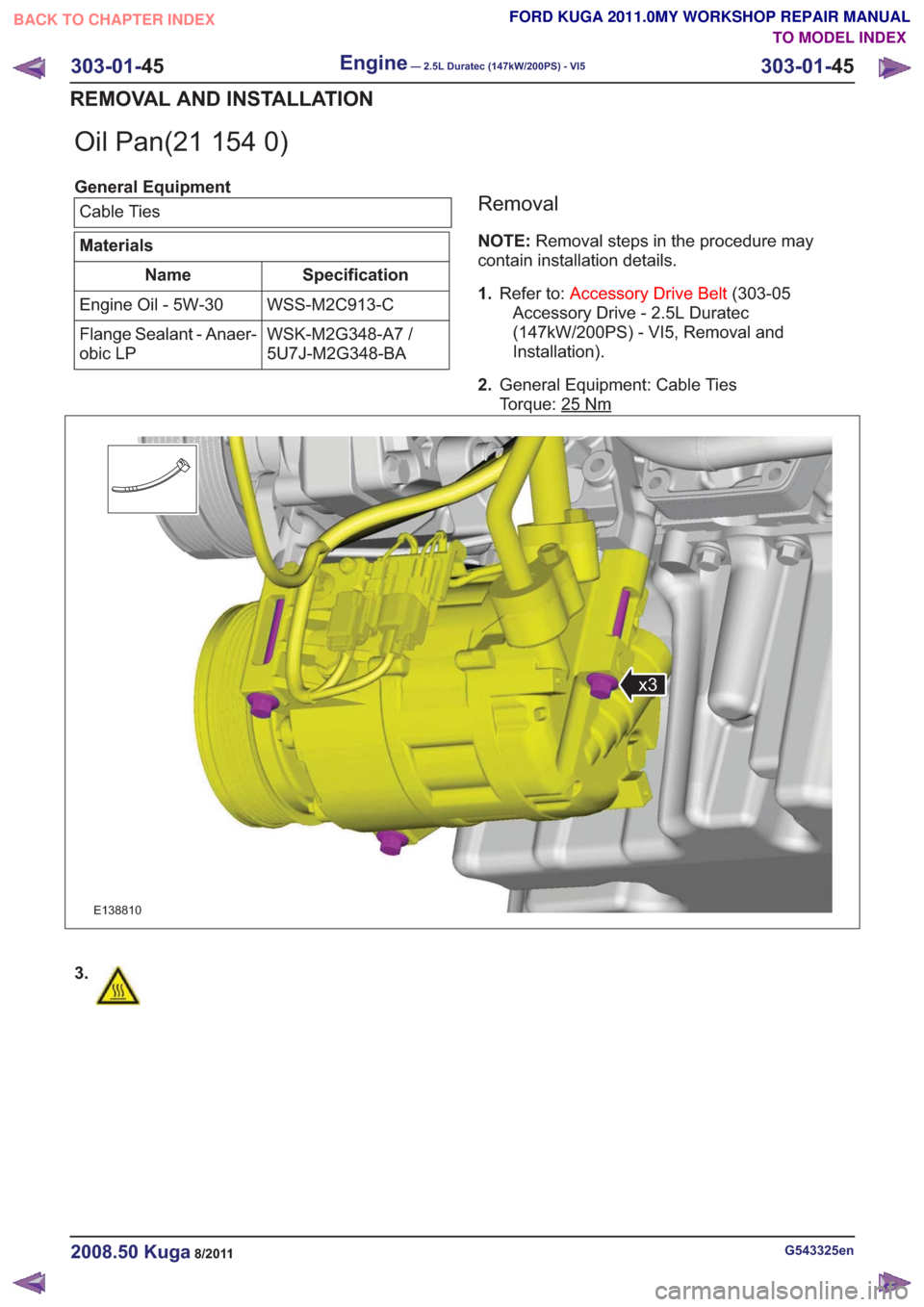

Oil Pan(21 154 0)
General EquipmentCable Ties
Materials
Specification
Name
WSS-M2C913-C
Engine Oil - 5W-30
WSK-M2G348-A7 /
5U7J-M2G348-BA
Flange Sealant - Anaer-
obic LP
Removal
NOTE:
Removal steps in the procedure may
contain installation details.
1. Refer to: Accessory Drive Belt (303-05
Accessory Drive - 2.5L Duratec
(147kW/200PS) - VI5, Removal and
Installation).
2. General Equipment: Cable Ties
Torque: 25
Nm
E138810
x3
3.
G543325en2008.50 Kuga8/2011
303-01- 45
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
45
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

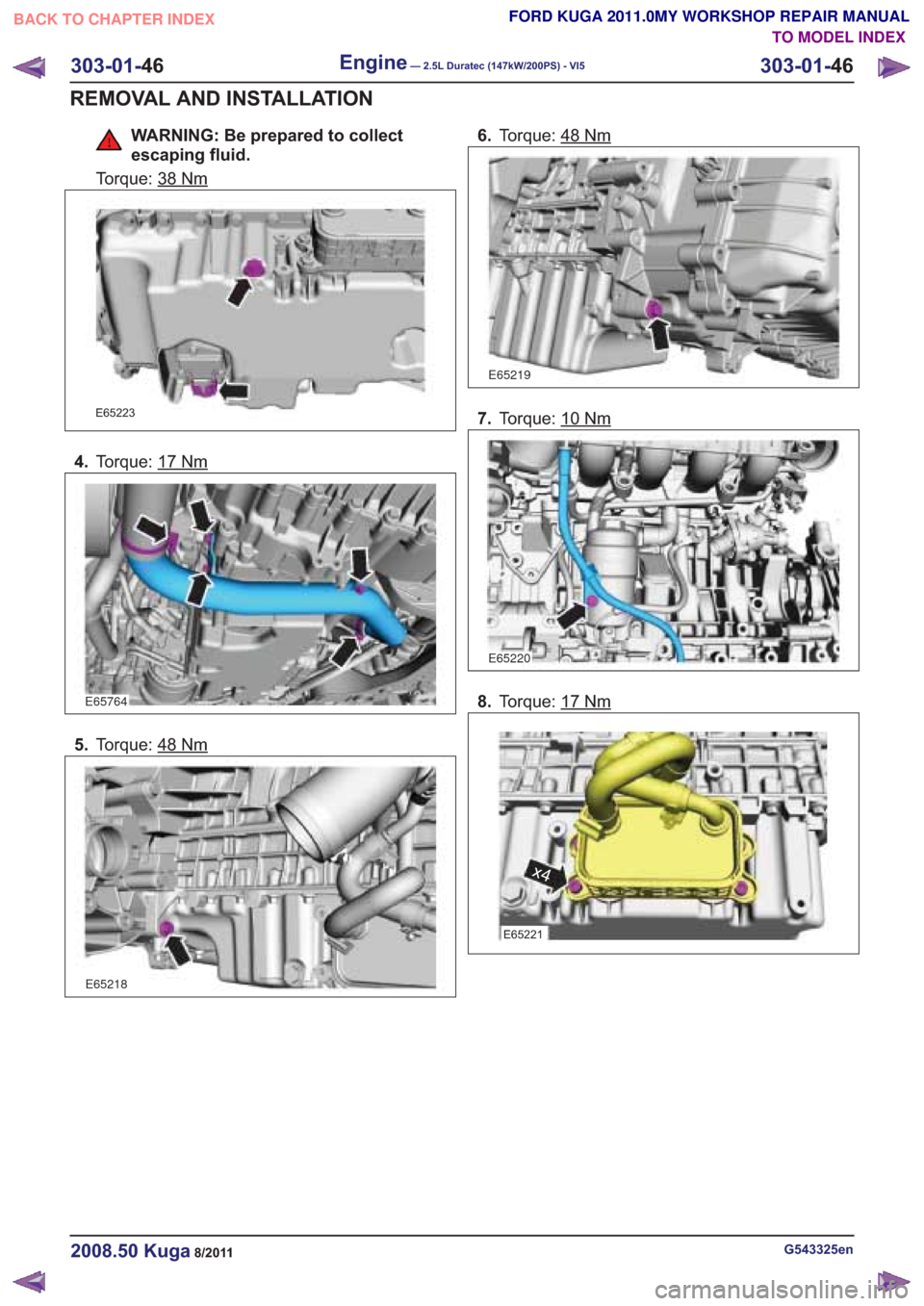

WARNING: Be prepared to collect
escaping fluid.
Torque: 38
E65223
4. Torque: 17Nm
E65764
5.Torque: 48Nm
E65218
6.Torque: 48Nm
E65219
7.Torque: 10Nm
E65220
8.Torque: 17Nm
E65221
x4
303-01- 46
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
46
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Nm
G543325en2008.50 Kuga8/2011

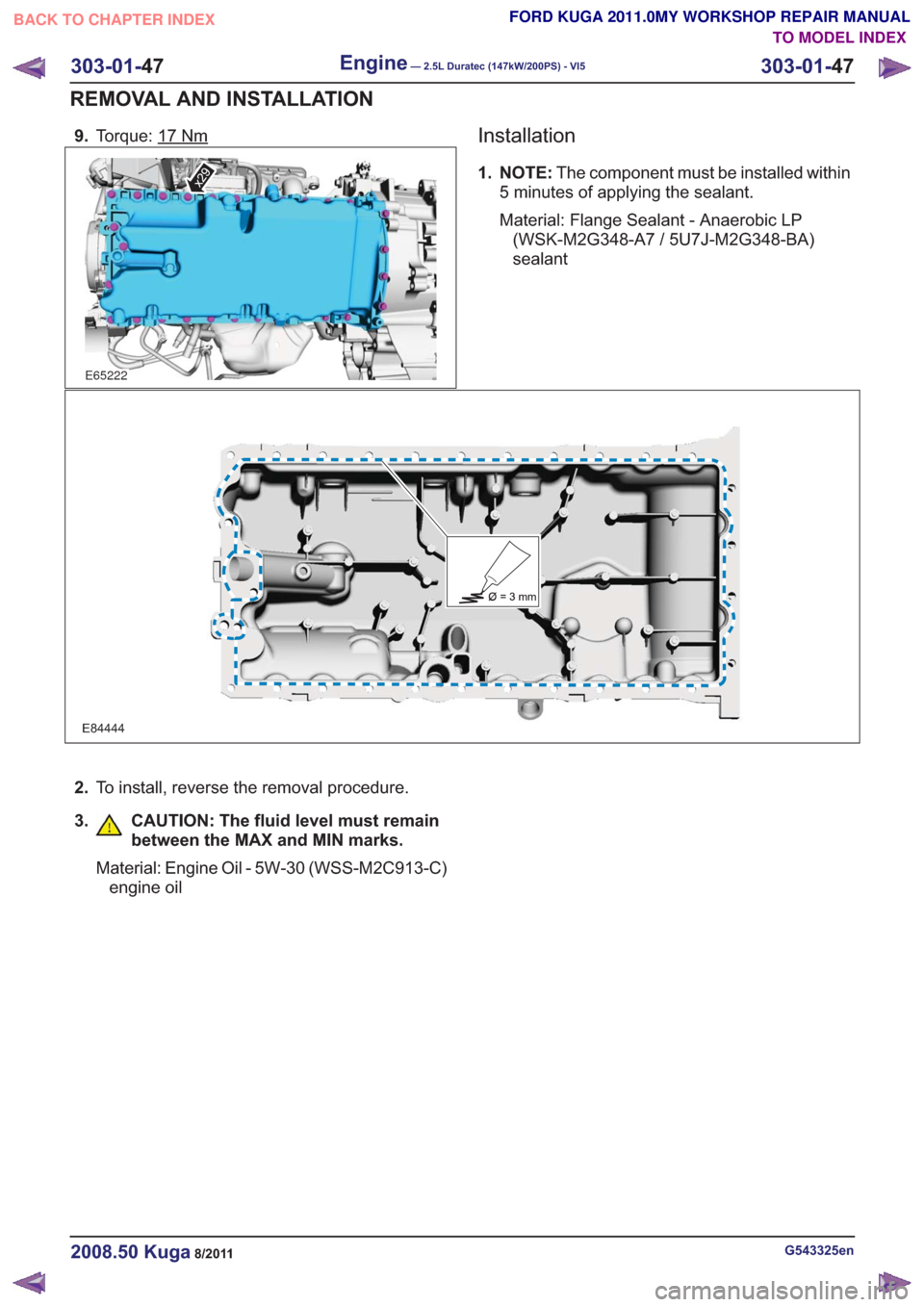

9.Torque: 17Nm
E65222
Installation
1. NOTE: The component must be installed within
5 minutes of applying the sealant.
Material: Flange Sealant - Anaerobic LP (WSK-M2G348-A7 / 5U7J-M2G348-BA)
sealant
E84444
2. To install, reverse the removal procedure.
3.
CAUTION: The fluid level must remain
between the MAX and MIN marks.
Material: Engine Oil - 5W-30 (WSS-M2C913-C) engine oil
G543325en2008.50 Kuga8/2011
303-01- 47
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
47
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

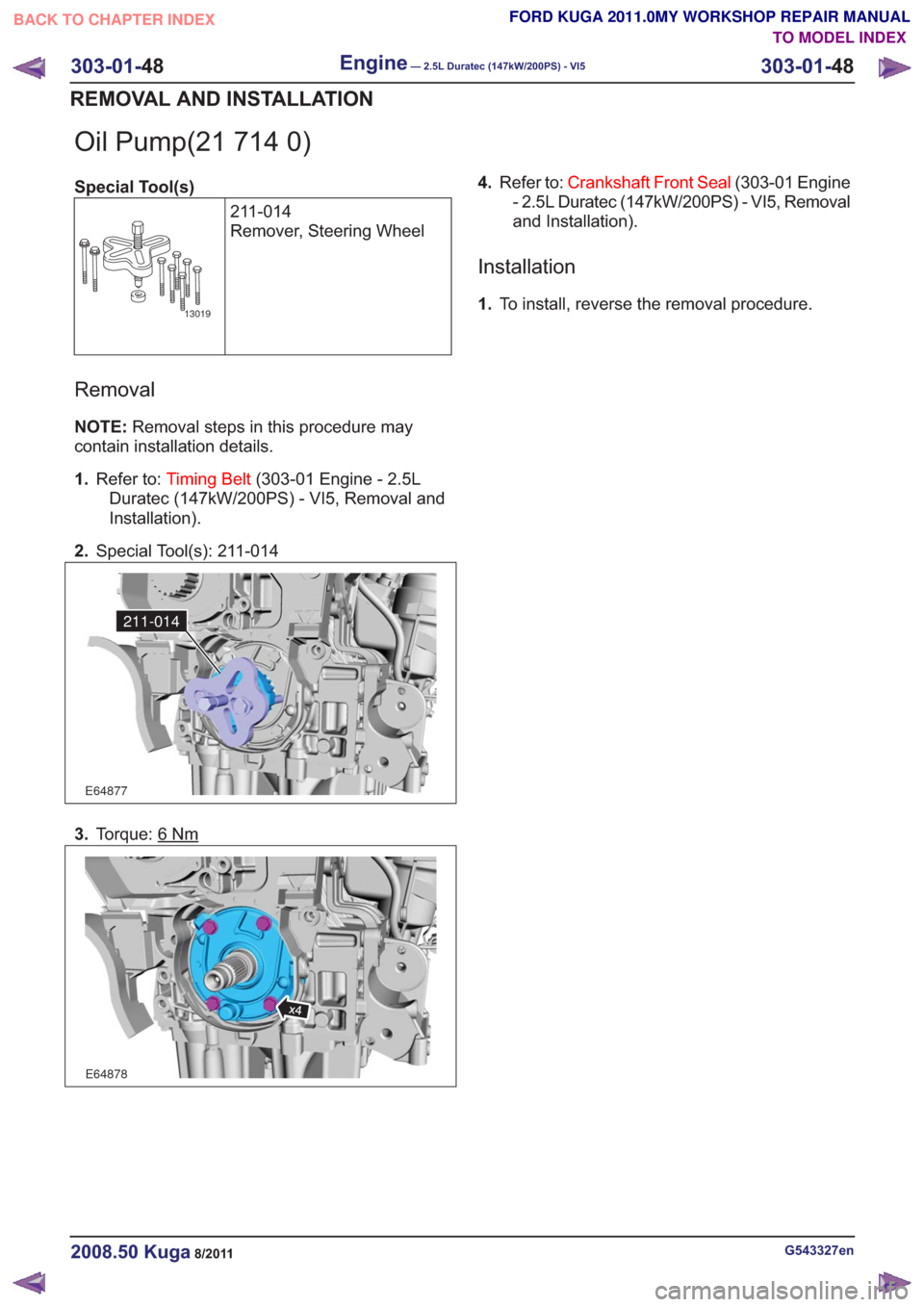

Oil Pump(21 714 0)
Special Tool(s)211-014
Remover, Steering Wheel
13019
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1. Refer to: Timing Belt (303-01 Engine - 2.5L
Duratec (147kW/200PS) - VI5, Removal and
Installation).
2. Special Tool(s): 211-014
E64877
211-014
3.Torque: 6Nm
E64878
4.Refer to: Crankshaft Front Seal (303-01 Engine
- 2.5L Duratec (147kW/200PS) - VI5, Removal
and Installation).
Installation
1. To install, reverse the removal procedure.
G543327en2008.50 Kuga8/2011
303-01- 48
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
48
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

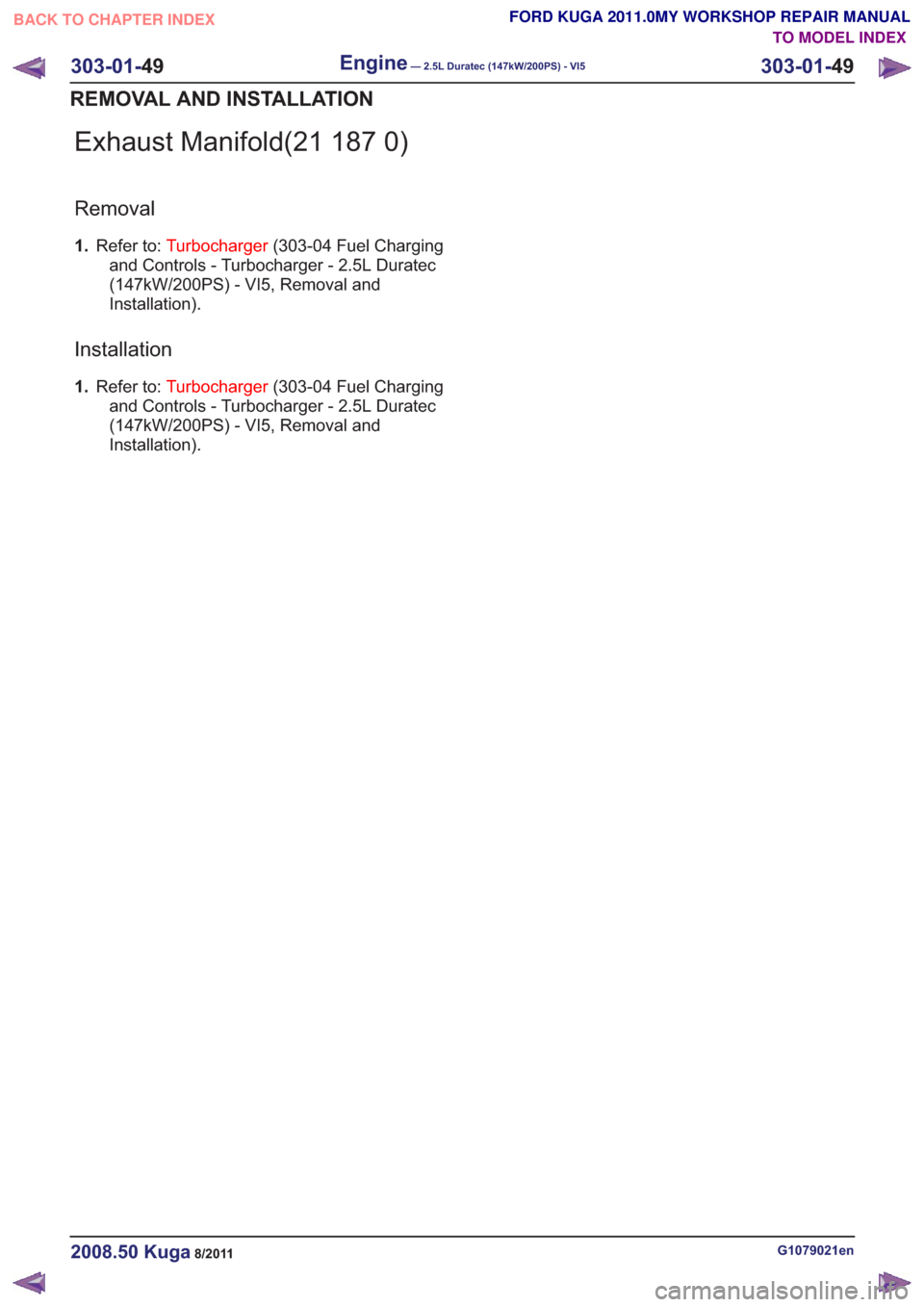

Exhaust Manifold(21 187 0)
Removal
1.Refer to: Turbocharger (303-04 Fuel Charging
and Controls - Turbocharger - 2.5L Duratec
(147kW/200PS) - VI5, Removal and
Installation).
Installation
1. Refer to: Turbocharger (303-04 Fuel Charging
and Controls - Turbocharger - 2.5L Duratec
(147kW/200PS) - VI5, Removal and
Installation).
G1079021en2008.50 Kuga8/2011
303-01- 49
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
49
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
