Page 229 of 2057
Action
Possible Source
Description
DTC
CHECK parking aid sensor
for contamination. IF a
parking sensor is OK.
INSTALL a new parking aid
sensor. TEST the system for
normal operation.
•
Rear outer left parking aid
sensor.
Concern with rear outer left
parking aid sensor
C1701
CHECK the circuit 8-GN19
(WH) for short to battery. IF
the circuit is OK, INSTALL a
new parking aid module.
REFER to:Parking Aid
Module (413-13 Parking
Aid, Removal and Installa-
tion).
TEST the system for normal
operation.
• Parking aid sensor signal
circuit.
• Parking aid module.
Rear outer right sensor
signal circuit short to battery
C1702
GO toPinpoint Test D.
• Parking aid sensor signal
circuit.
• Parking aid sensor.
• Parking aid module.
Rear outer right sensor
signal circuit open or short
to ground
C1703
CHECK parking aid sensor
for contamination. IF a
parking sensor is OK.
INSTALL a new parking aid
sensor. TEST the system for
normal operation.
• Rear outer right parking
aid sensor.
Concern with rear outer right
parking aid sensor
C1704
CHECK the circuit 8-GN21
(WH/BU) for short to battery.
IF the circuit is OK, INSTALL
a new parking aid module.
REFER to:Parking Aid
Module (413-13 Parking
Aid, Removal and Installa-
tion).
TEST the system for normal
operation.
• Parking aid sensor signal
circuit.
• Parking aid module.
Rear inner left sensor signal
circuit short to battery
C1705
GO toPinpoint Test E.
• Parking aid sensor signal
circuit.
• Parking aid sensor.
• Parking aid module.
Rear inner left sensor signal
circuit open or short to
ground
C1706
CHECK parking aid sensor
for contamination. IF a
parking sensor is OK.
INSTALL a new parking aid
sensor. TEST the system for
normal operation.
•
Rear inner left parking aid
sensor.
Concern with rear inner left
parking aid sensor
C1707 G295937en
2008.50 Kuga 8/2011 413-13-30
Parking Aid
413-13-30
DIAGNOSIS AND TESTINGTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 230 of 2057
Action
Possible Source
Description
DTC
CHECK the circuit 8-GN20
(WH/RD) for short to battery.
IF the circuit is OK, INSTALL
a new parking aid module.
REFER to:Parking Aid
Module (413-13 Parking
Aid, Removal and Installa-
tion).
TEST the system for normal
operation.
• Parking aid sensor signal
circuit.
• Parking aid module.
Rear inner right sensor
signal circuit short to battery
C1708
GO toPinpoint Test F.
• Parking aid sensor signal
circuit.
• Parking aid sensor.
• Parking aid module.
Rear inner right sensor
signal circuit open or short
to ground
C1709
CHECK parking aid sensor
for contamination. IF a
parking sensor is OK.
INSTALL a new parking aid
sensor. TEST the system for
normal operation.
• Rear inner right parking
aid sensor.
Concern with rear inner right
parking aid sensor
C1710
GO toPinpoint Test G.
• Parking aid sensors
voltage supply circuits.
Parking aid sensor voltage
supply short to ground
B1299
GO toPinpoint Test H.
• Parking aid module.
• circuit(s).
Parking aid speaker circuit
short to ground
C1742
GO toPinpoint Test I.
• Parking aid module.
• circuit(s).
Parking aid speaker circuit
short to battery
C1743
INSTALL a new parking aid
module.
REFER to:Parking Aid
Module (413-13 Parking
Aid, Removal and Installa-
tion).
TEST the system for normal
operation.
• Parking aid module.
RAM Error
B1342
INSTALL a new parking aid
module.
REFER to:Parking Aid
Module (413-13 Parking
Aid, Removal and Installa-
tion).
TEST the system for normal
operation.
• Parking aid module.
ROM/EEPROM Error
B2477 G295937en
2008.50 Kuga 8/2011 413-13-31
Parking Aid
413-13-31
DIAGNOSIS AND TESTINGTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 243 of 2057

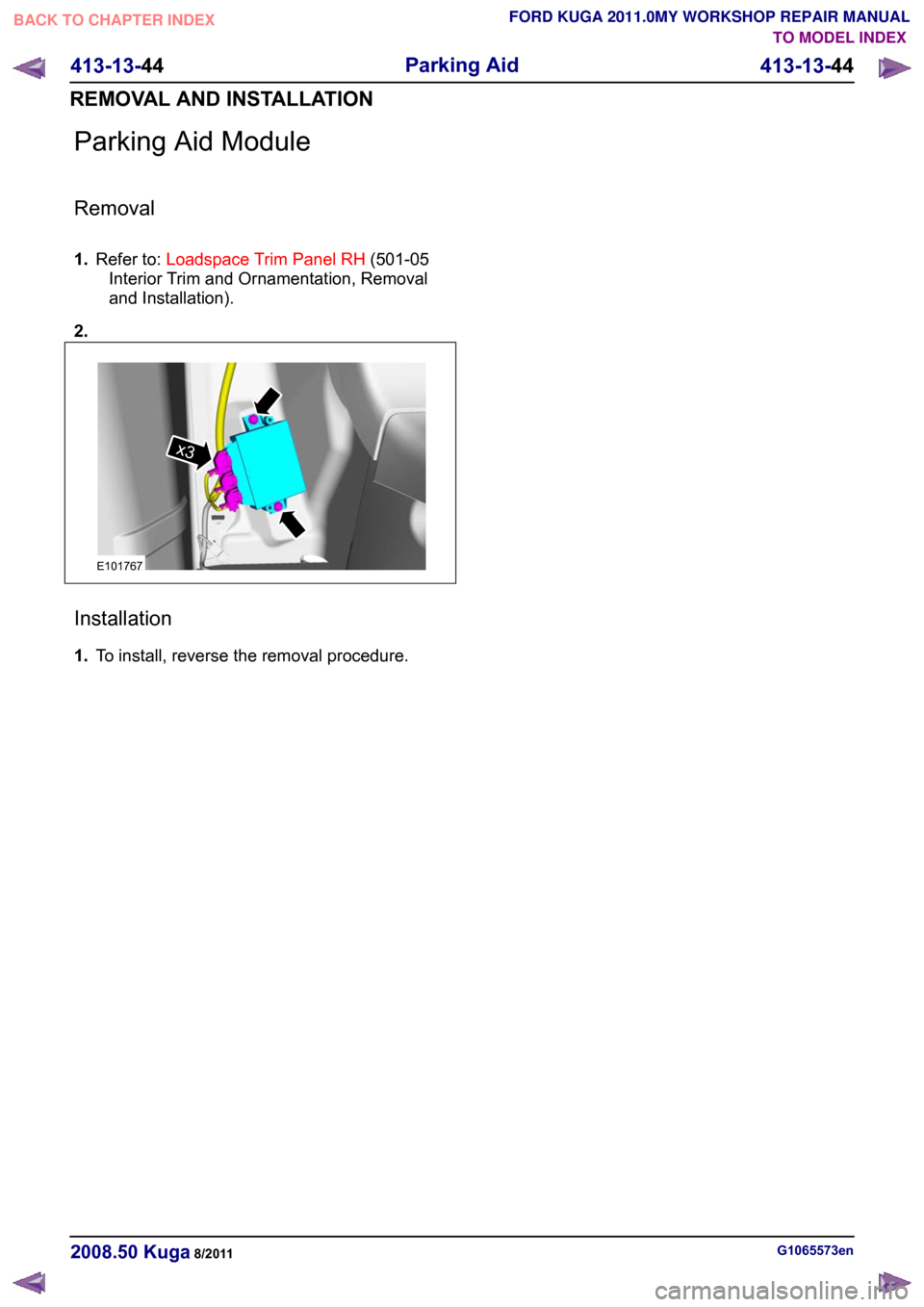

Parking Aid Module
Removal
1.
Refer to: Loadspace Trim Panel RH (501-05
Interior Trim and Ornamentation, Removal
and Installation).
2. Installation
1.
To install, reverse the removal procedure. G1065573en
2008.50 Kuga 8/2011 413-13-44
Parking Aid
413-13-44
REMOVAL AND INSTALLATIONTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUALx3E101767
Page 244 of 2057

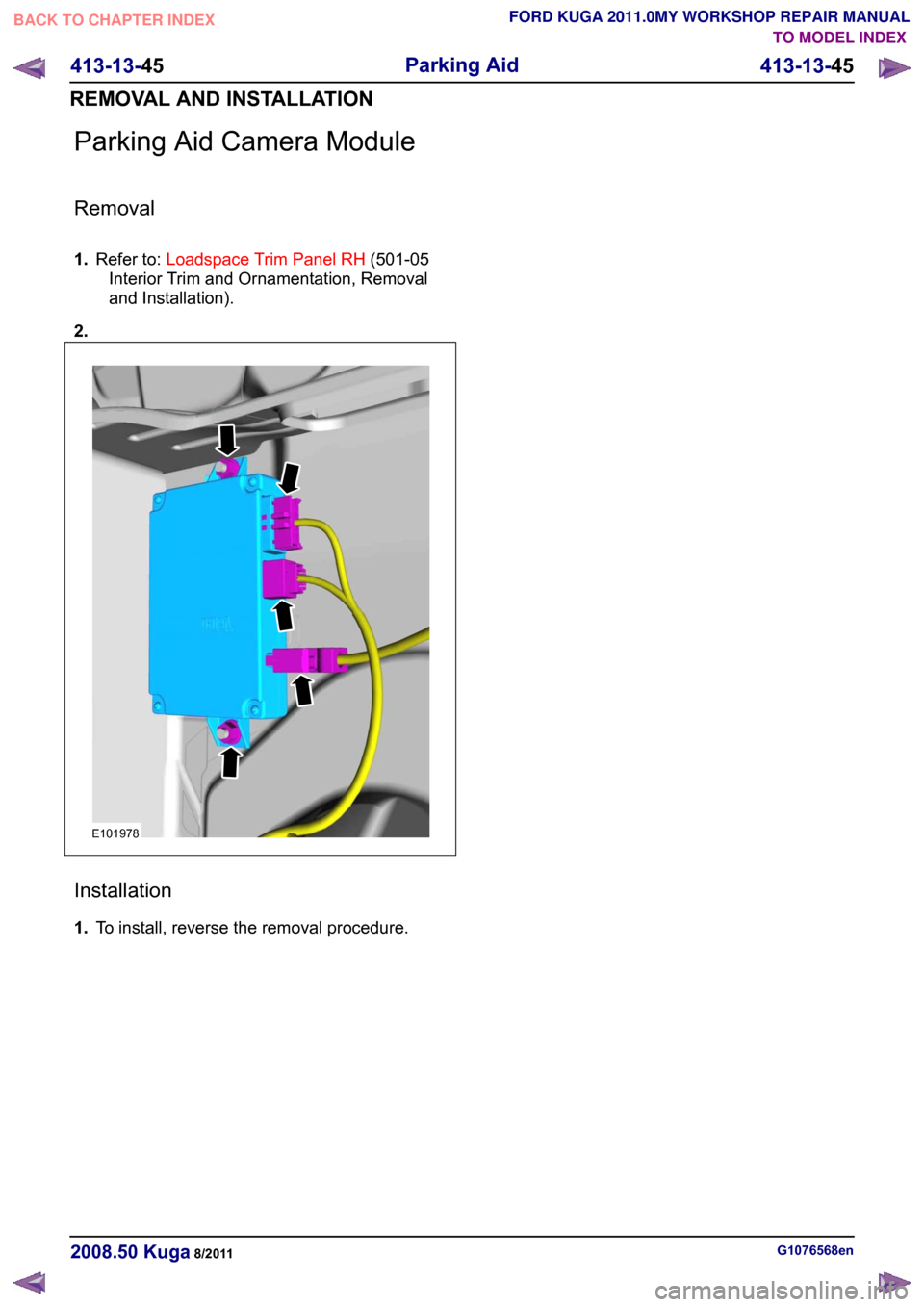

Parking Aid Camera Module
Removal
1.
Refer to: Loadspace Trim Panel RH (501-05
Interior Trim and Ornamentation, Removal
and Installation).
2. Installation
1.
To install, reverse the removal procedure. G1076568en
2008.50 Kuga 8/2011 413-13-45
Parking Aid
413-13-45
REMOVAL AND INSTALLATIONTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUALE101978
Page 245 of 2057

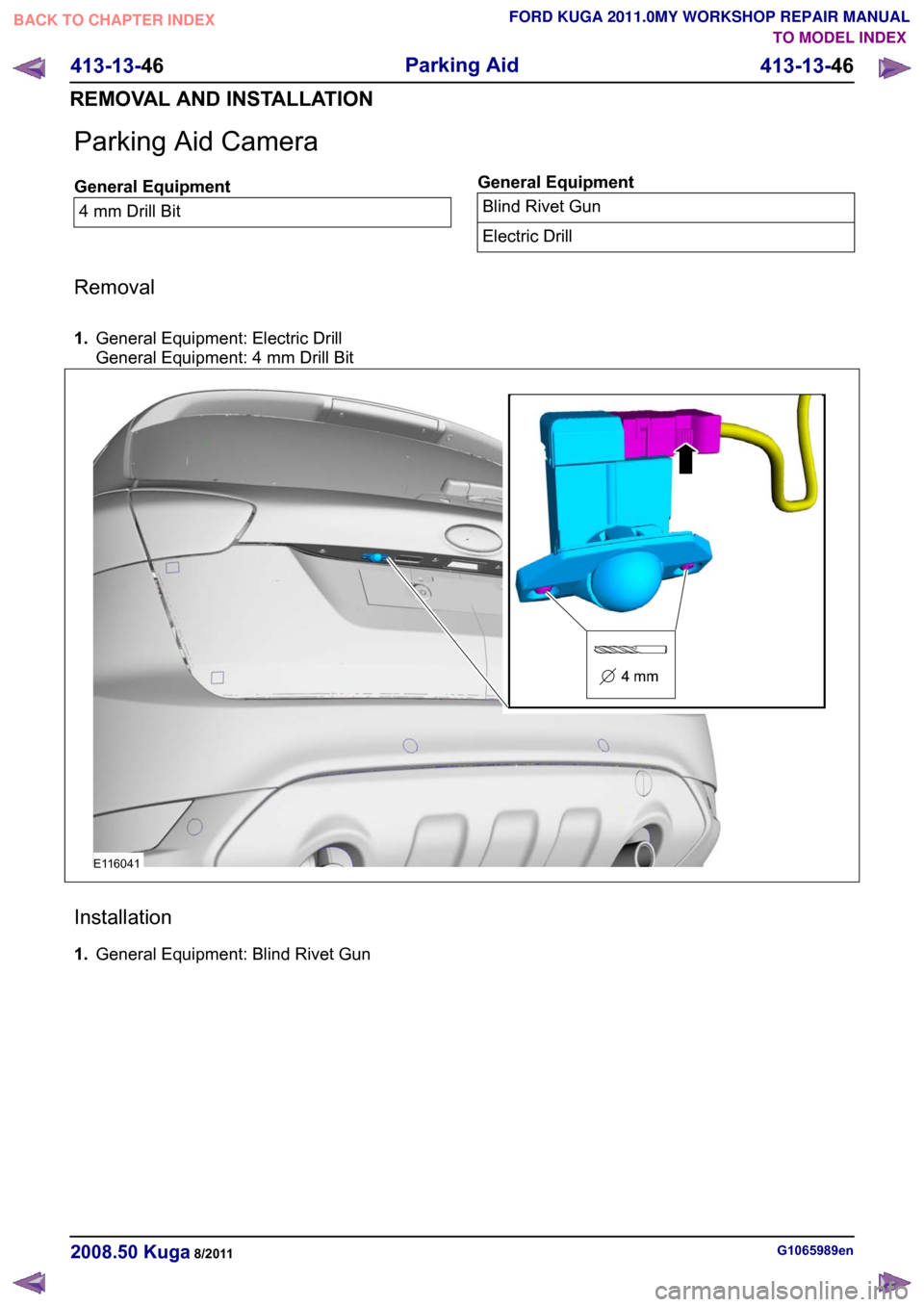

Parking Aid Camera
General Equipment
4 mm Drill Bit General Equipment
Blind Rivet Gun
Electric Drill
Removal
1. General Equipment: Electric Drill
General Equipment: 4 mm Drill Bit Installation
1.
General Equipment: Blind Rivet Gun G1065989en
2008.50 Kuga 8/2011 413-13-46
Parking Aid
413-13-46
REMOVAL AND INSTALLATIONTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUALE116041

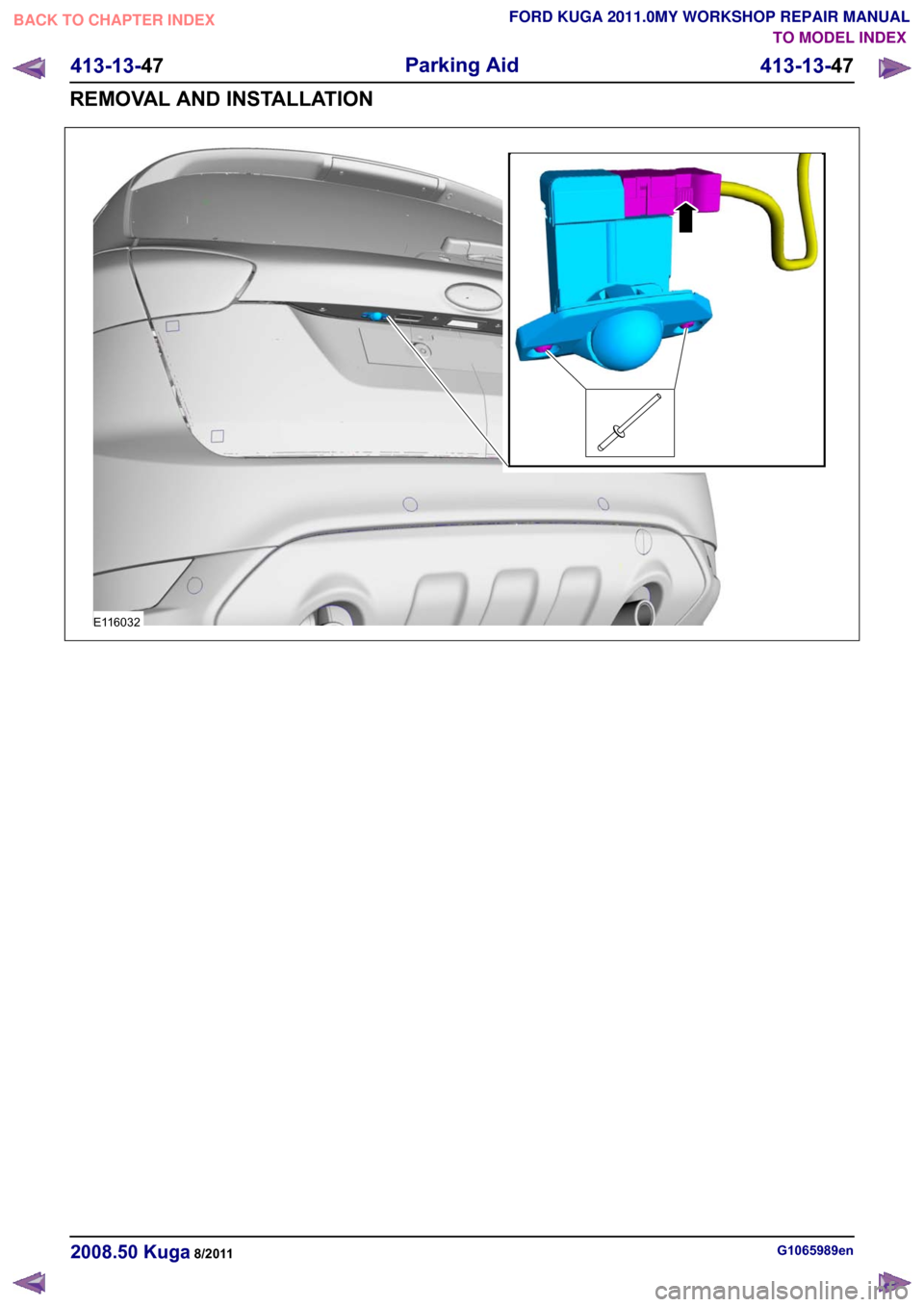

Page 246 of 2057
G1065989en
2008.50 Kuga 8/2011 413-13-47
Parking Aid
413-13-47
REMOVAL AND INSTALLATIONTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUALE116032

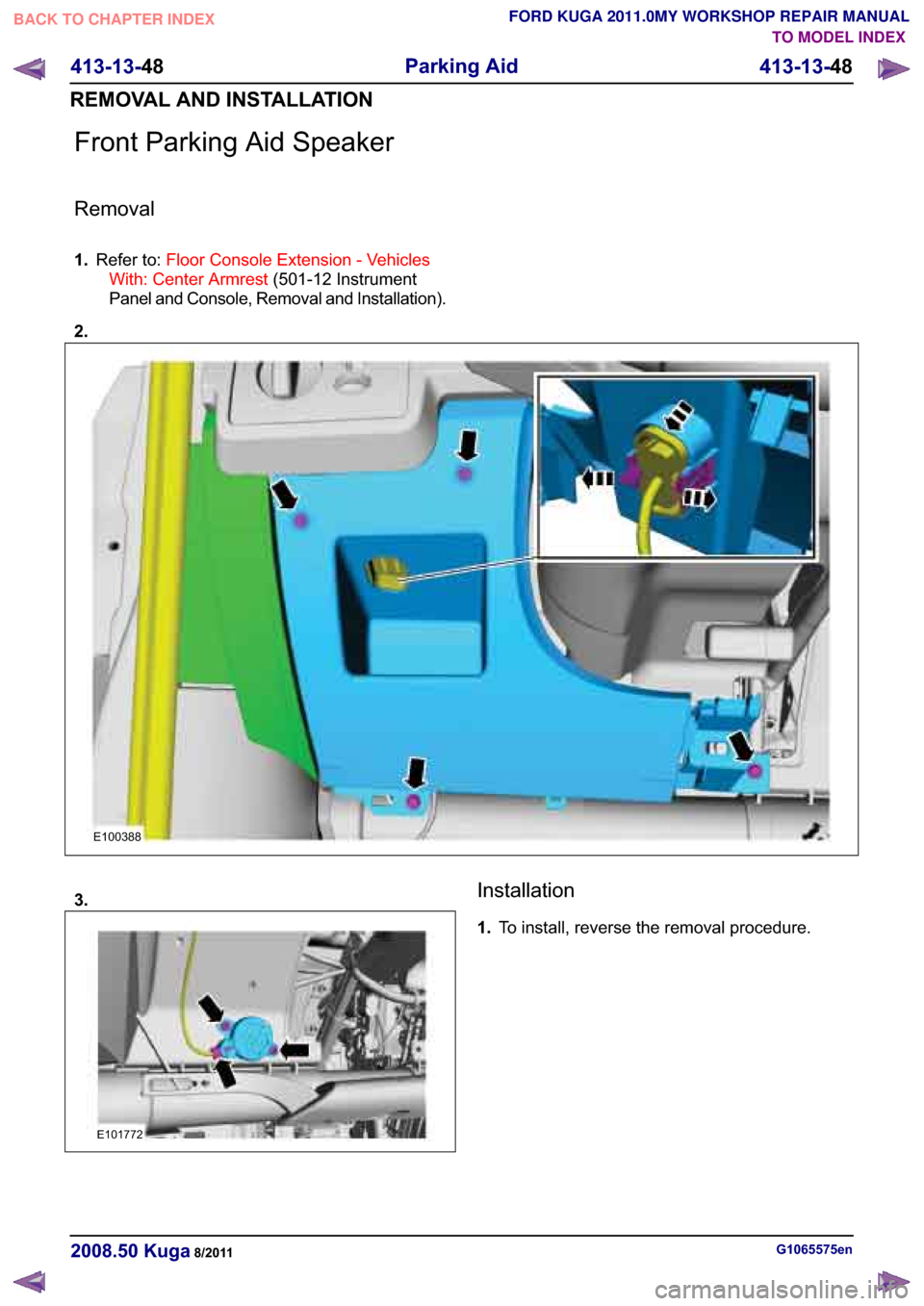

Page 247 of 2057
) U R Q W 3 D U N L Q J $ L G 6 S H D N H U
5 H P R Y D O
5 H I H U W R ) O R R U & R Q V R O H ( [ W H Q V L R Q 9 H K L F O H V
: L W K & H Q W H U $ U P U H V W , Q V W U X P H Q W
3 D Q H O D Q G & R Q V R O H 5 H P R Y D O D Q G , Q V W D O O D W L R Q
(
(
, Q V W D O O D W L R Q
7 R L Q V W D O O U H Y H U V H W K H U H P R Y D O S U R F H G X U H
* H Q . X J D
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
3 D U N L Q J $ L G
5 ( 0 2 9 $ / $ 1 ' , 1 6 7 $ / / $ 7 , 2 1

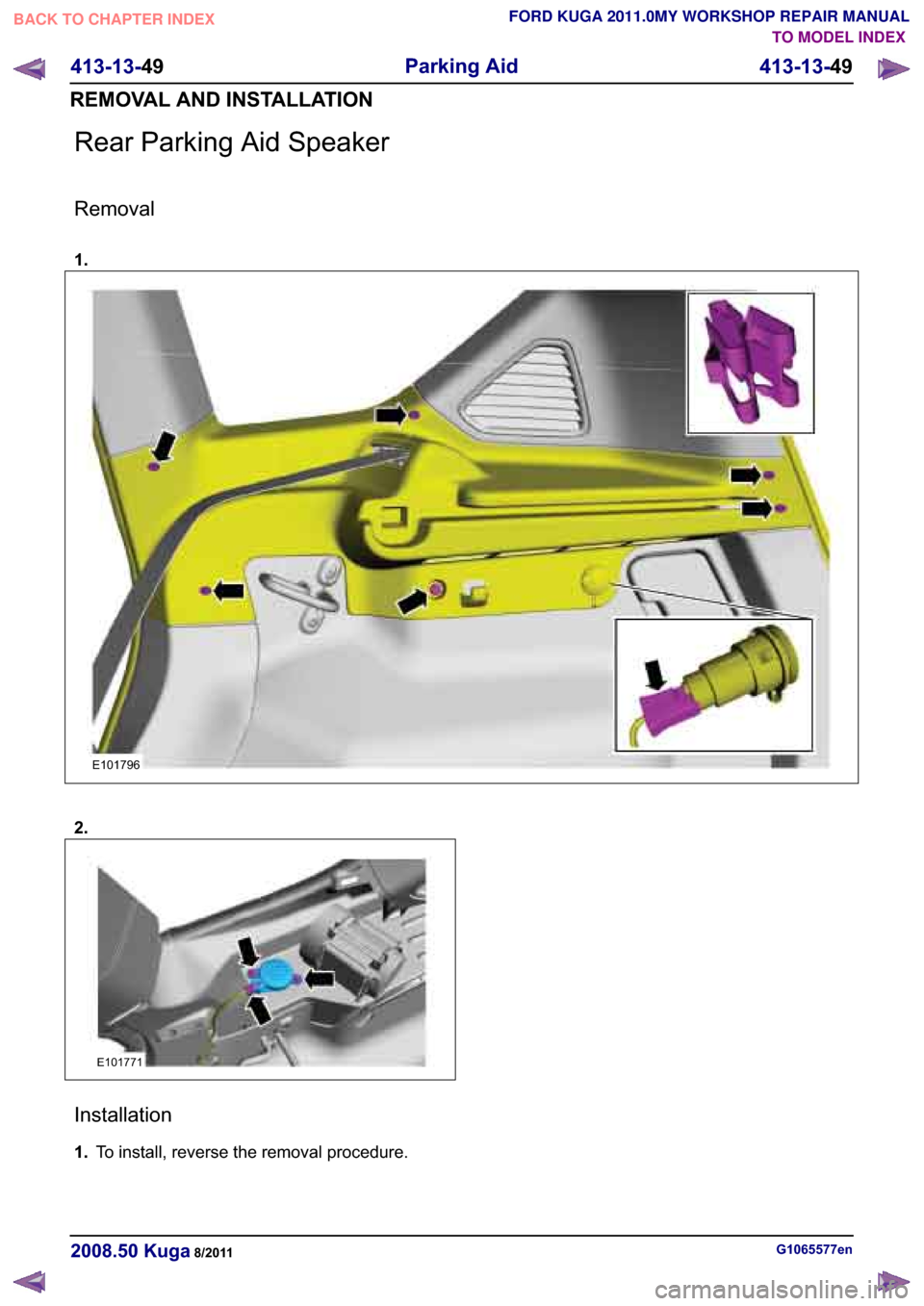

Page 248 of 2057
5 H D U 3 D U N L Q J $ L G 6 S H D N H U
5 H P R Y D O
(
(
, Q V W D O O D W L R Q
7 R L Q V W D O O U H Y H U V H W K H U H P R Y D O S U R F H G X U H
* H Q . X J D
3 D U N L Q J $ L G
5 ( 0 2 9 $ / $ 1 ' , 1 6 7 $ / / $ 7 , 2 1
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
Page 249 of 2057

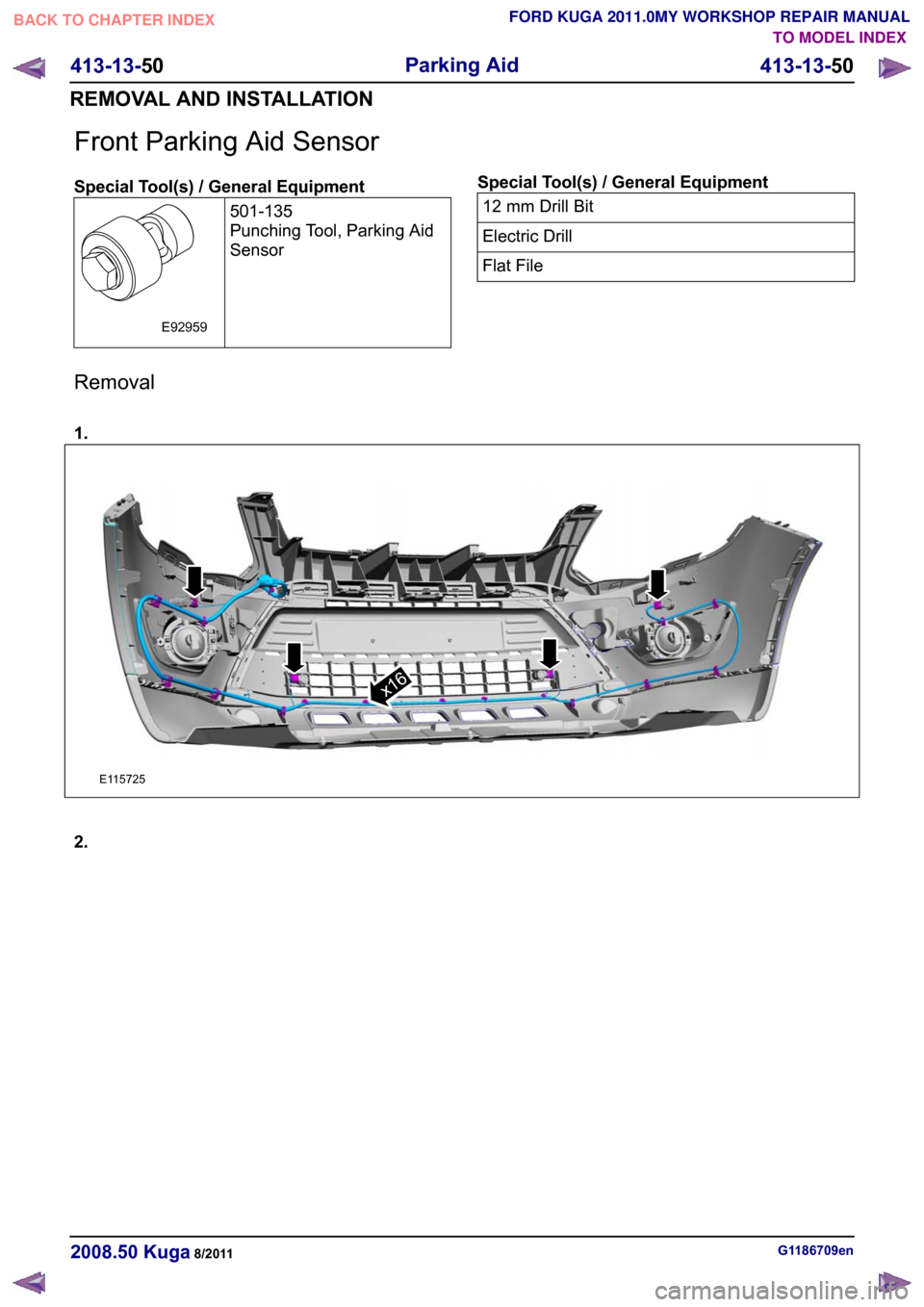

Front Parking Aid Sensor
Special Tool(s) / General Equipment
501-135
Punching Tool, Parking Aid
Sensor Special Tool(s) / General Equipment
12 mm Drill Bit
Electric Drill
Flat File
Removal
1. 2.
G1186709en
2008.50 Kuga 8/2011 413-13-50
Parking Aid
413-13-50
REMOVAL AND INSTALLATIONTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUALE92959 E115725x16

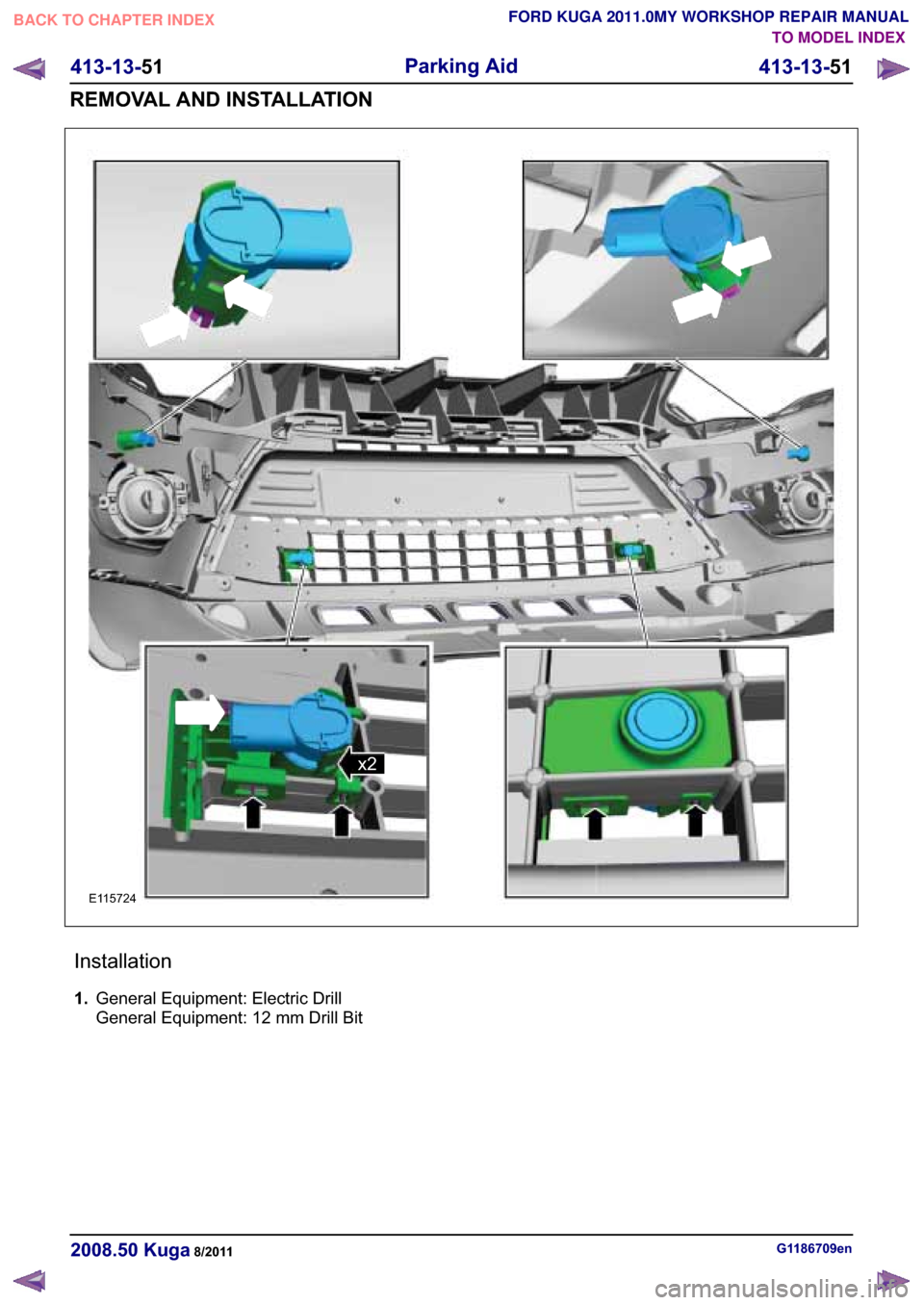

Page 250 of 2057
(
[
[
[
[
[
[
, Q V W D O O D W L R Q
* H Q H U D O ( T X L S P H Q W ( O H F W U L F ' U L O O
* H Q H U D O ( T X L S P H Q W P P ' U L O O % L W
* H Q . X J D
3 D U N L Q J $ L G
5 ( 0 2 9 $ / $ 1 ' , 1 6 7 $ / / $ 7 , 2 1
BACK TO CHAPTER INDEXFORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
