differential FORD KUGA 2011 1.G Service Manual

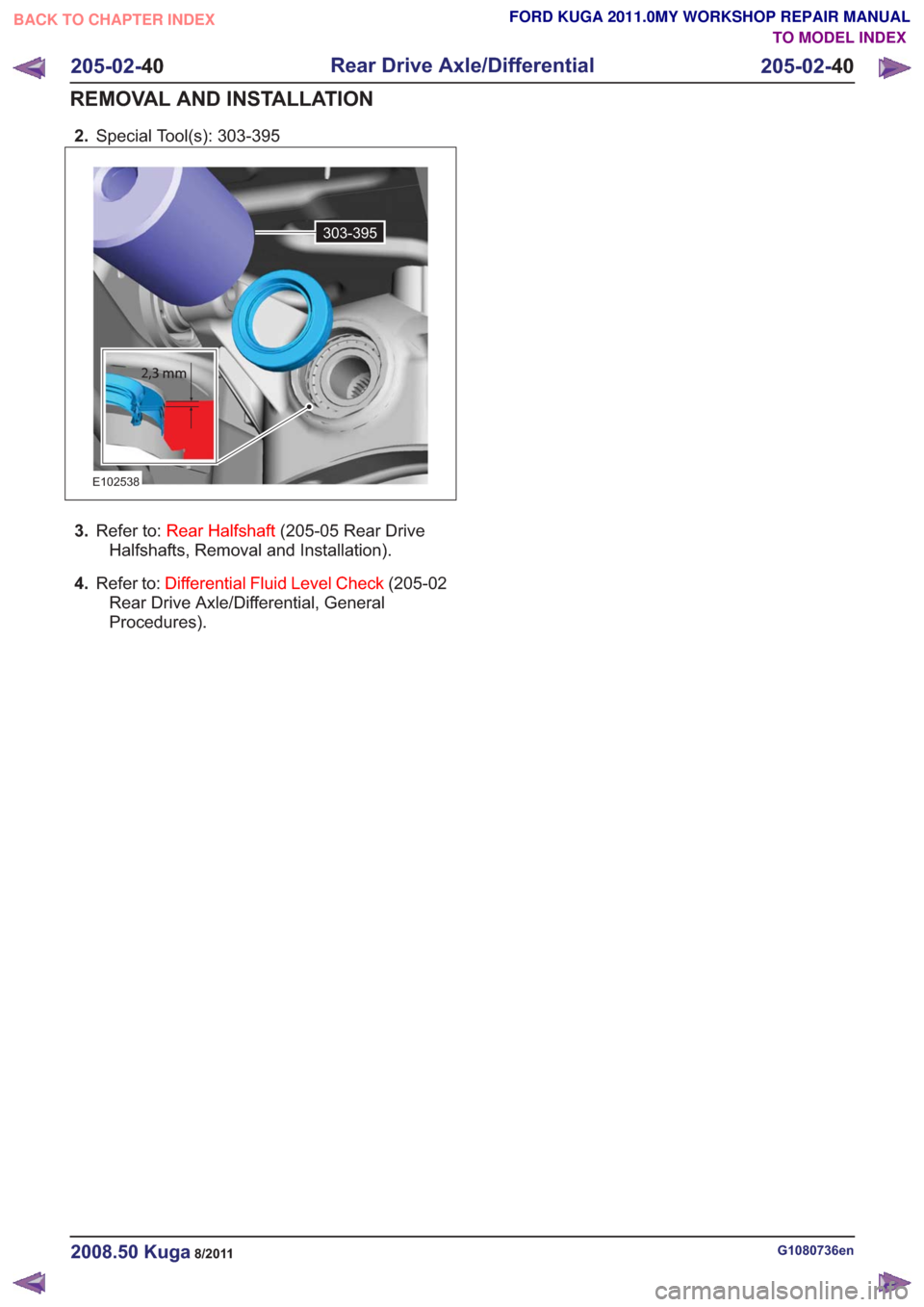

2.Special Tool(s): 303-395
303-395303-395
E102538
3.Refer to: Rear Halfshaft (205-05 Rear Drive
Halfshafts, Removal and Installation).
4. Refer to: Differential Fluid Level Check (205-02
Rear Drive Axle/Differential, General
Procedures).
G1080736en2008.50 Kuga8/2011
205-02- 40
Rear Drive Axle/Differential
205-02- 40
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Drive Pinion Seal
Special Tool(s)303-293
Remover, Crankshaft Seal
21143
Special Tool(s)308-643
Installer, Input Shaft Seal
E65343
Removal
1.Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Active On-Demand Coupling Module
(205-02 Rear Drive Axle/Differential, Removal
and Installation).
3. Special Tool(s): 303-293
303-293
303-293
303-293
303-293
E102546
Installation
1. CAUTION: Take extra care not to
damage the seal.
Special Tool(s): 308-643
308-643308-643
E102547
2.Refer to: Active On-Demand Coupling Module
(205-02 Rear Drive Axle/Differential, Removal
and Installation).
G1357281en2008.50 Kuga8/2011
205-02- 41
Rear Drive Axle/Differential
205-02- 41
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

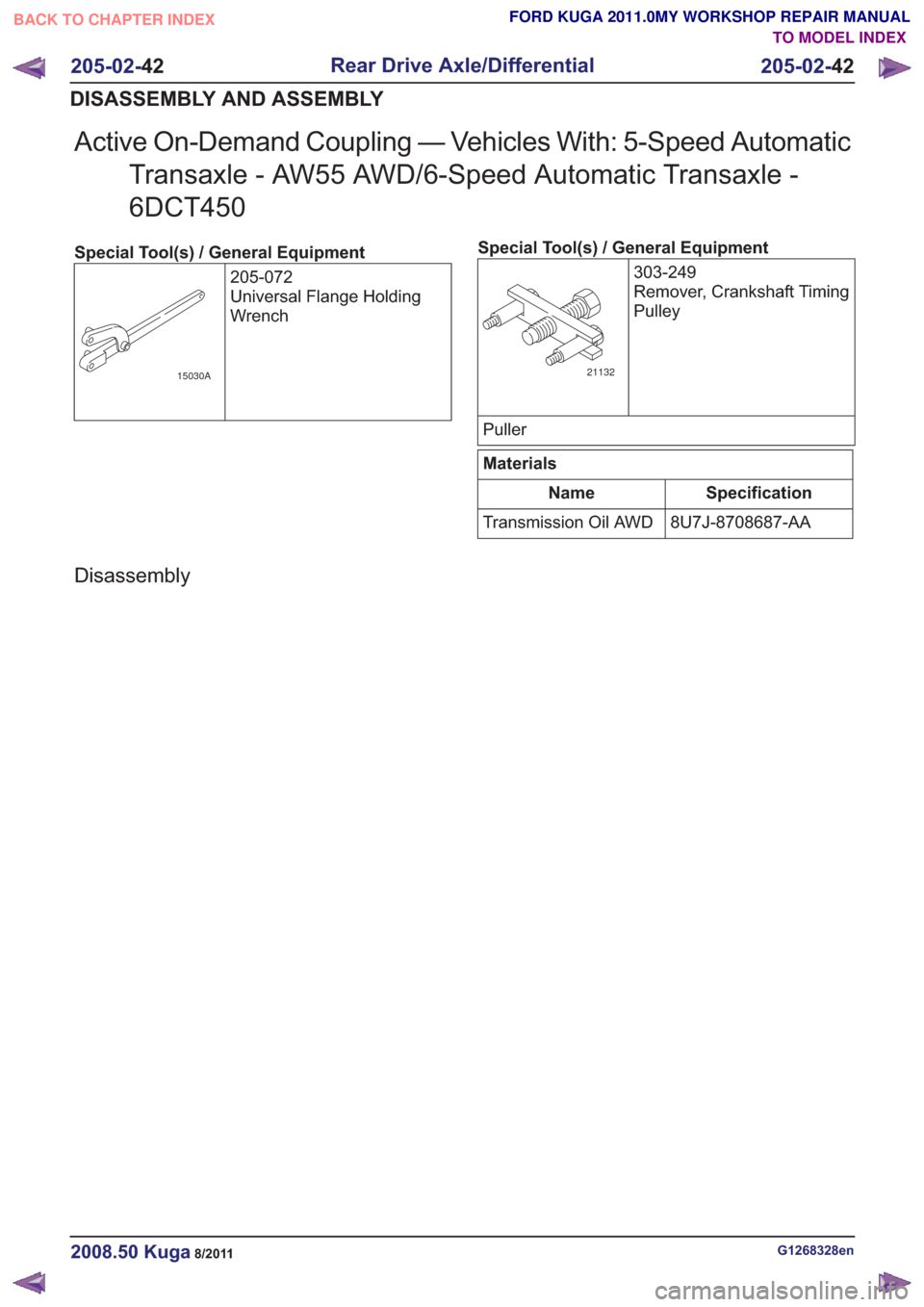

Active On-Demand Coupling — Vehicles With: 5-Speed AutomaticTransaxle - AW55 AWD/6-Speed Automatic Transaxle -
6DCT450
Special Tool(s) / General Equipment
205-072
Universal Flange Holding
Wrench
15030A
Special Tool(s) / General Equipment303-249
Remover, Crankshaft Timing
Pulley
21132
Puller
Materials
Specification
Name
8U7J-8708687-AA
Transmission Oil AWD
Disassembly
G1268328en2008.50 Kuga8/2011
205-02- 42
Rear Drive Axle/Differential
205-02- 42
DISASSEMBLY AND ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

1.Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
3.
E114257
4. WARNING: Be prepared to collect escaping fluid.
E124748
5.
E124778
6. WARNING: Be prepared to collectescaping fluid.
x2x2
E124749
7.
E128365
G1268328en2008.50 Kuga8/2011
205-02- 43
Rear Drive Axle/Differential
205-02- 43
DISASSEMBLY AND ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

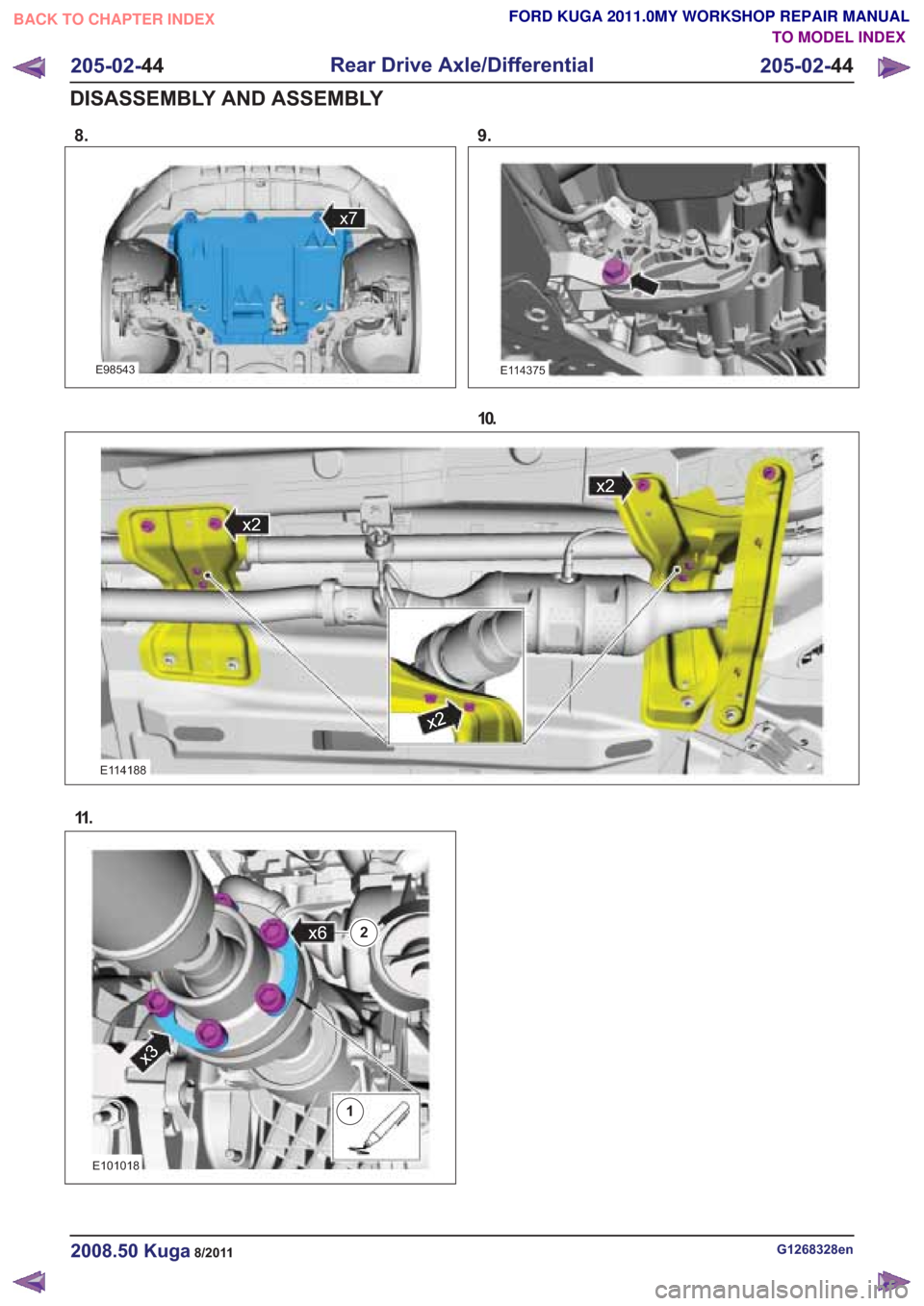

8.
E98543
x7
9.
E114375
10.
x2
x2
x2
x2
x2
x2
E114188
11 .
1
2x6
x3
1
2x6
x3
E101018
G1268328en2008.50 Kuga8/2011
205-02-44
Rear Drive Axle/Differential
205-02- 44
DISASSEMBLY AND ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

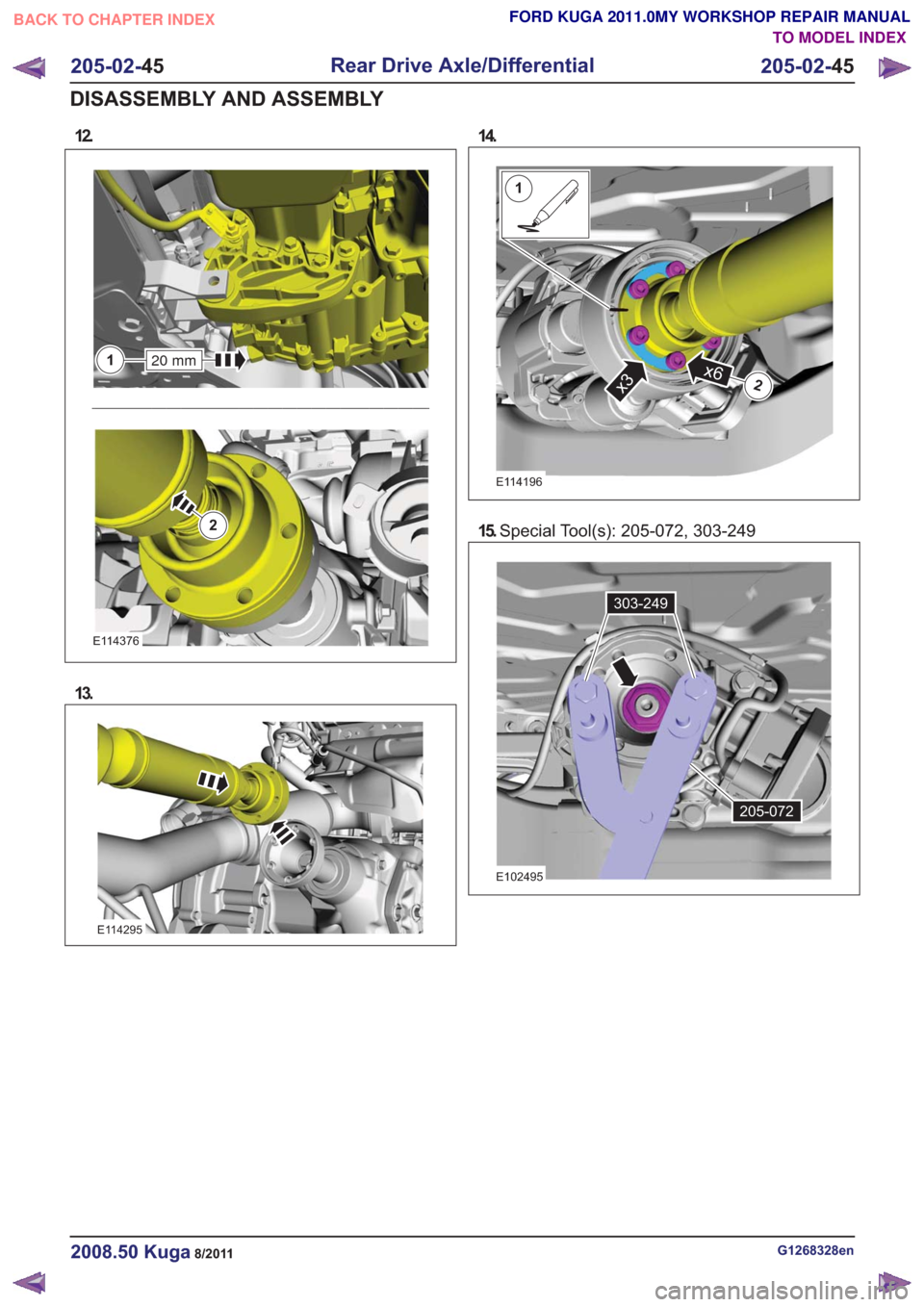

12.
20 mm1
2
20 mm1
2
E114376
13.
E114295
14.
1
2x6
x3
1
2x6
x3
E114196
15.Special Tool(s): 205-072, 303-249
205-072
303-249
205-072
303-249
E102495
G1268328en2008.50 Kuga8/2011
205-02- 45
Rear Drive Axle/Differential
205-02- 45
DISASSEMBLY AND ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

16.General Equipment: Puller
E114331
17. WARNING: Be prepared to collect
escaping fluid.
x2x2
E124753
Assembly
18.Material: Transmission Oil AWD
(8U7J-8708687-AA) transmission fluid
E124752
19. Torque: 6Nm
x2x2
E124753
G1268328en2008.50 Kuga8/2011
205-02- 46
Rear Drive Axle/Differential
205-02- 46
DISASSEMBLY AND ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

20.Special Tool(s): 205-072, 303-249
Torque: 150
Nm
205-072
303-249
205-072
303-249
E102500
21. CAUTION: Make sure that the
installation marks are aligned.
1. Torque: 35Nm
2. Torque: 35Nm
3. Torque: 35Nm
3
x2
1
2
2
x3
13
x2
1
2
2
x3
1
E114197
22.
E114296
23.
20 mm1
2
20 mm1
2
E114377
G1268328en2008.50 Kuga8/2011
205-02- 47
Rear Drive Axle/Differential
205-02- 47
DISASSEMBLY AND ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

24. CAUTION: Make sure that theinstallation marks are aligned.
1. Torque: 35Nm
2. Torque: 35Nm
3. Torque: 35Nm
3
x2
2
1
2
1
x3
3
x2
2
1
2
1
x3
E101042
25.Torque: 25Nm
x2
x2
x2
x2
x2
x2
E114188
G1268328en2008.50 Kuga8/2011
205-02- 48
Rear Drive Axle/Differential
205-02- 48
DISASSEMBLY AND ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

26.Torque:
• Stage 1: 35
Nm
• Stage 2: Loosen 360°
• Stage 3: 85Nm
E114375
27.
E98543
x7
28. N O T E : Make sure that a new component is
installed.
1.
2. Material: Transmission Oil AWD
(8U7J-8708687-AA) transmission fluid
2
1
2
1
E124780
29.
E128367
30.Torque: 6Nm
x2x2
E124749
31.Material: Transmission Oil AWD
(8U7J-8708687-AA) transmission fluid
E124750
G1268328en2008.50 Kuga8/2011
205-02- 49
Rear Drive Axle/Differential
205-02- 49
DISASSEMBLY AND ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
