Downloaded from www.Manualslib.com manuals search engine Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
2.82.72.22.5205/50 R 162.0 l Duratorq-TDCi,Automatic
2.82.62.12.3205/55 R 162.0 l Duratorq-TDCi,Automatic
2.82.72.32.5205/50 R 172.0 l Duratorq-TDCi,Automatic
2.82.82.32.6225/40 R 182.0 l Duratorq-TDCi,Automatic
2.92.82.32.6225/40 R 182.0 l Duratorq-TDCi,Automatic
2.82.72.22.6205/50 R 162.2 l Duratorq-TDCi
2.82.42.12.3205/55 R 162.2 l Duratorq-TDCi
2.82.62.22.4205/50 R 172.2 l Duratorq-TDCi
2.82.72.32.5225/40 R 182.2 l Duratorq-TDCi
2.92.72.32.5225/40 R 182.2 l Duratorq-TDCi
2.82.72.22.6205/50 R 162.0 l Duratorq-TDDi
2.82.42.12.3205/55 R 162.0 l Duratorq-TDDi
2.82.62.22.4205/50 R 172.0 l Duratorq-TDDi
2.82.72.32.5225/40 R 182.0 l Duratorq-TDDi
2.92.72.32.5225/40 R 182.0 l Duratorq-TDDi
Continuous speed in excess of 160 km/h (100 mph)

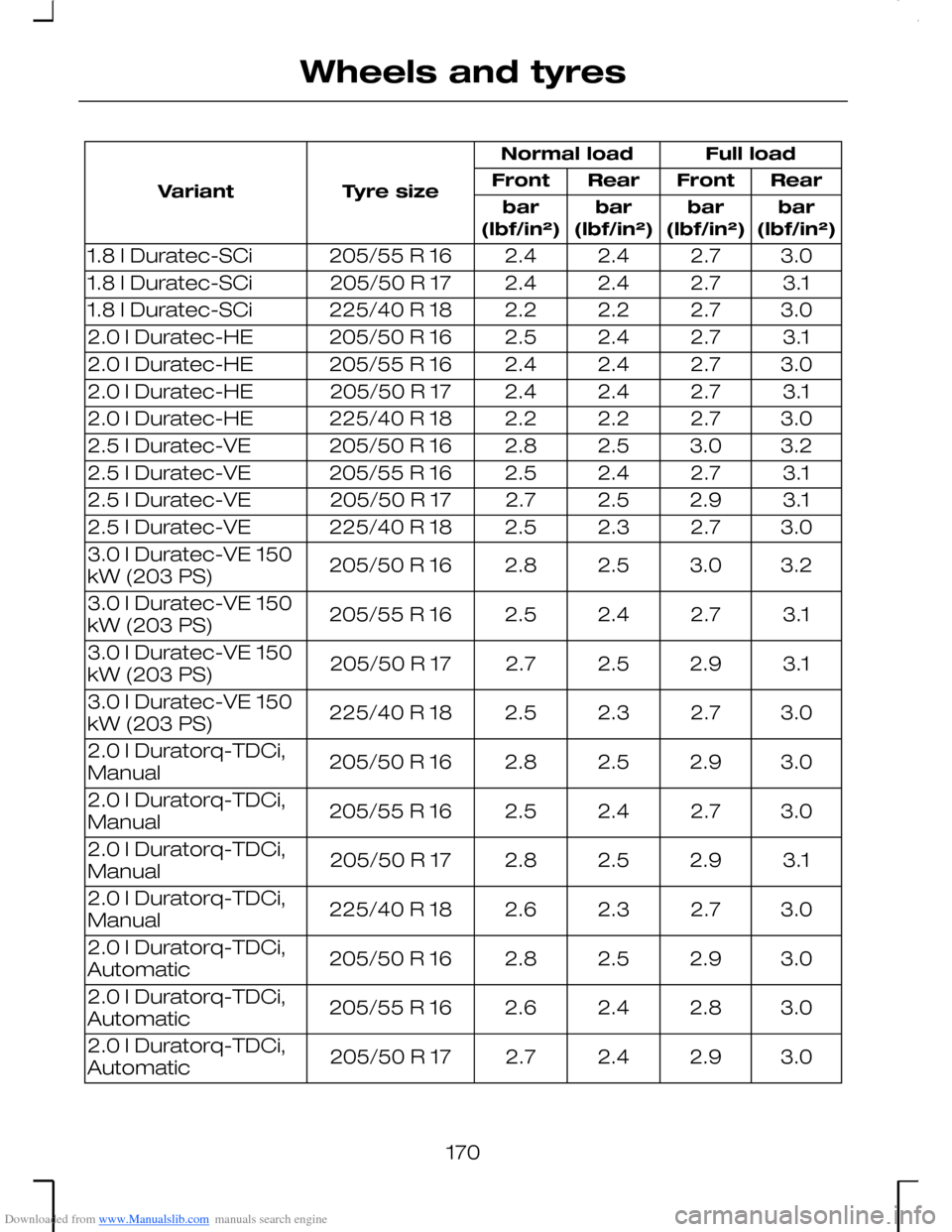

Tyre pressures
Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
3.12.72.42.5205/50 R 161.8 l Duratec-HE
3.02.72.42.4205/55 R 161.8 l Duratec-HE
3.12.72.42.4205/50 R 171.8 l Duratec-HE
3.02.72.22.2225/40 R 181.8 l Duratec-HE
3.12.72.42.5205/50 R 161.8 l Duratec-SCi
169
Wheels and tyres

Downloaded from www.Manualslib.com manuals search engine Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
3.02.72.42.4205/55 R 161.8 l Duratec-SCi
3.12.72.42.4205/50 R 171.8 l Duratec-SCi
3.02.72.22.2225/40 R 181.8 l Duratec-SCi
3.12.72.42.5205/50 R 162.0 l Duratec-HE
3.02.72.42.4205/55 R 162.0 l Duratec-HE
3.12.72.42.4205/50 R 172.0 l Duratec-HE
3.02.72.22.2225/40 R 182.0 l Duratec-HE
3.23.02.52.8205/50 R 162.5 l Duratec-VE
3.12.72.42.5205/55 R 162.5 l Duratec-VE
3.12.92.52.7205/50 R 172.5 l Duratec-VE
3.02.72.32.5225/40 R 182.5 l Duratec-VE
3.23.02.52.8205/50 R 163.0 l Duratec-VE 150kW (203 PS)
3.12.72.42.5205/55 R 163.0 l Duratec-VE 150kW (203 PS)
3.12.92.52.7205/50 R 173.0 l Duratec-VE 150kW (203 PS)
3.02.72.32.5225/40 R 183.0 l Duratec-VE 150kW (203 PS)
3.02.92.52.8205/50 R 162.0 l Duratorq-TDCi,Manual
3.02.72.42.5205/55 R 162.0 l Duratorq-TDCi,Manual
3.12.92.52.8205/50 R 172.0 l Duratorq-TDCi,Manual
3.02.72.32.6225/40 R 182.0 l Duratorq-TDCi,Manual
3.02.92.52.8205/50 R 162.0 l Duratorq-TDCi,Automatic
3.02.82.42.6205/55 R 162.0 l Duratorq-TDCi,Automatic
3.02.92.42.7205/50 R 172.0 l Duratorq-TDCi,Automatic
170
Wheels and tyres

Downloaded from www.Manualslib.com manuals search engine Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
3.02.82.42.6225/40 R 182.0 l Duratorq-TDCi,Automatic
3.02.92.52.8205/50 R 162.2 l Duratorq-TDCi
3.02.72.42.5205/55 R 162.2 l Duratorq-TDCi
3.12.92.52.8205/50 R 172.2 l Duratorq-TDCi
3.02.72.32.6225/40 R 182.2 l Duratorq-TDCi
3.02.92.52.8205/50 R 162.0 l Duratorq-TDDi
3.02.72.42.5205/55 R 162.0 l Duratorq-TDDi
3.12.92.52.8205/50 R 172.0 l Duratorq-TDDi
3.02.72.32.6225/40 R 182.0 l Duratorq-TDDi
Continuous speed in excess of 220 km/h (140 mph)

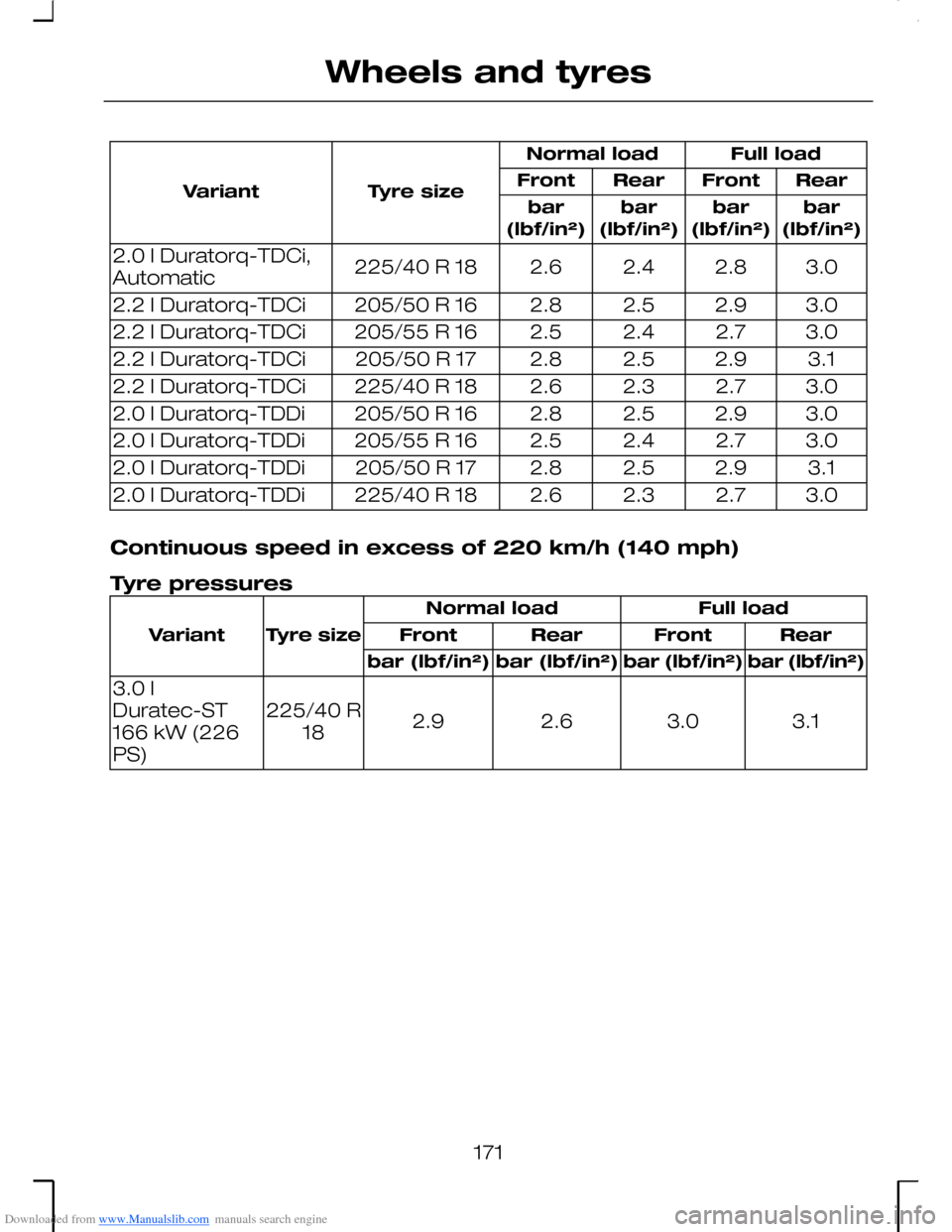

Tyre pressures
Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar (lbf/in²)bar (lbf/in²)bar (lbf/in²)bar (lbf/in²)
3.13.02.62.9225/40 R18
3.0 lDuratec-ST166 kW (226PS)
171
Wheels and tyres

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION
PLATE
The vehicle identification plate islocated on the lower section of theright-hand front door pillar.

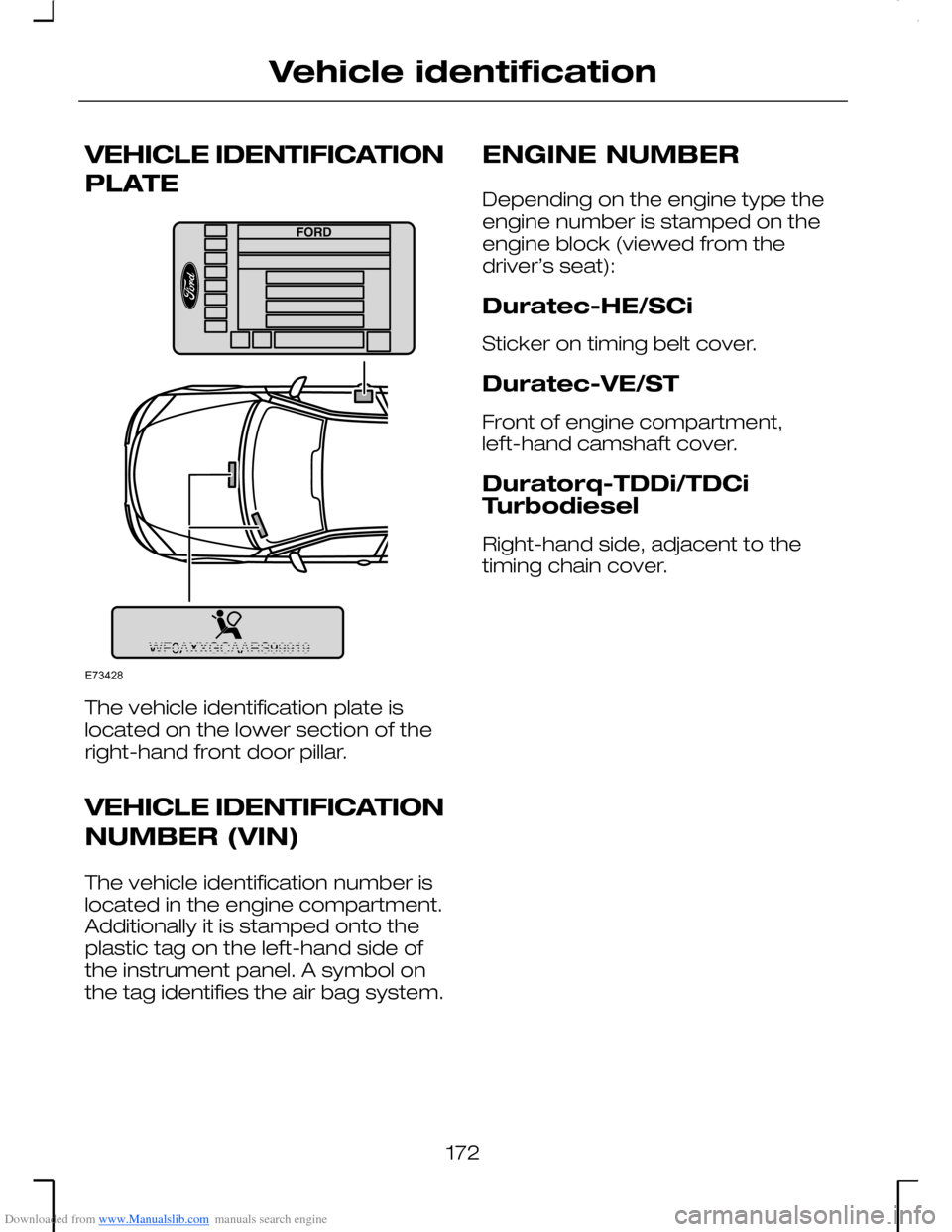

VEHICLE IDENTIFICATION
NUMBER (VIN)
The vehicle identification number islocated in the engine compartment.Additionally it is stamped onto theplastic tag on the left-hand side ofthe instrument panel. A symbol onthe tag identifies the air bag system.
ENGINE NUMBER
Depending on the engine type theengine number is stamped on theengine block (viewed from thedriver’s seat):
Duratec-HE/SCi
Sticker on timing belt cover.
Duratec-VE/ST
Front of engine compartment,left-hand camshaft cover.
Duratorq-TDDi/TDCiTurbodiesel
Right-hand side, adjacent to thetiming chain cover.
172
Vehicle identificationE73428

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS

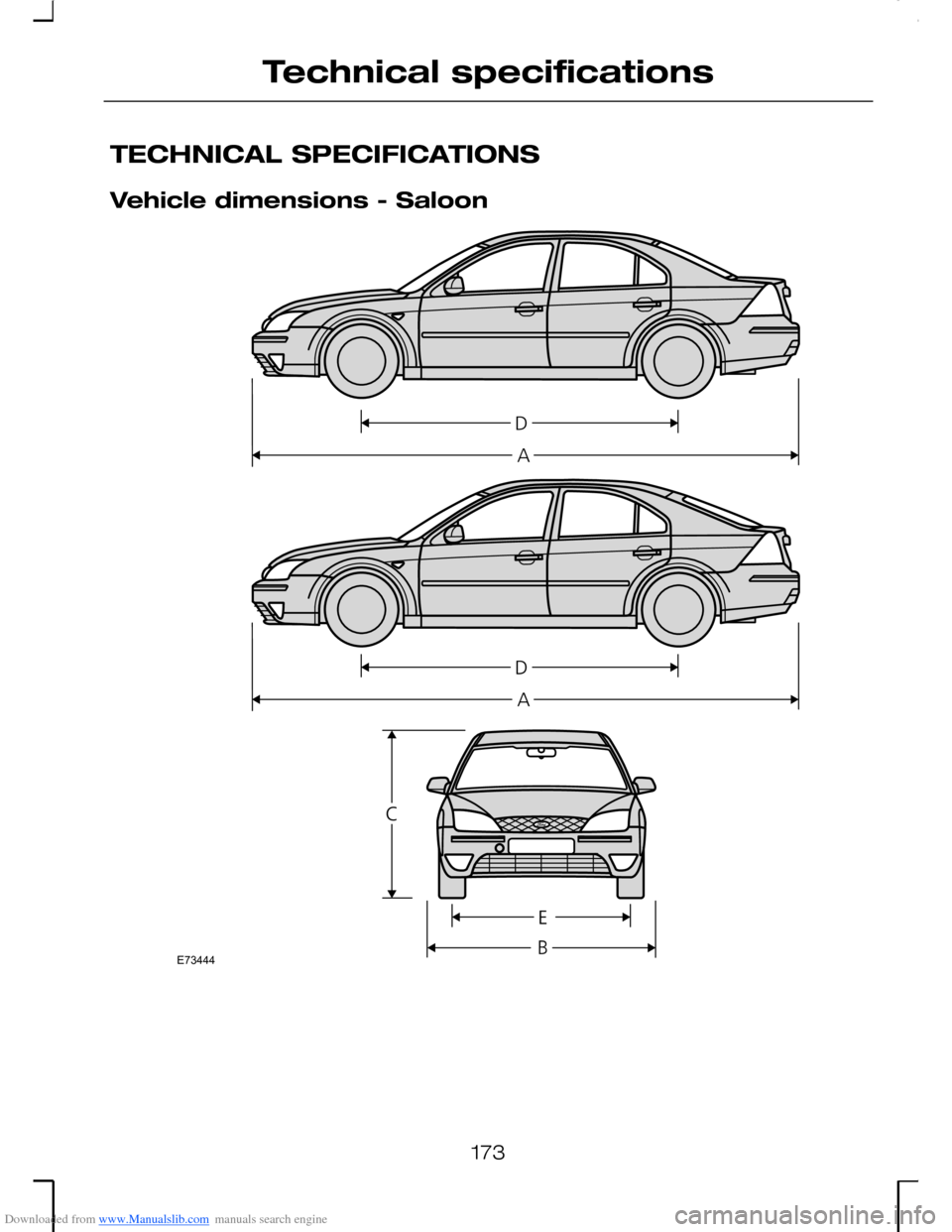

Vehicle dimensions - Saloon
173
Technical specificationsE73444

Downloaded from www.Manualslib.com manuals search engine Dimension in mm(inches)Dimension descriptionItem
4731 mmMaximum length - without body styling kitA
4753 mmMaximum length - with body styling kitA
4756 mmMaximum length - ST modelsA
1958 mmOverall width - incl. exterior mirrorsB
1415 - 1459 mmOverall height - EC kerb weightC
2754 mmWheelbaseD
1522 mmTrack - FrontE
1537 mmTrack - RearE

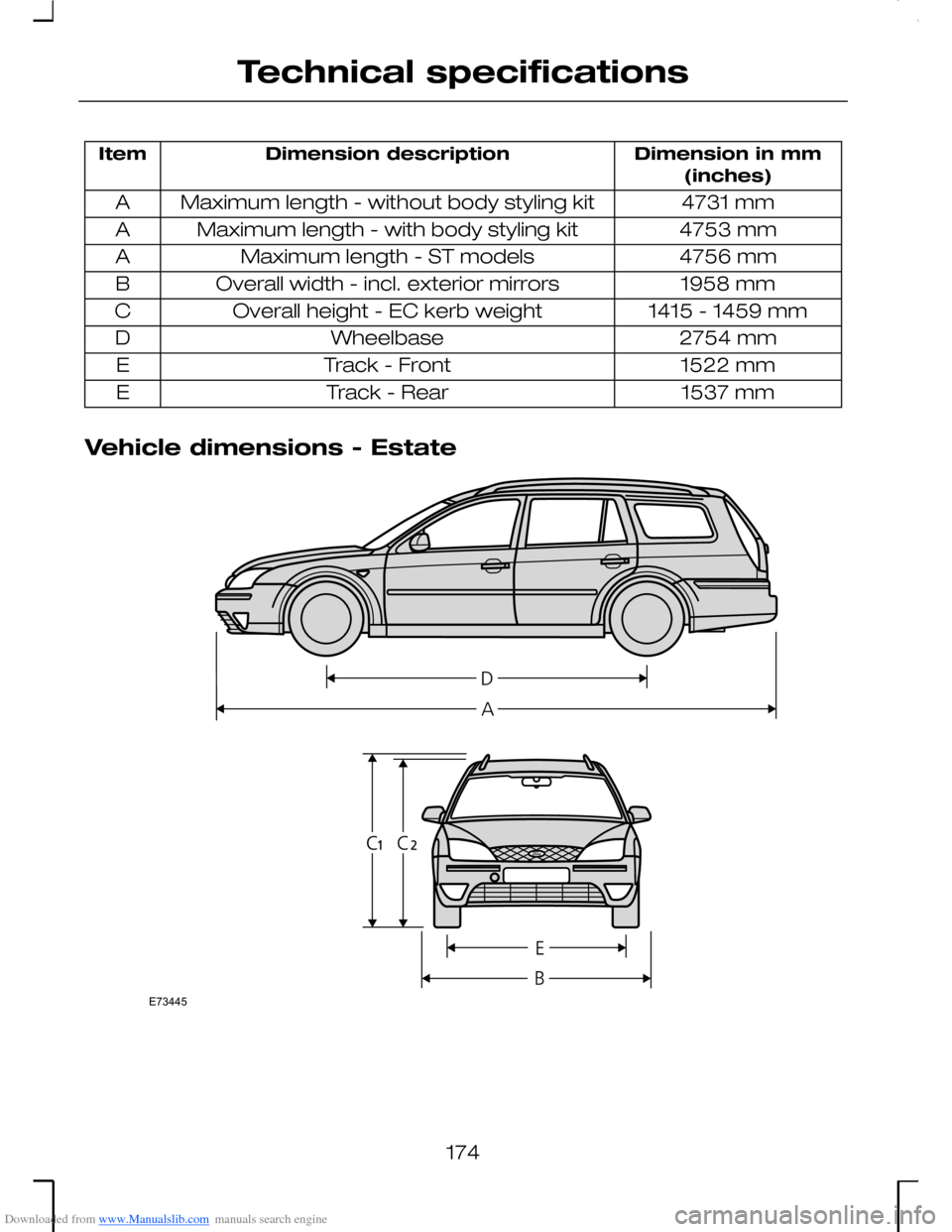

Vehicle dimensions - Estate
174
Technical specificationsE73445

Downloaded from www.Manualslib.com manuals search engine Dimension in mm(inches)Dimension descriptionItem
4804 mmMaximum length - without body styling kitA
4831 mmMaximum length - with body styling kitA
4833 mmMaximum length - ST modelsA
1958 mmOverall width - incl. exterior mirrorsB
1427 - 1514 mmOverall height - EC kerb weightC1
1427 - 1474 mmOverall height - EC kerb weightC2
2754 mmWheelbaseD
1522 mmTrack - FrontE
1537 mmTrack - RearE

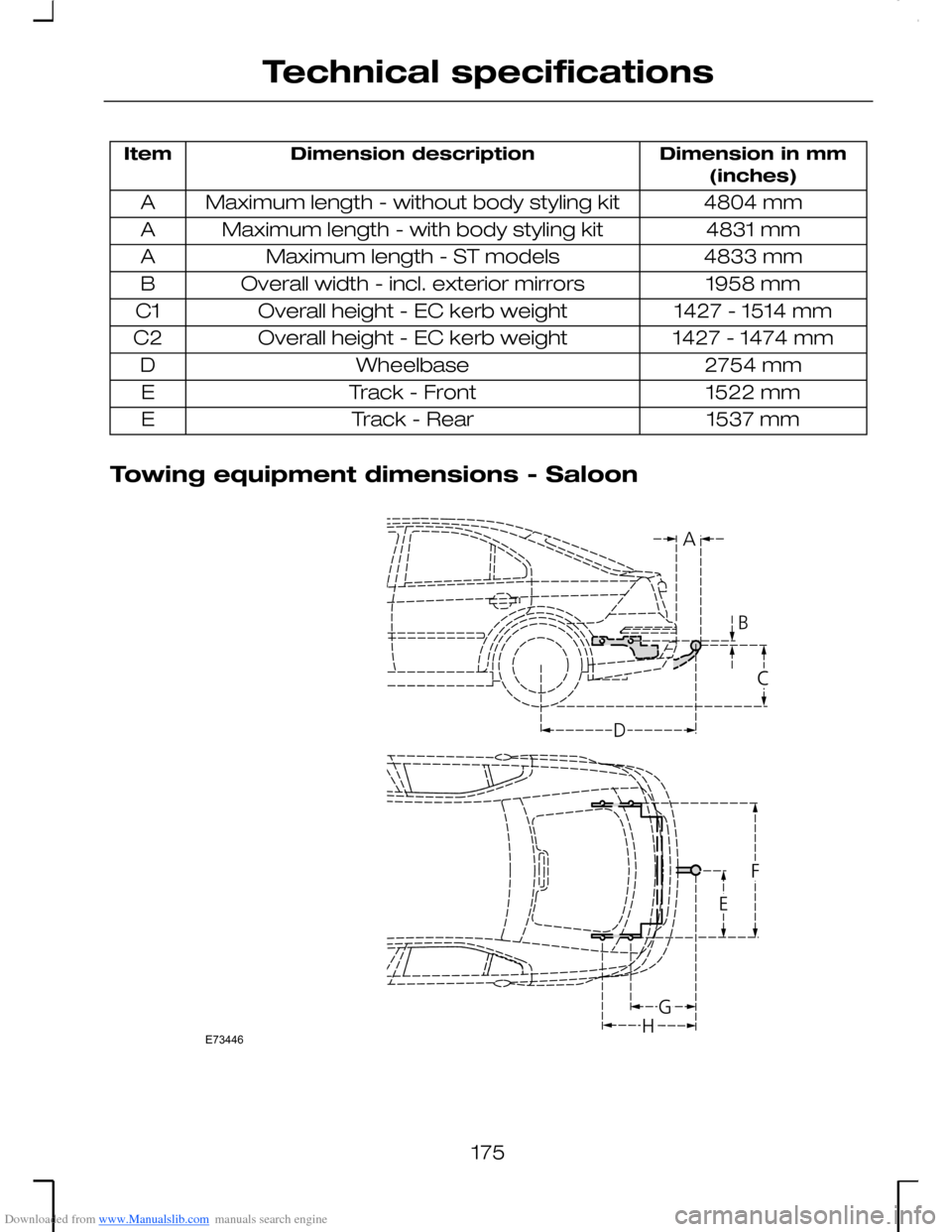

Towing equipment dimensions - Saloon
175
Technical specificationsE73446

Downloaded from www.Manualslib.com manuals search engine Dimension in mm(inches)Dimension descriptionItem
91 mmBumper – centre of towballA
13 mmAttachment point – centre of towballB
440 - 468 mmGround surface – centre of towball - EC kerbweightC
1102 mmWheel centre – centre of towballD
413 mmCentre of towball – side memberE
825 mmInner side of side memberF
472 mmCentre of towball – centre 1. attachment pointG
673 mmCentre of towball – centre 2. attachment pointH
176
Technical specifications

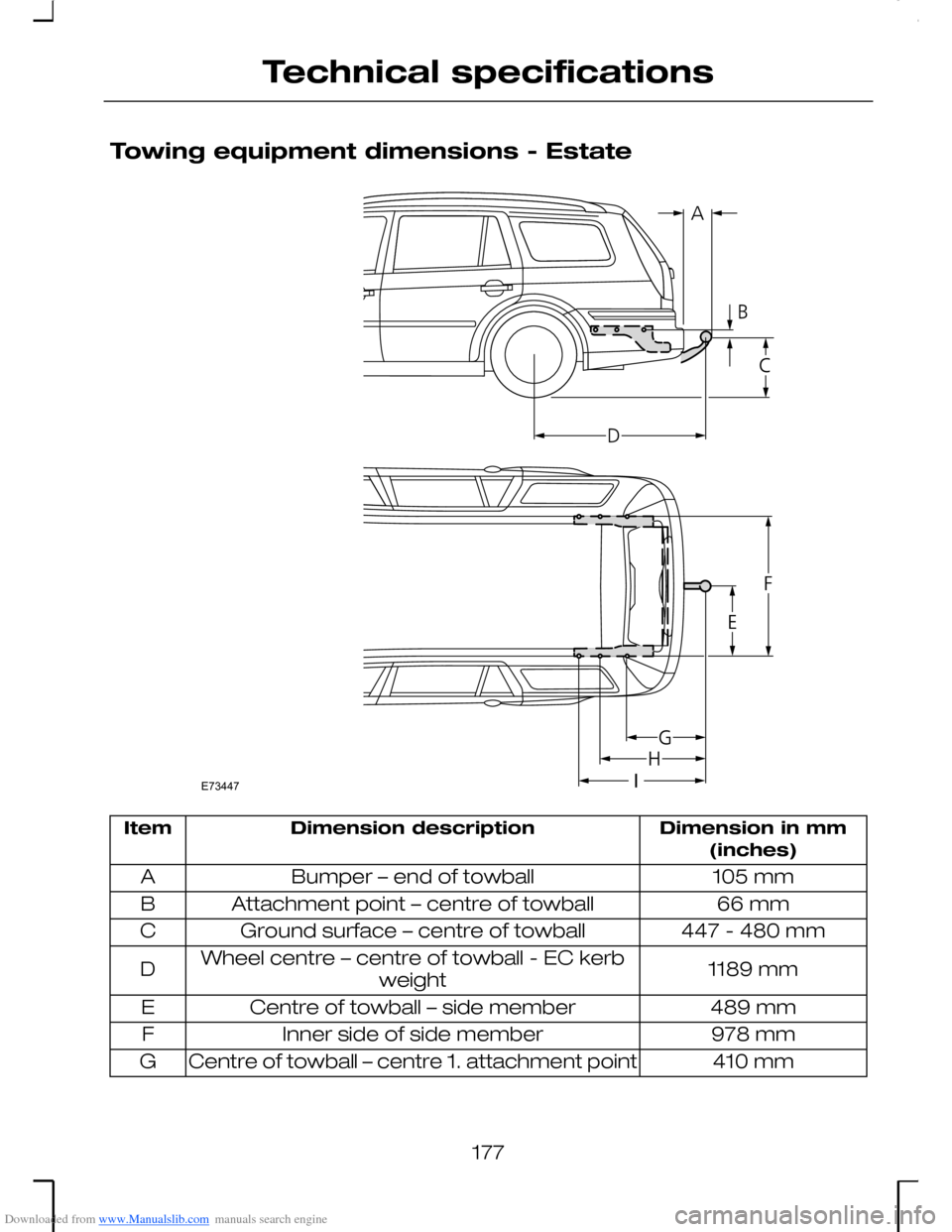

Downloaded from www.Manualslib.com manuals search engine Towing equipment dimensions - Estate
Dimension in mm(inches)Dimension descriptionItem
105 mmBumper – end of towballA
66 mmAttachment point – centre of towballB
447 - 480 mmGround surface – centre of towballC
1189 mmWheel centre – centre of towball - EC kerbweightD
489 mmCentre of towball – side memberE
978 mmInner side of side memberF
410 mmCentre of towball – centre 1. attachment pointG
177
Technical specificationsE73447

Downloaded from www.Manualslib.com manuals search engine Dimension in mm(inches)Dimension descriptionItem
595 mmCentre of towball – centre 2. attachment pointH
740 mmCentre of towball – centre 3. attachment pointI

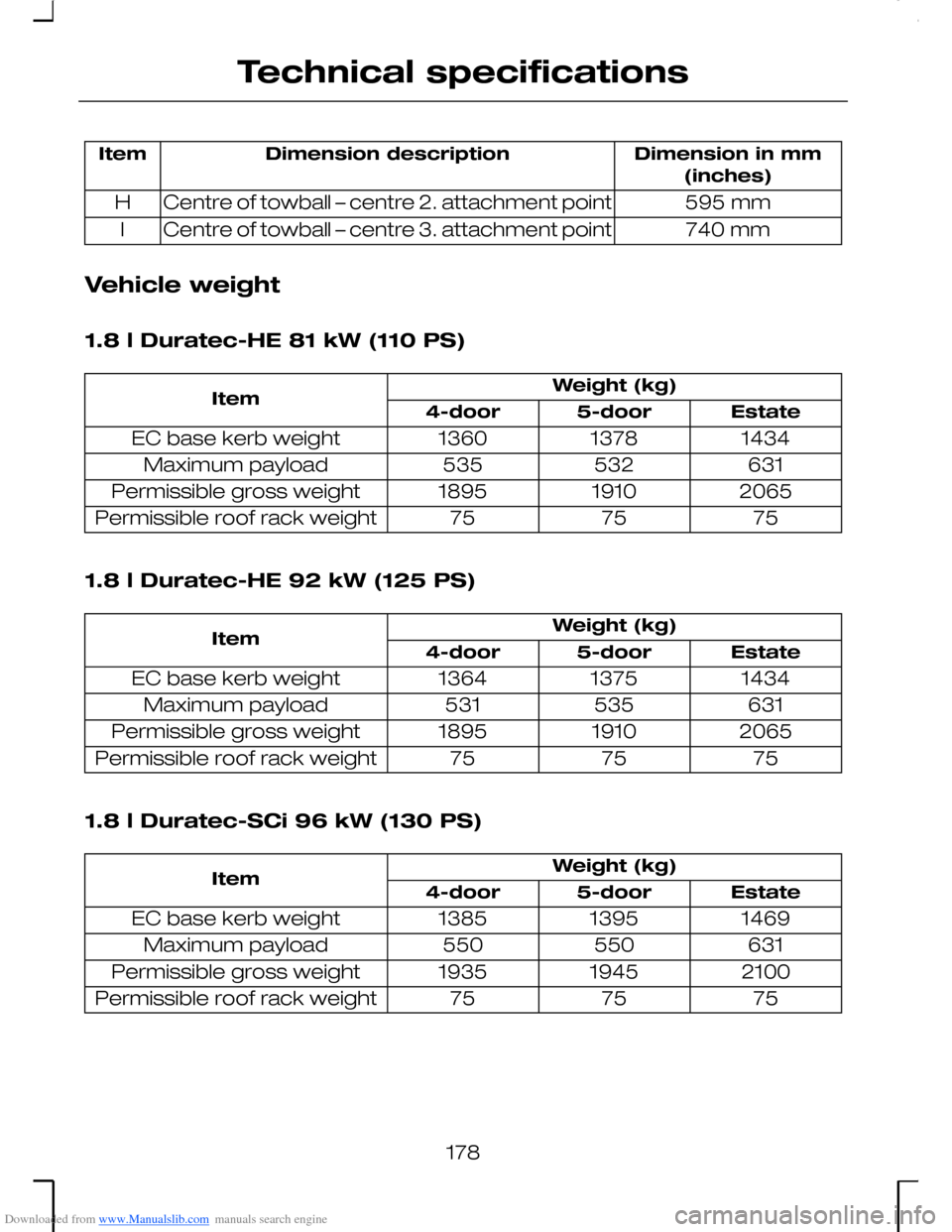

Vehicle weight
1.8 l Duratec-HE 81 kW (110 PS)
Weight (kg)ItemEstate5-door4-door
143413781360EC base kerb weight
631532535Maximum payload
206519101895Permissible gross weight
757575Permissible roof rack weight
1.8 l Duratec-HE 92 kW (125 PS)
Weight (kg)ItemEstate5-door4-door
143413751364EC base kerb weight
631535531Maximum payload
206519101895Permissible gross weight
757575Permissible roof rack weight
1.8 l Duratec-SCi 96 kW (130 PS)
Weight (kg)ItemEstate5-door4-door
146913951385EC base kerb weight
631550550Maximum payload
210019451935Permissible gross weight
757575Permissible roof rack weight
178
