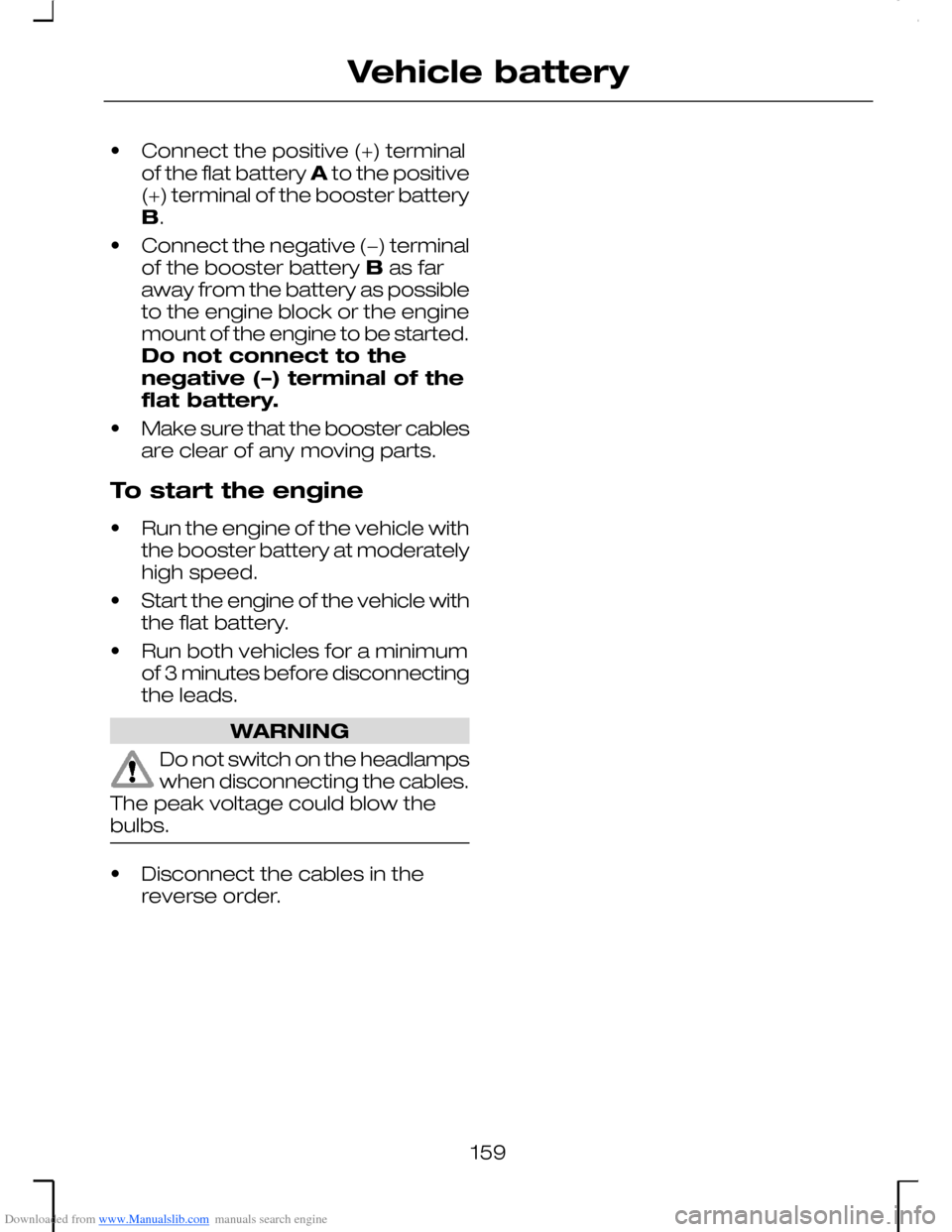

Downloaded from www.Manualslib.com manuals search engine •Connect the positive (+) terminalof the flat battery A to the positive(+) terminal of the booster batteryB.
•Connect the negative (−) terminalof the booster battery B as faraway from the battery as possibleto the engine block or the enginemount of the engine to be started.Do not connect to thenegative (–) terminal of theflat battery.
•Make sure that the booster cablesare clear of any moving parts.
To start the engine
•Run the engine of the vehicle withthe booster battery at moderatelyhigh speed.
•Start the engine of the vehicle withthe flat battery.
•Run both vehicles for a minimumof 3 minutes before disconnectingthe leads.
WARNING
Do not switch on the headlampswhen disconnecting the cables.The peak voltage could blow thebulbs.
•Disconnect the cables in thereverse order.
159
Vehicle battery

Downloaded from www.Manualslib.com manuals search engine CHANGING A ROAD
WHEEL
Spare wheel
All vehicles
WARNING
Use only approved wheel andtyre sizes. Using other sizescould damage the vehicle and willmake the National Type Approvalinvalid.
Vehicles with a temporaryspare wheel
WARNINGS
If the spare wheel differs fromthe other fitted wheels, theserules must be followed:
Do not exceed 80 km/h (50mph).
Drive the shortest possibledistances.
Do not fit more than one sparewheel on your vehicle at anyone time.
Do not use snow chains on thistype of wheel.
Do not drive through anautomatic car wash.
Vehicles with stability assist
Vehicles with ESP may exhibit someunusual driving characteristics. Switchthe ESP off. See Using stabilitycontrol (page 120).
4-door and 5-door
The spare wheel is located under thefloor cover in the luggagecompartment.
•Raise the rear of the floor cover inthe luggage compartment andremove it.
•Completely unscrew the retainingdevice anticlockwise.
•Lift out the spare wheel.
•Remove the jack which is locatedbeneath the spare wheel.
Install the defective wheel in thereverse order.
160
Wheels and tyresE72563 E72564

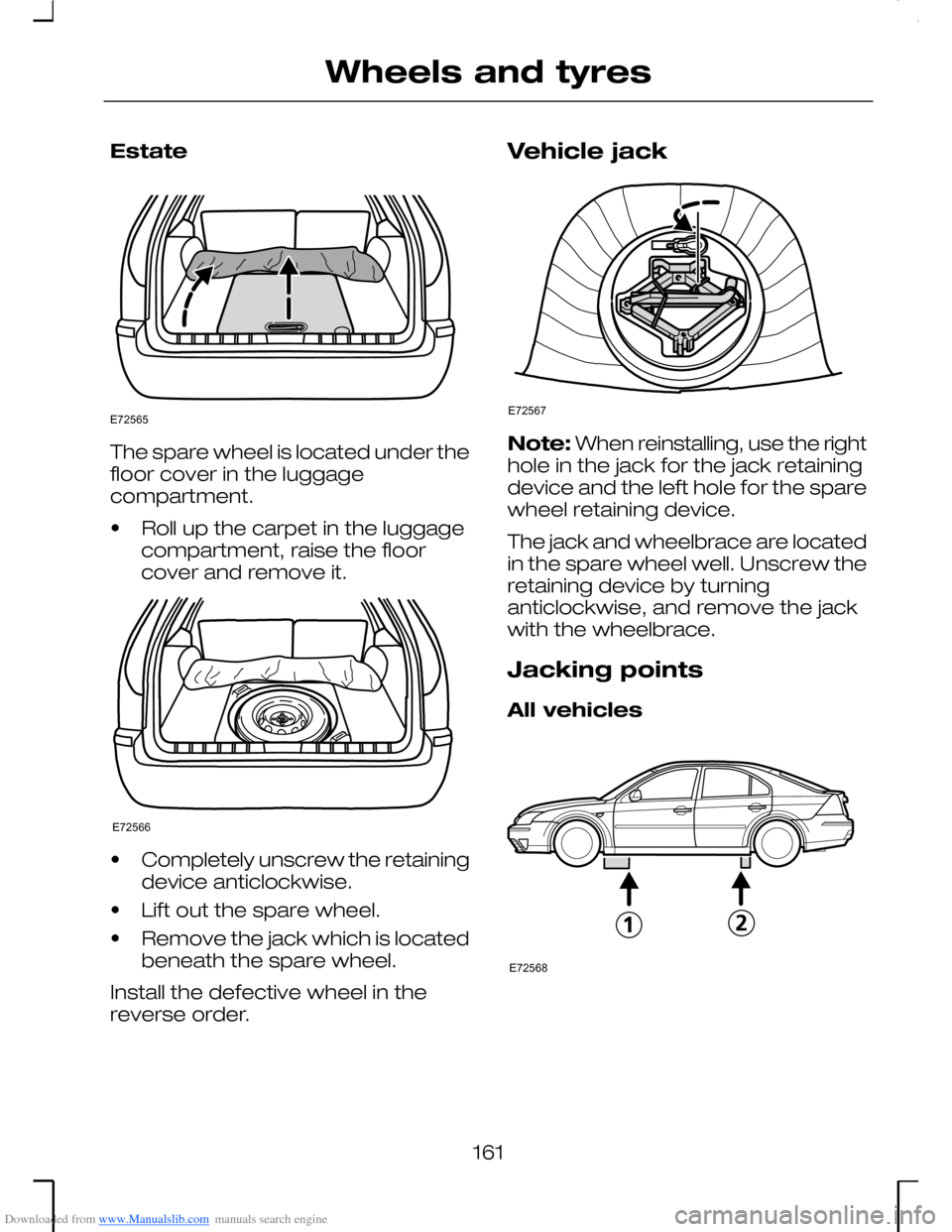

Downloaded from www.Manualslib.com manuals search engine Estate
The spare wheel is located under thefloor cover in the luggagecompartment.
•Roll up the carpet in the luggagecompartment, raise the floorcover and remove it.
•Completely unscrew the retainingdevice anticlockwise.
•Lift out the spare wheel.
•Remove the jack which is locatedbeneath the spare wheel.
Install the defective wheel in thereverse order.
Vehicle jack
Note: When reinstalling, use the righthole in the jack for the jack retainingdevice and the left hole for the sparewheel retaining device.
The jack and wheelbrace are locatedin the spare wheel well. Unscrew theretaining device by turninganticlockwise, and remove the jackwith the wheelbrace.
Jacking points
All vehicles
161
Wheels and tyresE72565 E72566 E72567 E72568

Downloaded from www.Manualslib.com manuals search engine WARNING
The jack must only be used onthe jacking points specifiedbelow.

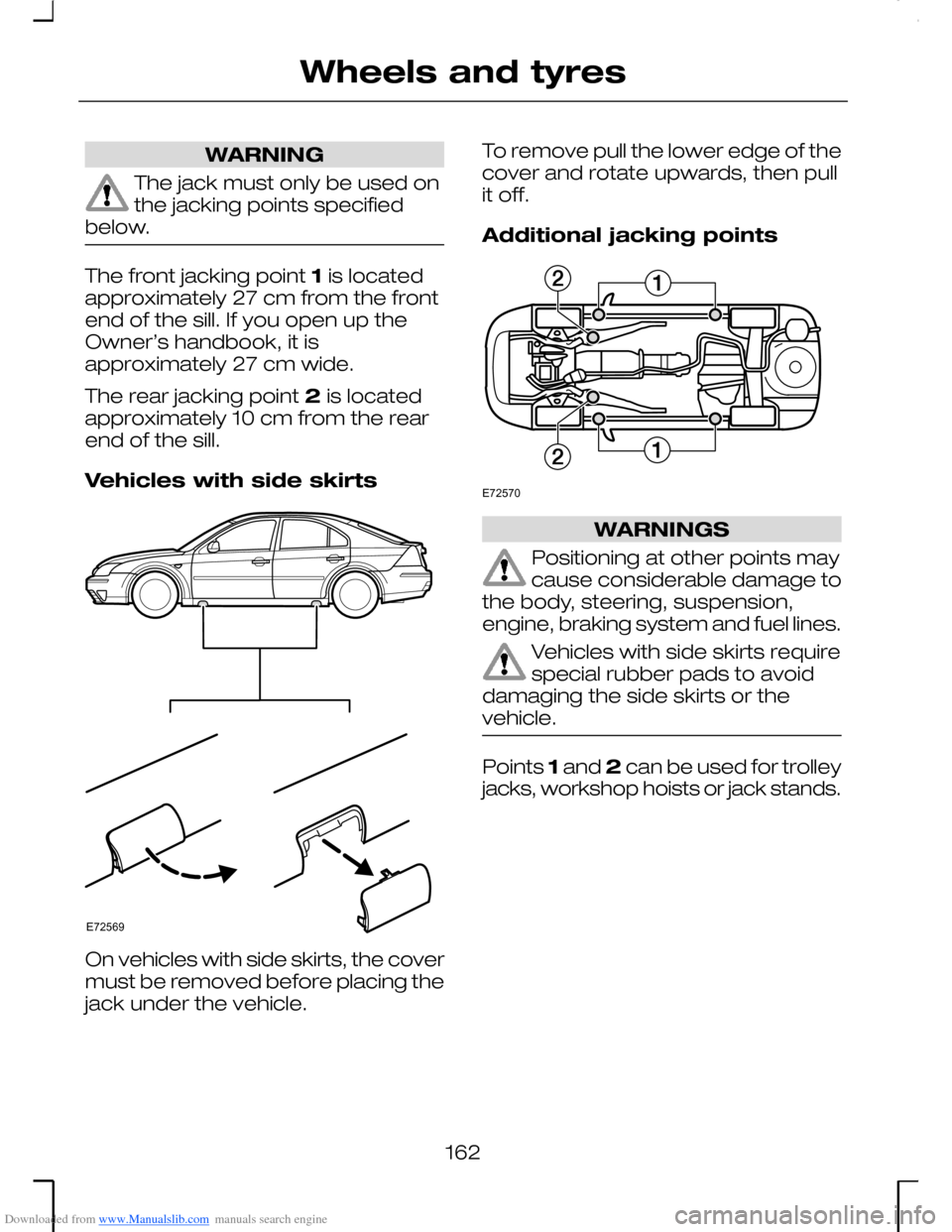

The front jacking point 1 is locatedapproximately 27 cm from the frontend of the sill. If you open up theOwner’s handbook, it isapproximately 27 cm wide.
The rear jacking point 2 is locatedapproximately 10 cm from the rearend of the sill.
Vehicles with side skirts
On vehicles with side skirts, the covermust be removed before placing thejack under the vehicle.
To remove pull the lower edge of thecover and rotate upwards, then pullit off.
Additional jacking points
WARNINGS
Positioning at other points maycause considerable damage tothe body, steering, suspension,engine, braking system and fuel lines.
Vehicles with side skirts requirespecial rubber pads to avoiddamaging the side skirts or thevehicle.
Points 1 and 2 can be used for trolleyjacks, workshop hoists or jack stands.
162
Wheels and tyresE72569 E72570

Downloaded from www.Manualslib.com manuals search engine Removing a wheel

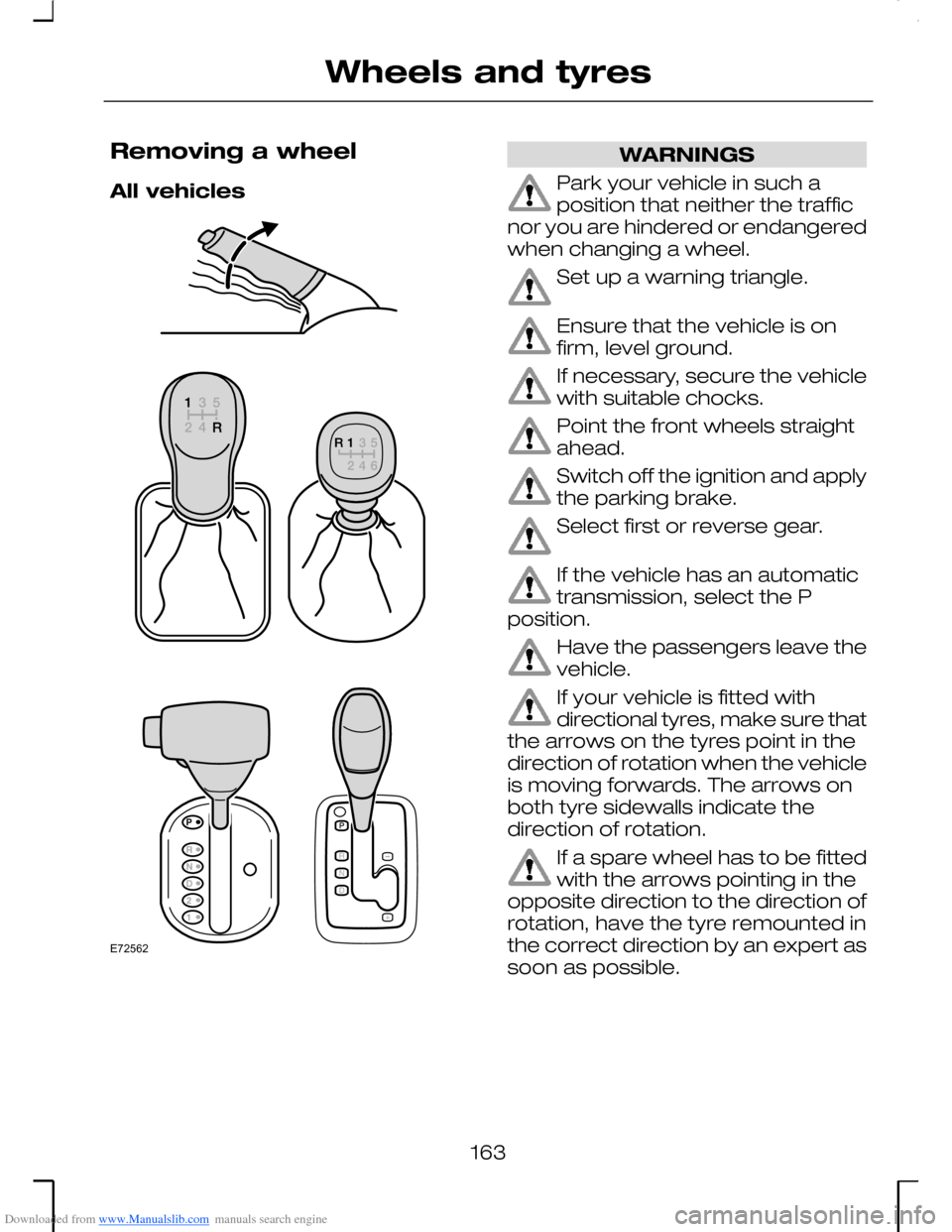

All vehicles
WARNINGS
Park your vehicle in such aposition that neither the trafficnor you are hindered or endangeredwhen changing a wheel.
Set up a warning triangle.
Ensure that the vehicle is onfirm, level ground.
If necessary, secure the vehiclewith suitable chocks.
Point the front wheels straightahead.
Switch off the ignition and applythe parking brake.
Select first or reverse gear.
If the vehicle has an automatictransmission, select the Pposition.
Have the passengers leave thevehicle.
If your vehicle is fitted withdirectional tyres, make sure thatthe arrows on the tyres point in thedirection of rotation when the vehicleis moving forwards. The arrows onboth tyre sidewalls indicate thedirection of rotation.
If a spare wheel has to be fittedwith the arrows pointing in theopposite direction to the direction ofrotation, have the tyre remounted inthe correct direction by an expert assoon as possible.
163
Wheels and tyresE72562

Downloaded from www.Manualslib.com manuals search engine The vehicle jack must only beused to carry out wheelchanges. Do not work underneaththe vehicle when it is supported onlyby the jack.

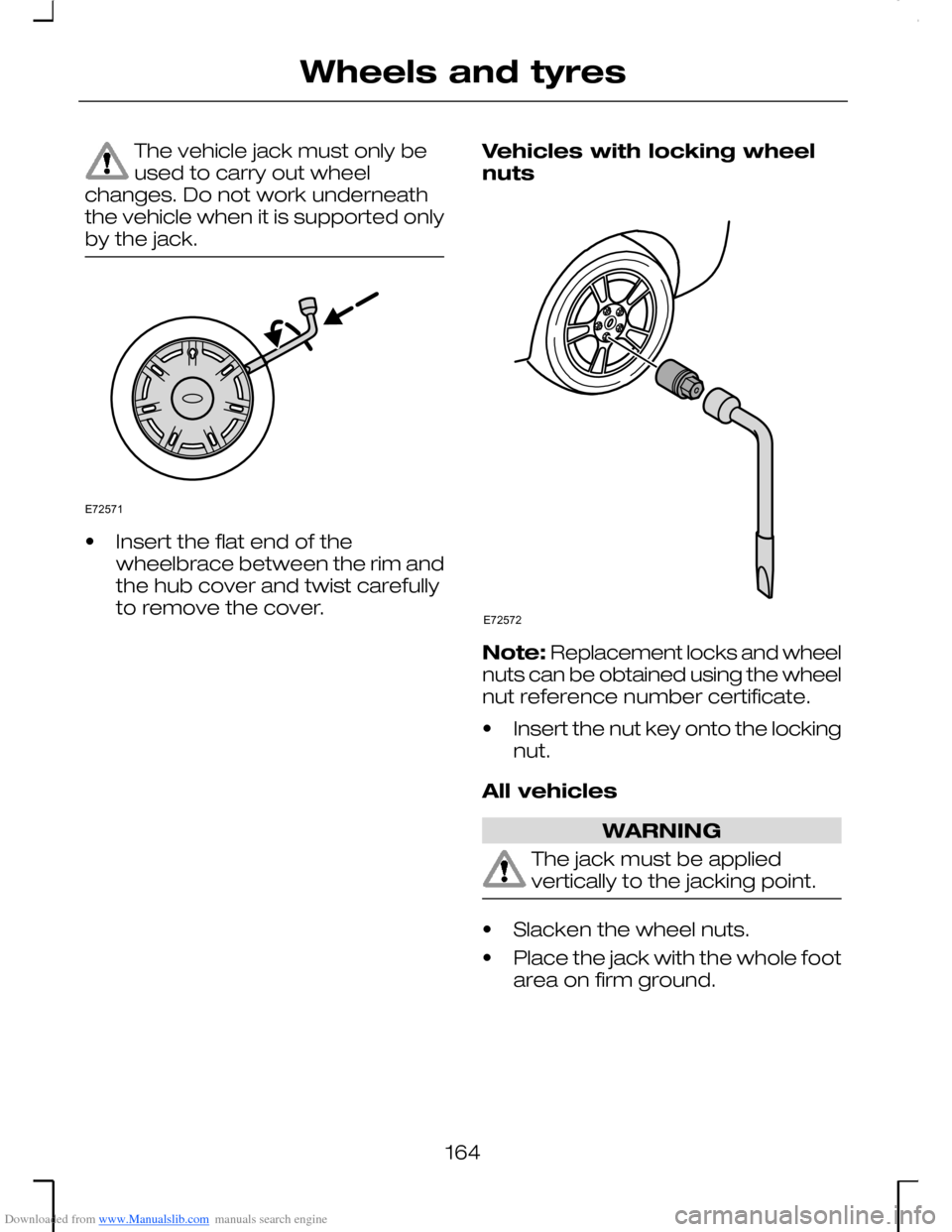

•Insert the flat end of thewheelbrace between the rim andthe hub cover and twist carefullyto remove the cover.
Vehicles with locking wheelnuts
Note: Replacement locks and wheelnuts can be obtained using the wheelnut reference number certificate.
•Insert the nut key onto the lockingnut.
All vehicles
WARNING
The jack must be appliedvertically to the jacking point.
•Slacken the wheel nuts.
•Place the jack with the whole footarea on firm ground.
164
Wheels and tyresE72571 E72572

Downloaded from www.Manualslib.com manuals search engine •Jack up the vehicle until the wheelis clear of the ground.
•Unscrew and remove the wheelnuts and take off the wheel.
Fitting a wheel
Vehicles with alloy wheels
WARNING
Alloy wheels must never besecured using wheel nuts forsteel wheels.
Note: The wheel nuts of alloy wheelscan also be used for the steel sparewheel for a short time (maximum twoweeks).
All vehicles

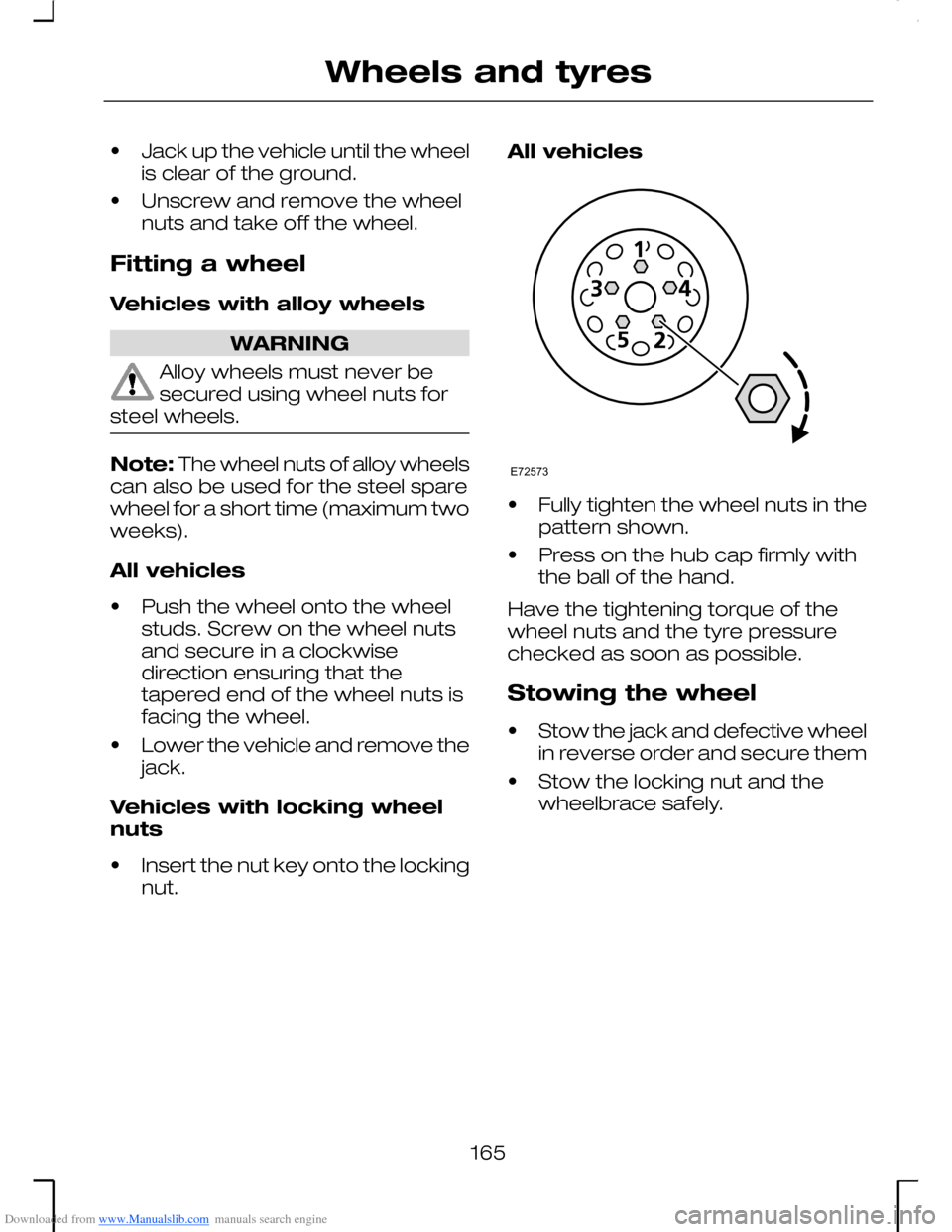

•Push the wheel onto the wheelstuds. Screw on the wheel nutsand secure in a clockwisedirection ensuring that thetapered end of the wheel nuts isfacing the wheel.
•Lower the vehicle and remove thejack.
Vehicles with locking wheelnuts
•Insert the nut key onto the lockingnut.
All vehicles
•Fully tighten the wheel nuts in thepattern shown.
•Press on the hub cap firmly withthe ball of the hand.
Have the tightening torque of thewheel nuts and the tyre pressurechecked as soon as possible.
Stowing the wheel
•Stow the jack and defective wheelin reverse order and secure them
•Stow the locking nut and thewheelbrace safely.
165
Wheels and tyresE72573

Downloaded from www.Manualslib.com manuals search engine TYRE CARE
To make sure the front and rear tyreswear evenly and last longer, it isrecommended that you swap thetyres from front to rear and vice versaat regular intervals of 5 000 to 10 000km (3 000 to 6 000 miles) as shownin the graphic.
If you have to mount a kerb, do soslowly and, if possible, approach itwith the wheels at right-angles to thekerb. Avoid steep and sharp edgedobstacles. Do not scrub the tyresidewalls when parking.
Regularly examine the tyre surfacefor cuts, foreign bodies and unevenwear. An uneven tread wear patterncould indicate faulty wheel alignment.
Tyre pressure
The pressure for your spare tyreshould be set to the highest valuegiven for your vehicle/tyre sizecombination.
A tyre pressure decal is located onthe inside of the fuel filler flap.
USING WINTER TYRES
If winter tyres are used, the tyrepressures recommended by the tyremanufacturers should be adheredto.
USING SNOW CHAINS
Note: Snow chains must only befitted to 205/55 R 16 and 6.5 J x 16"wheel.
Use only the recommended small linksnow chains on the driving wheels(front), i.e. the interior locking ring ofthe chain must not exceed 10 mm indiameter including the lock. Do notfit snow chains to the rear wheels.
Do not exceed 50 km/h (30 mph).Remove the chains immediately onsnow-free roads.
The ABS system will continue tofunction normally.
166
Wheels and tyresE70415 E70414

Downloaded from www.Manualslib.com manuals search engine In order to avoid damagingfull-diameter wheel covers, theyshould be removed while driving withsnow chains.
Vehicles with stabilitycontrol (ESP)
Vehicles with stability control (ESP)may exhibit some unusual drivingcharacteristics which can be avoidedby switching the system off. SeeUsing stability control (page 120).
TECHNICAL SPECIFICATIONS
Tyre pressures (cold tyres)
Up to 160 km/h (100 mph)
Tyre pressures
Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
4.24.24.24.2T125/85 R 16All - temporary sparetyre - 80 km/h (50 mph)MAX
2.82.52.12.3205/50 R 161.8 l Duratec-HE
2.82.42.12.1205/55 R 161.8 l Duratec-HE
2.82.52.12.1205/50 R 171.8 l Duratec-HE
2.82.42.12.2225/40 R 181.8 l Duratec-HE, Saloon
2.92.42.12.2225/40 R 181.8 l Duratec-HE, Estate
2.82.52.12.3205/50 R 161.8 l Duratec-SCi
2.82.42.12.1205/55 R 161.8 l Duratec-SCi
2.82.52.12.1205/50 R 171.8 l Duratec-SCi
2.82.42.12.2225/40 R 181.8 l Duratec-SCi,Saloon
2.92.42.12.2225/40 R 181.8 l Duratec-SCi, Estate
2.82.52.12.3205/50 R 162.0 l Duratec-HE
2.82.42.12.1205/55 R 162.0 l Duratec-HE
2.82.52.12.1205/50 R 172.0 l Duratec-HE
167
Wheels and tyres

Downloaded from www.Manualslib.com manuals search engine Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
2.82.42.12.2225/40 R 182.0 l Duratec-HE,Saloon
2.92.42.12.2225/40 R 182.0 l Duratec-HE, Estate
2.82.72.22.5205/50 R 162.5 l Duratec-VE
2.82.42.12.3205/55 R 162.5 l Duratec-VE
2.82.52.12.3205/50 R 172.5 l Duratec-VE
2.82.62.12.4225/40 R 182.5 l Duratec-VE,Saloon
2.92.62.12.4225/40 R 182.5 l Duratec-VE, Estate
2.82.72.22.5205/50 R 163.0 l Duratec-VE 150kW (203 PS)
2.82.42.12.3205/55 R 163.0 l Duratec-VE 150kW (203 PS)
2.82.52.12.3205/50 R 173.0 l Duratec-VE 150kW (203 PS)
2.82.62.12.4225/40 R 183.0 l Duratec-VE 150kW (203 PS), Saloon
2.92.62.12.4225/40 R 183.0 l Duratec-VE 150kW (203 PS), Estate
2.82.52.12.3225/40 R 183.0 l Duratec-ST 166kW (226 PS), Saloon
2.92.52.12.3225/40 R 183.0 l Duratec-ST 166kW (226 PS), Estate

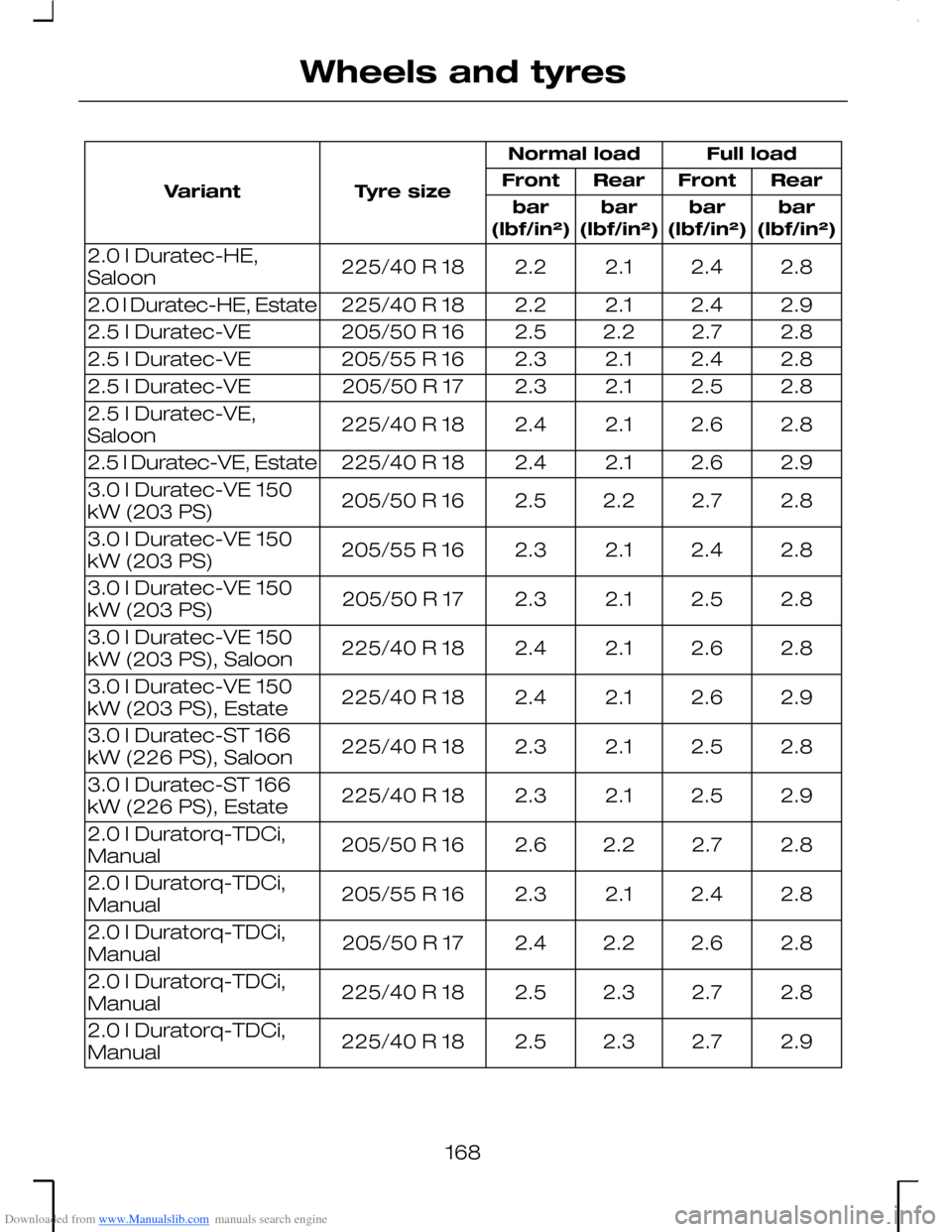

2.82.72.22.6205/50 R 162.0 l Duratorq-TDCi,Manual
2.82.42.12.3205/55 R 162.0 l Duratorq-TDCi,Manual
2.82.62.22.4205/50 R 172.0 l Duratorq-TDCi,Manual
2.82.72.32.5225/40 R 182.0 l Duratorq-TDCi,Manual
2.92.72.32.5225/40 R 182.0 l Duratorq-TDCi,Manual
168
