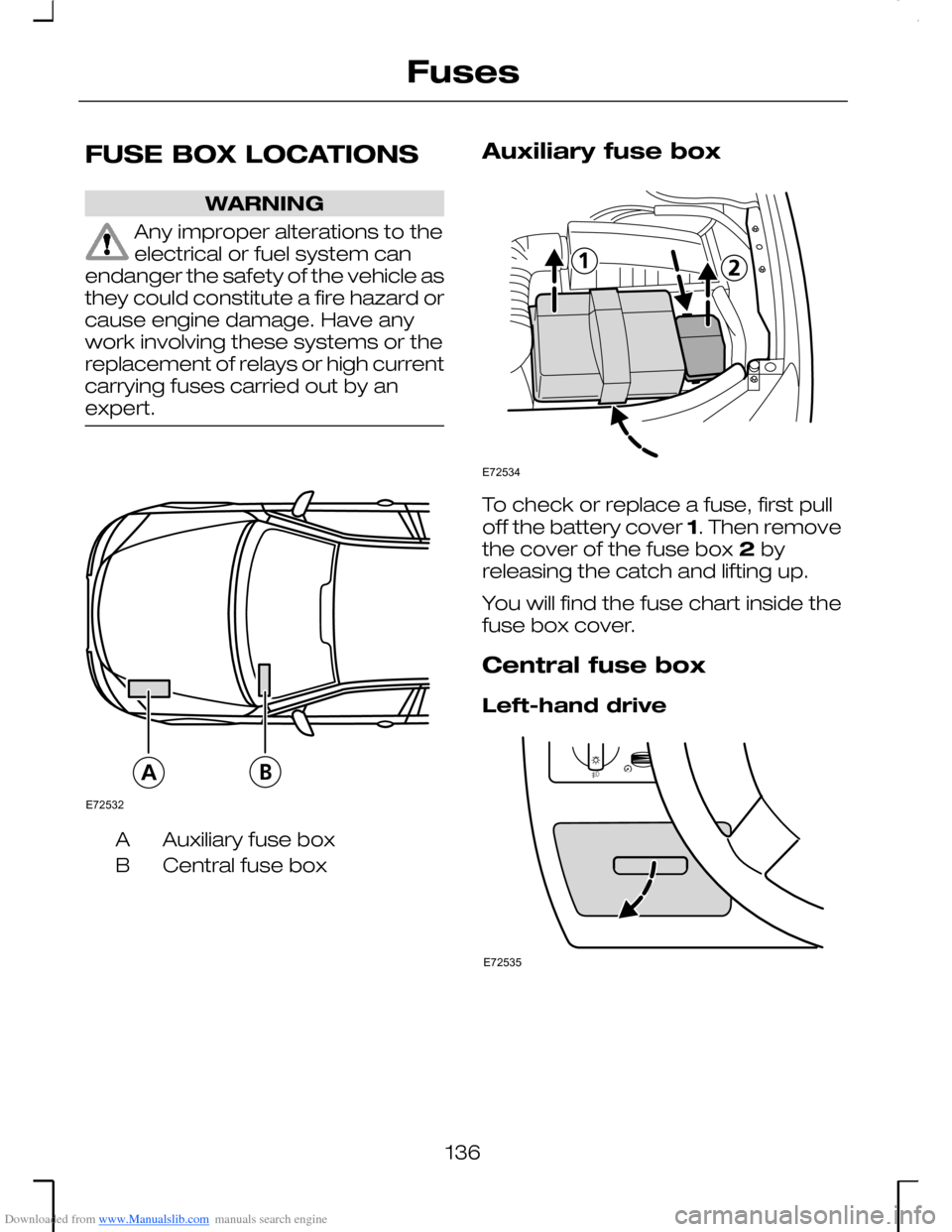

Downloaded from www.Manualslib.com manuals search engine FUSE BOX LOCATIONS
WARNING
Any improper alterations to theelectrical or fuel system canendanger the safety of the vehicle asthey could constitute a fire hazard orcause engine damage. Have anywork involving these systems or thereplacement of relays or high currentcarrying fuses carried out by anexpert.
Auxiliary fuse boxA
Central fuse boxB
Auxiliary fuse box
To check or replace a fuse, first pulloff the battery cover 1. Then removethe cover of the fuse box 2 byreleasing the catch and lifting up.
You will find the fuse chart inside thefuse box cover.
Central fuse box
Left-hand drive
136
FusesE72532 E72534 E72535

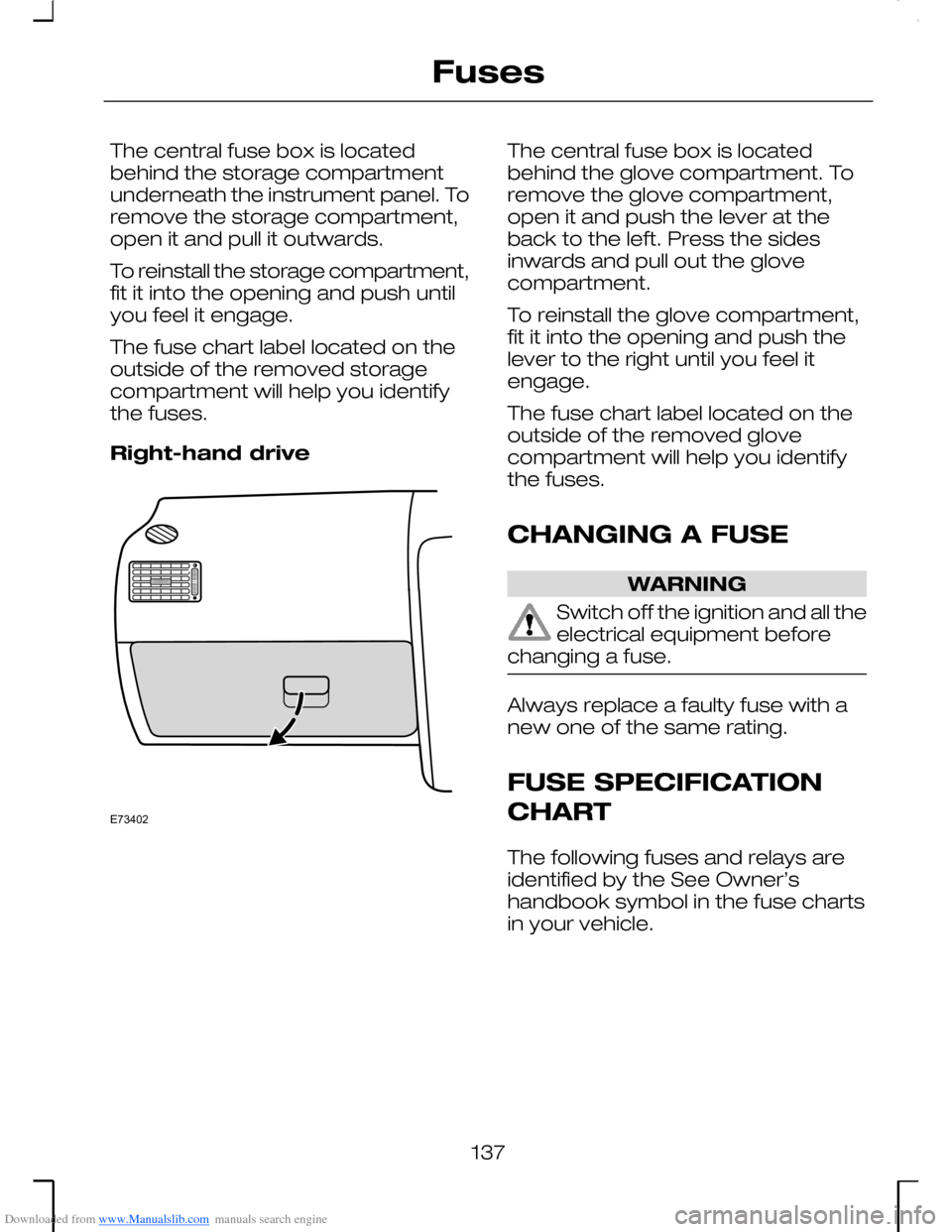

Downloaded from www.Manualslib.com manuals search engine The central fuse box is locatedbehind the storage compartmentunderneath the instrument panel. Toremove the storage compartment,open it and pull it outwards.
To reinstall the storage compartment,fit it into the opening and push untilyou feel it engage.
The fuse chart label located on theoutside of the removed storagecompartment will help you identifythe fuses.
Right-hand drive
The central fuse box is locatedbehind the glove compartment. Toremove the glove compartment,open it and push the lever at theback to the left. Press the sidesinwards and pull out the glovecompartment.
To reinstall the glove compartment,fit it into the opening and push thelever to the right until you feel itengage.
The fuse chart label located on theoutside of the removed glovecompartment will help you identifythe fuses.
CHANGING A FUSE
WARNING
Switch off the ignition and all theelectrical equipment beforechanging a fuse.
Always replace a faulty fuse with anew one of the same rating.
FUSE SPECIFICATION
CHART
The following fuses and relays areidentified by the See Owner’shandbook symbol in the fuse chartsin your vehicle.
137
FusesE73402
