Page 113 of 192
Fuse/Relay
LocationFuse Amp
RatingDescription
34 20A Instrument Cluster,
CCRM, Data Link
Connector, Securilock
Transciever Module
35 15A Shift Lock Actuator,
PCM, Speed Control
Servo, ABS Module
36 15A Airbag Control Module
37 10A Adjustable Illumination
38 20A Highbeams
39 5A GEM
40 Ð Not Used
41 15A Brake Lamp
42 Ð Not Used
43 20A CB Power Windows
44 Ð Not Used
Power distribution box
The power distribution box is located in the engine
compartment. The power distribution box contains
high-current fuses that protect your vehicle's main
electrical systems from overloads.
Always disconnect the battery before
servicing high current fuses.
Roadside emergencies
113
Page 114 of 192

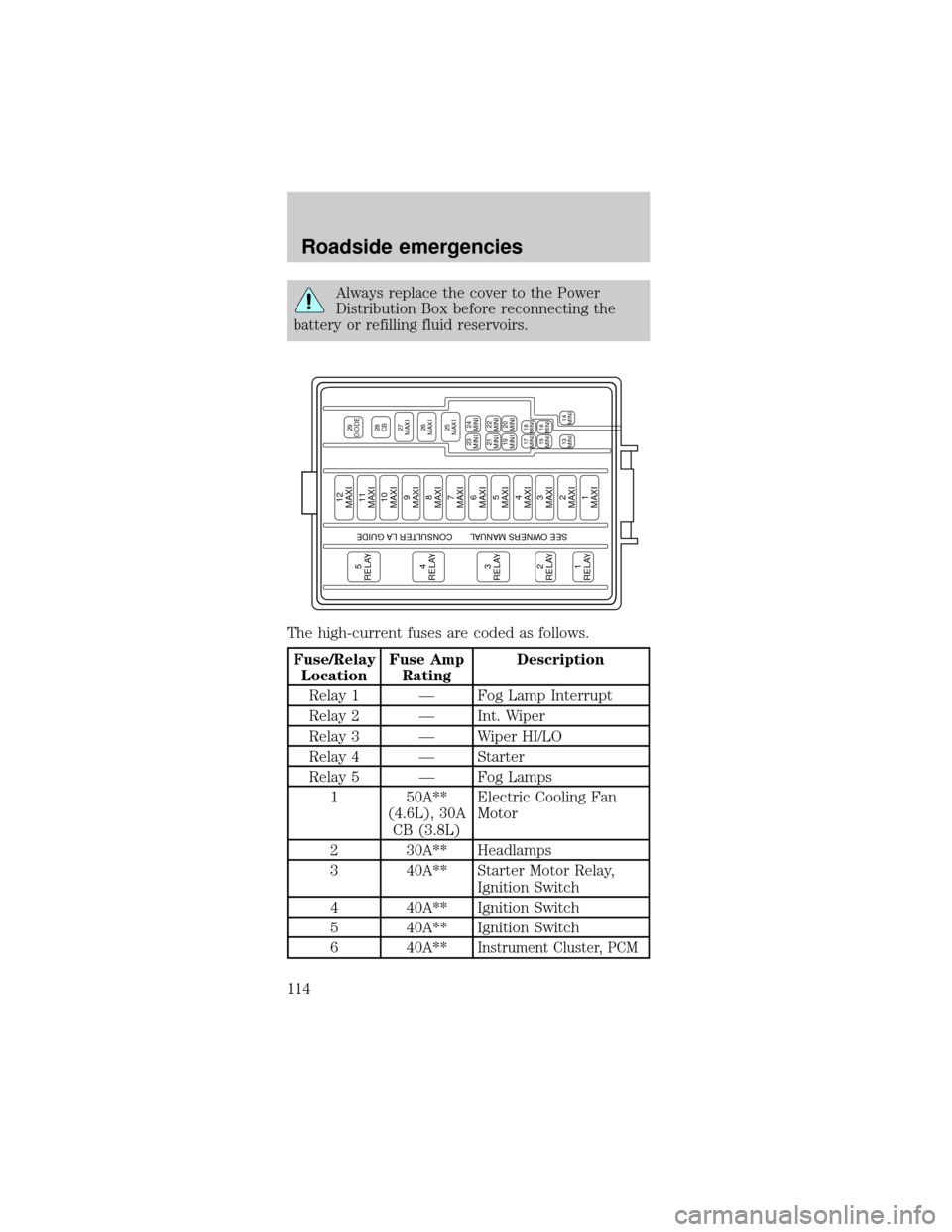

Always replace the cover to the Power
Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingDescription
Relay 1 Ð Fog Lamp Interrupt
Relay 2 Ð Int. Wiper
Relay 3 Ð Wiper HI/LO
Relay 4 Ð Starter
Relay 5 Ð Fog Lamps
1 50A**
(4.6L), 30A
CB (3.8L)Electric Cooling Fan
Motor
2 30A** Headlamps
3 40A** Starter Motor Relay,
Ignition Switch
4 40A** Ignition Switch
5 40A** Ignition Switch
6 40A**
Instrument Cluster, PCM
5
RELAY4
RELAY3
RELAY2
RELAY1
RELAY
12
MAXI
29
DIODE28
CB27
MAXI26
MAXI25
MAXI23
MINI
24
MINI
21
MINI
22
MINI
19
MINI17
MINI18
MINI15
MINI13
MINI
14
MINI16
MINI20
MINI
11
MAXI10
MAXI9
MAXI8
MAXI7
MAXI6
MAXI5
MAXI4
MAXI3
MAXI2
MAXI1
MAXI
SEE OWNERS MANUAL CONSULTER LA GUIDE
Roadside emergencies
114
Page 188 of 192
Mirrors
side view mirrors
(power) ................... 51
Motorcraft parts ...... 158
Octane rating .......... 157
Odometer ................... 14
Panic alarm feature,
remote entry system 57
Parking brake ............ 90
Power distribution box
(see Fuses) ............. 113
Power door locks ...... 51
Power steering .......... 92
fluid, checking and
adding .................... 140
Radio ................ 21,22,23
24,25,26,27,28,29,30
31,32,33,34,35,36,37
38,39,40,41,42,43
Relays ...................... 109
Remote entry
system .............. 56,60,61
illuminated entry .... 58
locking/unlocking
doors ................... 56,57
replacement/additional
transmitters ............. 58
replacing
the batteries ............ 59
Safety belts (see
Safety restraints) ...... 11
Safety restraints
cleaning the safety
belts .................. 71,176
extension assembly 70
for children ........ 76,77
warning light and
chime .................. 11,70
Seat belts (see Safety
restraints) ........ 66,68,69
Seats .......................... 63
child safety seats .... 78cleaning ................. 175
Seats-easy access/
easyout feature ......... 65
Servicing your
vehicle ............... 126,127
Spark plugs,
specifications ........... 177
Special notice .............. 3
Specification chart,
lubricants ................. 180
Speed control ............ 46
Speedometer ............. 13
Starting your
vehicle .............. 83,84,86
jump starting ........ 120
121,122,123
Steering wheel
tilting ....................... 45
Tachometer ............... 14
Tires ........... 149,150,151
changing ......... 115,116
checking
the pressure .......... 151
replacing ................ 152
rotating .................. 151
snow tires
and chains ............. 153
tire grades ............. 150
treadwear .............. 150
Towing
wrecker .................. 124
Traction control ........ 91
active light .............. 10
Traction-lok
rear axle .................. 101
Transmission ........... 142
automatic
operation ................. 93
fluid, checking and
adding
(automatic) ........... 142
143,144
Index
188
