On hot days, the temperature in the trunk
or vehicle interior can rise very quickly.
Exposure of people or animals to these high
temperatures for even a short time can cause
death or serious heat-related injuries, including
brain damage. Small children are particularly at
risk.
REMOTE ENTRY SYSTEM
This device complies with part 15 of the FCC rules
and with RS-210 of Industry Canada. Operation is
subject to the following two conditions: (1) This
device may not cause harmful interference, and (2)
This device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
The remote entry system allows you to:
•lock or unlock all vehicle doors without a key
•open the trunk
•activate the panic alarm
•confirms that the vehicle is locked with a short
“beep”from the horn.
The remote entry features only operate with the
ignition in the LOCK position.
If there is any potential remote keyless entry
problem with your vehicle, ensureALL remote
entry transmittersare brought to the dealership,
to aid in troubleshooting.
Locks and Security
91

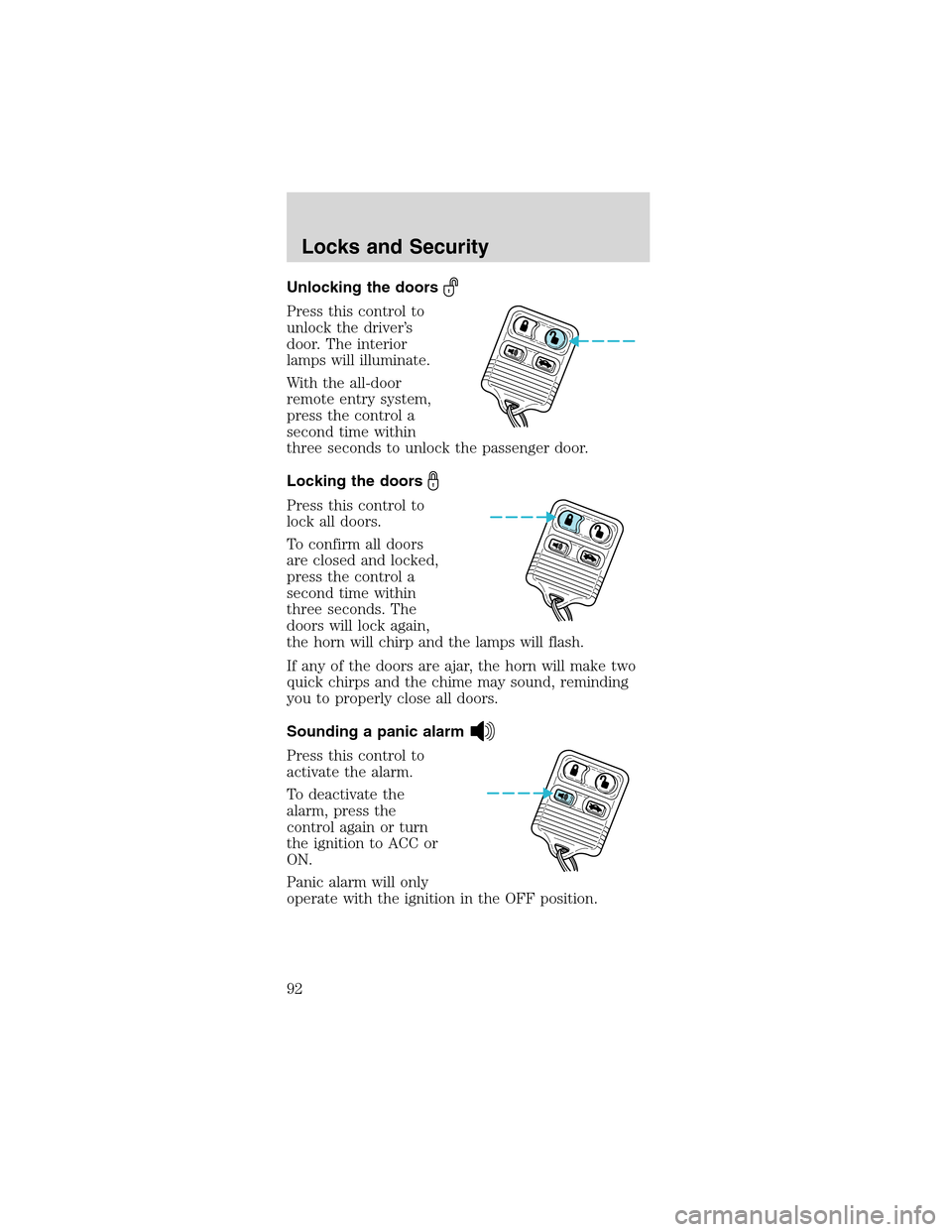

Unlockingthe doors
Press this control to
unlock the driver’s
door. The interior
lamps will illuminate.
With the all-door
remote entry system,
press the control a
second time within
three seconds to unlock the passenger door.
Locking the doors
Press this control to
lock all doors.
To confirm all doors
are closed and locked,
press the control a
second time within
three seconds. The
doors will lock again,
the horn will chirp and the lamps will flash.
If any of the doors are ajar, the horn will make two
quick chirps and the chime may sound, reminding
you to properly close all doors.
Sounding a panic alarm
Press this control to
activate the alarm.
To deactivate the
alarm, press the
control again or turn
the ignition to ACC or
ON.
Panic alarm will only
operate with the ignition in the OFF position.
Locks and Security
92

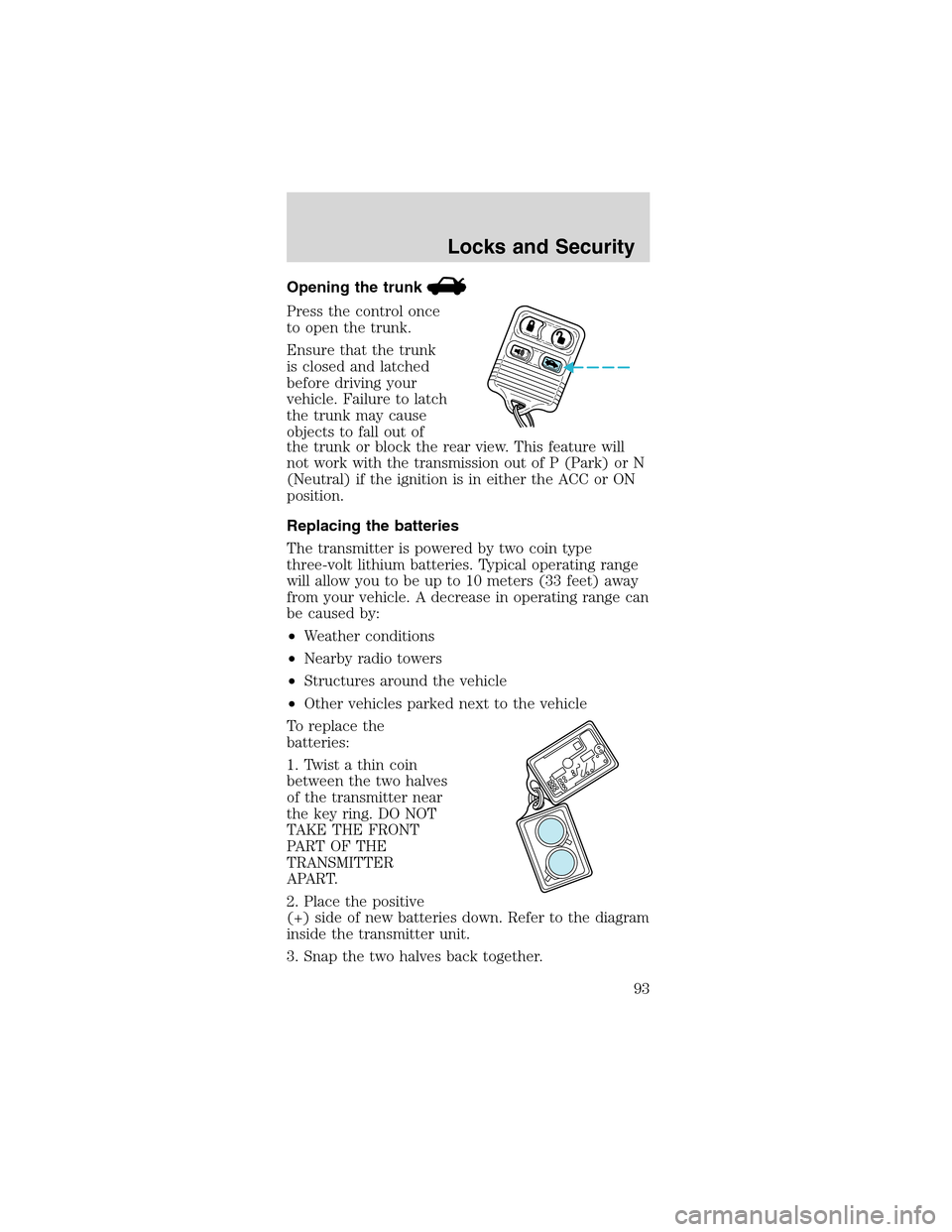

Opening the trunk
Press the control once
to open the trunk.
Ensure that the trunk
is closed and latched
before driving your
vehicle. Failure to latch
the trunk may cause
objects to fall out of
the trunk or block the rear view. This feature will
not work with the transmission out of P (Park) or N
(Neutral) if the ignition is in either the ACC or ON
position.
Replacing the batteries
The transmitter is powered by two coin type
three-volt lithium batteries. Typical operating range
will allow you to be up to 10 meters (33 feet) away
from your vehicle. A decrease in operating range can
be caused by:
•Weather conditions
•Nearby radio towers
•Structures around the vehicle
•Other vehicles parked next to the vehicle
To replace the
batteries:
1. Twist a thin coin
between the two halves
of the transmitter near
the key ring. DO NOT
TAKE THE FRONT
PART OF THE
TRANSMITTER
APART.
2. Place the positive
(+) side of new batteries down. Refer to the diagram
inside the transmitter unit.
3. Snap the two halves back together.
Locks and Security
93

Replacement of the battery willnotcause the
remote transmitter to become deprogrammed from
your vehicle. The remote transmitter should operate
normally after battery replacement.
Replacing lost transmitters
•Take all your
vehicle’s transmitters
to your dealer if
service is required.
•If you purchase
additional
transmitters (up to
four may be
programmed into memory), perform the following
procedure.
To reprogram the transmitters yourself, place the
key in the ignition and turn from LOCK to OFF and
cycle between OFF and ON eight times in rapid
succession (within 10 seconds) ending in ON. After
doors lock/unlock, press any control on all
transmitters (up to four). With each control press of
the transmitters, the door should cycle (lock/unlock)
to confirm programming. When completed, turn the
ignition to OFF. The door locks should cycle
(lock/unlock) one last time to confirm completion of
programming.
All transmittersmustbe programmed at the same
time.
Illuminated entry
The interior lamps illuminate when the remote entry
system is used to unlock the door(s) or sound the
personal alarm.
The system automatically turns off after 25 seconds
or when the ignition is turned to the START/RUN or
ACC position. The dome lamp control (if equipped)
mustnotbe set to the OFF position for the
illuminated entry system to operate.
Locks and Security
94

The inside lights will not turn off if:
•they have been turned on with the dimmer
control, or
•any door is open.
The battery saver will shut off the interior lamps 30
minutes after the ignition has been turned to the
OFF position, 10 minutes after if the door is left
open, and 30 minutes after if the trunk is left open
or the dome lamp control is left on.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine
immobilization system. This system is designed to
prevent the engine from being started unless a
coded key programmed to your vehicleis used.
The SecuriLock
passive anti-theft system is not
compatible with non-Ford aftermarket remote start
systems. Use of these systems may result in vehicle
starting problems and a loss of security protection.
THEFT INDICATOR
The theft indicator is the flashing red indicator
located on top of the instrument panel.
•When the ignition is in the OFF position, the
indicator will flash once every 2 seconds to
indicate the SecuriLock
system is functioning as
a theft deterrent.
•When the ignition is in the ON position, the
indicator will glow for 3 seconds to indicate
normal system functionality.
If a problem occurs with the SecuriLock
system,
the indicator will flash rapidly or glow steadily when
the ignition is in the ON position. If this occurs, the
vehicle should be taken to an authorized dealer for
service.
Locks and Security
95

Automatic arming
The vehicle is armed
immediately after
switching the ignition
to the 3 (OFF)
position. The
THEFT
indicator in the
instrument cluster will
flash every two
seconds when the vehicle is armed.
Automatic disarming
Switching the ignition to the 4 (ON) position with a
coded keydisarms the vehicle. The
THEFT
indicator will illuminate for three seconds and then
go out. If the
THEFTindicator stays on for an
extended period of time or flashes rapidly, have the
system serviced by your dealership or a qualified
technician.
Key information
Your vehicle is supplied withtwo coded keys.Only
acoded keywill start your vehicle. Spare coded
keys can be purchased from your dealership. Your
dealership can program your key or you can“do it
yourself.”Refer toProgramming spare keys.
The following items may prevent the vehicle from
starting:
•Large metallic objects
•Electronic devices on the key chain that can be
used to purchase gasoline or similar items
•A second key on the same key ring as thecoded
key
If any of these items are present, you need to keep
these objects from touching thecoded keywhile
starting the engine. These objects and devices
cannot damage thecoded key,but can cause a
momentary“no start”condition if they are too close
to the key during engine start. If a problem occurs,
3
2
1
5
4
Locks and Security
96

turn ignition OFF and restart the engine with all
other objects on the key ring held away from the
ignition key. Check to make sure thecoded keyis
an approved Fordcoded key.
If your keys are lost or stolen you will need to do
the following:
•Use your spare key to start the vehicle, or
•Have your vehicle towed to a dealership or a
locksmith. The key codes will need to be erased
from your vehicle and new key codes will need to
be re-coded.
Replacing coded keys can be very costly and you
may want to store an extra programmed key away
from the vehicle in a safe place to prevent an
unforeseen inconvenience.
The correctcoded keymust be used for your
vehicle. The use of the wrong type ofcoded key
may lead to a“no start”condition.
If an unprogrammed key is used in the ignition
it will cause a“no start”condition.
Programming spare keys
A maximum of eight keys can be coded to your
vehicle. Only SecuriLock
keys can be used. To
program acoded keyyourself, you will need two
previously programmedcoded keys(keys that
already operate your vehicle’s engine) and the new
unprogrammed key(s) readily accessible for timely
implementation of each step in the procedure.
If two previously programmed coded keys are not
available, you must bring your vehicle to your
dealership to have the spare coded key(s)
programmed.
Please read and understand the entire procedure
before you begin.
Locks and Security
97

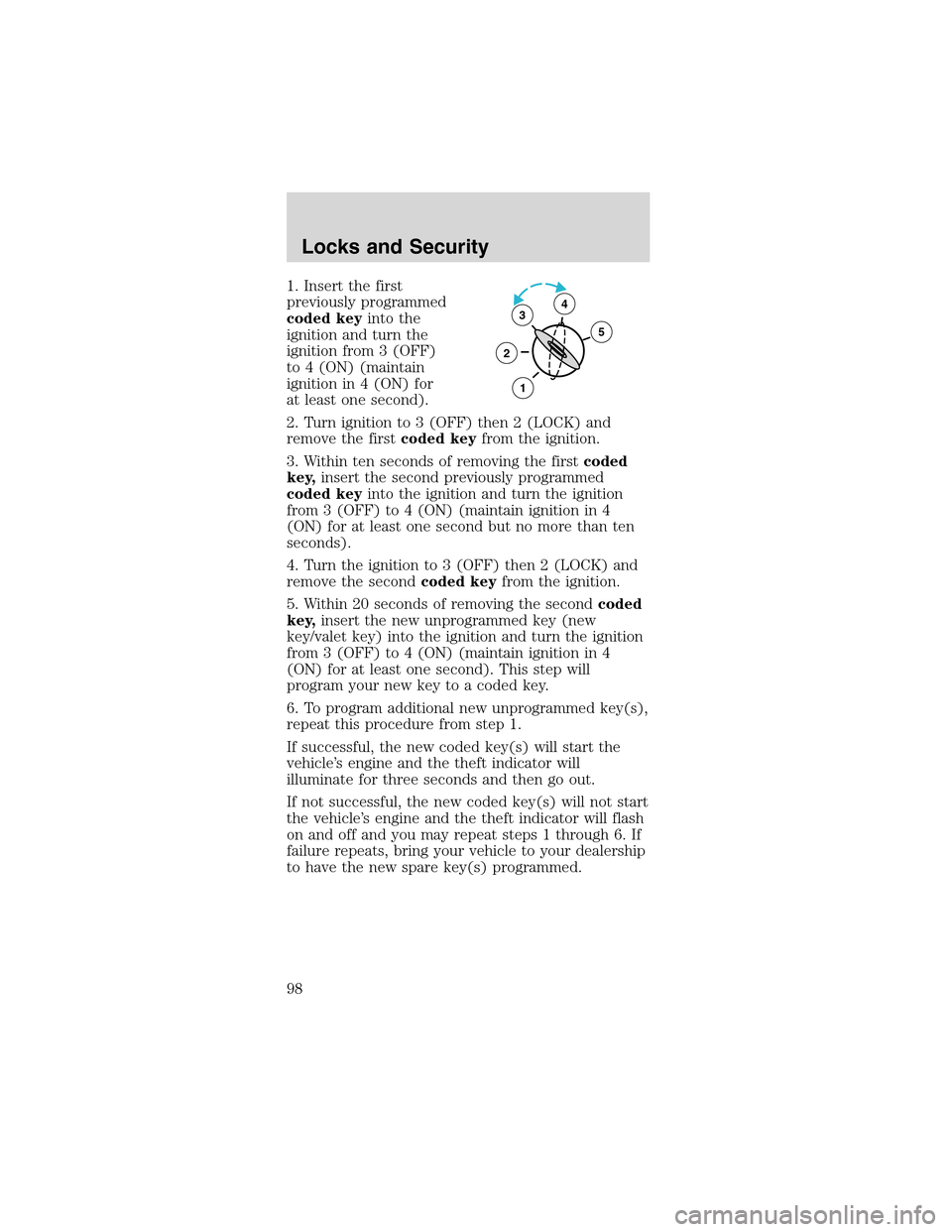

1. Insert the first
previously programmed
coded keyinto the
ignition and turn the
ignition from 3 (OFF)
to 4 (ON) (maintain
ignition in 4 (ON) for
at least one second).
2. Turn ignition to 3 (OFF) then 2 (LOCK) and
remove the firstcoded keyfrom the ignition.
3. Within ten seconds of removing the firstcoded
key,insert the second previously programmed
coded keyinto the ignition and turn the ignition
from 3 (OFF) to 4 (ON) (maintain ignition in 4
(ON) for at least one second but no more than ten
seconds).
4. Turn the ignition to 3 (OFF) then 2 (LOCK) and
remove the secondcoded keyfrom the ignition.
5. Within 20 seconds of removing the secondcoded
key,insert the new unprogrammed key (new
key/valet key) into the ignition and turn the ignition
from 3 (OFF) to 4 (ON) (maintain ignition in 4
(ON) for at least one second). This step will
program your new key to a coded key.
6. To program additional new unprogrammed key(s),
repeat this procedure from step 1.
If successful, the new coded key(s) will start the
vehicle’s engine and the theft indicator will
illuminate for three seconds and then go out.
If not successful, the new coded key(s) will not start
the vehicle’s engine and the theft indicator will flash
on and off and you may repeat steps 1 through 6. If
failure repeats, bring your vehicle to your dealership
to have the new spare key(s) programmed.
3
2
1
5
4
Locks and Security
98

SEATING
Adjustable head restraints (if equipped)
Your vehicle’s seats may be equipped with head
restraints which are vertically adjustable. The
purpose of these head restraints is to help limit head
motion in the event of a rear collision. To properly
adjust your head restraints, lift the head restraint so
that it is located directly behind your head or as
close to that position as possible. Refer to the
following to raise and lower the head restraints.
The head restraints can
be moved up and
down.
Adjusting the front manual seat
Never adjust the driver’s seat or seatback
when the vehicle is moving.
Do not pile cargo higher than the seatbacks
to reduce the risk of injuring people in a
collision or sudden stop.
Always drive and ride with your seatback
upright and the lap belt snug and low across
the hips.
Reclining the seatback can cause an
occupant to slide under the seat’s safety
belt, resulting in severe personal injuries in the
event of a collision.

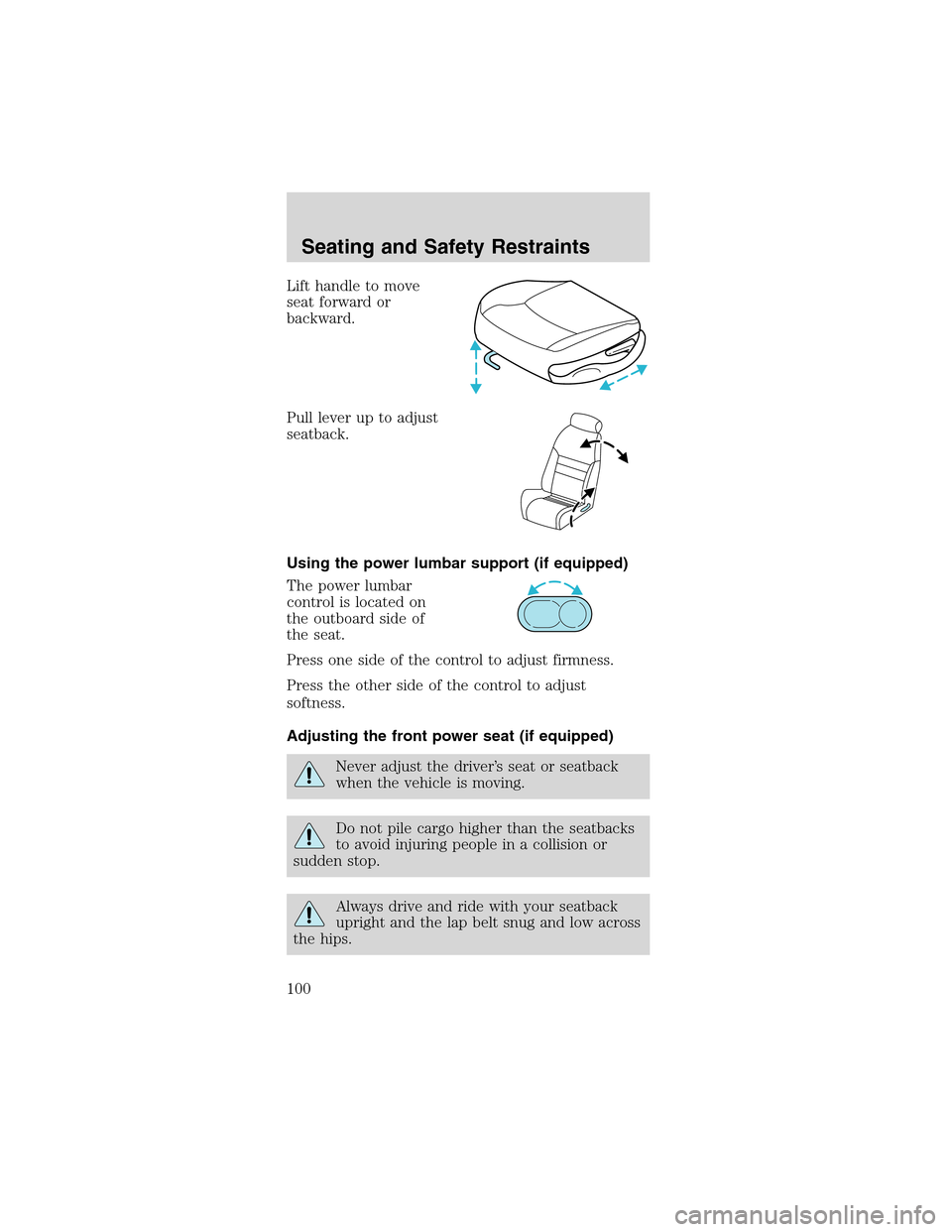

Seating and Safety Restraints
99

Lift handle to move
seat forward or
backward.
Pull lever up to adjust
seatback.
Using the power lumbar support (if equipped)
The power lumbar
control is located on
the outboard side of
the seat.
Press one side of the control to adjust firmness.
Press the other side of the control to adjust
softness.
Adjusting the front power seat (if equipped)
Never adjust the driver’s seat or seatback
when the vehicle is moving.
Do not pile cargo higher than the seatbacks
to avoid injuring people in a collision or
sudden stop.
Always drive and ride with your seatback
upright and the lap belt snug and low across
the hips.
Seating and Safety Restraints
100
