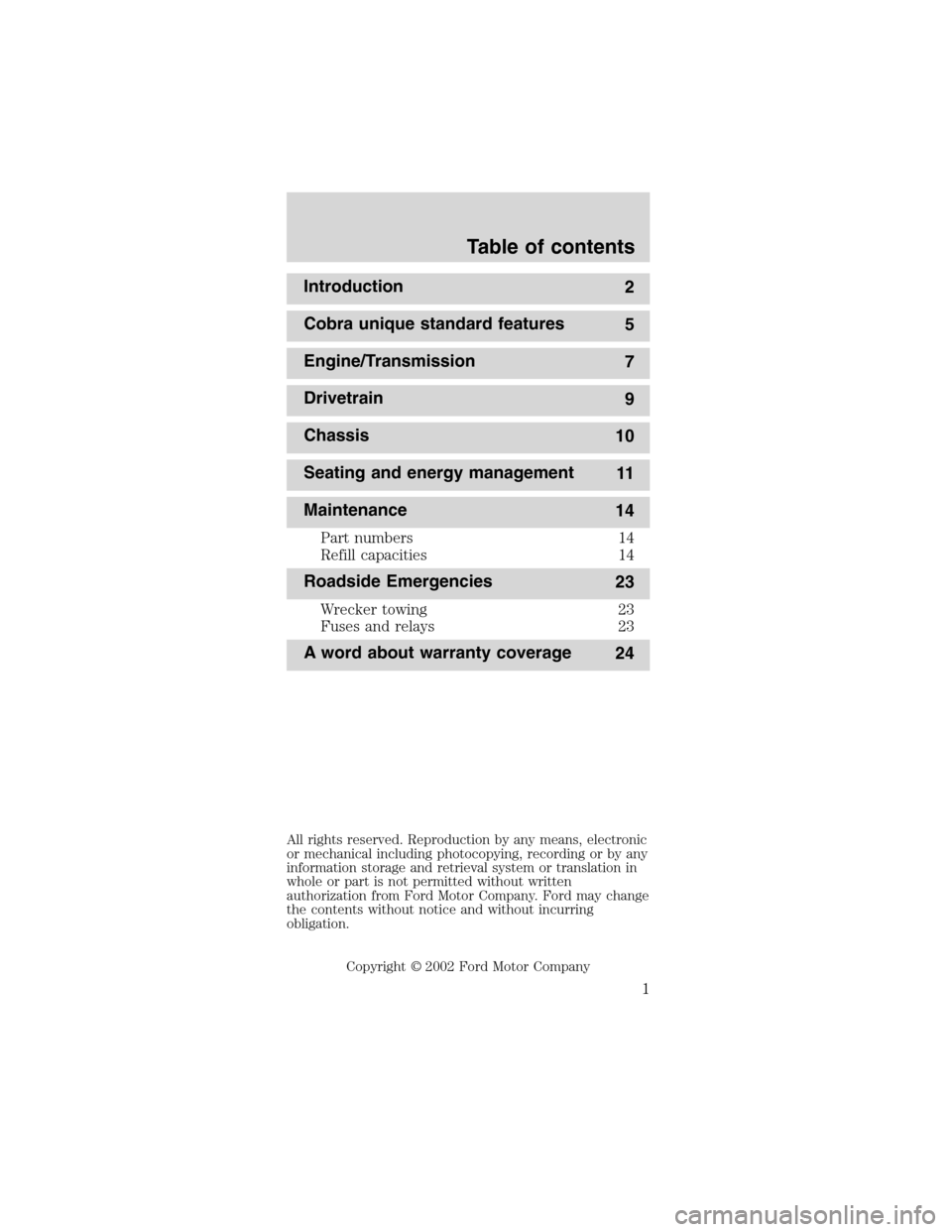

FORD MUSTANG 2003 4.G SVT Supplement Manual

Introduction
2
Cobra unique standard features
5
Engine/Transmission
7
Drivetrain
9
Chassis
10
Seating and energy management
11
Maintenance
14
Part numbers 14
Refill capacities 14
Roadside Emergencies
23
Wrecker towing 23
Fuses and relays 23
A word about warranty coverage
24
All rights reserved. Reproduction by any means, electronic
or mechanical including photocopying, recording or by any
information storage and retrieval system or translation in
whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change
the contents without notice and without incurring
obligation.
Copyright © 2002 Ford Motor Company
Table of contents
1

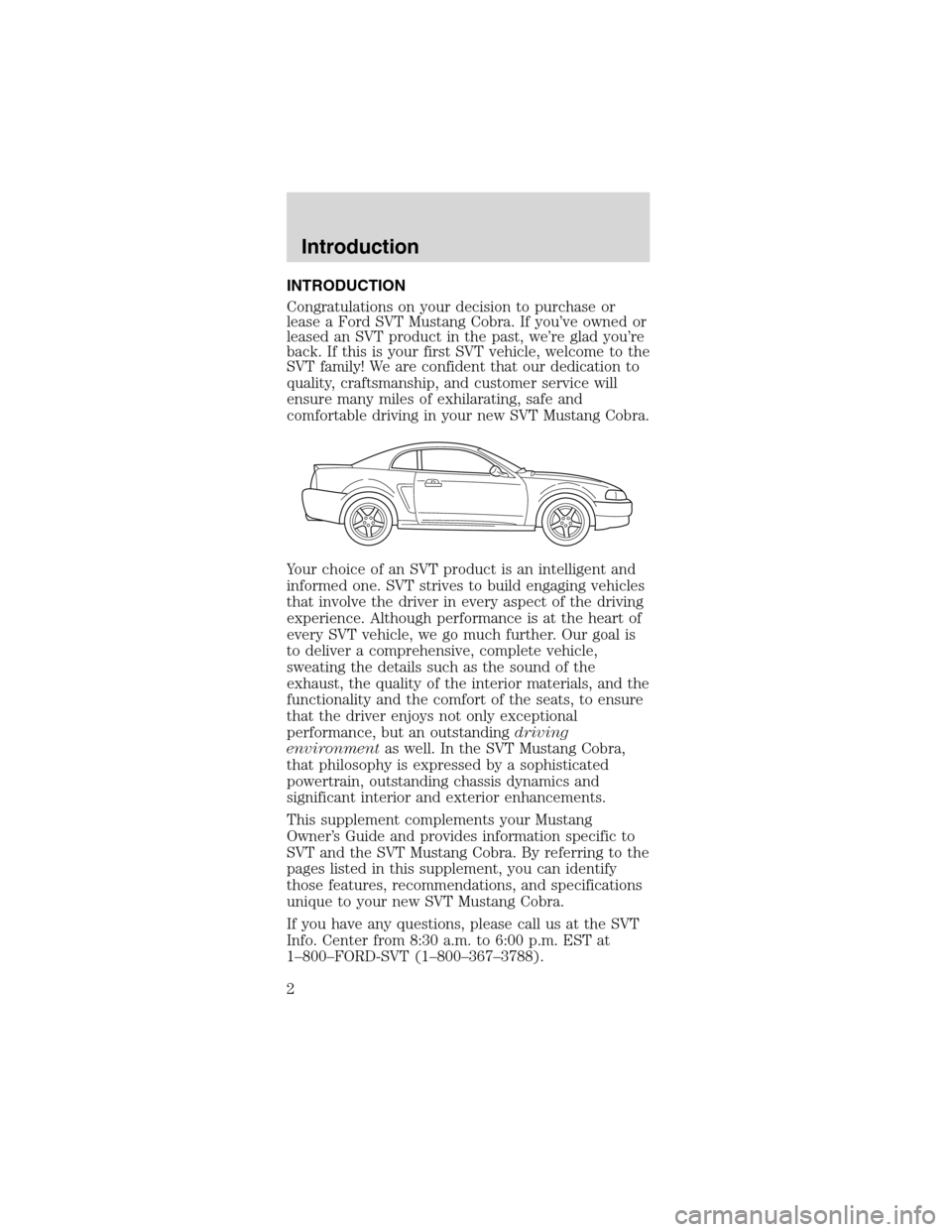

INTRODUCTION
Congratulations on your decision to purchase or
lease a Ford SVT Mustang Cobra. If you’ve owned or
leased an SVT product in the past, we’re glad you’re
back. If this is your first SVT vehicle, welcome to the
SVT family! We are confident that our dedication to
quality, craftsmanship, and customer service will
ensure many miles of exhilarating, safe and
comfortable driving in your new SVT Mustang Cobra.
Your choice of an SVT product is an intelligent and
informed one. SVT strives to build engaging vehicles
that involve the driver in every aspect of the driving
experience. Although performance is at the heart of
every SVT vehicle, we go much further. Our goal is
to deliver a comprehensive, complete vehicle,
sweating the details such as the sound of the
exhaust, the quality of the interior materials, and the
functionality and the comfort of the seats, to ensure
that the driver enjoys not only exceptional
performance, but an outstandingdriving
environmentas well. In the SVT Mustang Cobra,
that philosophy is expressed by a sophisticated
powertrain, outstanding chassis dynamics and
significant interior and exterior enhancements.
This supplement complements your Mustang
Owner’s Guide and provides information specific to
SVT and the SVT Mustang Cobra. By referring to the
pages listed in this supplement, you can identify
those features, recommendations, and specifications
unique to your new SVT Mustang Cobra.
If you have any questions, please call us at the SVT
Info. Center from 8:30 a.m. to 6:00 p.m. EST at
1–800–FORD-SVT (1–800–367–3788).
Introduction
2

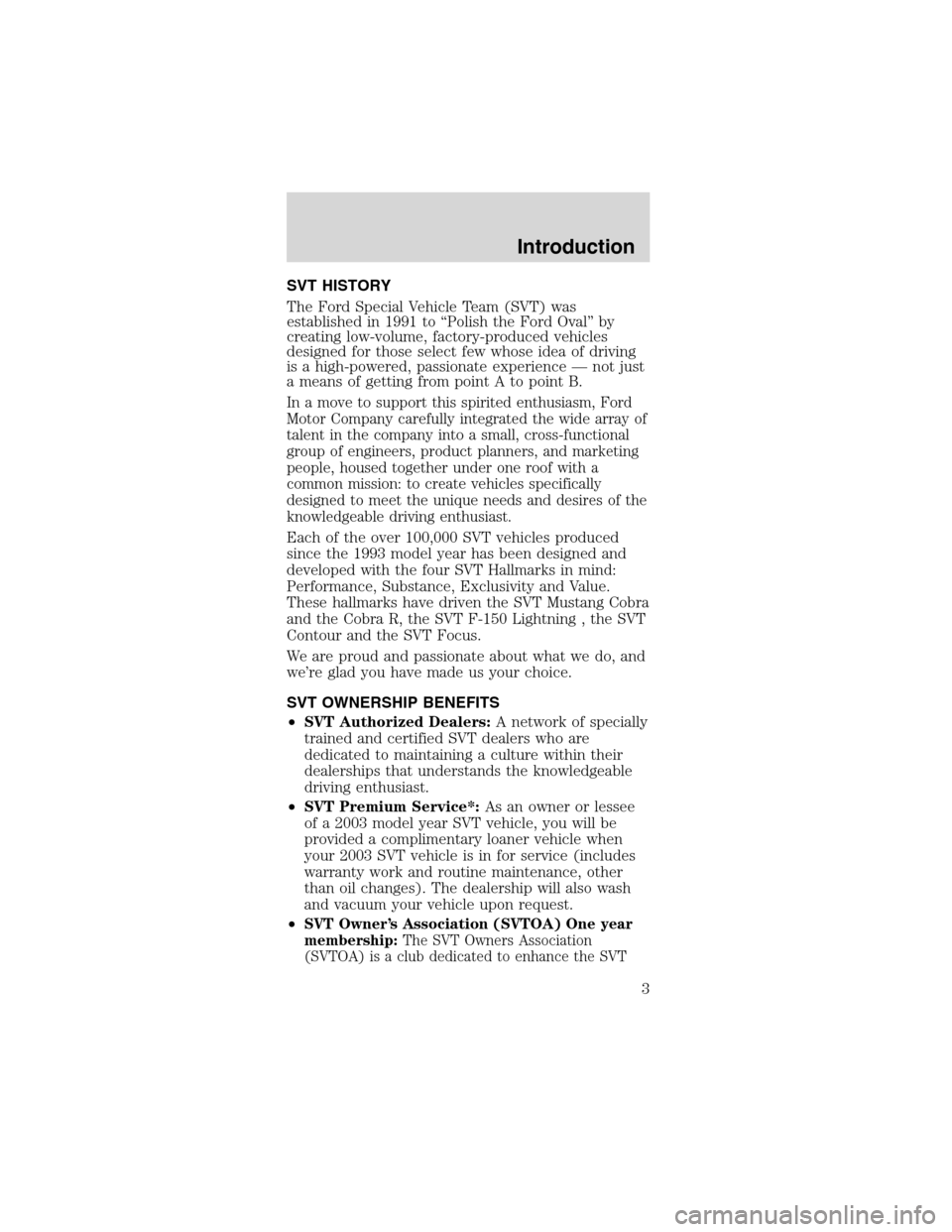

SVT HISTORY
The Ford Special Vehicle Team (SVT) was
established in 1991 to“Polish the Ford Oval”by
creating low-volume, factory-produced vehicles
designed for those select few whose idea of driving
is a high-powered, passionate experience—not just
a means of getting from point A to point B.
In a move to support this spirited enthusiasm, Ford
Motor Company carefully integrated the wide array of
talent in the company into a small, cross-functional
group of engineers, product planners, and marketing
people, housed together under one roof with a
common mission: to create vehicles specifically
designed to meet the unique needs and desires of the
knowledgeable driving enthusiast.
Each of the over 100,000 SVT vehicles produced
since the 1993 model year has been designed and
developed with the four SVT Hallmarks in mind:
Performance, Substance, Exclusivity and Value.
These hallmarks have driven the SVT Mustang Cobra
and the Cobra R, the SVT F-150 Lightning , the SVT
Contour and the SVT Focus.
We are proud and passionate about what we do, and
we’re glad you have made us your choice.
SVT OWNERSHIP BENEFITS
•SVT Authorized Dealers:A network of specially
trained and certified SVT dealers who are
dedicated to maintaining a culture within their
dealerships that understands the knowledgeable
driving enthusiast.
•SVT Premium Service*:As an owner or lessee
of a 2003 model year SVT vehicle, you will be
provided a complimentary loaner vehicle when
your 2003 SVT vehicle is in for service (includes
warranty work and routine maintenance, other
than oil changes). The dealership will also wash
and vacuum your vehicle upon request.
•
SVT Owner’s Association (SVTOA) One year
membership:
The SVT Owners Association
(SVTOA) is a club dedicated to enhance the SVT
Introduction
3

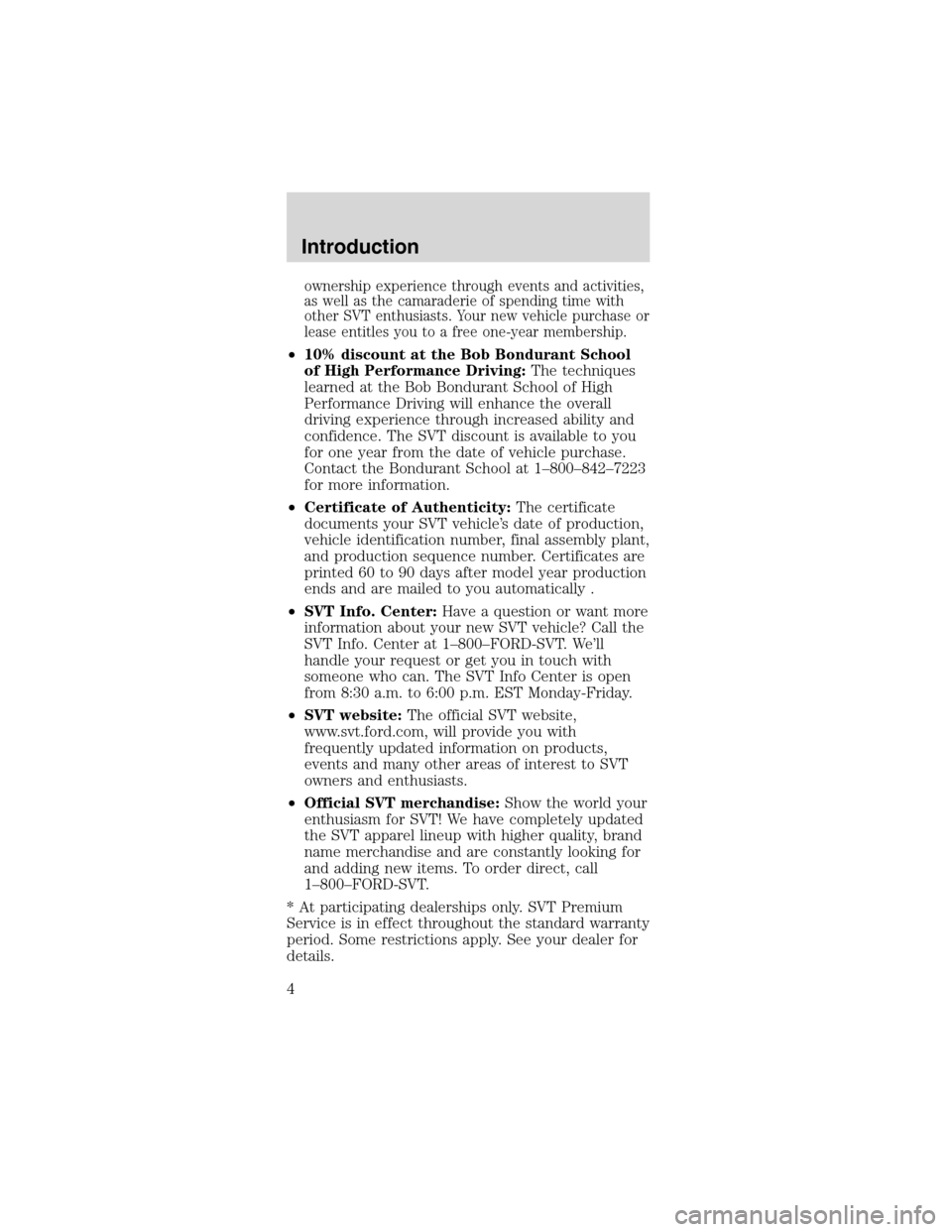

ownership experience through events and activities,
as well as the camaraderie of spending time with
other SVT enthusiasts. Your new vehicle purchase or
lease entitles you to a free one-year membership.
•10% discount at the Bob Bondurant School
of High Performance Driving:The techniques
learned at the Bob Bondurant School of High
Performance Driving will enhance the overall
driving experience through increased ability and
confidence. The SVT discount is available to you
for one year from the date of vehicle purchase.
Contact the Bondurant School at 1–800–842–7223
for more information.
•Certificate of Authenticity:The certificate
documents your SVT vehicle’s date of production,
vehicle identification number, final assembly plant,
and production sequence number. Certificates are
printed 60 to 90 days after model year production
ends and are mailed to you automatically .
•SVT Info. Center:Have a question or want more
information about your new SVT vehicle? Call the
SVT Info. Center at 1–800–FORD-SVT. We’ll
handle your request or get you in touch with
someone who can. The SVT Info Center is open
from 8:30 a.m. to 6:00 p.m. EST Monday-Friday.
•SVT website:The official SVT website,
www.svt.ford.com, will provide you with
frequently updated information on products,
events and many other areas of interest to SVT
owners and enthusiasts.
•Official SVT merchandise:Show the world your
enthusiasm for SVT! We have completely updated
the SVT apparel lineup with higher quality, brand
name merchandise and are constantly looking for
and adding new items. To order direct, call
1–800–FORD-SVT.
* At participating dealerships only. SVT Premium
Service is in effect throughout the standard warranty
period. Some restrictions apply. See your dealer for
details.
Introduction
4

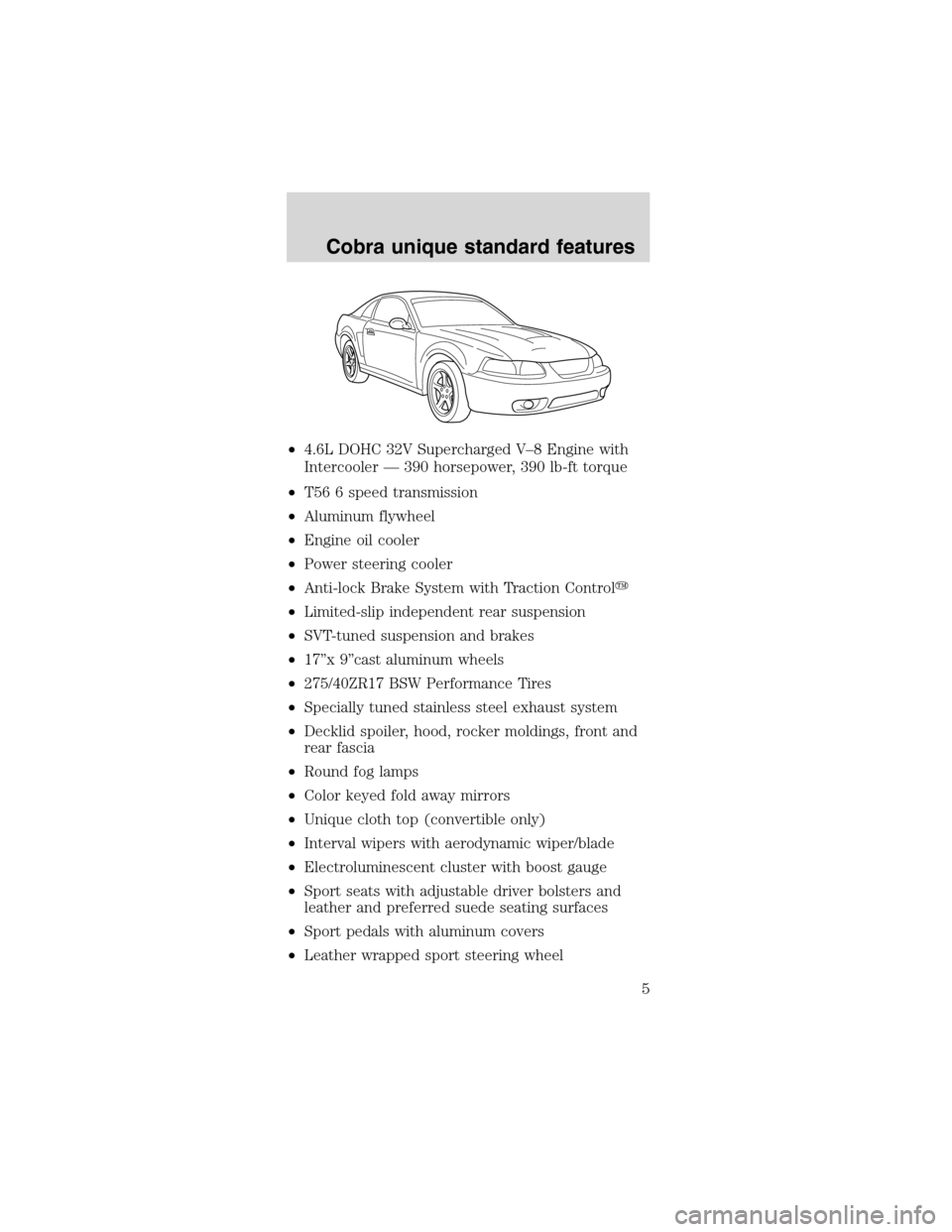

•4.6L DOHC 32V Supercharged V–8 Engine with
Intercooler—390 horsepower, 390 lb-ft torque
•T56 6 speed transmission
•Aluminum flywheel
•Engine oil cooler
•Power steering cooler
•Anti-lock Brake System with Traction Control

•Limited-slip independent rear suspension
•SVT-tuned suspension and brakes
•17”x9”cast aluminum wheels
•275/40ZR17 BSW Performance Tires
•Specially tuned stainless steel exhaust system
•Decklid spoiler, hood, rocker moldings, front and
rear fascia
•Round fog lamps
•Color keyed fold away mirrors
•Unique cloth top (convertible only)
•Interval wipers with aerodynamic wiper/blade
•Electroluminescent cluster with boost gauge
•Sport seats with adjustable driver bolsters and
leather and preferred suede seating surfaces
•Sport pedals with aluminum covers
•Leather wrapped sport steering wheel
Cobra unique standard features
5

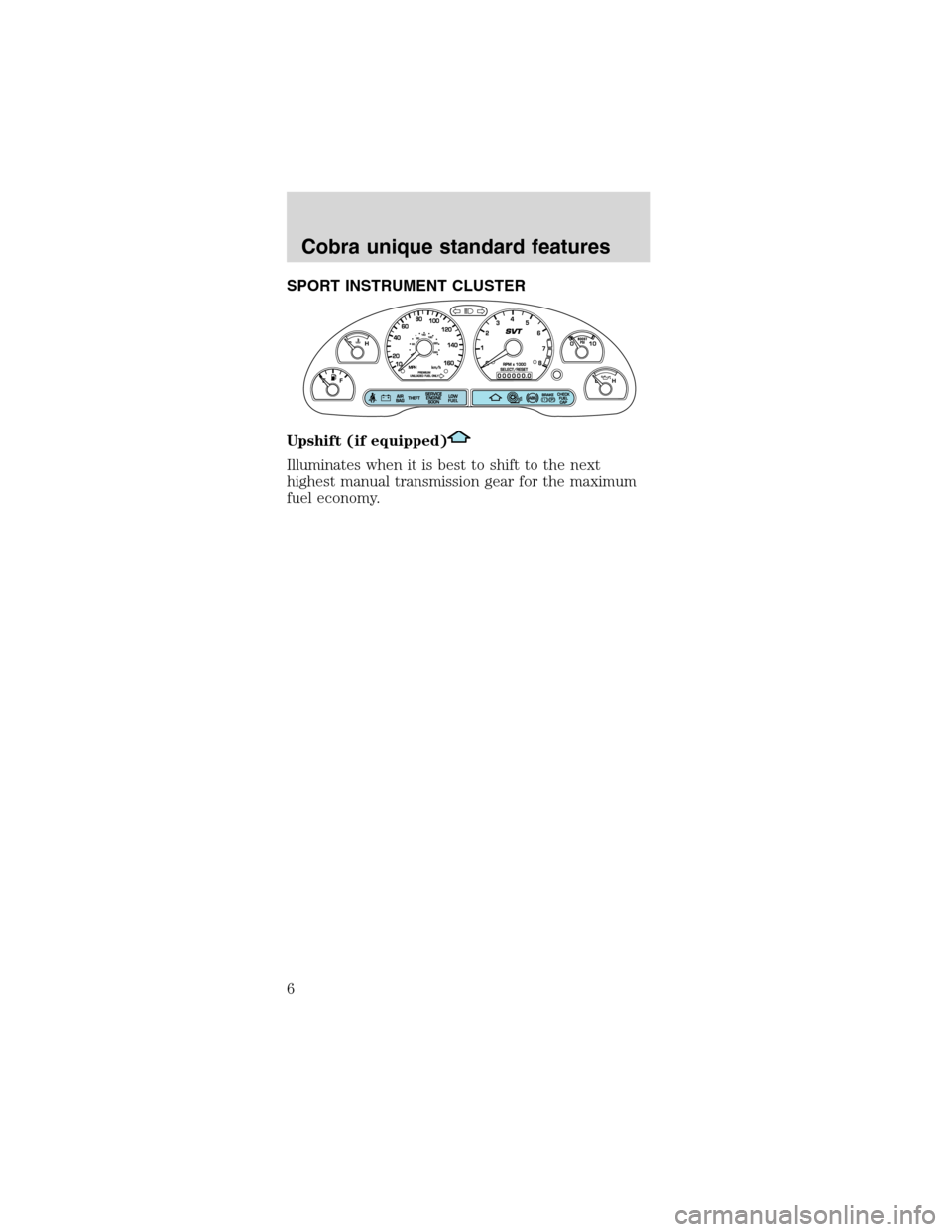

SPORT INSTRUMENT CLUSTER
Upshift (if equipped)
Illuminates when it is best to shift to the next
highest manual transmission gear for the maximum
fuel economy.
Cobra unique standard features
6

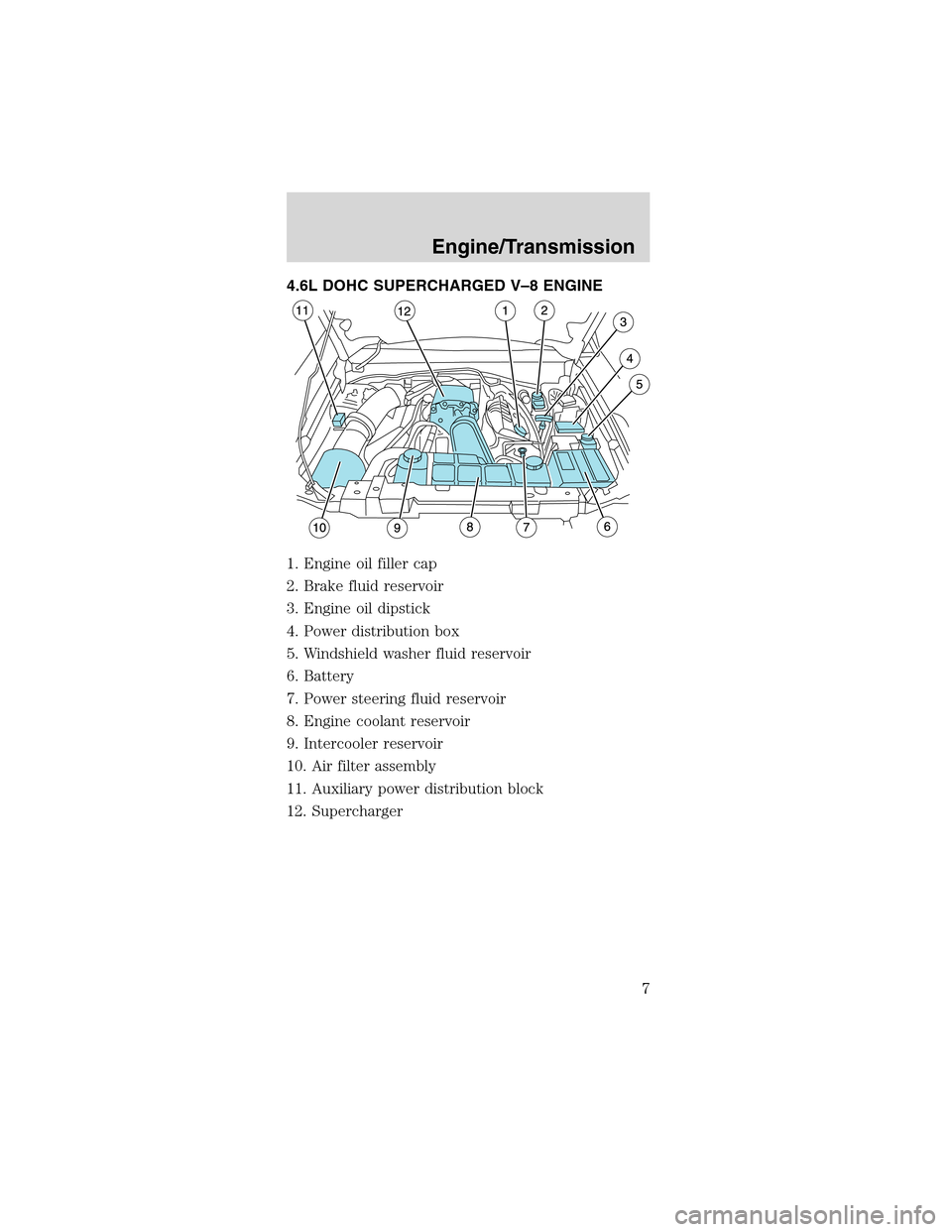

4.6L DOHC SUPERCHARGED V–8 ENGINE
1. Engine oil filler cap
2. Brake fluid reservoir
3. Engine oil dipstick
4. Power distribution box
5. Windshield washer fluid reservoir
6. Battery
7. Power steering fluid reservoir
8. Engine coolant reservoir
9. Intercooler reservoir
10. Air filter assembly
11. Auxiliary power distribution block
12. Supercharger
Engine/Transmission
7

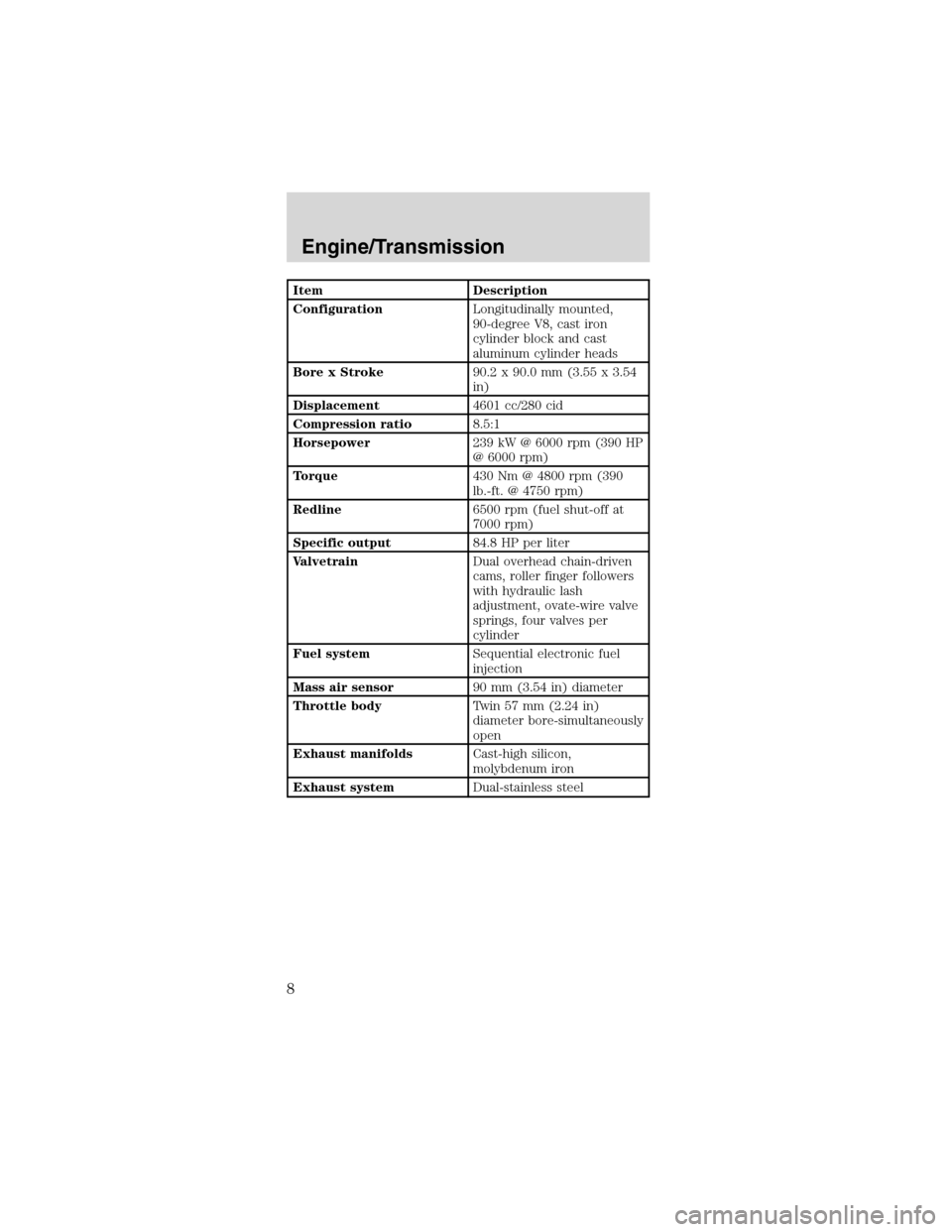

Item Description
ConfigurationLongitudinally mounted,
90-degree V8, cast iron
cylinder block and cast
aluminum cylinder heads
Bore x Stroke90.2 x 90.0 mm (3.55 x 3.54
in)
Displacement4601 cc/280 cid
Compression ratio8.5:1
Horsepower239 kW @ 6000 rpm (390 HP
@ 6000 rpm)
Torque430 Nm @ 4800 rpm (390
lb.-ft. @ 4750 rpm)
Redline6500 rpm (fuel shut-off at
7000 rpm)
Specific output84.8 HP per liter
ValvetrainDual overhead chain-driven
cams, roller finger followers
with hydraulic lash
adjustment, ovate-wire valve
springs, four valves per
cylinder
Fuel systemSequential electronic fuel
injection
Mass air sensor90 mm (3.54 in) diameter
Throttle bodyTwin 57 mm (2.24 in)
diameter bore-simultaneously
open
Exhaust manifoldsCast-high silicon,
molybdenum iron
Exhaust systemDual-stainless steel
Engine/Transmission
8

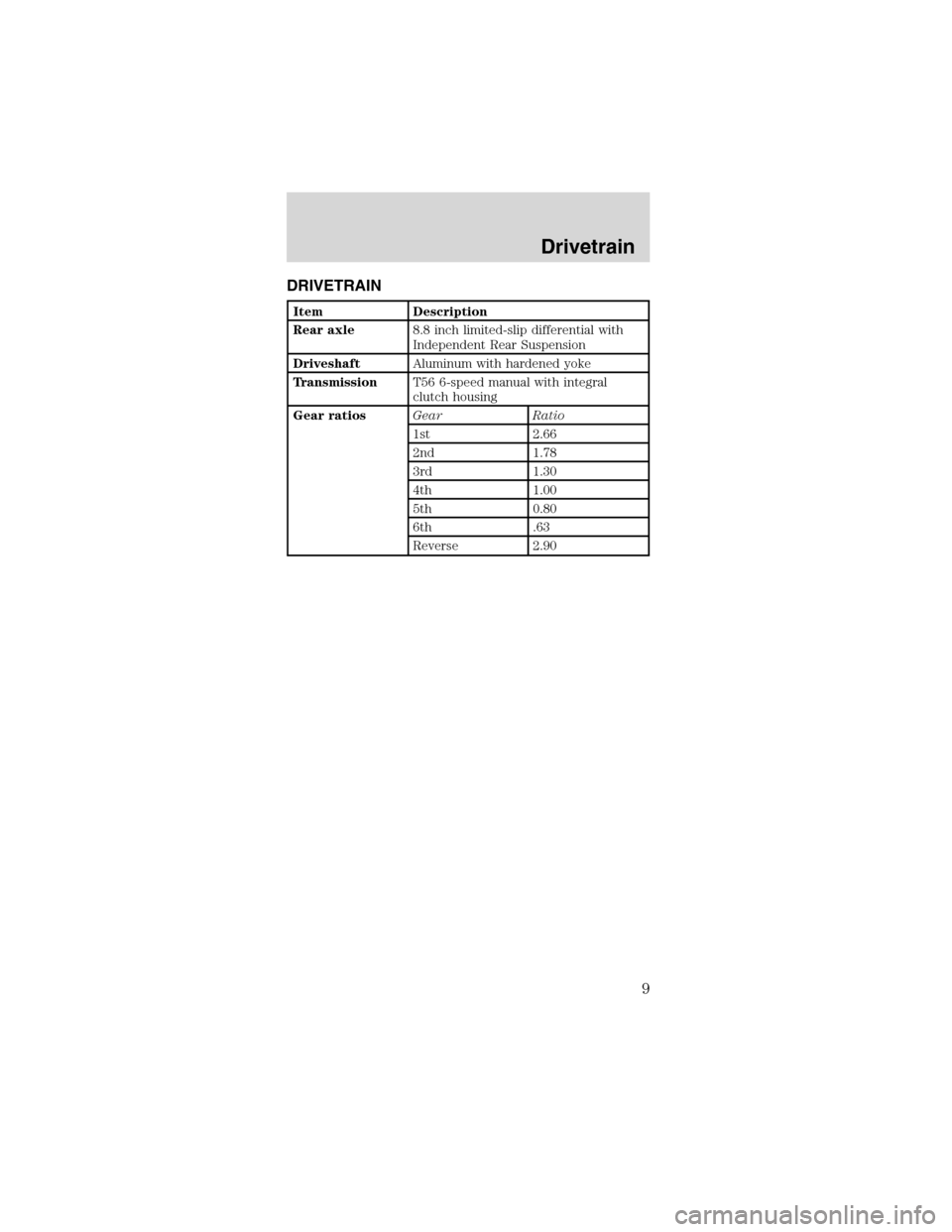

DRIVETRAIN
Item Description
Rear axle8.8 inch limited-slip differential with
Independent Rear Suspension
DriveshaftAluminum with hardened yoke
TransmissionT56 6-speed manual with integral
clutch housing
Gear ratiosGear Ratio
1st 2.66
2nd 1.78
3rd 1.30
4th 1.00
5th 0.80
6th .63
Reverse 2.90
Drivetrain
9

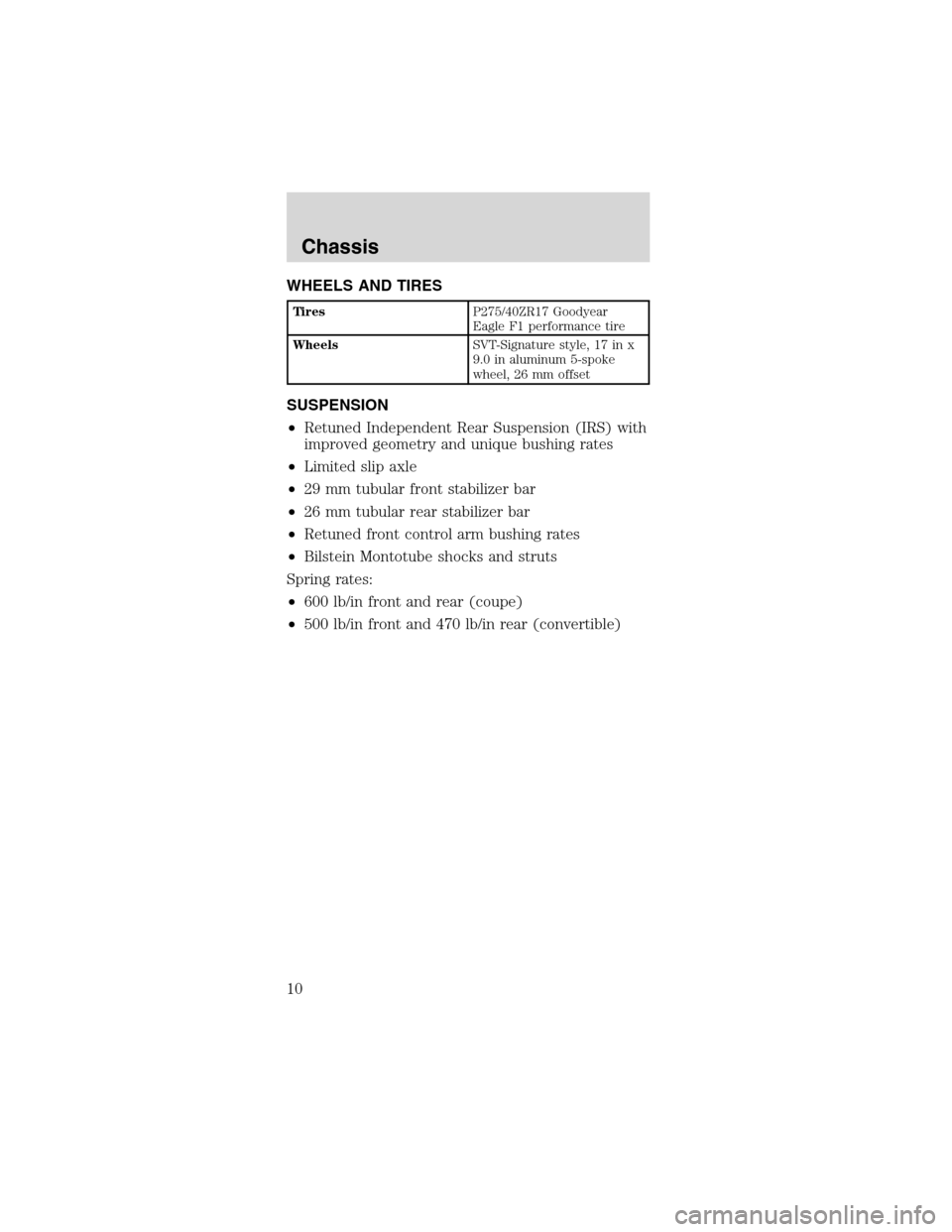

WHEELS AND TIRES
TiresP275/40ZR17 Goodyear
Eagle F1 performance tire
WheelsSVT-Signature style, 17 in x
9.0 in aluminum 5-spoke
wheel, 26 mm offset
SUSPENSION
•Retuned Independent Rear Suspension (IRS) with
improved geometry and unique bushing rates
•Limited slip axle
•29 mm tubular front stabilizer bar
•26 mm tubular rear stabilizer bar
•Retuned front control arm bushing rates
•Bilstein Montotube shocks and struts
Spring rates:
•600 lb/in front and rear (coupe)
•500 lb/in front and 470 lb/in rear (convertible)
Chassis
10
